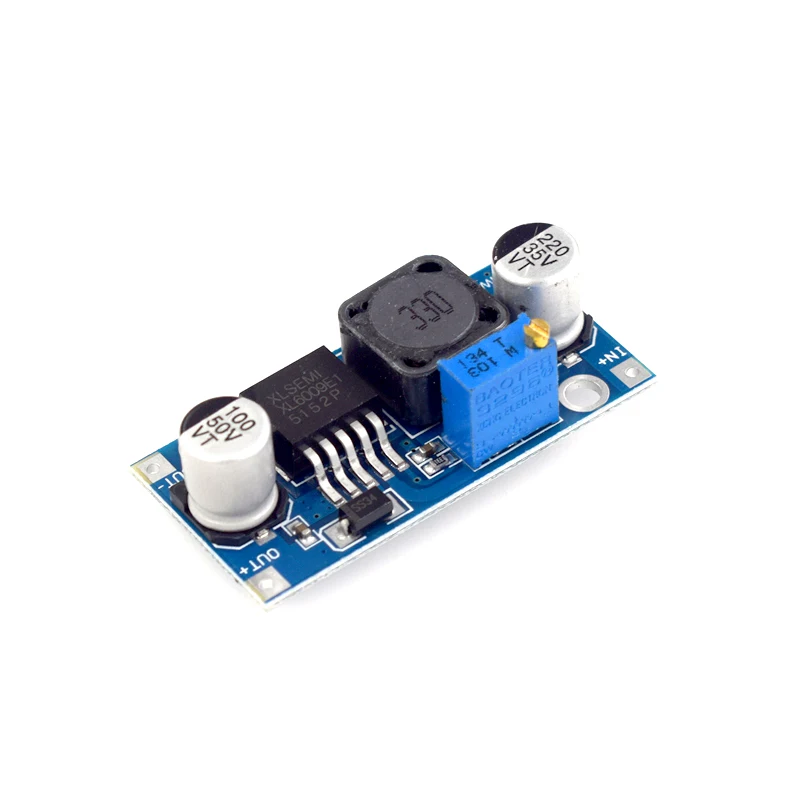

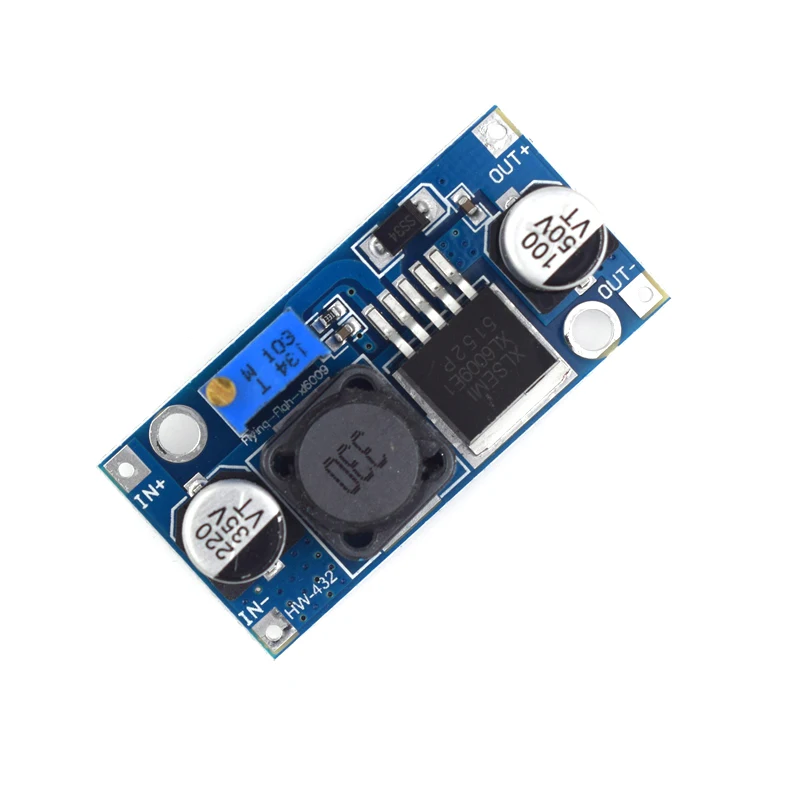

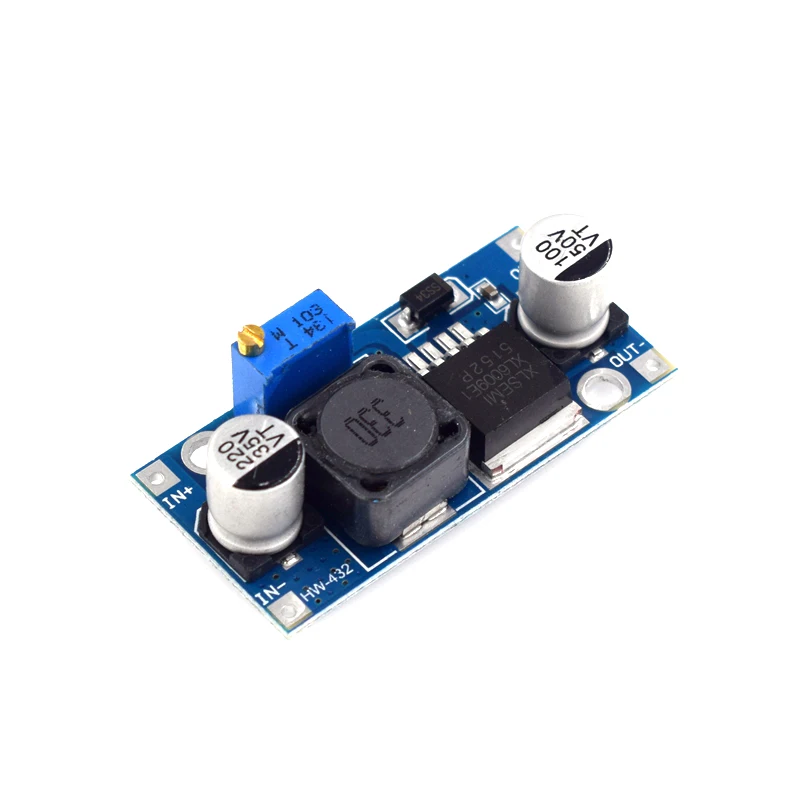

XL6009 is a high-performance boost (BOOST) module with 4A switching current. This module uses XL6009E1, a second-generation high-frequency switch technology, as the core chip, which has much better performance than LM2577, a first generation technology. The XL6009 boost module has lower cost and superior performance, The LM2577 module is about to be phased out.

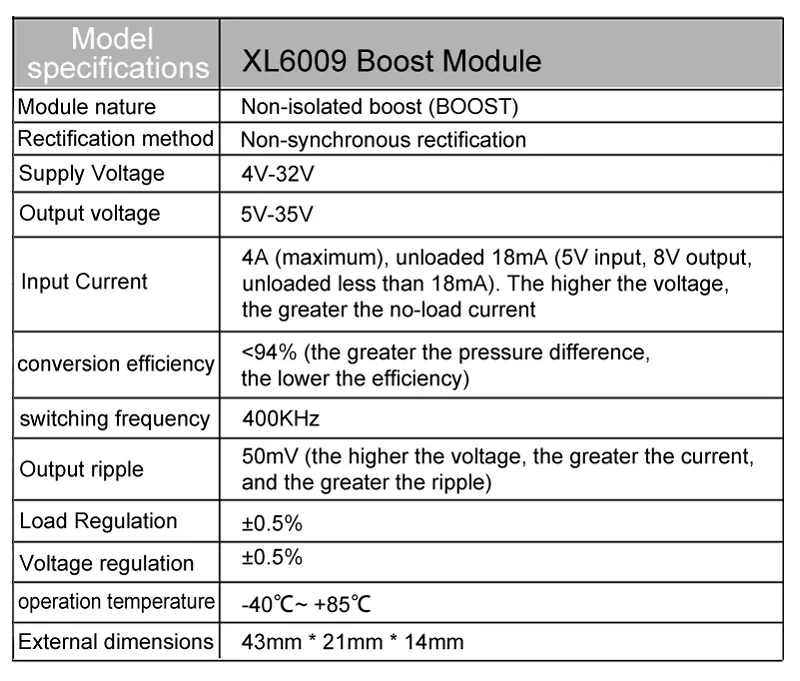

Product parameters:

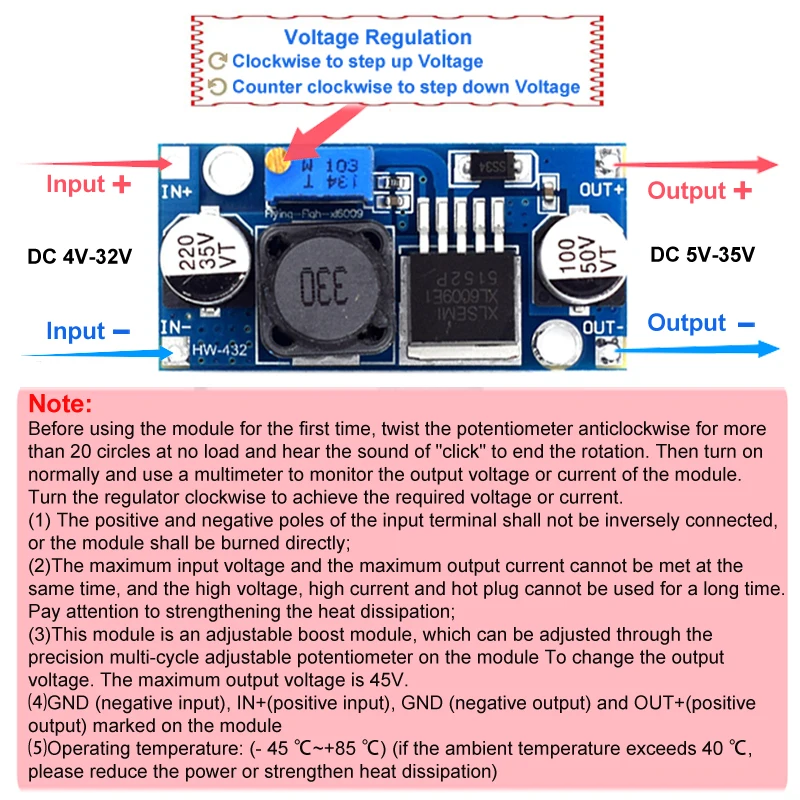

Power supply voltage: 4V~32V, the optimal operating voltage range is 5V-32V;
Output voltage: 5V~35V
Built in 4A high-efficiency MOSFET switch, achieving a maximum efficiency of 94%; (LM2577 current is only 3A)
The ultra-high switching frequency of 400KHz can achieve very good results with small capacity filtering capacitors, with smaller ripple and volume. (LM2577 frequency is only 50KHz)
