【Note】
- RP2040-PiZero is Not Raspberry Pi Zero, Cann’t run Linux, It is a Raspberry Pi PICO RP2040 board
- The GamePi13 Cann’t be used alone. You need to buy a Raspberry Pi Zero or RP2040-PiZero
【Product display】
- Connect RP2040-PiZero board

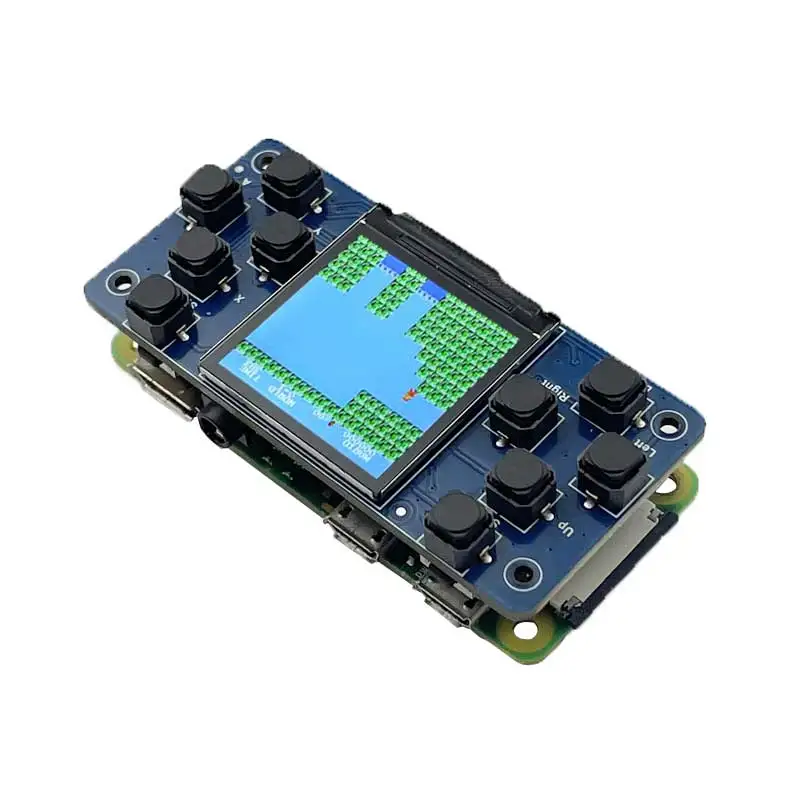

- Connect the RPi Zero 2W board
【Overview】
- GamePi13 And RP2040-PiZero For creating Raspberry Pi PICO RP2040 projects like gaming consoles and digital albums.
- GamePi13 And Raspberry Pi Zero 2W can run Linux. It can run various game simulators, play videos, etc.

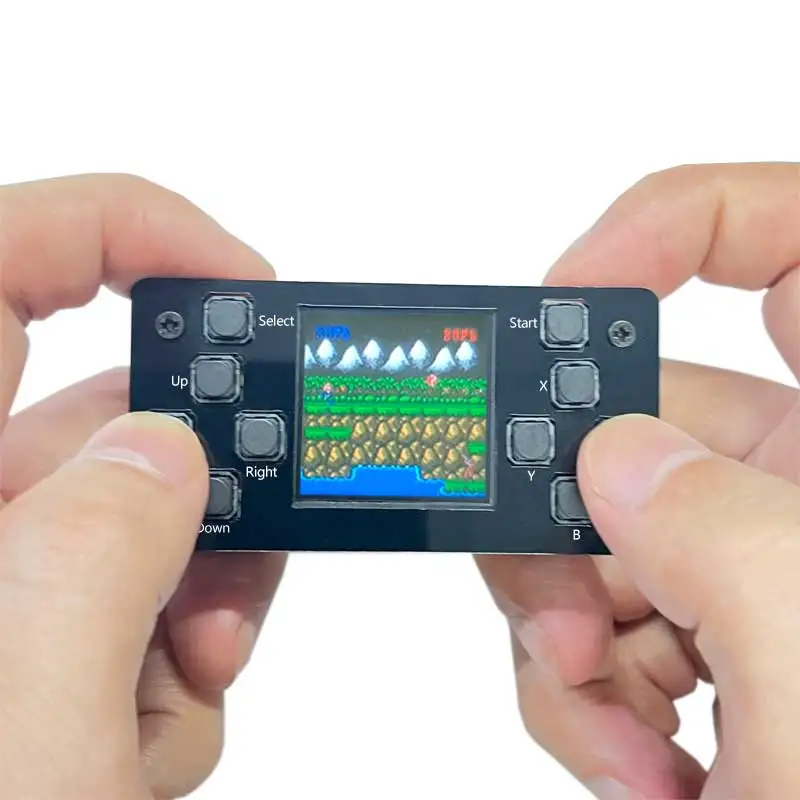

1.3″ LCD Game Console For Raspberry Pi
Providing Demos For Raspberry Pi / RP2040-PiZero
240 × 240 Resolution, Integrated ST7789 Driver Chip, SPI Communication
【Product Parameters】

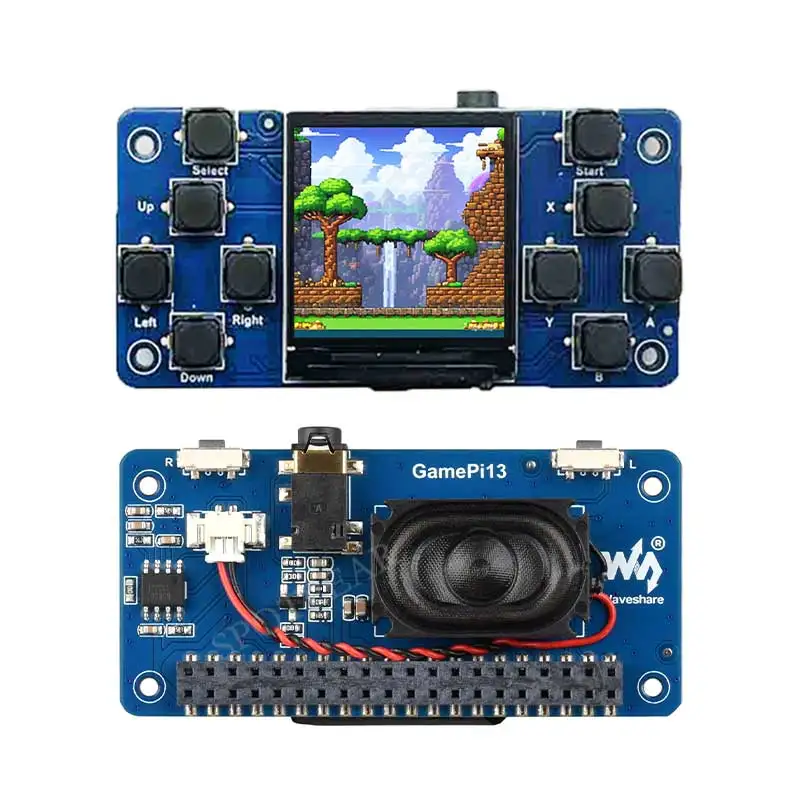

【GamePi13】
- Operating voltage: 3.3V
- Interface: SPI
- LCD type: TFT
- Display controller: ST7789V
- Resolution: 240 * 240
- Support 65K color display
- IPS wide viewing angle
- PWM audio output: buzzer and headphone port
- 12 buttons
【RP2040-PiZero board】 (optional, not included by default)
- Using Raspberry Pi’s self-designed RP2040 microcontroller chip
- Dual-core ARM Cortex M0+ processor, running at up to 133MHz flexible clock
- Built-in 264KB SRAM and 16MB on-chip Flash
- Onboard DVI interface, can drive most HDMI screens (need to be compatible with DVI interface)
- Onboard PIO-USB interface, can be used as USB host and slave
- Onboard Micro SD card holder, can read and write Micro SD card
- Onboard lithium battery charging and discharging interface, which is conducive to mobile scene use
- USB1.1 host and device support
- Can be identified as a large-capacity storage through USB for drag-and-drop download of programs
- Support low-power sleep and hibernation modes
- 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC and 16 controllable PWM channels
- Accurate on-chip clocks and timers
- Temperature sensor
- On-chip accelerated floating-point library
- 8 programmable I/O (PIO) state machines for custom peripheral support
- Connect RP2040-PiZero board
【Raspberry Pi Zero 2W】(optional, not included by default)
- Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
- 512MB LPDDR2 SDRAM
- 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE
- Onboard 1 Micro USB 2.0 interface with OTG
- Onboard Raspberry Pi 40 Pin GPIO interface solder pads, suitable for Raspberry Pi series expansion boards
- MicroSD card slot
- Mini HDMI output interface
- Composite video interface solder pads, and reset interface solder pads
- CSI-2 camera interface
- H.264, MPEG-4 encoding (1080p30); H.264 decoding (1080p30)
- Support OpenGL ES 1.1, 2.0 Graphics
Connect the RPi Zero 2W board
