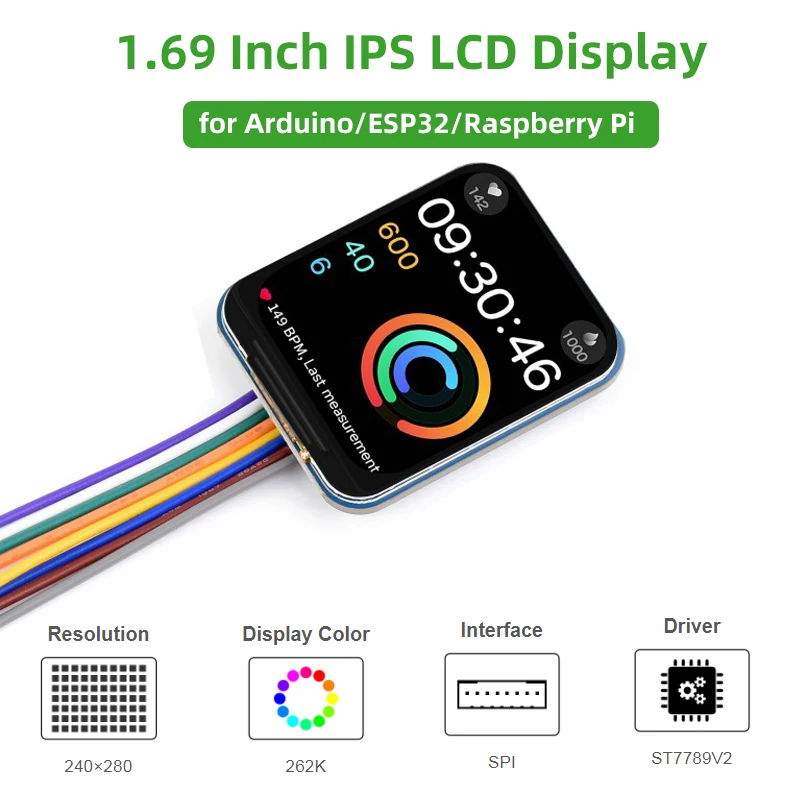

1.69inch LCD Display Module
Embedded ST7789V2 Driver Chip, Using SPI Interface
Comes with examples for Raspberry Pi, Arduino, STM32, etc.

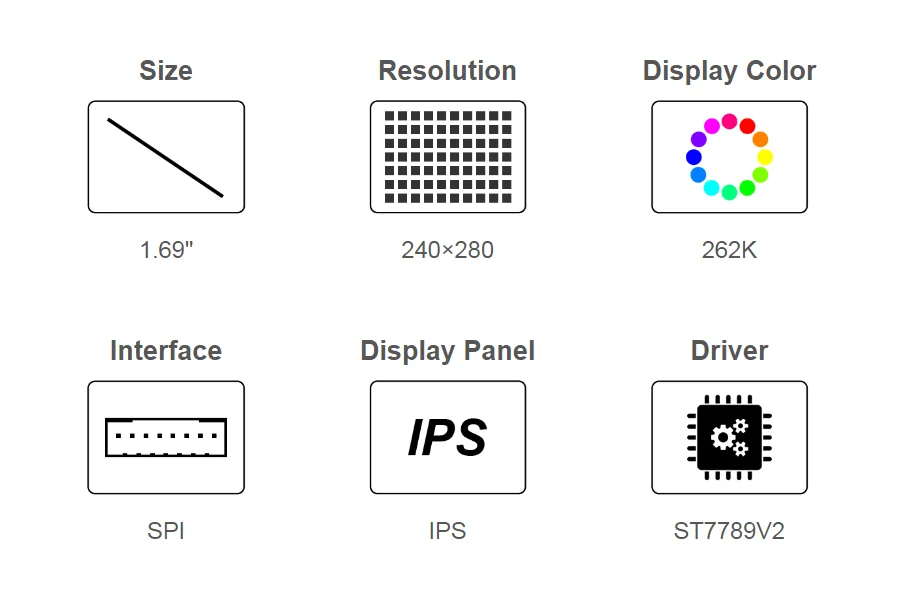

Features At A Glance
- 240×280 resolution, 262K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 240 × 280 pixels |
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 27.97 × 32.63mm |
| DISPLAY PANEL | IPS | PIXEL SIZE | 0.11655 × 0.11655mm |
| DRIVER | ST7789V2 | MODULE SIZE | 31.50 × 39.00mm |

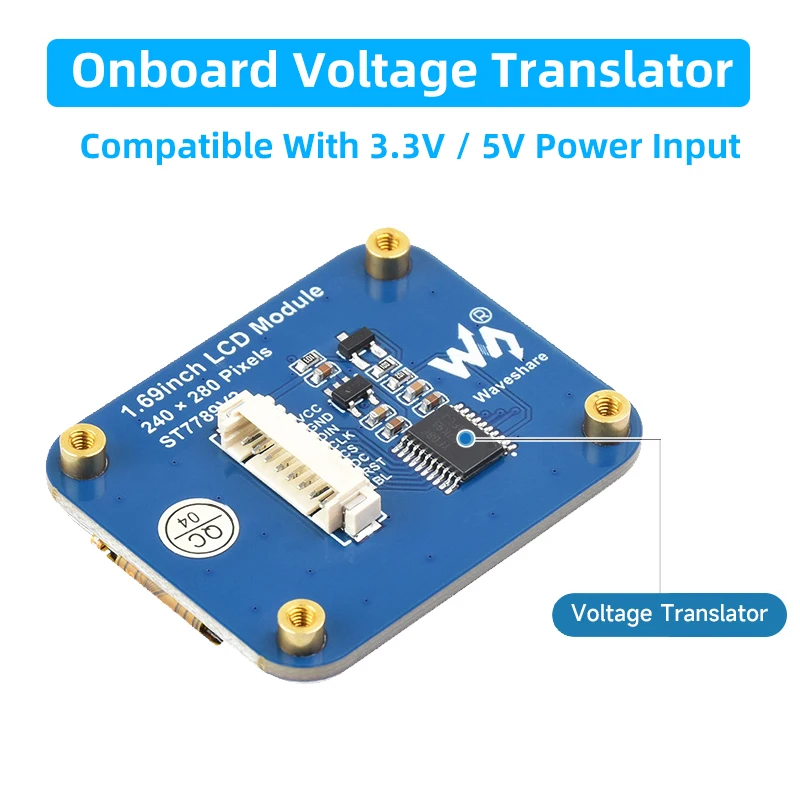

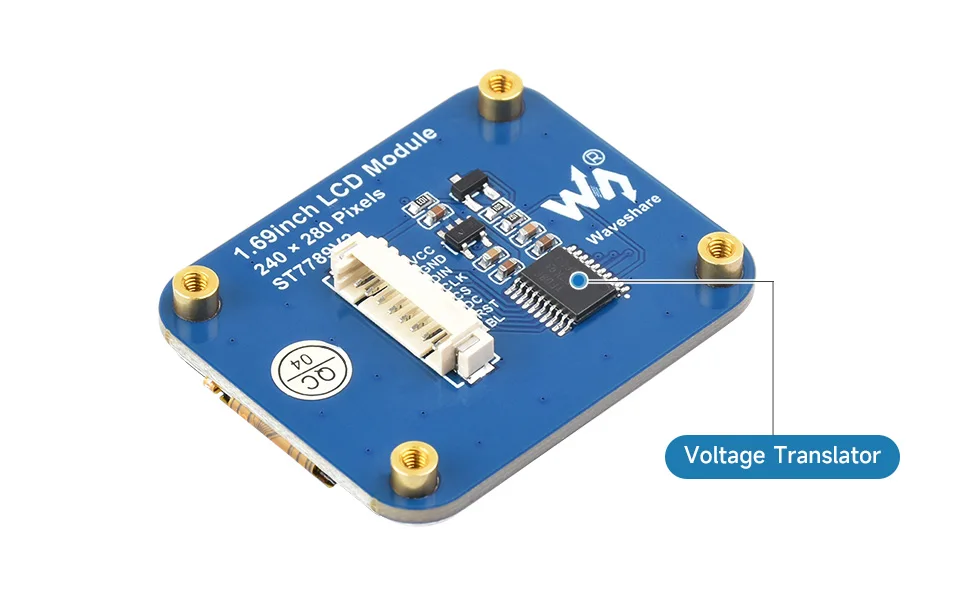

Onboard Voltage Translator
Compatible With 3.3V / 5V Power Input

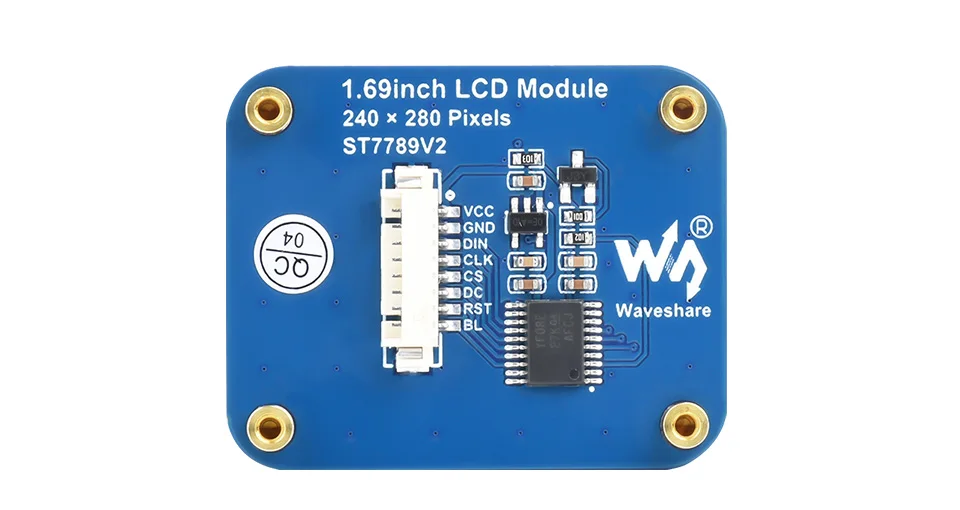

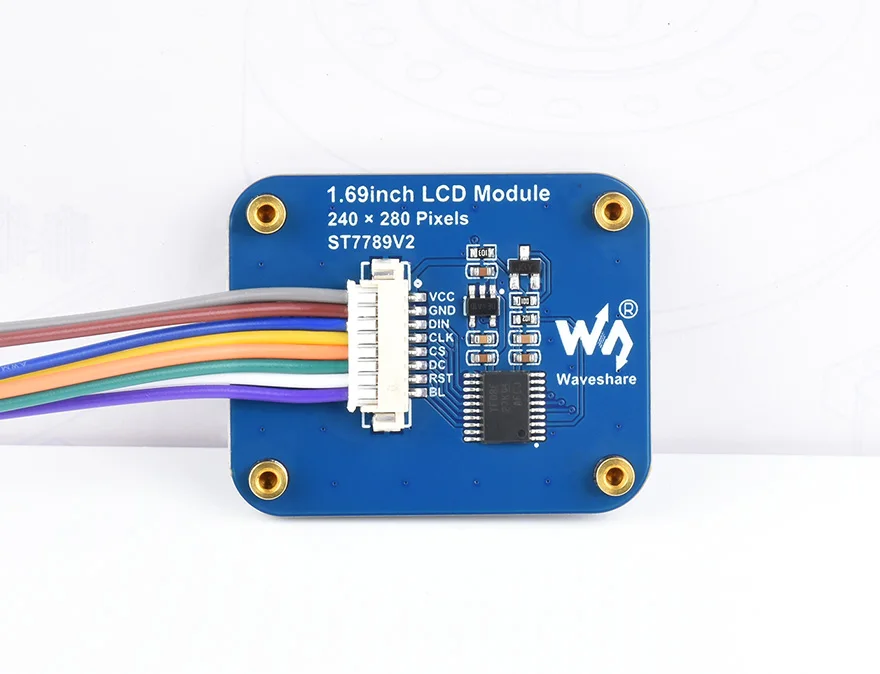

Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi / Arduino / STM32
| VCC | Power (3.3V / 5V input) |
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Hardware Connection

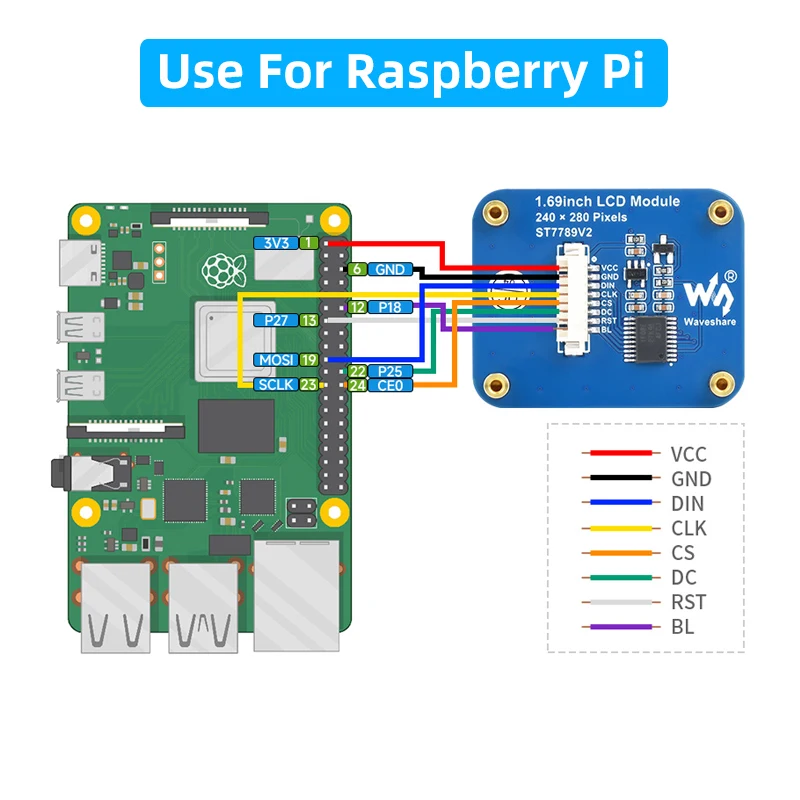

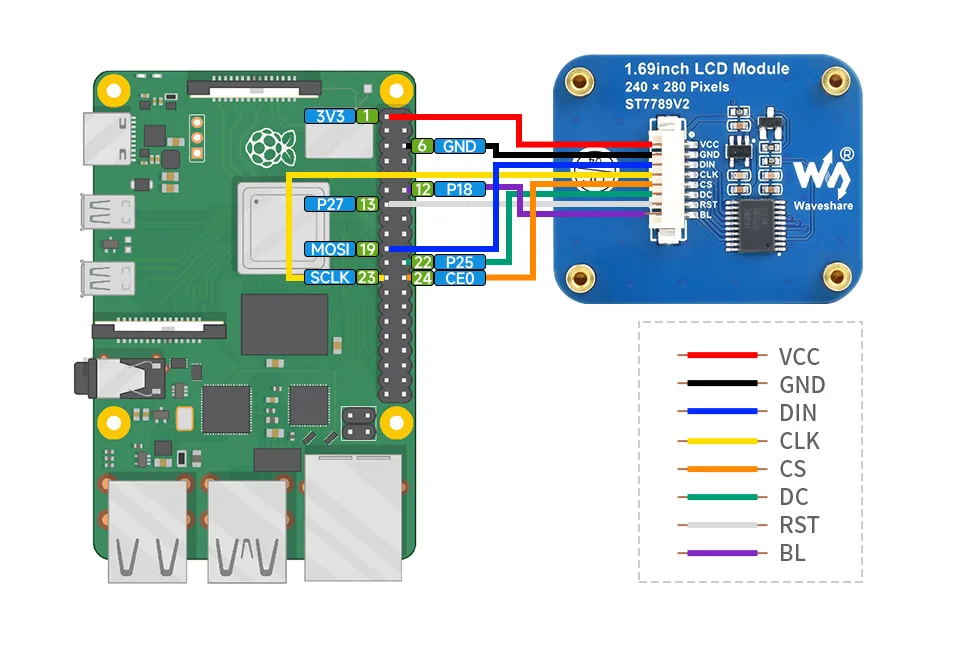

Connecting with Raspberry Pi

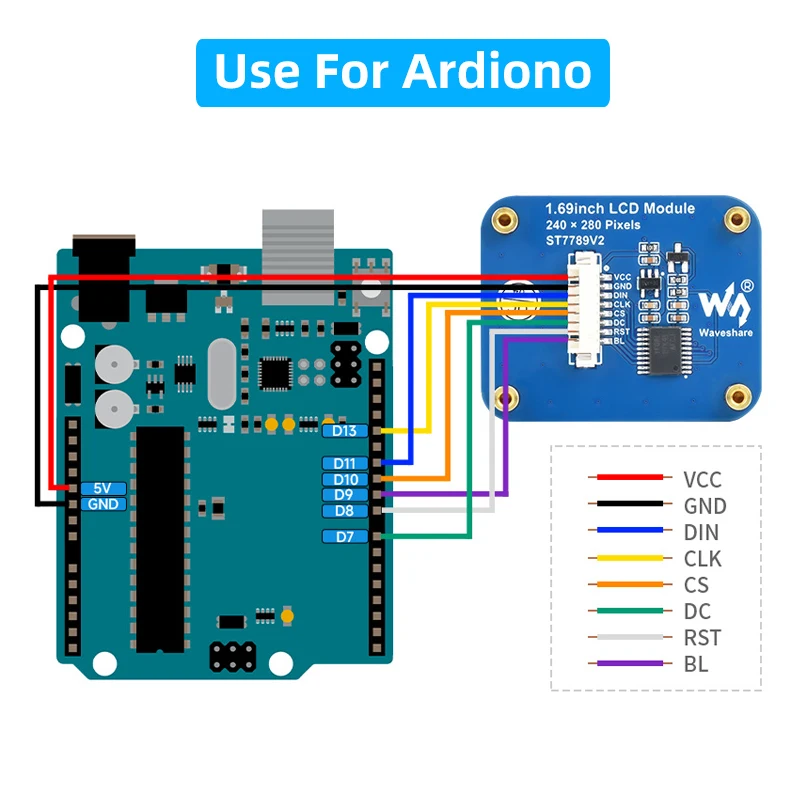

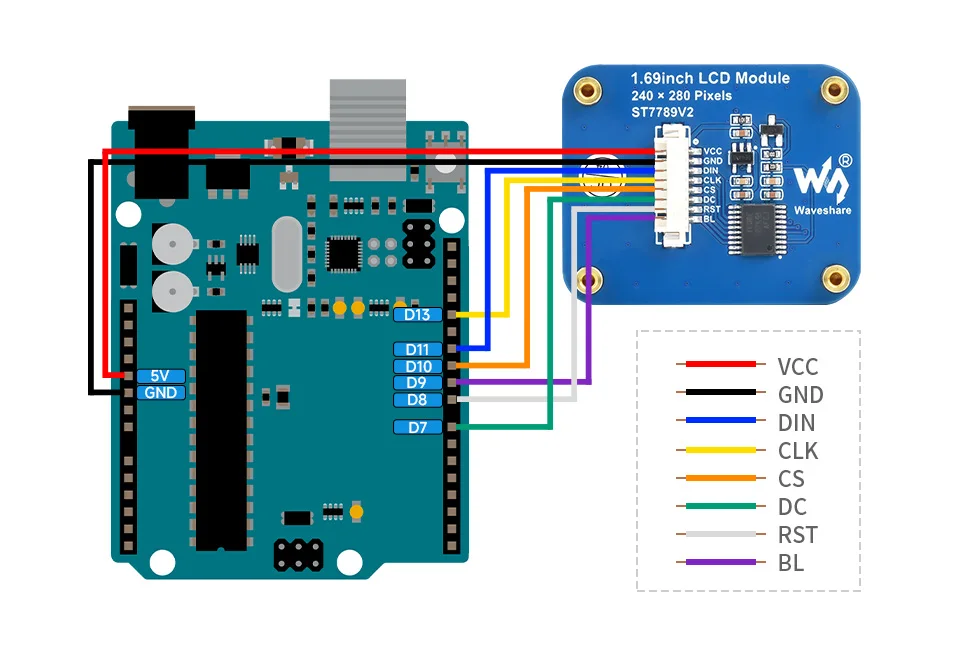

Connecting with Arduino board

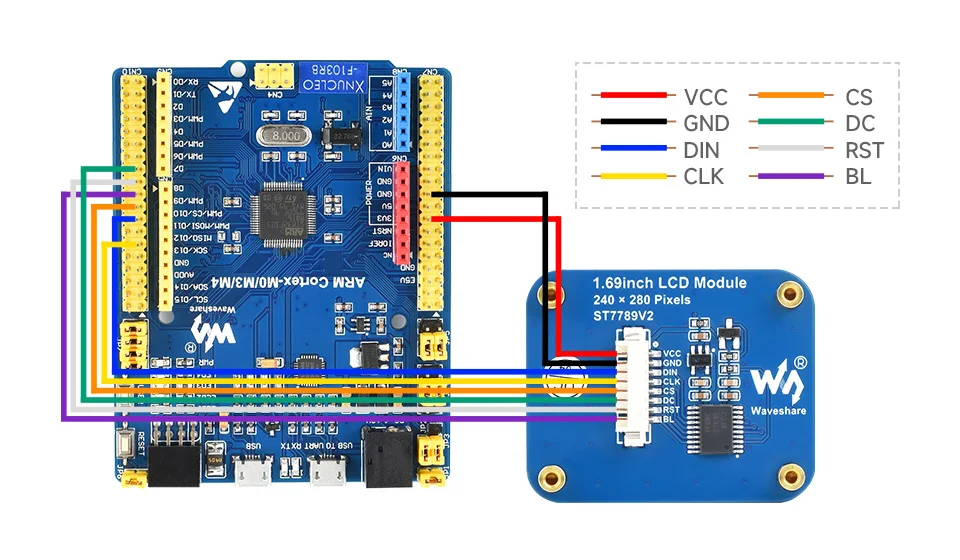

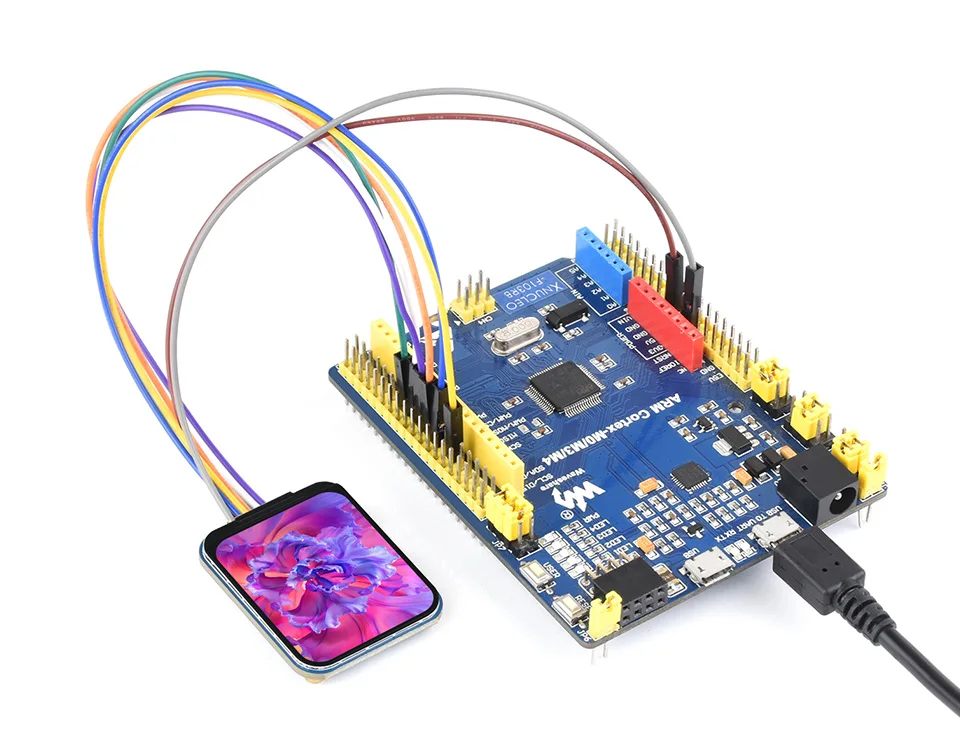

Connecting with STM32
Usage Example

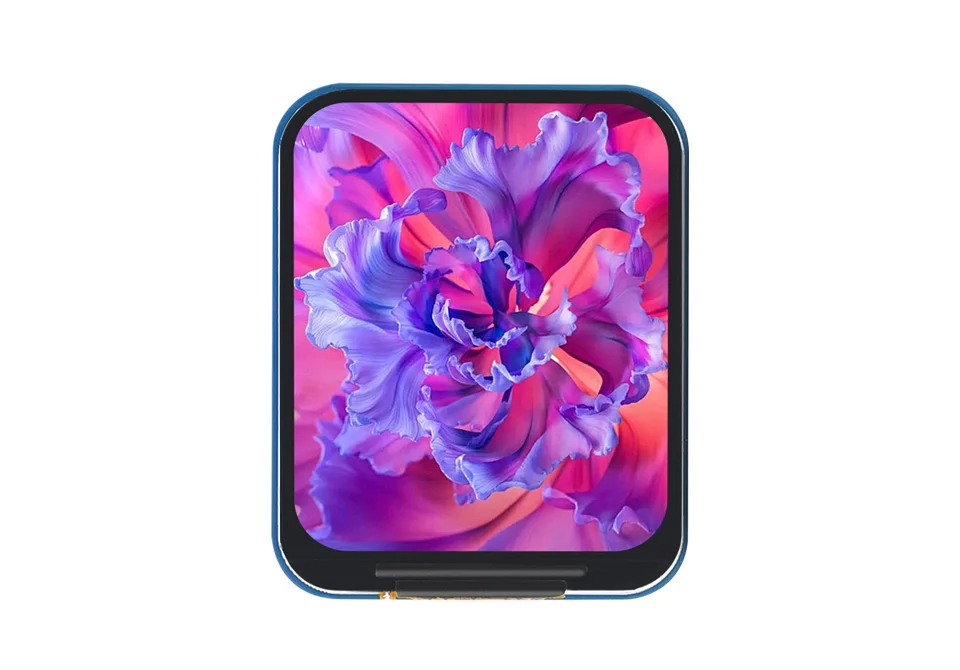

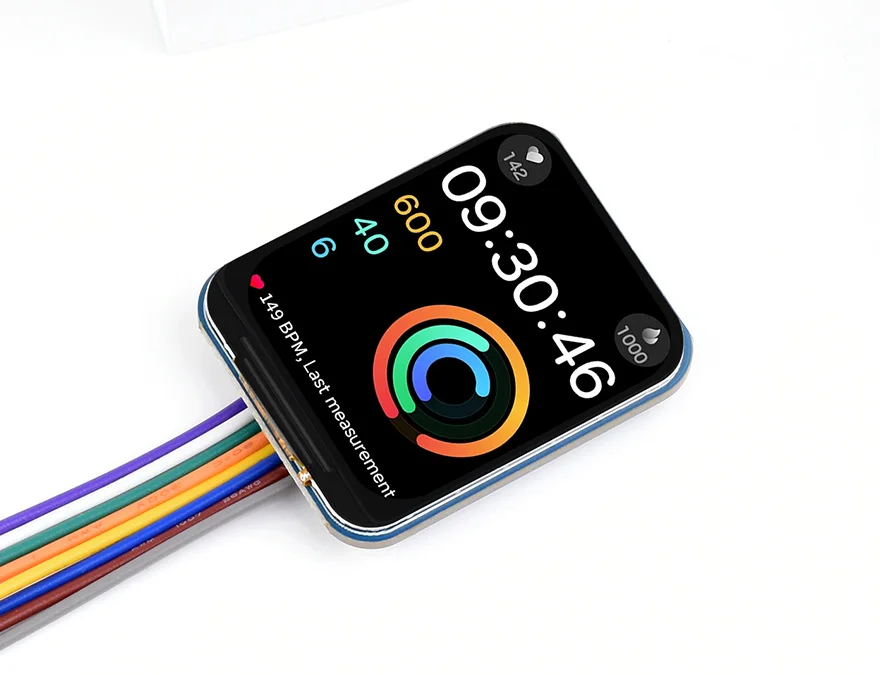

Product Show

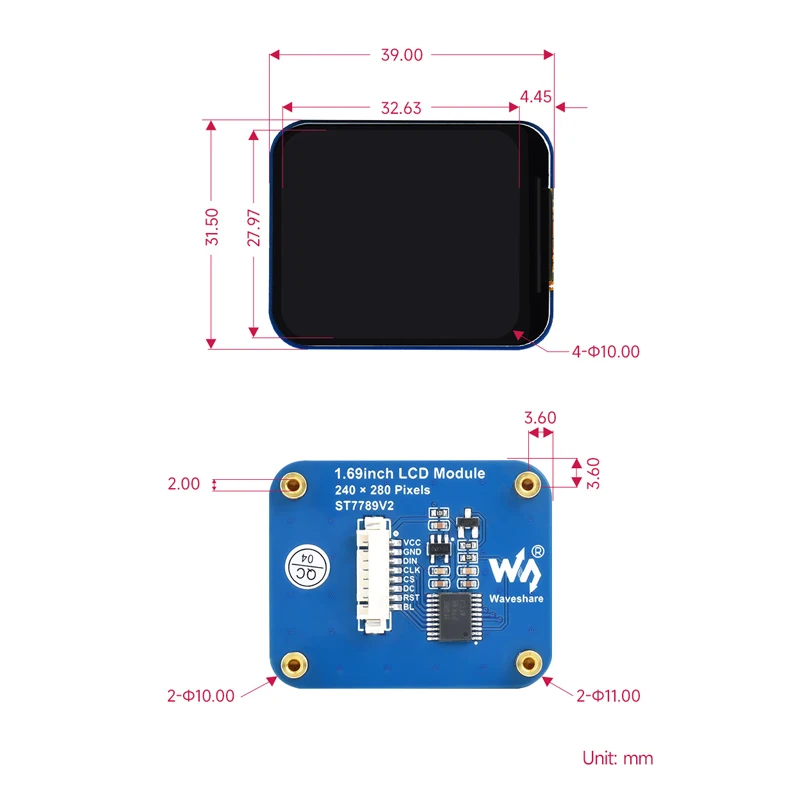

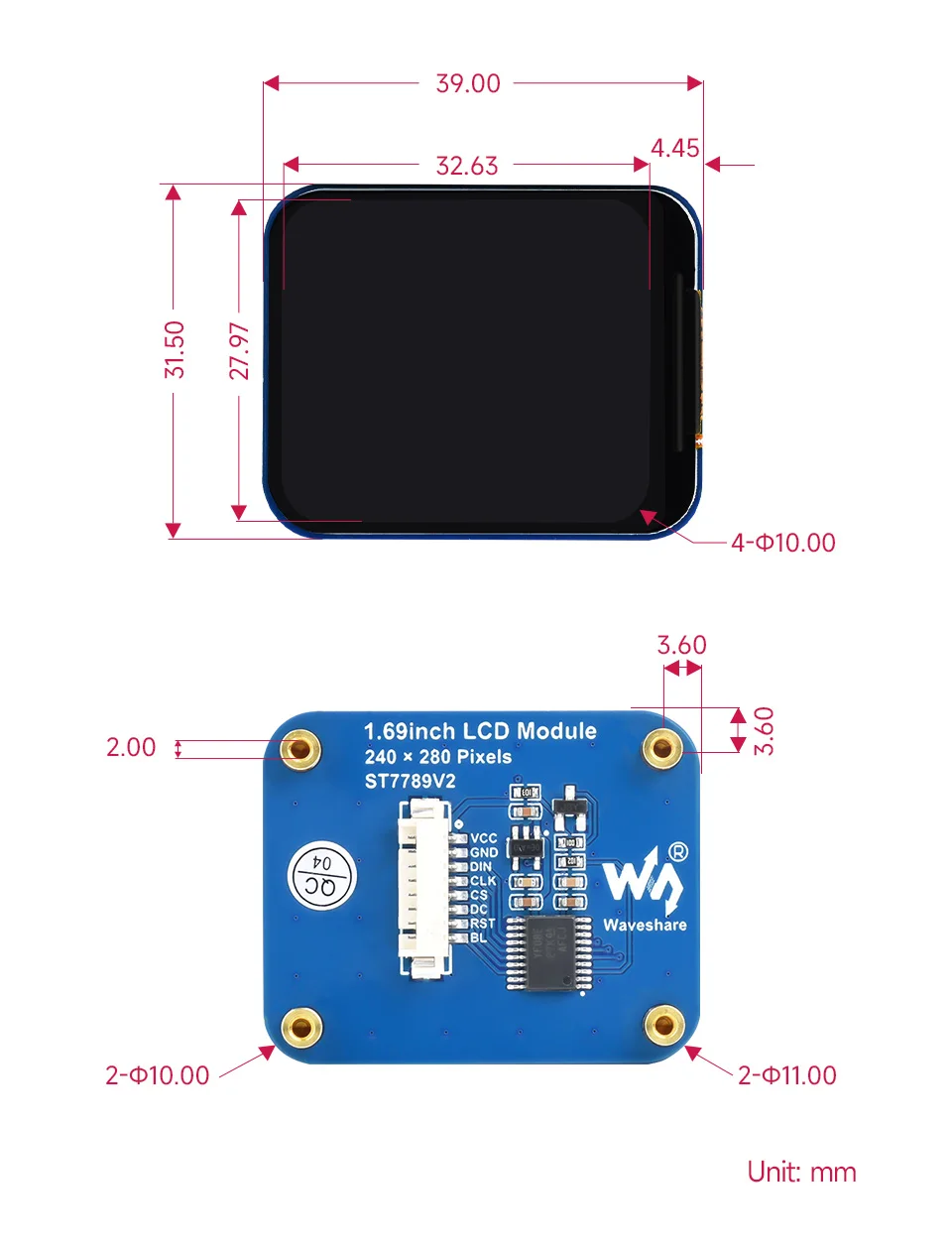

Outline Dimensions
Resources

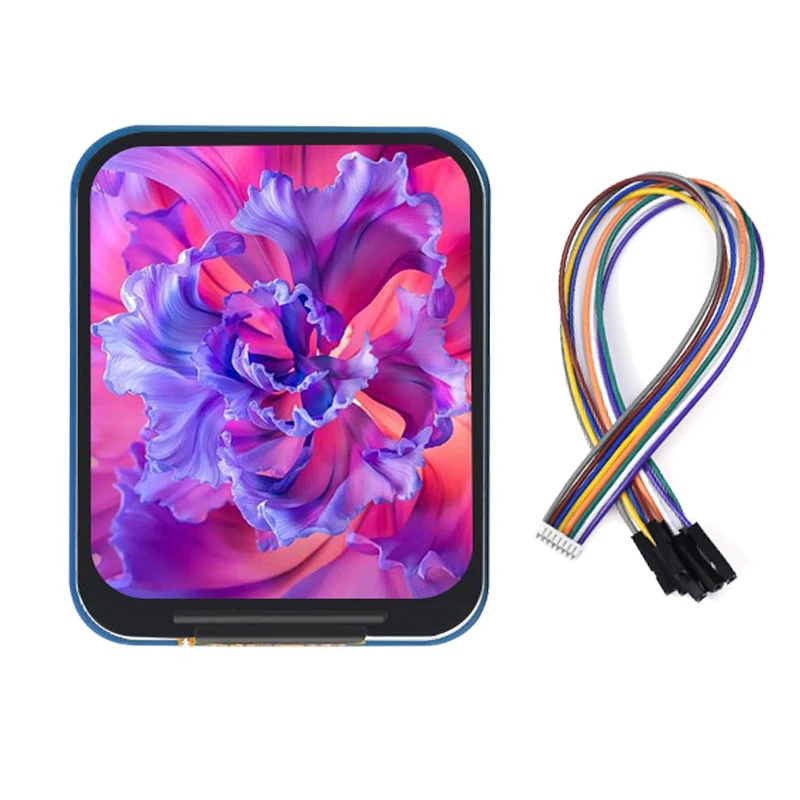

Packing List
1 x 1.69 Inch IPS LCD Module
1 x GH1.25 20cm 8Pin Cable
