1. Up to 1000KV DC high voltage generator
2. Ideal for DIY enthusiasts
3. Can be used for high voltage in secondary school science experiments, electronic instruments, negative ion generators and small science productions
4. TYPE-C interface, can be charged with charger
5. The product is made of high quality materials, quality is guaranteed
Product description:
This module is a high voltage inverter and transformer/booster for small scientific productions. After inputting DC3.7V-6V voltage at the input side, it can get tens of thousands of volts of DC high voltage at the output side, which can be used for high voltage in secondary school science experiments, electronic instruments, negative ion generators and scientific small productions. The module is made by using the Tesla coil principle, outputting high voltage pulse current, small size, high efficiency, simple peripheral circuit (only need to connect the switch and battery), and the discharge intensity is violent.
Product parameters.
Input voltage: DC3.6-6V red positive pole, green negative pole, do not connect, connection will burn the module
Input current: 2A-5A (related to voltage)
High voltage type: pulse high and low voltage integrated type
Output voltage: about 500KV-1000KV (please pay attention to safety when using)
High voltage discharge distance between poles: 10-20mm
Output high voltage line length: approx. 100mm
Input power cable length: approx. 100mm (red wire is positive pole)
Product usage:
module is divided into input and output, red and green wire for the input, red wire positive level, green wire negative level, the other end of the double red thicker high-voltage output, fixed high-voltage wire end of the appropriate distance, the input end connected to the battery to generate high-voltage arc;
About the input power: you can use a single 3.7V lithium battery, such as 18650 batteries, idle mobile phone batteries (to remove the protection plate, the recommended capacity of 2000mAh or more) or NiCd/NiMH battery pack, lead-acid batteries, etc.
Notes on the use of the module:
1, high voltage module should avoid high voltage no-load when energized to use, before energizing must be adjusted to the appropriate distance from the end of the high voltage line, high voltage line arcing distance is proportional to the voltage and capacity of the battery used.
2, test the arc distance from short to long experiments, energized strictly prohibited beyond the longest arc distance, due to the high voltage energy can not be released, very easy to damage the module.
3, the module’s power is large, the internal should not be heat dissipation, so do not work for a long time, a time to work 3-5 seconds.
4, to determine whether the battery capacity can drive the output of the maximum power is to measure the battery voltage when pulling the arc. If in about 6V can output the maximum power.
5, small capacity lithium 1 series for 3.7V, in the arc pull state measurement voltage has fallen to about 2V, the smaller the capacity the lower the voltage pull. So it is recommended to use more than 2000MA lithium battery, the best conditions with more than 4000MA battery.

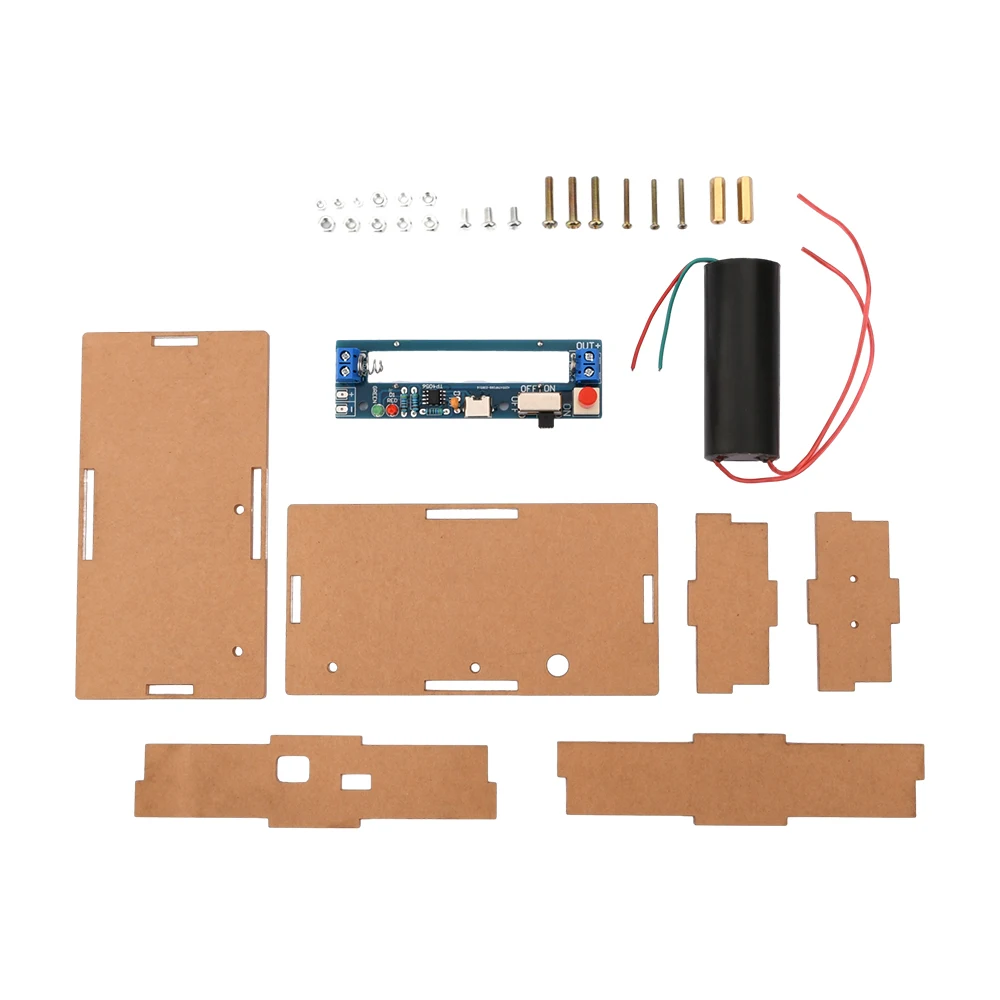

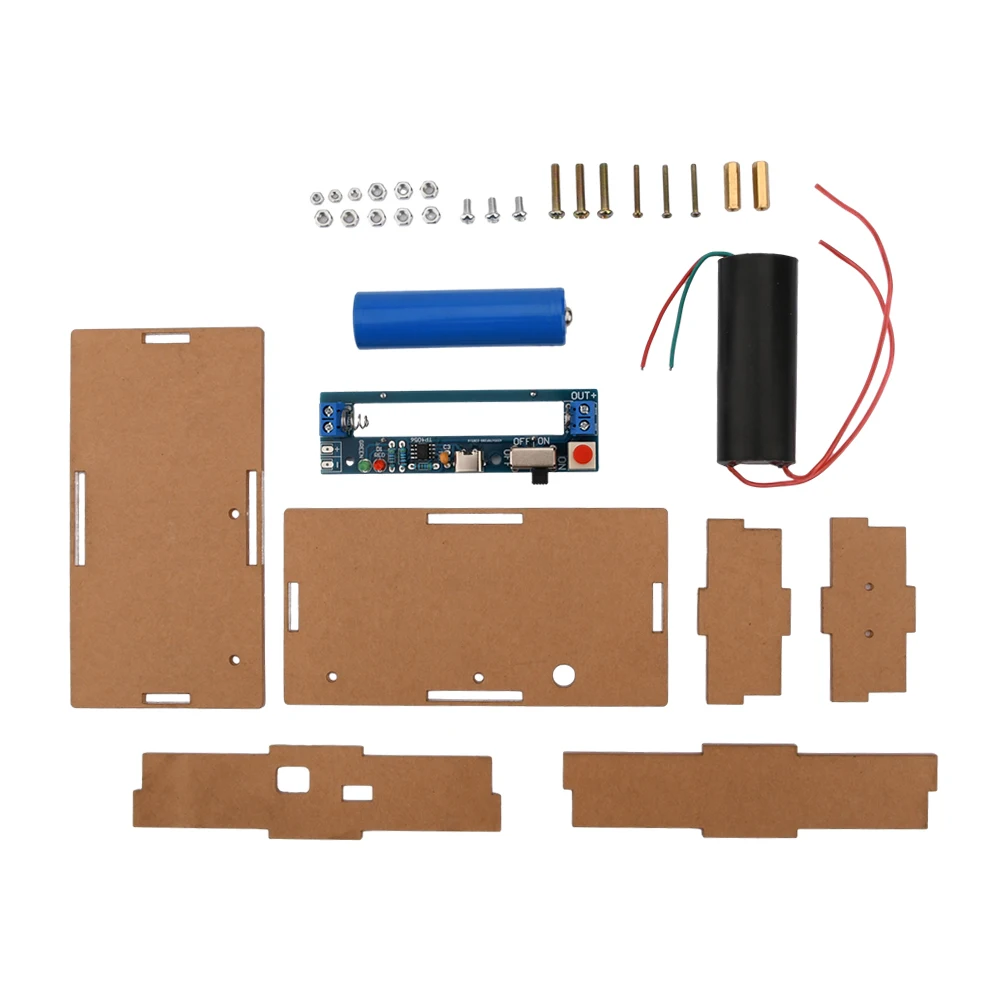

Product list:
1、1000KV high voltage package *1
2、Acrylic shell*1 set
3、18650 battery*1
4、Charge/discharge control board*1
5、M3*16 screws*3
6、M3 nut*8
7、M3*6 screws*3
8、M2*16 screws*3
9、M2 nut*3
10、M3*15 brass column*2
Shipping list:
DIY kit*1
