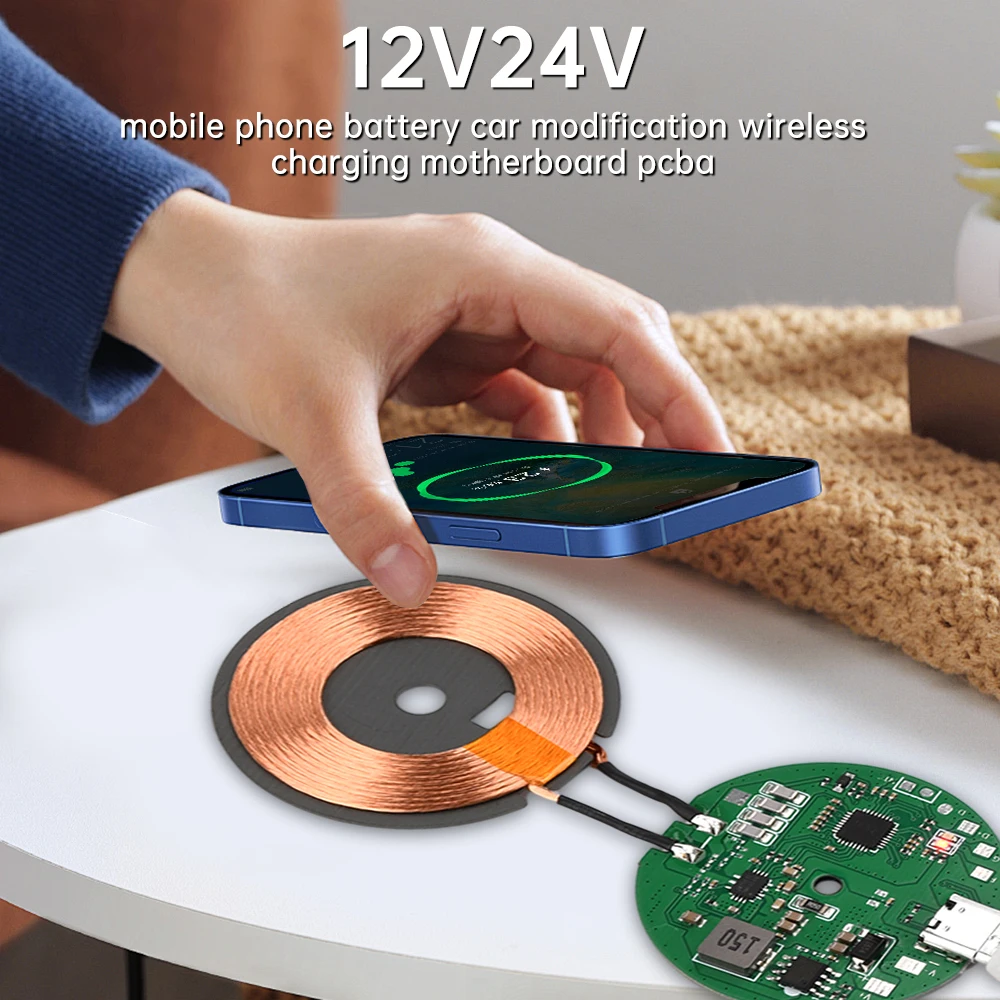

Product selling points:
1. Adopt high quality PCB material, quality is guaranteed, greatly improving the service life of the product
2. Exquisite and compact appearance, beautiful arrangement of components
3. Stable product performance, automatic power identification 5W10W15W20W
4. The product has over-current, over-voltage, over-temperature, short-circuit and other four-fold protection, support for foreign object detection (FOD), the use of a safer and more assured
5. The product has a wide range of applications, 12V car / 24V trucks can be used directly, without the need to add additional voltage regulator!
Product parameters:

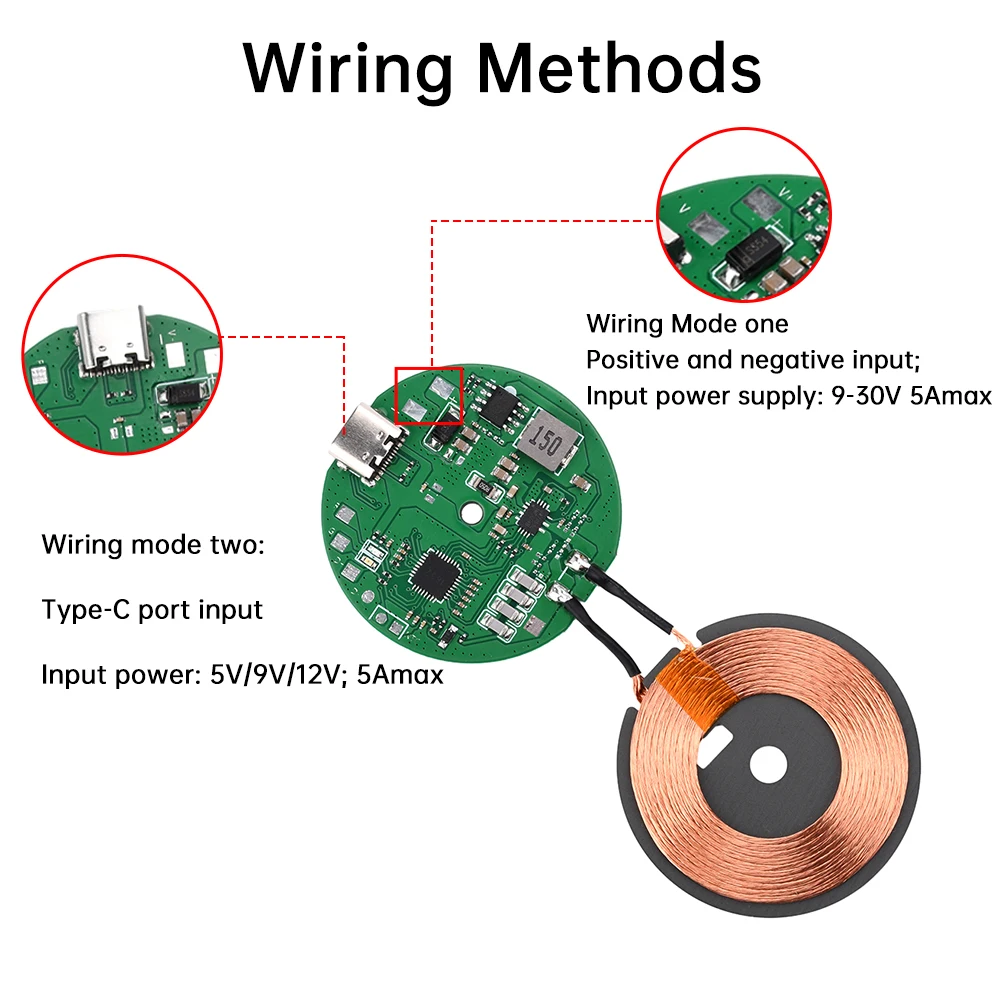

Input voltage:

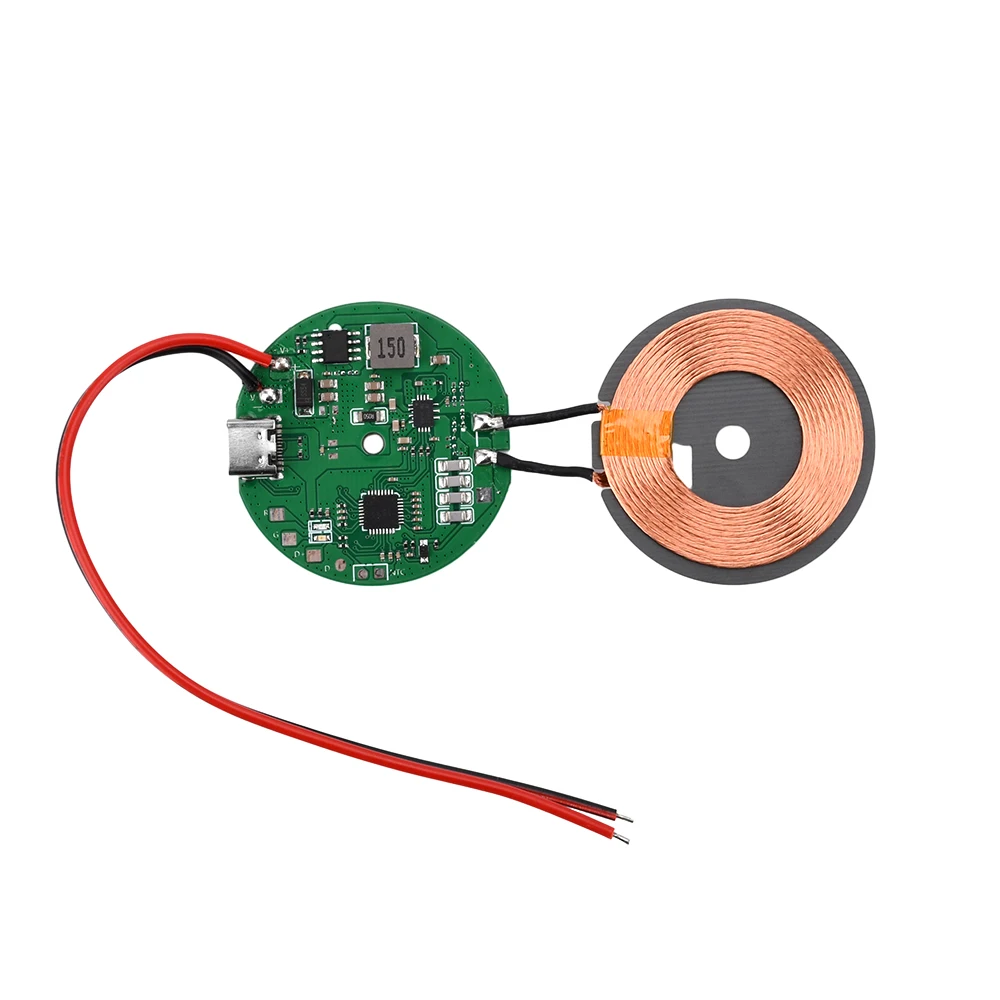

Type-C port: 5V/9V/12V/QC/PD charging head
Welding line: 9V-30V (can be directly connected to the car)
Output power:
Input 5V, output 5W (Max)
Input 9V/12V-30V, output 5W/10W/15W/20W automatic identification

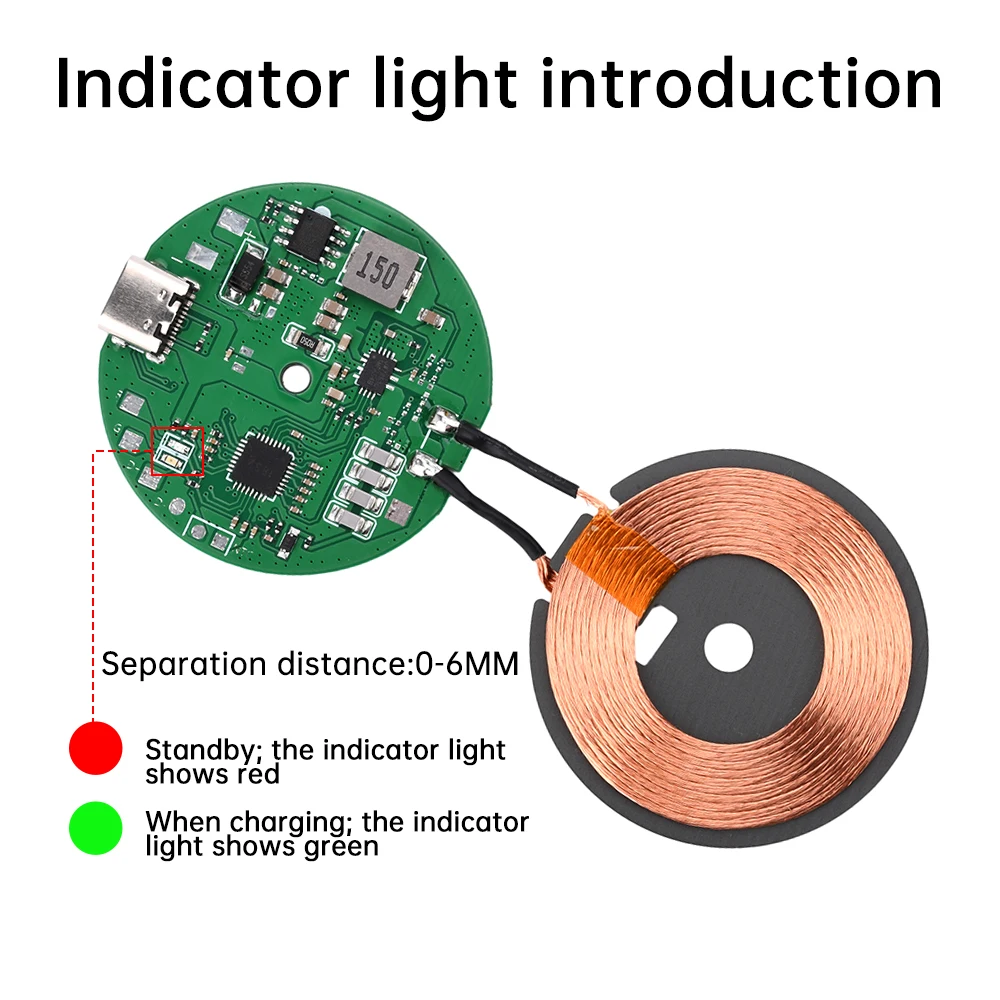

Sensing distance: isolation: 2-6mm

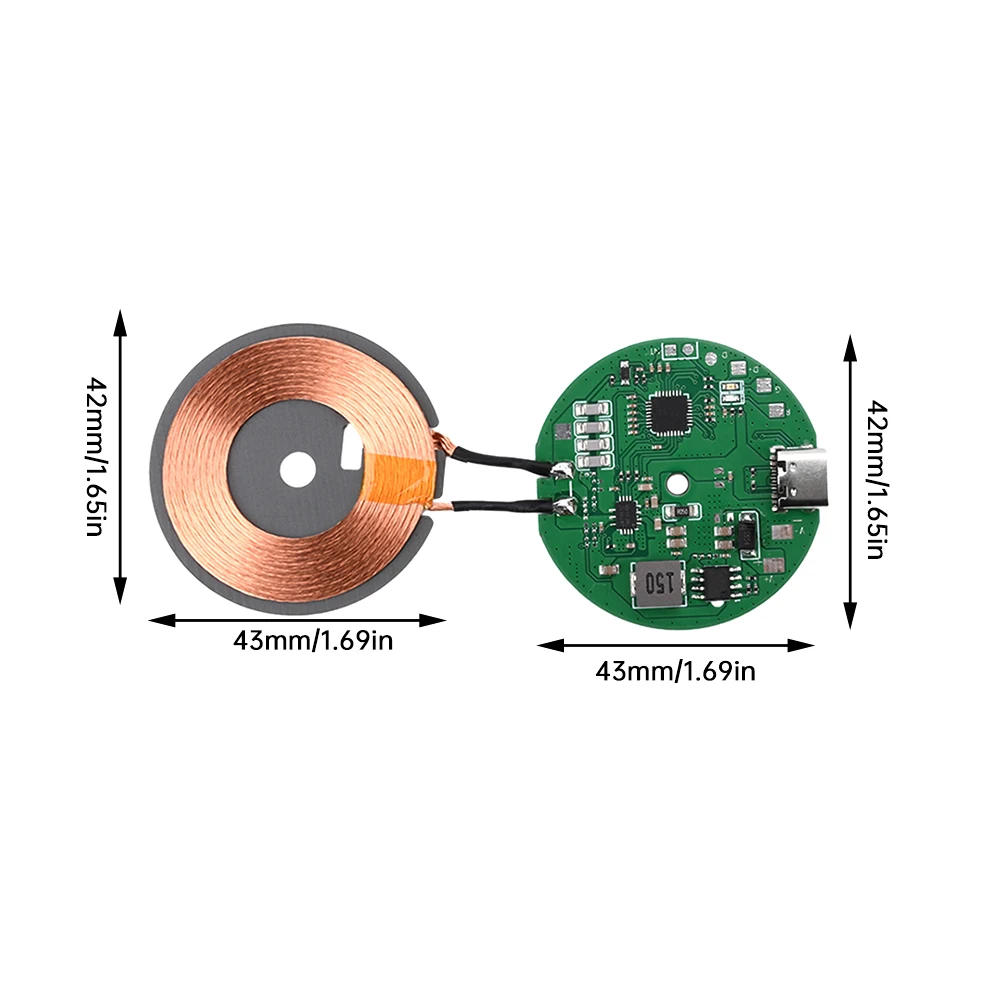

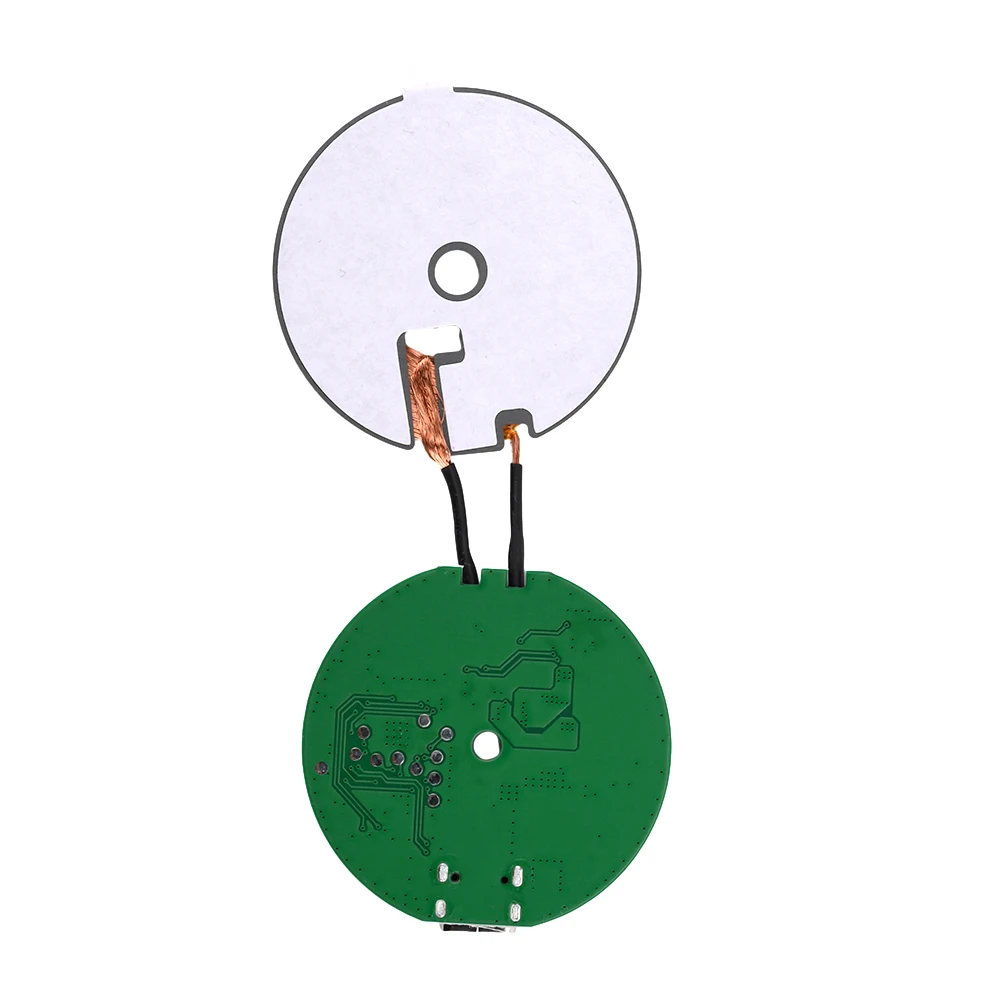

Coil size: diameter 43mm; thickness 1.5mm
Circuit board size: diameter 43mm; thickness 4.5mm
Note: the power received mainly depends on the open protocol of the phone, apple phone support power 7.5-10W wireless charging
Package list:

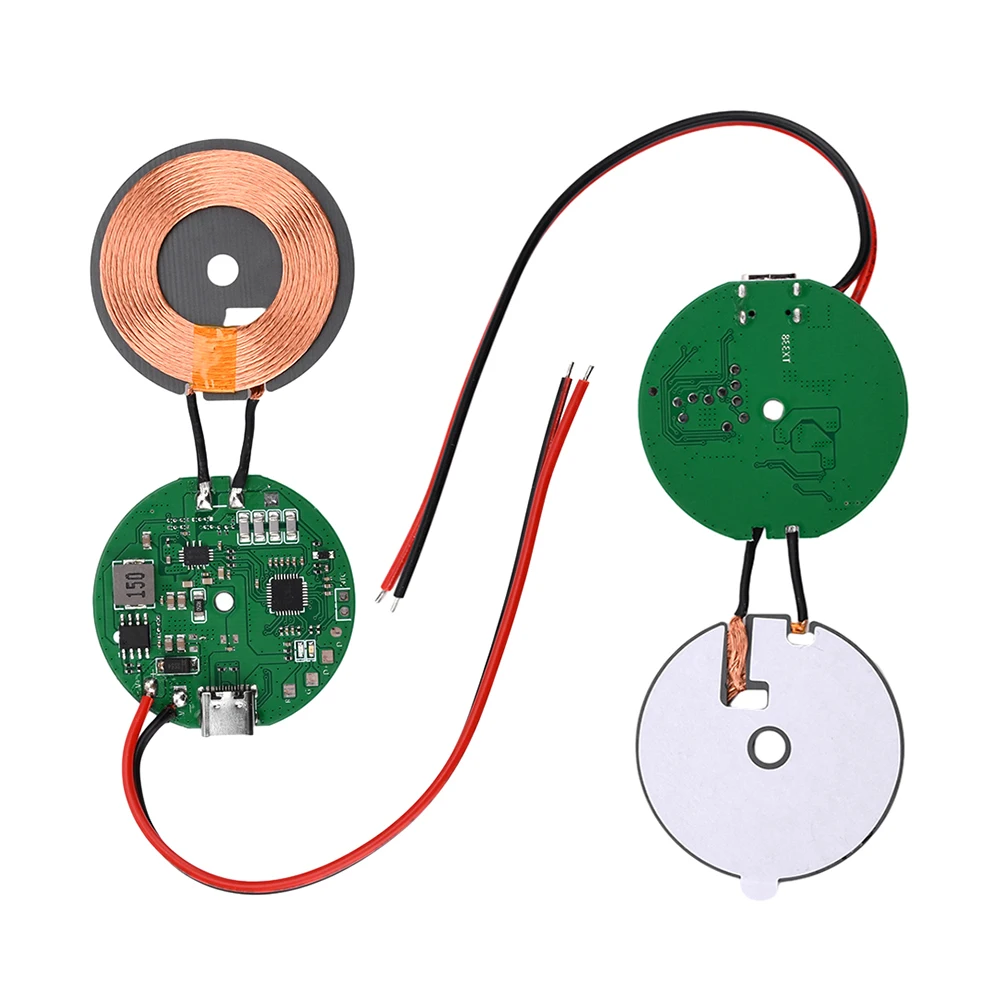

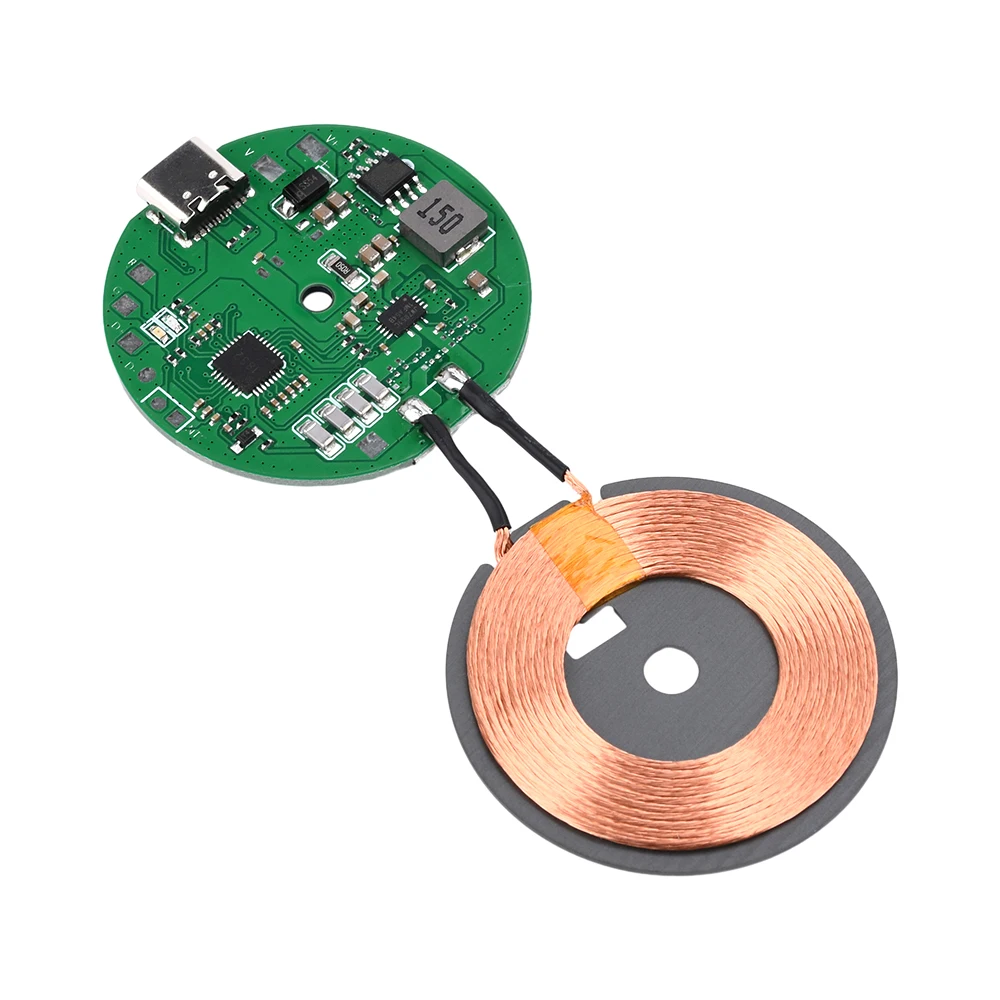

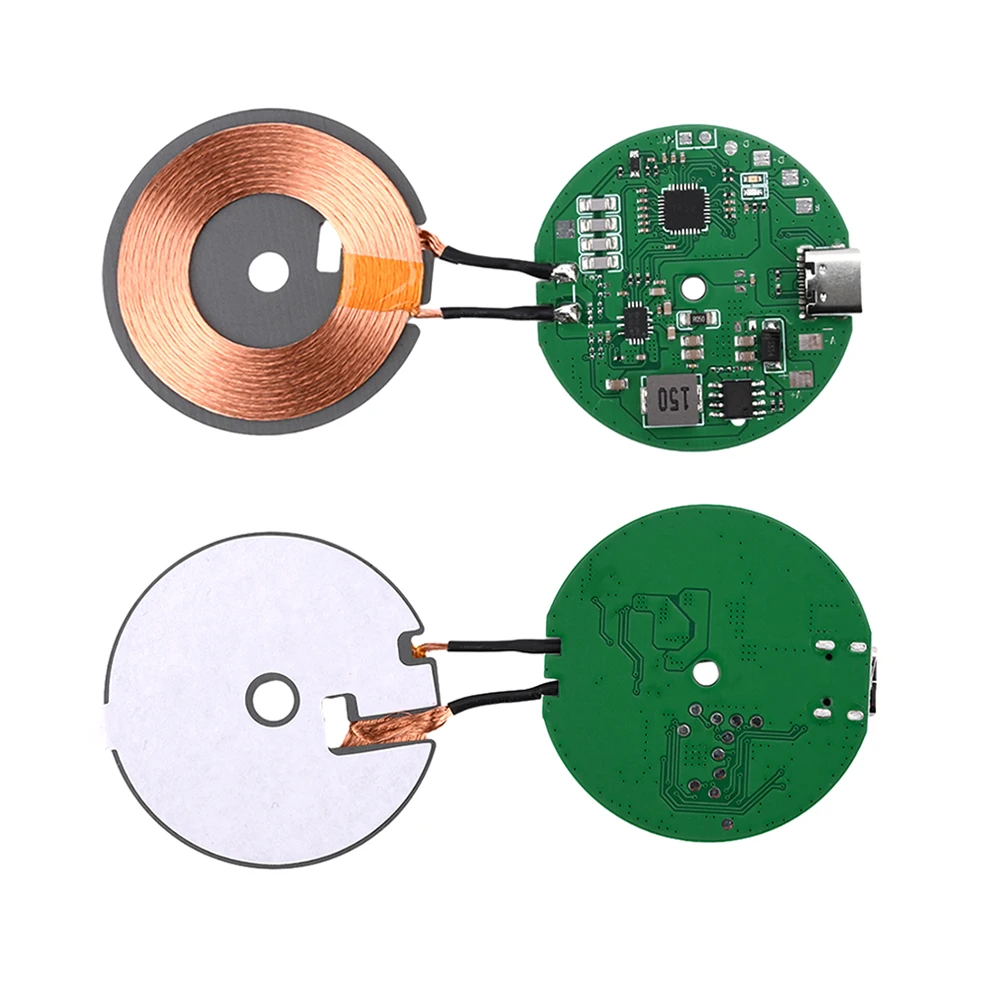

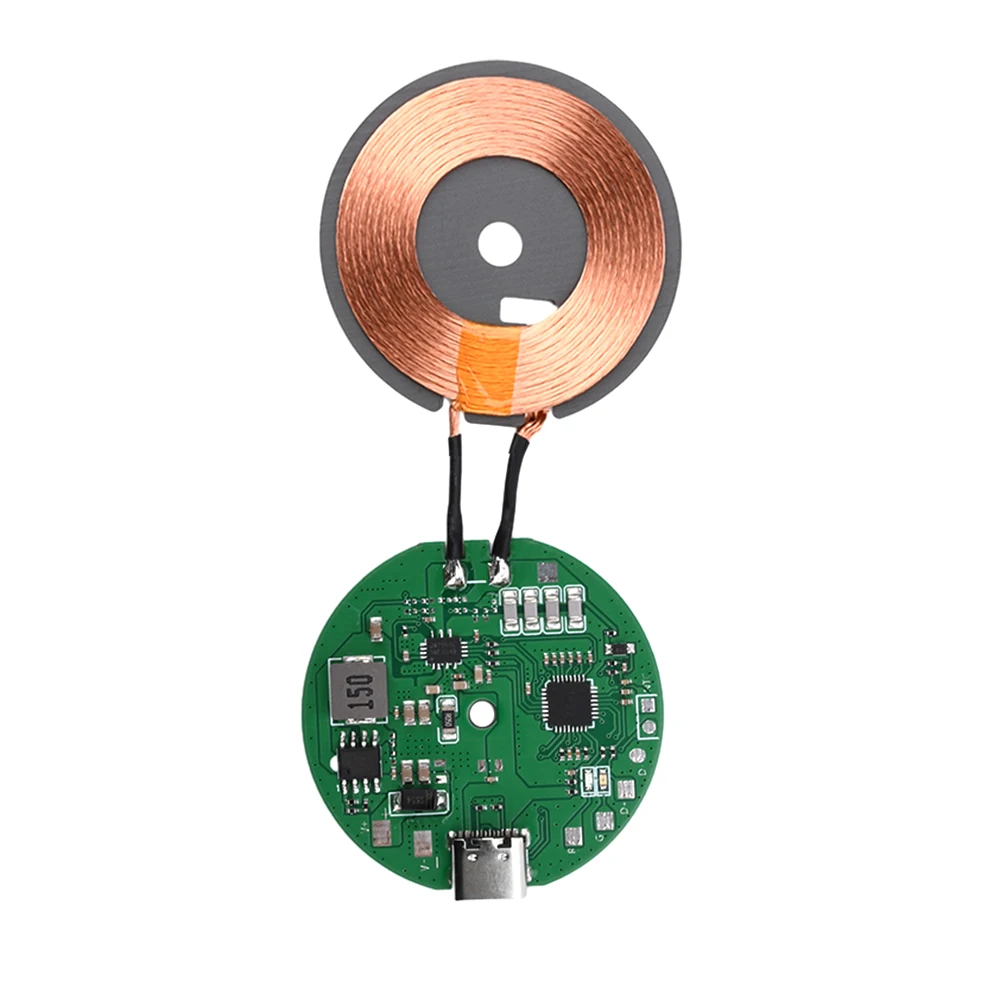

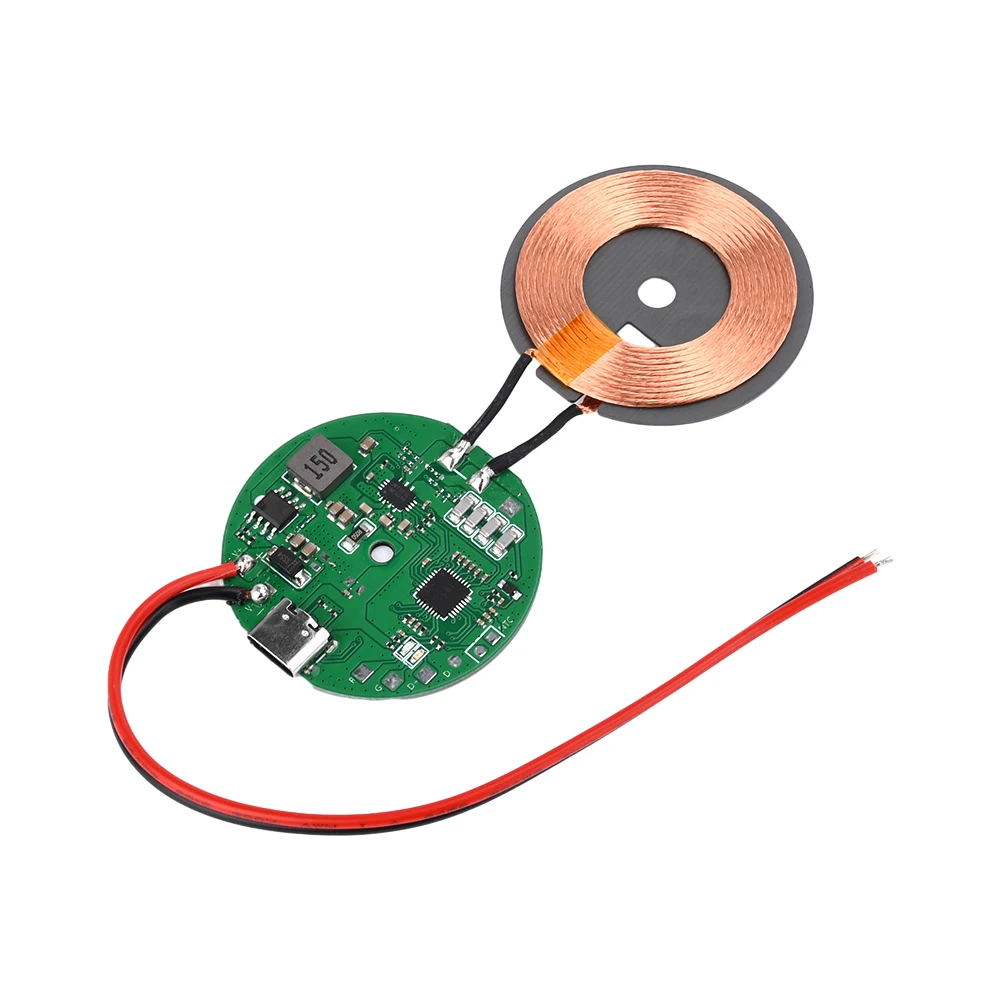

Wireless charging module *1
