【Overview】

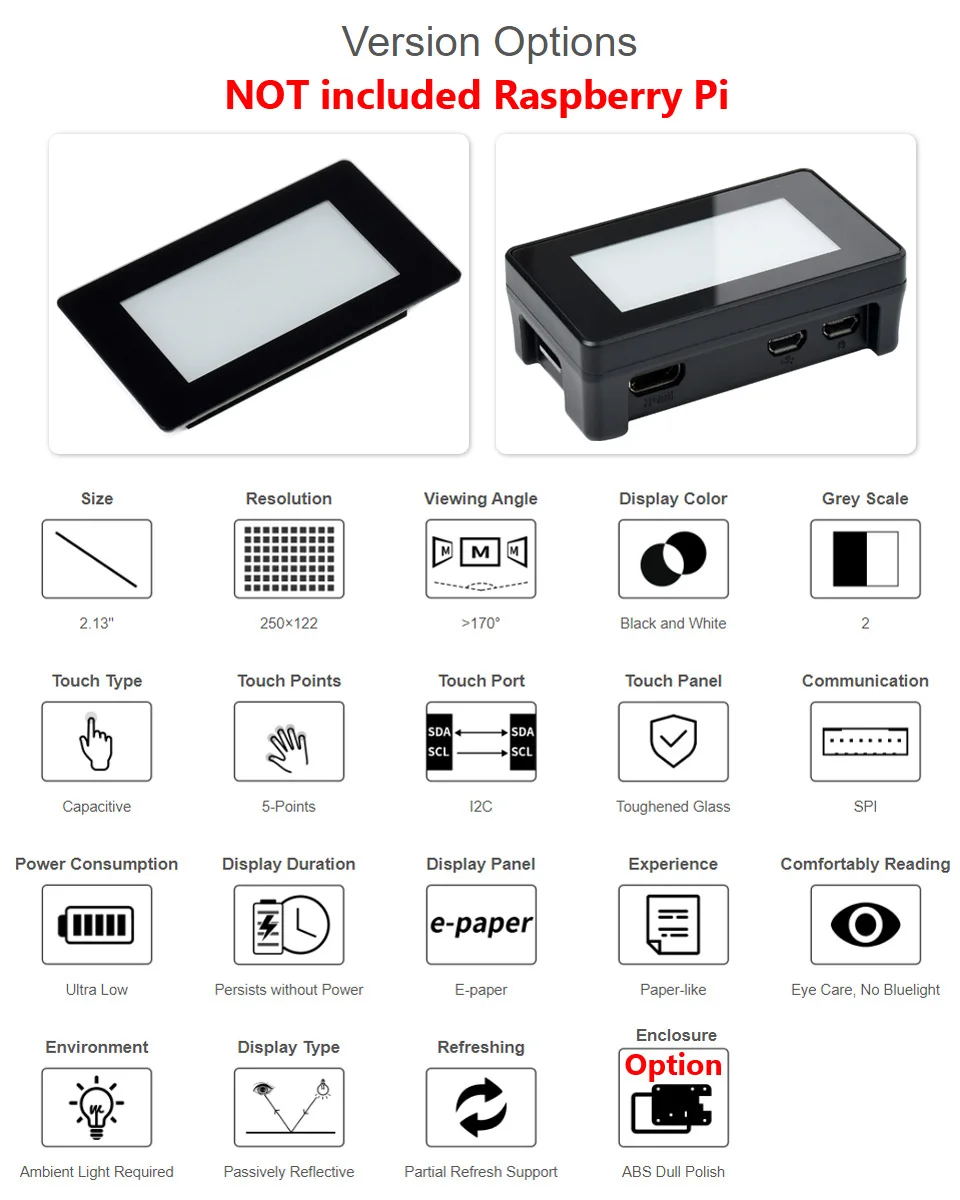

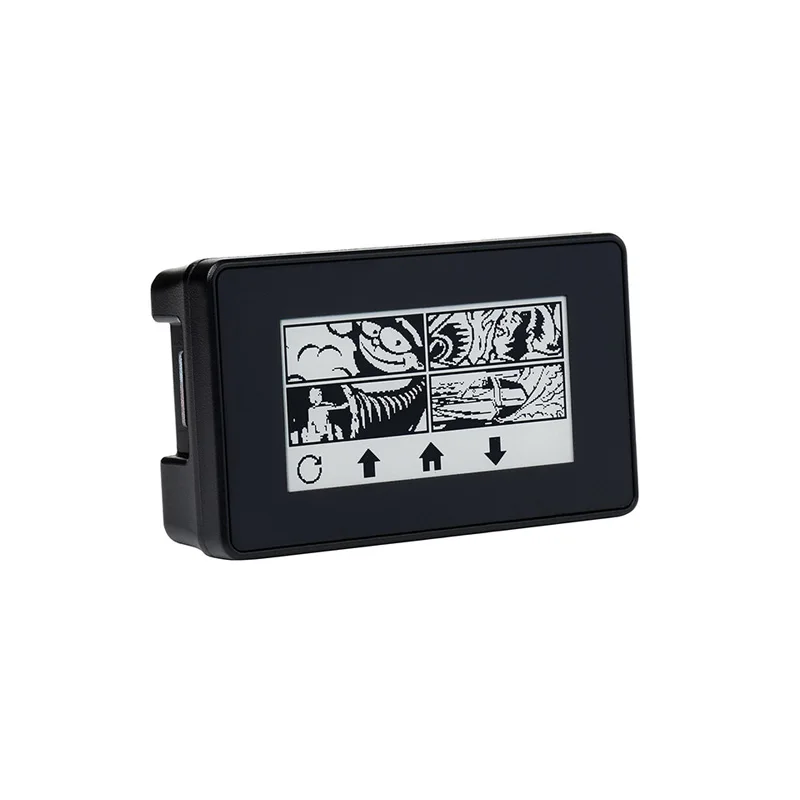

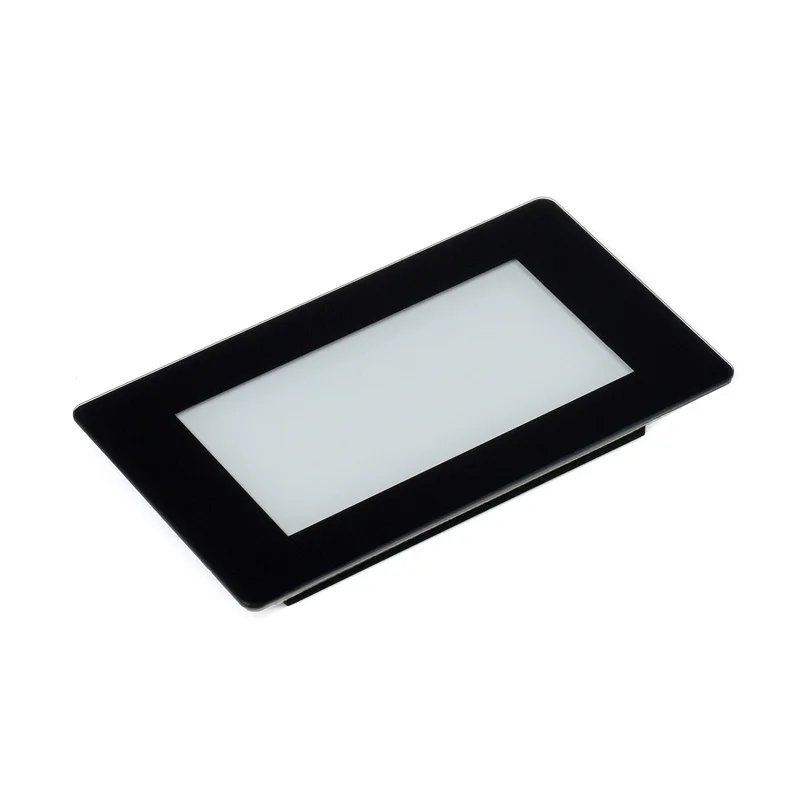

[] 2.13inch Touch E-Paper E-Ink Display for Raspberry Pi Zero Series, 250×122, ABS Case Option
【Features At A Glance】
[] 2.13″ capacitive touch e-Paper display, 5-point touch, 250×122 pixels
[] Supports waken up by user-defined gesture
[] No backlight, keeps displaying last content for a long time even when power down
[] Ultra low power consumption, basically power is only required for refreshing

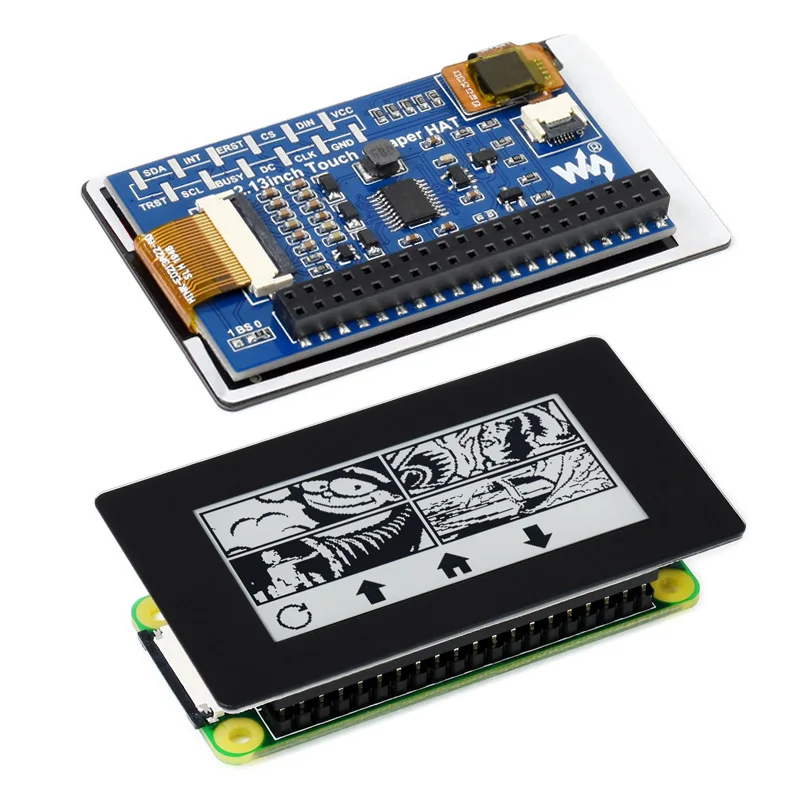

[] Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero Series
[] Comes with development resources and manual (examples for Raspberry Pi)
【Specifications】
[] OPERATING VOLTAGE : 3.3V
[] GREY SCALE : 2
[] INTERFACE : 3-wire SPI, 4-wire SPI
[] PARTIAL REFRESH TIME : 0.3s
[] OUTLINE DIMENSIONS : 69.15 x38.90mm
[] FULL REFRESH TIME : 2s
[] DISPLAY SIZE : 48.55 x23.70mm
[] REFRESH POWER : 26.4mW(typ.)
[] DOT PITCH : 0.194 x0.194mm
[] STANDBY CURRENT : <0.01uA (almost none)
[] RESOLUTION : 250×122 pixels
[] VIEWING ANGLE : >170°
[] DISPLAY COLOR : black, white
[] TOUCH POINT : 5 (max)
【Advantages Of EINK】
[] E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

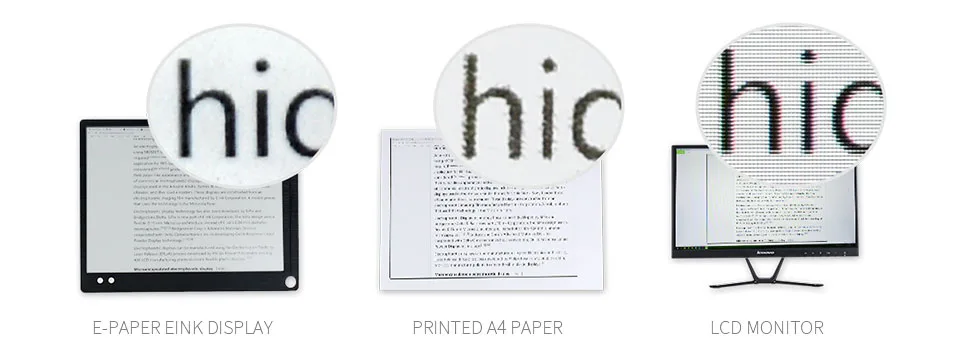

[] E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

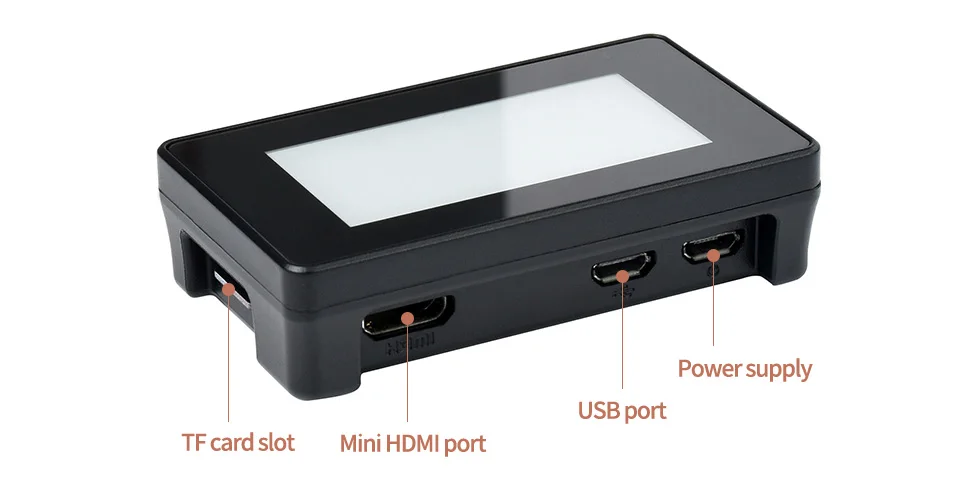

【Fine Design, Precise Cut-Out】
[] Highly Aligned Connectors, Rounded Corner Design, Slant Sides For Easily Standing

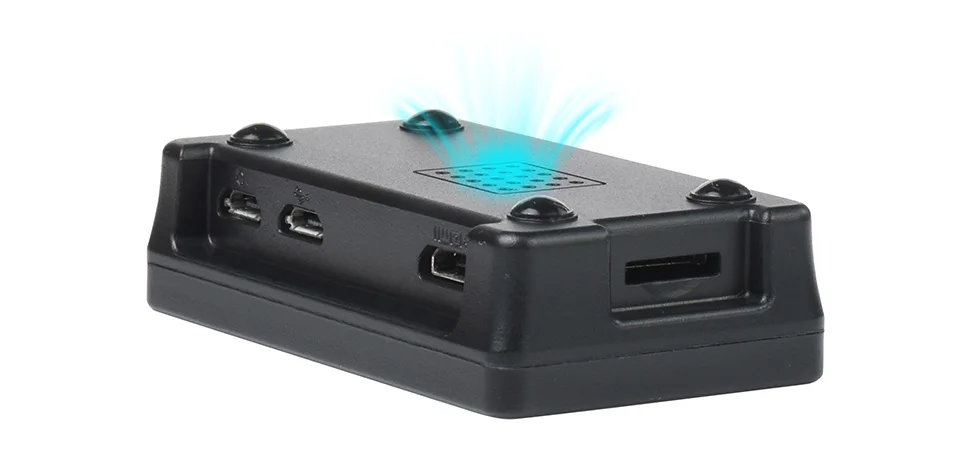

【Heat Dissipation Holes On The Back】
[] Combined With Thermal Tape, Effective Heat Dissipation

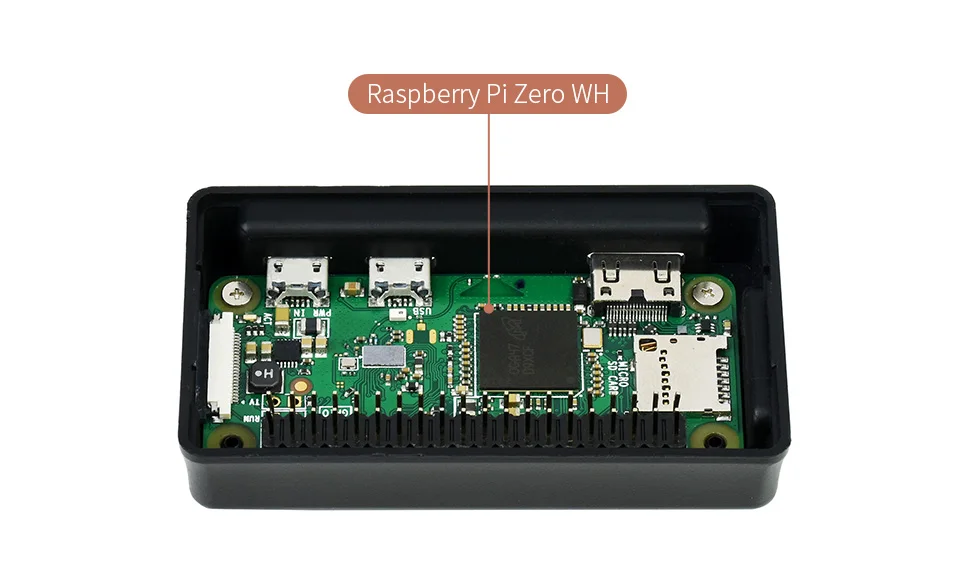

【Standard Raspberry Pi 40PIN GPIO Header】
[] Compatible With Raspberry Zero Series
[] Raspberry Pi in the photo is NOT included.

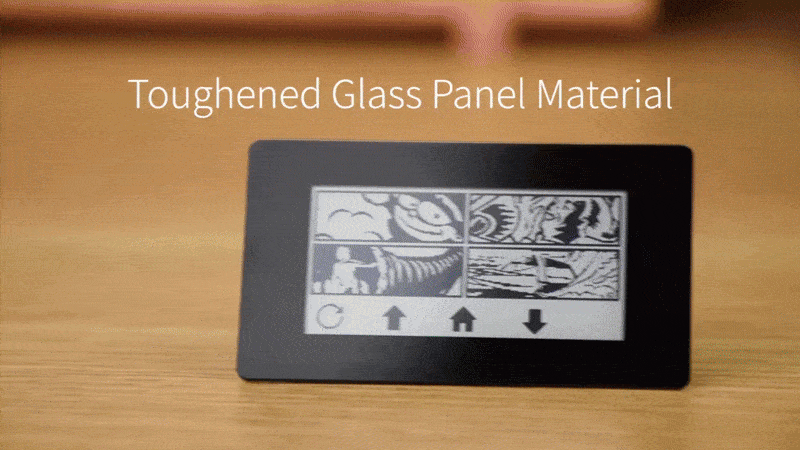

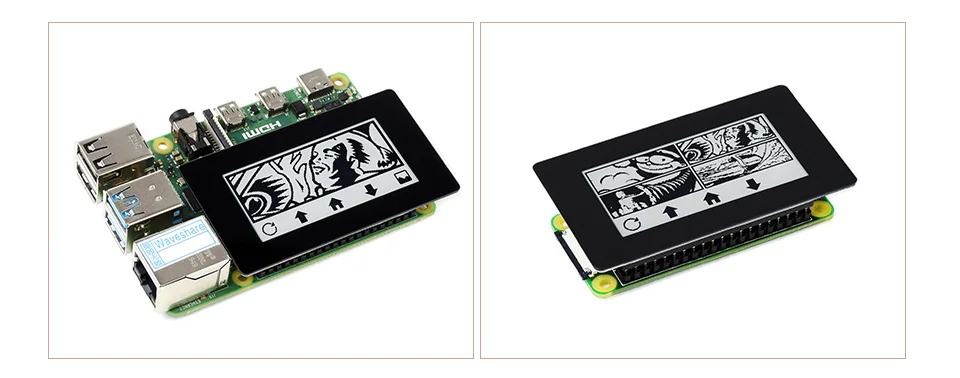

【Application Example】

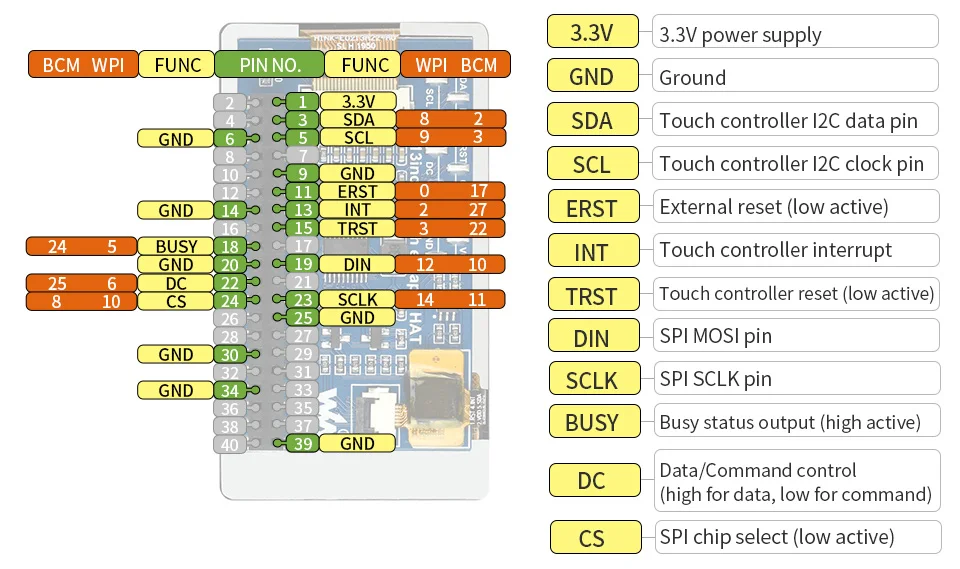

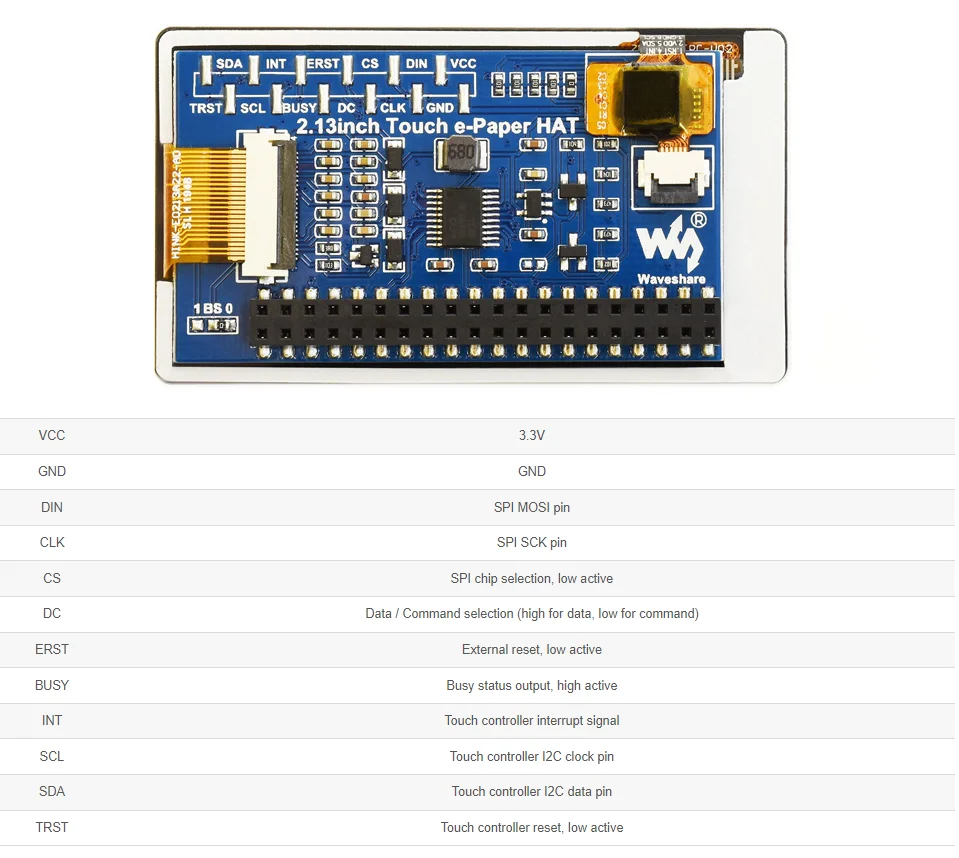

【Pinout Definition】

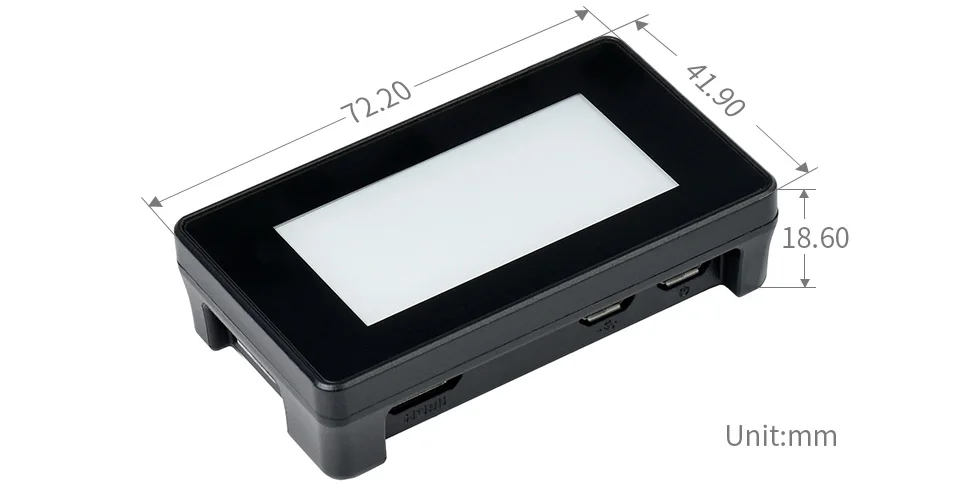

【Outline Dimensions】

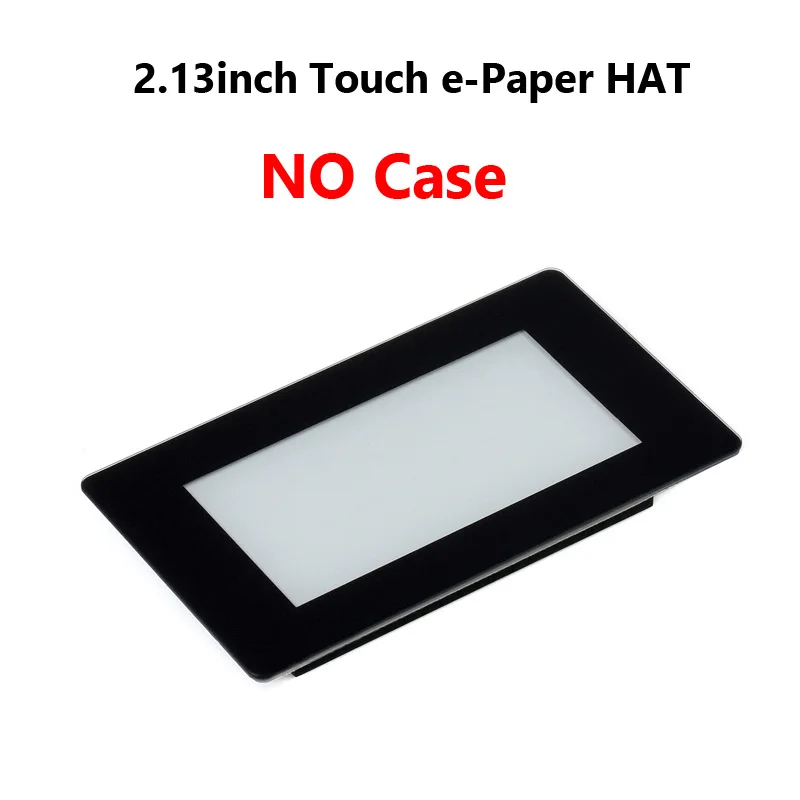

[] 2.13inch Touch e-Paper HAT (NO Case)

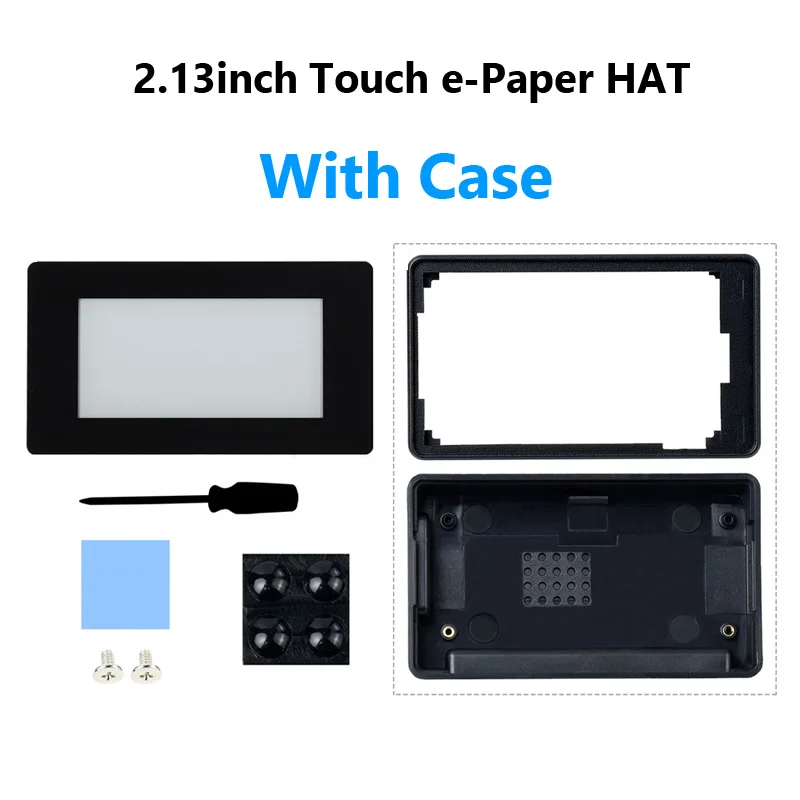

[] 2.13inch Touch e-Paper HAT (With Case)
