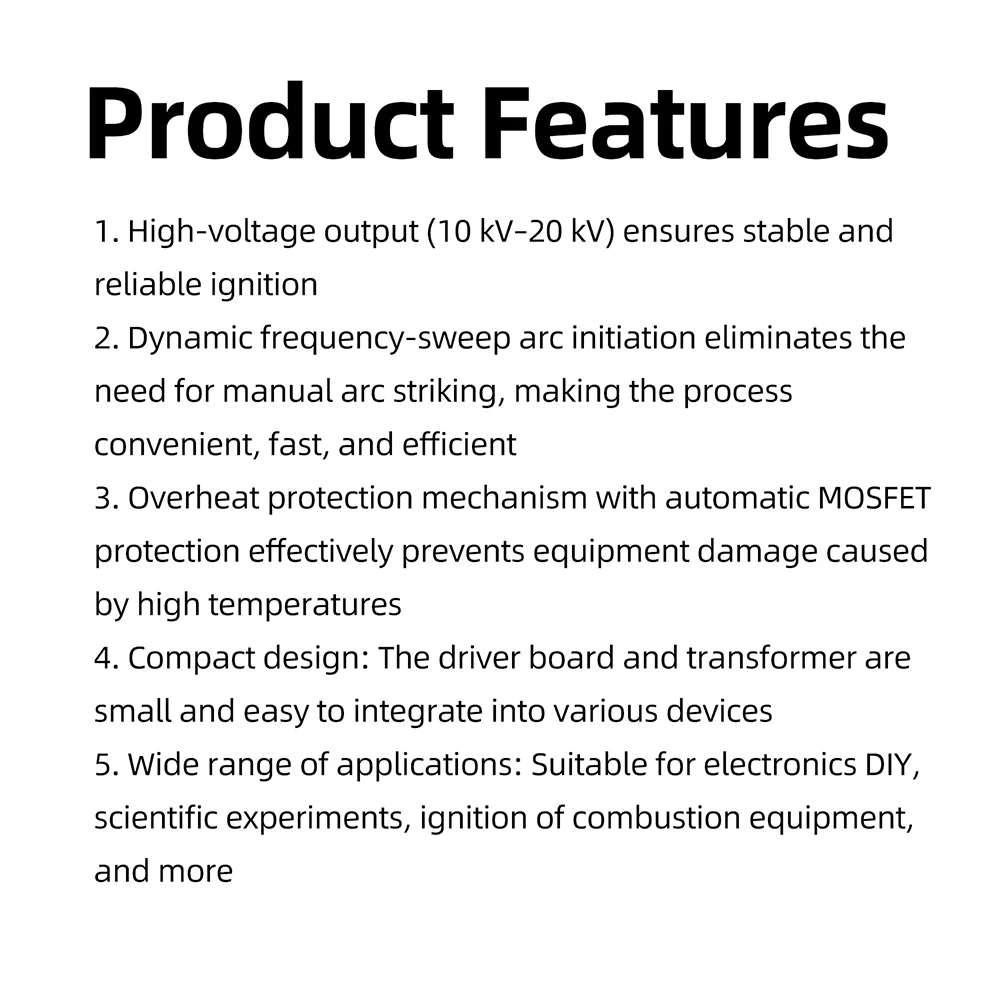

Product Features:

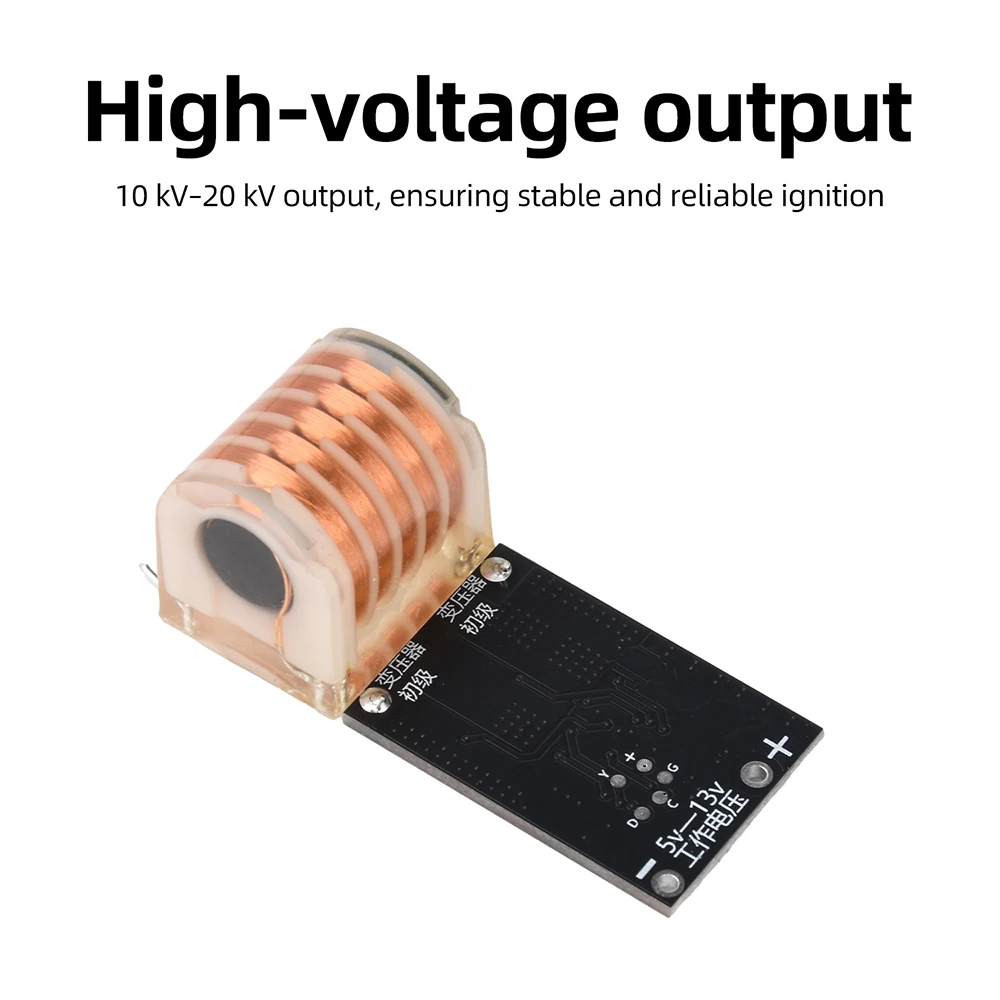

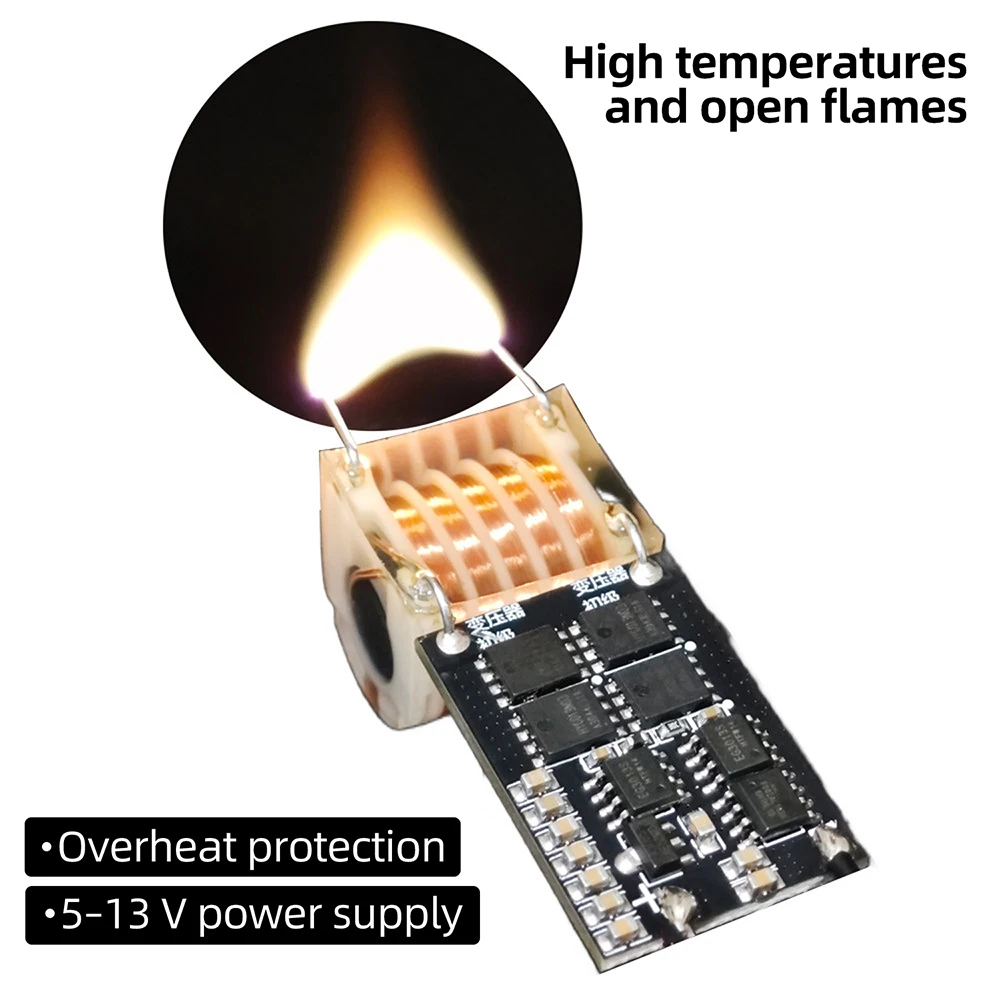

1. High voltage output, 10kV-20kV output, ensuring stable and reliable ignition effect

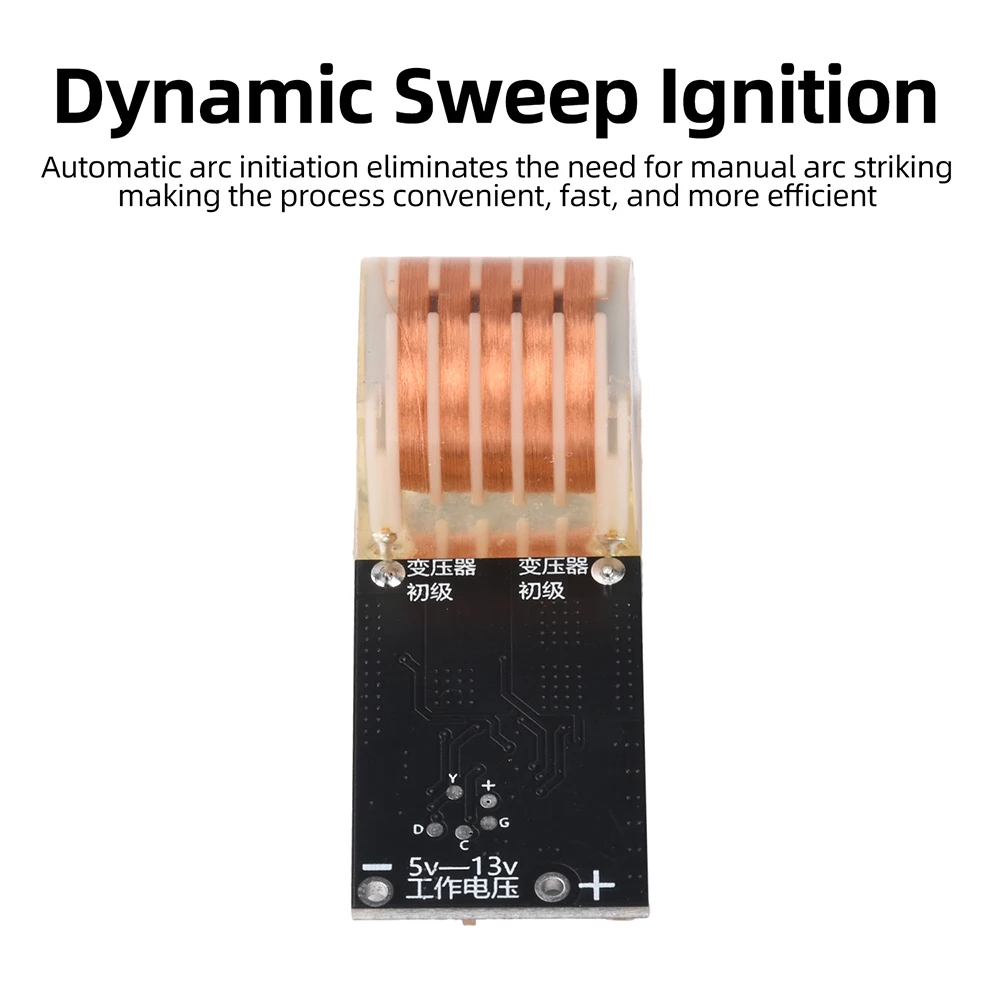

2. Dynamic frequency sweep arc initiation, automatic arc initiation without manual arc initiation, convenient, fast and efficient

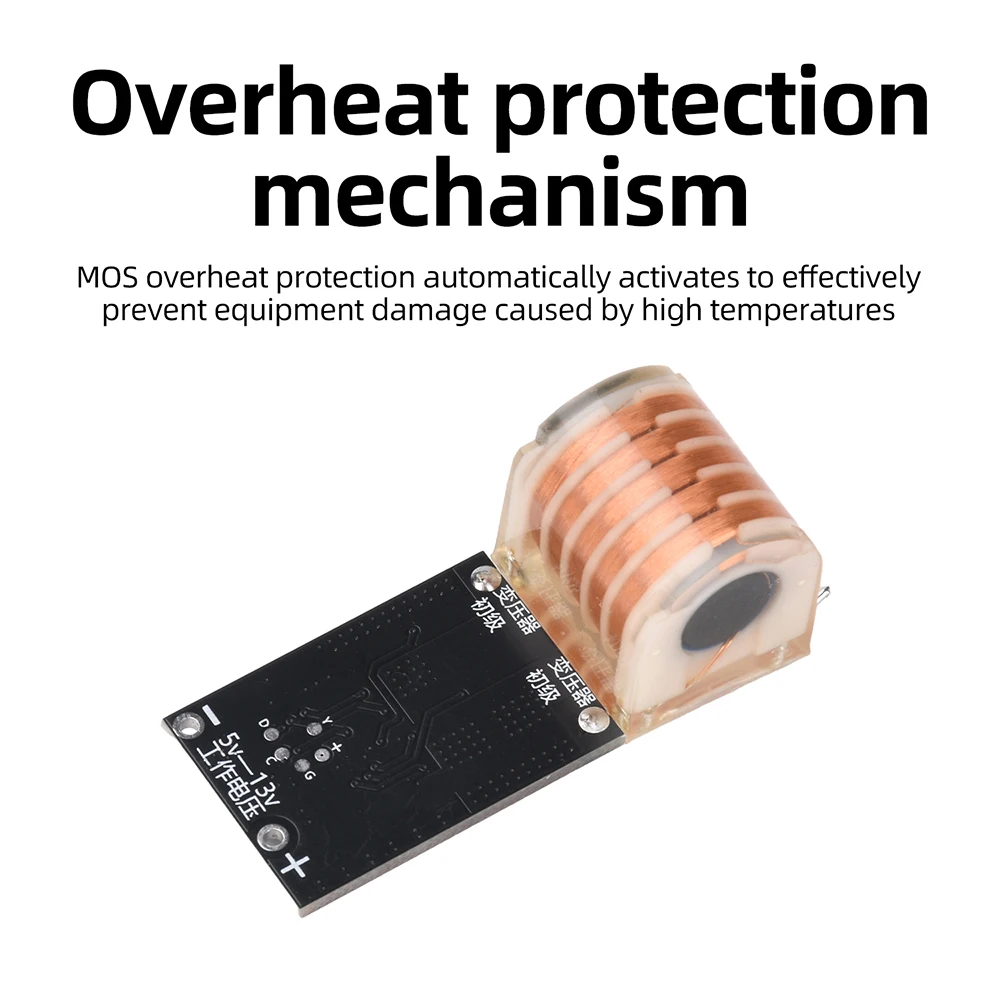

3. Overheating protection mechanism, MOS overheating automatic protection, effectively preventing high temperature damage to equipment
4. Compact size design, compact driver board and transformer, easy to integrate into various devices

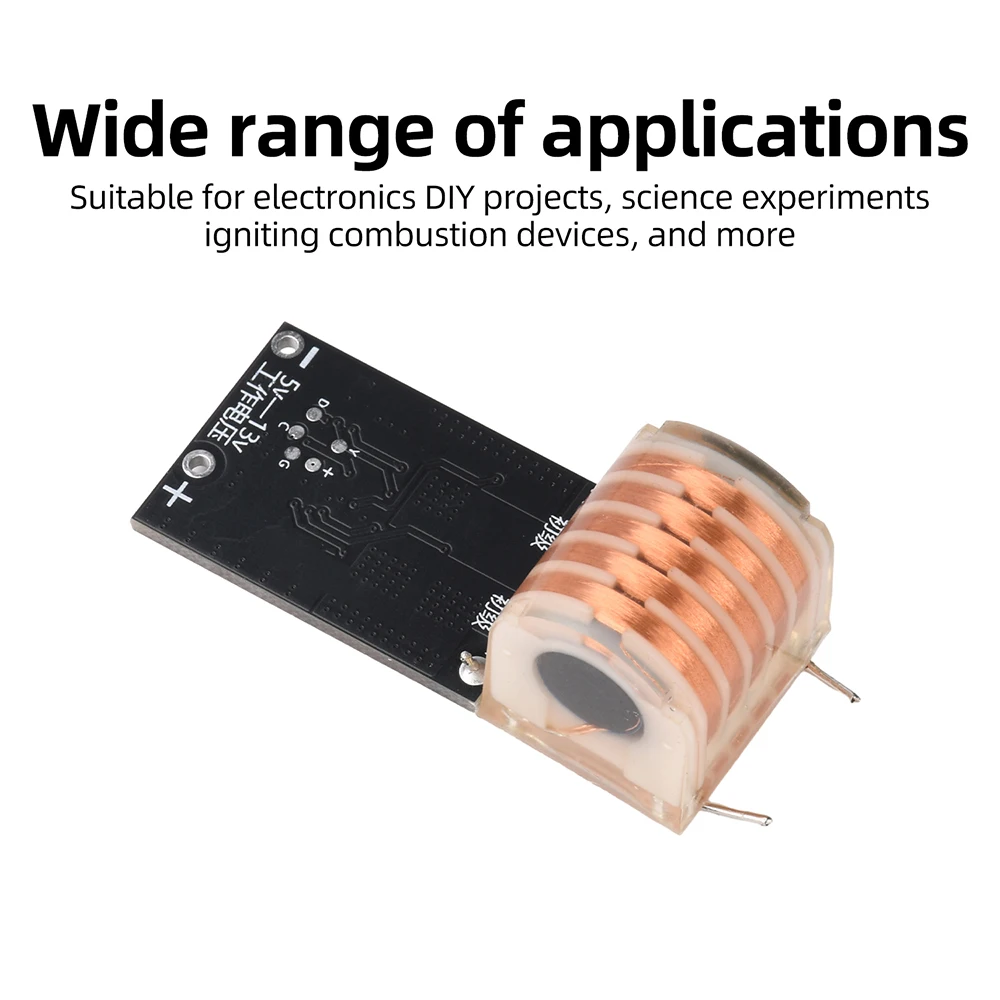

5. Wide range of application scenarios, suitable for electronic DIY, scientific experiments, ignition of combustion equipment, etc

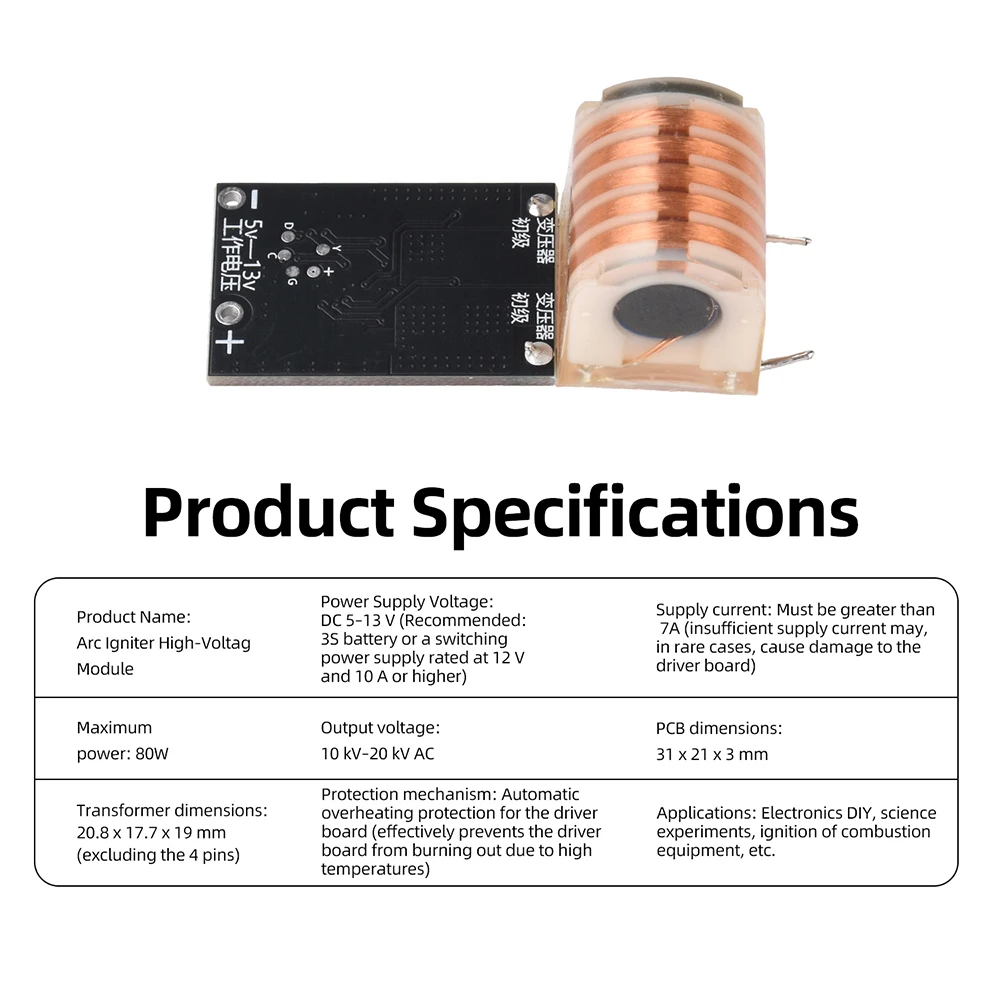

Product Parameters:
Product Name: Arc Igniter High Voltage Module
Power supply voltage: DC 5-13V (recommended 3S battery power supply or 12V10A or above switch power supply)
Power supply current: greater than 7A (if the power supply current is insufficient, there is a small probability of damage to the drive board)
Maximum power: 80W
Output voltage: AC 10kV-20kV

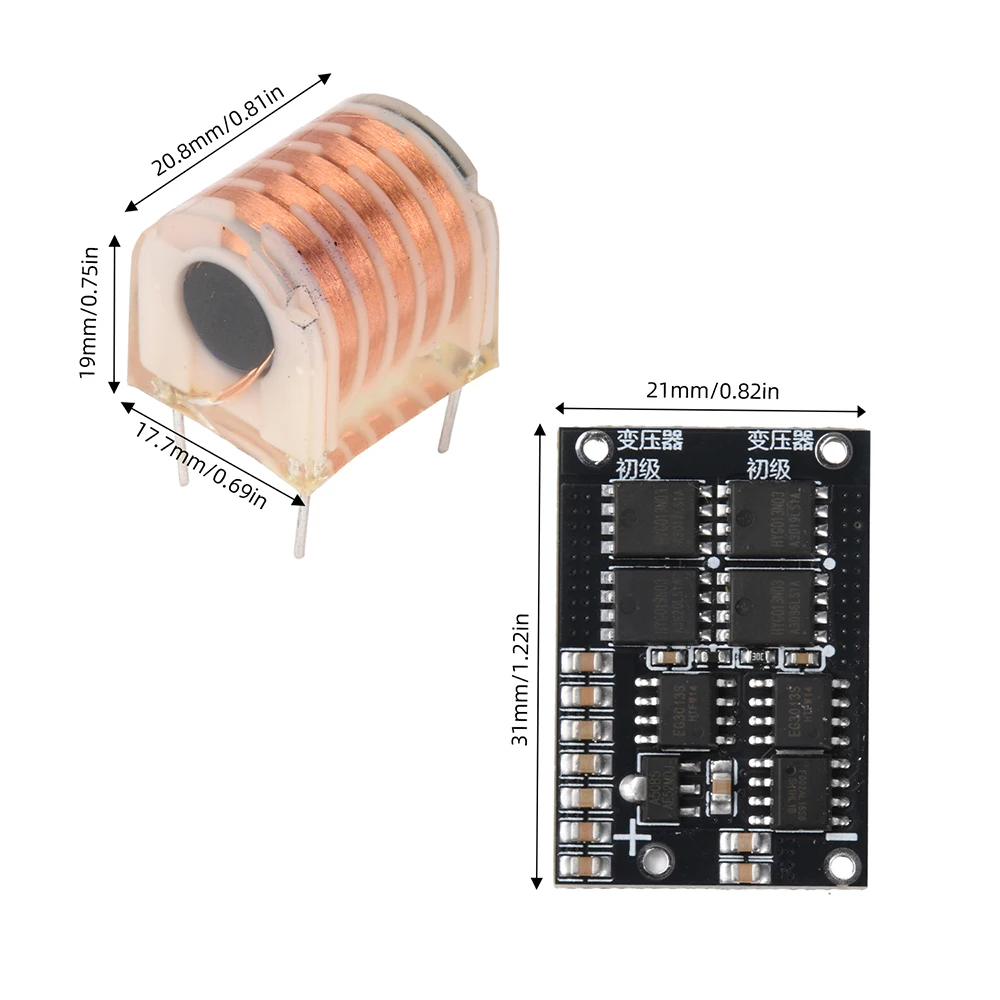

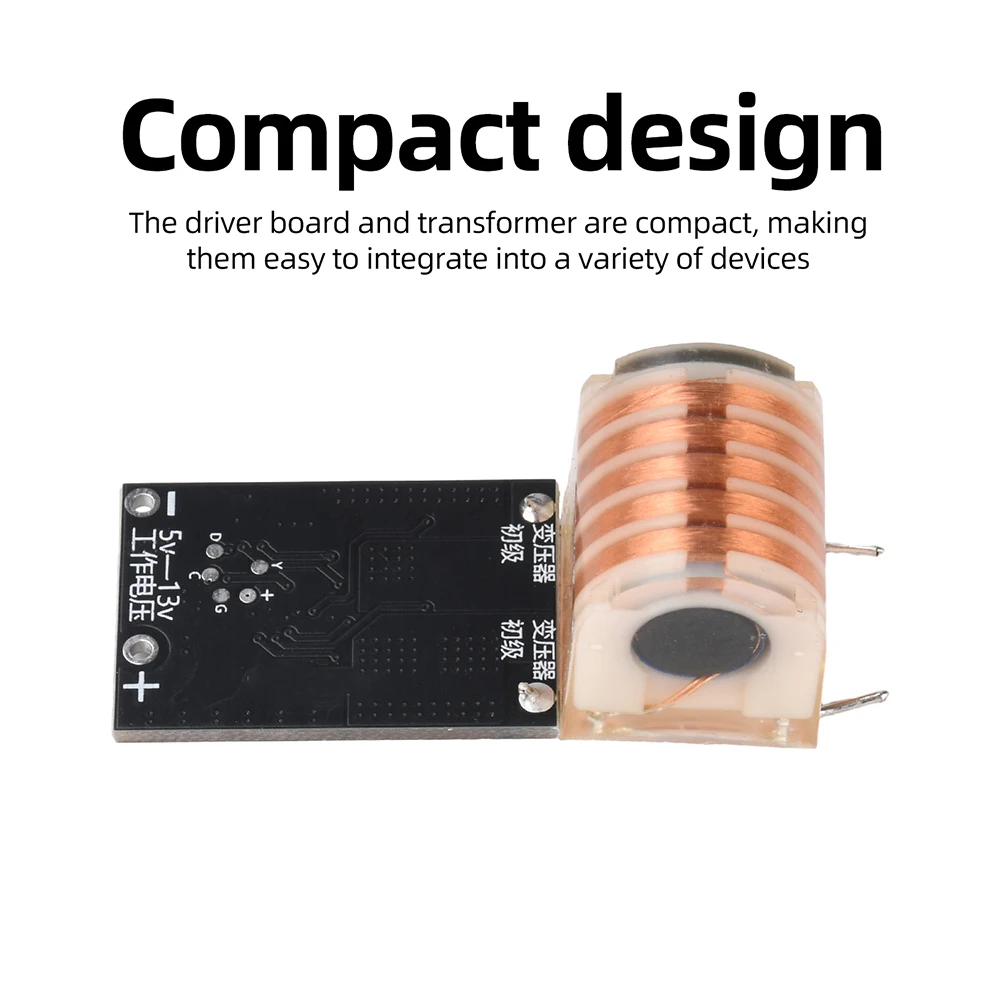

Circuit board size: 31x21x3mm
Transformer size: 20.8×17.7x19mm (excluding 4 pins)
Protection mechanism: Drive board overheating automatic protection (effectively preventing high temperature from burning out the drive board)
Application scenarios: electronic DIY, scientific experiments, ignition of combustion equipment, etc

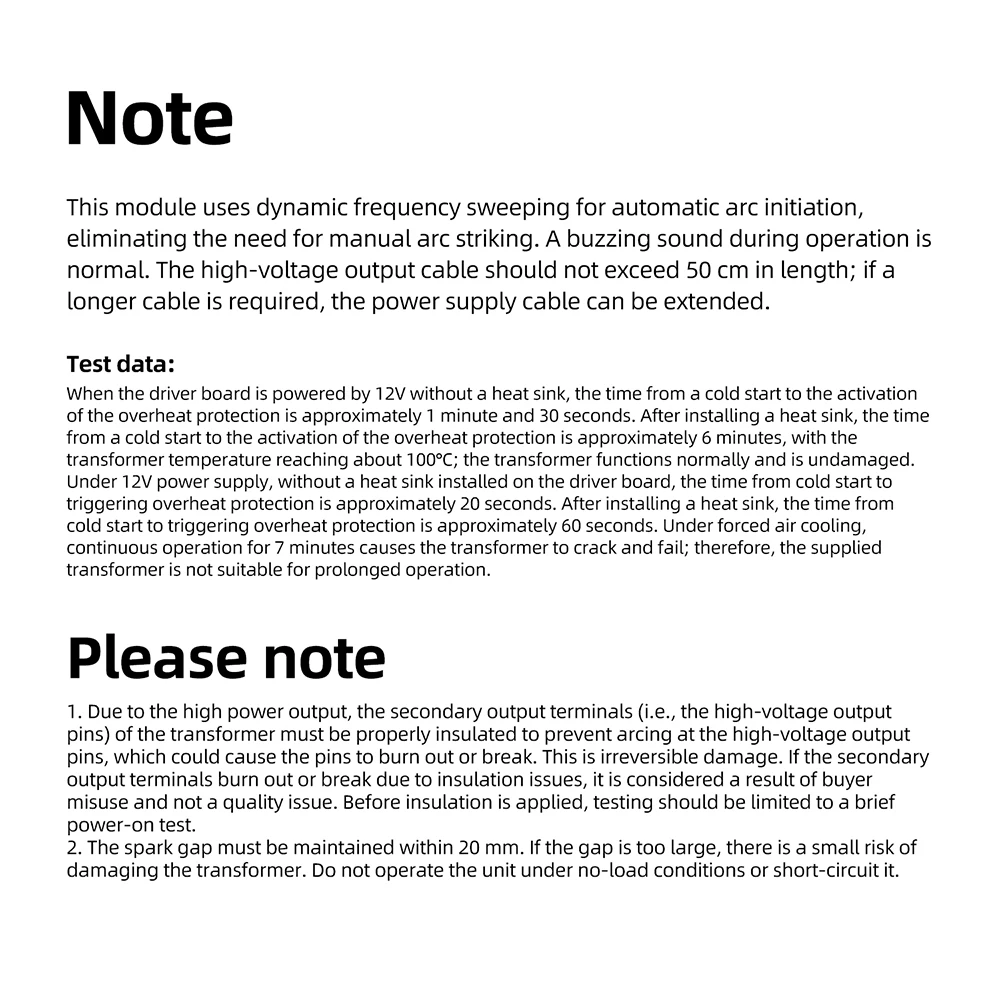

Explanation:

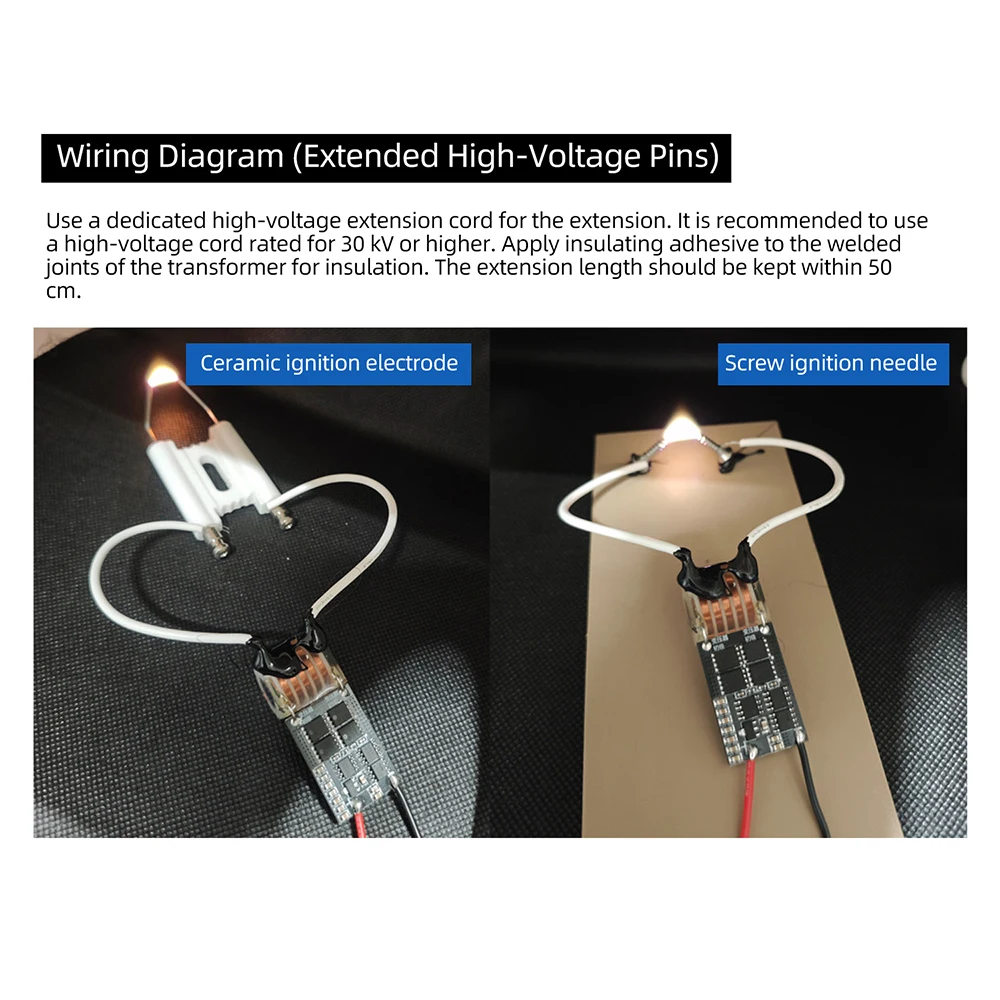

This module adopts dynamic frequency sweep and automatic arc initiation, without the need for manual arc initiation. It is normal to make a squeaking sound during operation. The high-voltage output line should not be too long within 50cm. If extension is needed, the power supply line can be extended

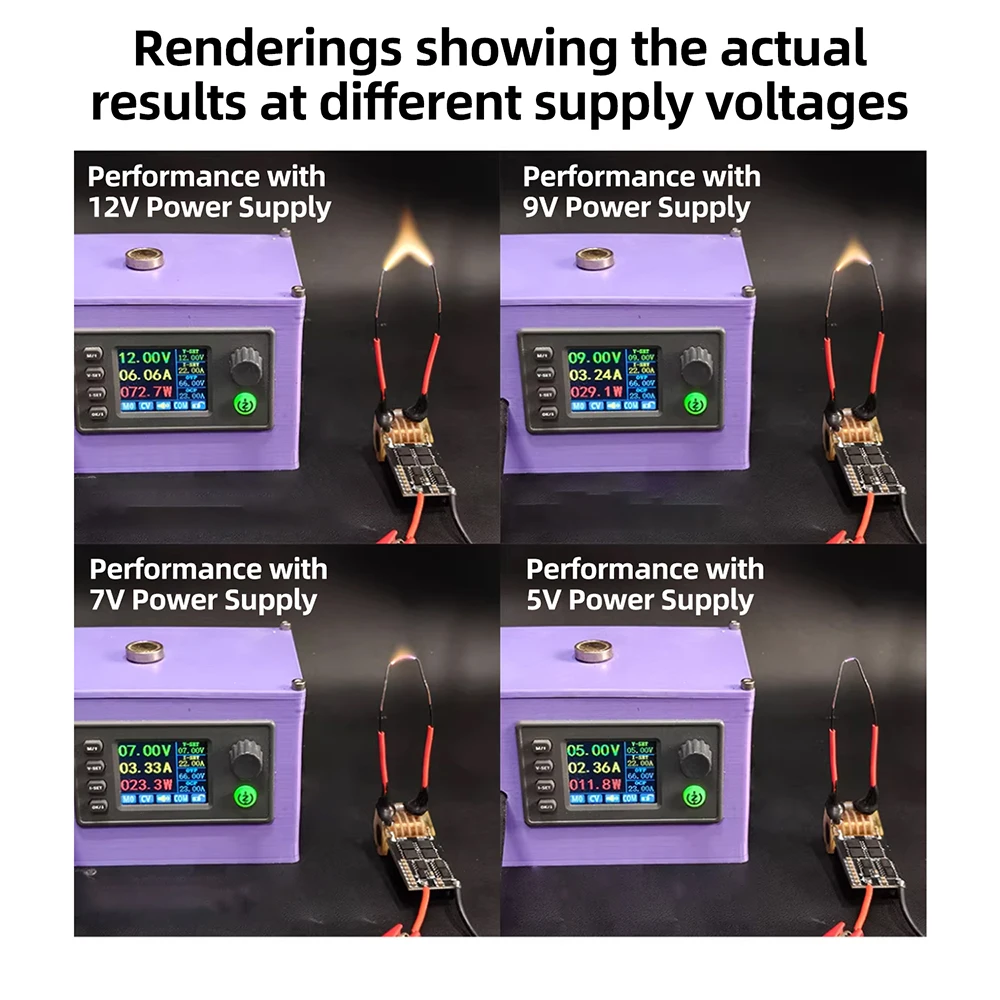

Test data:
When the driver board is not equipped with a heat sink under 8V power supply, the time from the cold state to triggering the overheat protection is about 1 minute and 30 seconds. After installing the heat sink, the time from the cold state to triggering the overheat protection is about 6 minutes, and the transformer temperature is about 100 degrees. The transformer function is normal and undamaged.
When the driver board is not equipped with a heat sink under 12V power supply, the time from the cold state to triggering the overheat protection is about 20 seconds. After installing the heat sink, the time from the cold machine state to triggering the overheat protection is about 60 seconds. The transformer cracks and is scrapped after continuous operation of forced air cooling for 7 minutes, so the matching transformer is not suitable for long-term operation.
Special attention:

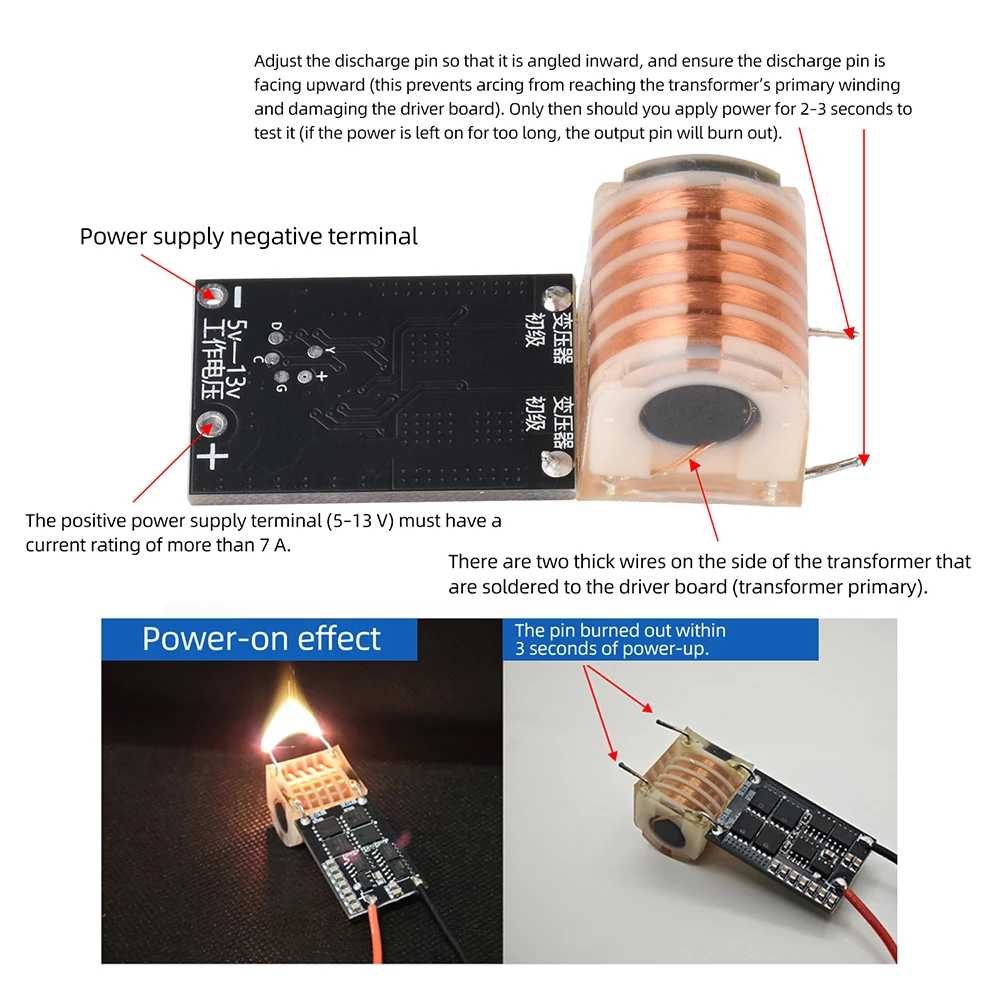

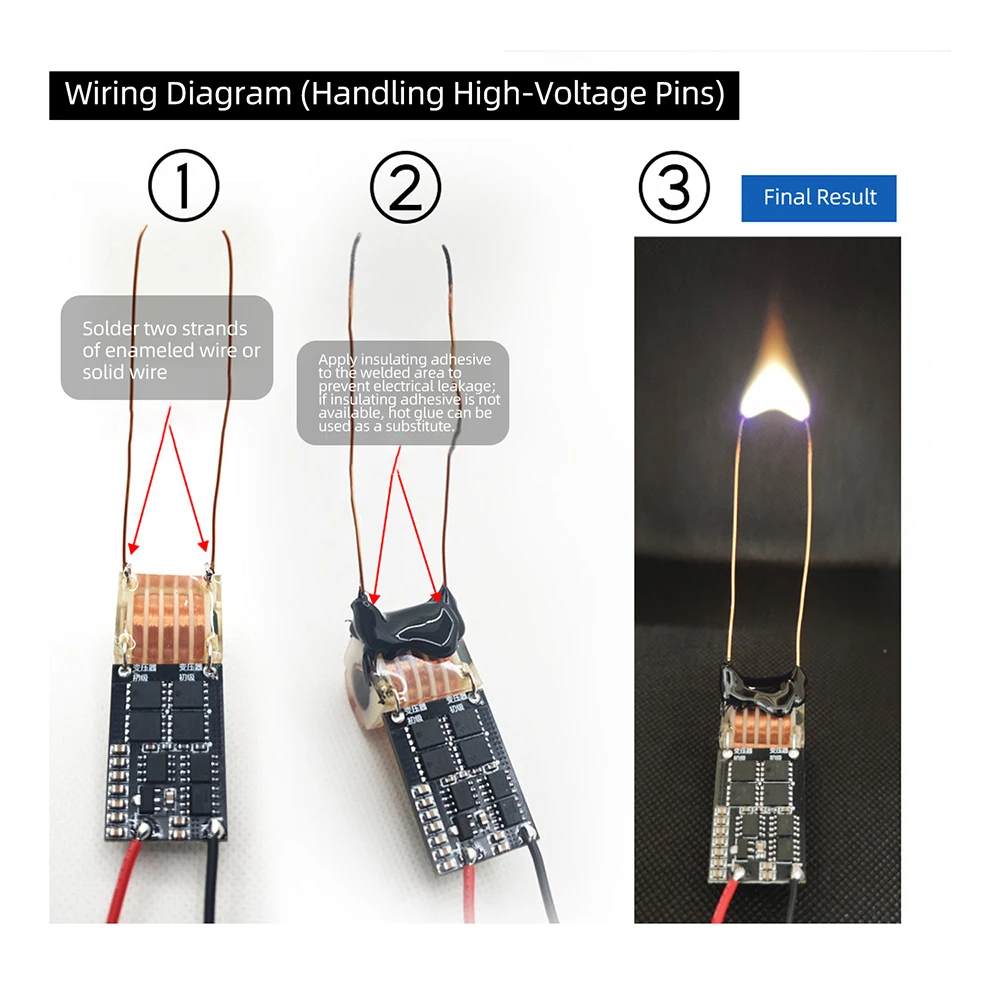

1. Due to the high power, the secondary output terminal of the transformer (i.e. the high-voltage output pin) must be insulated to prevent arcing from igniting at the high-voltage output pin of the transformer, which can cause damage to the pin. This is irreversible damage. If the secondary output terminal is burned or broken due to insulation issues, it is a non quality problem caused by improper operation by the buyer. Before insulation is done, it can only be tested instantly when powered on.
2. The discharge ignition gap should be controlled within 20mm. If the gap is too large, there is a small probability of transformer damage. No no-load or short circuit is allowed
Shipping List:

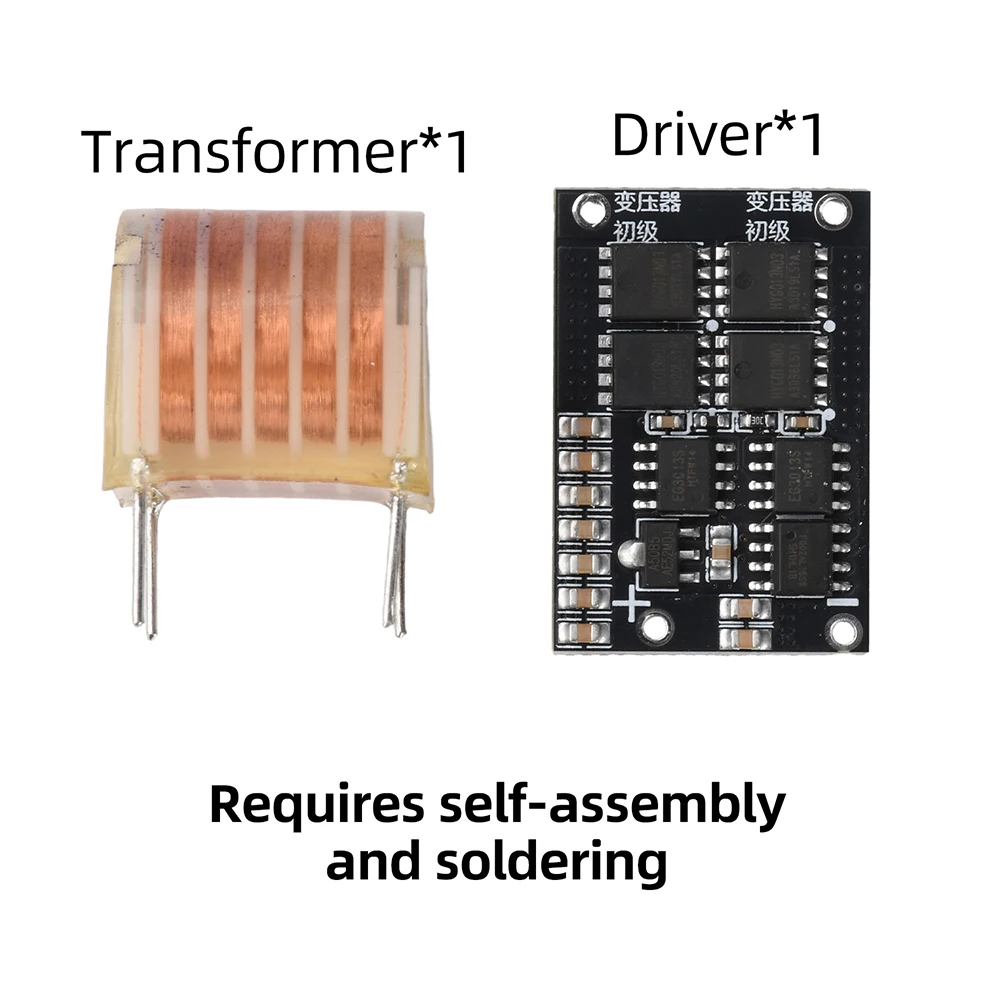

Driver board x1
Transformer x1
