24-Pin E-Ink Display Adapter Board |
||||

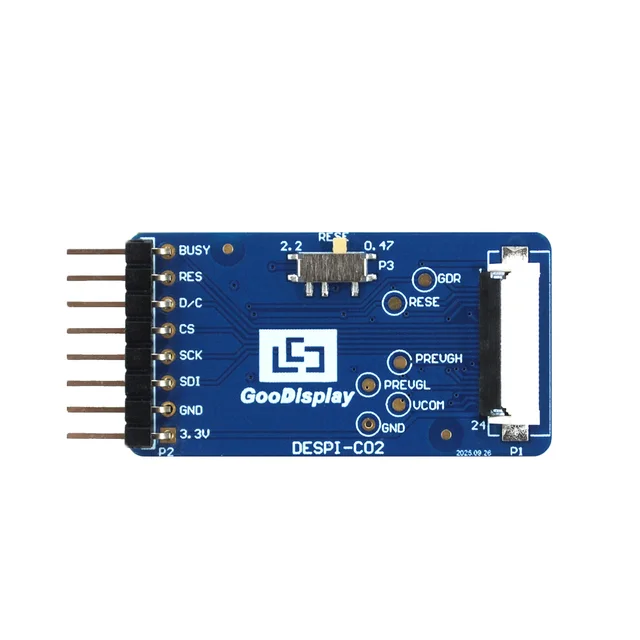

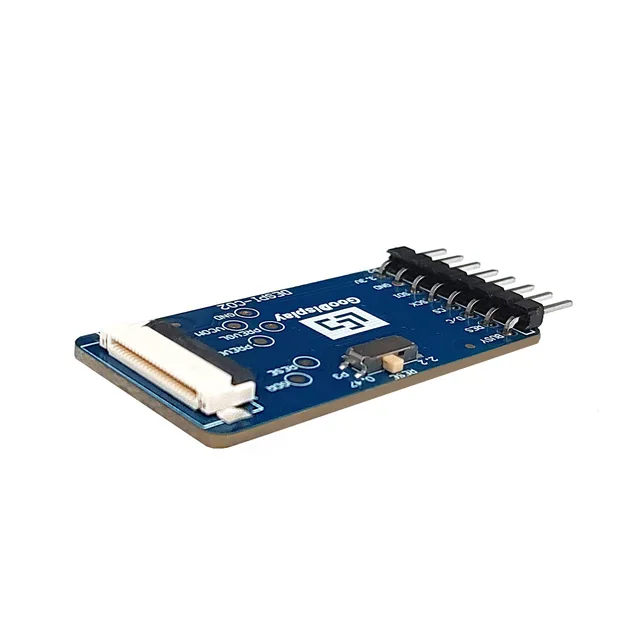

| Unlock the full potential of your ePaper screens with the DESPI-C02 HAT Adapter Board, designed to seamlessly integrate with a range of microcontrollers and development boards. |
Key Advantages |
||||
| • Broad Compatibility: Compatible with most 24PIN SPI e-paper displays up to 13.3 inches, meeting diverse display requirements. • Plug & Play Design: Direct connection with mainstream development boards, eliminating complex wiring and simplifying development. • Smart DIP Switch: Built-in DIP switch for easy resistance adjustment, compatible with UC, SSD and other driver IC series. • Debugging Support: Provides power measurement, status detection, and professional voltage test points for circuit validation. |
||||

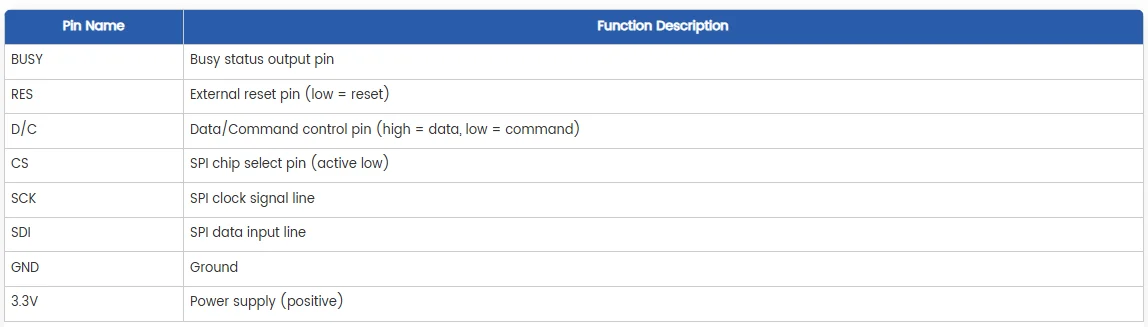

Display Pin Functions |
||||
  |
||||
