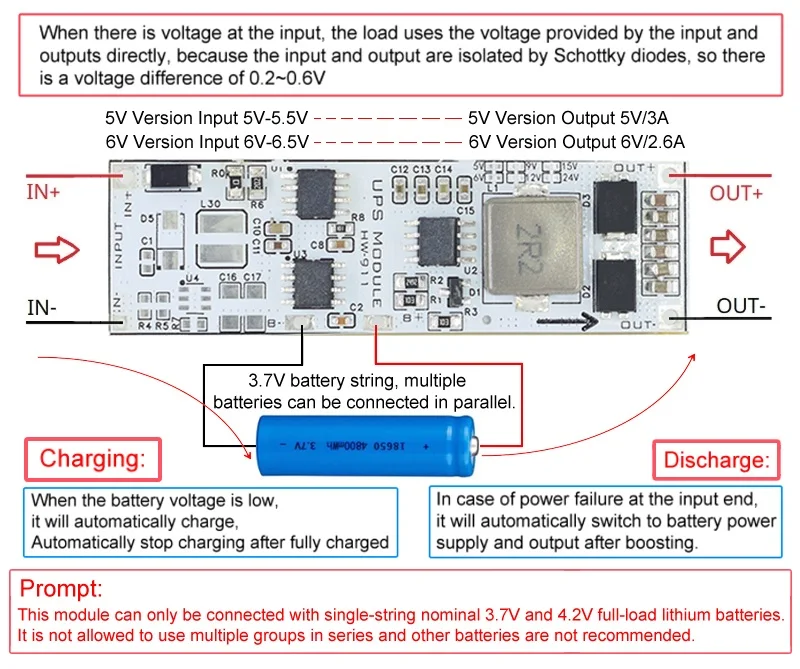

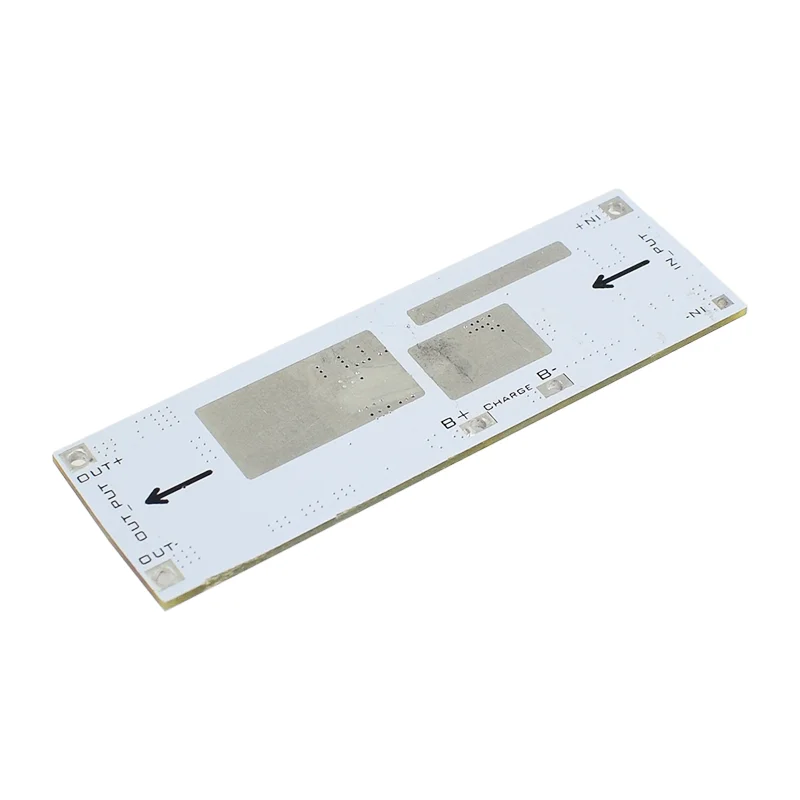

This product is a UPS module. The nominal 3.7V lithium battery is used at the battery end. The input voltage can be supplied according to the position of the resistor on the module. The input and output are isolated, and the output is generally equal to the input voltage, because the input and output are isolated by Schottky diodes, so there is a voltage difference of 0.2-0.6V.
Product parameters:
Input voltage: DC 5V/6V/9V/12V/15V/24V
Output voltage: equal to input voltage – 0.2V~0.6V
Output power: 15W for all versions
Number of battery strings: 1 string
Charging cut-off voltage: 4.2V ± 1%
Overdischarge protection voltage: 2.6V ± 0.1V
Size: 60*18*6MM(Suitable for 18650 battery)

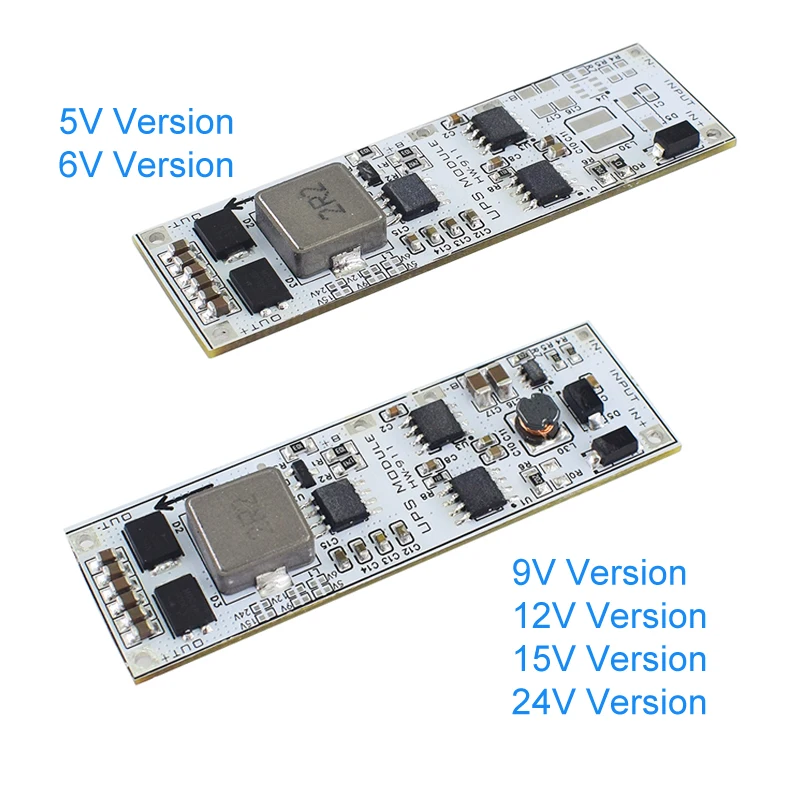

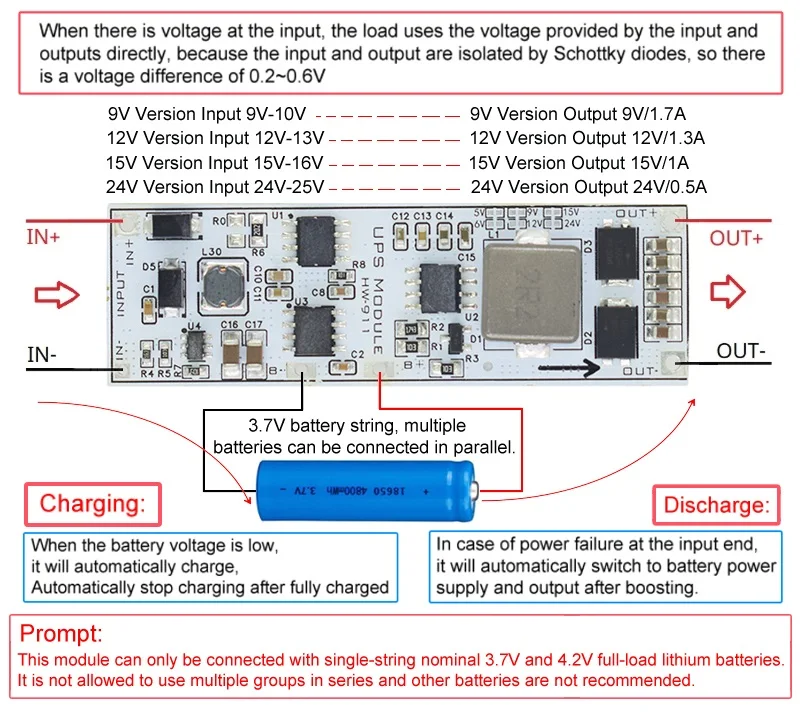

The maximum allowable load power for all versions is 15W. Parameters for each version are as follows
5V version: input 5V-5.5V, output 5V/3A
6V version: input 6V-6.5V, output 6V/2.6A
9V version: input 9V-10V, output 9V/1.7A
12V version: input 12V-13V, output 12V/1.3A
15V version: input 15V-16V, output 15V/1A
24V version: input 24V-25V, output 24V/0.5A
