- Hign-concerned Chemical: None
- Origin: Mainland China
- Specification 1: Meshtastic TLora Pager Module
- Specification 2: Meshtastic LoRa AIoT Devic
- Specification 3: Meshtastic ESP32S3LoRa GPS Module
- Specification 4: LoRa SX1262 Wireless RF Module
- Specification 5: Meshtastic TLora Pager AIoT Devic

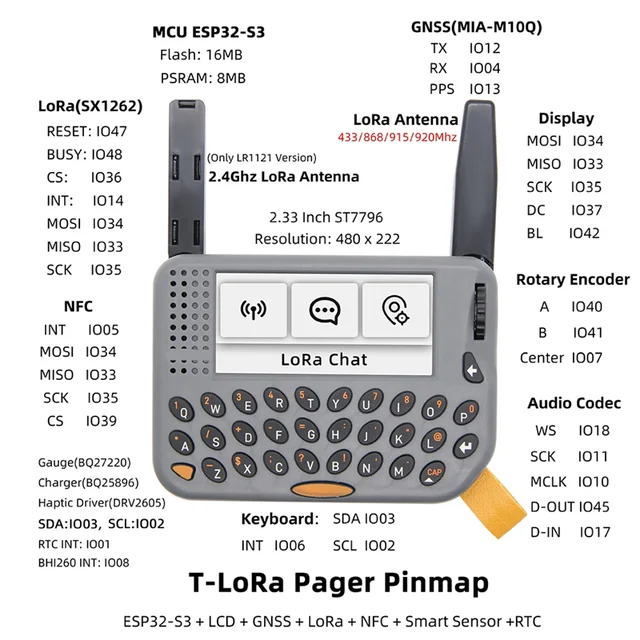

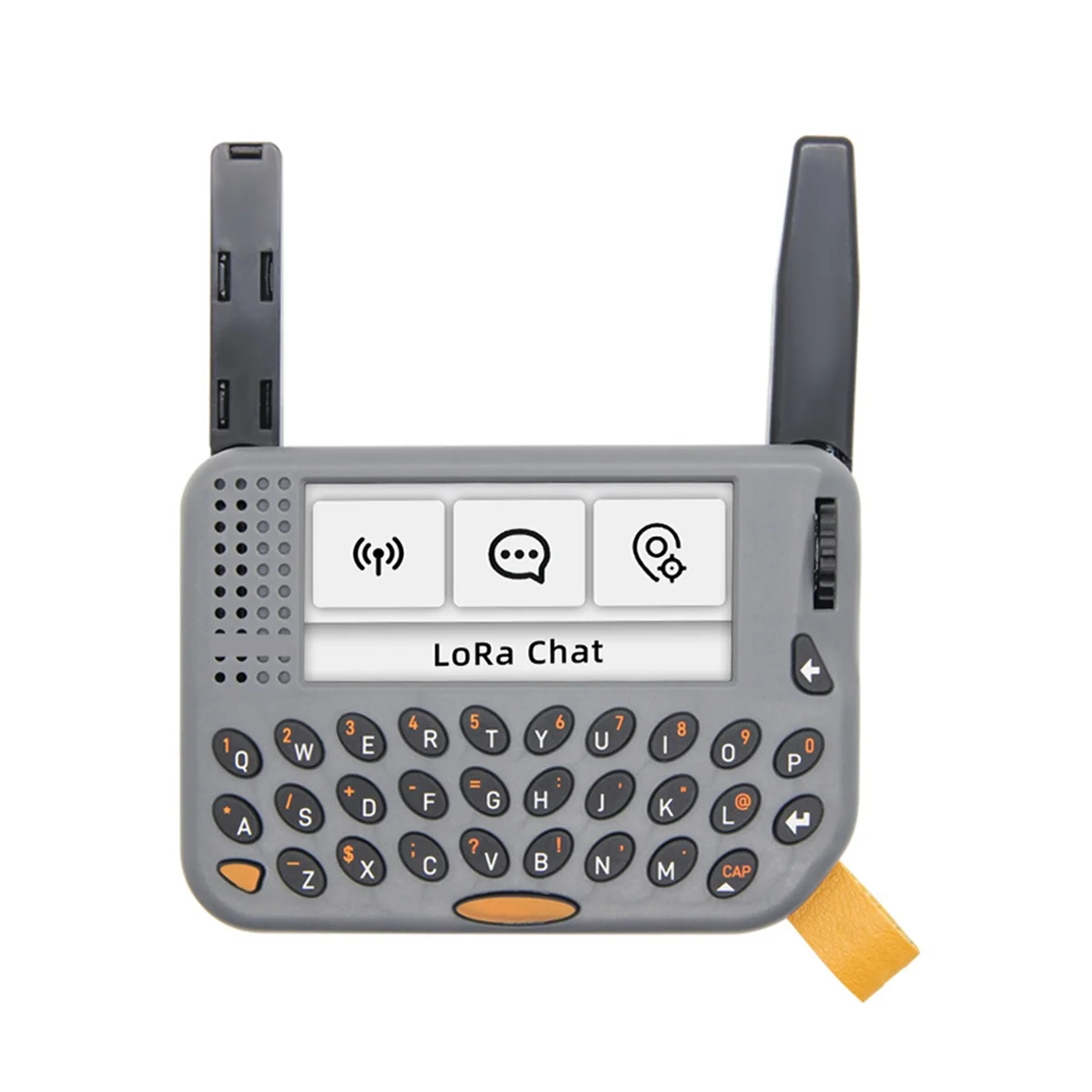

T-LoraPager Introduction: Next-generation programmable handheld AIoT device from LILYGO combining ESP32-S3 with selectable wireless modules. Features a compact form factor with foldable external antenna, delivering optimal RF performance without compromising aesthetics.
Key Hardware Features: QWERT keyboard input
AI-enabled 6-axis IMU (BHI260AP)
2.33inch IPS strip display (222×480 resolution)
GNSS module (MIA-M10Q-01B)
Dual-mode RFID/NFC with RTC
Professional audio system (ES8311 CODEC + mic/speaker/3.5mm jack)
Multi-function rotary encoder with push button
8-channel GPIO expansion interface (NRF24L01 compatible)
Industrial-grade power management (TI BQ25622+BQ27750)
Standard 1/4inch tripod mount & 4xM2 threaded inserts
(The product printed words may vary depending on the batch, but this does not affect use)
Specifications: A 915MHz / B 868MHz / C 433MHz / D 920MHz
Color: As Shown
Material: ABS
Package Contents:
1 * LoRa AIoT Devic
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
