Product features:
-Exquisite process and stable heat dissipation
-Overvoltage protection Overdischarge protection
-Charging protection Short circuit protection
-Over current protection Over temperature protection
-Charging equalization disconnection protection
Product parameters:
-Type: ternary/7S/24V

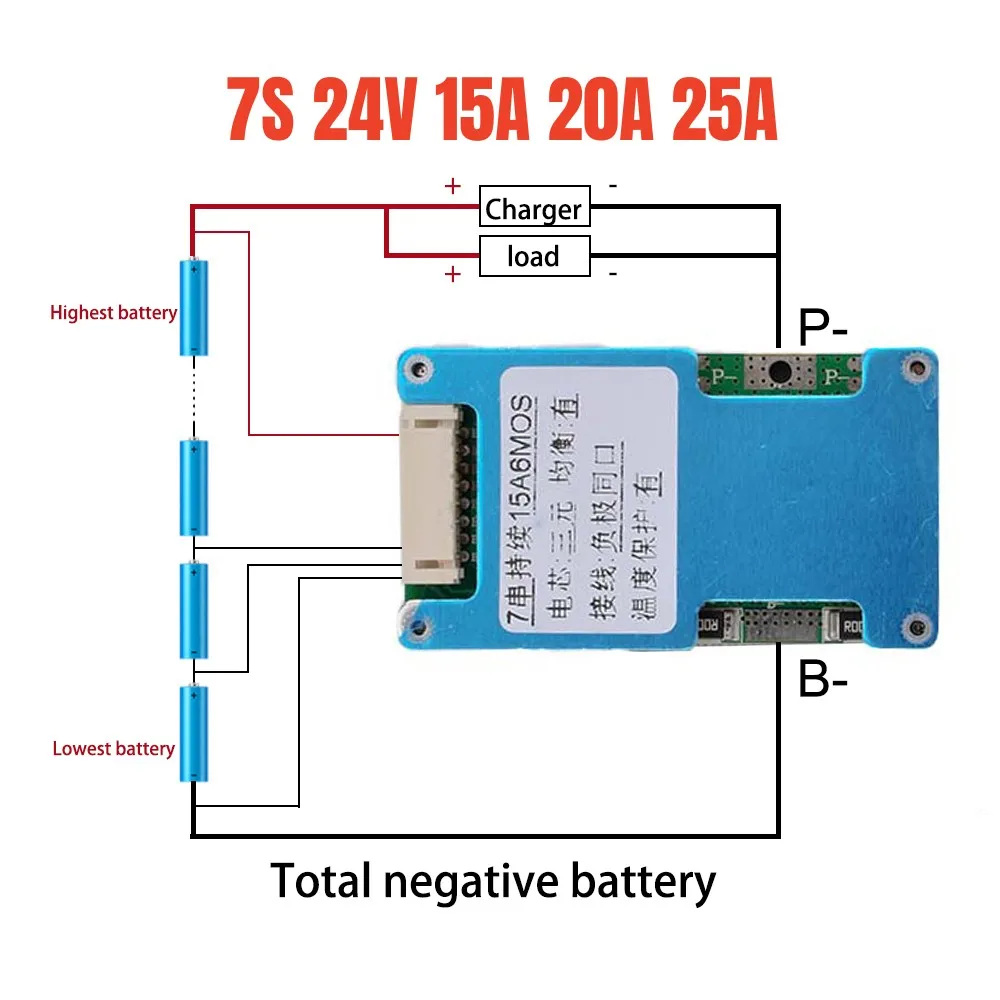

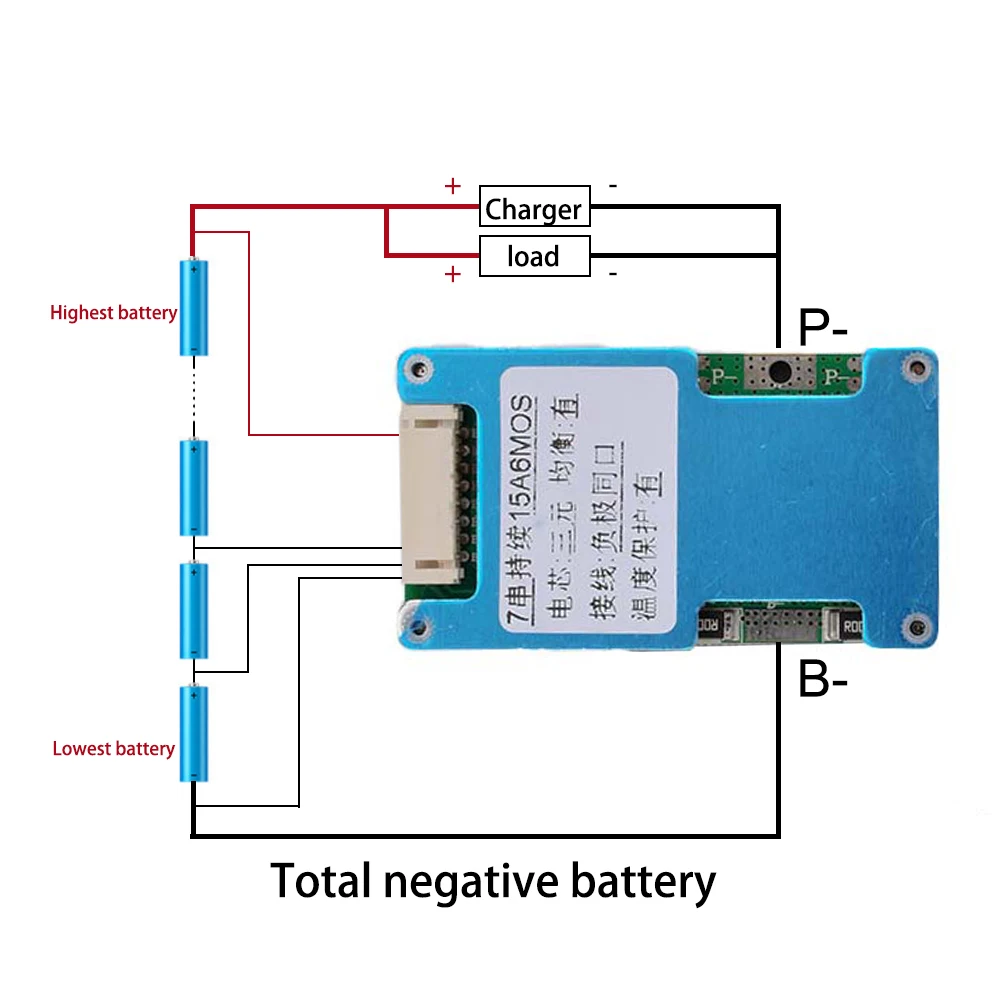

-Wiring mode: same port
-Overdischarge voltage of single battery: 2.7V ± 0.08V
-Continuous working current: 25/20/15A (optional)
-Instantaneous protection current: 60A
-Overcurrent recovery condition: charge recovery or load disconnection
-Short circuit recovery condition: charge recovery or load disconnection
-Overcharge voltage of single battery: 4.25V ± 0.025V
-Continuous charging current: 20/15/10A (optional)
-Charging equalization voltage: 4.15V ± 0.025V
-Charging equalizing current: 40mA
-Charger voltage: 30V (recommended)
-Charging over temperature: 50 ℃
-Discharge overtemperature: 70 ℃
-Working power consumption: 30 μ A
-Internal resistance of main circuit conduction: 20m Ω
-Temperature range: – 40 to+80 ℃
-Wire break protection: Yes
-Size of flat cable: 2.0MM space/40CM length
Delivery list:

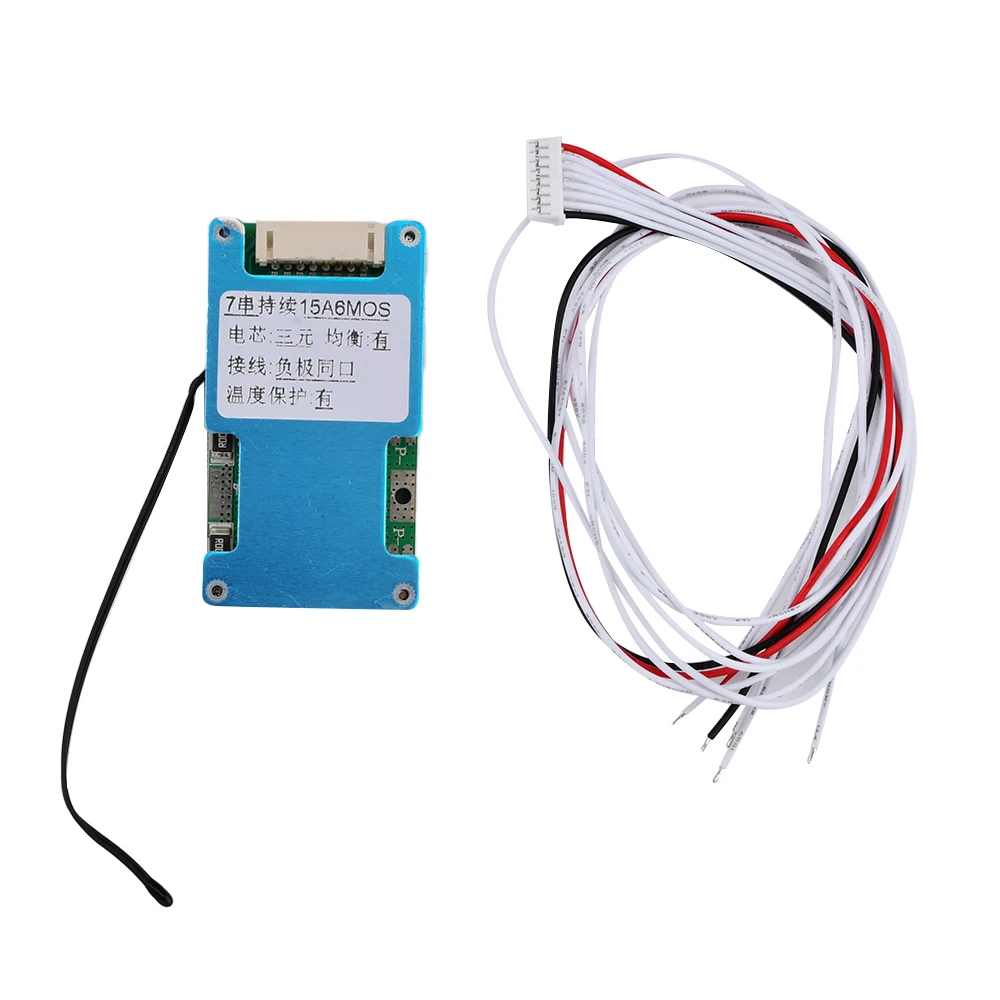

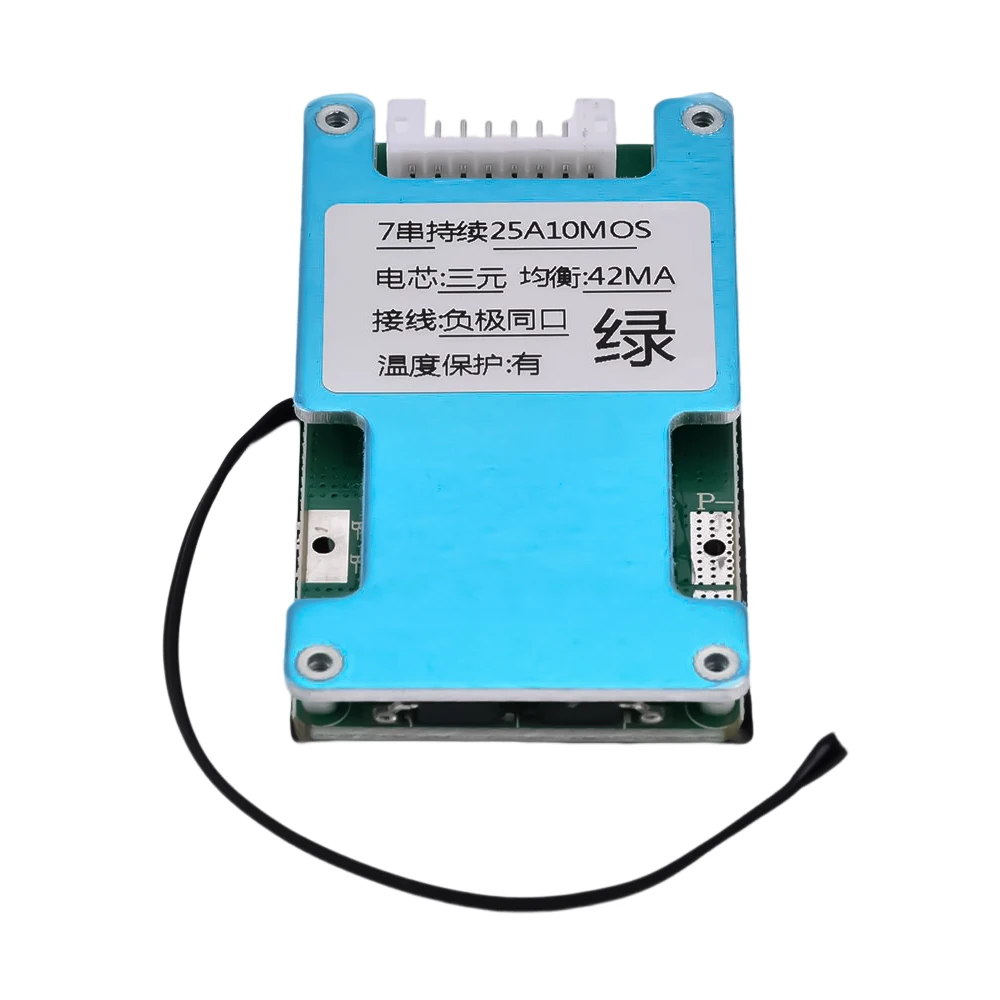

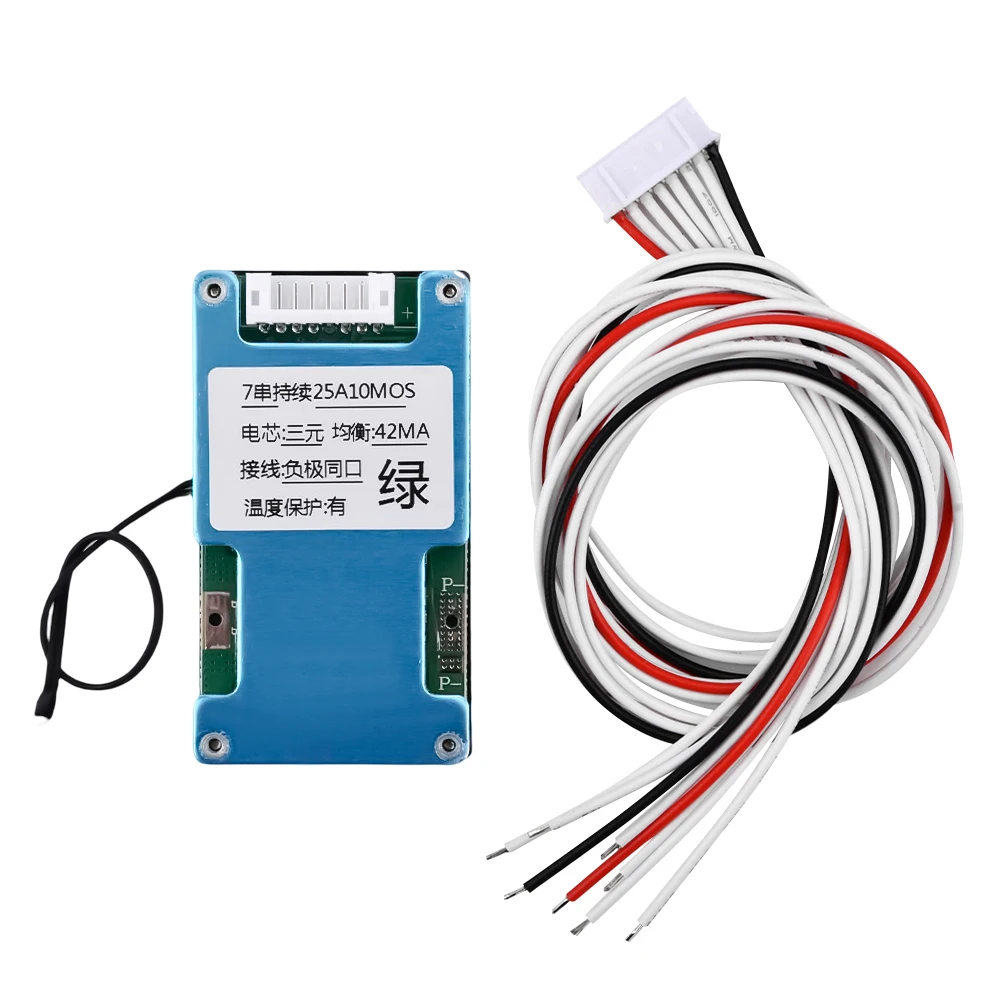

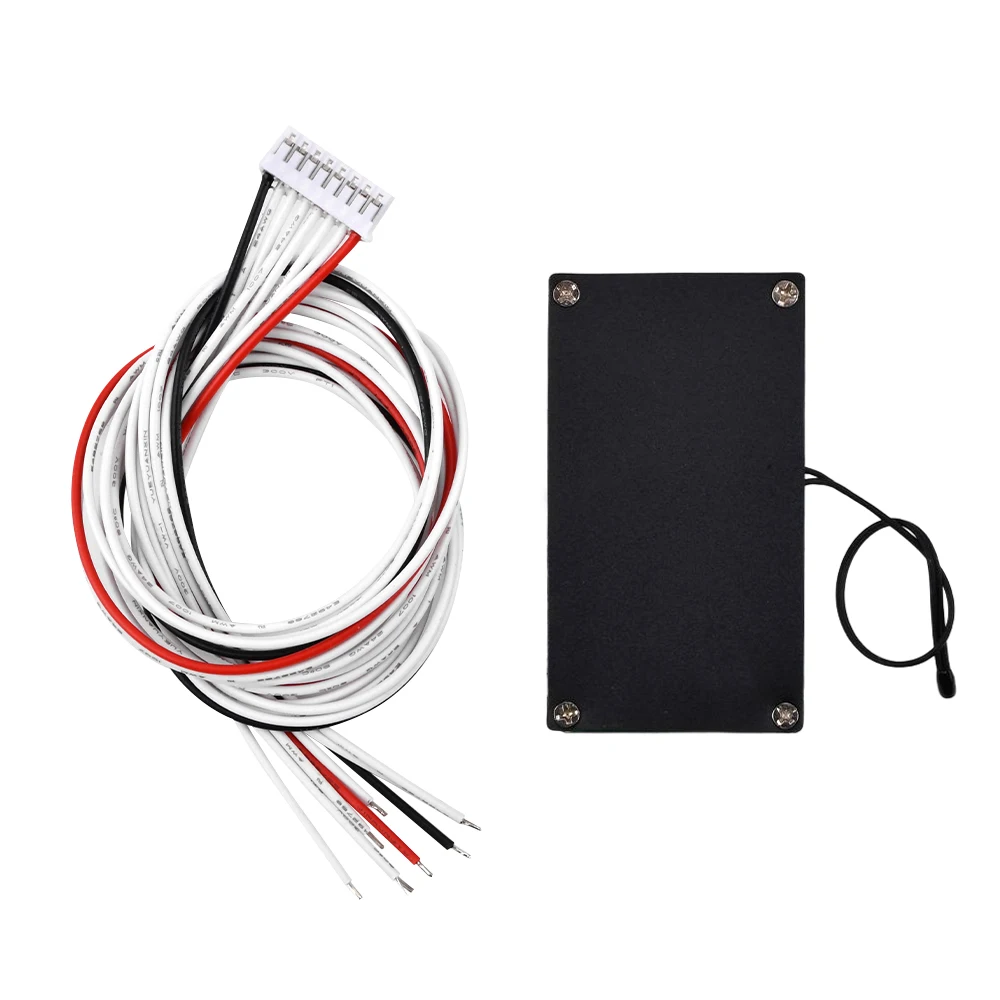

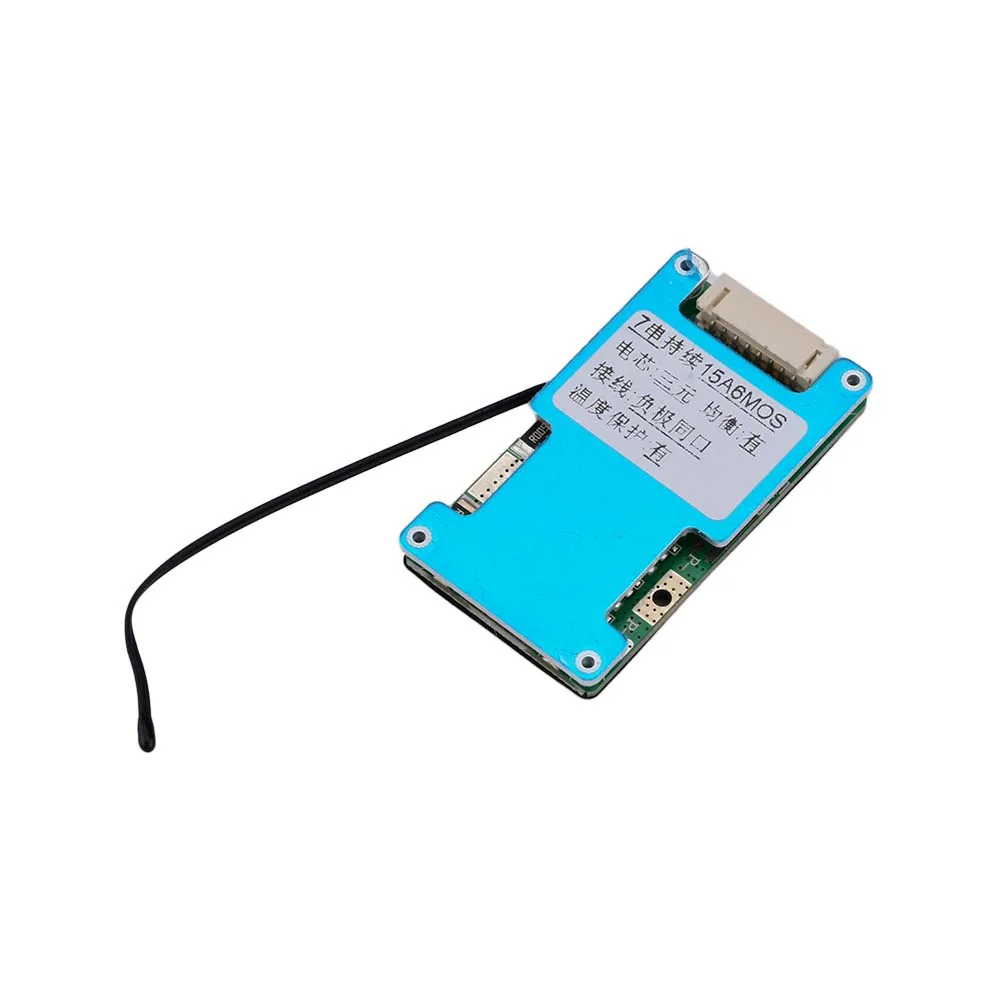

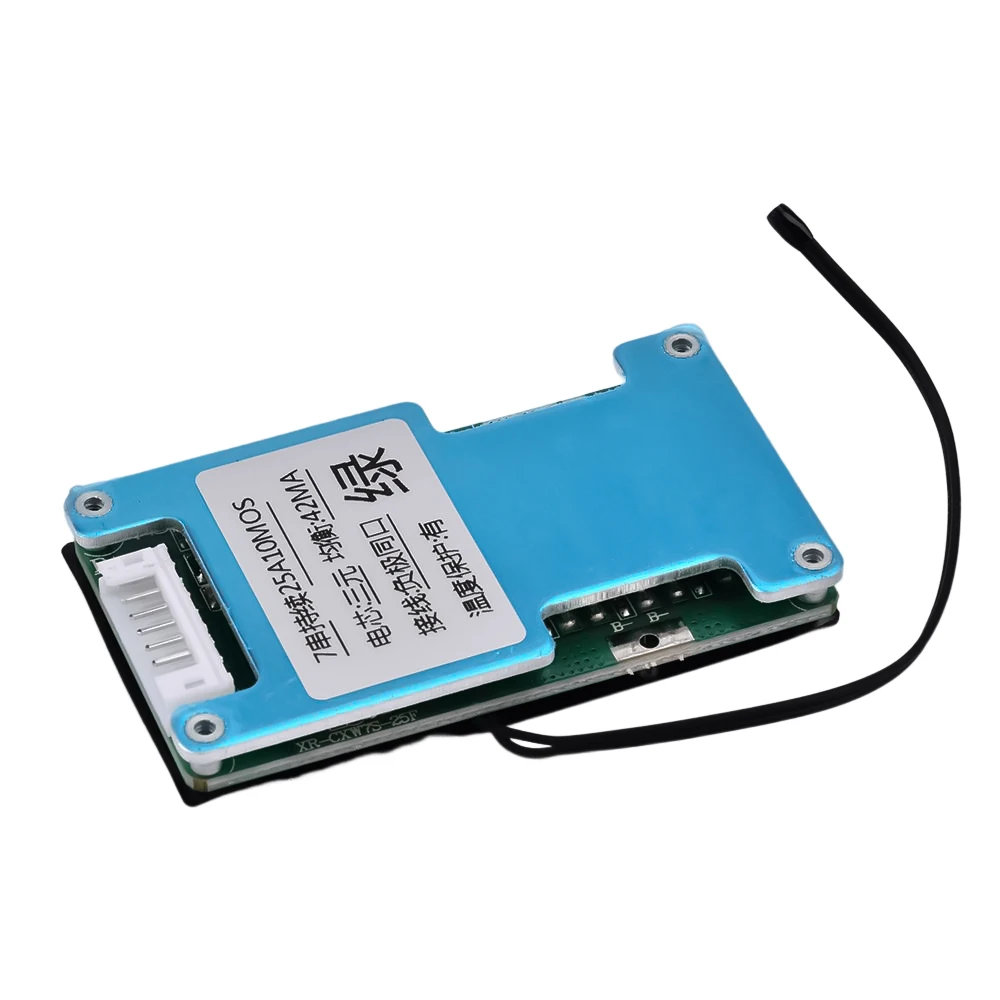

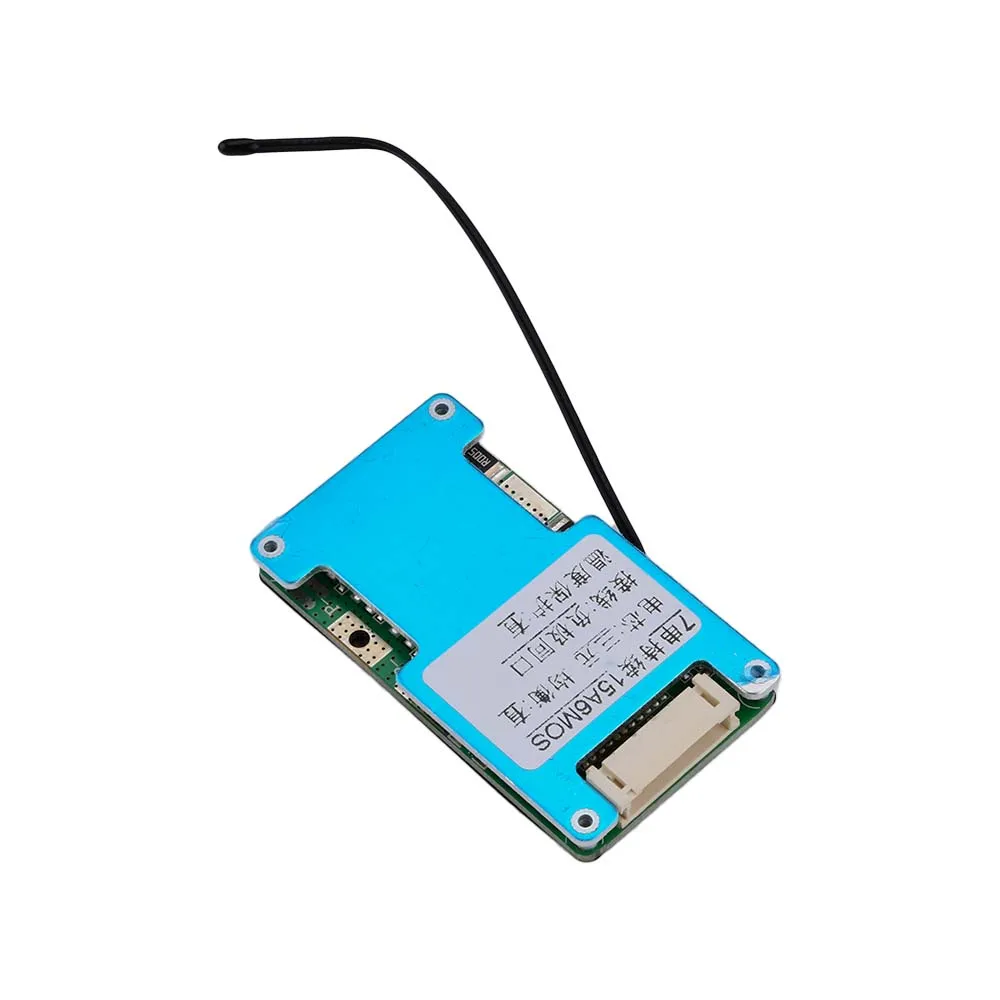

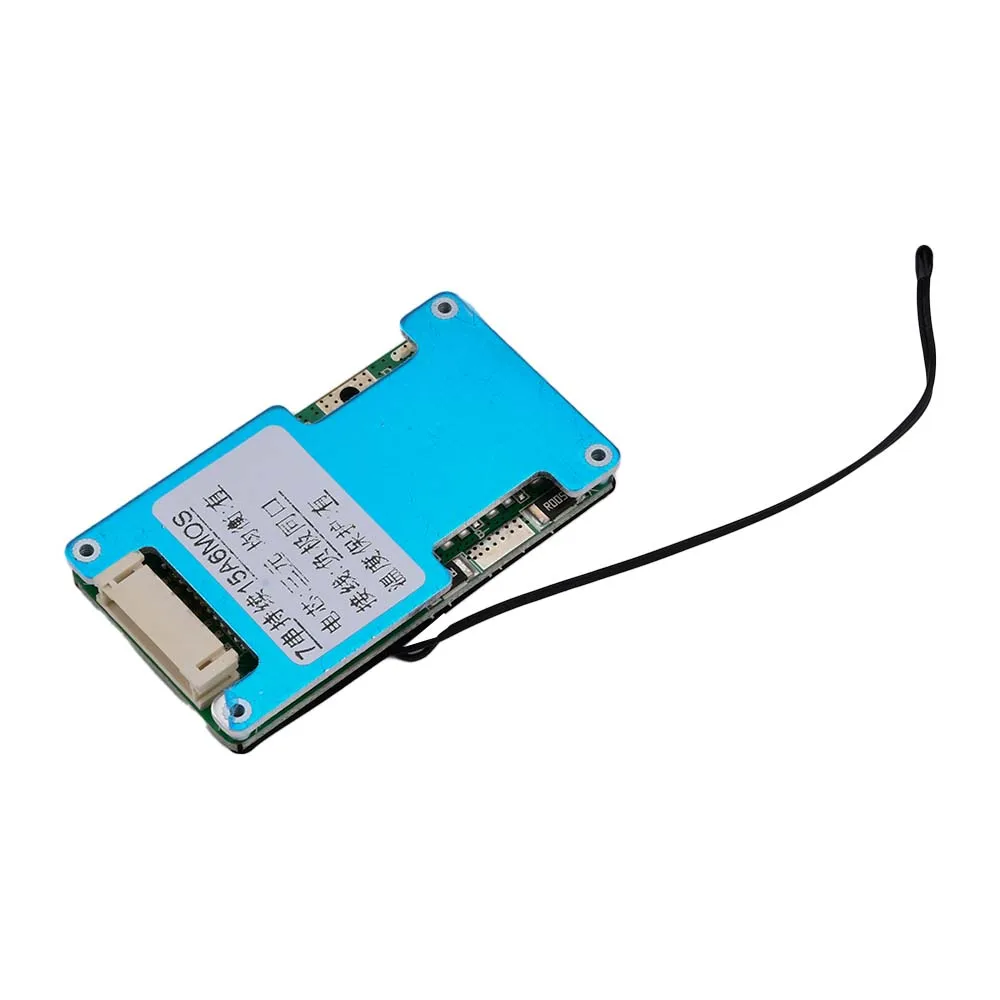

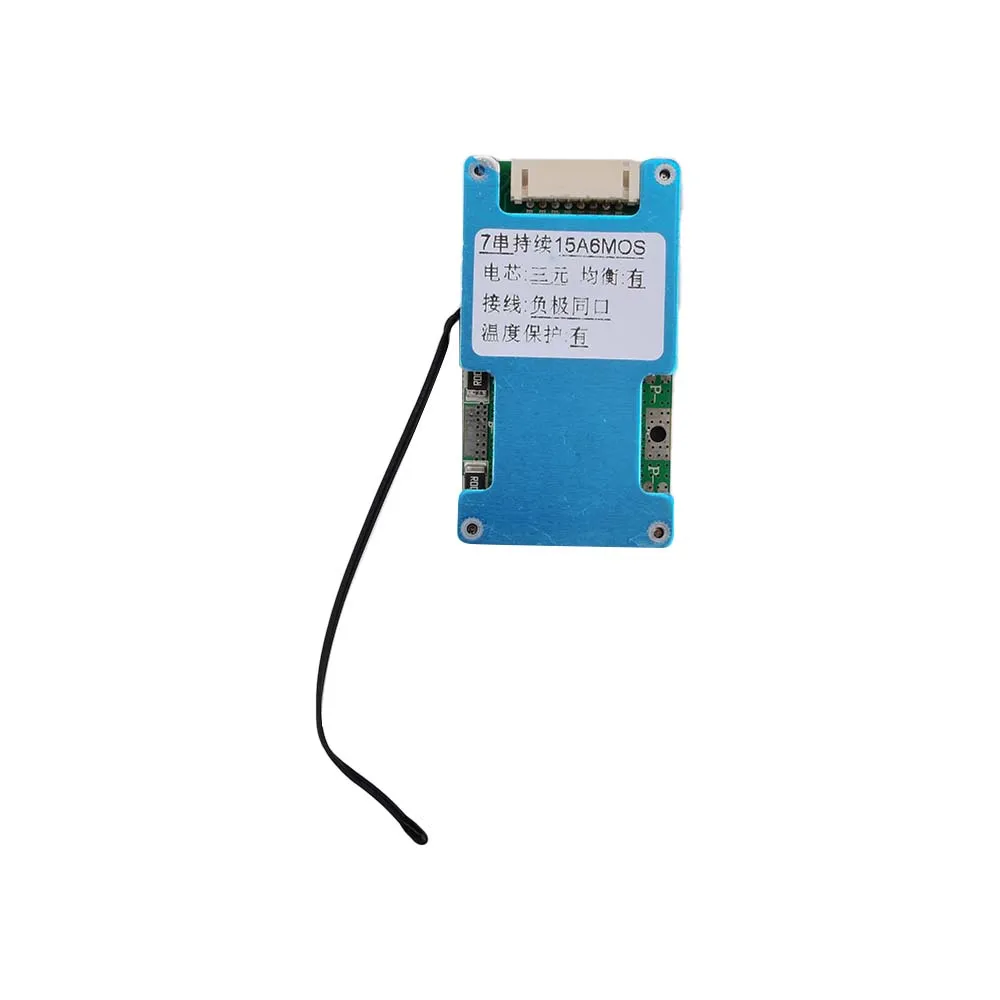

Lithium battery protection board X1
Flat cable X1
