【Product features】
1. High stability
2. High reliability
3. Long service life
4. With adjustable potentiometer precision error calibration
5. Custom set high and low voltage range: DC8-100V
6. Ternary lithium L measurement from L03 to L20 series (power failure memory)
7.Lead acid battery P measurement: DC12V, 36V, 48V, 60V,72V, 84V (power failure memory)
8. LiFePO4 battery F measurement from F03 to F23 strings (power failure memory)
【Product parameters】
Voltage detection range: DC8-80V
Operating current: ≤15MA
Display mode: LCD screen

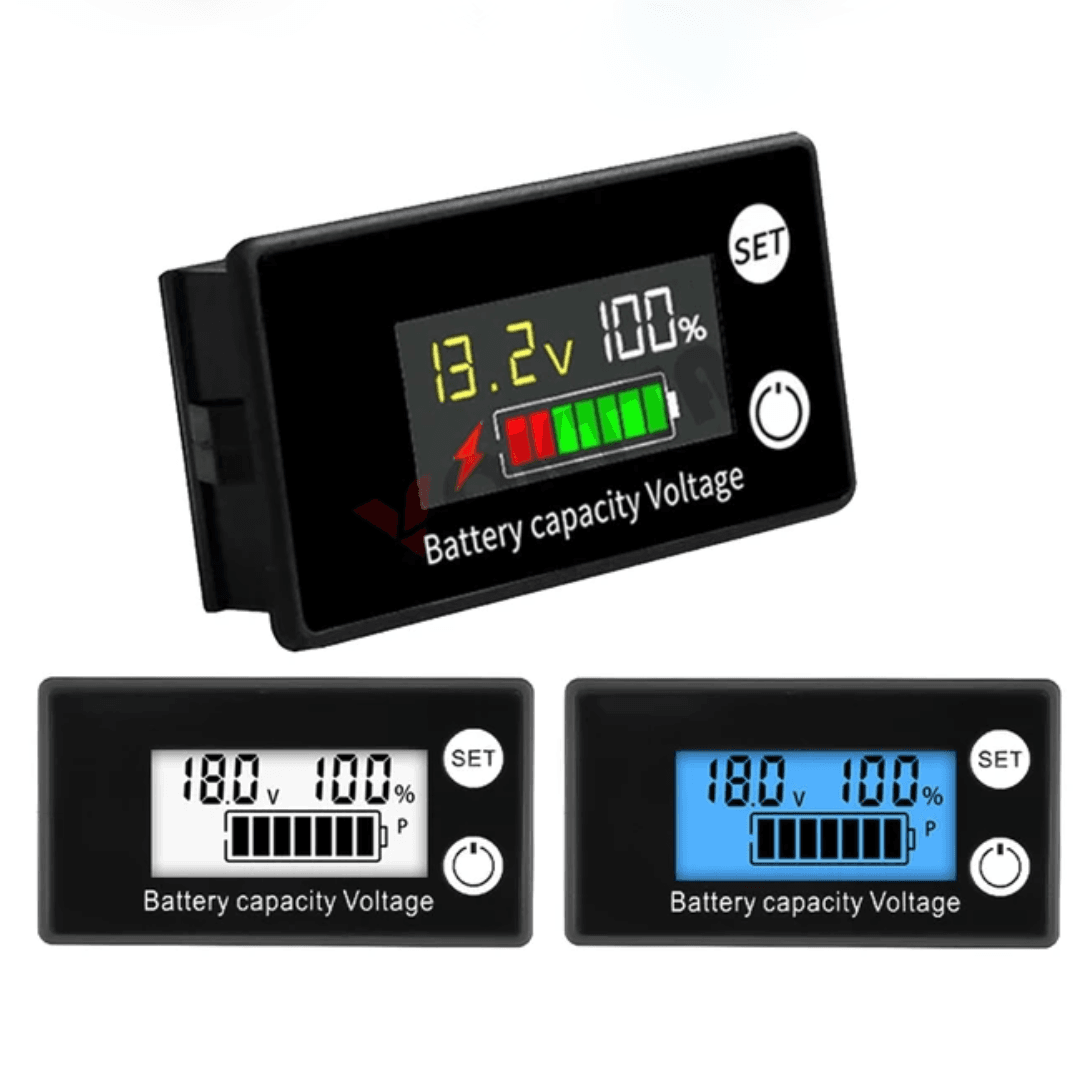

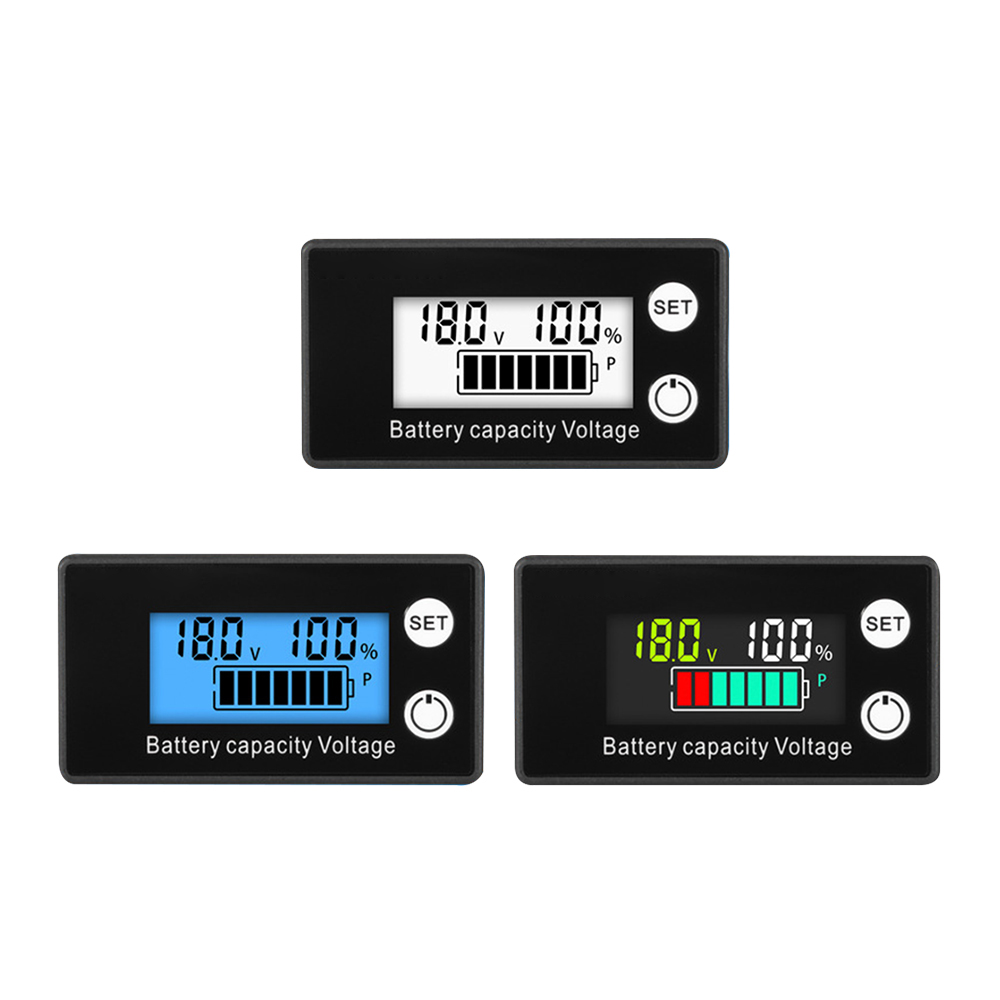

Display colour: blue/white/colour (optional)
【Performance indicators】
Detection accuracy: ±1%
Opening size: 58.5*28.5MM
Refresh speed: 500ms/time

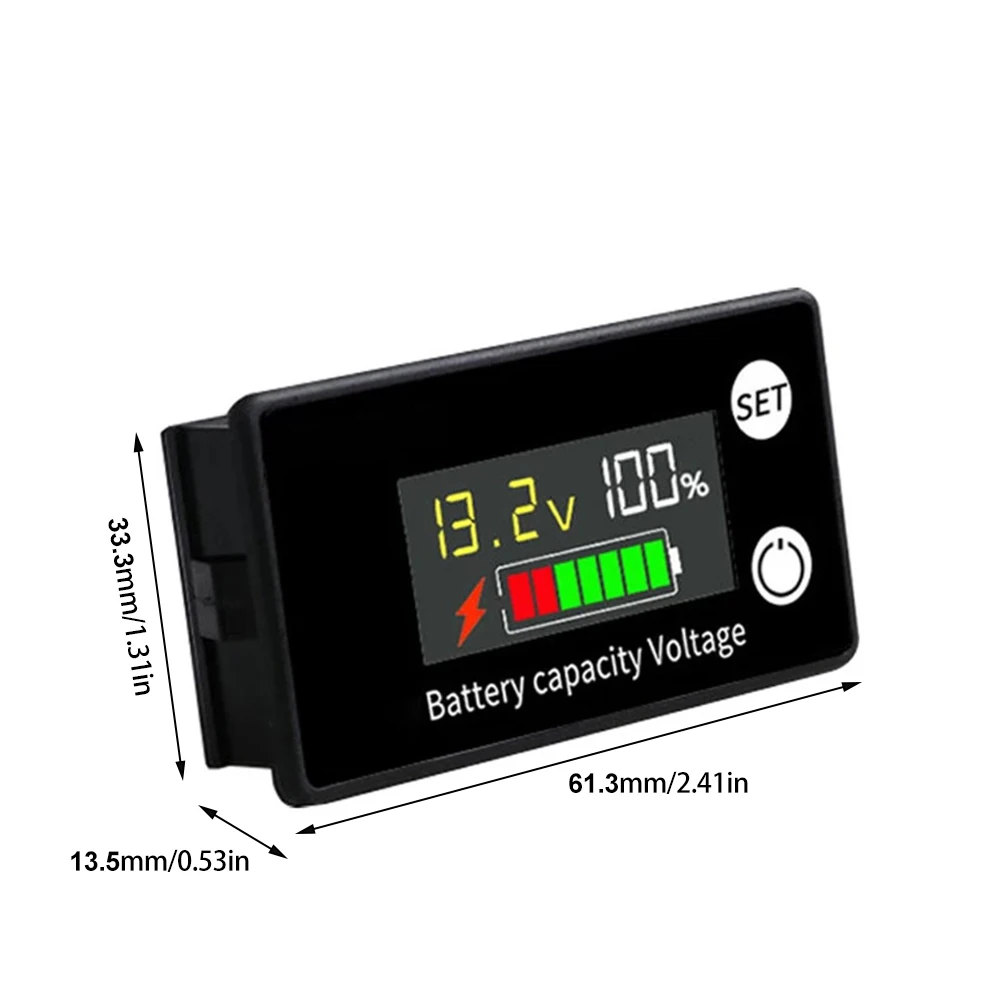

Dimension: 61.3*33.3*13.5MM
【Packing list】
Test Meter *1

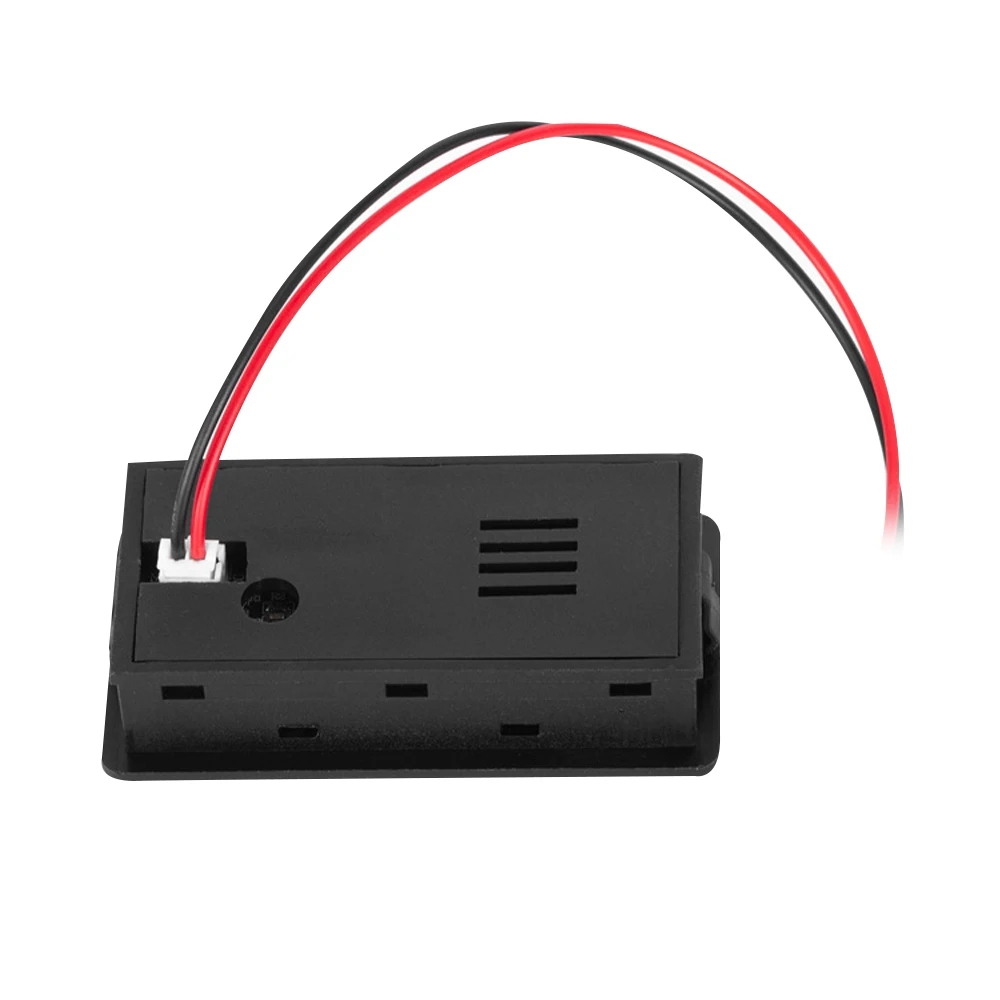

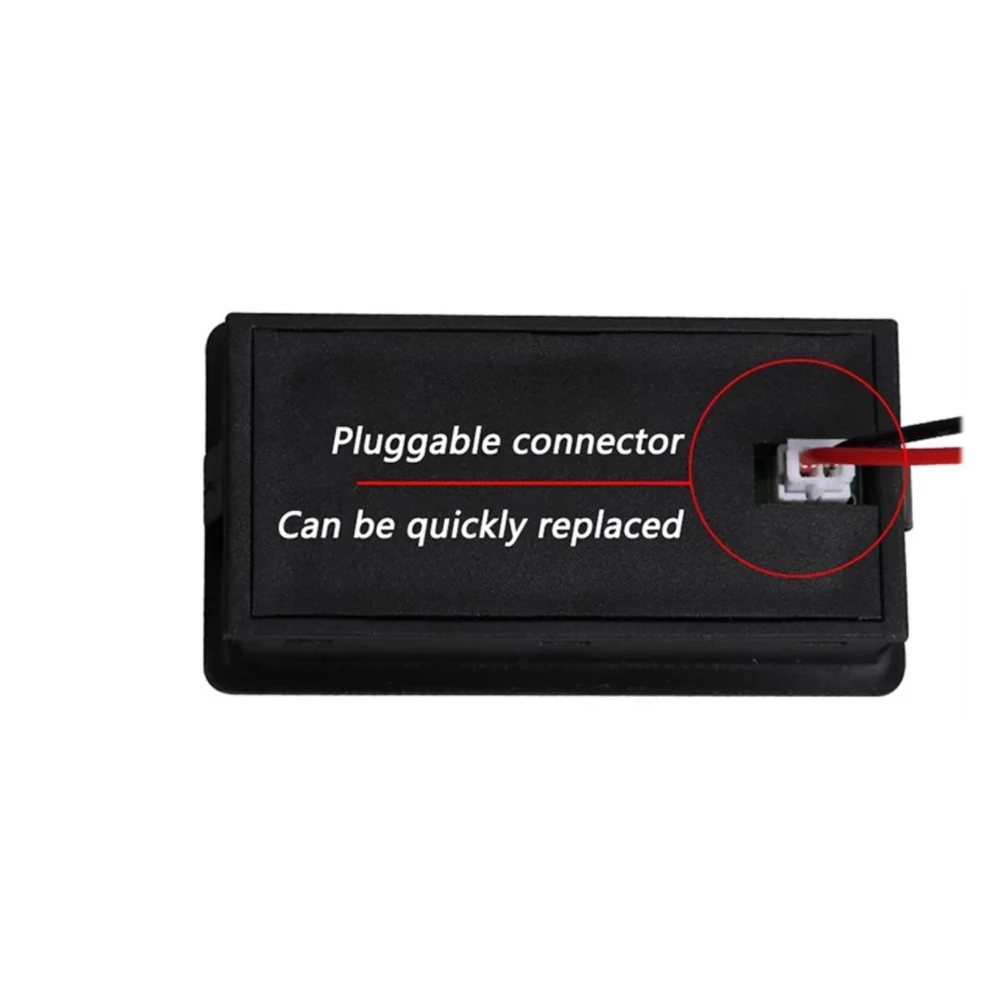

Cable*1

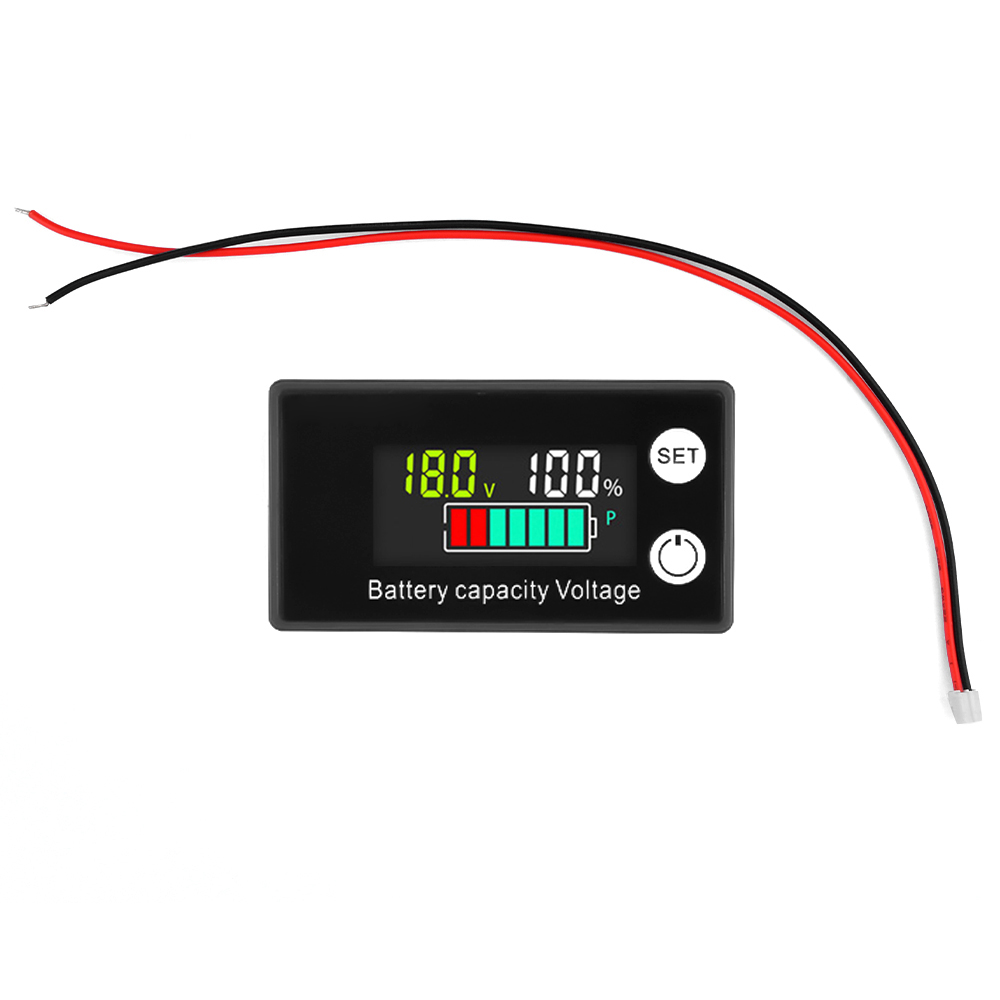

Optiona A

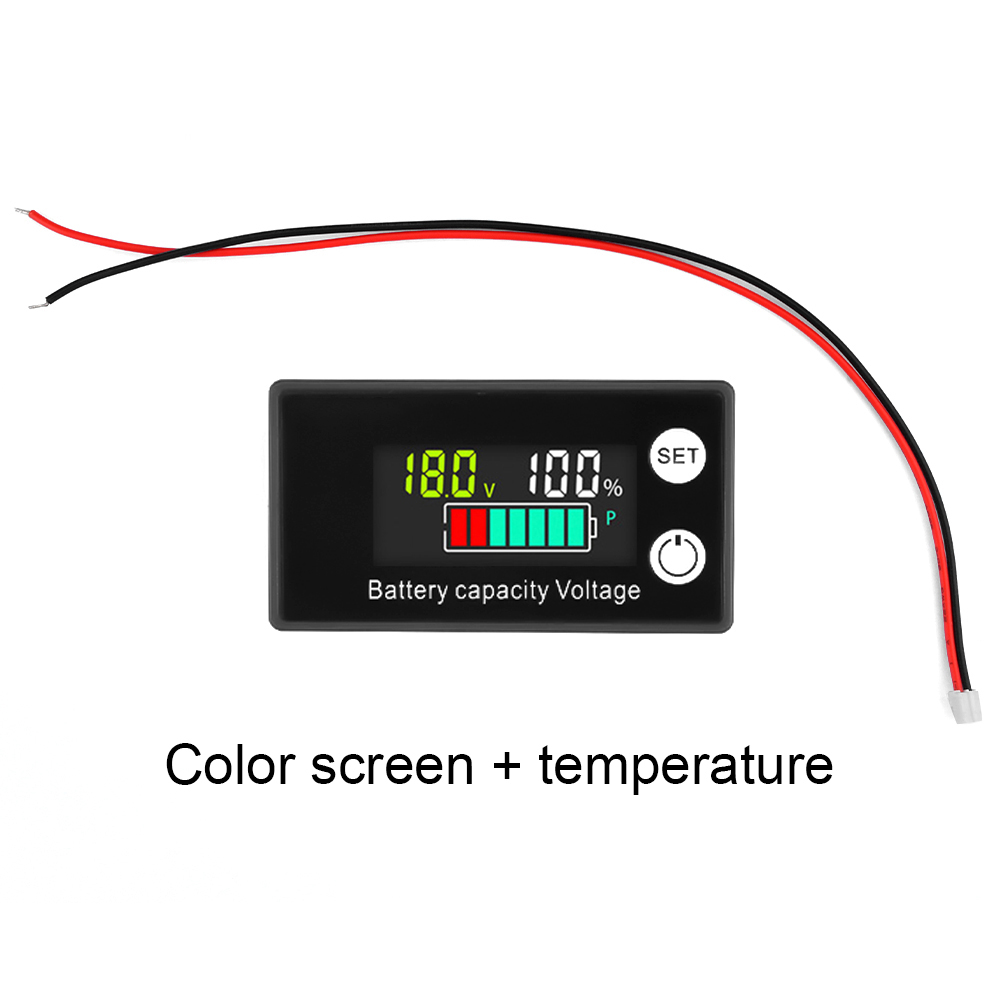

Color screen + Temperature

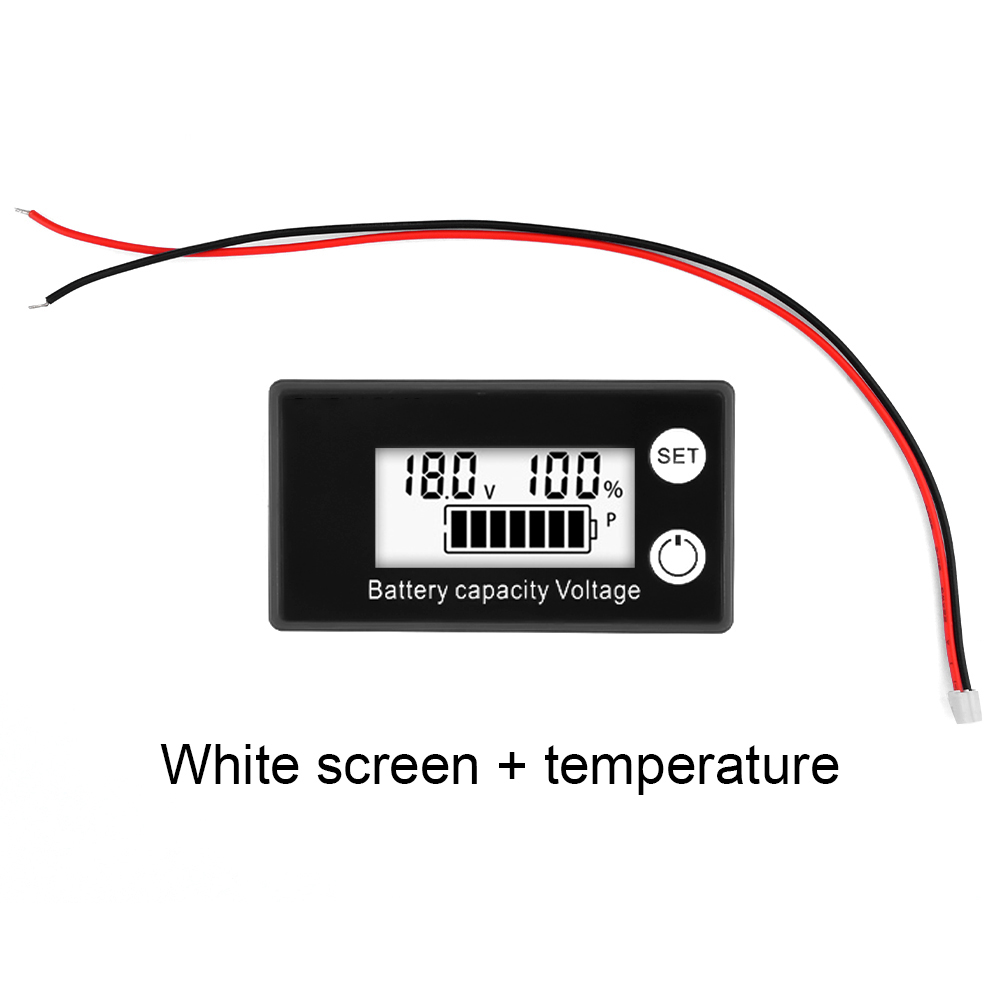

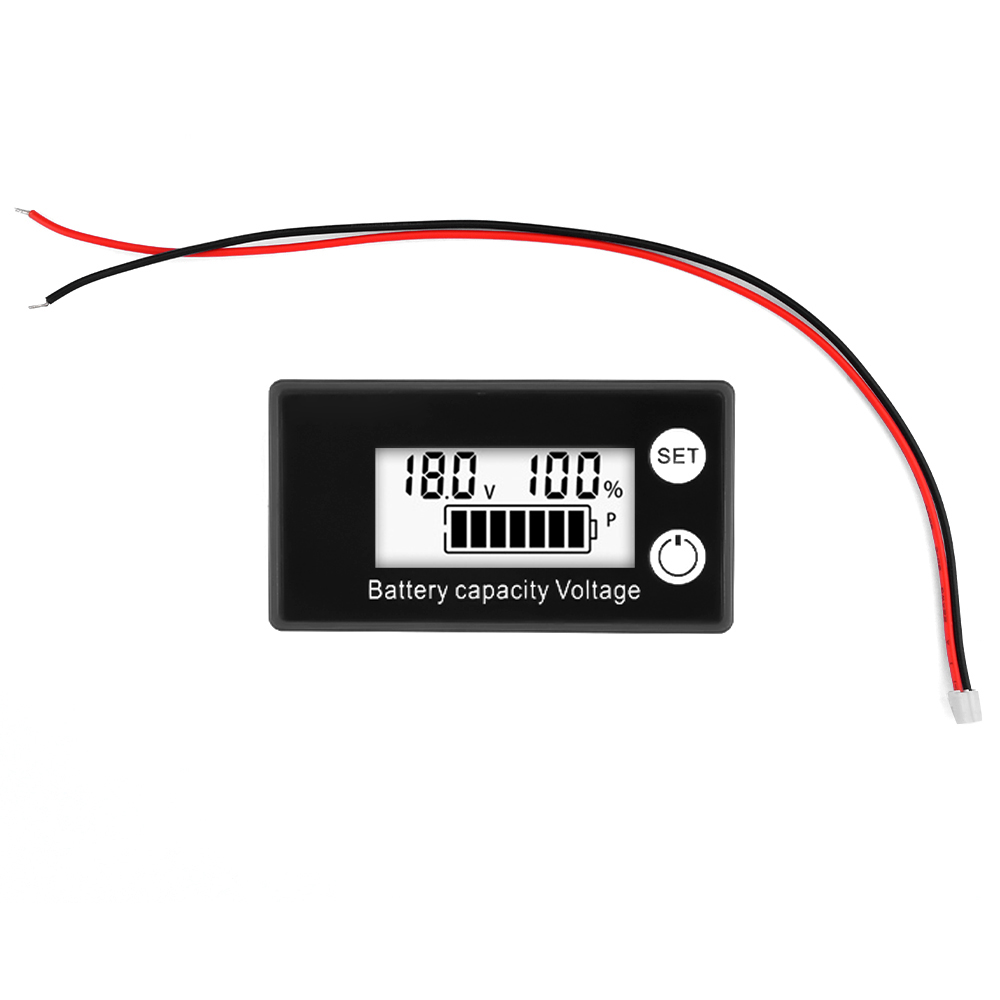

Optiona B
White screen + Temperature

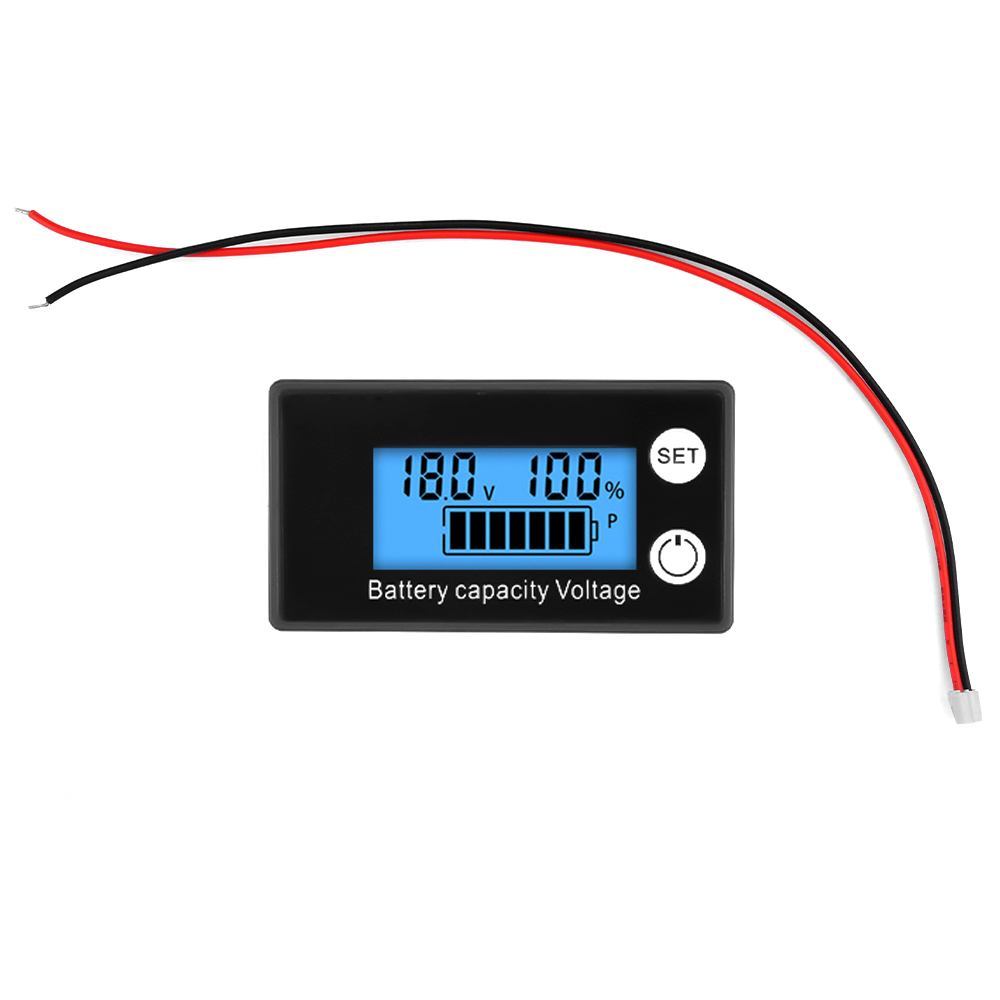

Optiona C

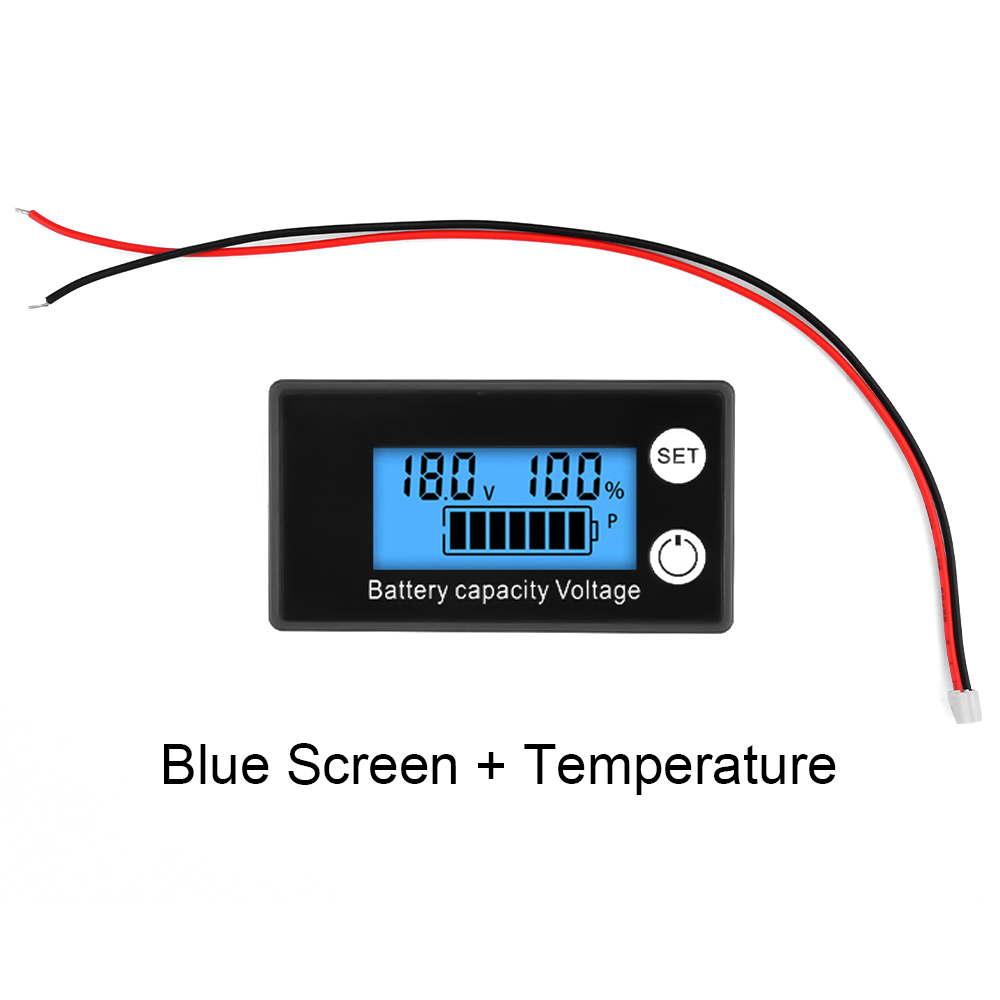

Blue screen + Temperature

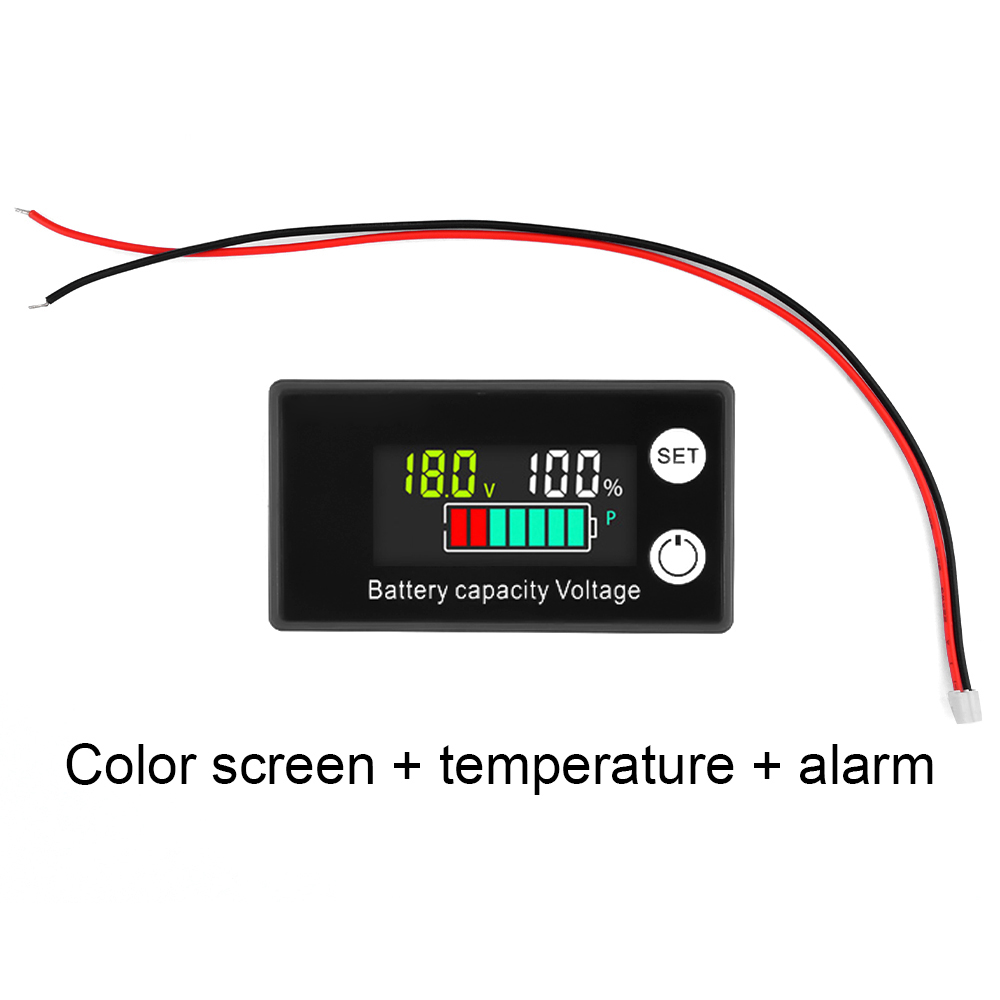

Optiona D
Color screen + Temperature + Alarm

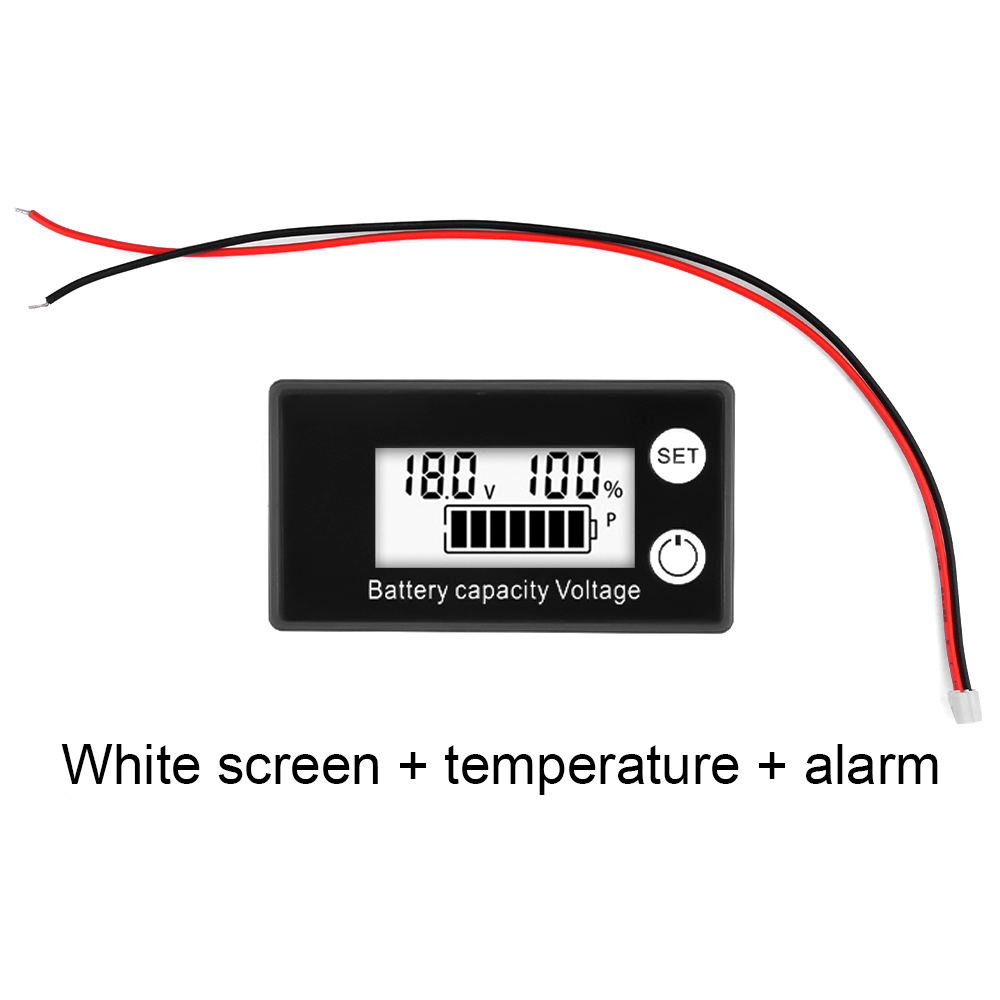

Optiona E
White screen + Temperature + Alarm

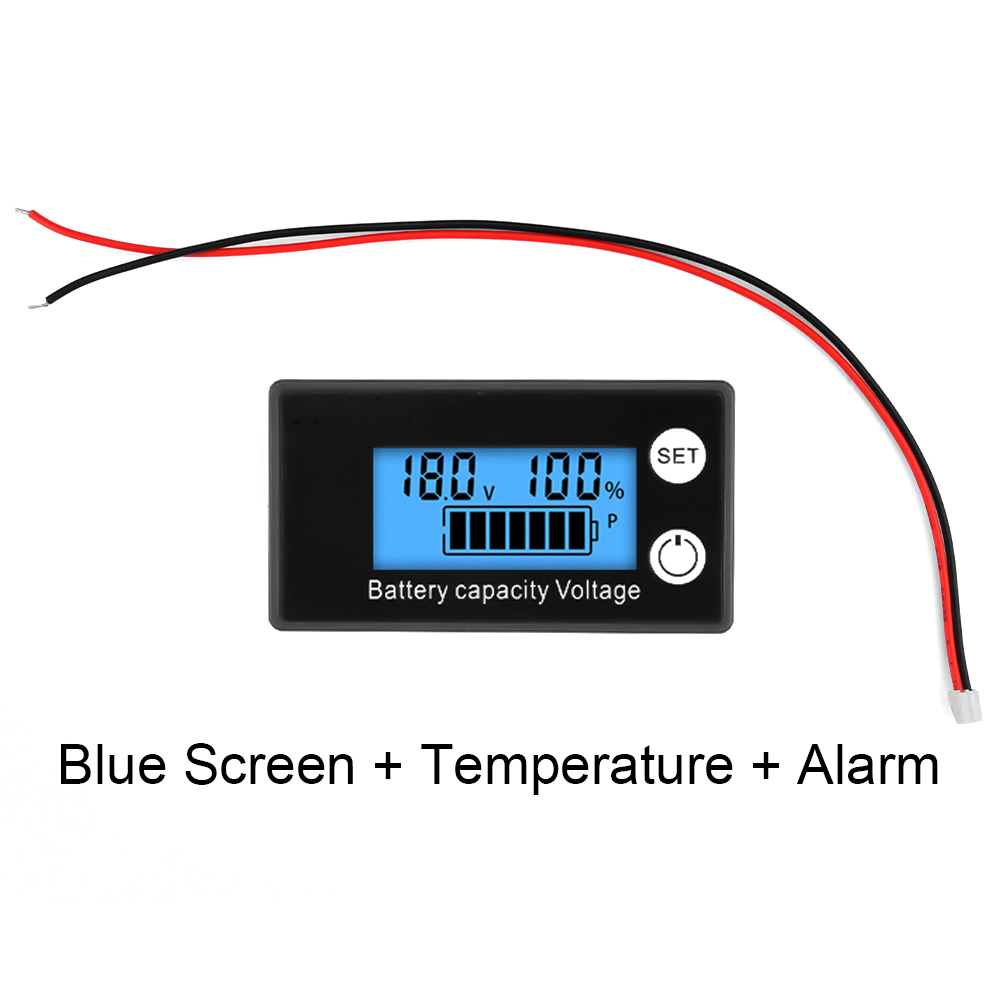

Optiona F
Blue screen + Temperature + Alarm
