Features:
1. Integrated display and control: Equipped with a 1.28-inch circular display screen, providing clear visual effects.
2. Wi Fi and Bluetooth capabilities: Supports 2.4GHz Wi Fi and low-power Bluetooth, suitable for various IoT applications.
3. Efficient processor: Adopting ESP32-C3-MINI-1U single core MCU, with a clock speed of up to 160 MHz.
4. Multiple options: This model comes with or without a touch screen and a capacitive touch screen, with or without a casing to choose from.
5. Multiple interfaces: This module includes LCD display screen, backlight control circuit, I0 port interface, etc. to meet different needs.
Product Introduction:

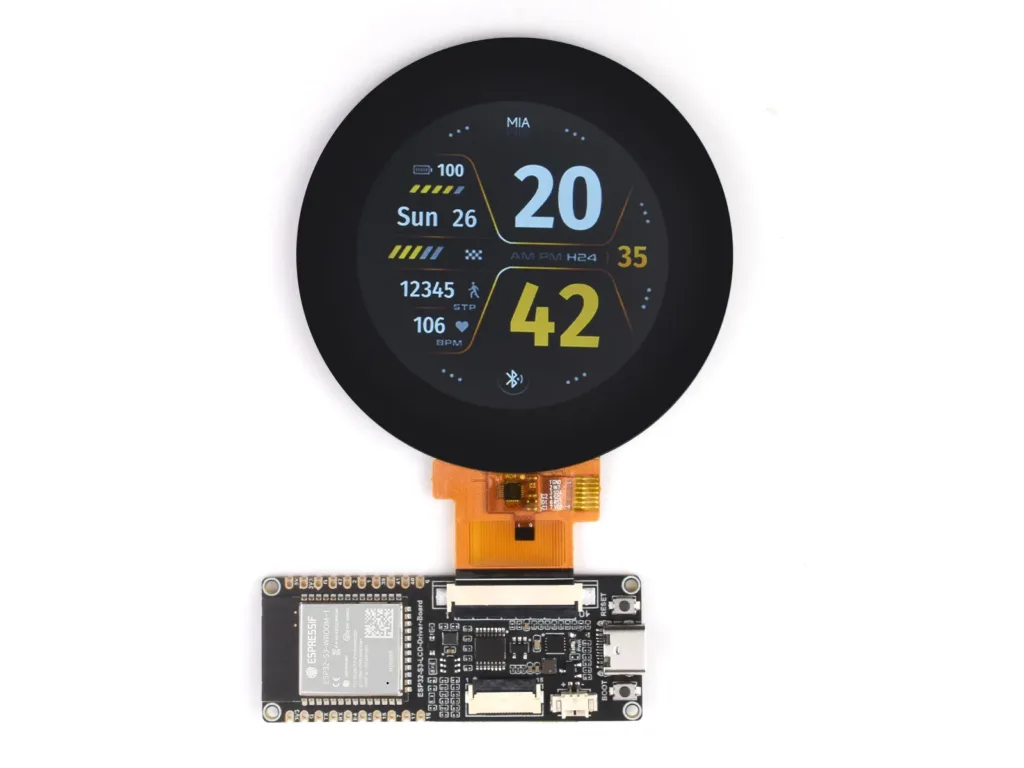

This development board is based on the ESP32-C3-MINI-1U module as the main control, with a single core MCU that integrates WI-FI and Bluetooth functions. The main frequency can reach 160MHz, the flash size is 4MB, the display resolution is 240 * 240 IPS display, and there is no touch or capacitive touch to choose from. This module includes LCD display screen, backlight control circuit, I0 port interface, etc.
Parameter:
Color display: 16bitcolor
Model and Style:
1. Touchless ESP32-2424S012N-I
2. Capacitive touch ESP32-2424S012C-I
3. White shell ESP32-2424S012C-I-Y (W)
4. Black shell ESP32-2424S012C-1-Y (B)
Processor: RISC-V 32-bit single core processor, with a clock speed of up to 160 MHz
Working voltage: 5V
Power consumption: 100mA
Size type: 1.28 inch TFT
Driver chip: GC9A01
Resolution: 240 * 240 (Pixel)
Visible area: Φ32.4(mm)
Module size: 38.5 * 37.0 (mm)
Perspective: IPS
Working temperature:- 20℃~70℃
Storage temperature:- 30°C~80℃
Size: 38.5mm * 37mm
Package Include:
1X development board
Notice:
1. The product information provided is in English, please be cautious when taking photos if you mind!
2. It is necessary to have a foundation in the use of similar products in this area, and the materials should not be beginner style hands-on teaching!
