Features:
1. Combines walkie-talkie and radio functions into one, allowing for both intercom and FM radio reception.
2. Utilizes the BK4802P RF + RDA5807 dual-chip radio for strong signal quality, noise reduction, and interference resistance.
3. Onboard 0.96-inch OLED screen for clearer display.
4. Smart intercom radio kit, offering both intercom and FM radio with crystal-clear sound quality.
5. SMD components pre-soldered; only some plug-in components need to be soldered, perfect for hands-on practice.
Product Description:

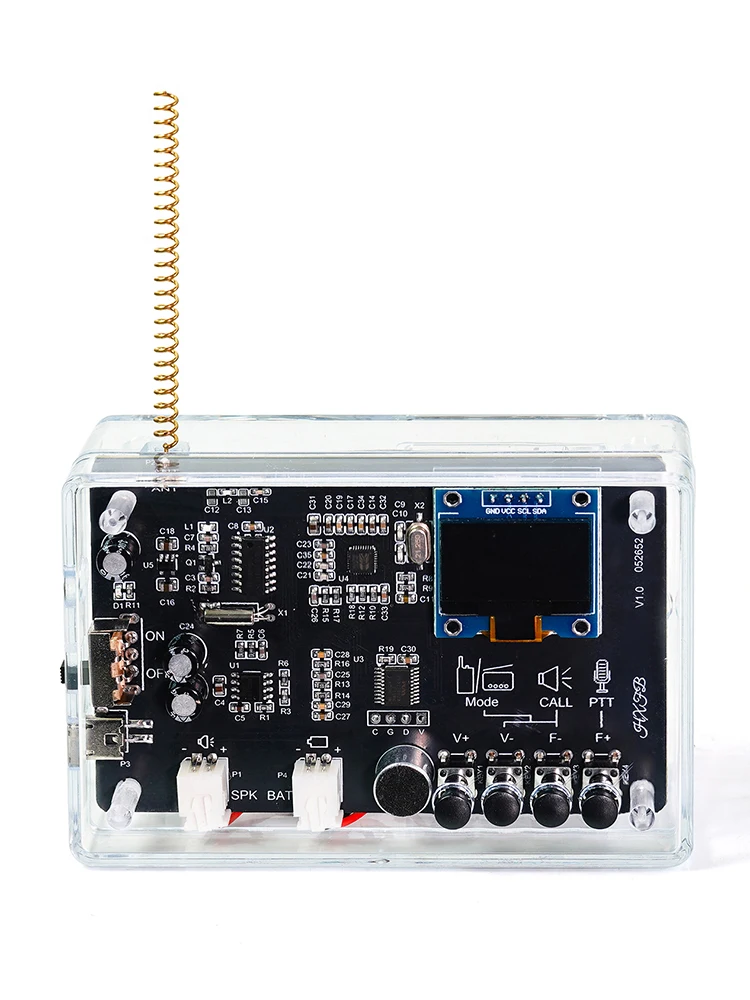

The smart intercom radio kit combines the functions of a walkie-talkie and a radio, meeting your dual needs for wireless communication and radio listening. Two intercoms form a pair; a single unit can function as a radio, not for intercom use. We recommend purchasing a pair. The RF transceiver chip ensures clear voice intelligibility. The intercom operates in the 409.85MHz frequency band, with a range of approximately 200 meters, meeting communication needs in a variety of scenarios. Equipped with 87-108MHz radio frequency band, it offers low noise, strong anti-interference capabilities, automatic radio station search and storage, and easy operation.
The SMD components are already soldered, requiring only the plug-in components for a high assembly success rate. Suitable for radio enthusiasts, electronics hobbyists, and those engaged in skills training to enhance comprehensive practical skills.
Product Parameters:
Kit Name: Walkie-Talkie Radio Electronics DIY Kit
Maximum Operating Current: Approximately 200mA (at maximum volume)

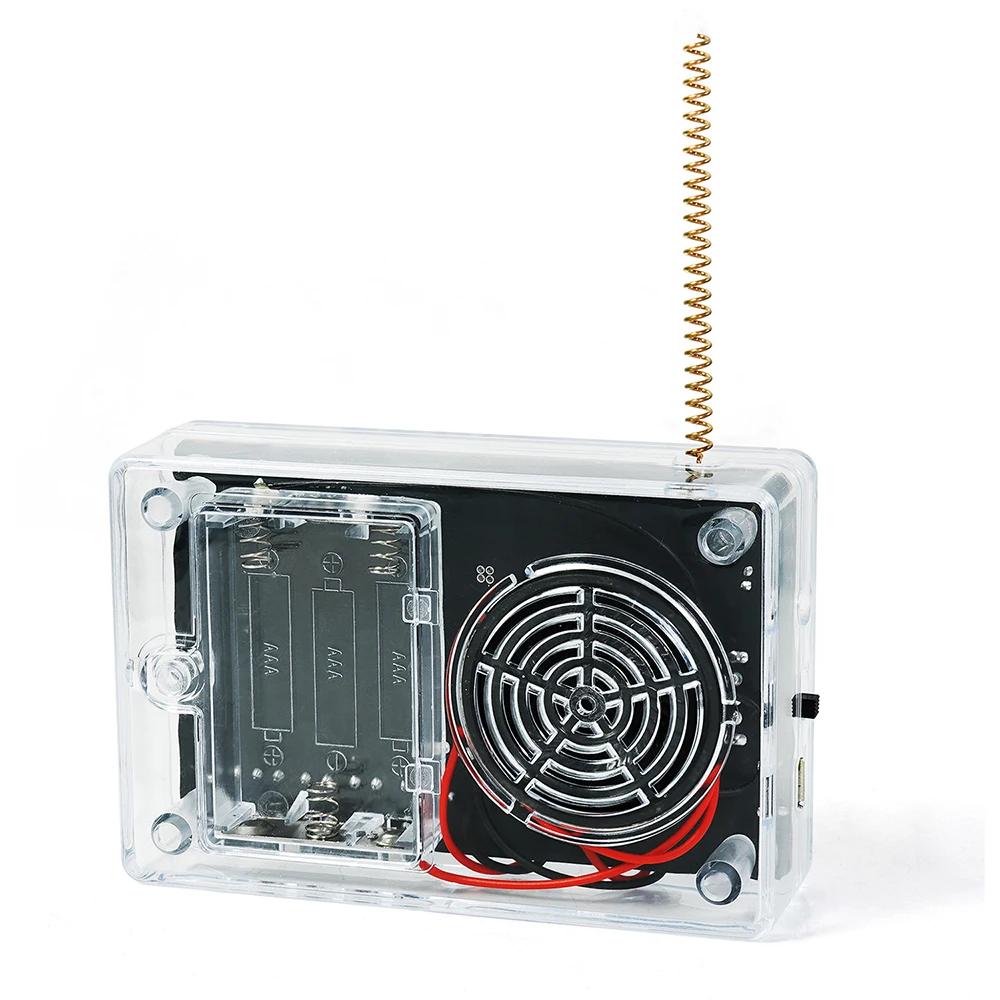

Power Supply: Three AAA batteries or 5V USB (both cannot be used simultaneously)

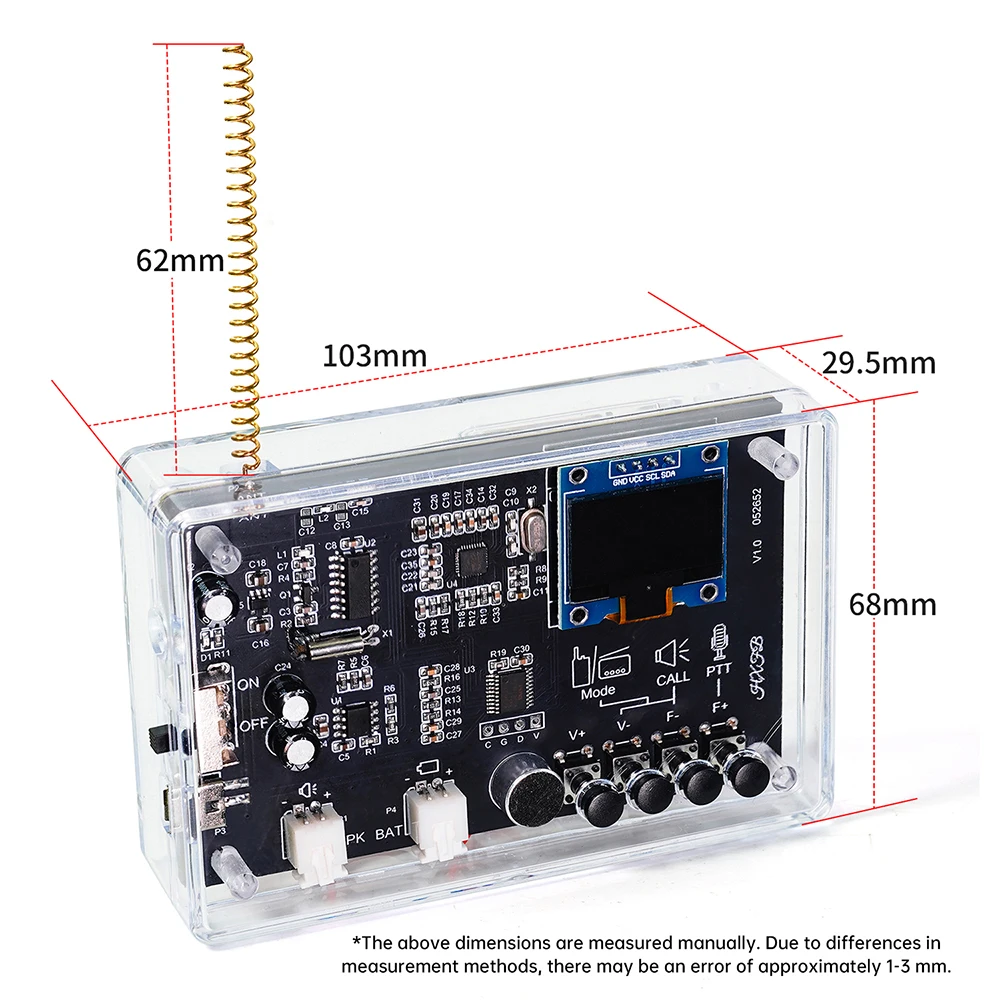

PCB Length: 95.5x61mm
Two-in-one Function: Walkie-Talkie + Radio Dual Mode
I. Walkie-Talkie Functions:
1. Automatically detects and receives signals when no operation is performed.
2. Press the “Talk” button to initiate a voice conversation.
3. Press the “Call” button to initiate a ringing tone on the receiving walkie-talkie.
4. Displays intercom signal strength.
5. Operates on the 409.85MHz frequency band.
6. Communication range: Approximately 200 meters.
II. Radio Features:
1. When no stations are stored, the radio automatically searches for and stores nearby stations (up to 30 stations can be stored; additional stations cannot be stored).
2. 15 volume levels for flexible volume adjustment.
3. Power-off memory, automatic station search and storage, and station list management.
4. Sleep mode for even greater power savings.
5. Radio reception frequency range: 87-108 MHz.
6. Adjustable search channel threshold.
7. View station signal strength.
Features:
1. OLED screen for clearer function display.
2. RDA5807 radio chip, offering noise cancellation, bass boost, high sensitivity, low noise, and strong anti-interference capabilities.
3. BK4802P RF transceiver chip, offering excellent noise cancellation, powerful audio processing, wide frequency coverage, and outstanding anti-interference capabilities.

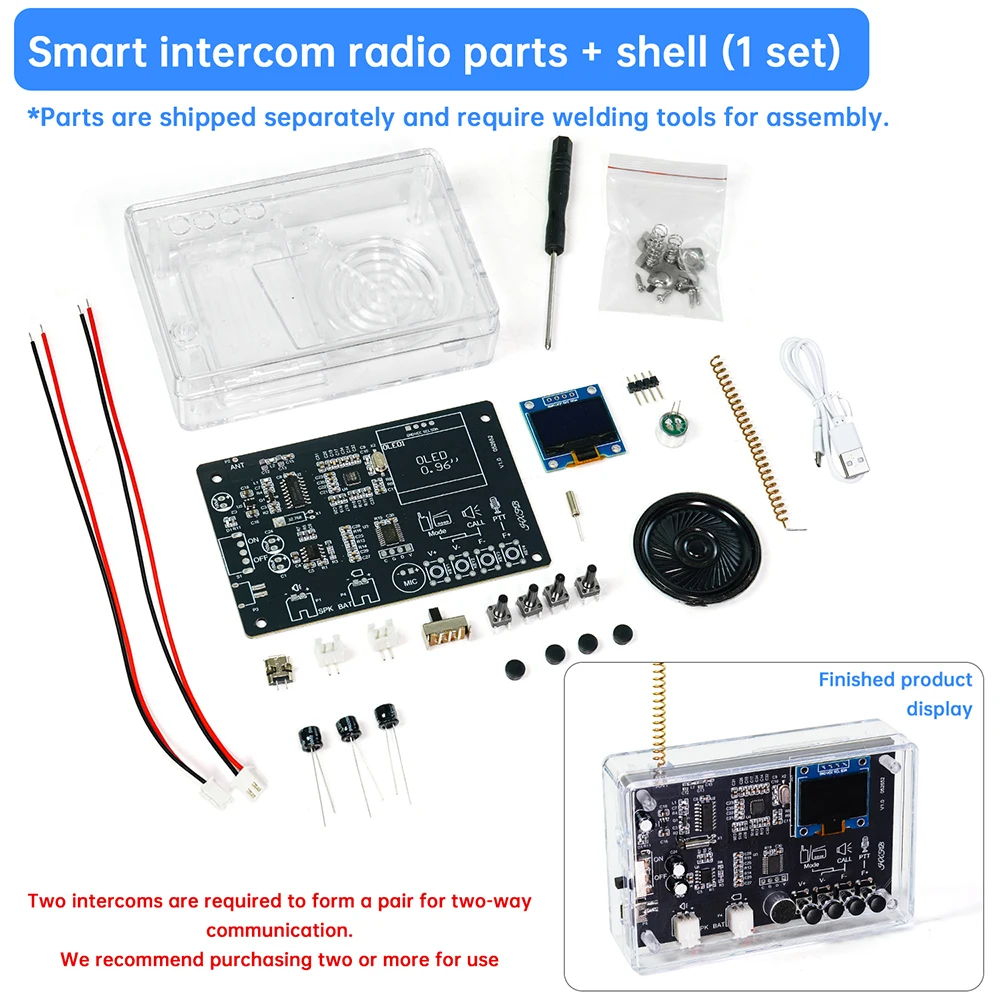

Product List:
1 x Radio Electronics DIY Kit
Note: DIY radio kits require soldering and assembly, which will hone your skills. You will need your own soldering tools. Detailed installation instructions are included.
