Features:
🌱 Enhanced Reception
Built-in Low Noise Amplifier and Surface Acoustic Wave Filter for improved sensitivity and noise reduction.
🌱 High Precision
32/72 channels, -162dBm tracking, -160dBm re-acquisition sensitivity.
🌱 Energy Efficiency
41mA tracking/acquisition, 360µA standby.
🌱 Multi-GNSS Systems
Powered byQuectel L76K, supporting GPS, BeiDou, GLONASS and QZSS.
🌱 Ceramic Antenna
Enhanced signal reception, superior to traditional antennas.
Product Description:

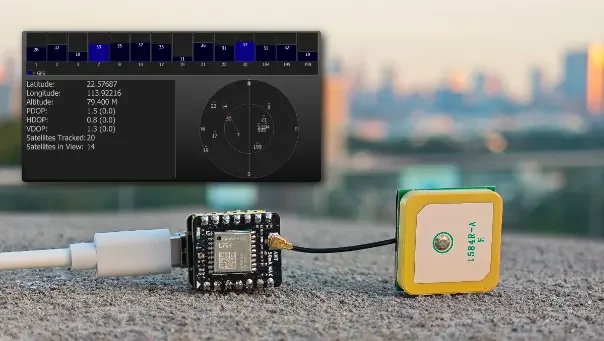

Looking for an easy-to-use GPS module for your XIAO projects? The L76K GNSS Module is your answer. The L76K GNSS Module, specifically designed for SeeedStudio XIAO, is a versatile and efficient Multi-GNSS receiver. Compatible with all XIAO development boards, it offers comprehensive support for various satellite systems including GPS, BeiDou, GLONASS, and QZSS. This module is capable of both combined multi-system and independent single-system positioning, ensuring flexibility and precision in various applications.
Enhanced with AGNSS functionality, the module boasts a built-in low-noise amplifier and surface acoustic wave filter, delivering fast and precise positioning performance. It comes equipped with a high-performance active GNSS antenna, optimized for GPS L1 C/A, BeiDou B1, and GLONASS L1 frequencies, ensuring wide coverage and reliable signal reception.
Additionally, the module features a small, bright green LED, providing visual confirmation of the 1PPS (one pulse per second) output when a fix is established, simplifying troubleshooting and enhancing user experience.
Application
- GPS navigation
- GPS Tracker
- Smart City
- Logistics and Freight Management

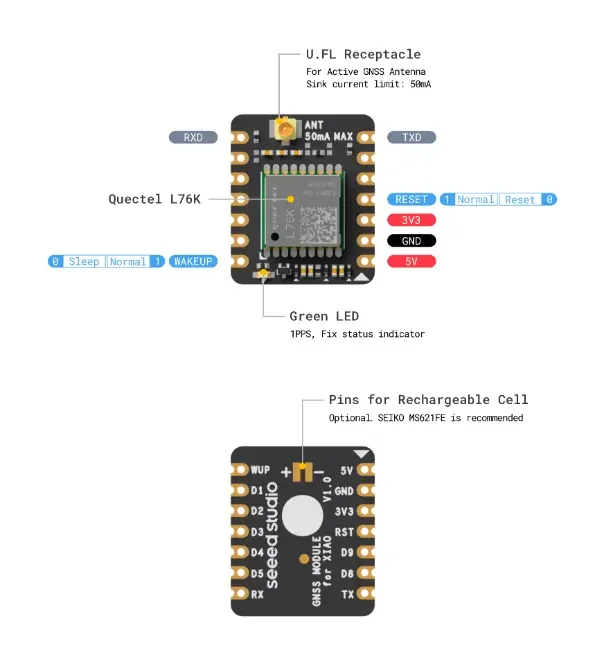

Hardware Overview

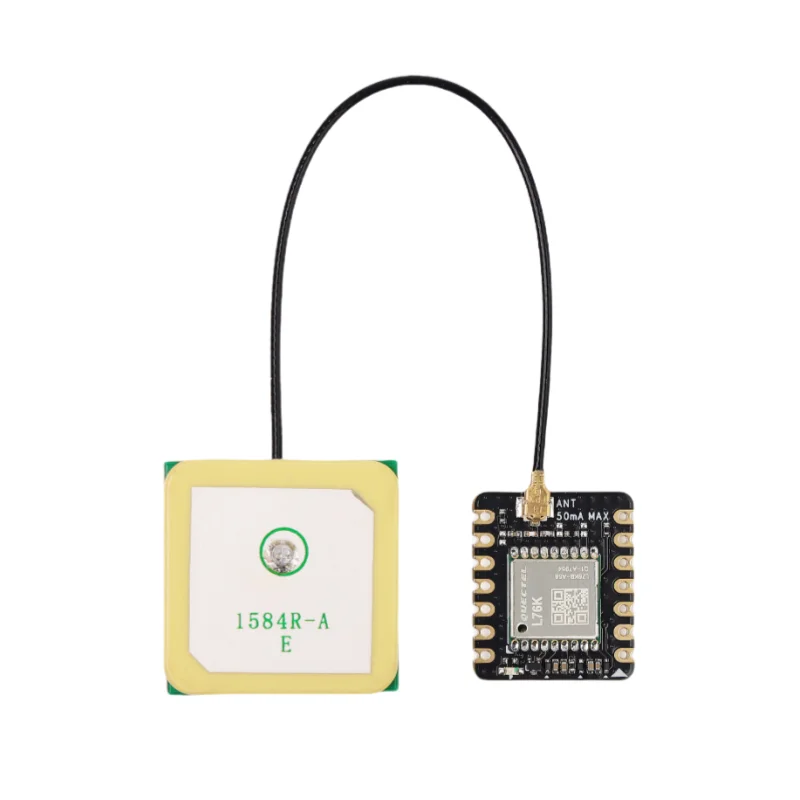

Part List
. L76K GNSS Module x1
. Active Antenna with iPex connector x1
. 7 Pin Female Header 2.54mm x2
