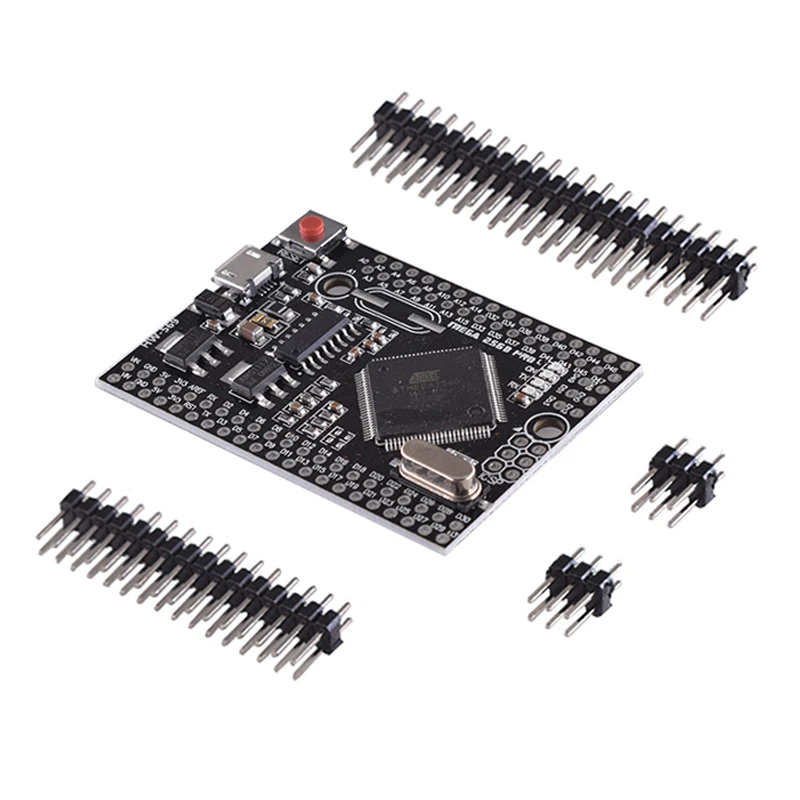

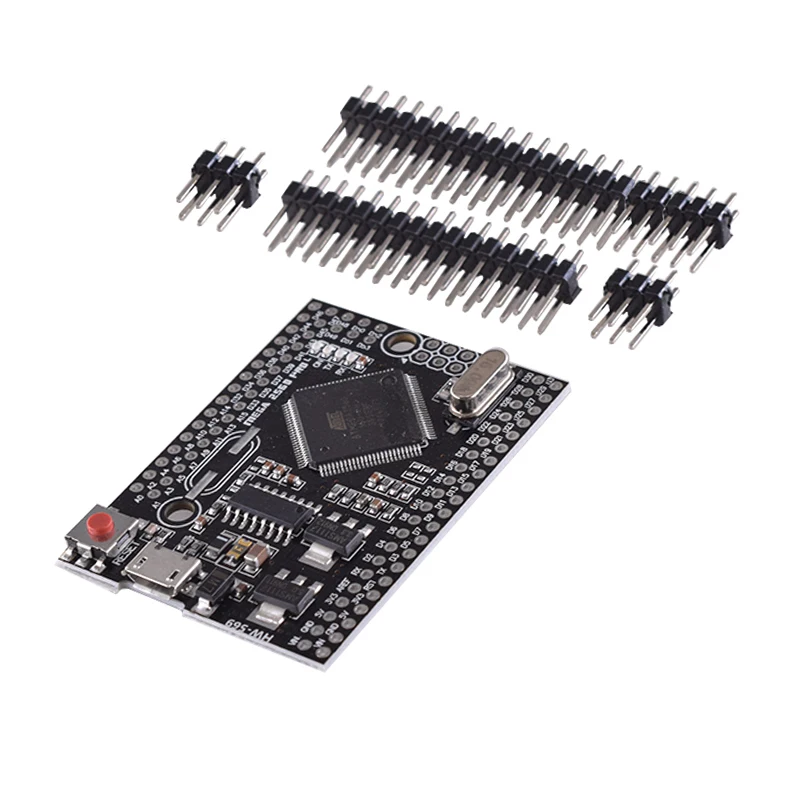

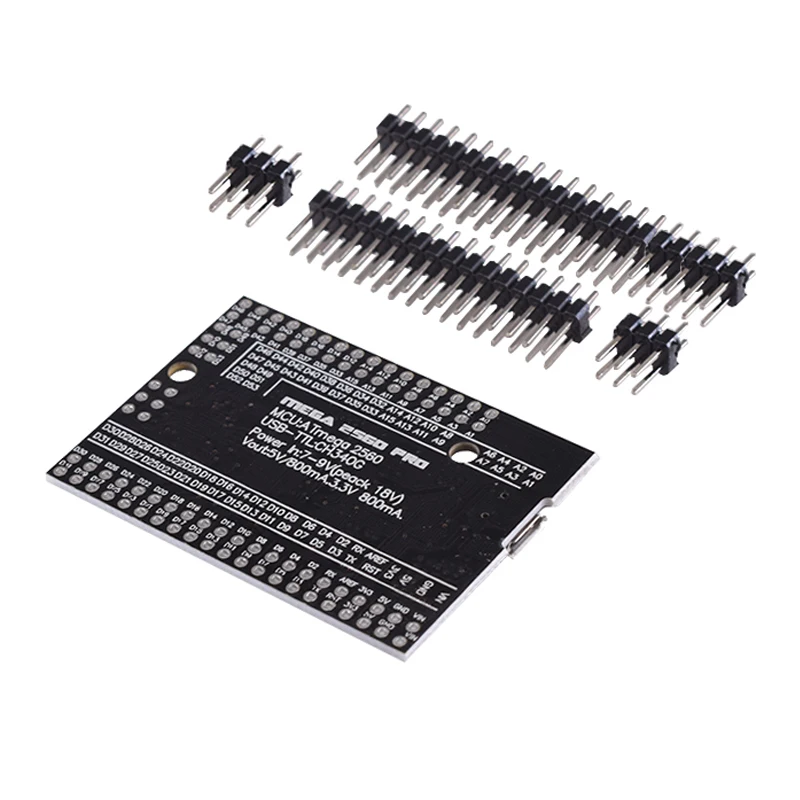

The core of this product is the high-performance, low-power, 8-bit microcontroller ATmega2560, which is the ATmega2560 development board. There are voltage stabilization circuit, protection circuit, USB to TTL micro USB interface, reset button, status indicator light, and all functional pins of ATmega2560 on the periphery.

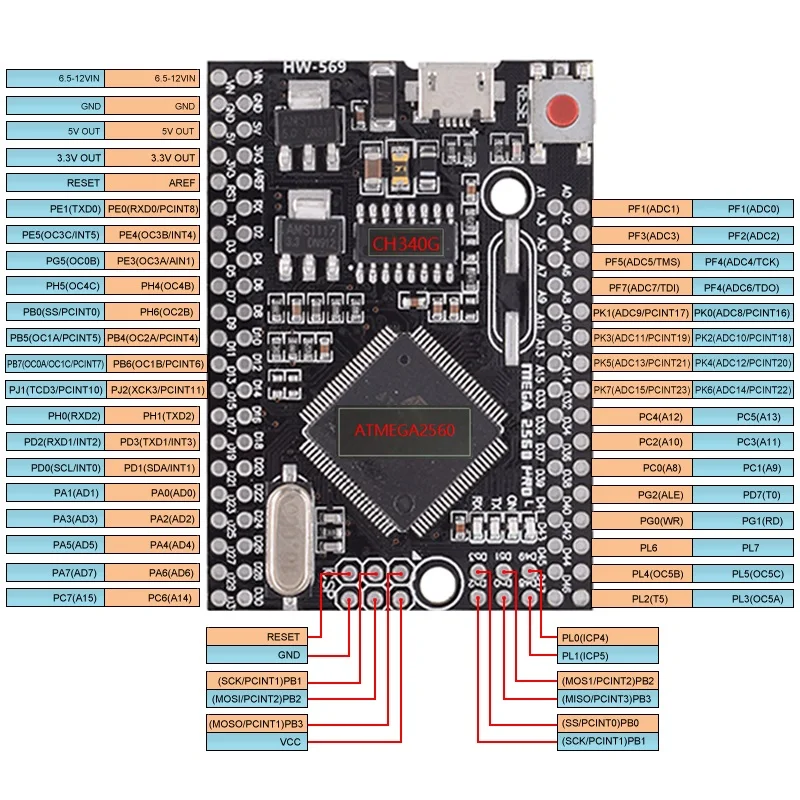

The product can be powered by USB and VIN pins. When powered by USB, a 500mA self recovery fuse is required. Therefore, if the current exceeds 500mA, the circuit will brake and disconnect, stopping working to prevent short circuits from causing damage to the board. If the required current is greater than 500mA, power can be supplied from the VIN port, with a power supply range of 6.5-12V (peak 18V). The VIN input has a diode protection to prevent reverse connection. Overall, USB power supply is safe, and VIN port power supply can stably output 5V and 3.3V voltages. USB to TTL uses CH340G serial port IC, which ensures stable data transmission and makes it very convenient to download programs from the USB port. 4 LED indicator lights that can discharge and observe the working status. The peripheral expansion pins have already led out the functional pins of the microcontroller, which can be used freely. Among them, 6 pins are ICSP interfaces, which are specifically designed to provide interfaces for the programmer to burn programs on the board. The burning communication method is SPI bus.
The product is basically the same as the Arduino Mega 2560 development board, except that this version is smaller and easier to embed into other systems. So the usage method is the same as Arduino Mega 2560.
characteristic：

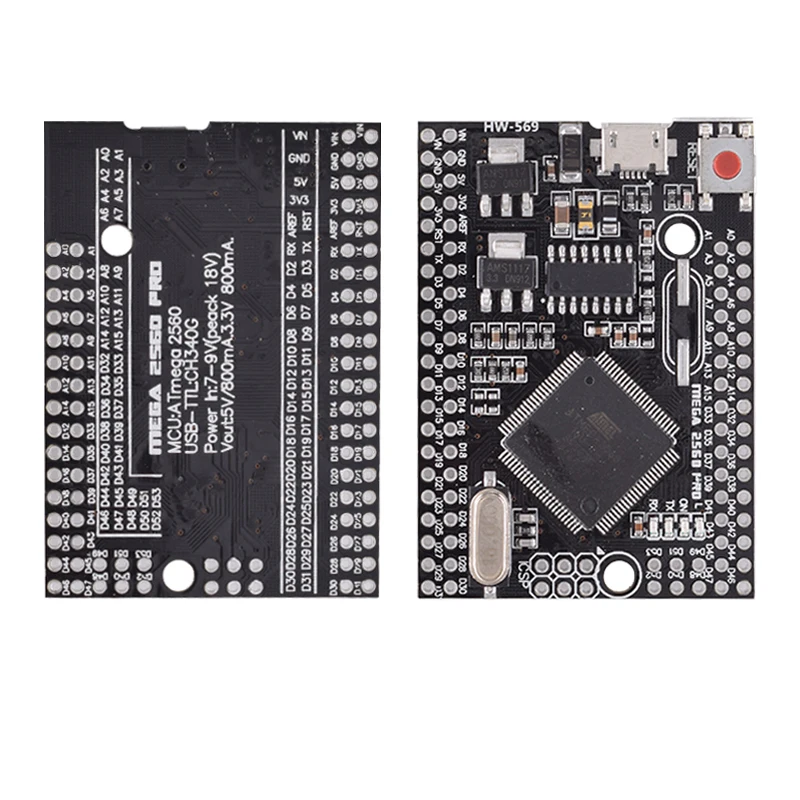

Embed version of Mega 2560 CH340G/ATmega2560 – compatible with Arduino Mega 2560 board. Built on the Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G.

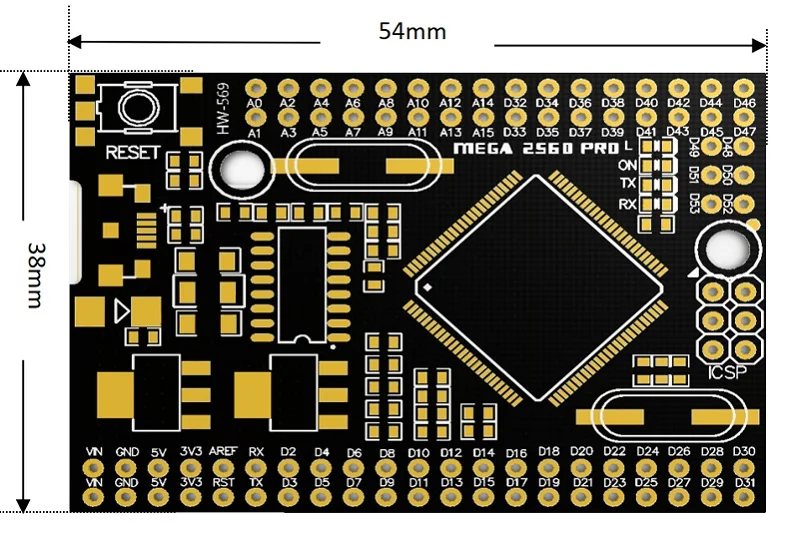

Board have compact size 38x55mm. It is good solution, to make your final project on solder proto-board.
Board for functionality similar to the Arduino Mega 2560. It is embed board, but the same stable, and uses the original chips ATmega2560 (16 MHz).
The board used the chip CH340G as converter UART-USB. When you work in the frequency 12Mhz, giving a stable result of data exchange (need install drivers to computer).
Mega PRO (Embed) 2560 CH340G / ATmega2560 – connects to the computer via microUSB cable (used for almost all Android smartphones).
You can supply power to board through the MicroUSB connector or to power pinheaders. The voltage regulator (LDO) can deal with incoming voltage from 6V to 9V (peack 18V) DC. Output current for 5V – about 800mA, for 3.3V – about 800mA (Please note that the higher the input voltage the lower the outgoing current). That will provide a reliable power most of your initial projects.
ATMEGA2560 parameters:
Program memory type: Flash
Program memory size: 256K Bytes
CPU speed: 16 MIPS
SRAM size: 8K Bytes
Data storage (EEPROM): 8K Bytes
Communication port: 4-UART, 5-SPI, 1-I2C
Capture/Compare/PWM Peripheral: 4-Input Capture, 4 CCP, 16PWM
Timer: 2X8bit+4X16bit
Comparator: 1 unit
Working temperature range:-40°C-85°C
Working voltage range: 4.5v-5.5V
