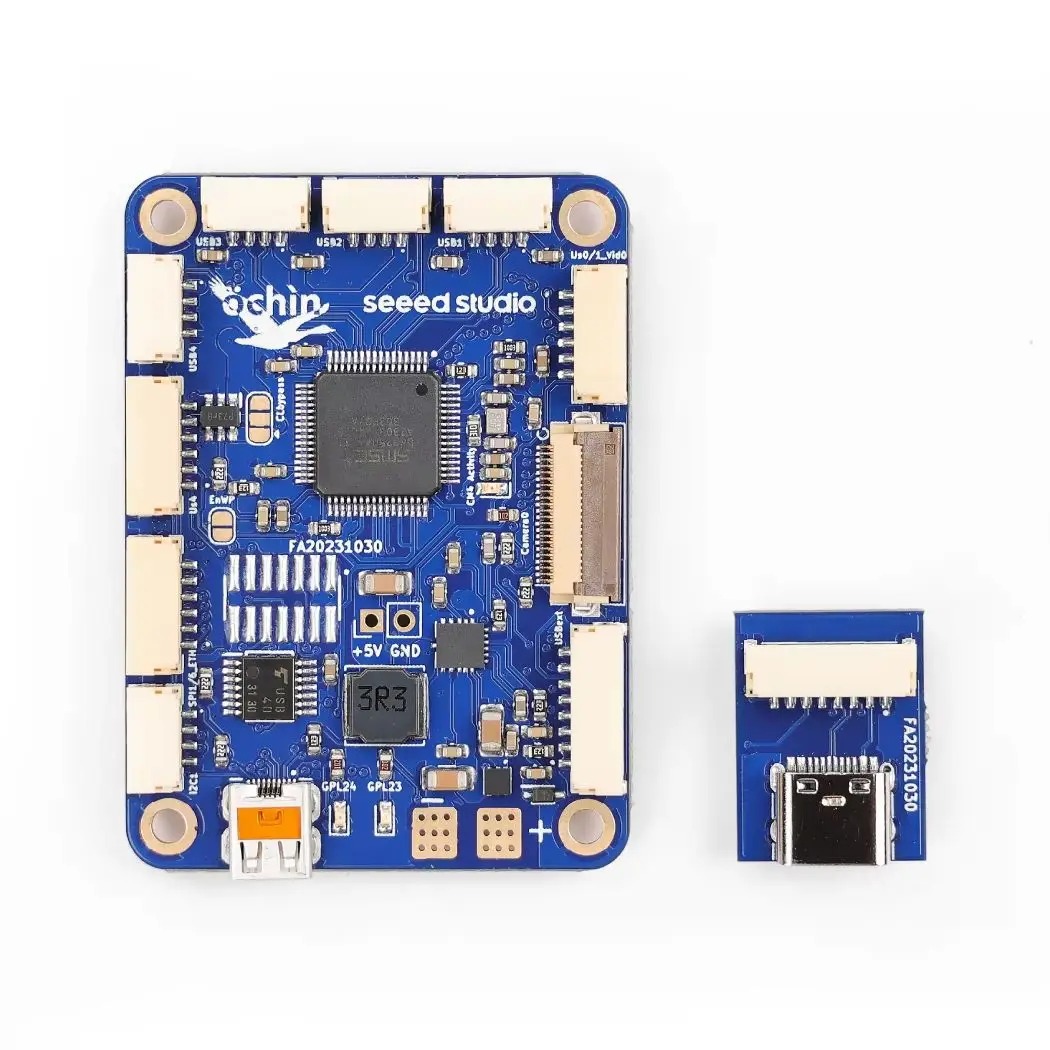

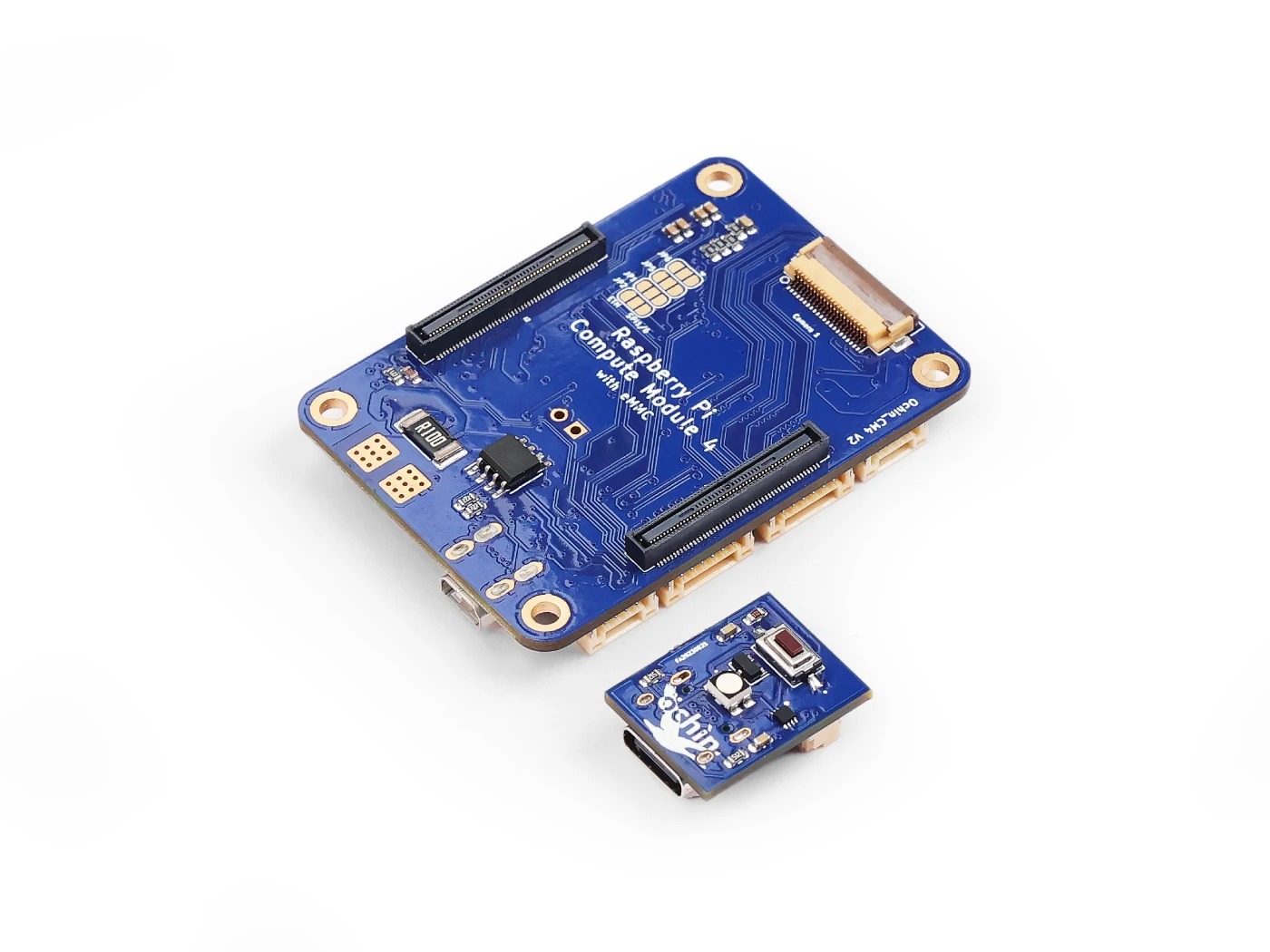

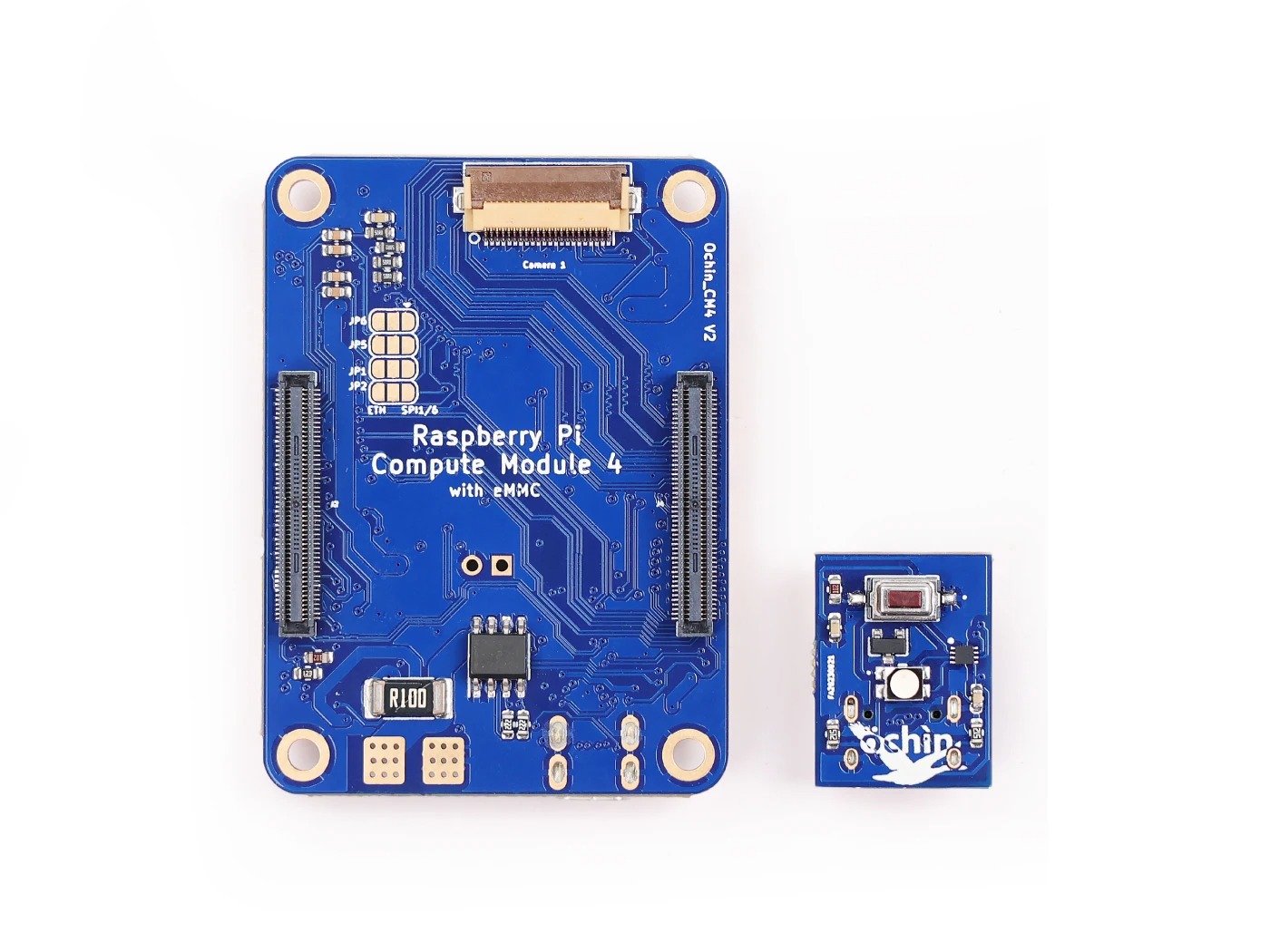

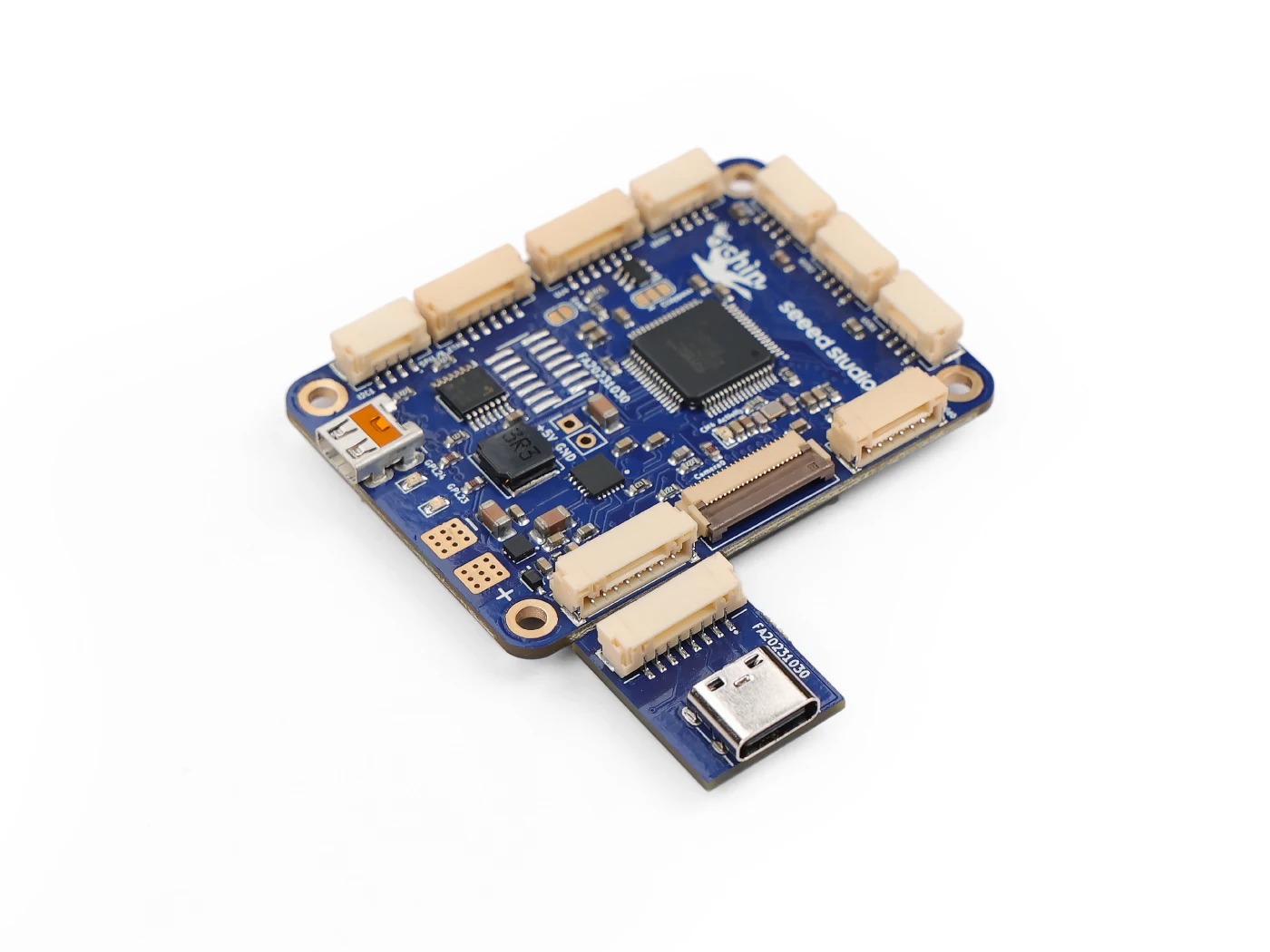

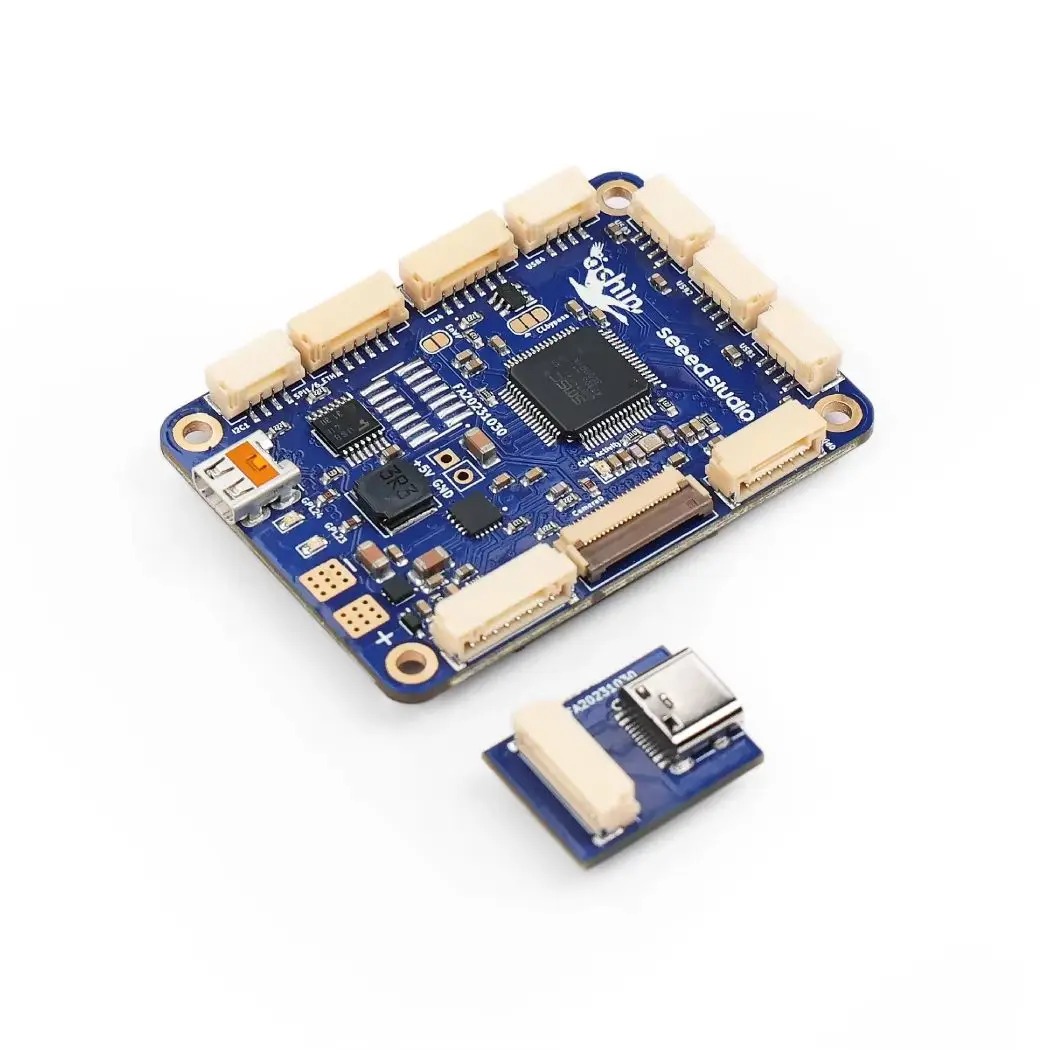

The Ochin CM4v2 is a tiny carrier board for the Raspberry Pi Compute Module equipped with the powerful Quad-core Cortex-A72 CPU and GPU, which features a big RAM size, the CODECs, and Graphic Accelerators. It’s designed for a wide range of applications such as robotics, home automation, and IoT projects. The Raspberry Pi Compute Module 4 is not included.
Feature
High-performance:Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
High Resolution Supported: 265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode,1080p30 encode) and OpenGL ES 3.0 graphics
Rich Interfaces: 1×USB 2.0 port (highspeed); MIPI CSI-2: 1×2-lane MIPI CSI camera port, 1×4-lane MIPI CSI camera port; 1×USART, 3×UART, 1×I2C port, 1×SPI port, Analog Video Output
Strong Compatibility: Compatible with Raspberry Pi Compute Module(CM4) with faster eMMC flash with up to 100 MB/s transfer rate, 4x faster than CM3+

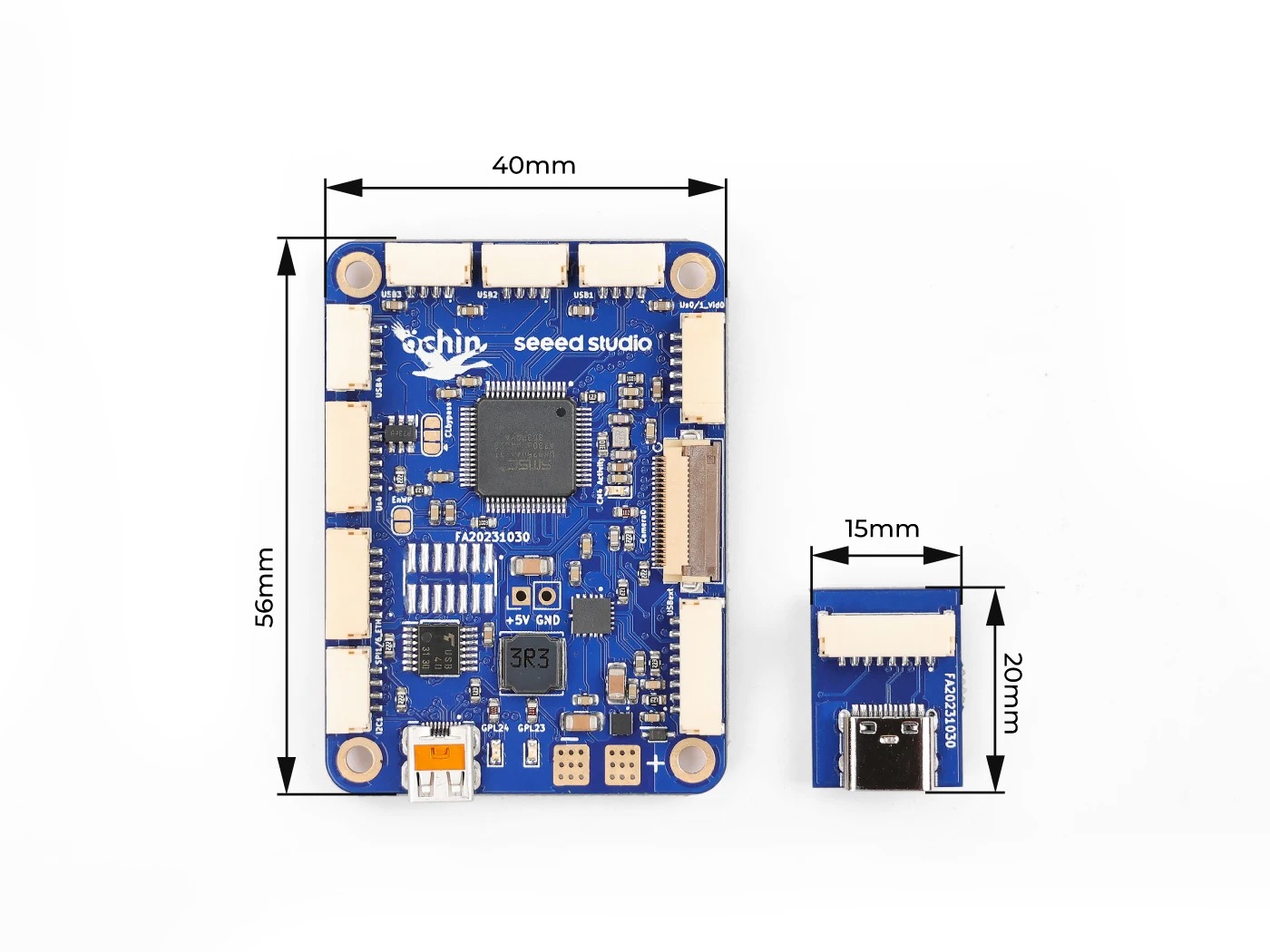

Compact Design:Same size as CM4 module, 55mm × 40mm × 4.7mm
