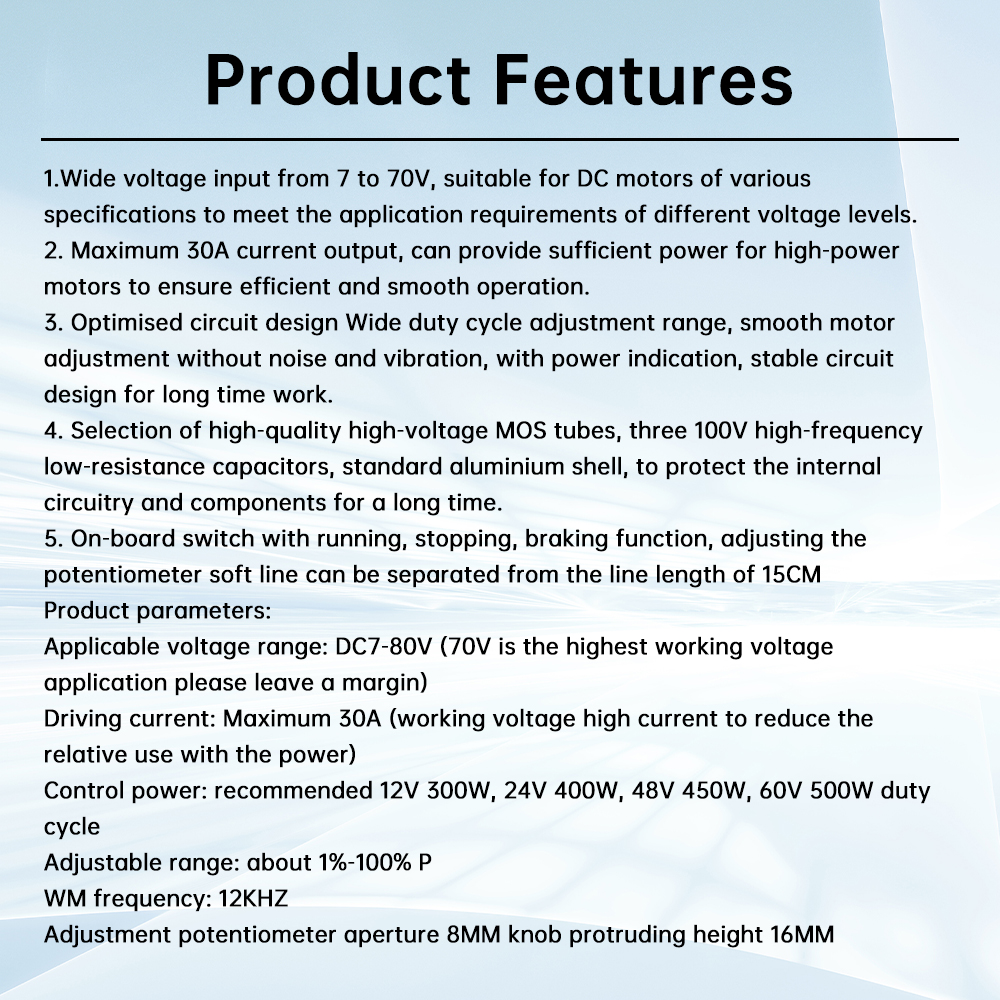

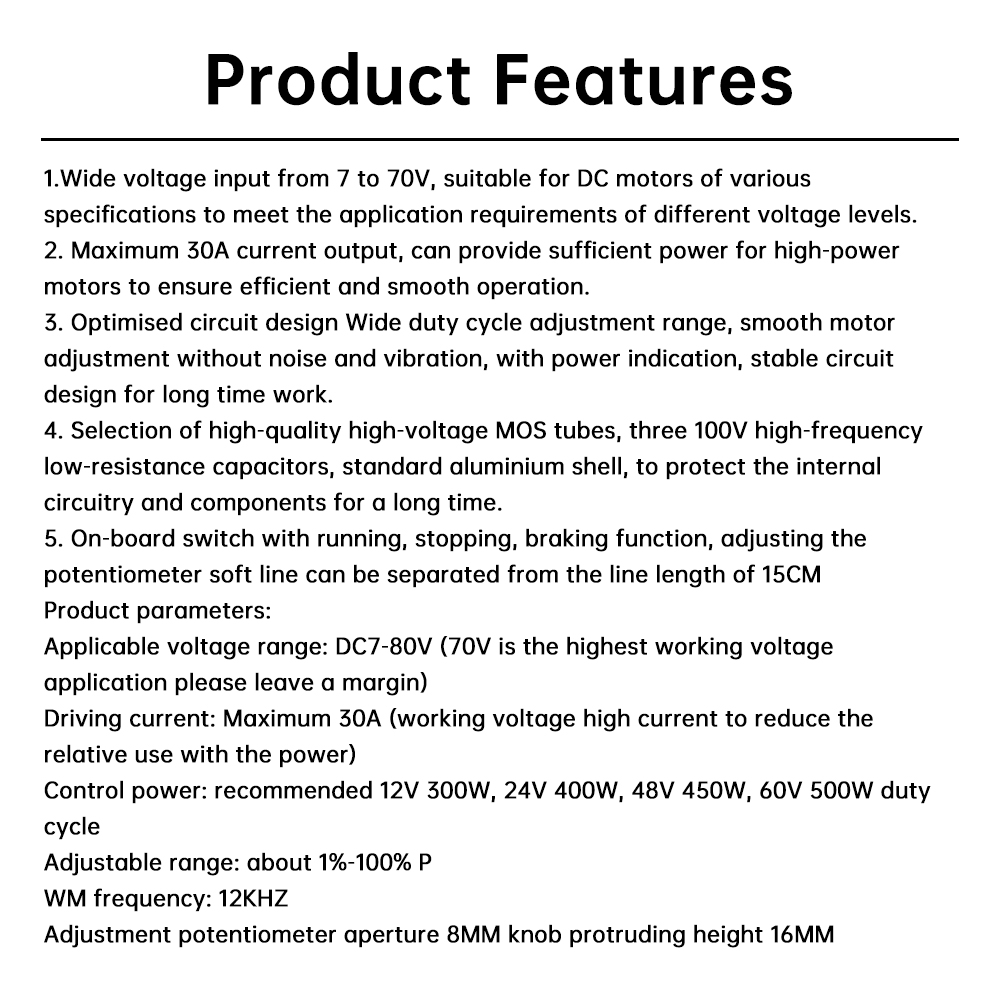

Product Features:
Applicable voltage range: DC7-80V (70V is the highest working voltage application please leave a margin)
Driving current: Maximum 30A (working voltage high current to reduce the relative use with power)
Control power: recommended 12V 300W, 24V 400W, 48V 450W, 60V 500W.
Duty cycle adjustable range: about 1% – 100%
PWM frequency: 12KHZ

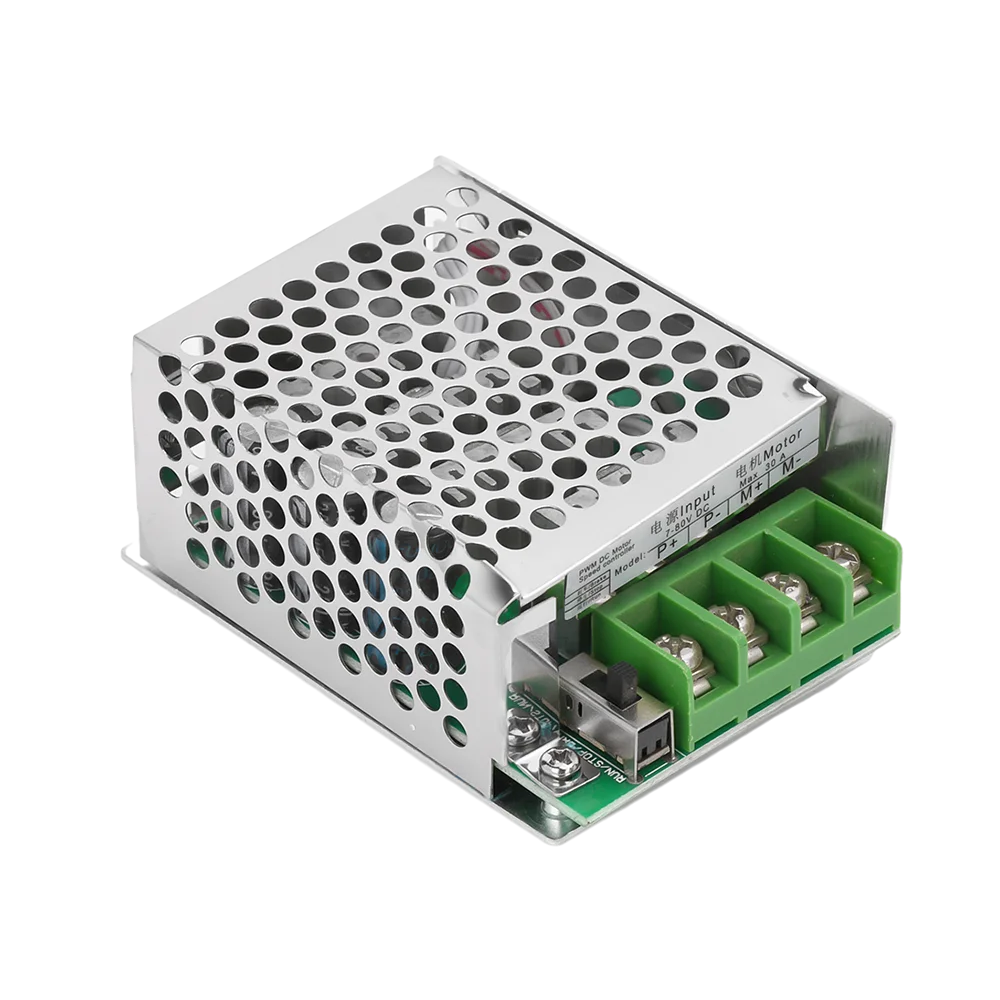

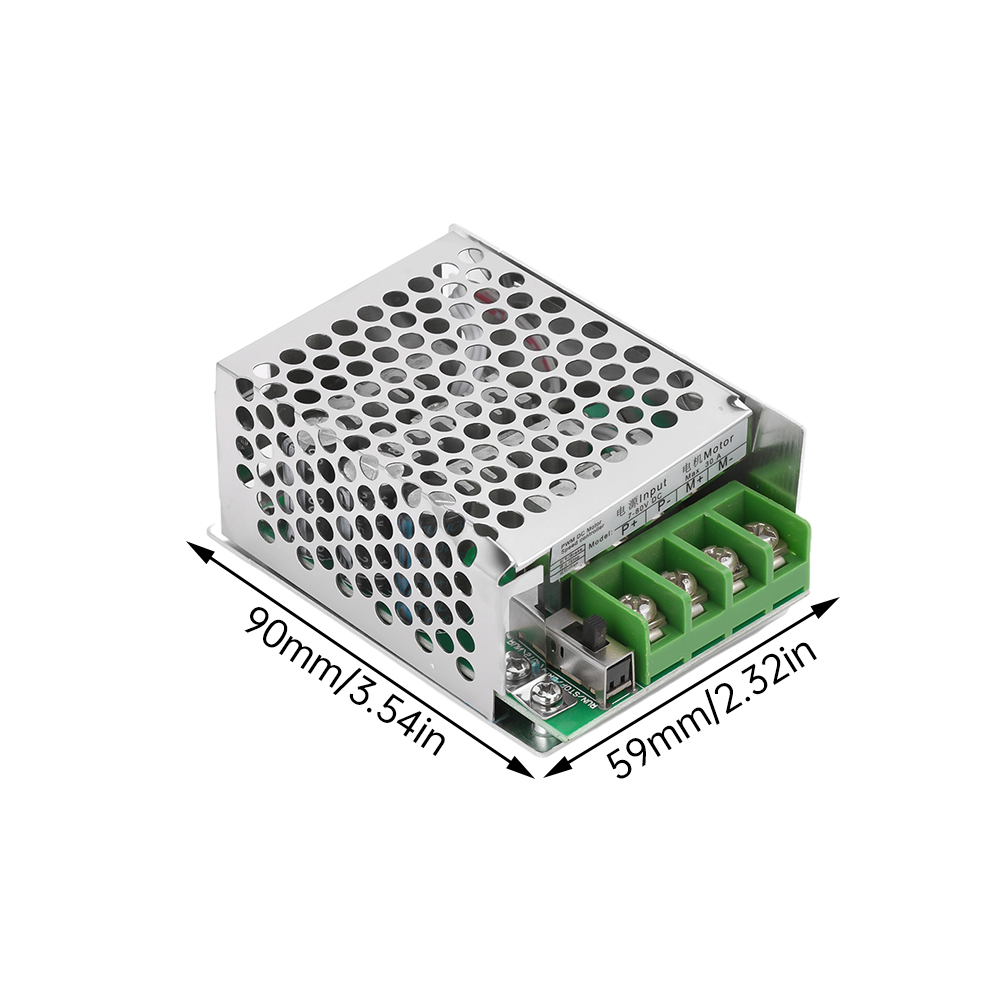

Shell size: 85MM*59mm*34MM
Adjustment potentiometer opening 8MM
Knob protruding height 16MM
Instructions for use and precautions :
1. Please understand the product parameters for the first time.

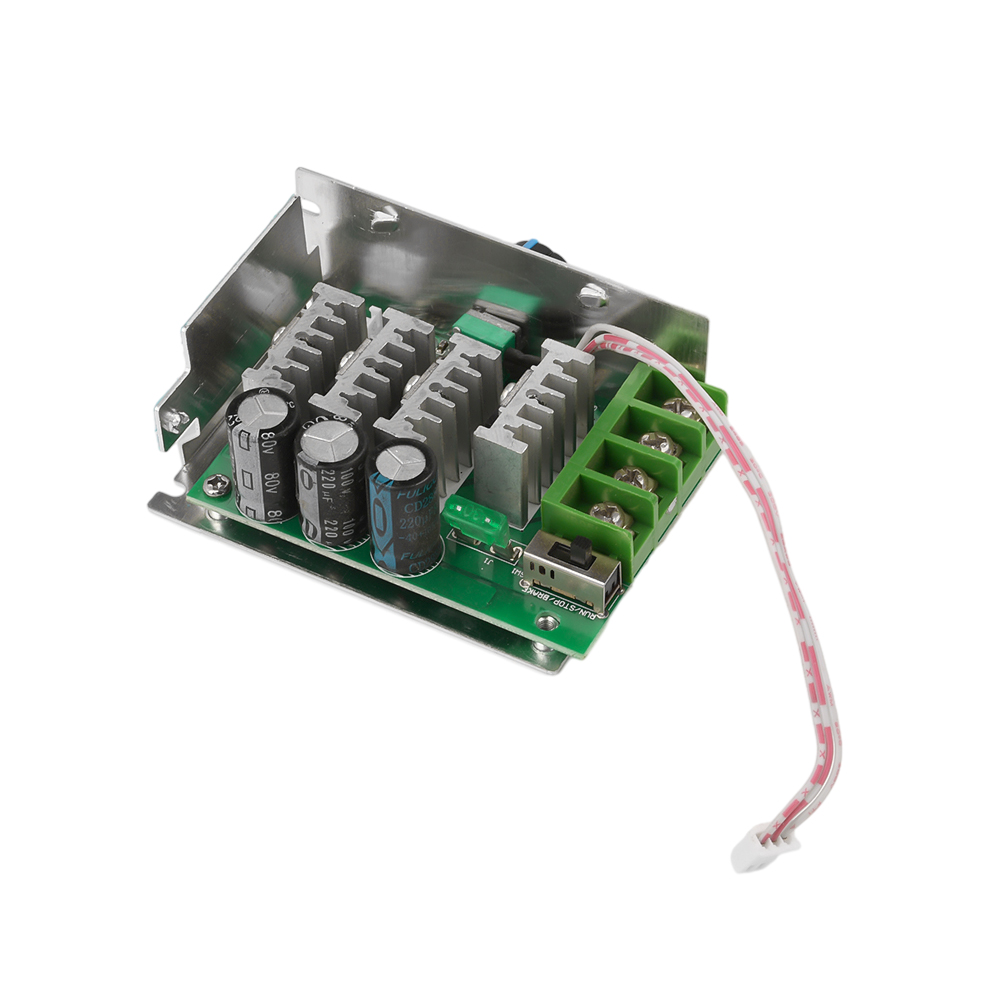

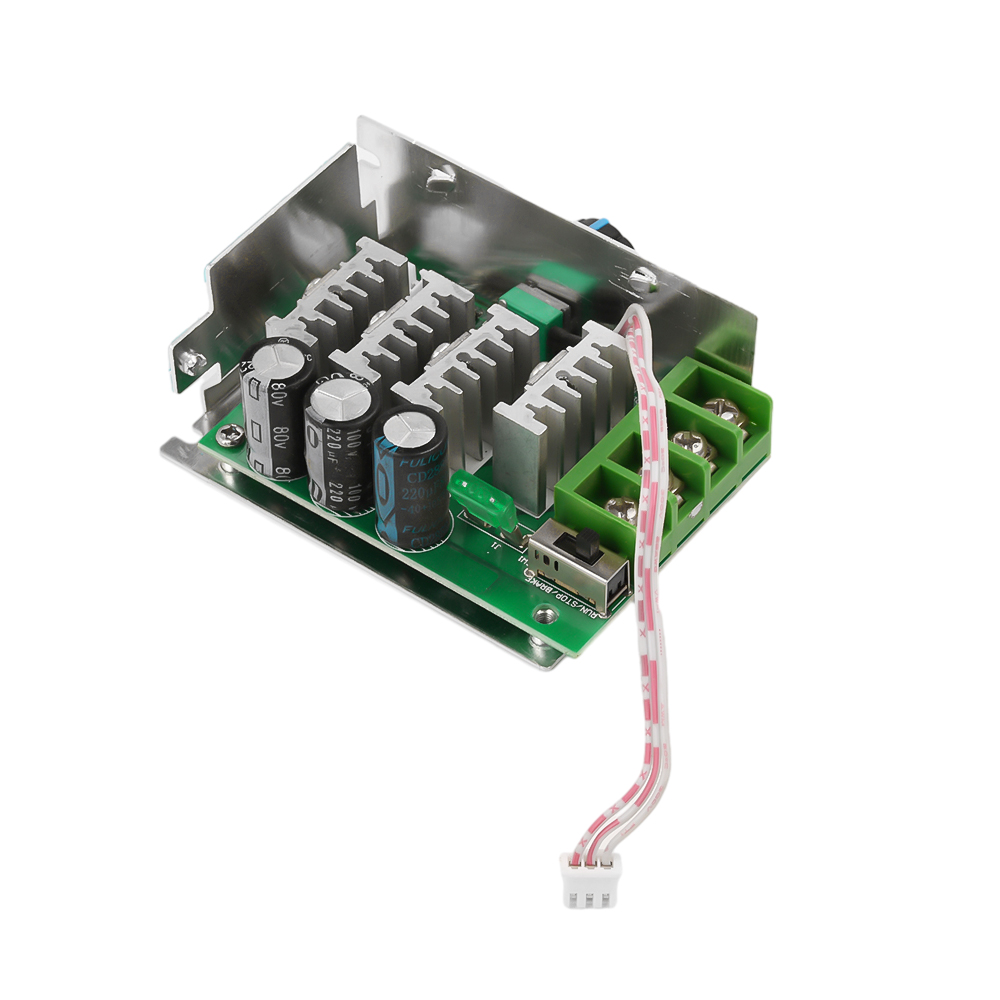

2. This product is a DC brush motor speed controller, need to be equipped with a separate DC power supply to the governor power supply can not be connected to the AC power can not drive brushless motors.

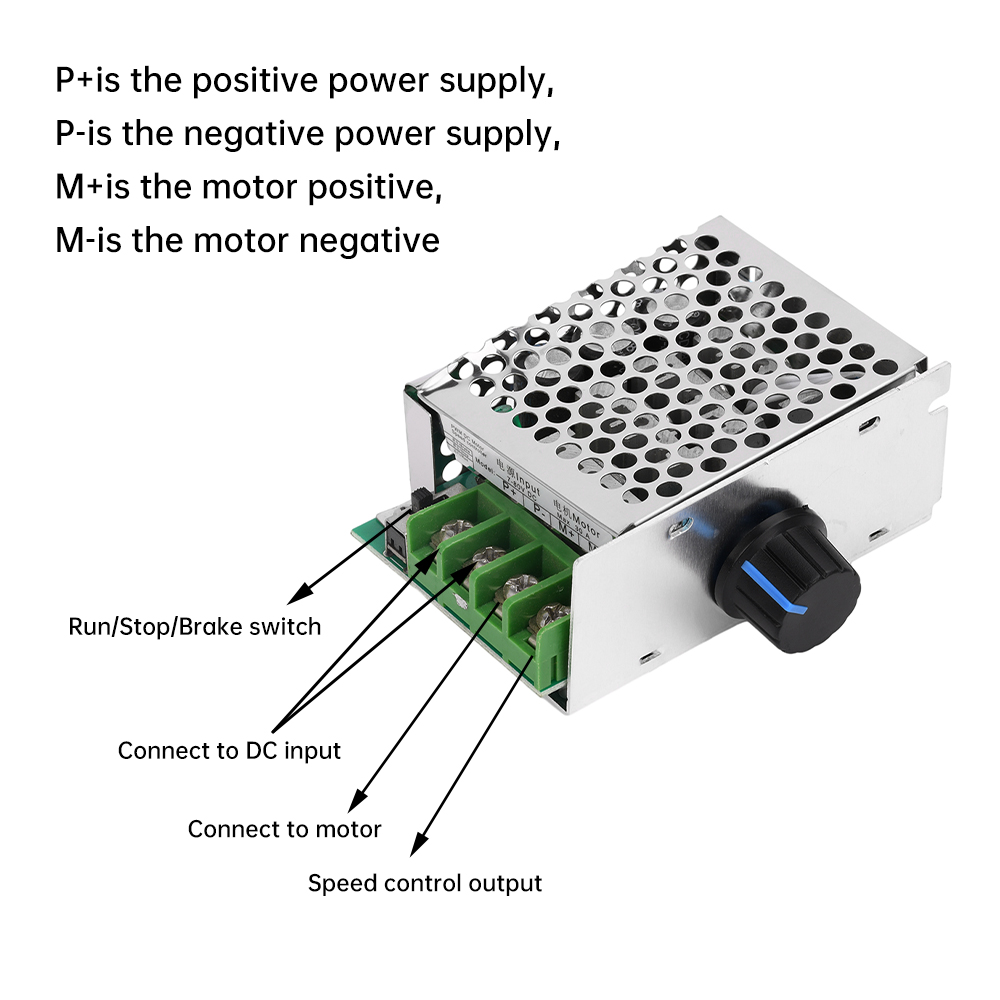

3. Before wiring power, please read the wiring label, the input is DC, positive and negative poles can not be connected to the wrong remember! Output connected to the motor (motor) does not need to be divided into positive and negative, if the direction of operation is not correct, please switch the two wires of the motor.
Package list:
DC motor governor *1
