Note
- If you are looking for the version with power adapter, please check out reComputer J4012 Edge device, this one without power adapter
- For optimal performance with reComputer, we recommend using 128GB / 256GB / 512GB / 1TB SSDs from Seeed. Since some SSDs on the market may only be compatible with specific JetPack versions which may cause the device to fail to function properly, and this issue is also present with official NVIDIA dev kits.
Specificatio
|
Jetson Orin NX System on Module |
||
|
AI Performance |
reComputer J4012 – Orin NX 16GB, 100 TOPS |
|
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
|
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (Orin NX 16GB) |
6-core Arm® Cortex®-A78AE (Orin NX 8GB) |
|
Memory |
16GB 128-bit LPDDR5 (Orin NX 16GB) |
8GB 128-bit LPDDR5 (Orin NX 8GB) |
|
DL Accelerator |
2x NVDLA v2 |
|
|
Video Encode |
1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265) |
|
|
Video Decode |
1x 4K60 (H.265) | 3x 4K30 (H.265) | 6x 1080p60 (H.265) | 12x 1080p30 (H.265) |
|
|
Carrier Board |
||
|
Storage |
1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included） | |
|
Networking |
Ethernet |
1x RJ-45 Gigabit Ethernet (10/100/1000M) |
|
M.2 KEY E |
1x M.2 Key E for WiFi/Bluetooth module |
|
|
I/O |
USB |
4x USB 3.2 Type-A (10Gbps) 1x USB2.0 Type-C (Device Mode) |
|
Camera |
2x CSI (2-lane 15pin) |
|
|
Display |
1x HDMI 2.1 |
|
|
Fan |
1x 4 pin Fan Connector (5V PWM) |
|
|
CAN |
1x CAN |
|
|
Multifunctional Port |
1x 40-Pin Expansion header 1x 12-Pin Control and UART header |
|
|
RTC |
1x RTC 2-pin, supports CR1220 (not included) |
|
|
Power |
9-19V DC |
|
|
Mechanical |
Dimensions (W x D x H) |
130mm x 120mm x 58.5mm (with case) |
|
Installation |
Desk, wall-mounting |
|
|
Operating Temperature |
-10℃~60℃ |
|
|
Warranty |
1 Year |
|
Hardware Overview

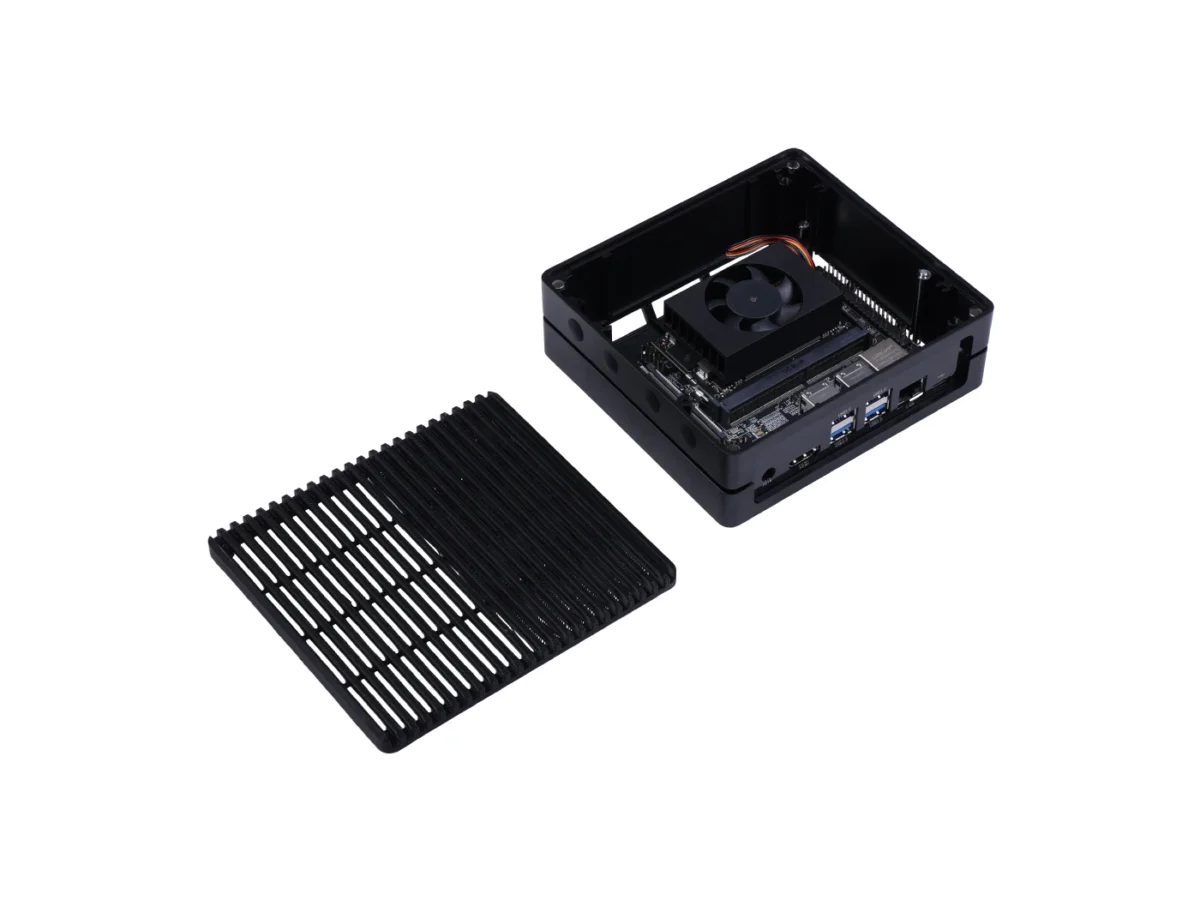

reComputer J401 carrier board, included in the full system – reComputer J4012
- Desktop, wall Mount, expandable, or fit in anywhere
Application
Application Fields:
- AI Video Analytics
- Machine Vision
- Autonomous Mobile Robot (AMR)
- Generative AI
Capable of Bringing Generative AI to the Edge
Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.
Build Multi-streams AI Video Analytics
For building video analytics, Jetson Orin NX incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) reComputer J4012 can take 18x1080p30 streams. See our tested YOLOv8 performance using NVIDIA Deepstream of single model and multi model on multi streams.
Fastest Way to Deploy Generative AI and Computer Vision Models
We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.
Part List
|
NVDIA Jetson Orin™ NX 16GB |
x1 |
|
Seeed carrier board (reComputer J401) x1 |
x1 |
|
128GB NVMe SSD x 1 |
x1 |
|
Aluminum heatsink with fan x1 |
x1 |
|
Aluminum case (black) x1 |
x1 |
