Features
🌱Dual MCUs and Rich GPIOs:
Equipped with powerful ESP32S3 and RP2040 dual MCUs and over 400 Grove-compatible GPIOs for flexible expansion options.

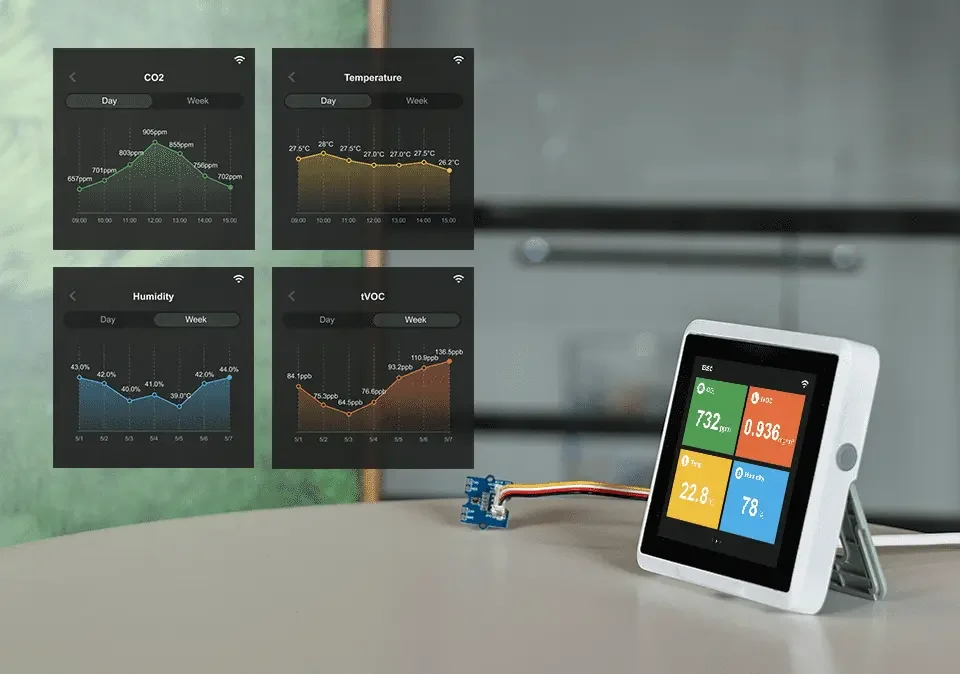

🌱Real-time Air Quality Monitoring:
Built-in tVOC and CO2 sensors, and an external Grove AHT20 temperature and humidity sensor for more precise
🌱Local LoRa® Hub for IoT Connectivity:
Integrated Semtech SX1262 LoRa® chip (optional) for connecting LoRa® devices to popular IoT platforms such as Matter via Wi-Fi, without the need for additional compatible devices.
🌱Fully Open Source Platform:
Leverage the extensive ESP32 and Raspberry Pi open-source ecosystem for infinite application possibilities.
🌱Fusion ODM Service Available:
Seeed Studio also provides one-stop ODM service for quick customization and scale-up to meet various needs.
Description

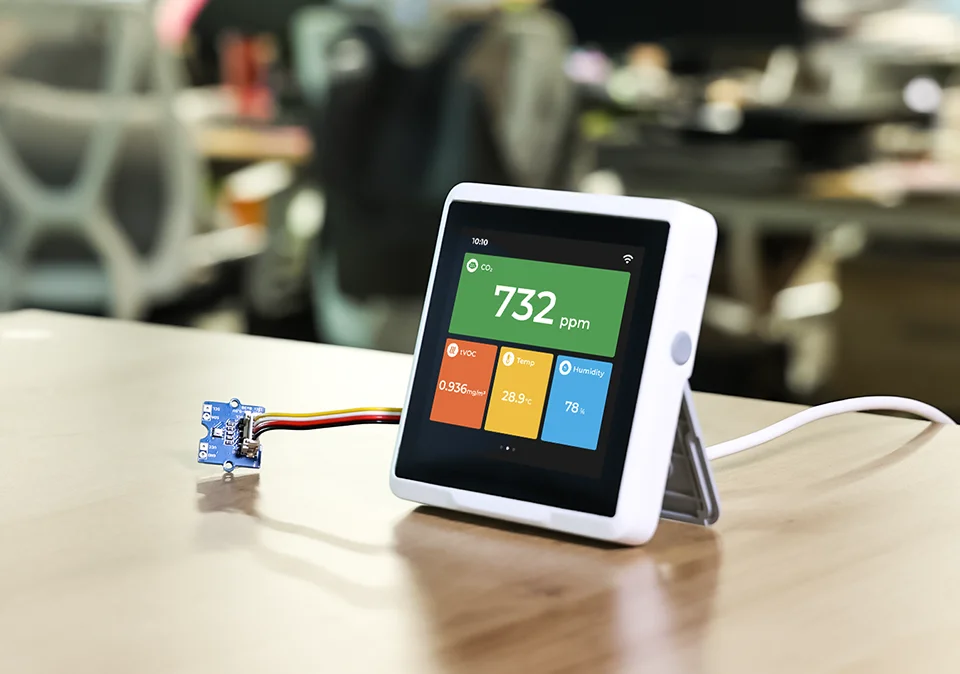

SenseCAP Indicator native firmware enables you to use it as a desktop air quality detector or you could customize one of your own styles. There are built-in tVOCs and CO2 sensors, and a Grove TH sensor is provided to connect externally to reduce heat interference to get more accurate temperature and humidity results.

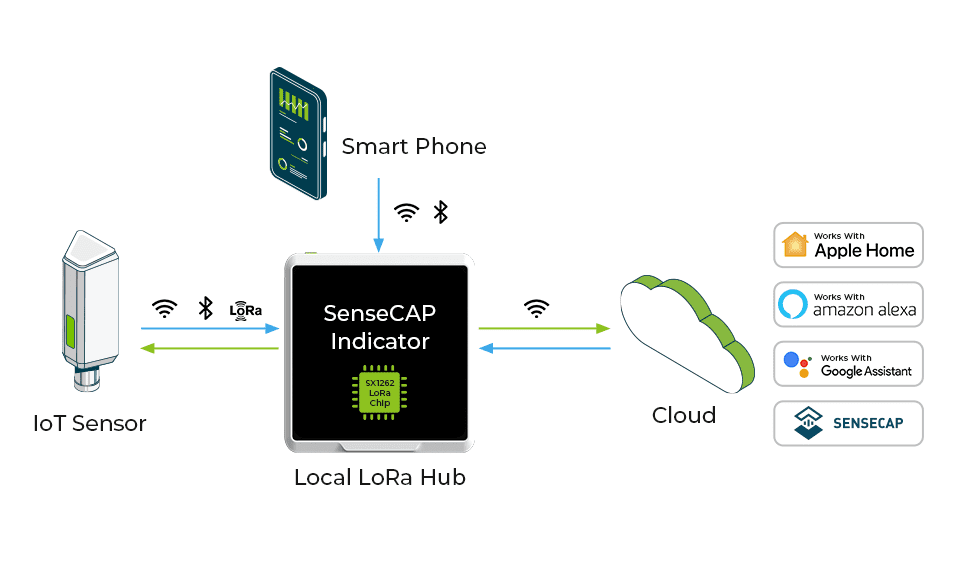

The embedded SX1262 LoRa® module enables you to build the LoRa® application and connect your local LoRa® sensors to the Cloud via Wi-Fi. For example, you could build a LoRa® hub device to connect your LoRa® sensors to your smart home ecosystem to implement Matter over Wi-Fi. In this way, the LoRa® devices could be connected to the Matter ecosystem via Wi-Fi, without the need to buy a new Matter-compatible device.
The software of SenseCAP Indicator is completely open-source. Developers could create various IoT applications such as:
- Air Quality Monitor
- Weather Station Display
- Sensor Data Dashboard
- Smart Home Assistant
- Mini Sensor Hub
- Stock Price Indicator
- Digital Album
- Standard Operation Procedure Reminder
It can also be used to develop various exciting applications integrating with third-party platforms, such as AWS / ChatGPT / Matter / NodeRED / IoTex …
Hardware Version
The SenseCAP Indicator series offers four different versions: D1, D1S, D1L, and D1Pro. Each version is designed to meet different application needs without any extra cost from unnecessary hardware. Here are the differences between the versions:
Specification

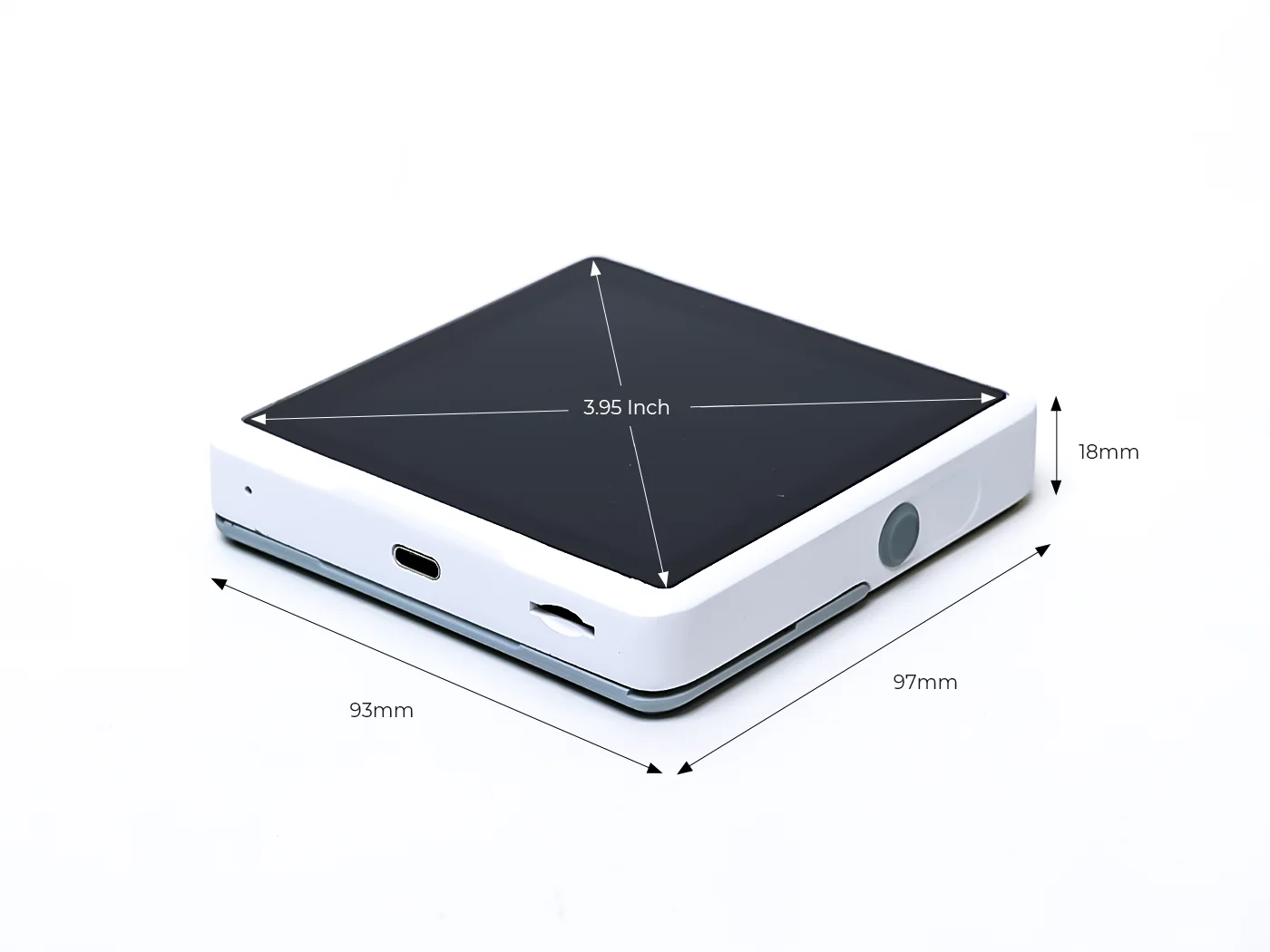

| Screen | 3.95 Inch, Capacitive RGB Touch Screen | |
| Screen Resolution | 480 x 480 pixels | |
| Power Supply | 5V DC, 1A | |
| Battery | N/A | |
| Processor |
ESP32-S3: Xtensa® dual-core 32-bit LX7 microprocessor, up to 240MHz RP2040: Dual ARM Cortex-M0+ up to 133MHz |
|
| Flash |
ESP32S3: 8MB RP2040: 2MB |
|
| External Storage | Support up to 32GB Micro SD Card (not included) | |
| Wi-Fi | 802.11b/g/n, 2.4GHz | |
| Bluetooth | Bluetooth 5.0 LE | |
| LoRa®(SX1262) | LoRa®WAN/(G)FSK, 21dBm Max Transmitted Power Sensitivity/-136dBm@SF12 BW=125KHz RX Sensitivity, Up to 5km (depending on gateway antenna and environments) | |
| Sensors(Optional) |
Built-in CO2 (SCD41) |
Range: 0-40000ppm Accuracy: 400ppm – 5000ppm ±(50ppm+5% of reading) |
|
Built-in TVOC (SGP40) |
Range: 1-500 VOC Index Points | |
|
External Temperature and Humidity Sensor |
Range: -40 ~ + 85 ℃/± 0.3 ℃; 0 ~ 100% RH/± 2% RH (25 ℃) | |
| Buzzer | MLT-8530, Resonant Frequency：2700Hz | |

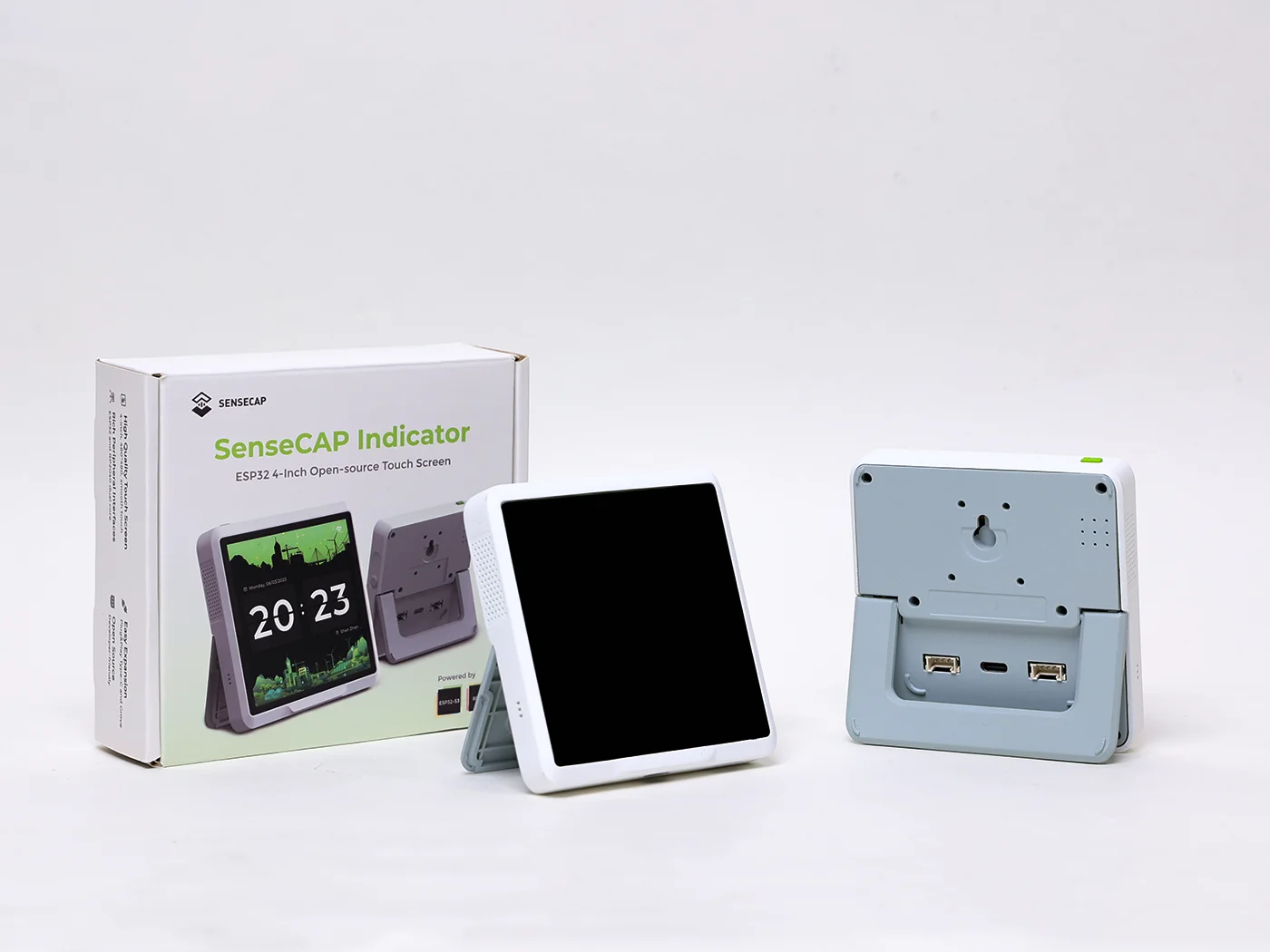

Part List
| SenseCAP Indicator | x1 |
| USB Type-C Cable (1m) | x1 |
| Grove AHT20 TH Sensor (For D1S and D1Pro version) | x1 |
