- Battery Included: Yes
- High-concerned chemical: None

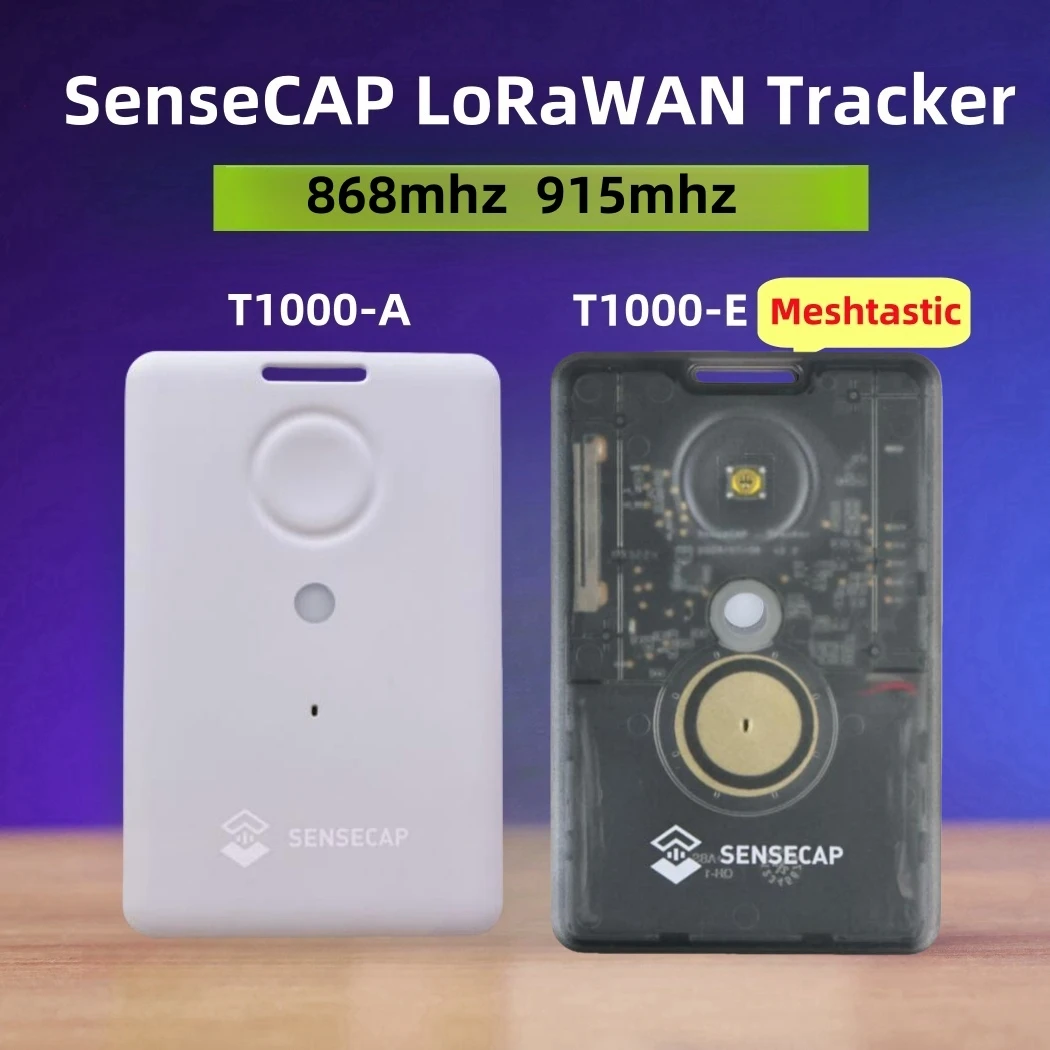

- Model Number: SenseCAP T1000-A LoRaWAN Tracker

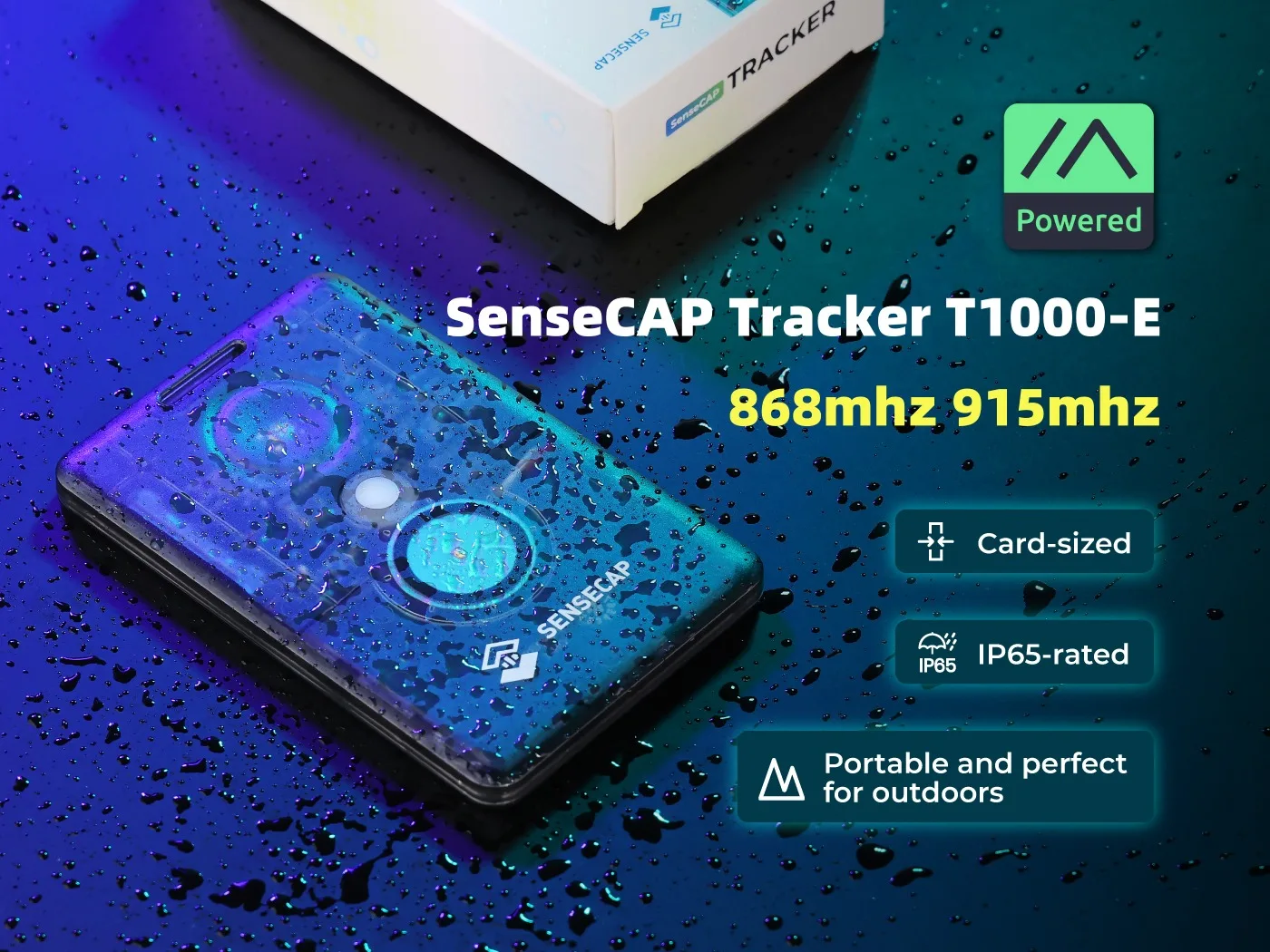

It is a high-performance tracker designed for Meshtastic, as small as a credit card, effortlessly fitting in your pocket or attaching to your assets. It embeds Semtech’s LR1110 (Supports 863-928 MHz range), Nordic’s nRF52840, and Mediatek’s AG3335 GPS module, providing Meshtastic users with a high-precision, low-power positioning and communication solution.
Feature
🌱Multi-Protocol Support: Featuring nRF52840 and LR1110, it supports Bluetooth 5.0, Thread, Zigbee, and LoRa, ensuring compatibility with a wide range of devices and networks.
🌱Powerful Positioning Capabilities: Integrated with the Mediatek‘s AG3335 GPS chip, it provides high-precision positioning services.
🌱Expandable Interfaces: Designed with four pogo pins, it supports USB interface for DFU (Device Firmware Upgrade), serial logging, and API interface, simplifying device management and debugging.
🌱Open Source Support: Compatible with the Meshtastic open-source mesh networking protocol, suitable for long-range and low-power communication needs.
Specification
General
Network protocol
LoRa（Supports 863-928 MHz range）, Bluetooth v5.1
Temperature
Range: -20 to 60℃
Accuracy: ±1℃ (min ±0.5℃, max ±1℃)
Resolution: 0.1℃
Light
0 to 100% (0% is dark, 100% is brightest)
3-Axis Accelerometer
3-Axis Accelerometer to detect movement
(Not currently used in the Meshtastic firmware)
LED and Buzzer
1LED and 1buzzer to indicate status
Button
1*Button to operate
Antenna
Internal (GNSS/LoRa/Wi-Fi/BLE)
Communication Distance
2 to 5km (depending on antenna, installation, and environments)
IP Rating
IP65

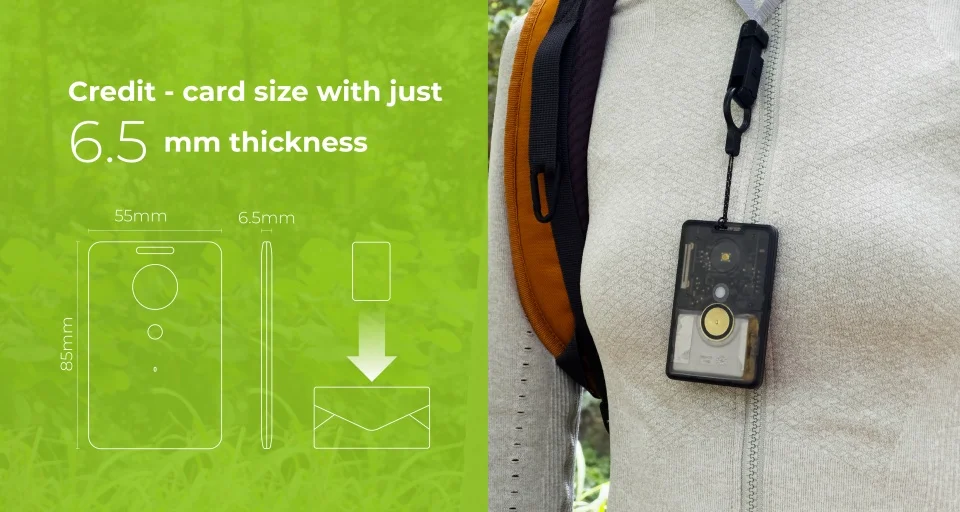

Dimensions
85 * 55 * 6.5 mm
Device Weight
32g
Operating Temperature
-20℃ to +60℃
Operating Humidity
5% – 95% (No condensation)
Certification
CE /FCC
Battery
Battey Capacity
Rechargeable lithium battery, 700mAh
Battery Life Monitoring
Periodic uplink battery level

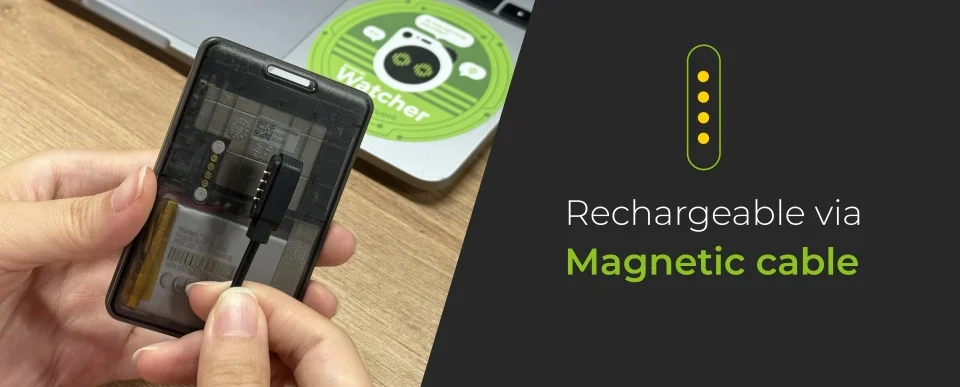

Charge Cable
(Adapter not included)
USB magnetic charging cable, 1 meter
Power Input Voltage
4.7 to 5.5V DC
Charging Temperature Limit
0 to +45℃

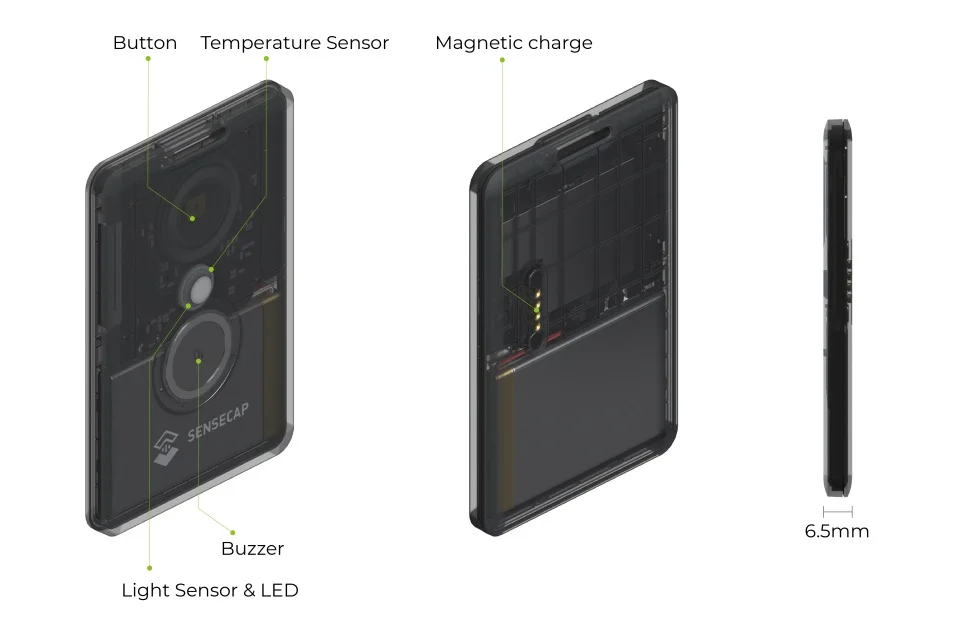

Hardware overview
Application

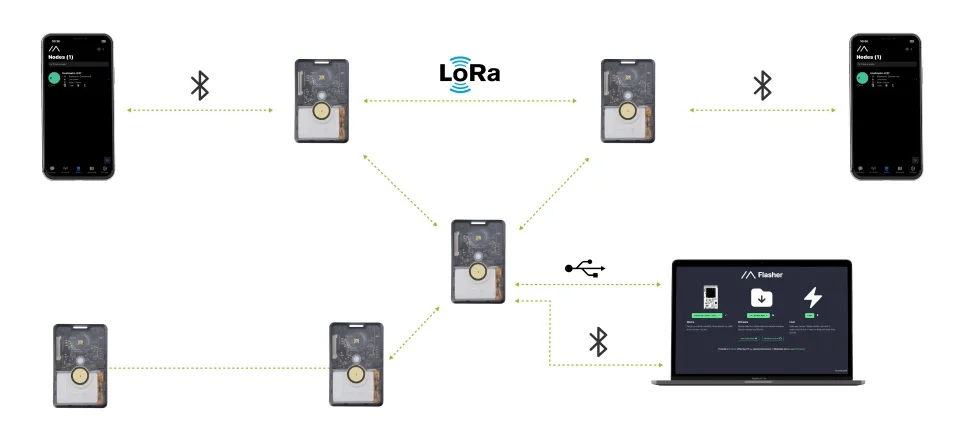

If you’ve got a IP65 rating Meshtastic device with GPS, temperature, lightness and motion (3-Axis Accelerometer) sensors, numerous potential applications await. Use the Meshtastic APP to communicate with low-power, long-range LoRa® devices via your phone. Connect with nearby nodes, participate in group chats, and share geographic locations—all in areas without cellular coverage.
Recommended Use Cases：
🌱Asset Tracking: Track the movement and location of your assets and monitor environmental and moving conditions in real-time where the asset is located for better management.

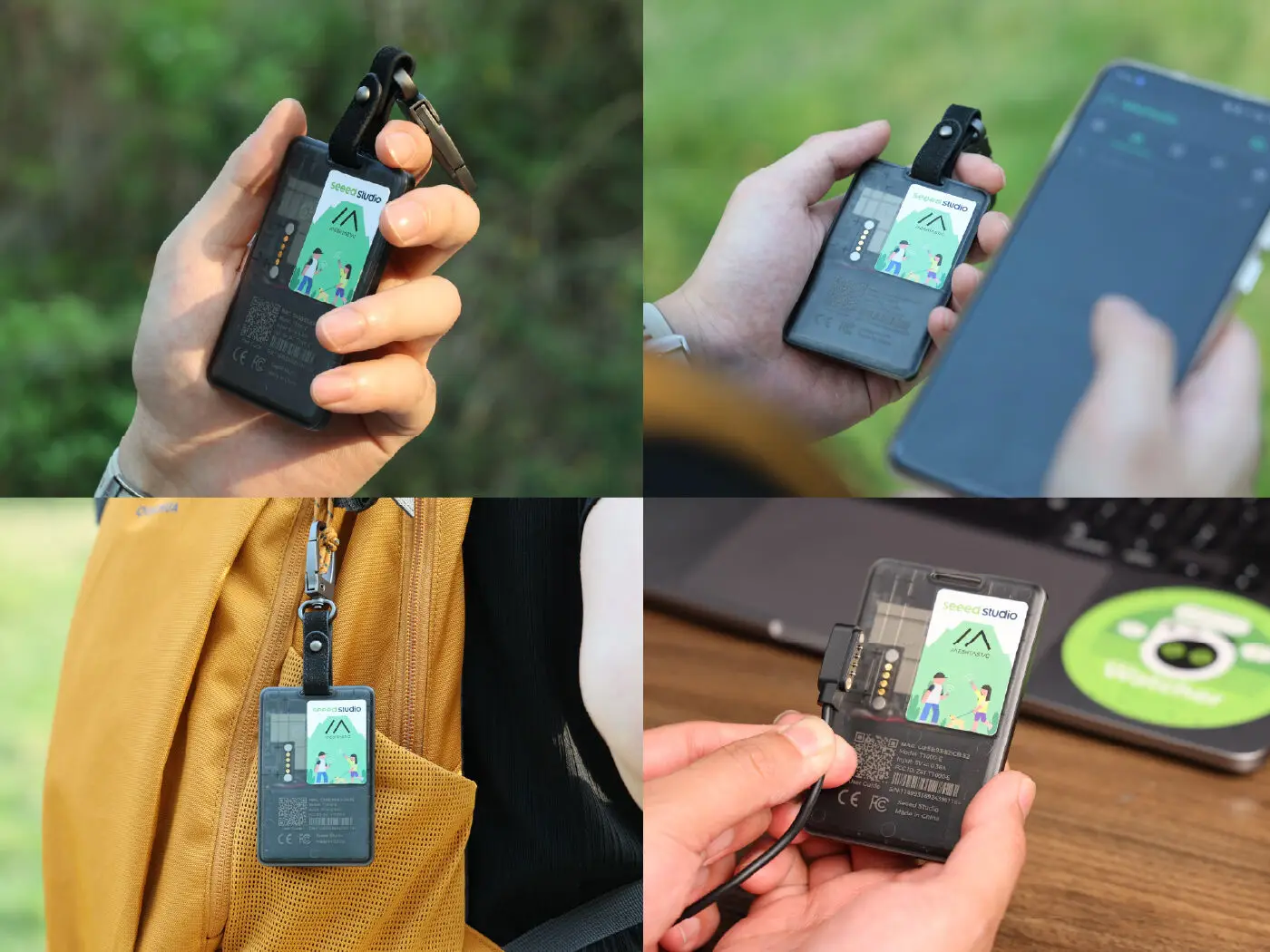

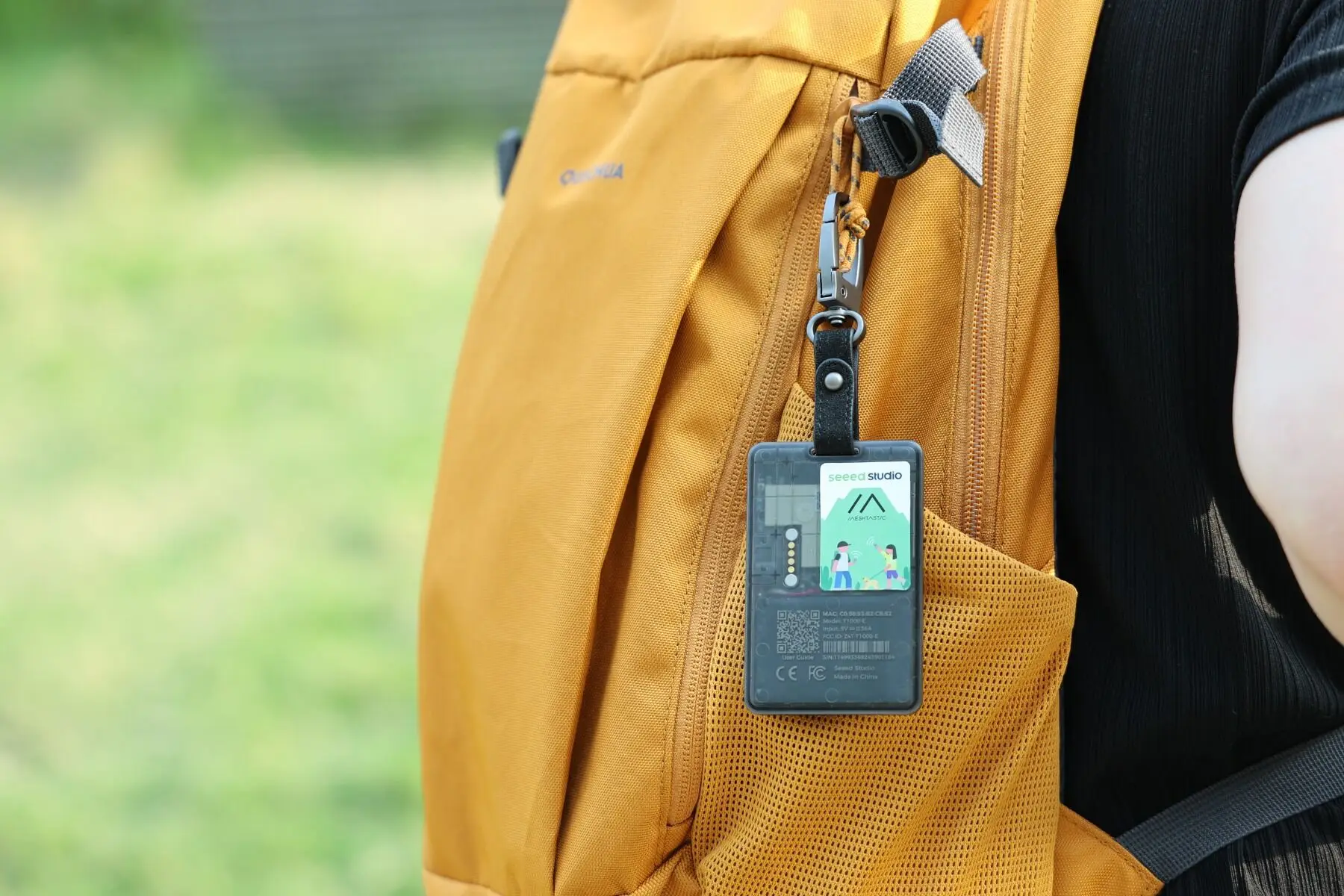

🌱Outdoor Adventure: Use this ready to deploy Meshtastic device for off-grid communication with your hiking or camping group. The GPS can help track locations, while temperature and motion sensors can provide real-time environmental and movement data to ensure safety.
Environmental Monitoring: Collect and transmit environmental data. Deploy the device in remote areas to monitor and log temperature and lightness over time, contributing to local weather data collection. Use the device to track and monitor environmental conditions in wildlife habitats, aiding in research and conservation efforts.
Documents
Part List
Tracker T1000-E x1
USB Cable (Adapter not included) x1
