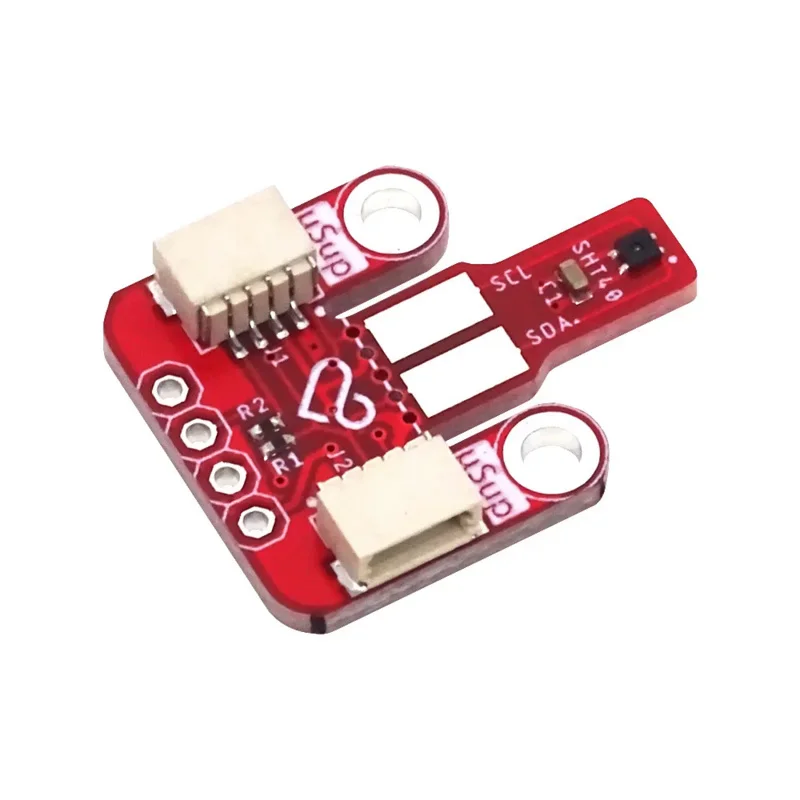

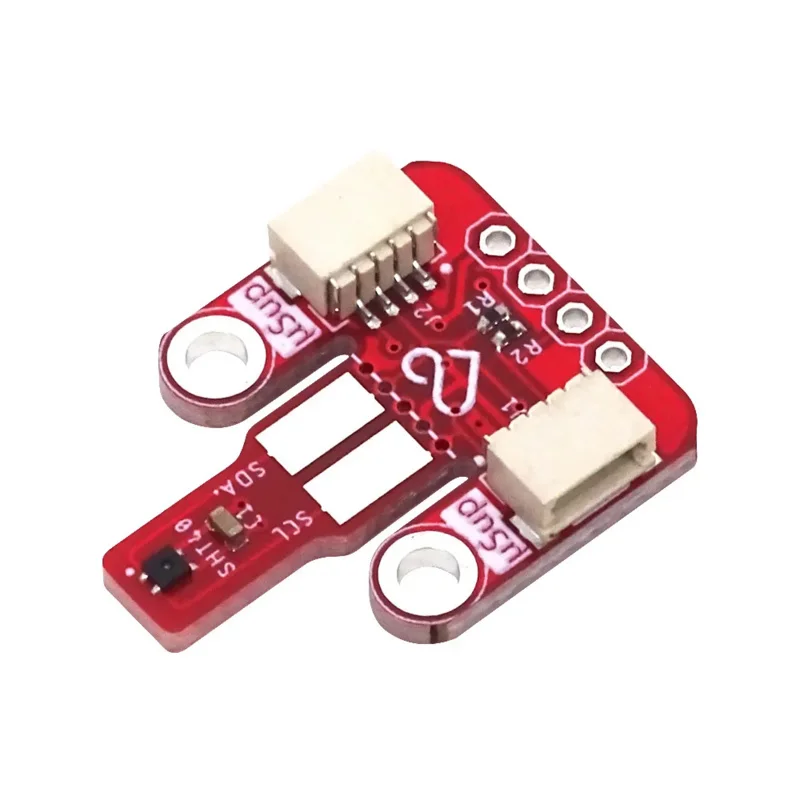

Thanks to the specially designed plate, the part with the sensor itself can be broken off and used for installation in the sensor housing or in any other suitable housing. After breaking off, there are no longer pull resistors on the I2C board and it is necessary that the device to which the sensor will be connected has them.
Specifications(SHT40):
Power supply: 1.1-3.6V DC typically 3.3V DC
Resolution: 16bit
Temperature measurement range: -40-125°C
Temperature measurement resolution: 0.01°C
Temperature measurement accuracy: ±0.2°C
Humidity measurement range: 0-100% RH
Moisture measurement resolution: 0.01 RH
Moisture measurement accuracy: ±1.8% RH
Dimensions: 17x12mm
Specifications(SHT45):
Power supply: 1.1-3.6V DC typically 3.3V DC
Resolution: 16bit
Temperature measurement range: -40-125°C
Temperature measurement resolution: 0.01°C
Temperature measurement accuracy: ±0.1°C
Humidity measurement range: 0-100% RH
Moisture measurement resolution: 0.01 RH
Moisture measurement accuracy: ±1.5% RH
Dimensions: 17x12mm
Included in delivery:

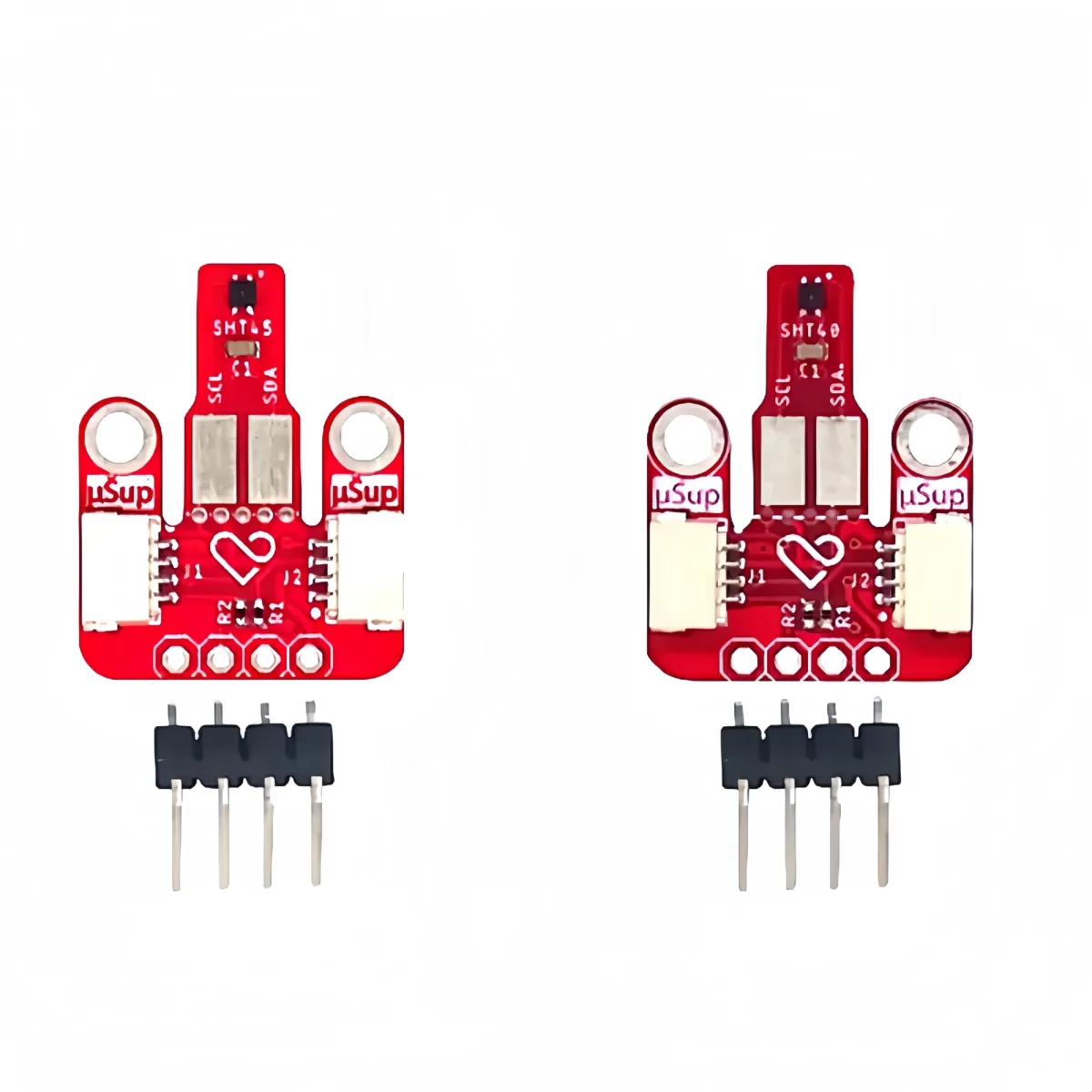

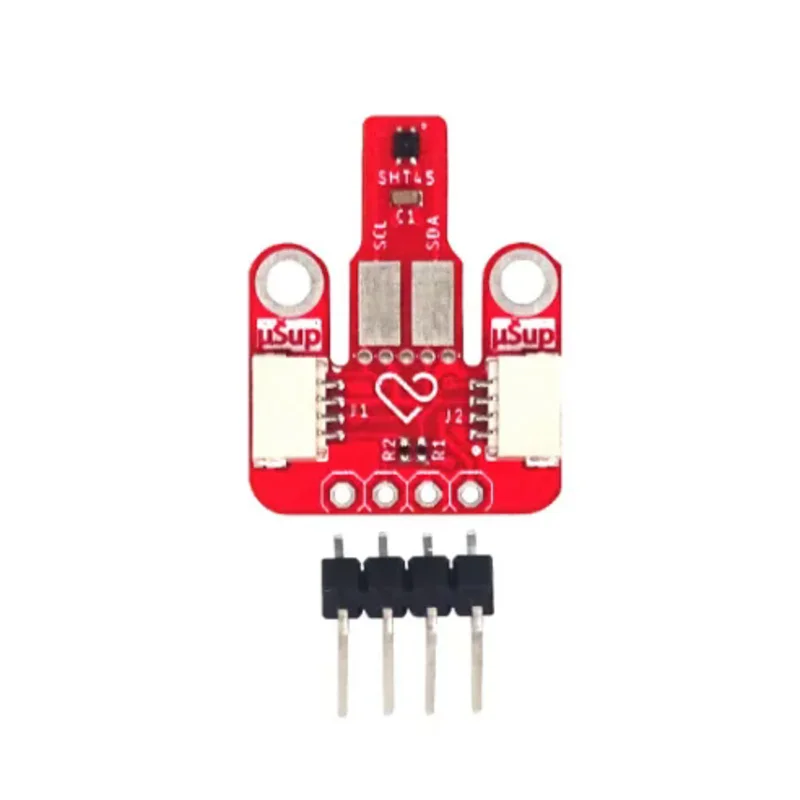

1pcs LaskaKit SHT40 or SHT45 Temperature and Humidity Sensor
1PCs pin bar
Note:
This product is not a standalone functional unit and may require professional installation.
Photos of products are only illustrative and sometimes may differ from the actual appearance of the item. However, this does not change its basic characteristics.
External case not included
When used outdoors, we recommend spraying with PLASTIC 70, WARNING! varnish must not get on the sensor itself, tape it before spraying.
