Description

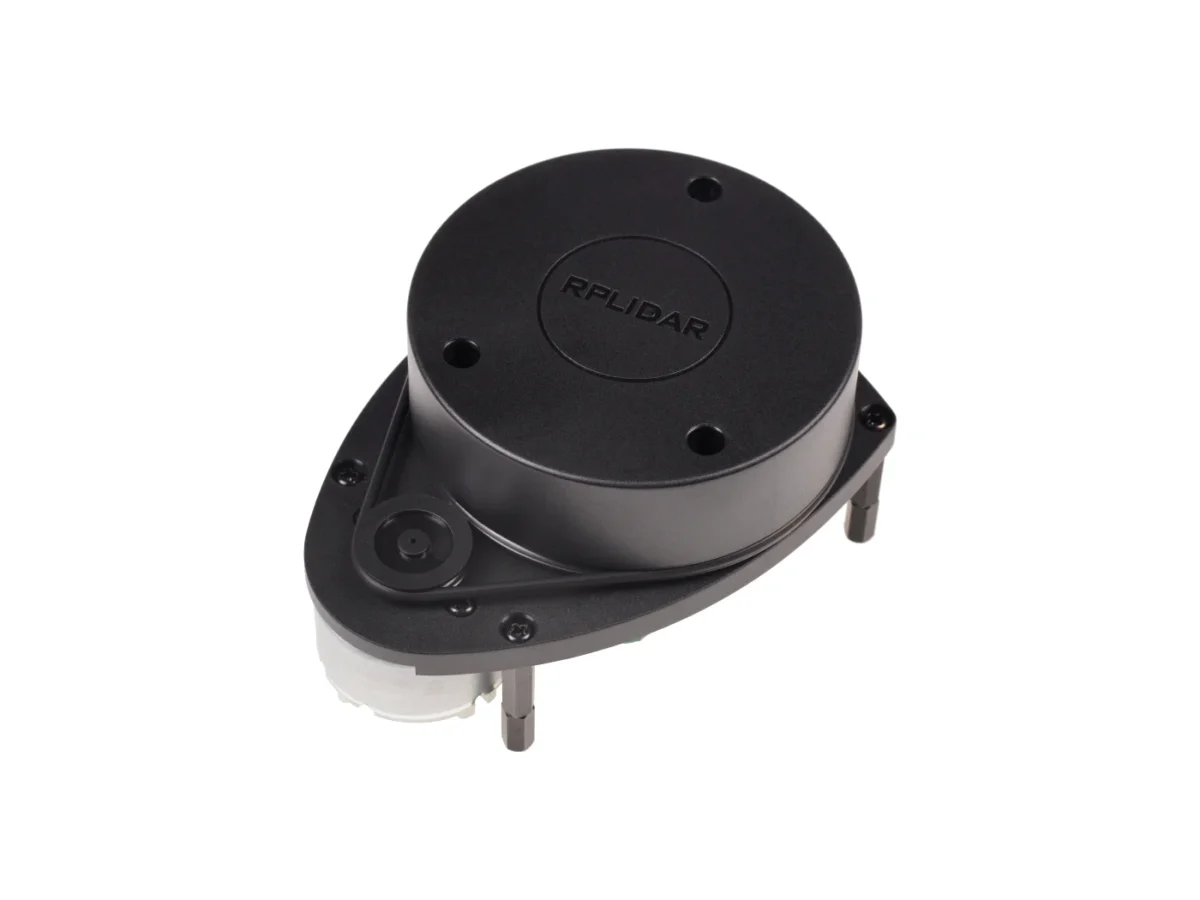

RPLIDAR A1 is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360degree scan within a 6meter range. The produced 2D point cloud data can be used in mapping, localization, and object/environment modeling.
RPLIDAR A1’s scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum.
RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor environments and outdoor environments without sunlight.
NOTE:
For the official adjustment of SLAMTEC RPLIDAR A1M8 part list, which mainly comes from the adapter and connecting cable. It would never affect the using. Thank you for your kindly supportting.
Features
🌱Measures distance data in more than 8000 times/s
🌱360 Degree Omnidirectional Laser Range Scanning
🌱8000 times sample rate, the highest in the current economical LIDAR industry
🌱OPTMAG Original Design, prolong the life-span
🌱Configurable Scan Rate from 2-10Hz

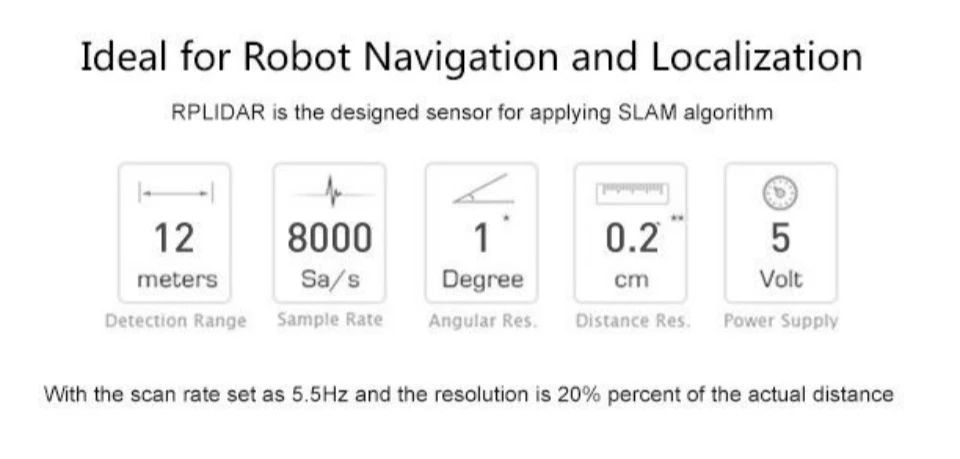

🌱Ideal for Robot Navigation and Localization
🌱Plug and Play

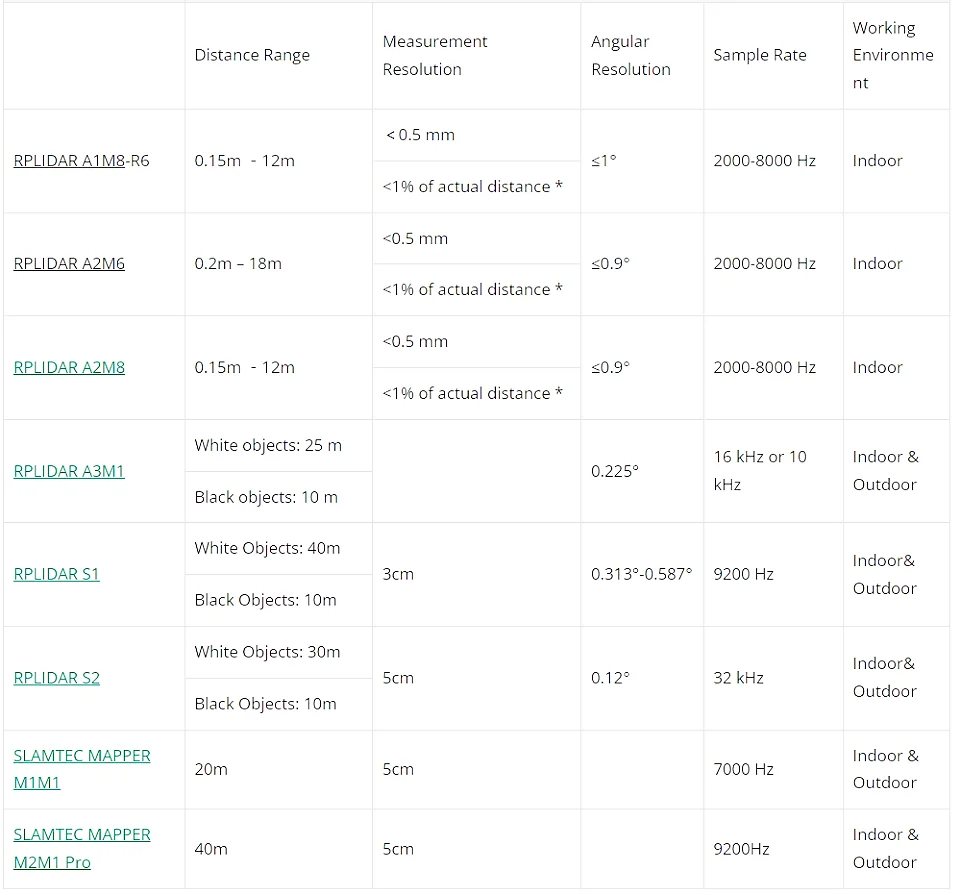

For your convenience, we made a table comparing different RPLiDARs so you can easily pick one that suits your project!
Application Scenarios
- Home service /cleaning robot navigation and localization
- General robot navigation and localization
- Smart toy’s localization and obstacle avoidance
- Environment scanning and 3D re-modeling
- General simultaneous localization and mapping (SLAM)
Part List
- 1 x RPLIDAR A1（PWM motor driver embedded
- 1 x USB Adapter
- 1 x RPLIDAR A1 communication cable
