Transform your existing curtains into smart window treatments effortlessly with the Tuya Smart Bluetooth Curtain Robot. This compact yet powerful device supports remote control via smartphone app, voice commands through Alexa or Google Home, and customizable timing schedules. With easy installation, long battery life, and support for both single and double-track curtains, it brings automation and convenience to any home.
Features:
-

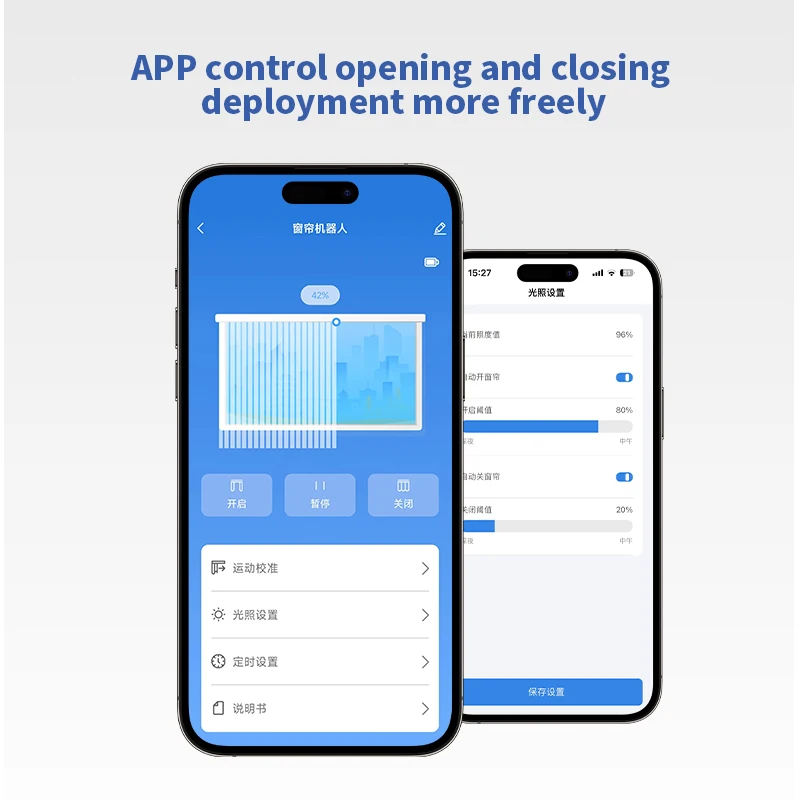

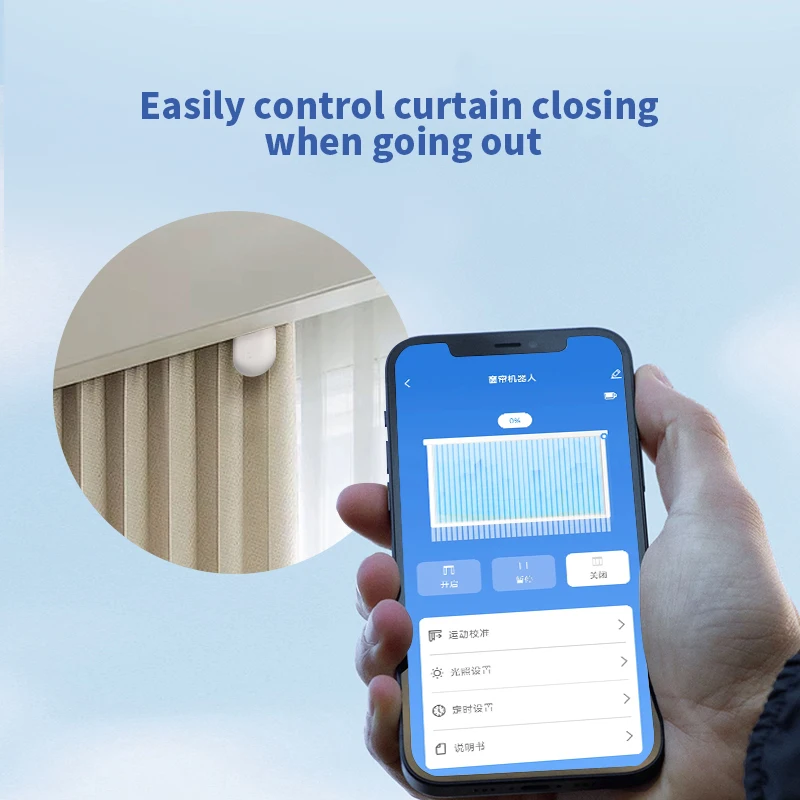

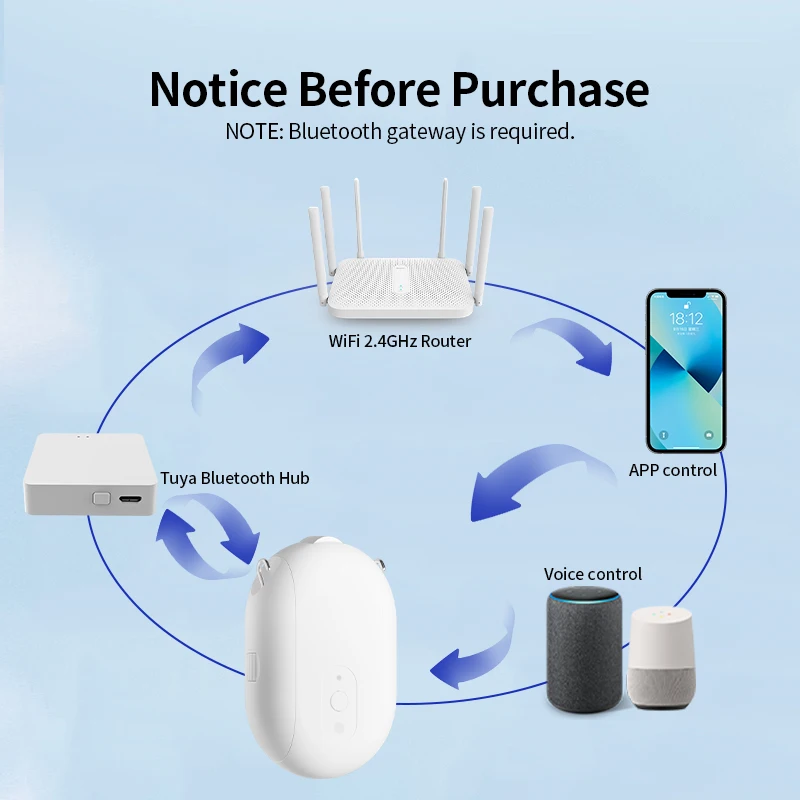

Smart Control & Voice Compatibility: Manage your curtains remotely via the Tuya Smart app or using voice commands through Amazon Alexa or Google Home.
-

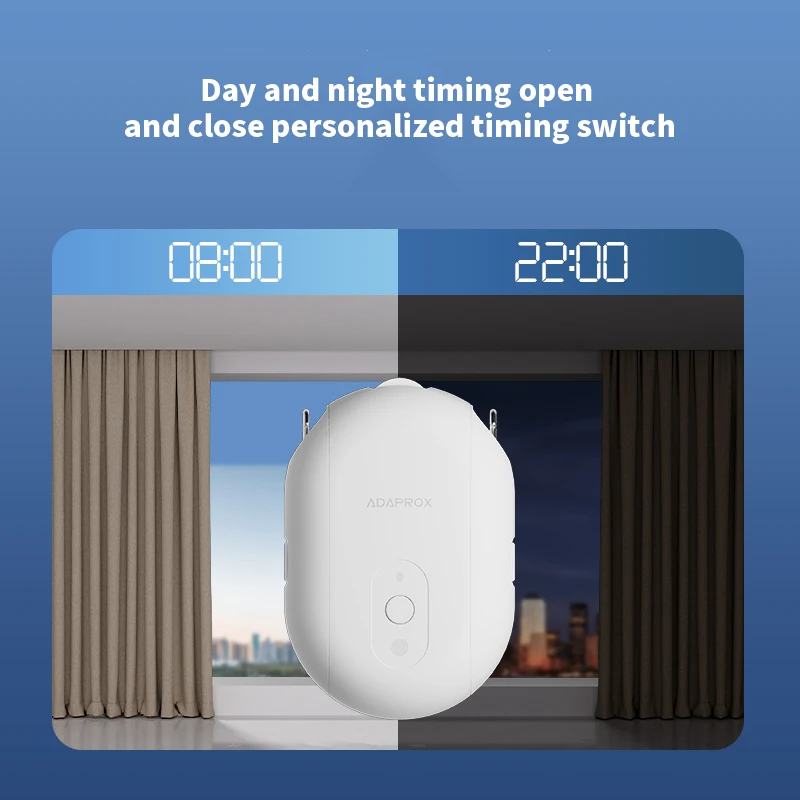

Custom Timer Settings: Automate opening and closing based on your daily routine for a personalized living experience.
-

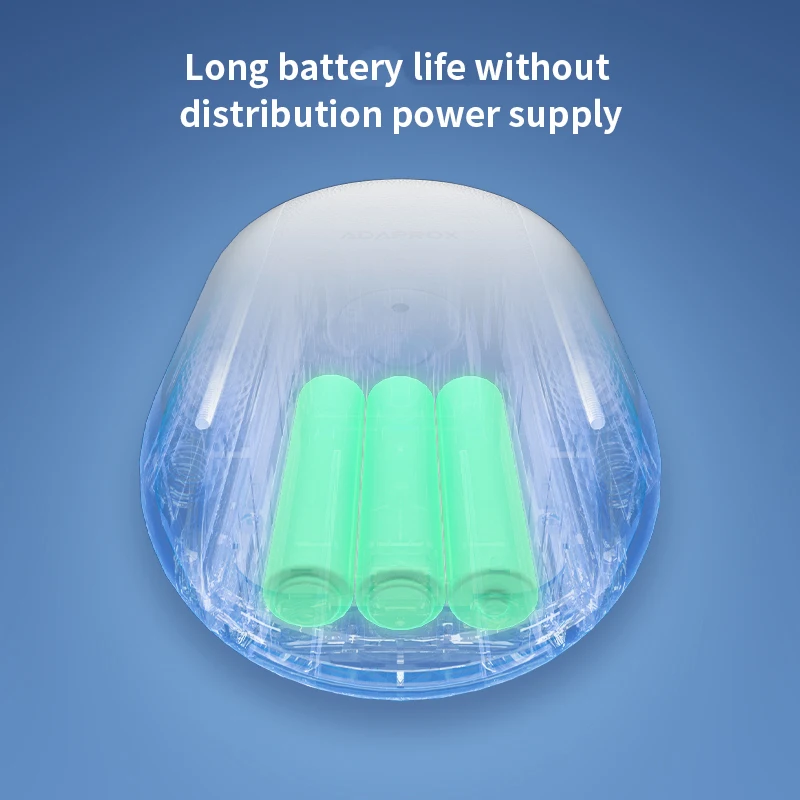

Long-Lasting Battery: Runs for up to 120 days on 3 AA batteries (not included), minimizing maintenance.
-
Strong & Compact Design: Handles curtains up to 8 kg, making it suitable for a wide range of sizes and fabrics.
-

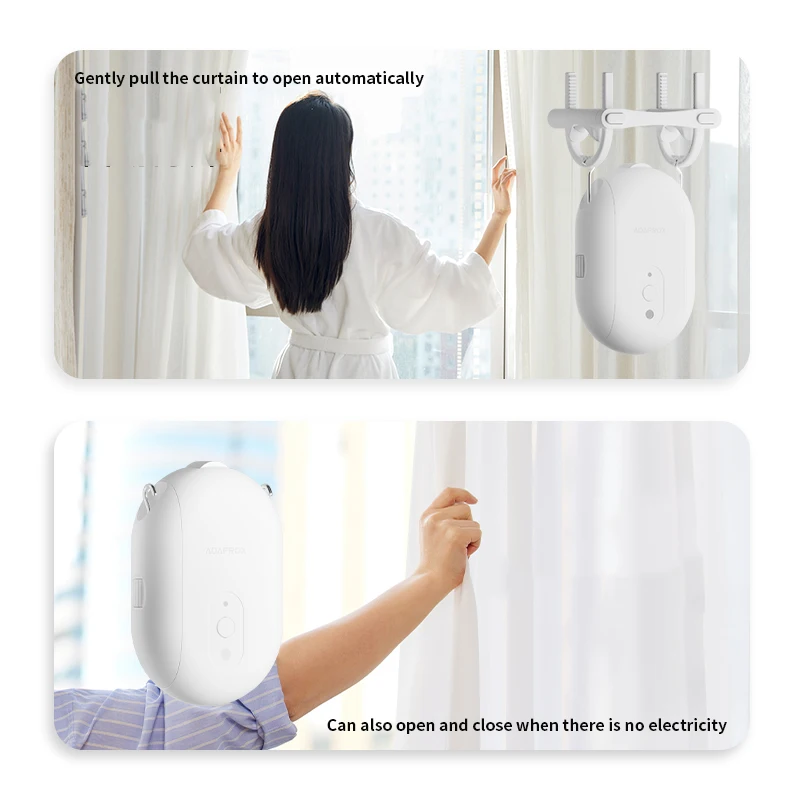

Pull-to-Start & Obstacle Detection: Easily activate with a gentle pull; stops automatically when obstacles are detected for added safety.
-

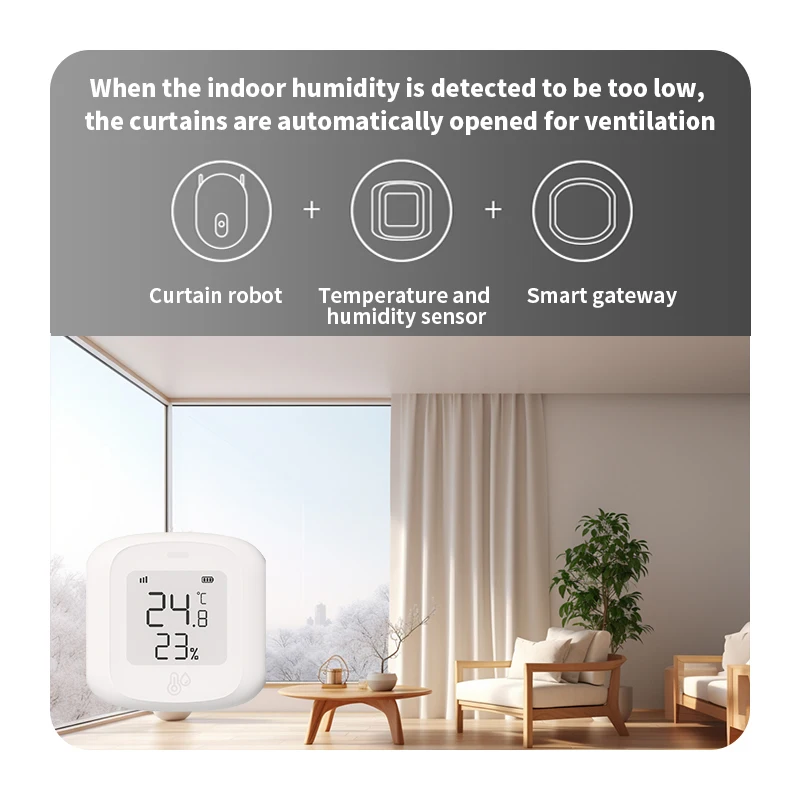

Smart Home Integration: Works with other Tuya-compatible devices (e.g., smart locks) to create automated scenes.
-
Adjustable Movement Direction: Supports left/right mounting and allows direction switching within the app.
-

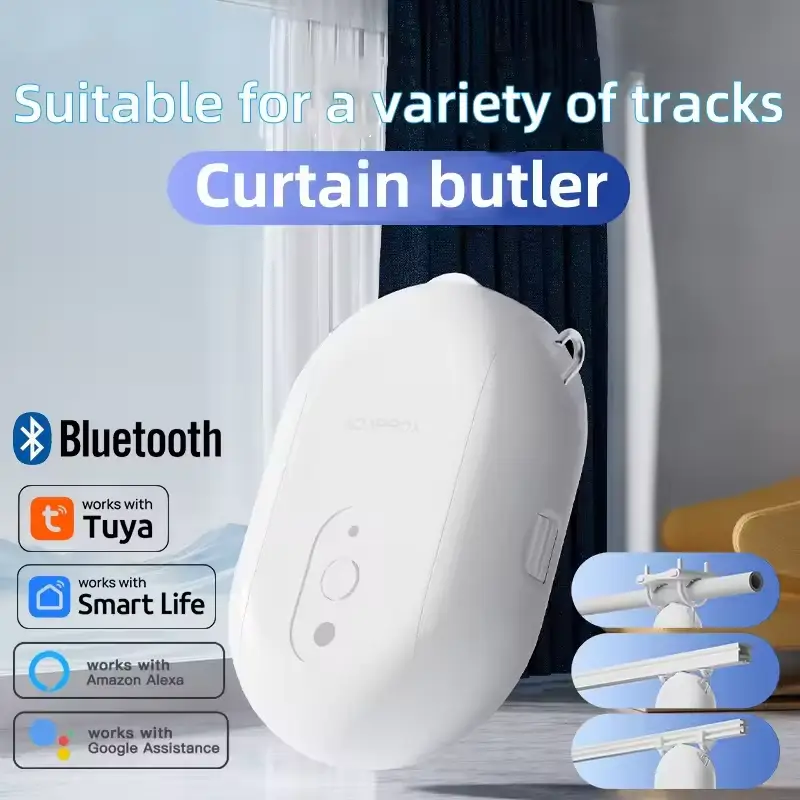

Universal Compatibility: Ideal for both one-way and two-way curtain tracks (one unit for single-track, two for double-track).
Specifications:
-

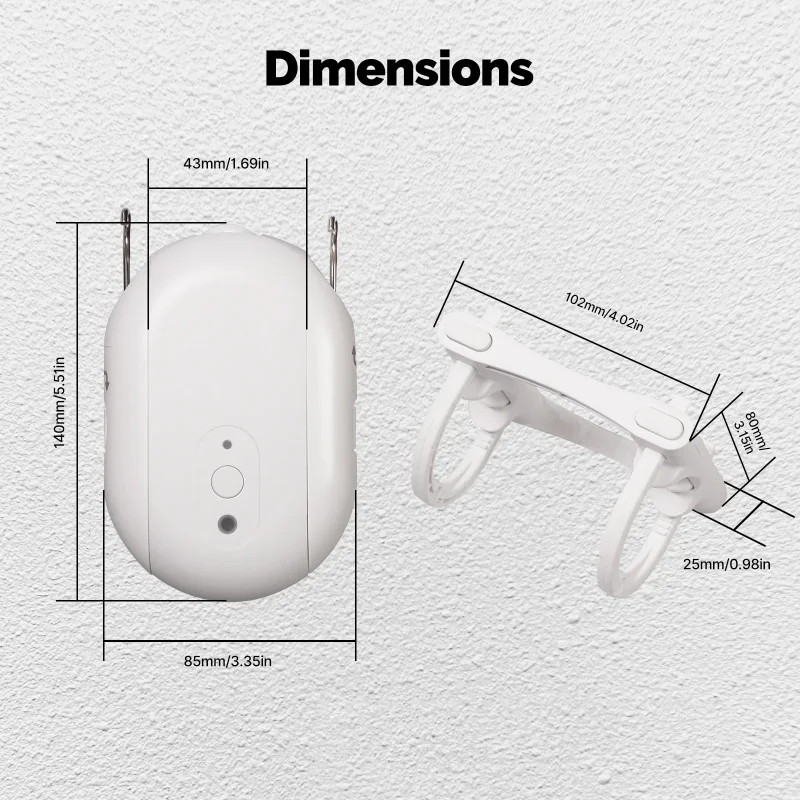

Dimensions: 95 x 43 x 140 mm
-
Weight: 266 g
-
Wireless Protocol: Bluetooth 5.0
-
Battery Type: 3 x AA 1.5V (not included)
-
Rated Power: 5W–6.75W
-
Output Speed: 120 rpm
-
Movement Speed: 17 cm/s
-
Max Load Capacity: 8 kg
-
Operating Temperature: 0°C to 45°C (32°F to 113°F)
-
Operating Humidity: 0% to 95% RH (non-condensing)
-
Certifications: CE, FCC
-
Model: RSH-MC24-BL-Battery
Customization Options (OEM/ODM)
We offer comprehensive customization services for bulk orders to fit your brand and market needs:
-
Branding: Custom logos, packaging, and user manuals.
-
Aesthetics: Custom product colors and finishes.
-
Product Development: Full ODM support for new feature development, custom mold design, and bespoke app/software customization to create a unique product under your brand.
Packing List
Curtain robot *1

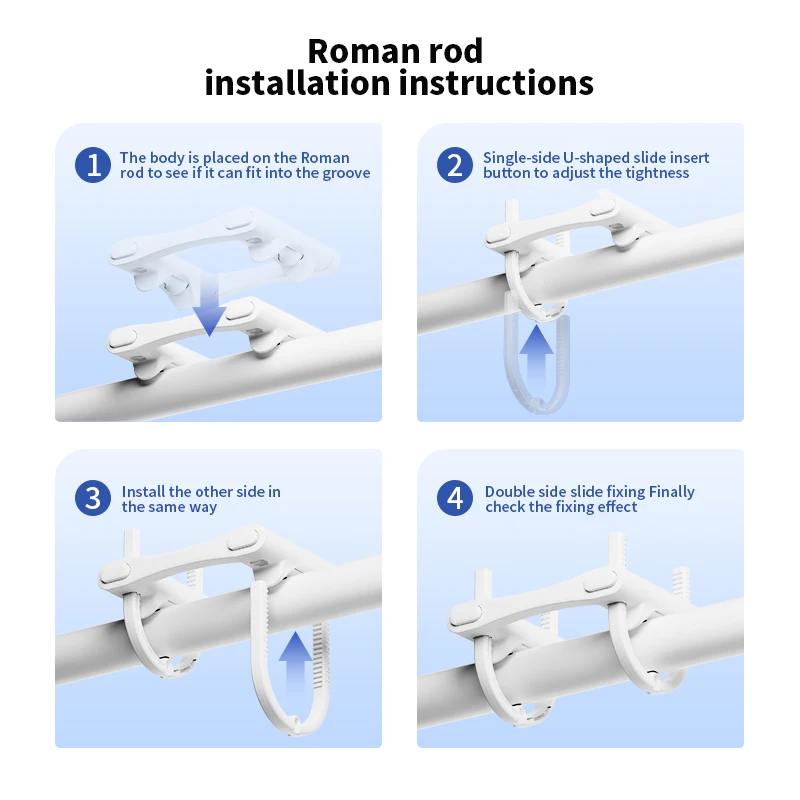

U-shaped slide rail or Roman rail (Optional) *1
Manual *1

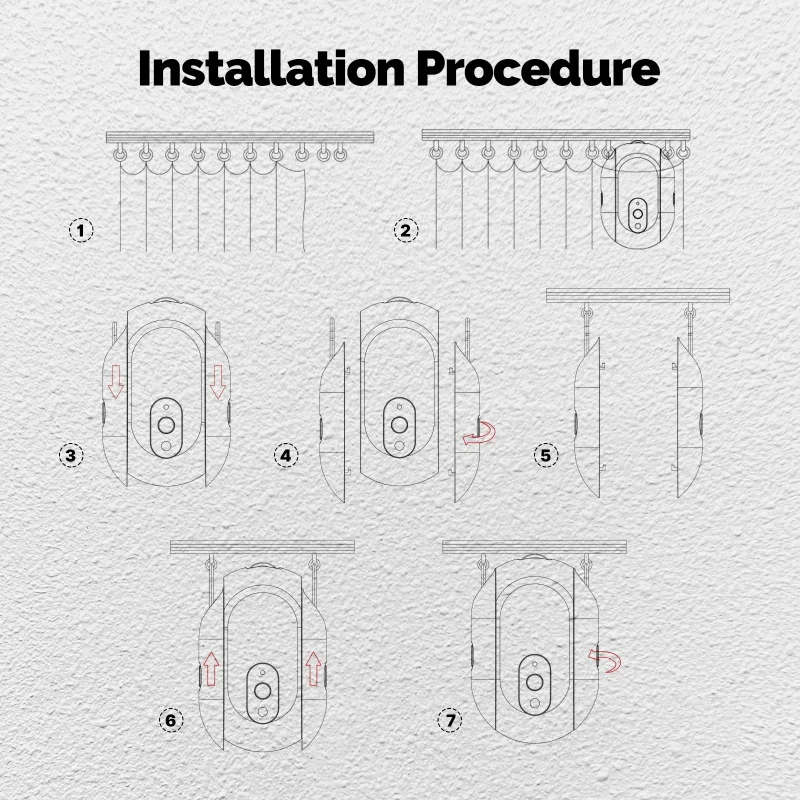

Installation Procedure
1. Before installation, clean and dry the track, then remove the curtain hooks from the next installation location.
2. Hang the removed hooks in front and leave two spaces at the installation location for installing the curtain robot.
3. Push the robot body down and remove the hook accessories on both sides.
4. Use the knobs on the side to adjust the hooks to the top.
5. Install the hooks on both sides to the corresponding curtain hook rings.
6. Combine the robot body with the hooks on both sides.
7. Make the top roller of the curtain robot close to the track by turning the knobs on both sides.
