Features

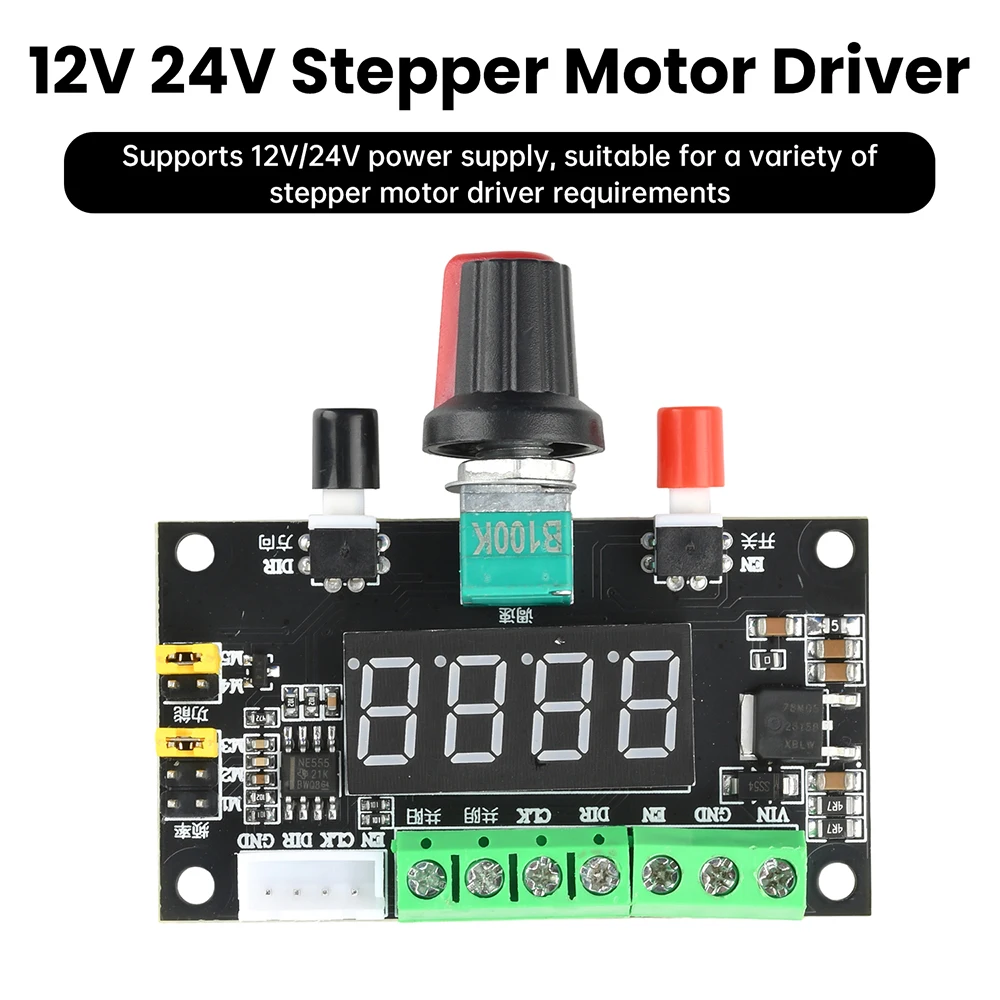

1. Supports 12V/24V power supply, suitable for various stepper motor drive requirements

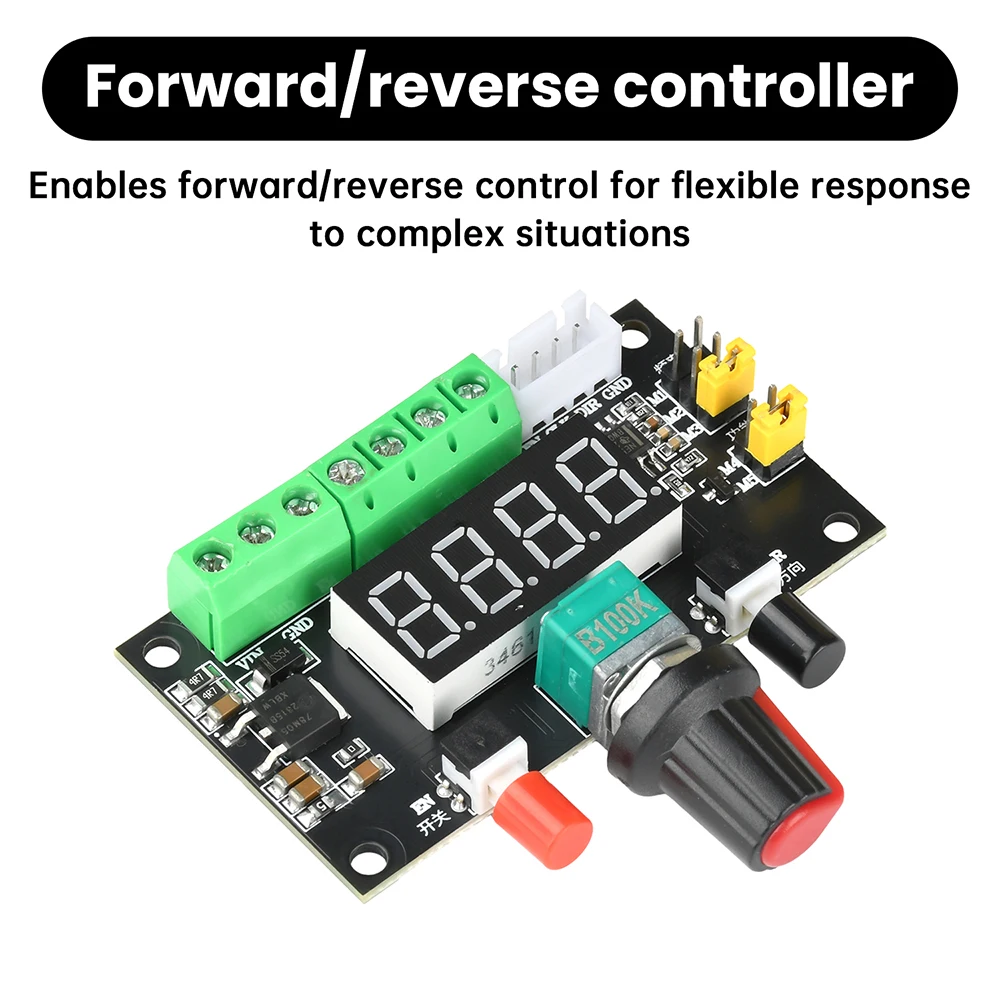

2. Enables forward/reverse control, flexibly addressing complex scenarios

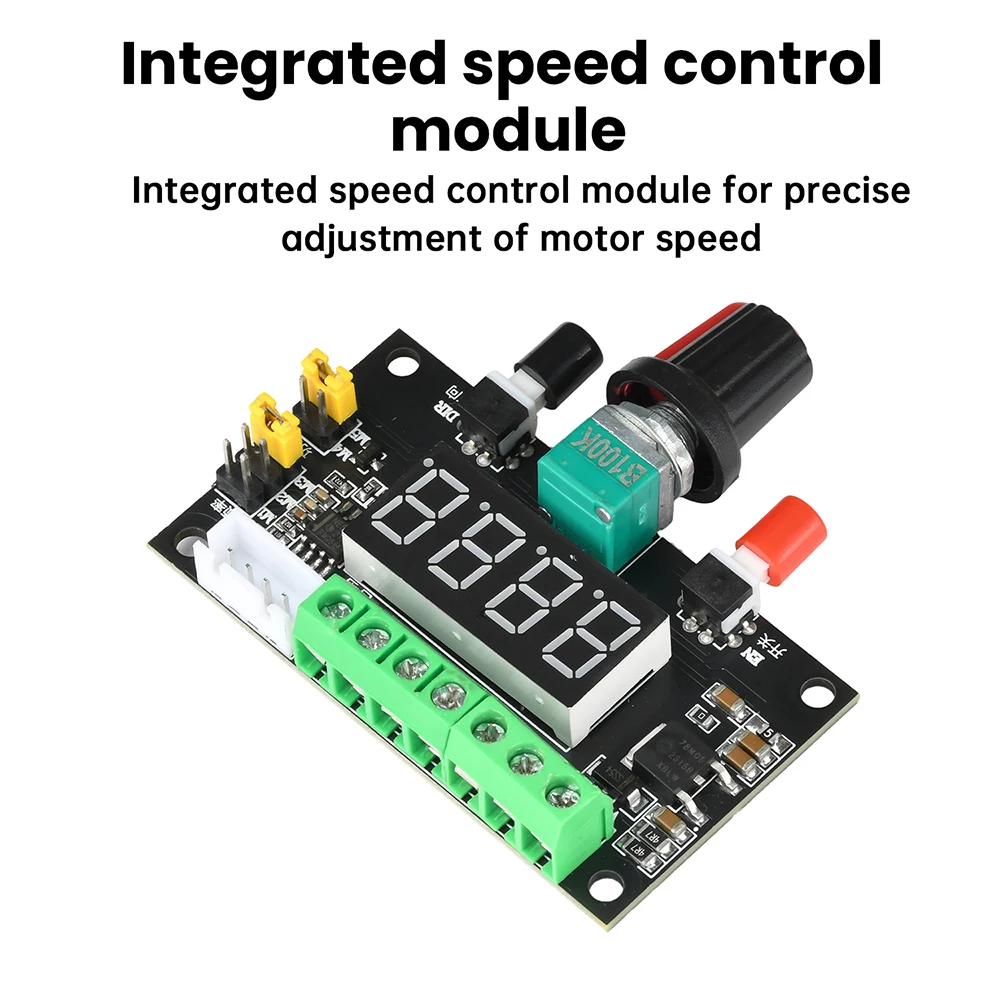

3. Integrated speed control module for precise adjustment of motor operating speed

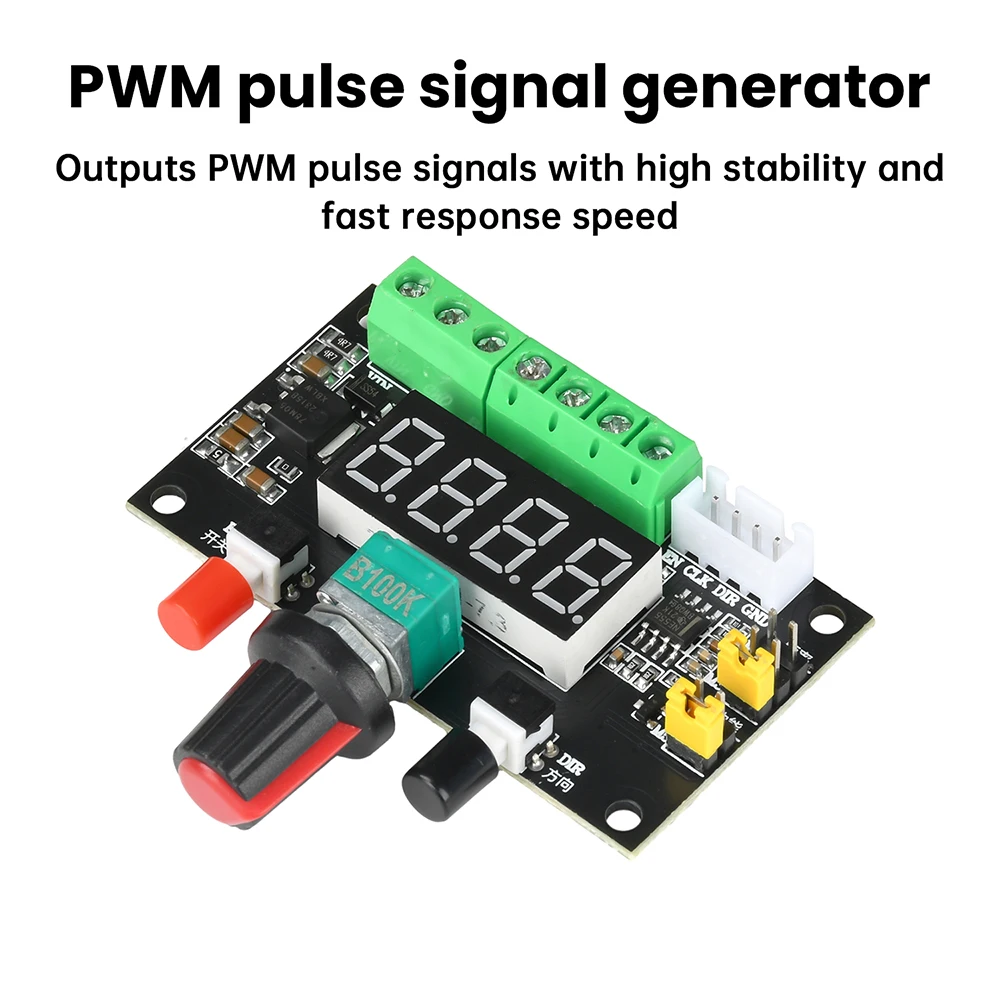

4. Outputs PWM pulse signals with high stability and fast response speed
5. Comprehensive functionality suitable for various automation control applications

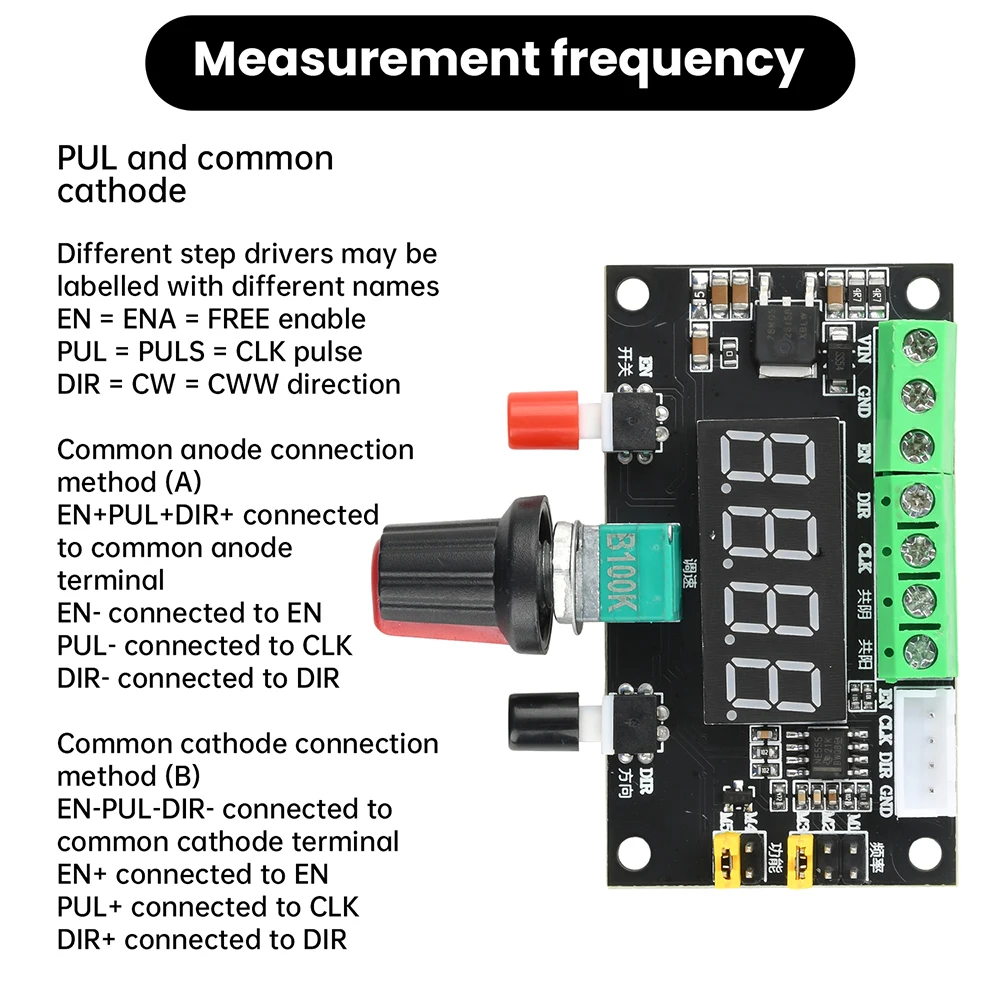

Different stepper drivers may use different labels:
EN = ENA = FREE enable
PUL = PULS = CLK pulse
DIR = CW = CWW direction

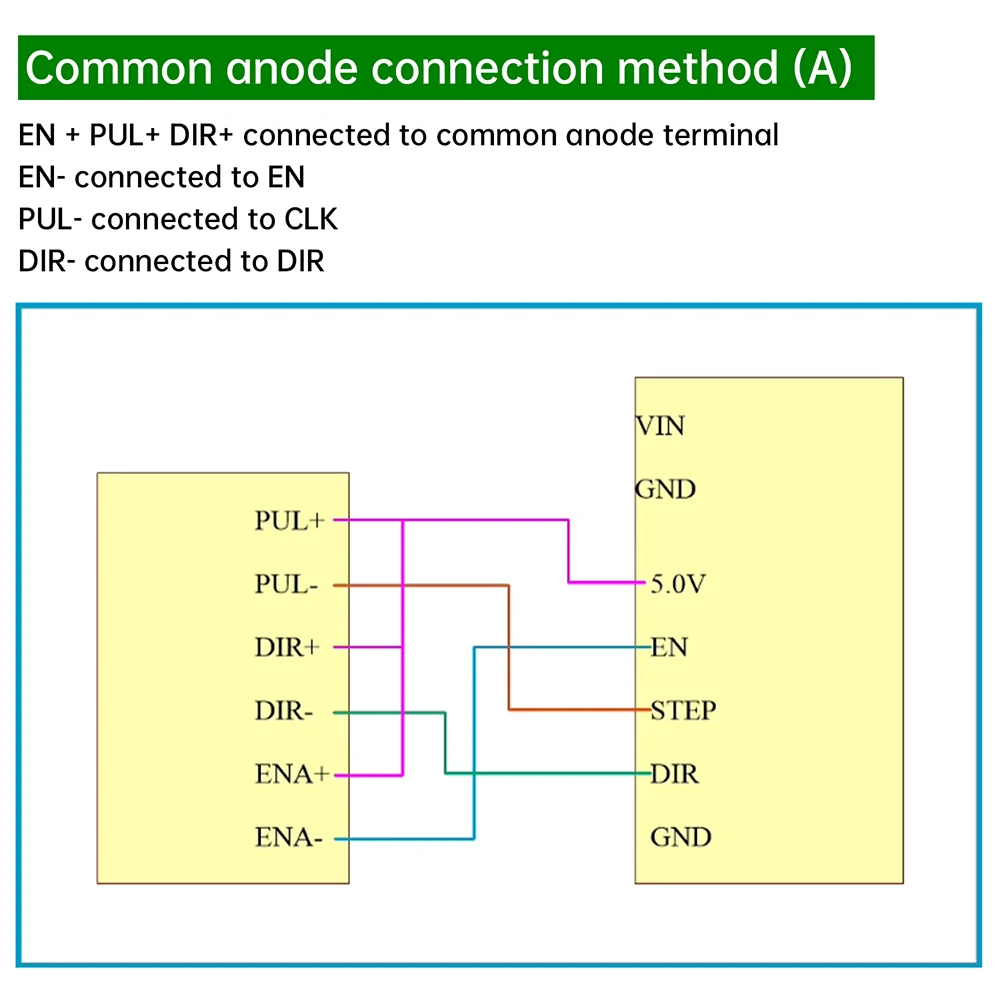

Common anode connection method (A)
EN+PUL+DIR+ connected to common anode terminal
EN- connected to EN
PUL- connected to CLK
DIR- connected to DIR

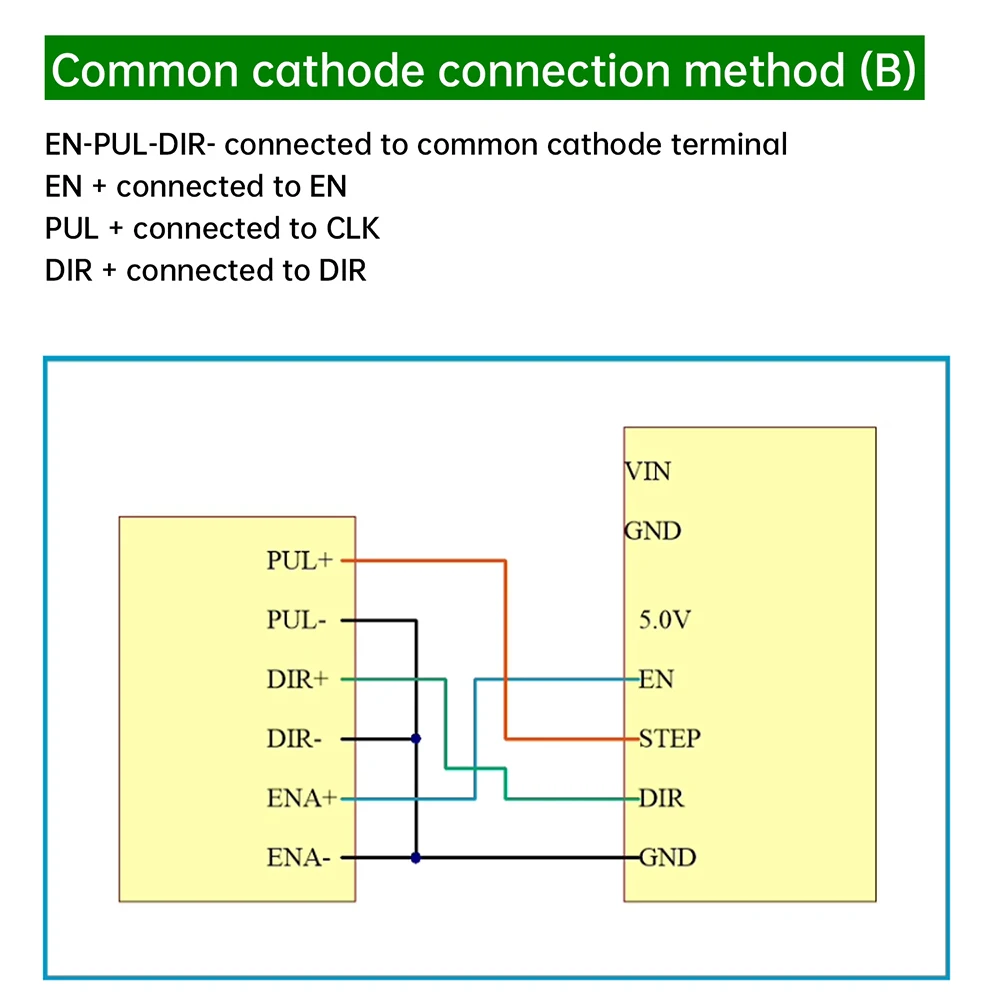

Common cathode connection method (B)
EN-PUL-DIR- connected to common cathode terminal
EN+ connected to EN
PUL+ connected to CLK
DIR+ connected to DIR
Package include
Module*1
