Sending list:

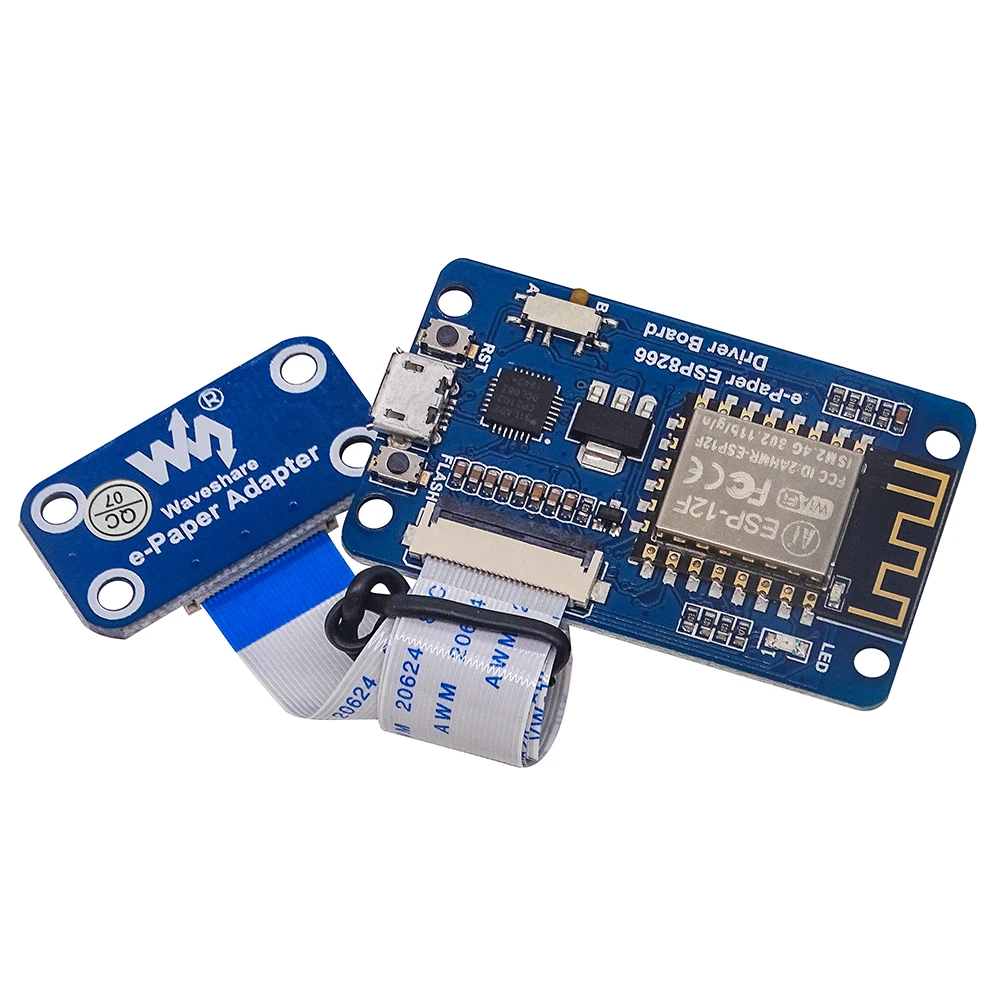

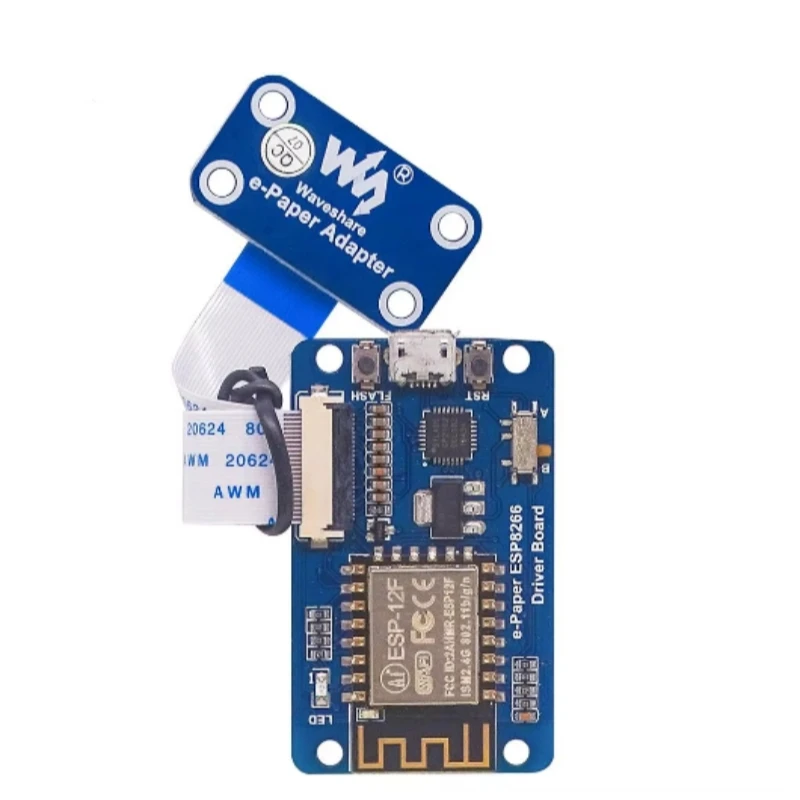

Electronic paper ESP8266 drive board X1
Electronic paper adapter X1
24PIN FFCX1(Screen not included)
Features
- Onboard ESP8266, supports Arduino development
-
Provides HTML host code
- Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image
- Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
- Easy to be integrated into wireless applications
- Comes with e-Paper driver (open source)
- Comes with development resources and manual
Specifications
- WiFi protocol: 802.11b/g/n
- Interface: 3-wire SPI, 4-wire SPI (default)
- Operating voltage: 5V
- Operating current: 50mA ~ 100mA
- Outline dimension: 29.57mm x 48.26mm
- Mounting holes size: 2.9mm
Dimensions
[my characteristics]
Onboard esp32, supporting Arduino development
Provide Android mobile app program, which can update the display content through Bluetooth EDR for easy use
Provide HTML host computer program, which can remotely update the display content through web pages, so as to facilitate integration into various network applications
Support Floyd Steinberg dithering algorithm to obtain more color combinations and better shadow rendering of the original image
Support a variety of common image formats (BMP, JPEG, GIF, PNG, etc.)
Factory built-in electronic ink screen driver (open source)
Provide complete supporting data manual
[my parameters]
WiFi standard: 802.11b/g/n
Bluetooth standard: 4.2, including traditional Bluetooth (BR / EDR) and low power Bluetooth (ble)
Communication interface: 3-wire SPI, 4-wire SPI (default)
Working voltage: 5V
Working current: 50mA ~ 150mA
Overall dimension: 29.46mm x 48.25mm
