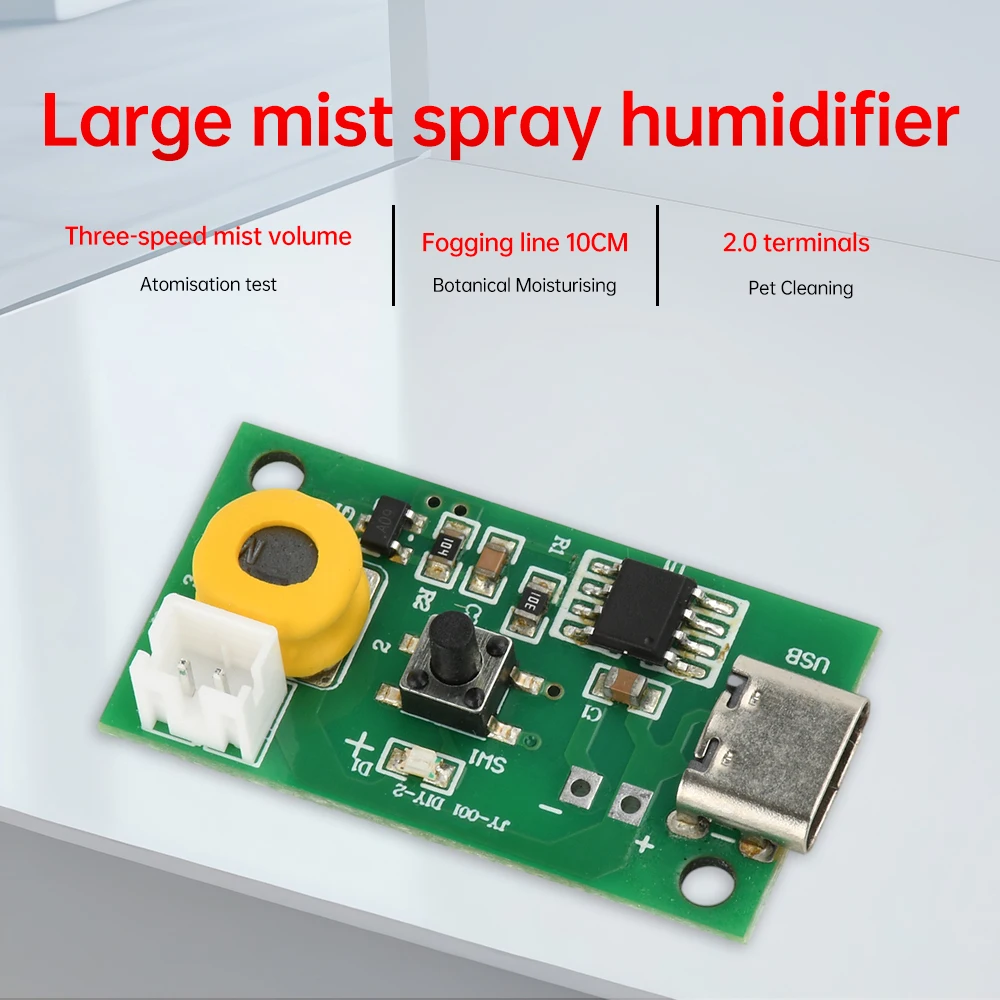

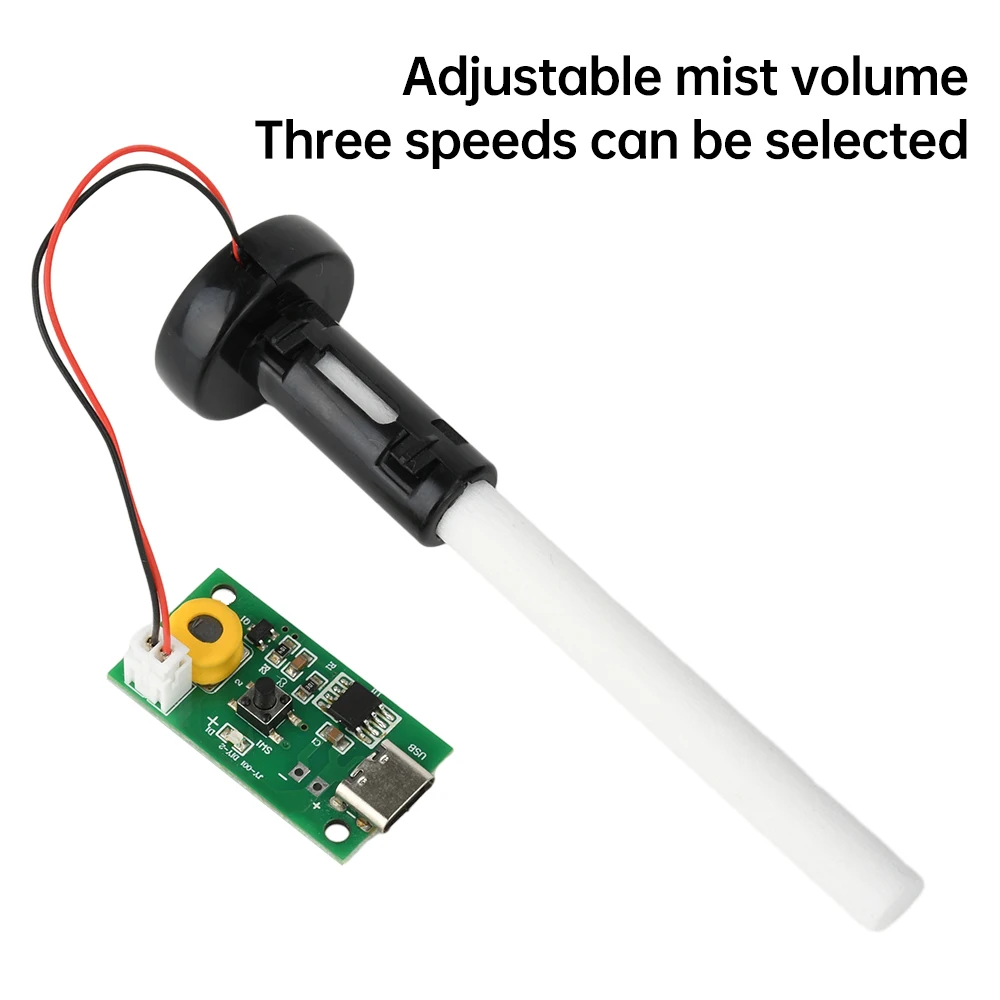

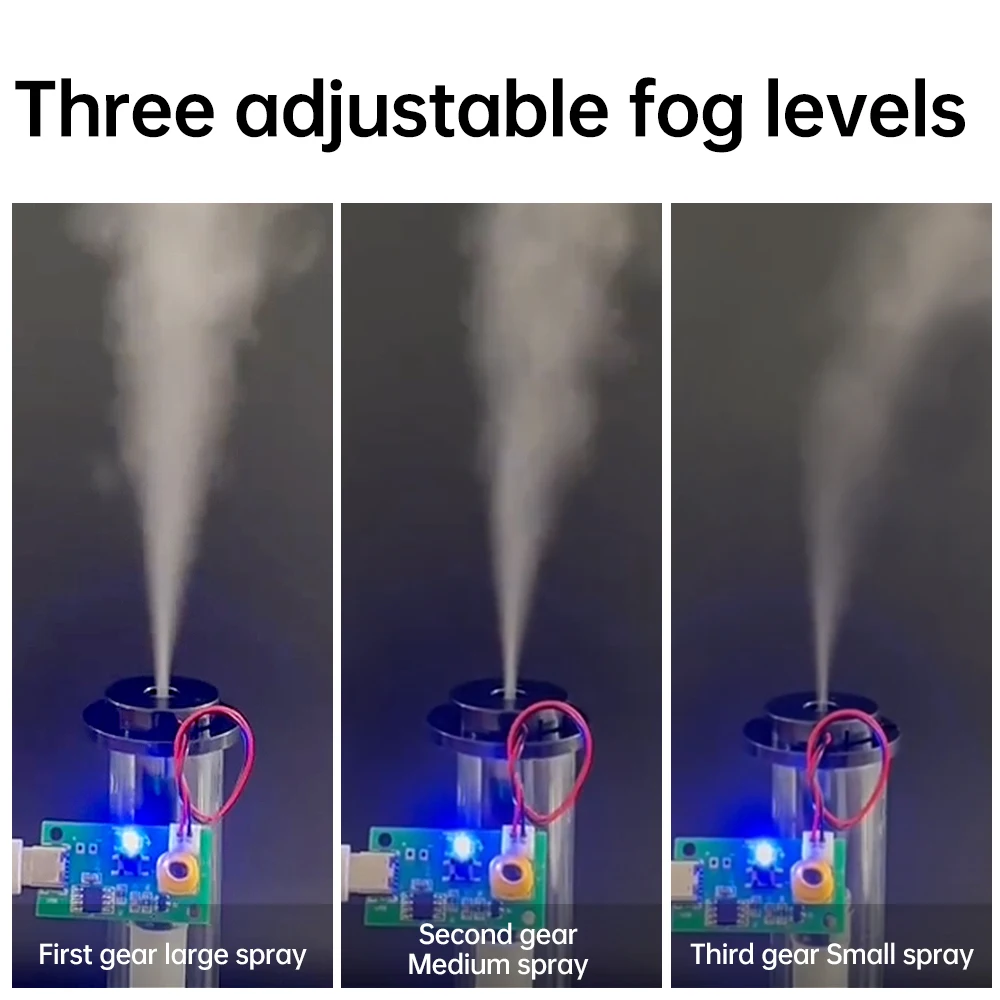

1. Three levels of adjustable fog volume: meet different environmental needs, flexibly adjust the atomization effect, and have stronger adaptability.
2. Efficient atomization performance: Micro porous atomization sheet, resonant frequency 108-110KHz, fine and uniform atomization.
3. Low power design: Rated power of 1.5-2W, effectively saves power, suitable for long-term stable operation.
4. Compact and lightweight structure: Small in size, easy to integrate into various devices.
5. Convenient use method: simple four step installation, spray in case of water, convenient operation.
Parameter:
Name: Adjustable Mist Quantity Single Spray
Material: 1.2MMFR-4
Power supply interface: TYPE-C
Rated voltage: DC5V (power supply)
Rated current: 300MA
Power: 1.5-2W
Atomization frequency: 108KHZ ± 2KHZ

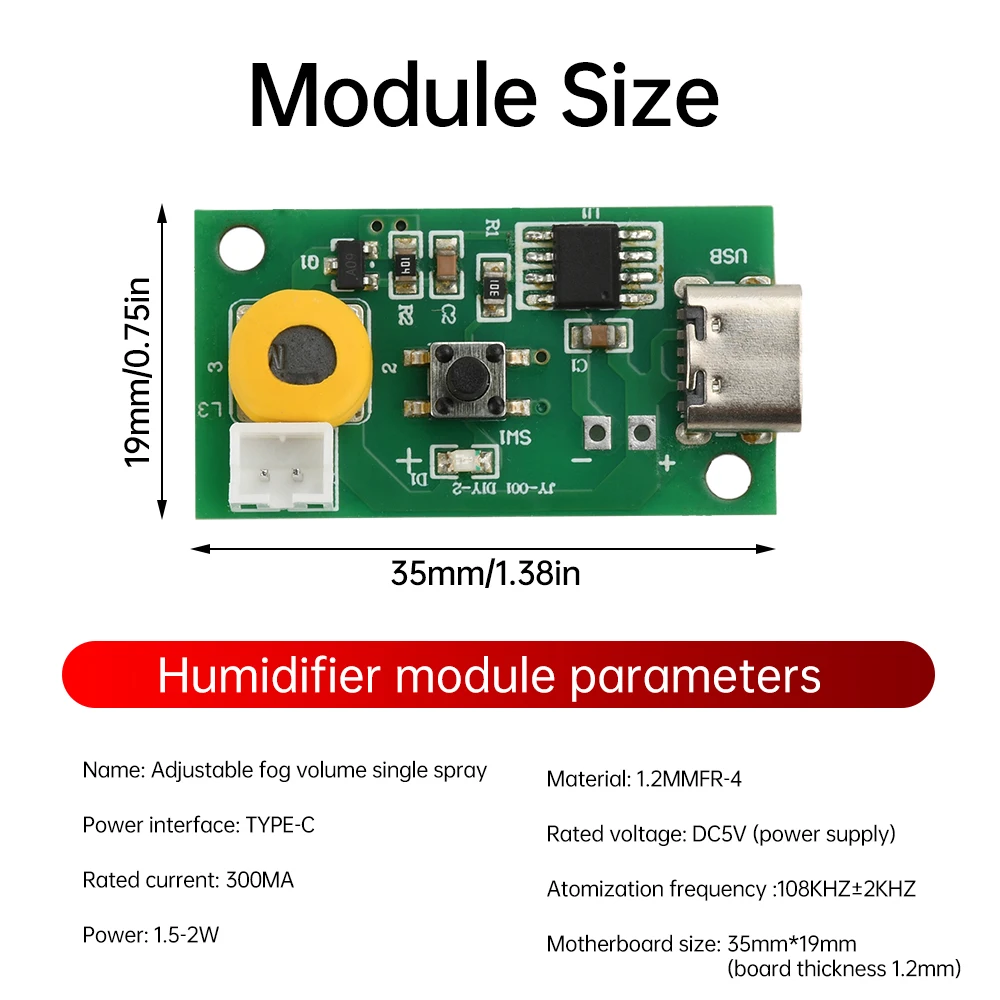

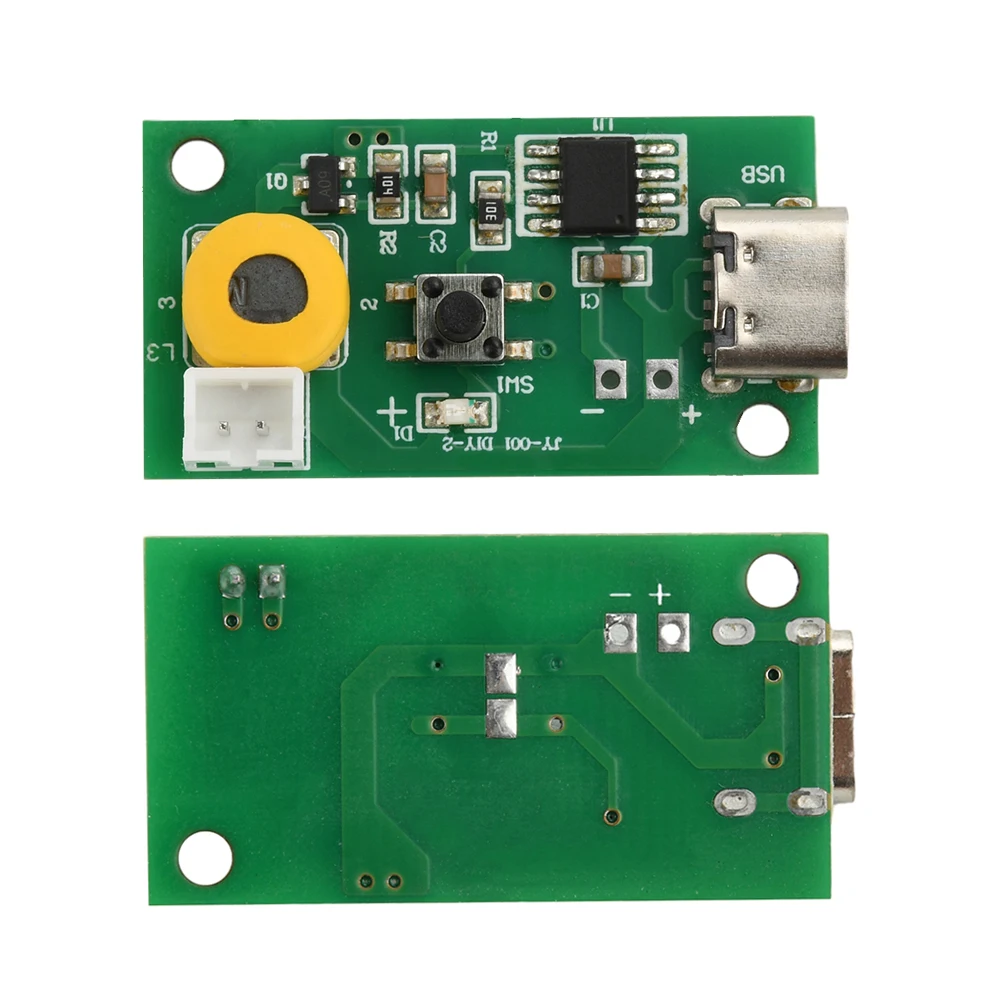

Motherboard size: 35mm * 19mm (board thickness 1.2mm)
Atomization parameters:
Name: Microporous Atomization Sheet
Drive voltage: 5V
Resonant frequency: 108-110KHz ± 5KHZ
Rated power: 2W
Aperture: 4-5UM
Number of perforations: 800
Silicone sleeve outer diameter: 20MM
Rubber ring thickness: 3MM
Steel plate diameter: 16mm
Line length: 100MM
Wire terminal: PH2.0
Plastic bracket cotton swab: 100mm * 8mm

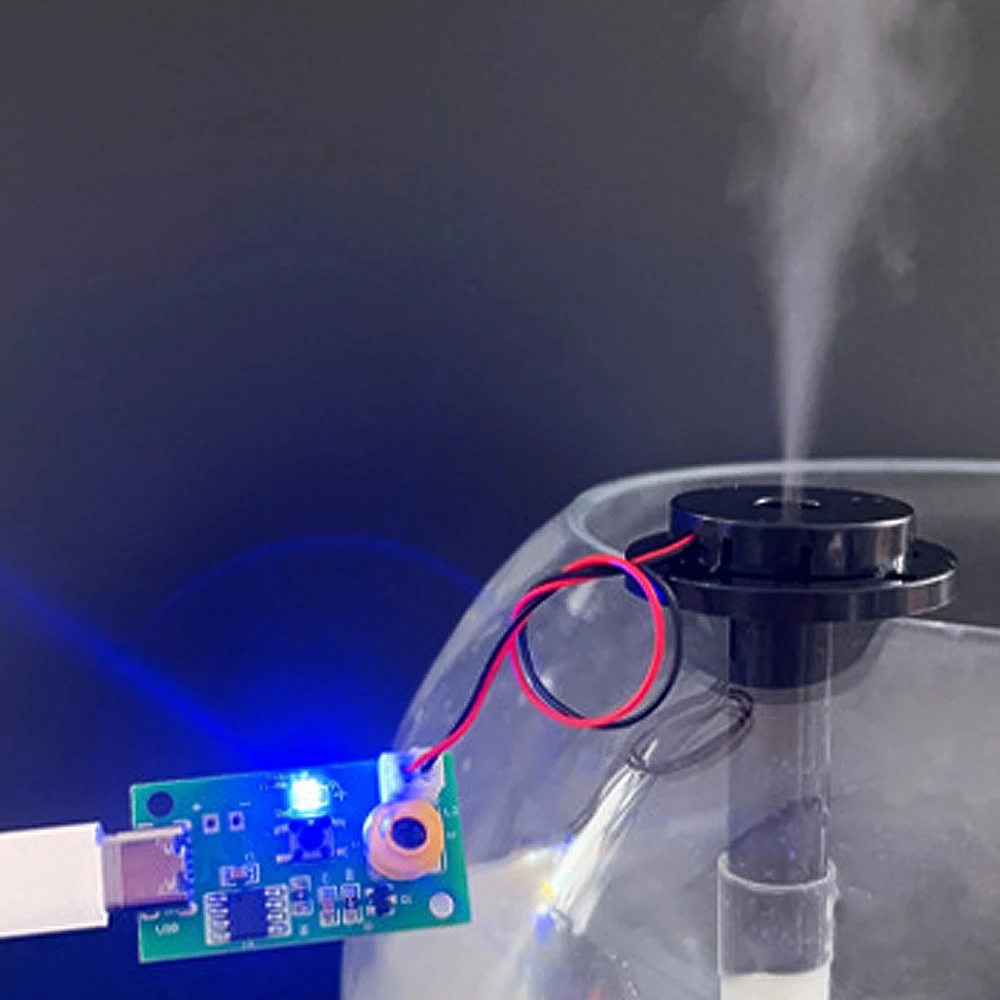

Usage method:

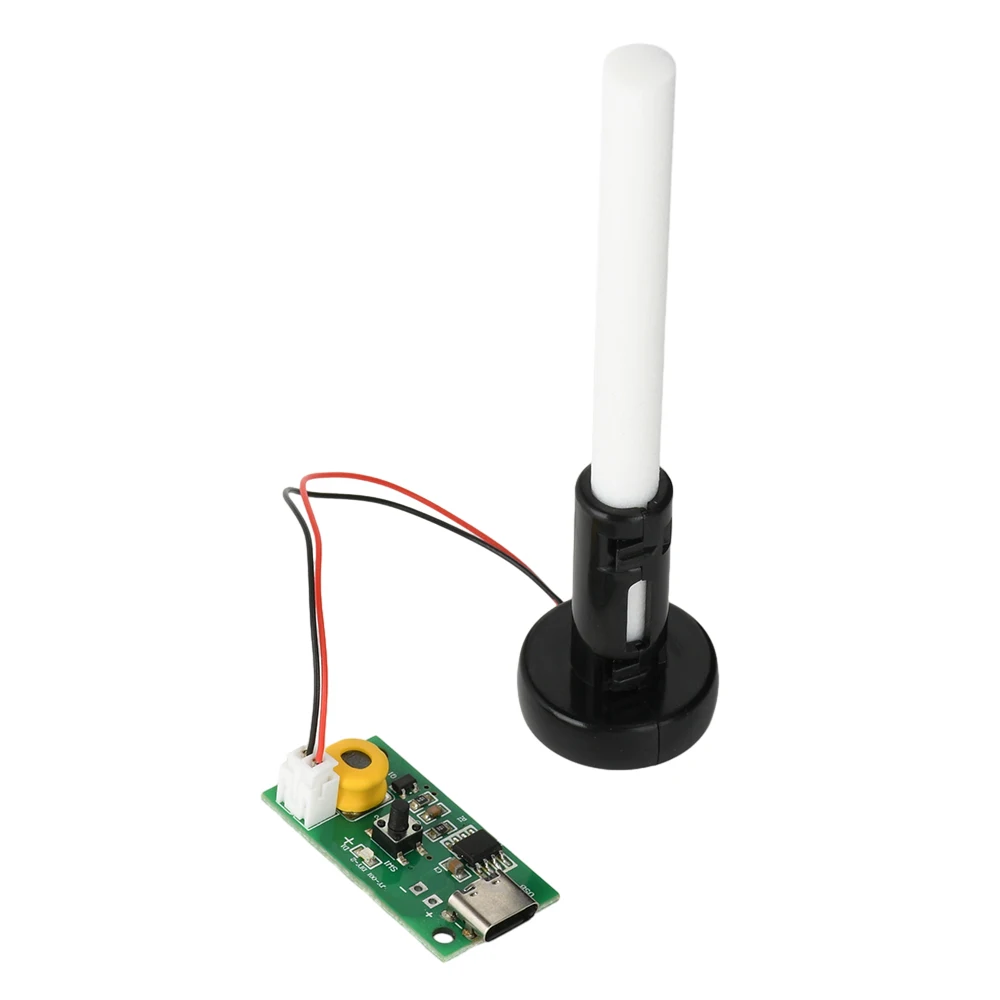

1. First, install the atomizer bracket and cotton swab

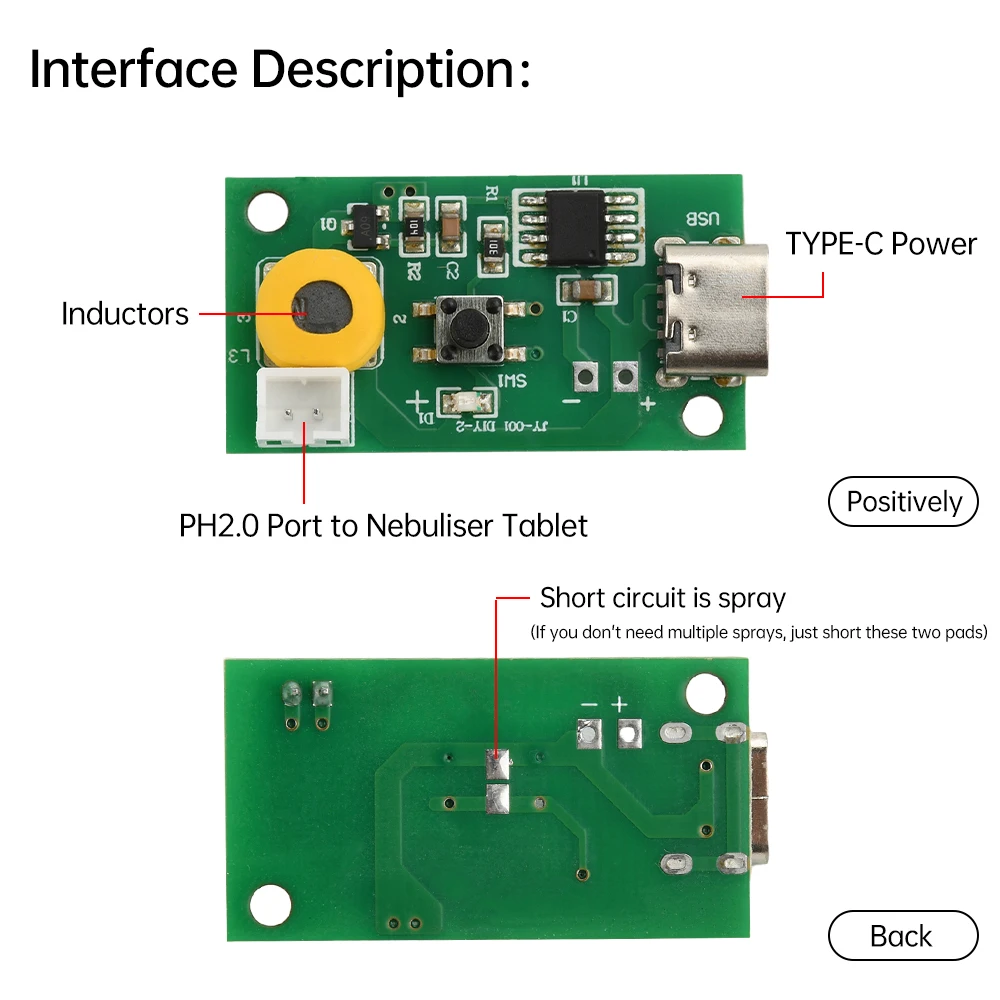

2. Connect the atomizing plate to the module atomizing plate port
3. Connect the power supply to the module power port again
4. Press the power switch
5. Spray when the atomizer meets water
matters needing attention:
1. It is strictly prohibited to puncture the atomizing plate, and the welding points of the atomizing plate cannot be folded or pulled
2. It is strictly prohibited to power on without connecting the atomizing plate
3. It is strictly prohibited to use fast chargers
4. It is strictly prohibited to modify modules
5. The module must not touch water
6. Full steel sheet (raised surface) in downward contact, cotton swab absorbs water
7. Rated power input
Package Include:
Combination 1:
1X humidifier module
Combination 2:
1X humidifier module
1X atomizing sheet
1X bracket
1X cotton swab
