【Overview】

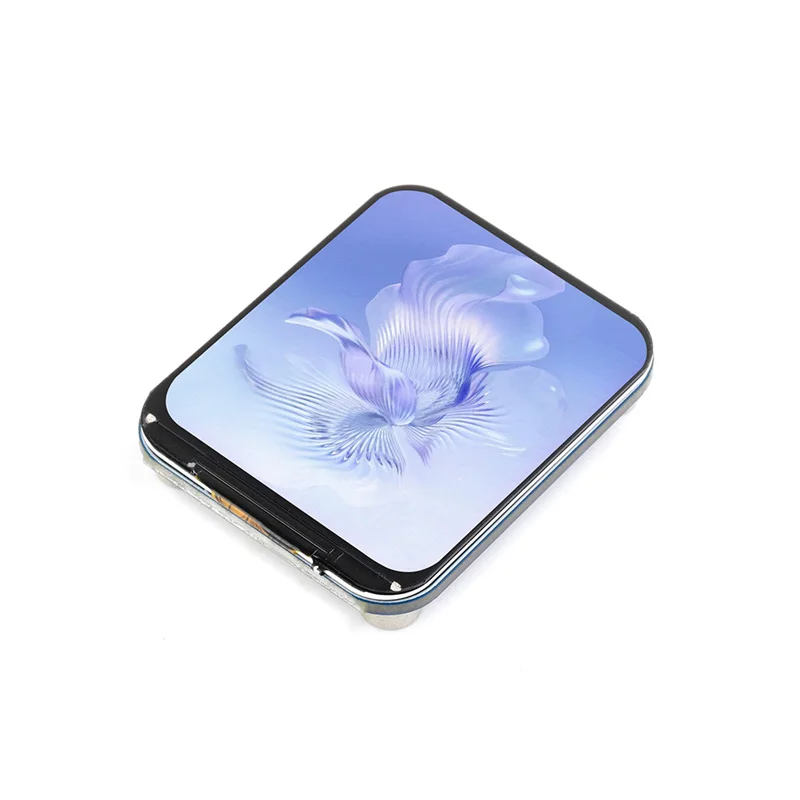

1.83inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS LCD, 65K Colors, Rounded Corners, Micro LCD Display
【Note】
Do not include Raspberry Pi and Other motherboards
【Features At A Glance】
- 240×280 resolution, 65K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32, etc.)
【Specifications】
- Operating voltage: 3.3V/5V (Please ensure that the supply voltage and logic voltage are consistent; otherwise, it may result in the device not working properly.)
- Interface: SPI
- LCD type: IPS
- Driver: NV3030B
- Resolution: 240(H)RGB x 280(V)
- Display size: 30.197 x 35.230 mm
- Pixel size: 0.126 × 0.126mm
- Dimension: 33 × 40 mm
【Onboard Voltage Translator】
[] Compatible With 3.3V / 5V Power Input
【Onboard SPI Control Interface】
[] For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

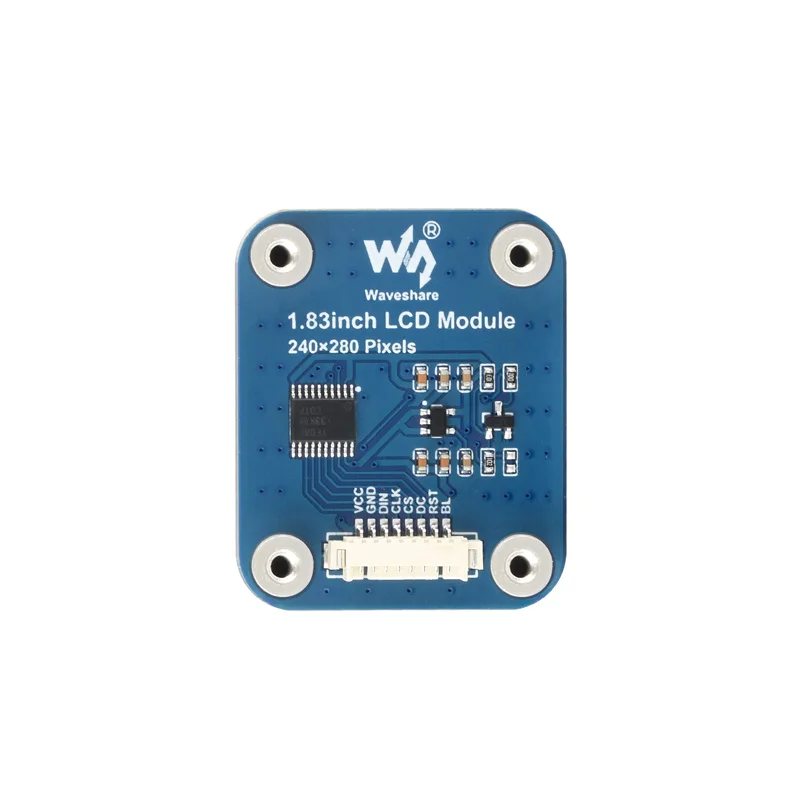

- VCC : Power (3.3V / 5V input)
- GND : Ground
- DIN : SPI data input
- CLK : SPI clock input
- CS : Chip selection, low active
- DC : Data/Command selection (high for data, low for command)
- RST : Reset, low active
- BL : Backlight
【Hardware Connection】
Connecting with Raspberry Pi
Connecting with Arduino board
【Outline Dimensions】

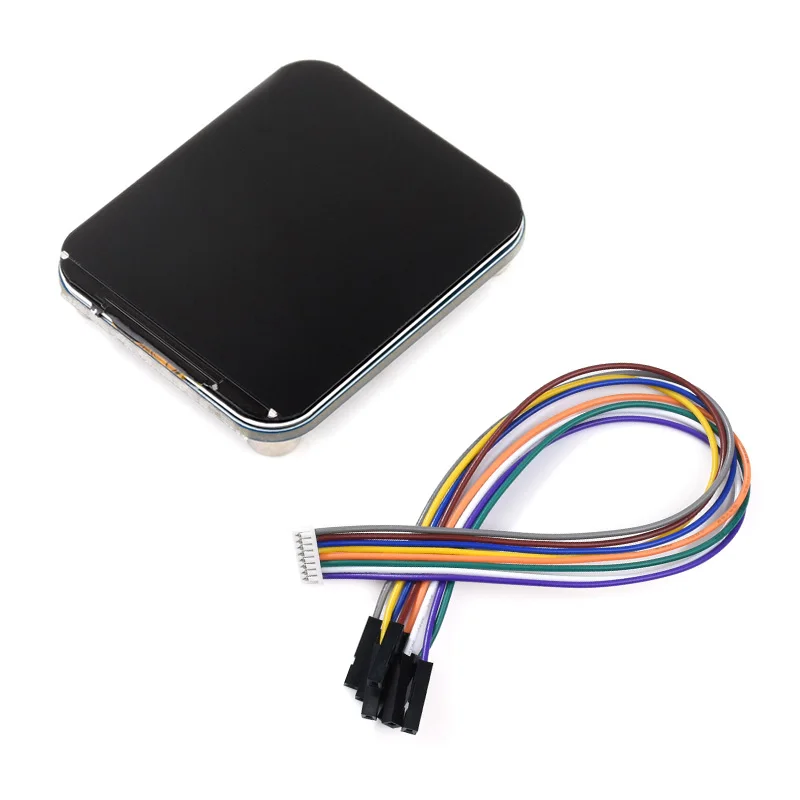

Package Contains
- 1.83inch LCD Module x1
- MX1.25 8PIN cable x1
