Wio Terminal is an ATSAMD51-based microcontroller with both Bluetooth and Wi-Fi Wireless connectivity powered by Realtek RTL8720DN, compatible with Arduino and MicroPython. Currently, wireless connectivity is only supported by Arduino. More than just a single embedded functional module, Wio Terminal itself is integrated with a 2.4” LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, infrared emitter(IR 940nm).On top of that, it also has two multifunctional Grove ports for Grove Ecosystem and 40 Raspberry pi compatible pin GPIO for more add-ons. All of these practical add-ons are carefully housed in a compact enclosure, making it an efficient and product-ready product. Equipped with Raspberry Pi 40-pin GPIO, it can be mounted to a Raspberry Pi as a slave device.
Key Feature
🌱Powerful MCU: Microchip ATSAMD51P19 with ARM Cortex-M4F core running at 120MHz
🌱Reliable Wireless Connectivity: Equipped with Realtek RTL8720DN, dual-band 2.4Ghz / 5Ghz Wi-Fi
🌱Complete system equipped with Screen + Development Board + Input/Output Interface + Enclosure
🌱Highly Integrated Design: 2.4” LCD Screen, MCU, IMU, WIFI, BT, and more practical add-ons housed in a compact enclosure with built-in magnets & mounting holes allows you to easily set up your IoT project
🌱Raspberry Pi 40-pin Compatible GPIO enables installation as a peripheral to the Raspberry Pi
🌱External onboard multi-functional Grove ports: Compatible with over 300 Plug&Play Grove modules to explore with IoT
🌱USB OTG Support： can act as a USB host (reads data or signals from a mouse, keyboard, MIDI device, 3D printer, etc.) or USB client (emulates a mouse, keyboard, or MIDI device to a host PC).
🌱Support Arduino, CircuitPython, Micropython, ArduPy(What is ArduPy?), AT Firmware, Visual Studio Code
🌱Azure Certified Device: Sense and tag real-world data and visualize through Azure IoT Central
🌱TELEC certificated
Application
- Python Terminal Device
- Data Collection Machine Learning powered device
- Hand-held analyzer
- Retro Gaming Device
- IoT Controller
- Smart Robot for Education
- IoT application quick prototyping
- Slave devise / Accessories for Raspberry Pi
Collaborate With the Worldwide Community!

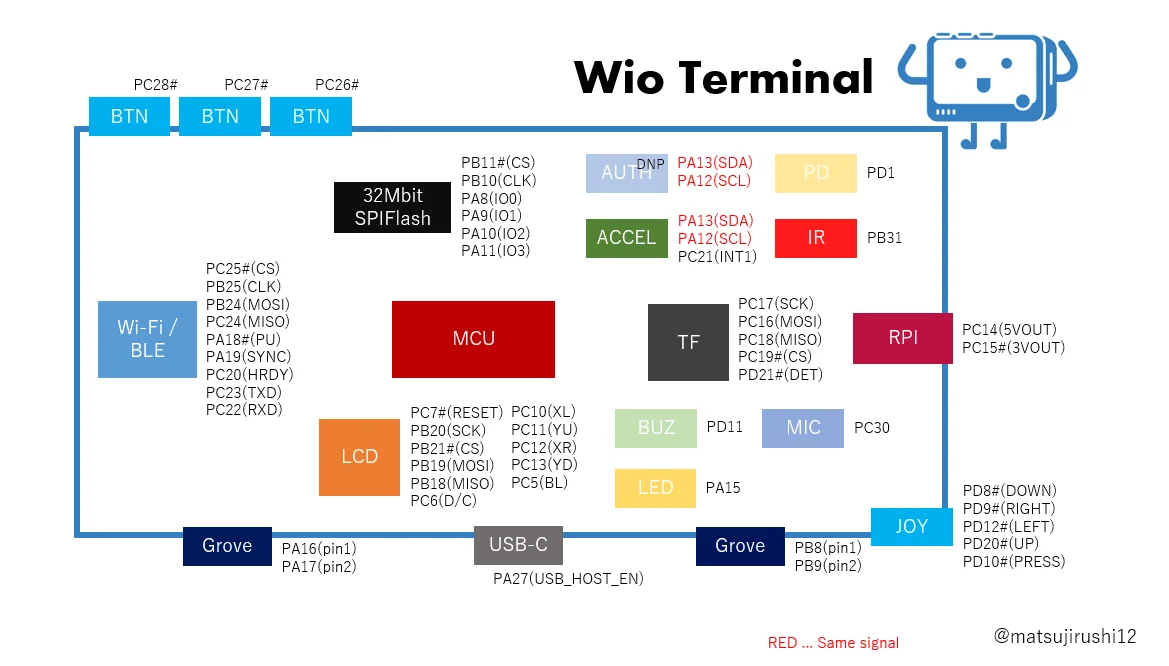

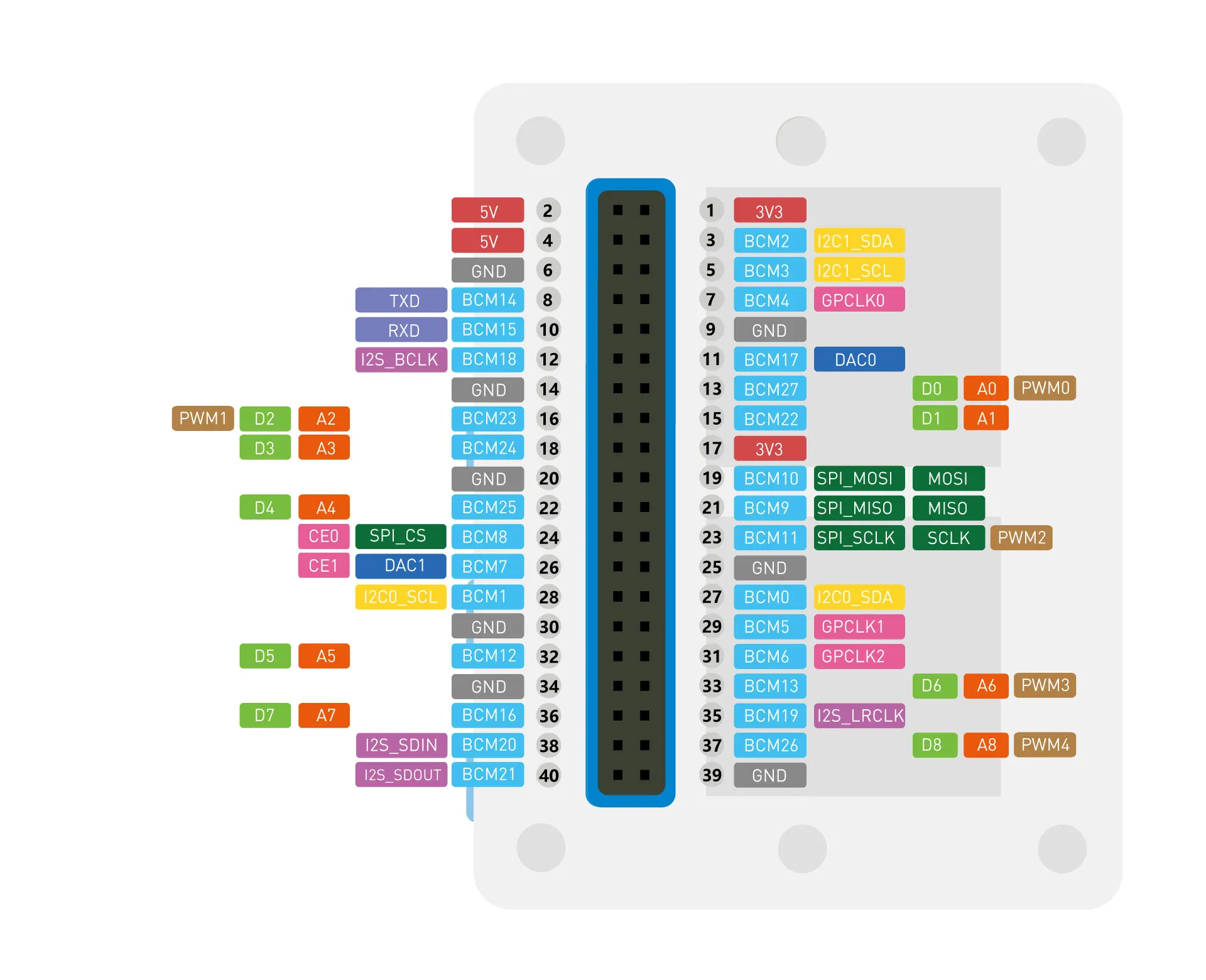

Pinout Diagram

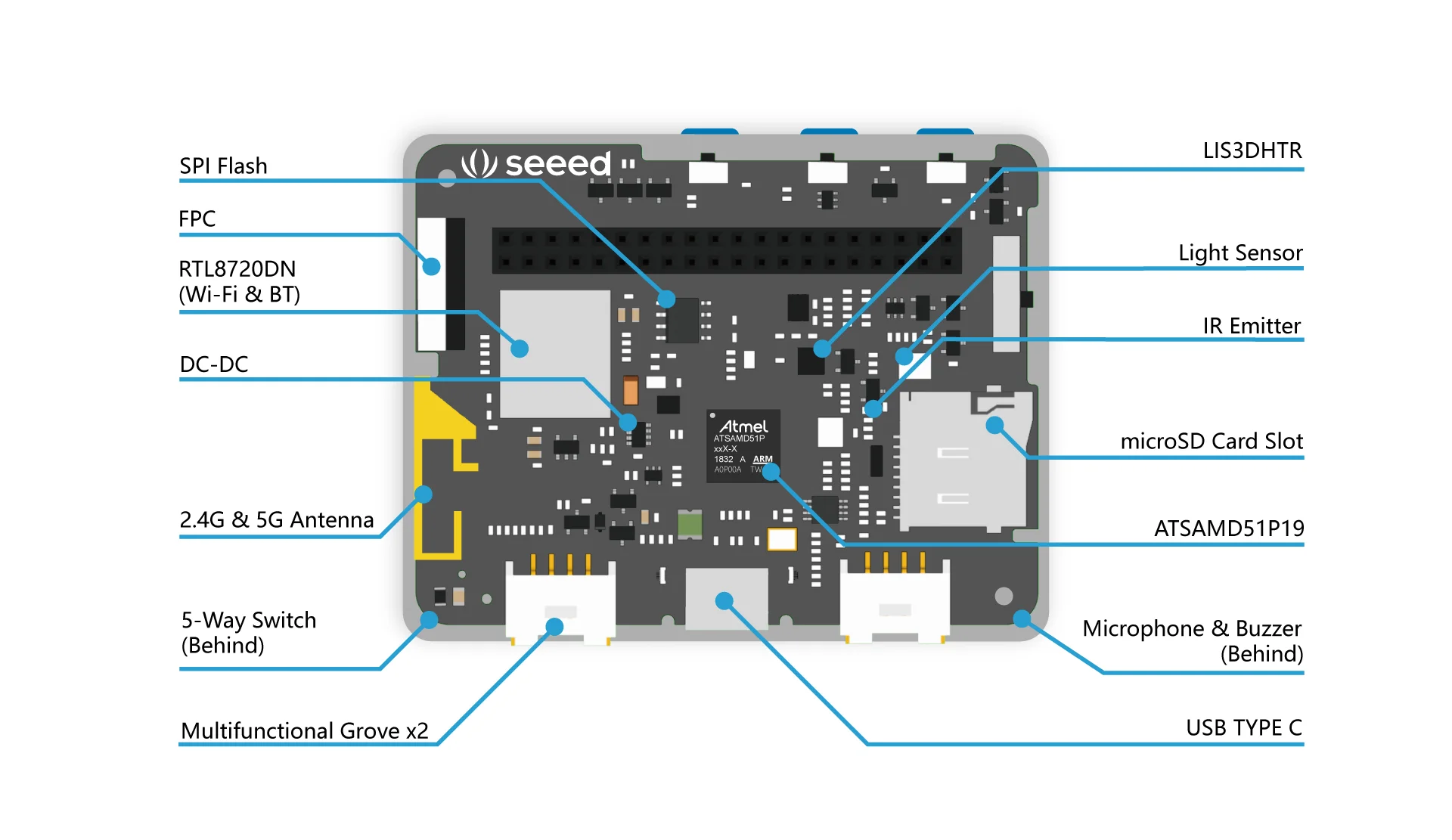

Hardware Overview

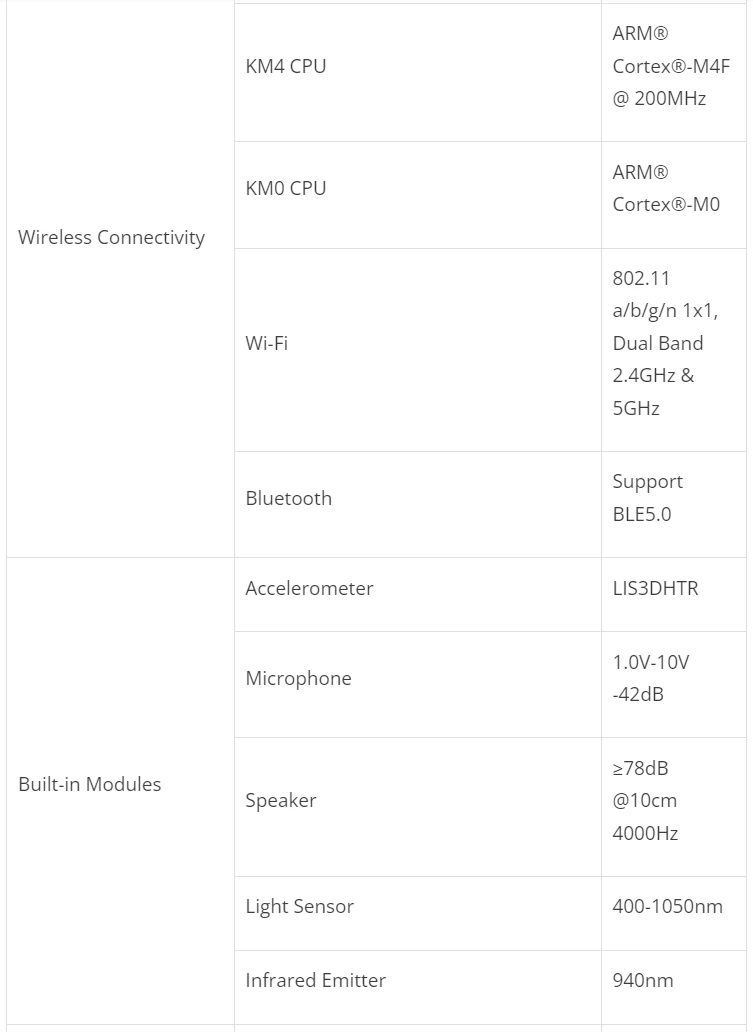

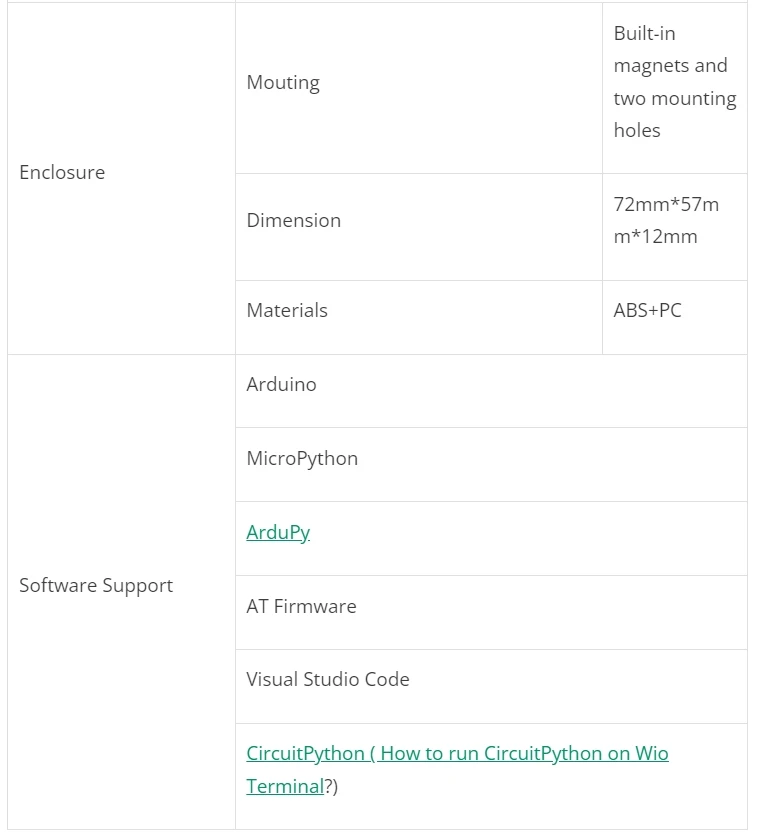

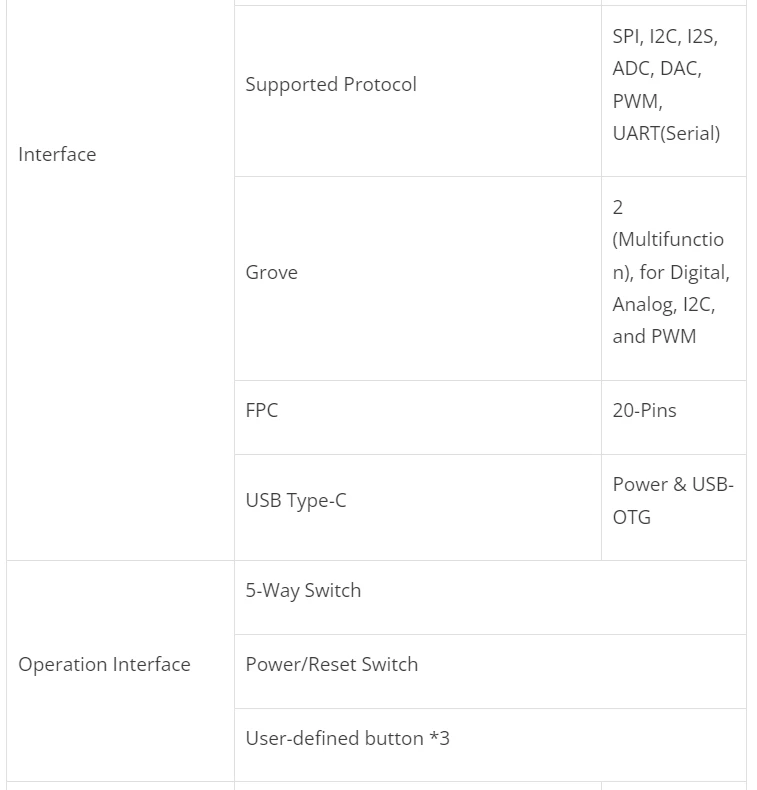

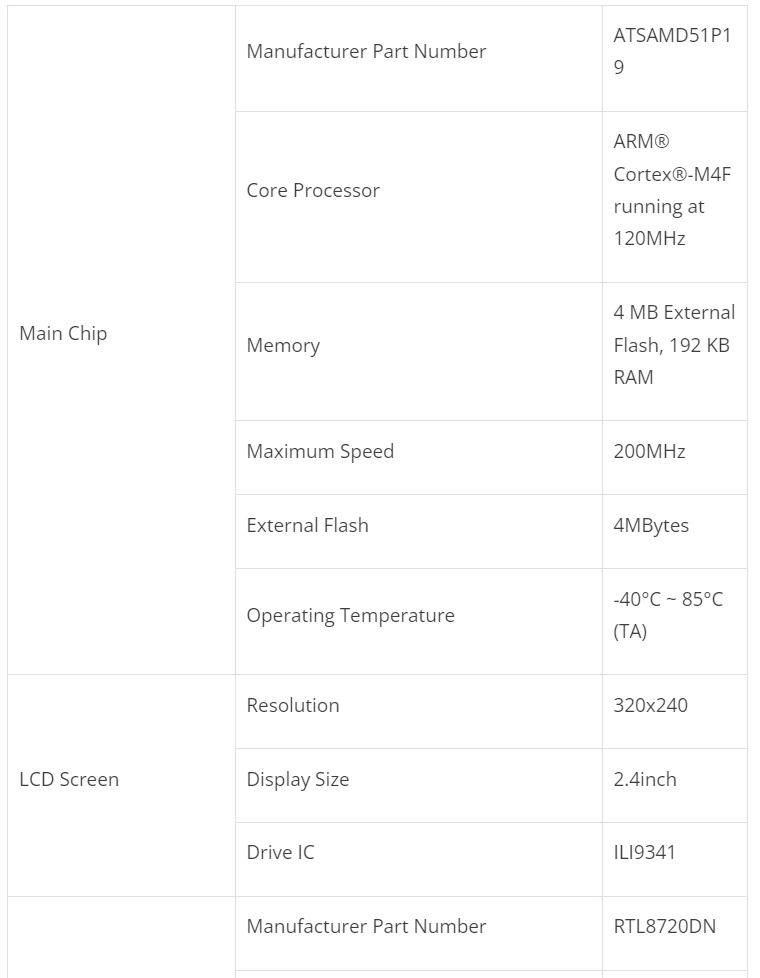

Specification
