1.09 Inch 128×64 White OLED Display Module SSD1312 Driver I2C 4-Pin Interface Low Power Consumption Wide Viewing Angle

$2.90

Add to compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Basic Parameters:

  • Screen Size: 1.09 inch

  • Display Color: Monochrome White

  • Resolution: 64×128 pixels

  • Power Supply: 2.8V~3.3V

  • Connection Method: COG (Chip-on-Glass)

  • Driver IC: SSD1312

  • Interface: I2C (Inter-Integrated Circuit)

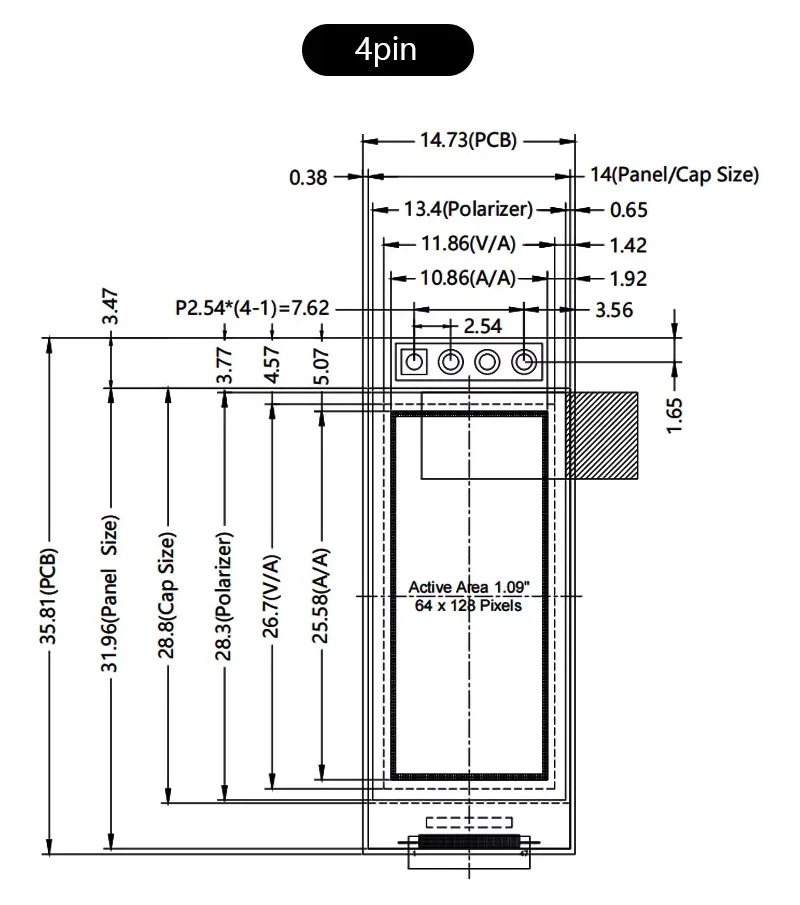

Dimensions:

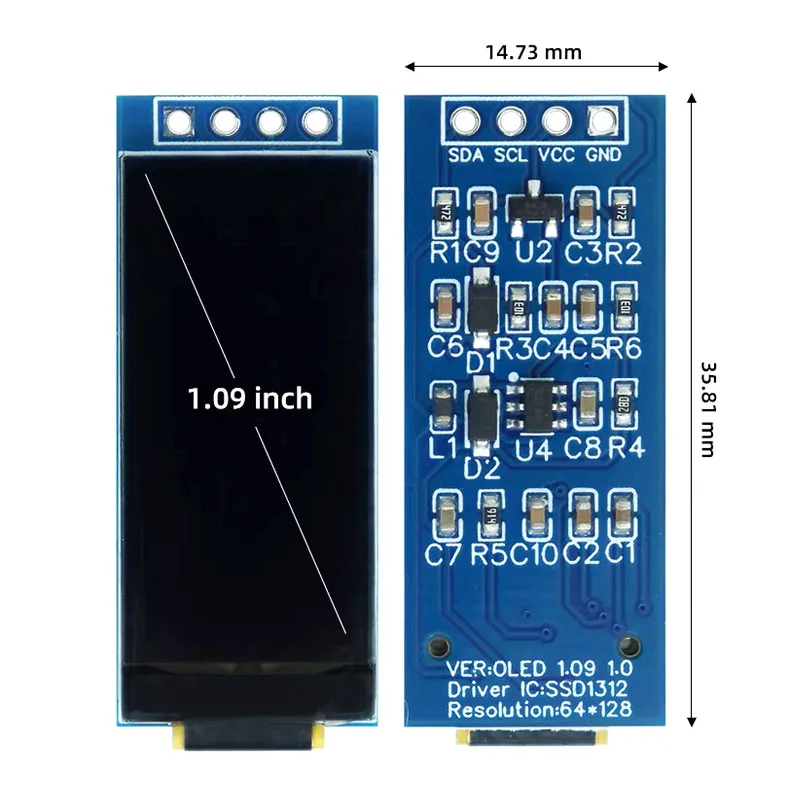

  • Module Size: 14.73×35.81×2.5 mm

  • Active Area: 10.86×25.58 mm

Environmental:

  • Operating Temperature: -20°C to +70°C

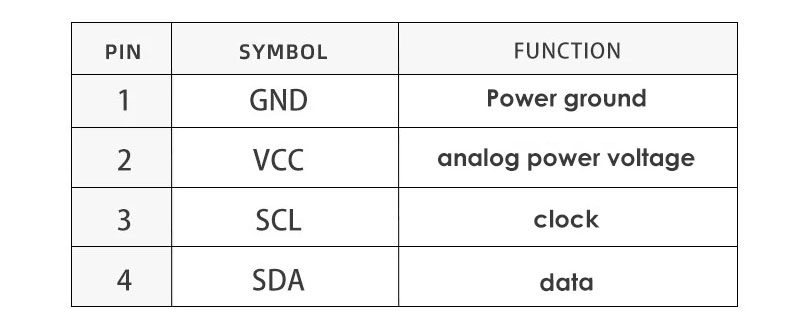

Pin definition

Schematic Showcase
