Feature:

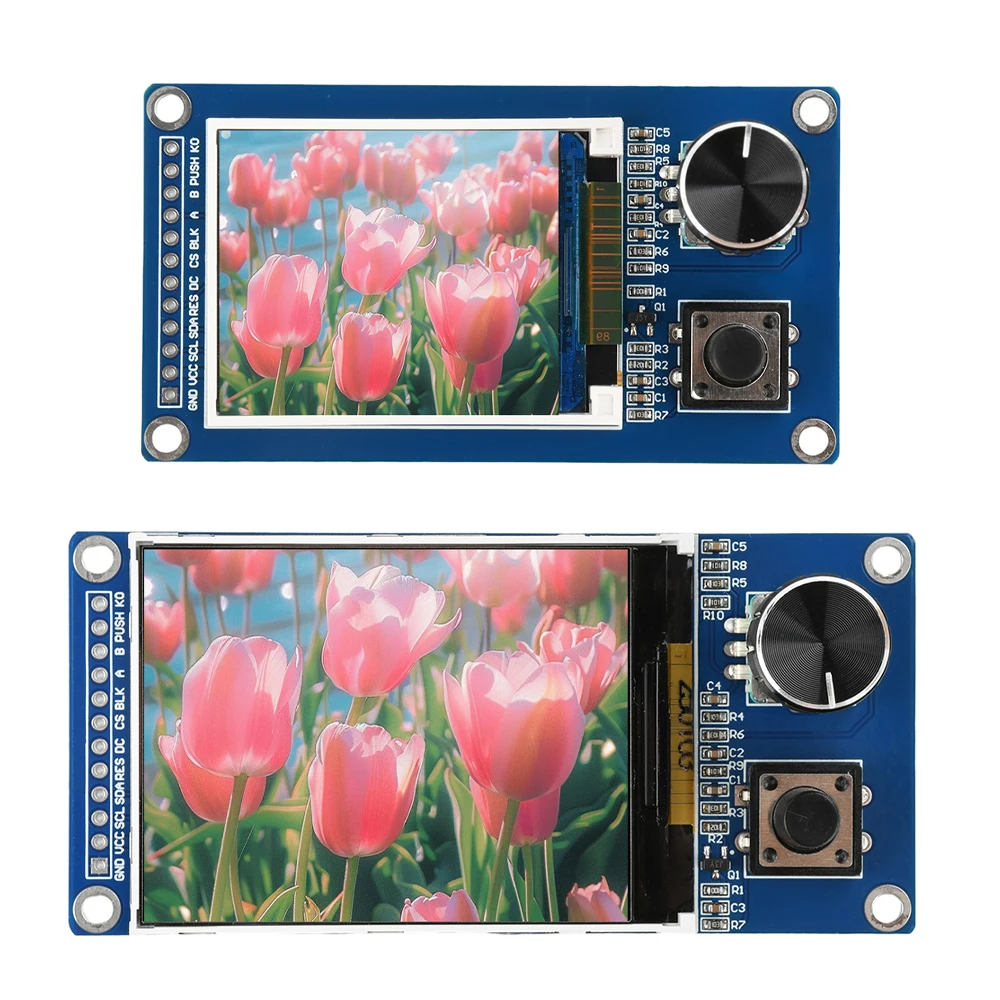

1. Integrated design: display screen and encoder are integrated, simple and beautiful, convenient for DIY
2. Multiple size options: 1.8-inch and 2.4-inch TFT display screens are provided to meet different needs
3. High-resolution display: 1.8-inch 128×160, 2.4-inch 320×240 resolution, clear and delicate

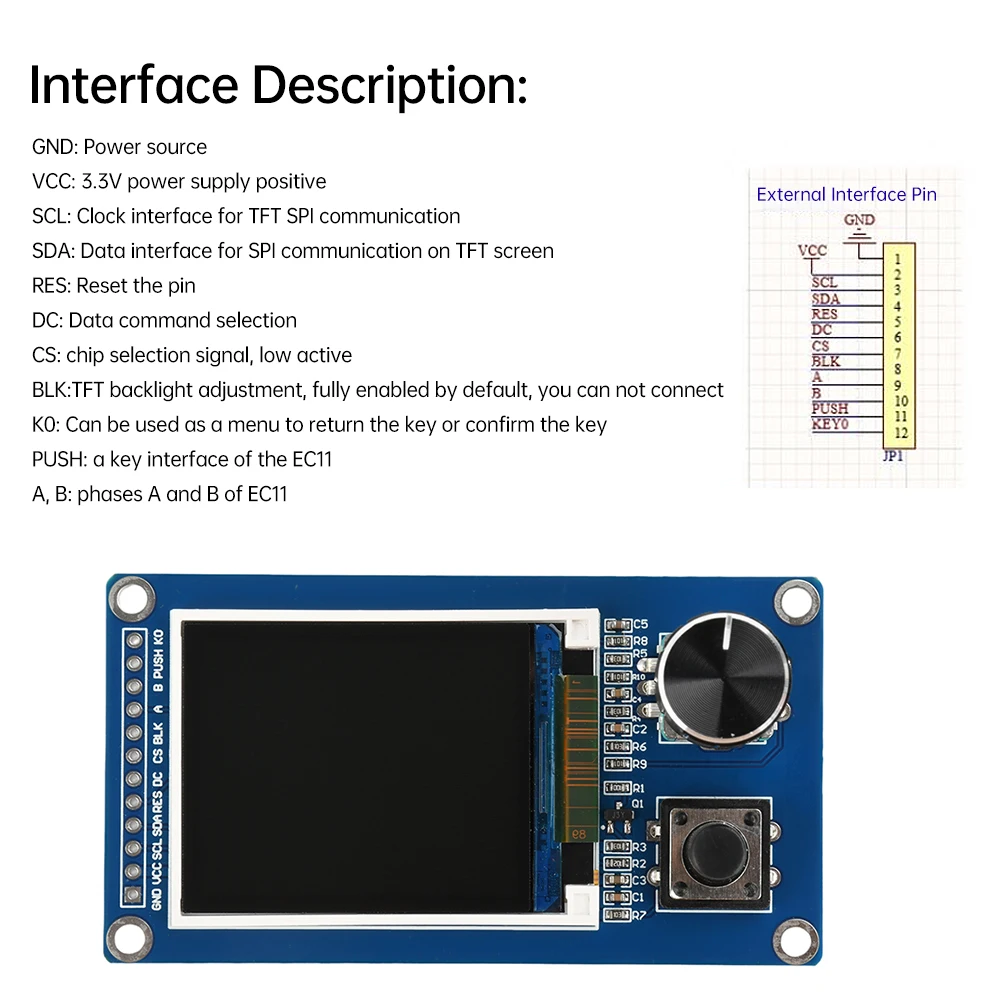

4. SPI interface support: SPI interface is adopted, with strong compatibility, easy to connect and program

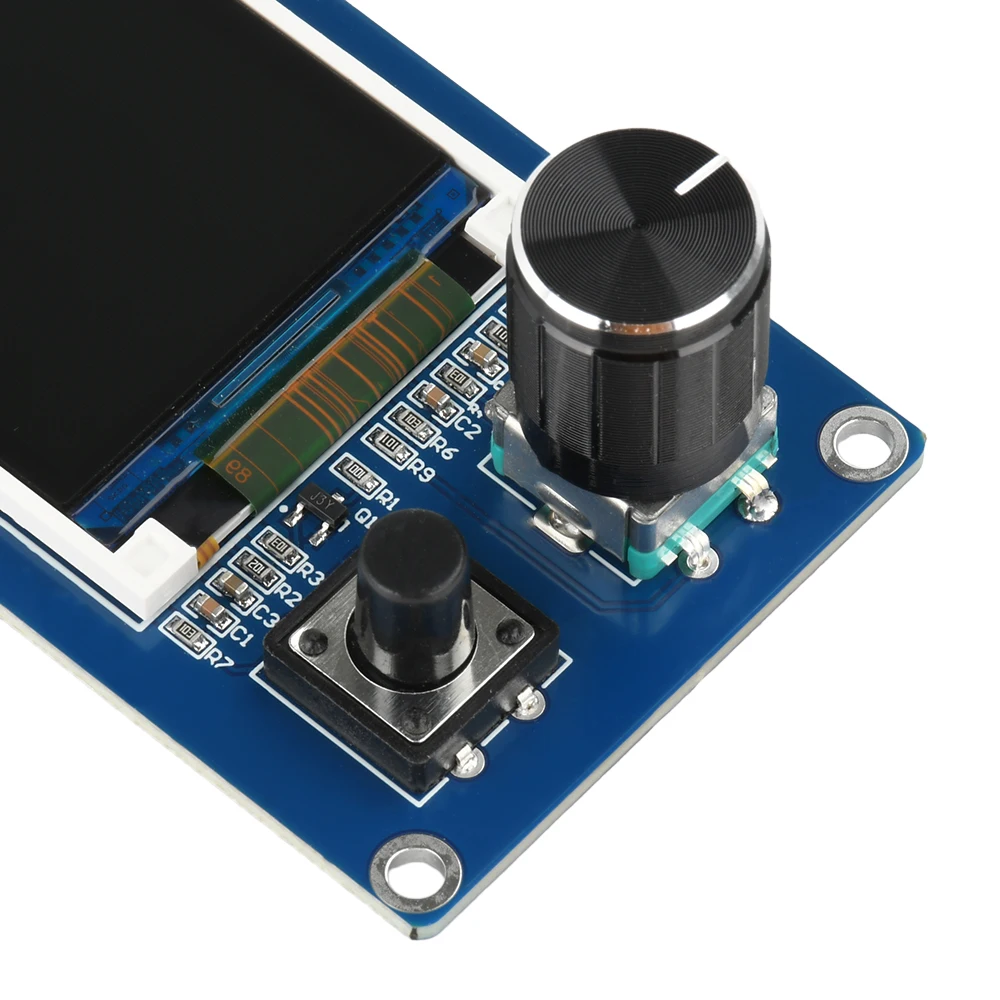

5. Encoder with switch: EC11 rotary encoder, 20 pulses 20 positioning, with switch function
Product parameters:
Product name: 1.8/2.4-inch TFT+EC11 rotary encoder

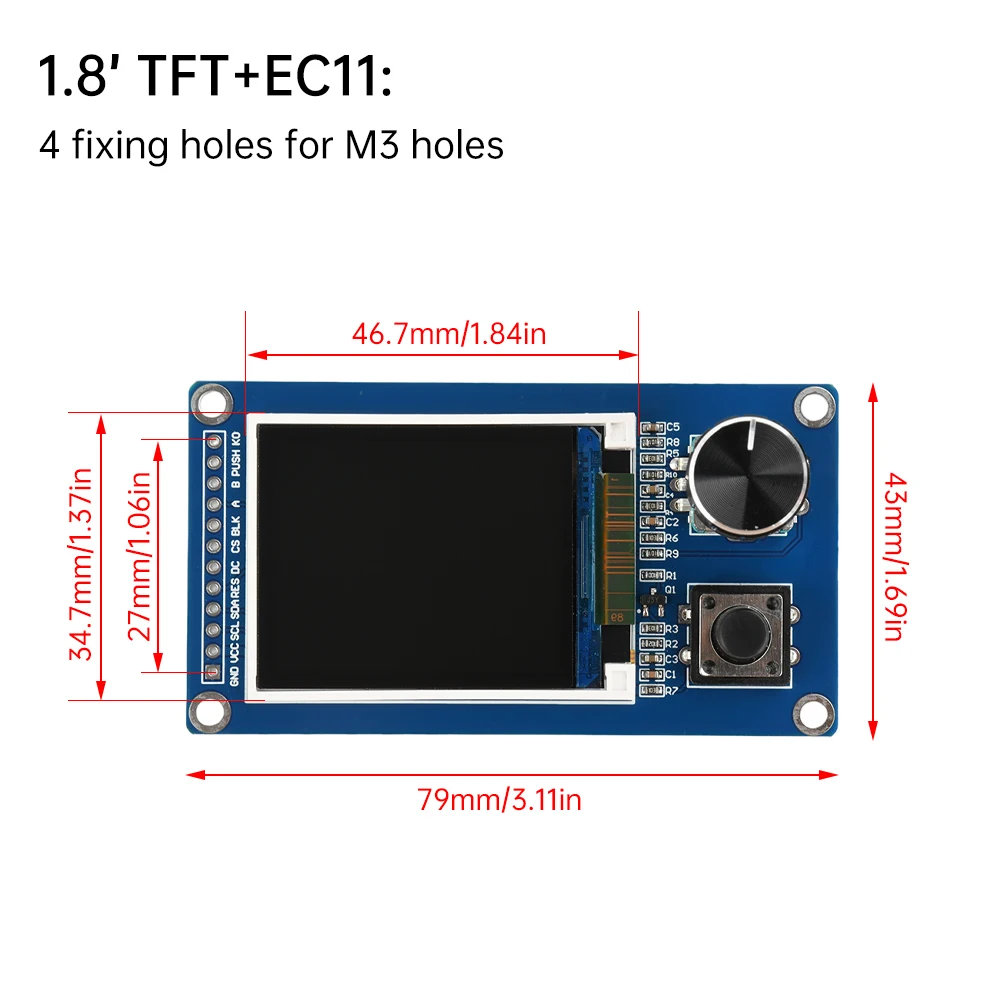

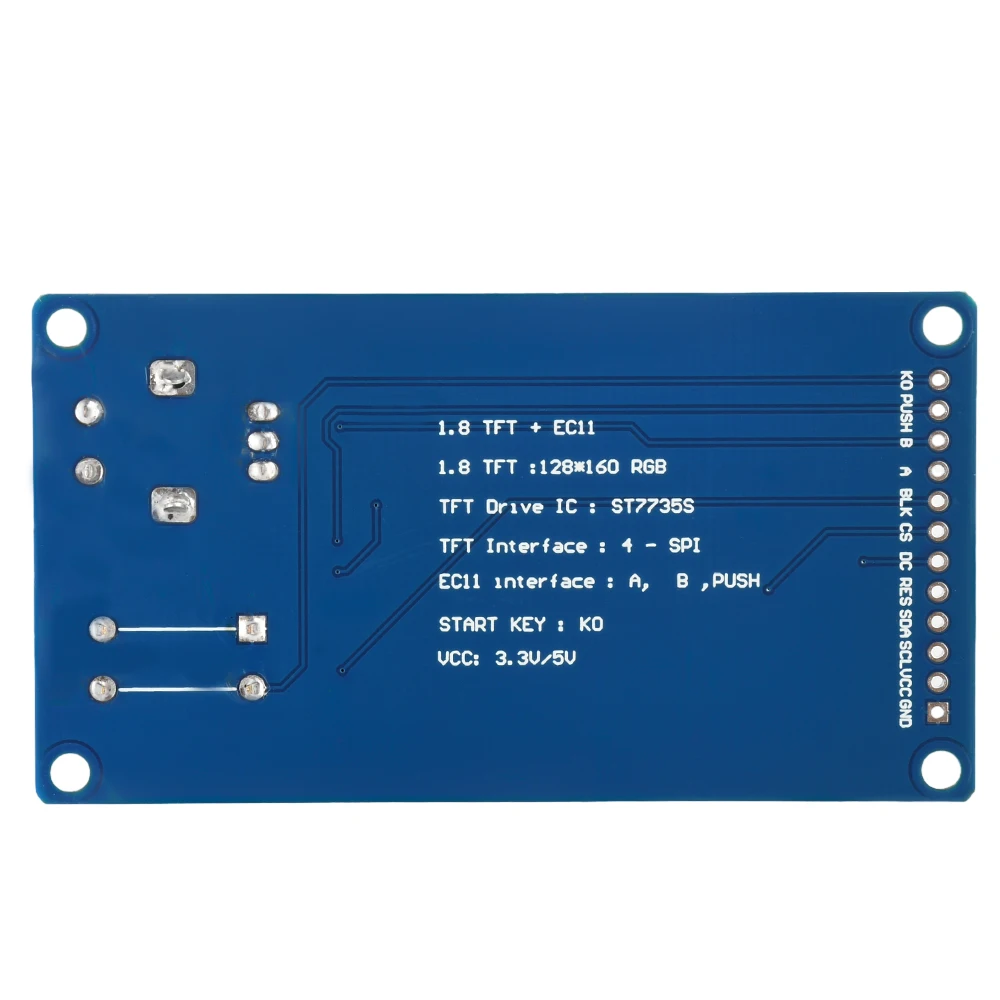

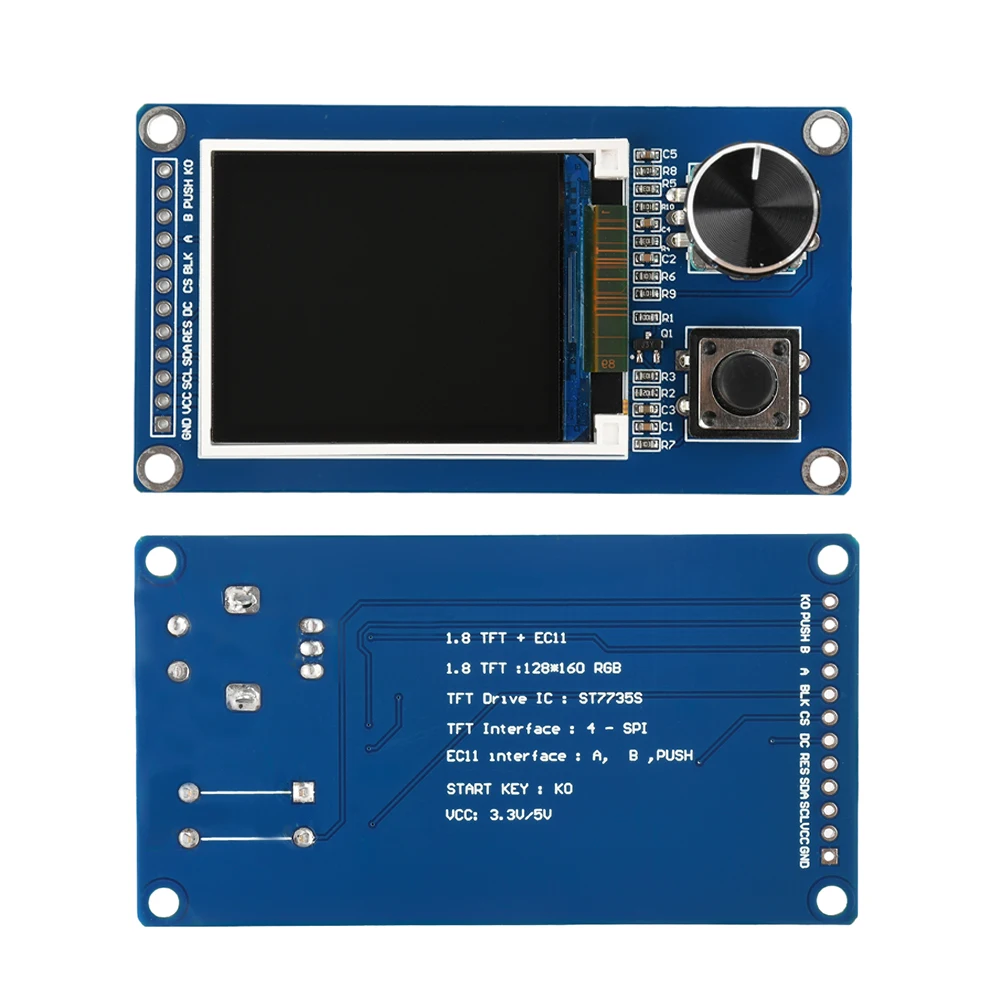

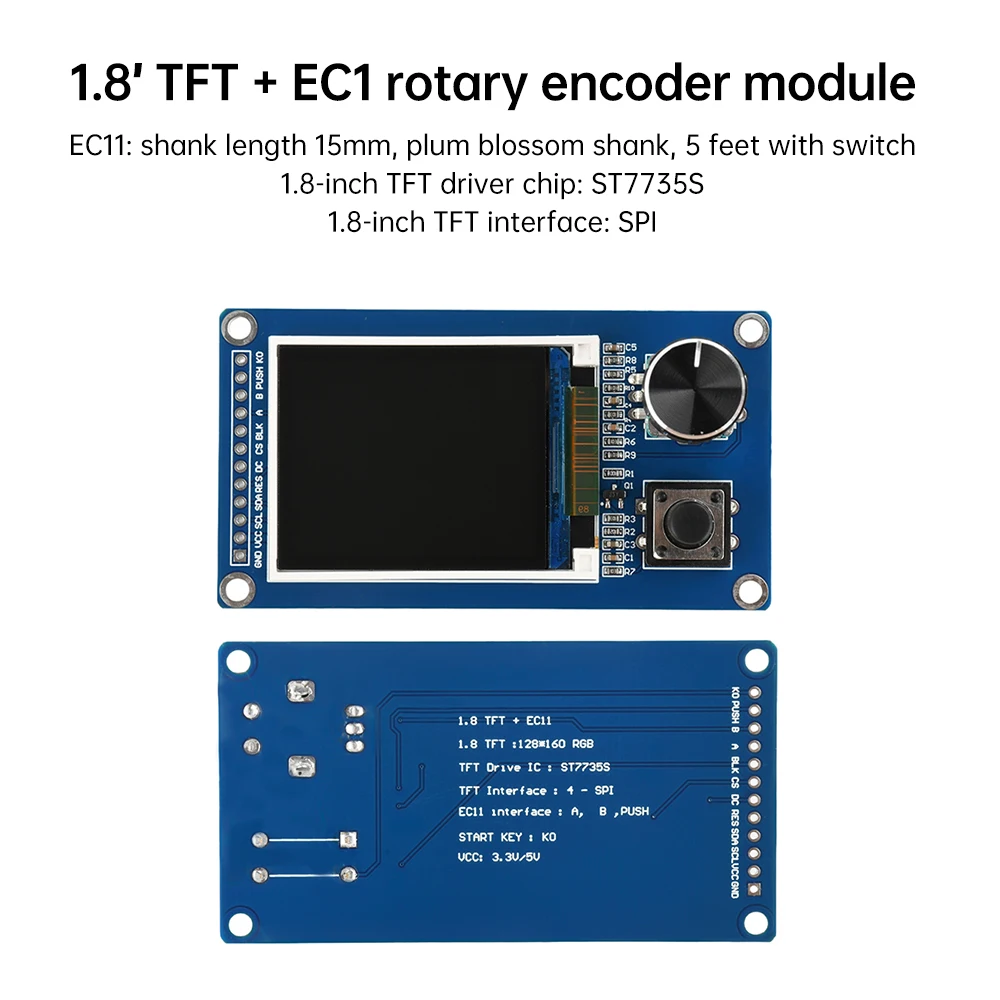

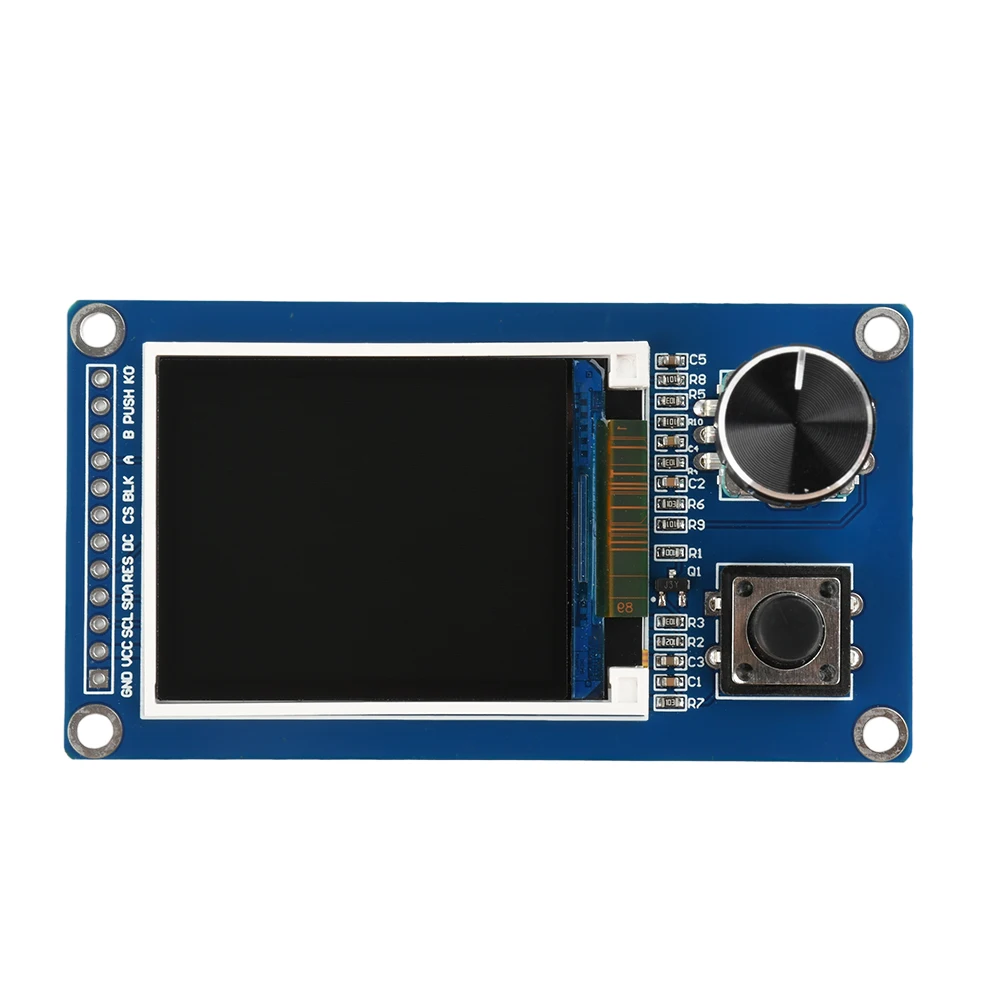

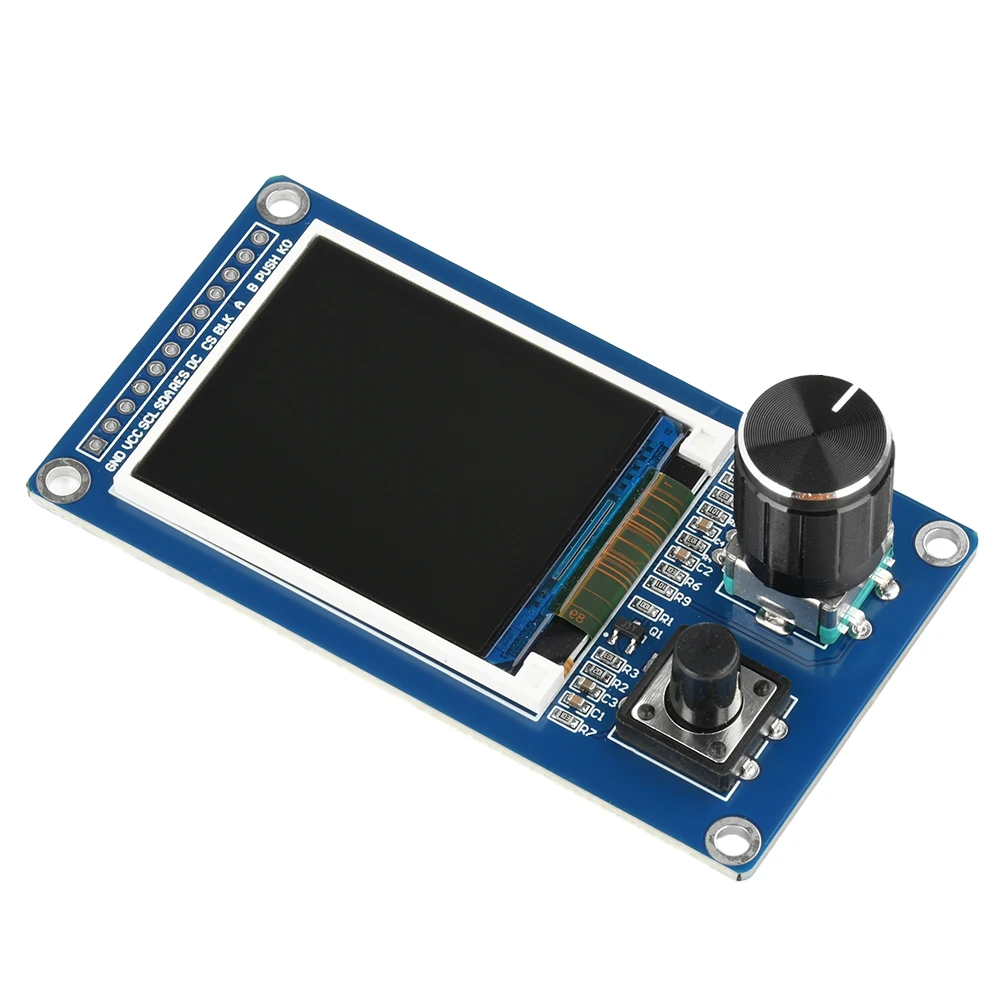

1.8-inch TFT+EC11 rotary encoder:
1.8-inch TFT driver chip: ST7735S
1.8-inch TFT interface: SPI
Resolution: 128*160 RGB
EC11: plum blossom handle, handle length 15mm, 20 pulses 20 positioning, 5-pin with switch
Touch function: without touch

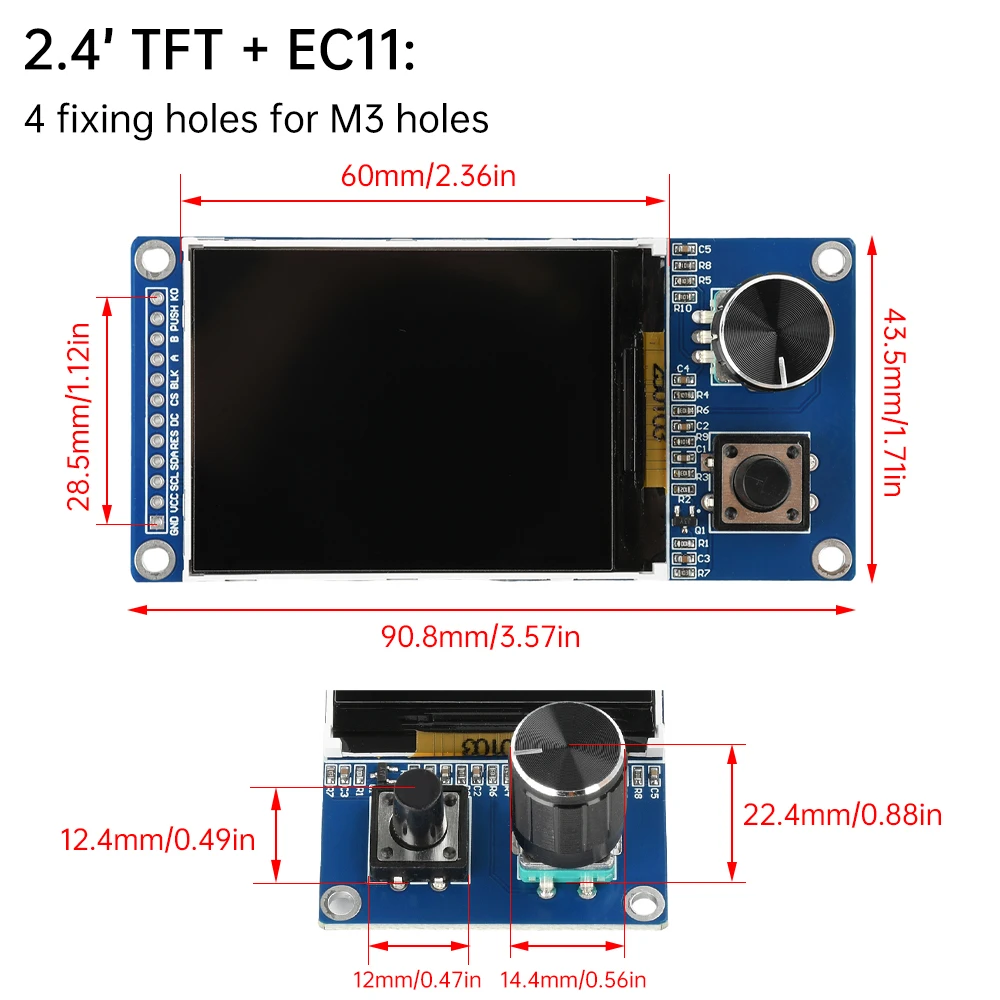

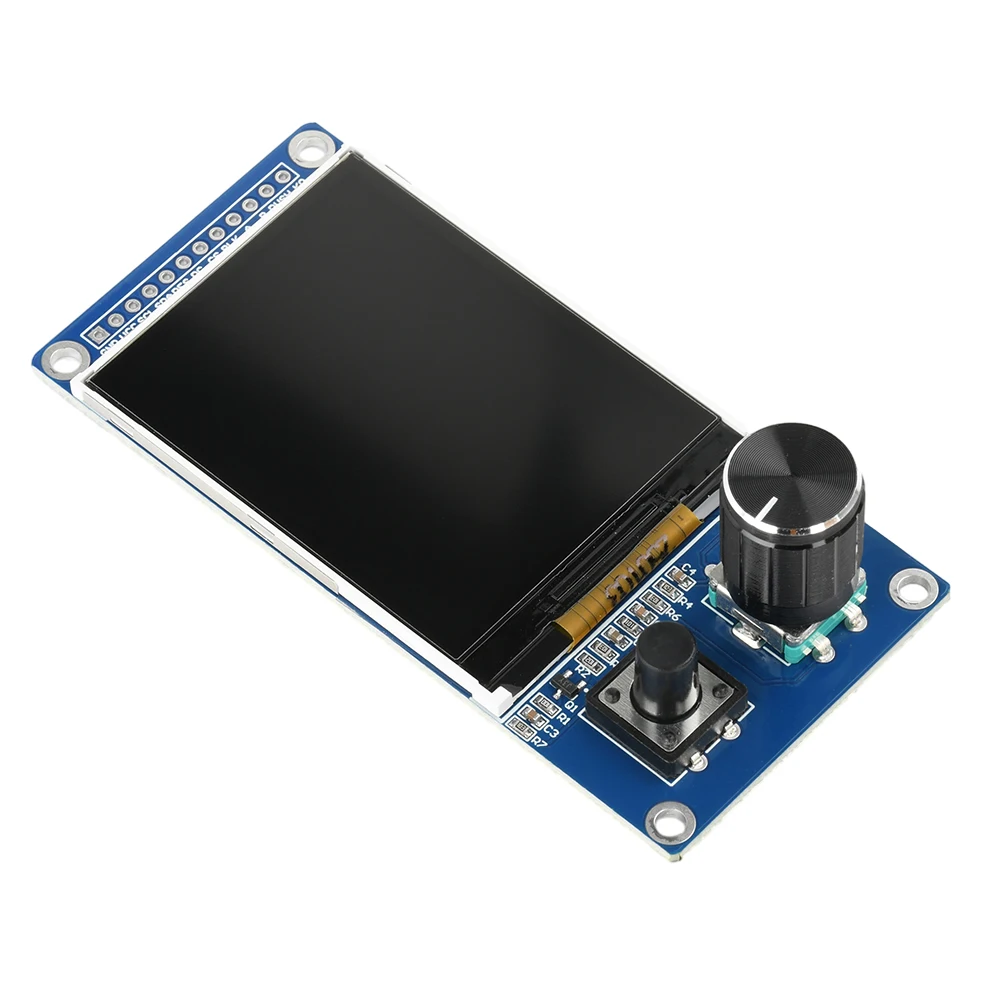

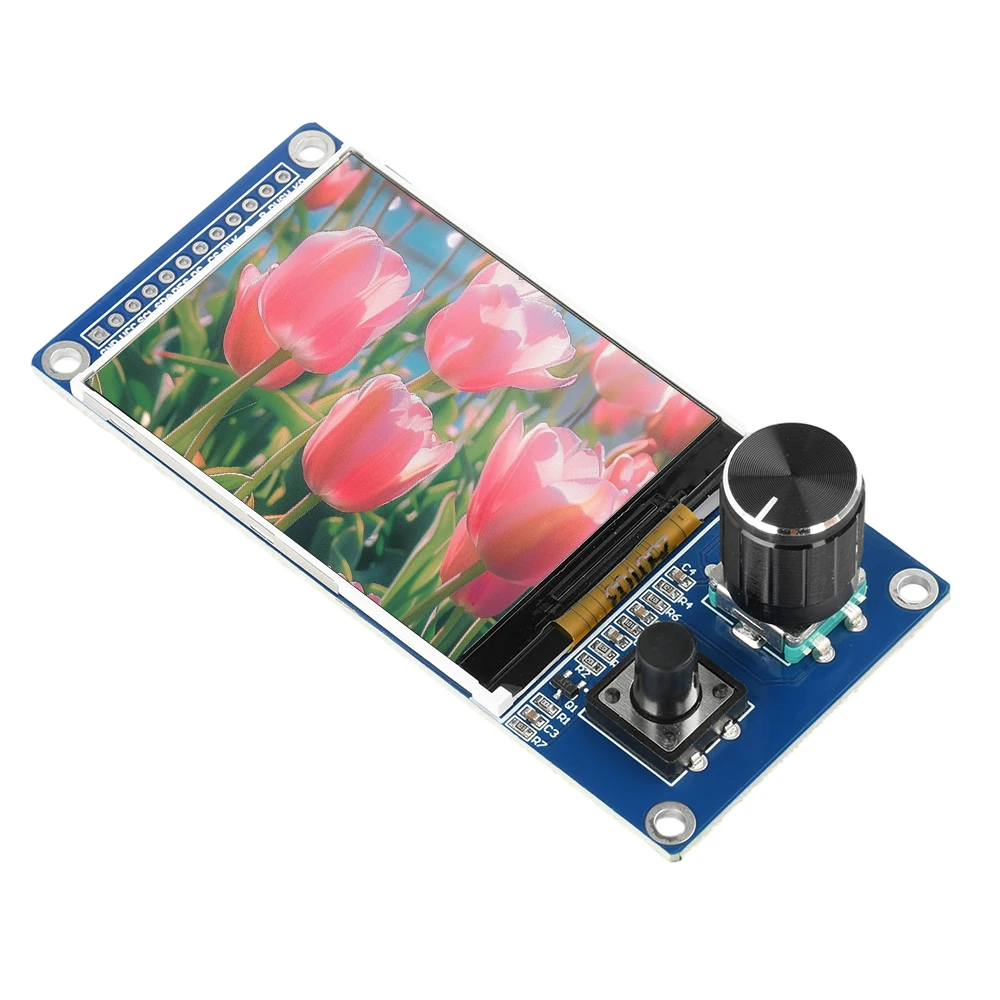

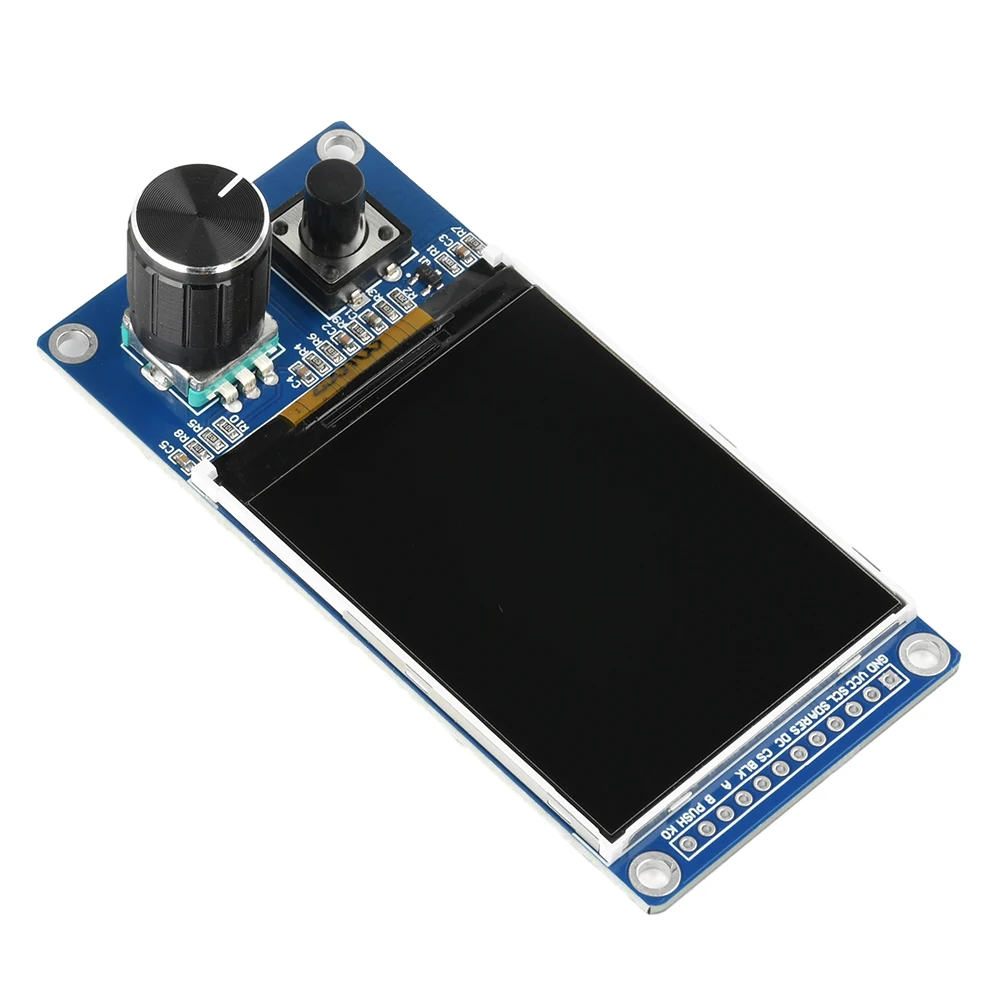

2.4-inch TFT + EC11 rotary encoder:
2.4-inch TFT driver chip: ST7789
2.4-inch TFT interface: SPI
Resolution: 320*240 RGB
EC11: plum blossom handle, handle length 15mm, 20 pulses 20 positioning, 5-pin with switch
Touch function: without touch
Description:

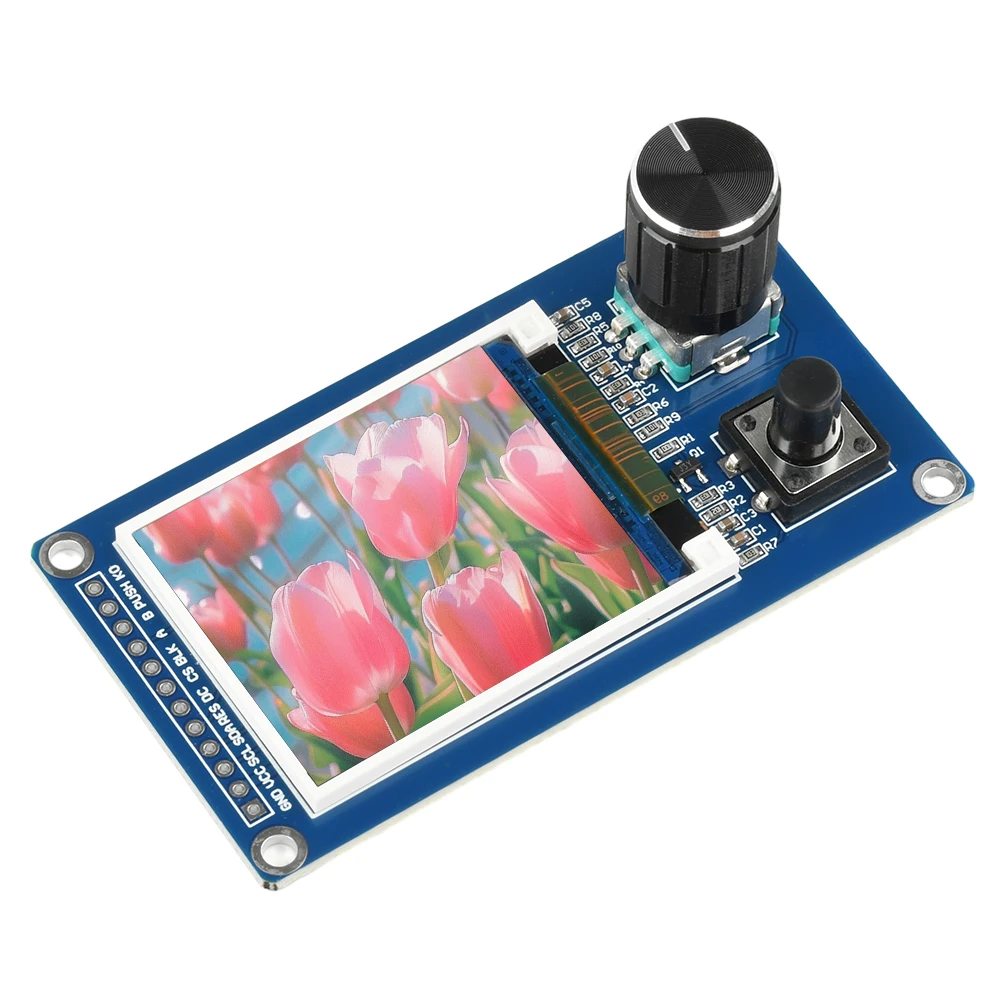

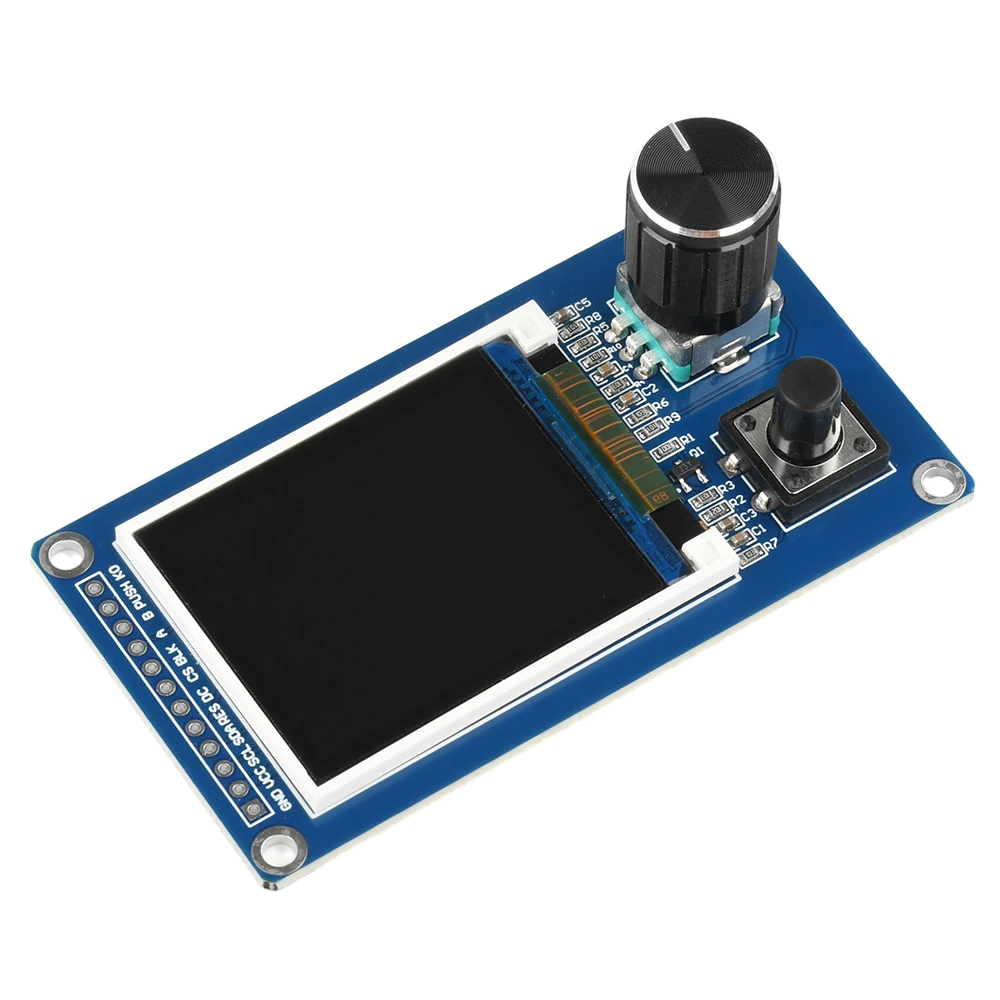

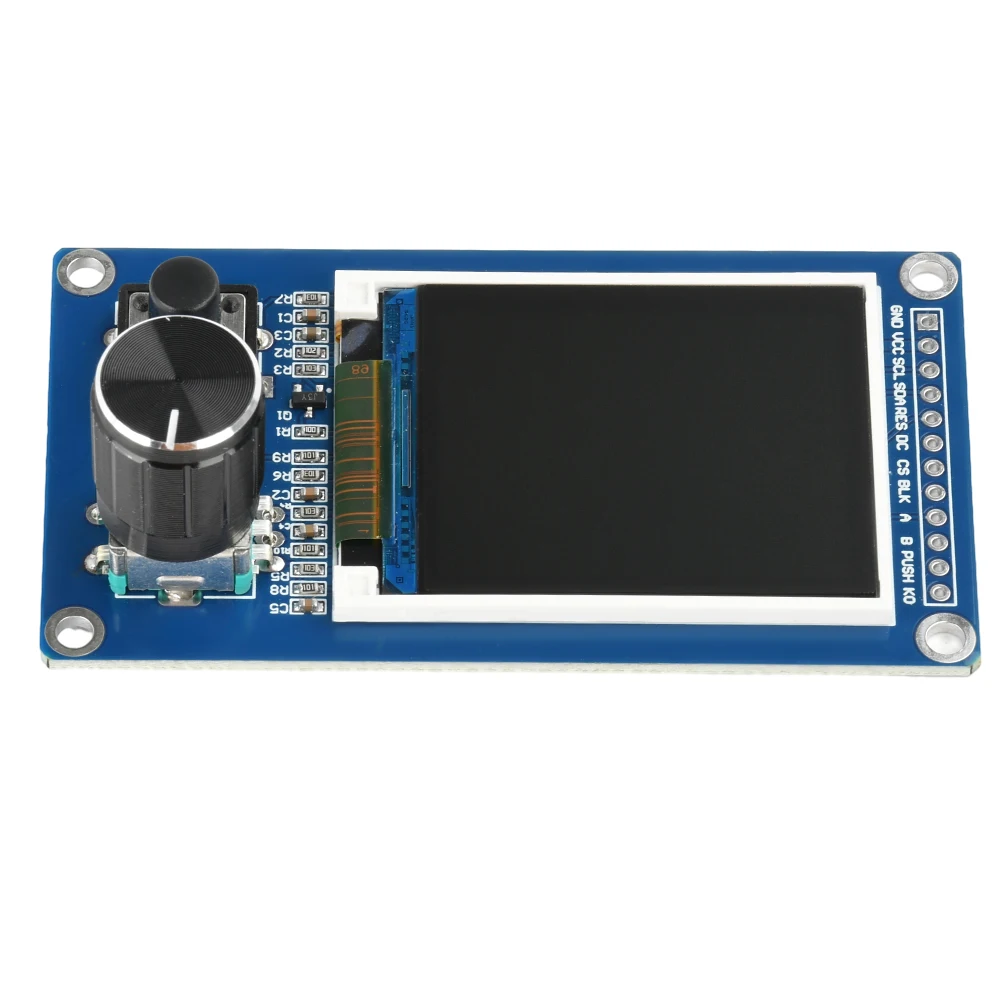

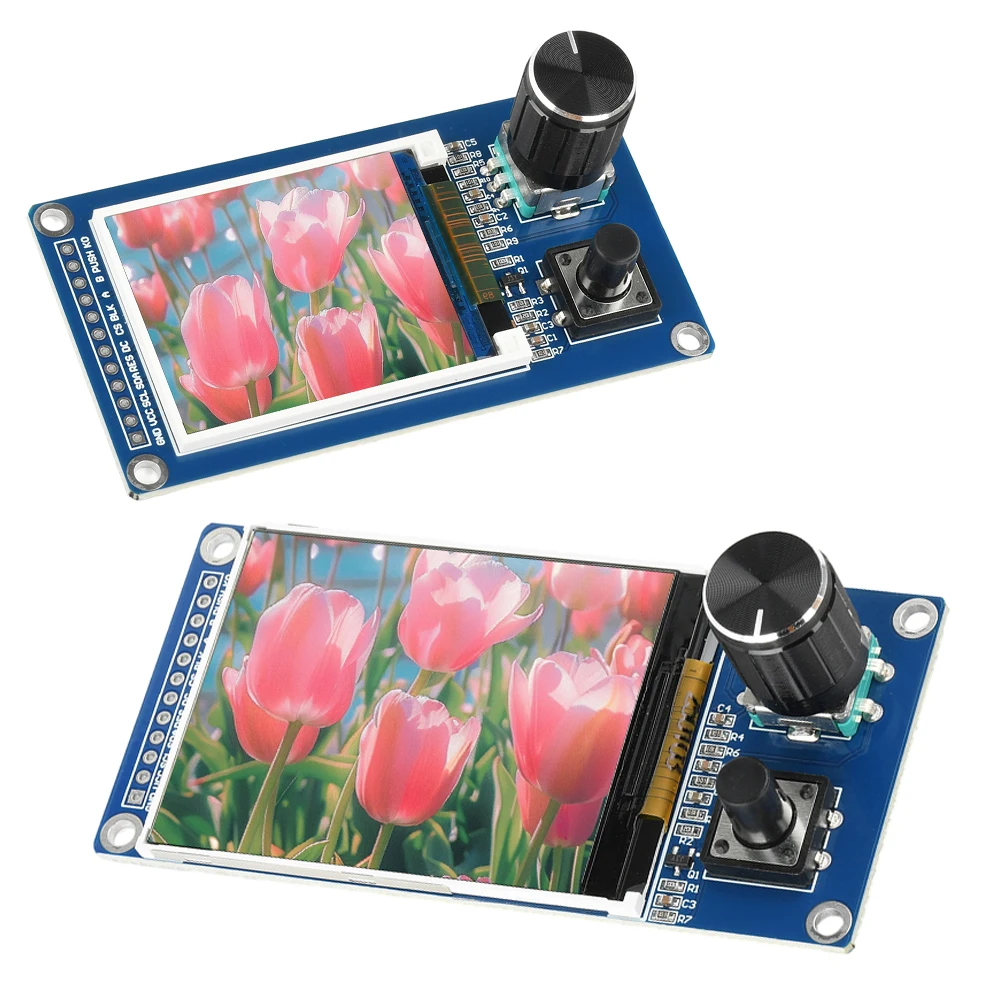

The module is a combination of a 1.8-inch/2.4-inch SPI interface display module and an EC11 rotary encoder. The two are not related, but are placed on a board to make an integrated module. It is equipped with an additional button, and the button interface is also independent. You can choose to use it according to the actual use. The integrated design is more simple and beautiful, and convenient for DIY.

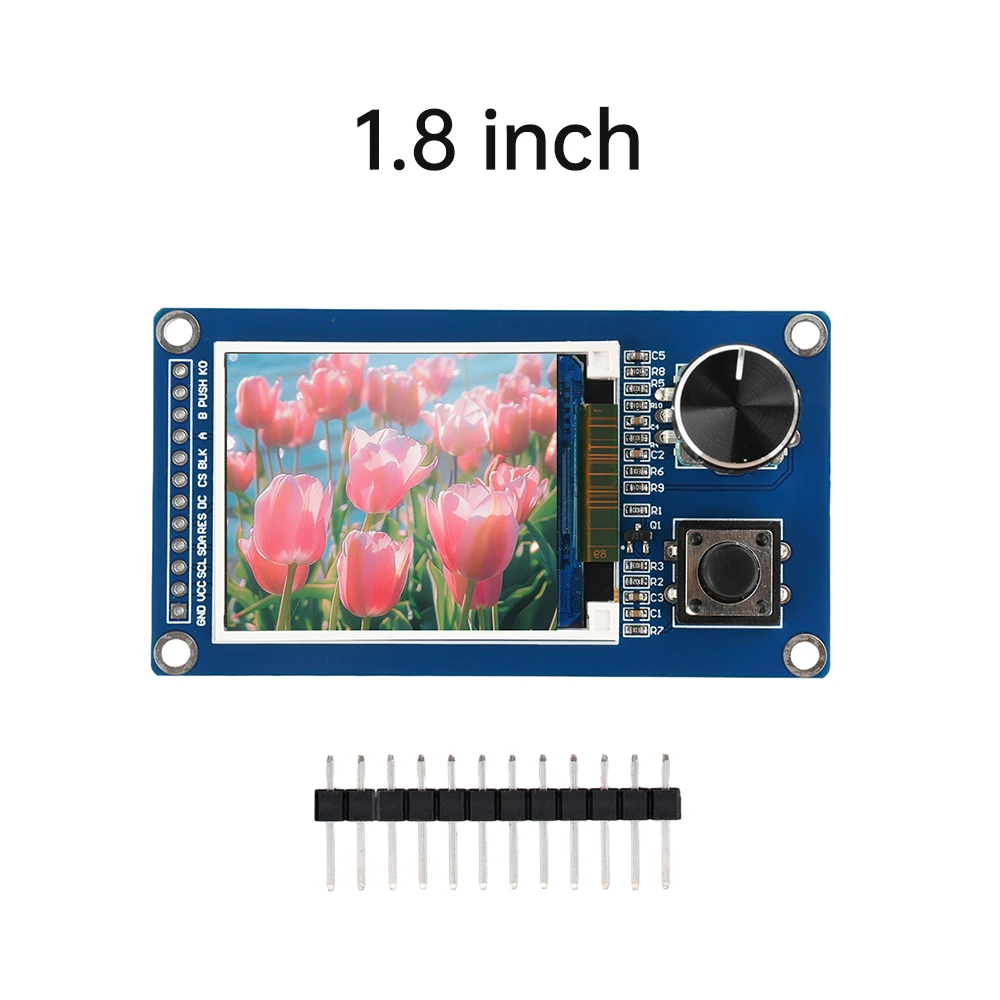

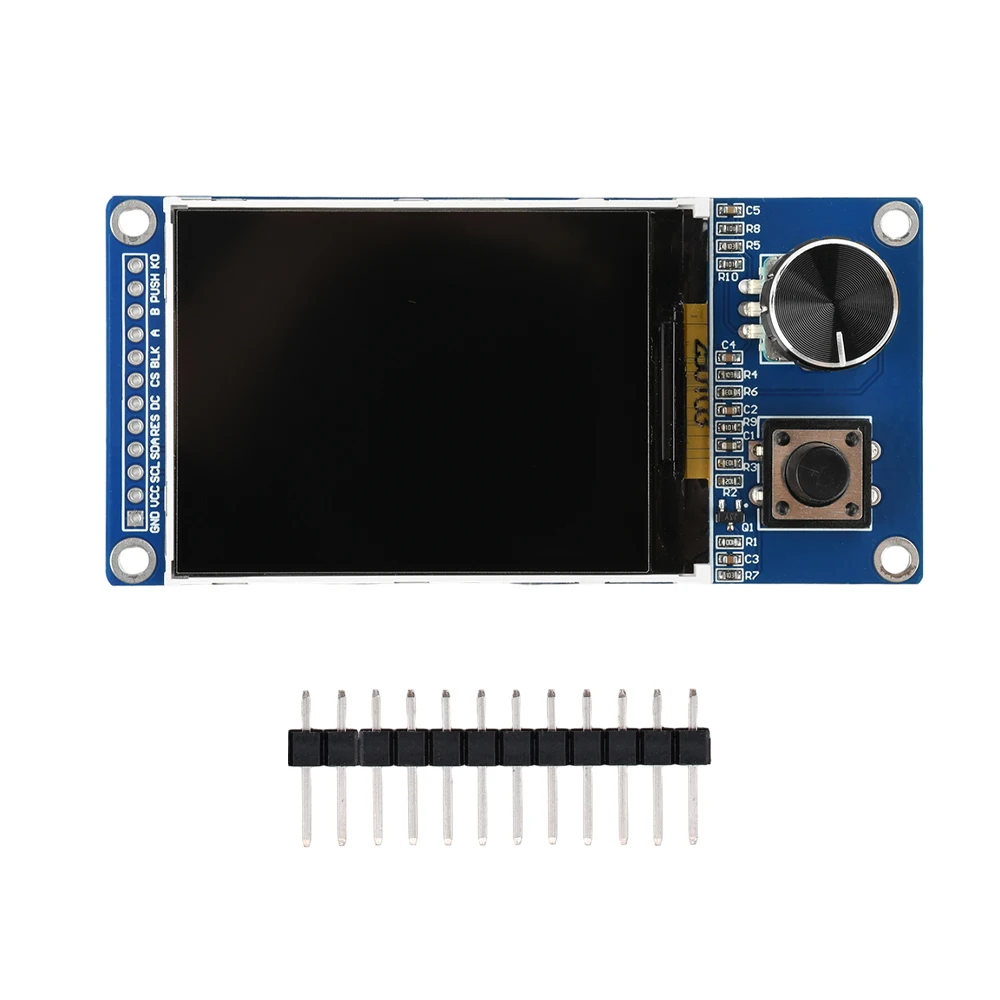

Package list:

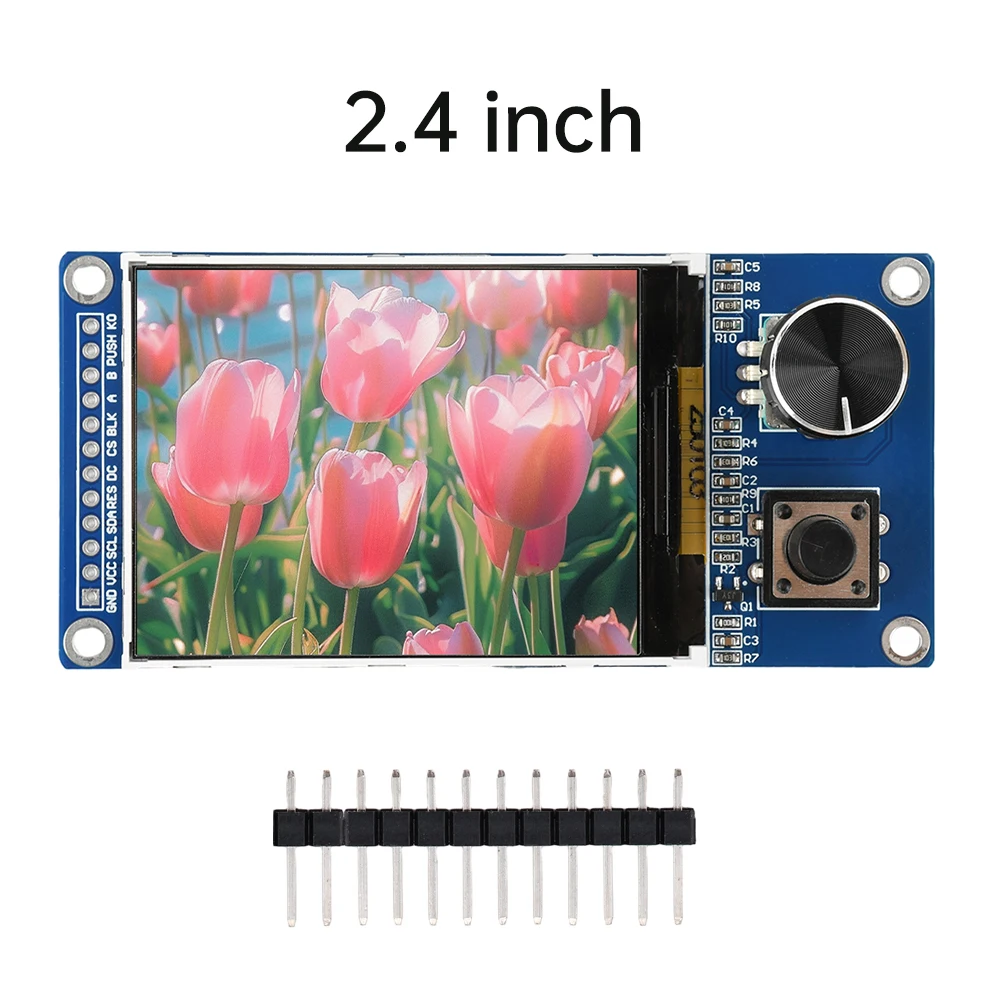

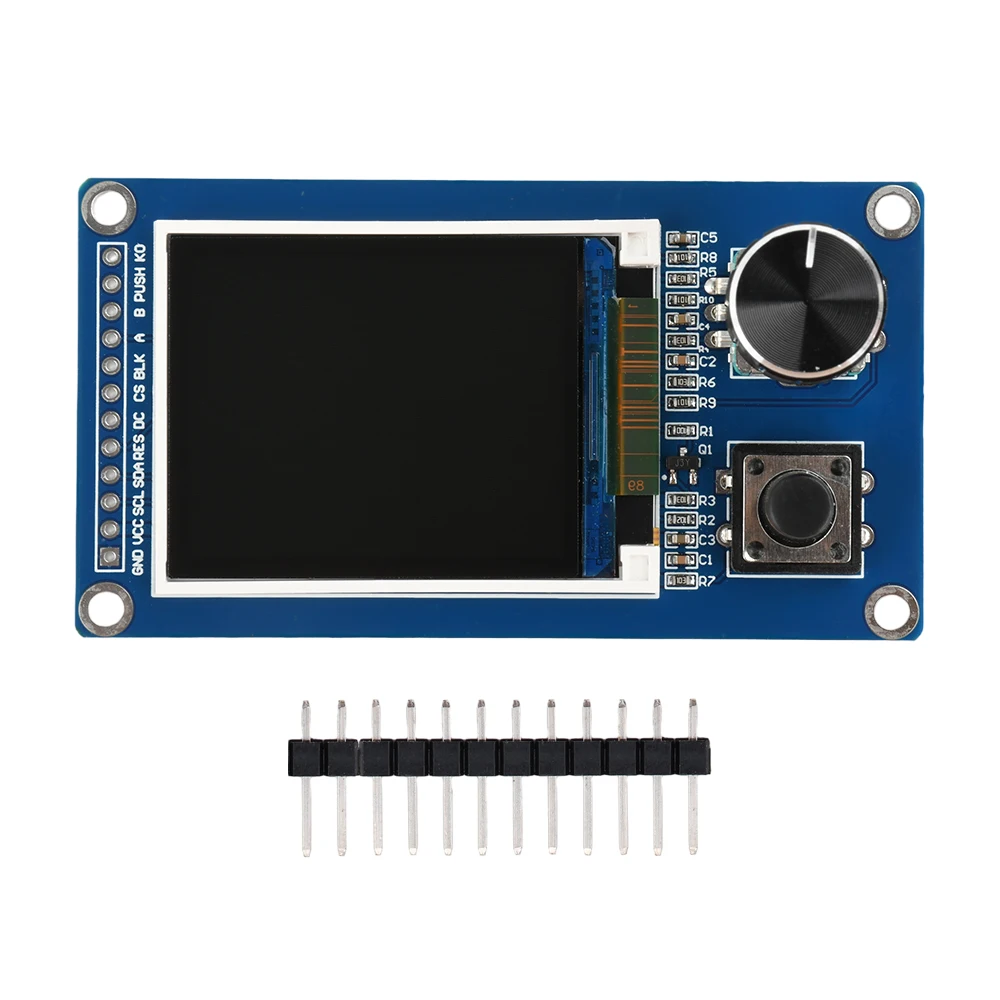

Module x 1
Pin header x 1
、、
