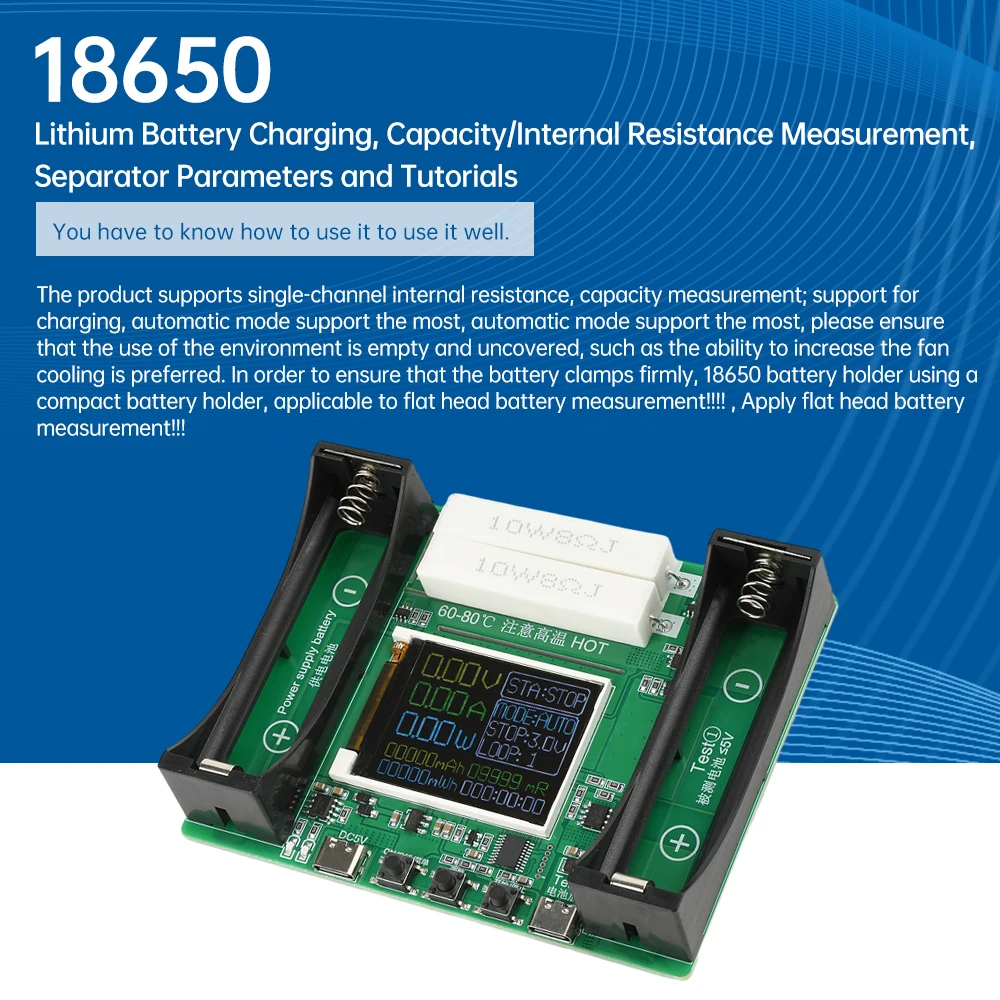

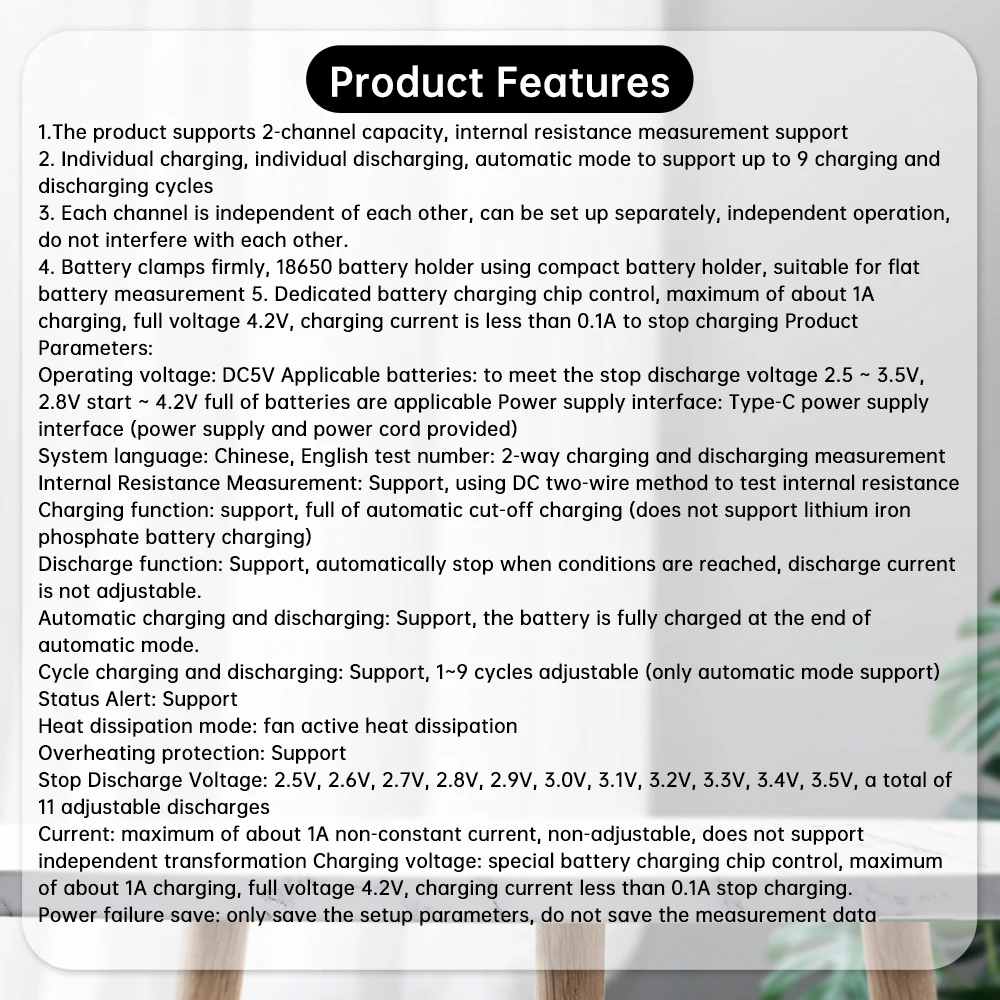

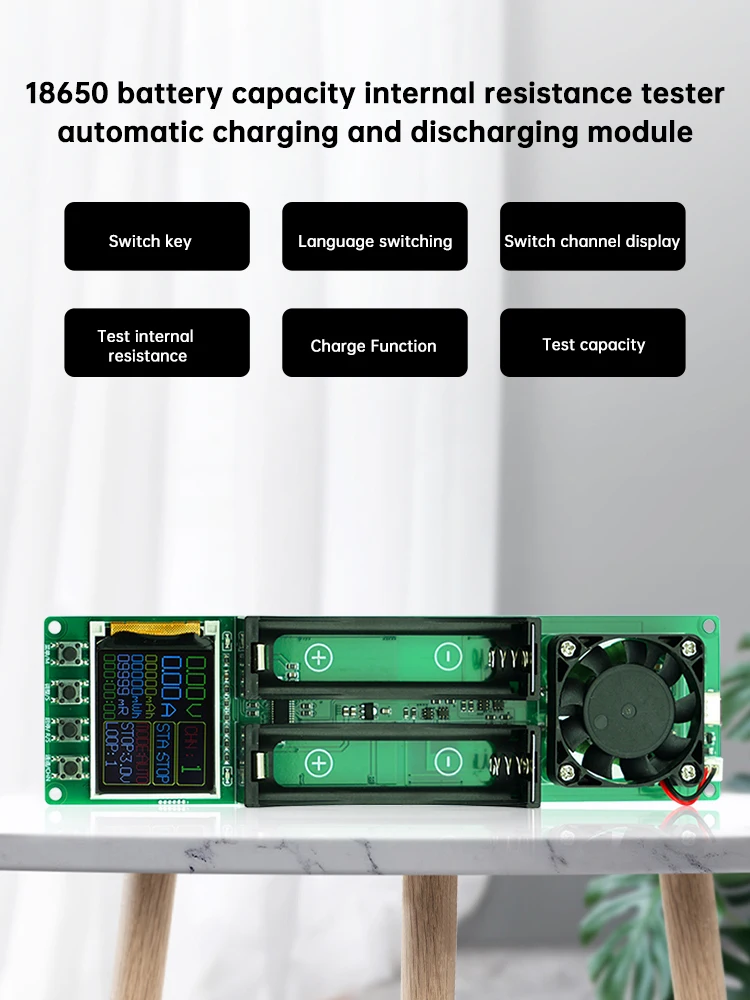

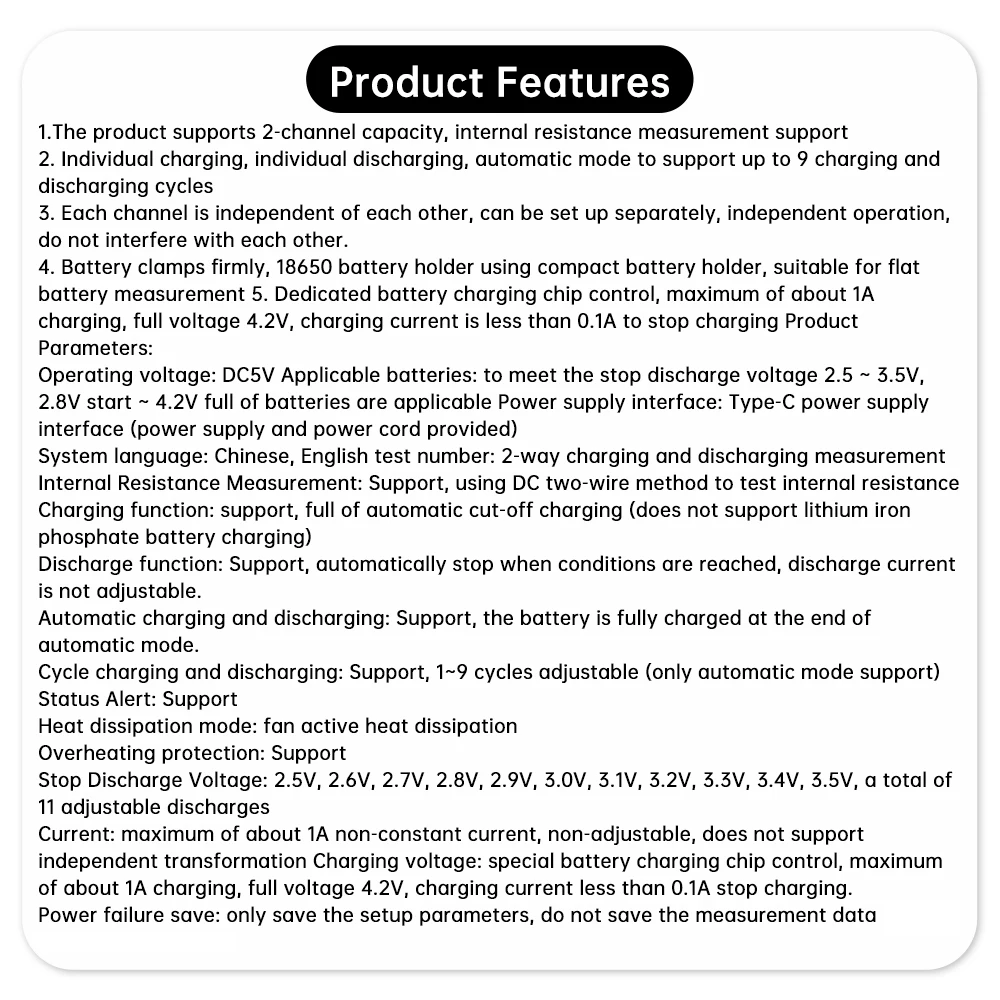

Feature:

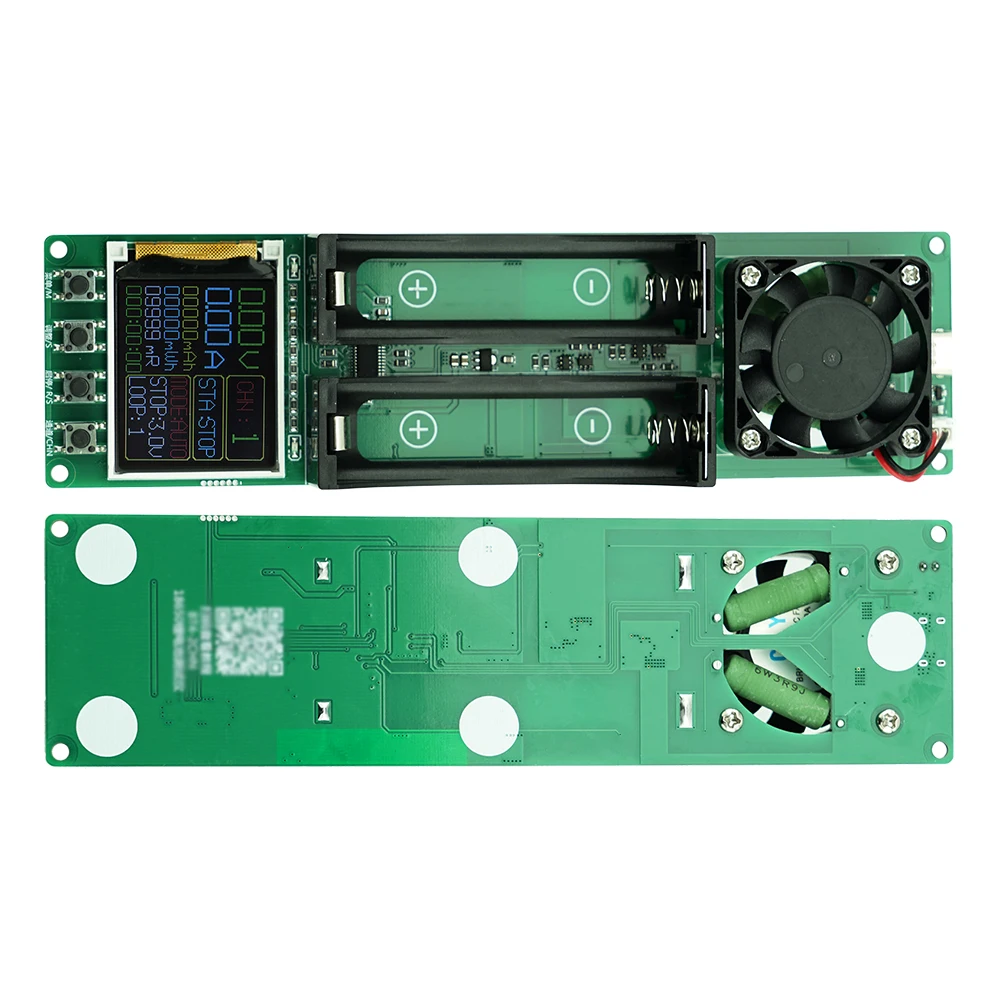

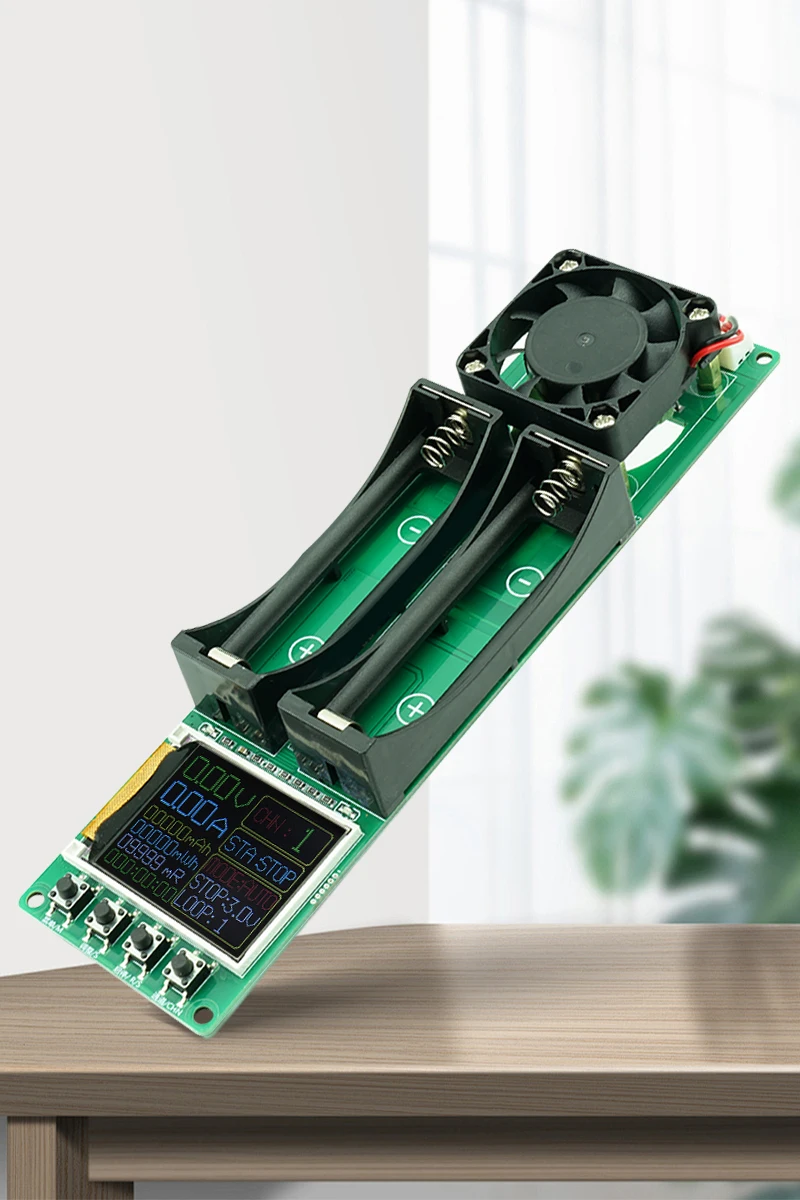

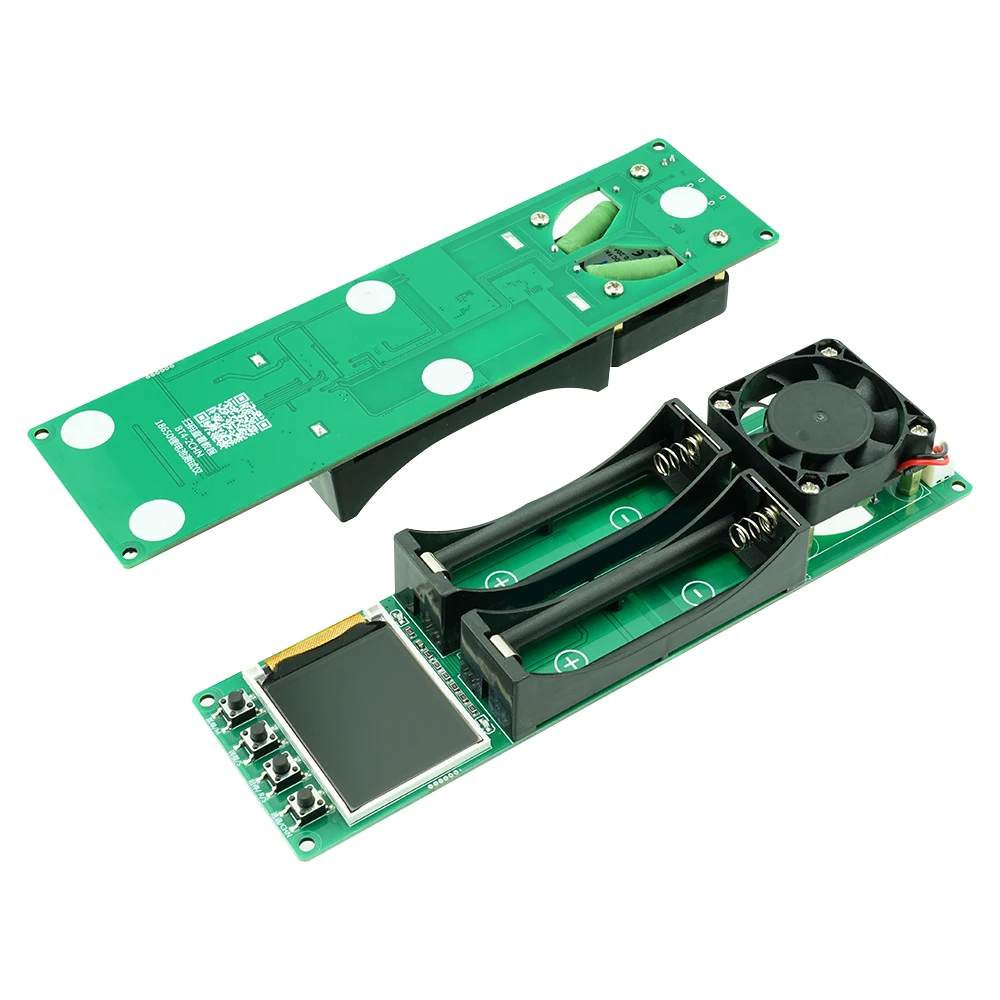

The product supports 2-channel capacity and internal resistance measurement

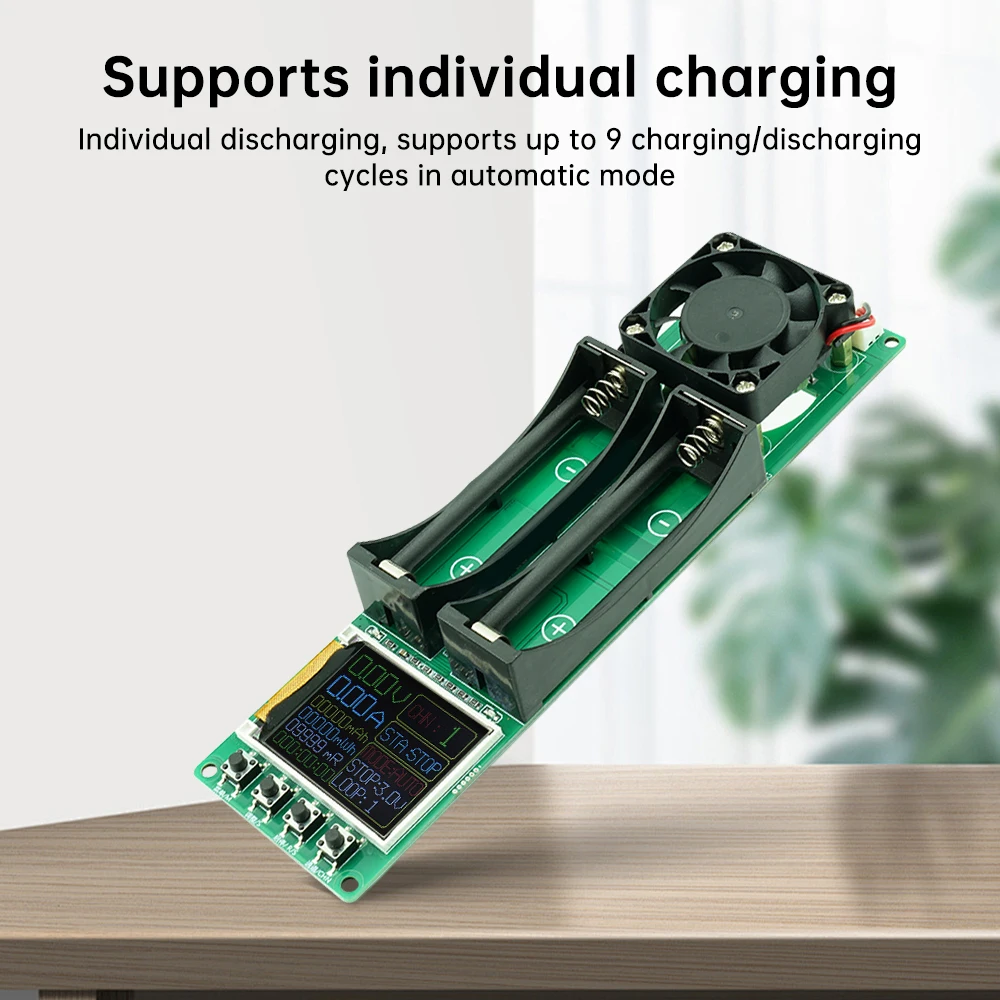

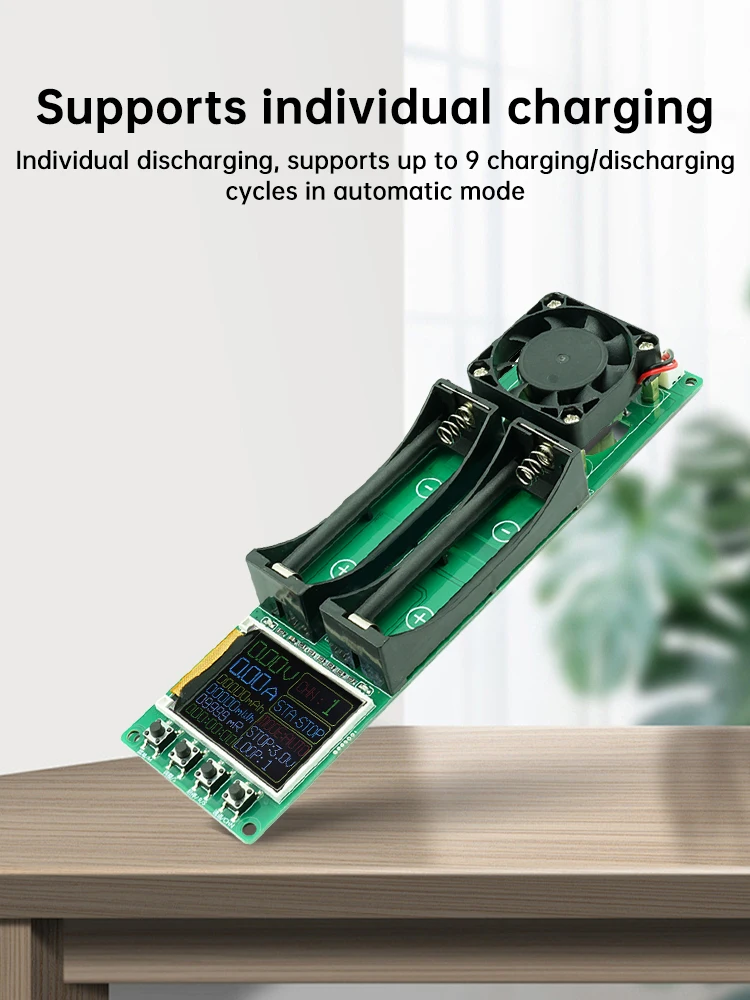

Supports separate charging and discharging, and supports up to 9 charge and discharge cycles in automatic mode
Each channel is independent of each other, can be set separately, and runs independently without interfering with each other

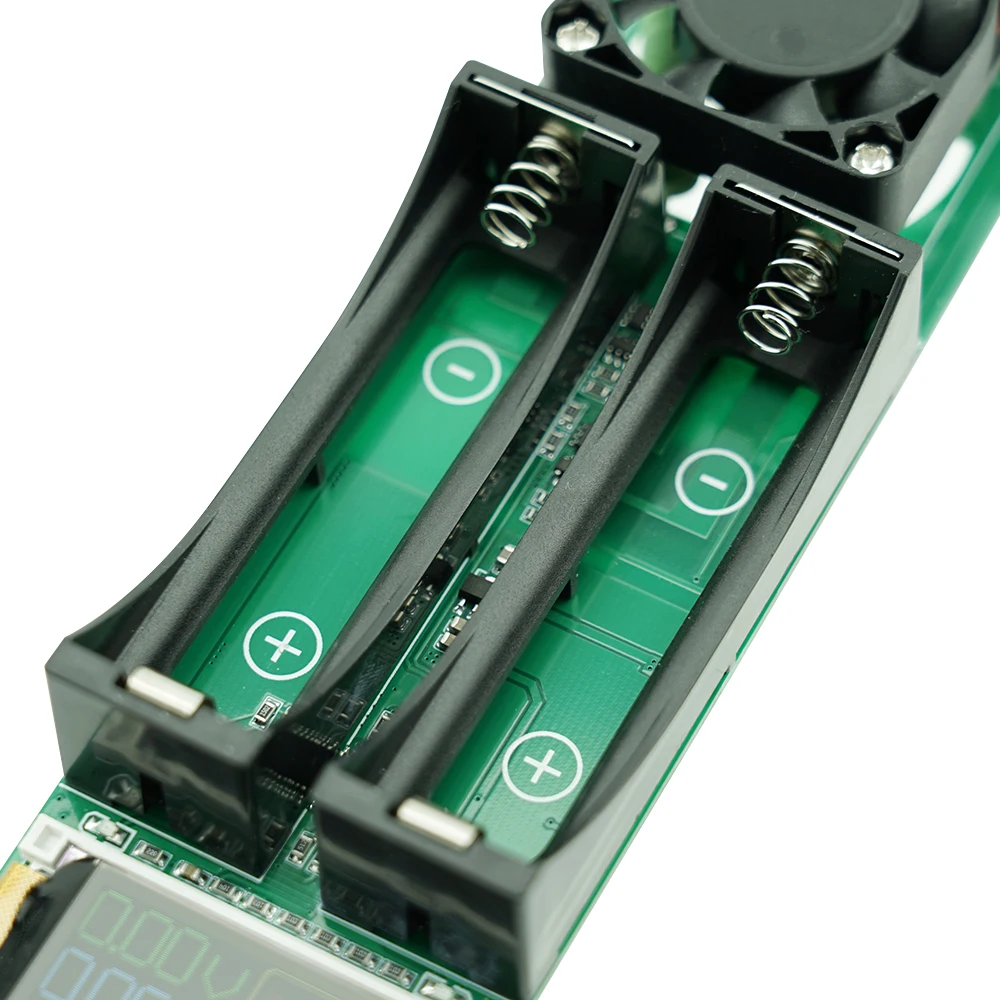

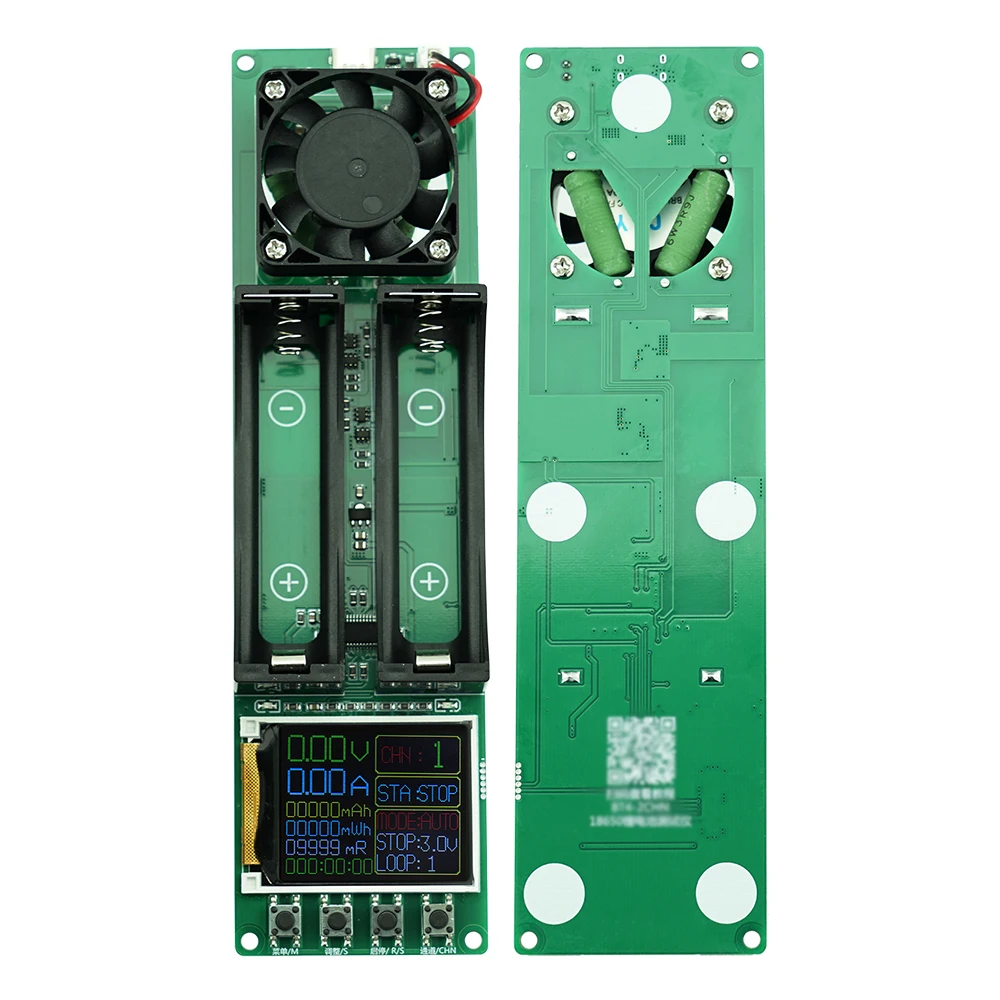

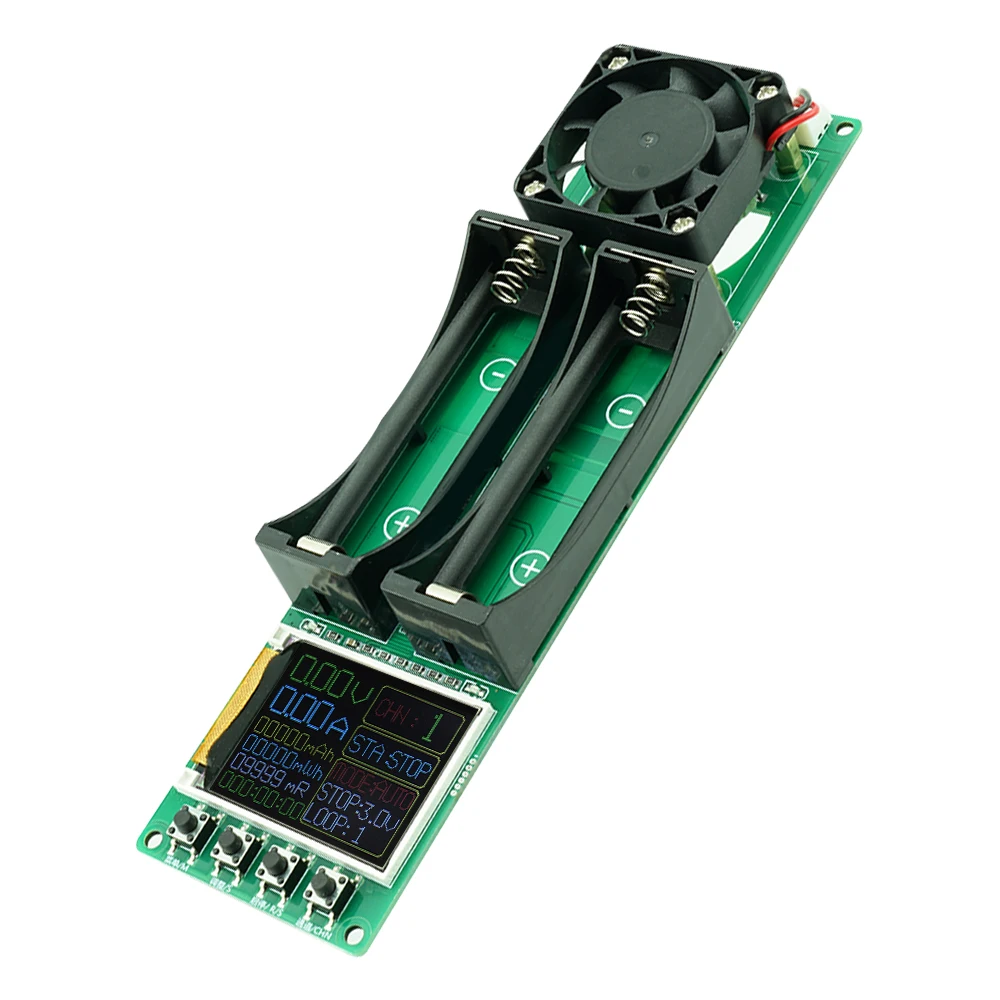

The battery clip is firm, and the 18650 battery holder uses a compact battery holder, which is suitable for flat-head battery measurement
Dedicated battery charging chip control, maximum charging of about 1A, full power voltage 4.2V, charging current less than 0.1A stops charging
Product parameters:
Working voltage: DC5V
Applicable batteries: meet the stop discharge voltage of 2.5~3.5V, 2.8V to 4.2V fully charged batteries are applicable
Power supply interface: Type-C power supply interface (power supply and power cord are provided by yourself)
System language: Chinese, English
Test quantity: 2-way charge and discharge measurement
Internal resistance measurement: Support, DC two-wire method is used to test internal resistance
Charging function: Support, automatic charging cut-off when full (does not support lithium iron phosphate battery charging)
Discharging function: Support, automatically stop when conditions are met, discharge current cannot be adjusted
Automatic charging and discharging: Support, the battery is fully charged at the end of automatic mode
Cyclic charging and discharging: Support, 1~9 cycles are adjustable (only supported in automatic mode)
Status prompt: Support

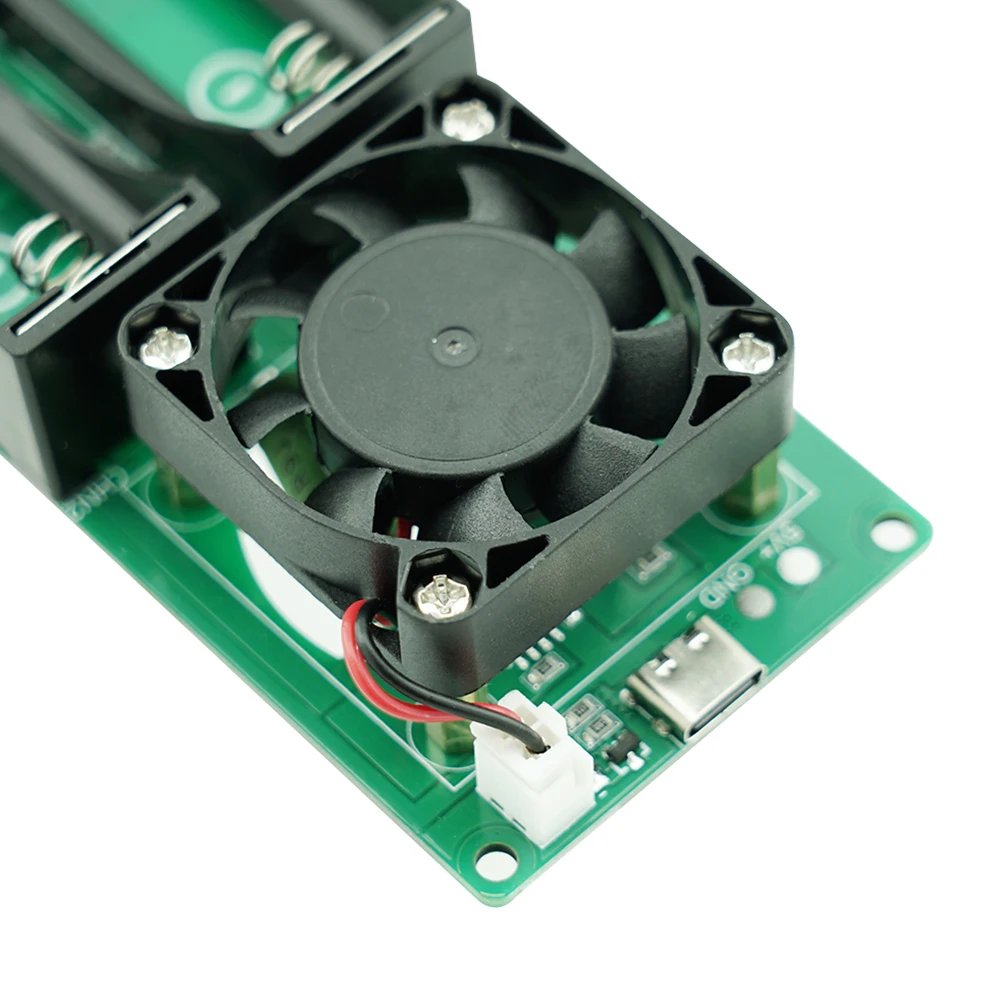

Cooling method: Active cooling by fan
Overheat protection: Support

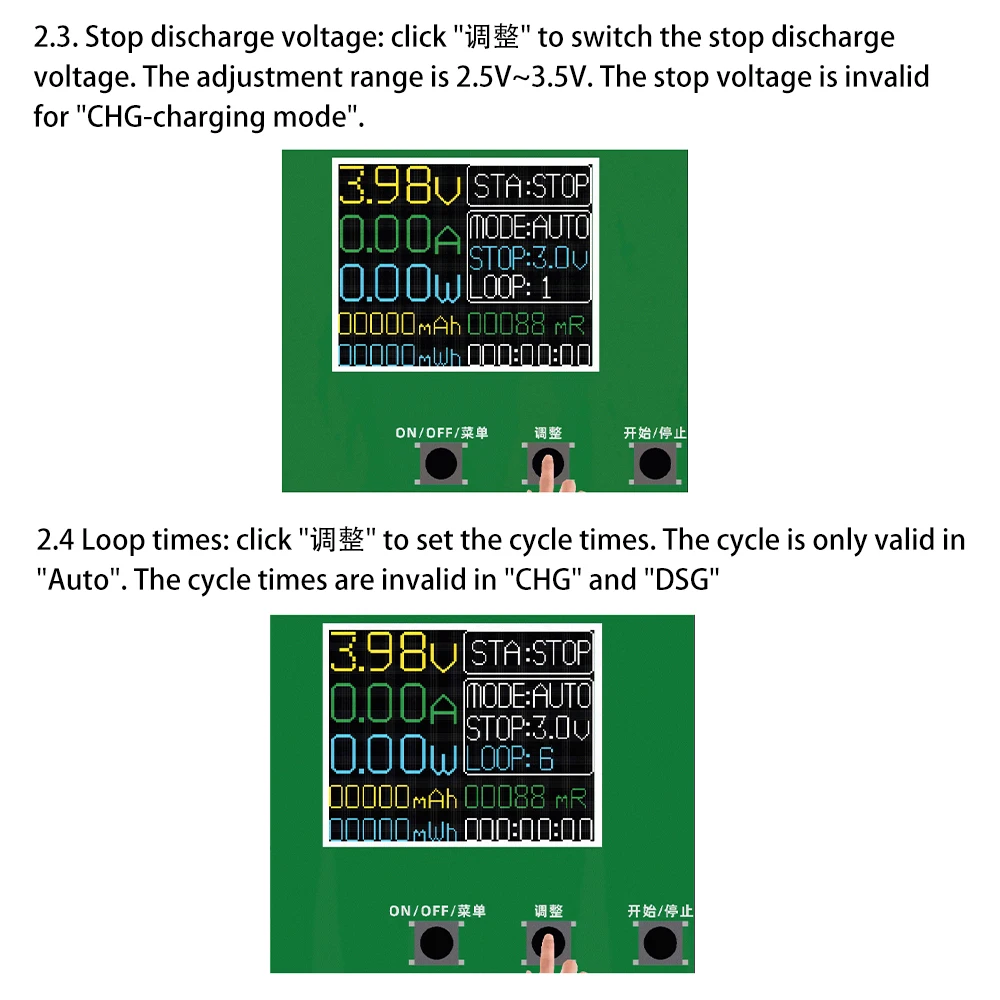

Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 adjustable levels
Discharge current: Maximum of about 1A non-constant current, cannot be adjusted, does not support self-modification
Charging voltage: Controlled by a dedicated battery charging chip, maximum of about 1A charging, full voltage 4.2V, charging stops when the charging current is less than 0.1A
Power-off saving: only save the setting parameters, not the measurement data

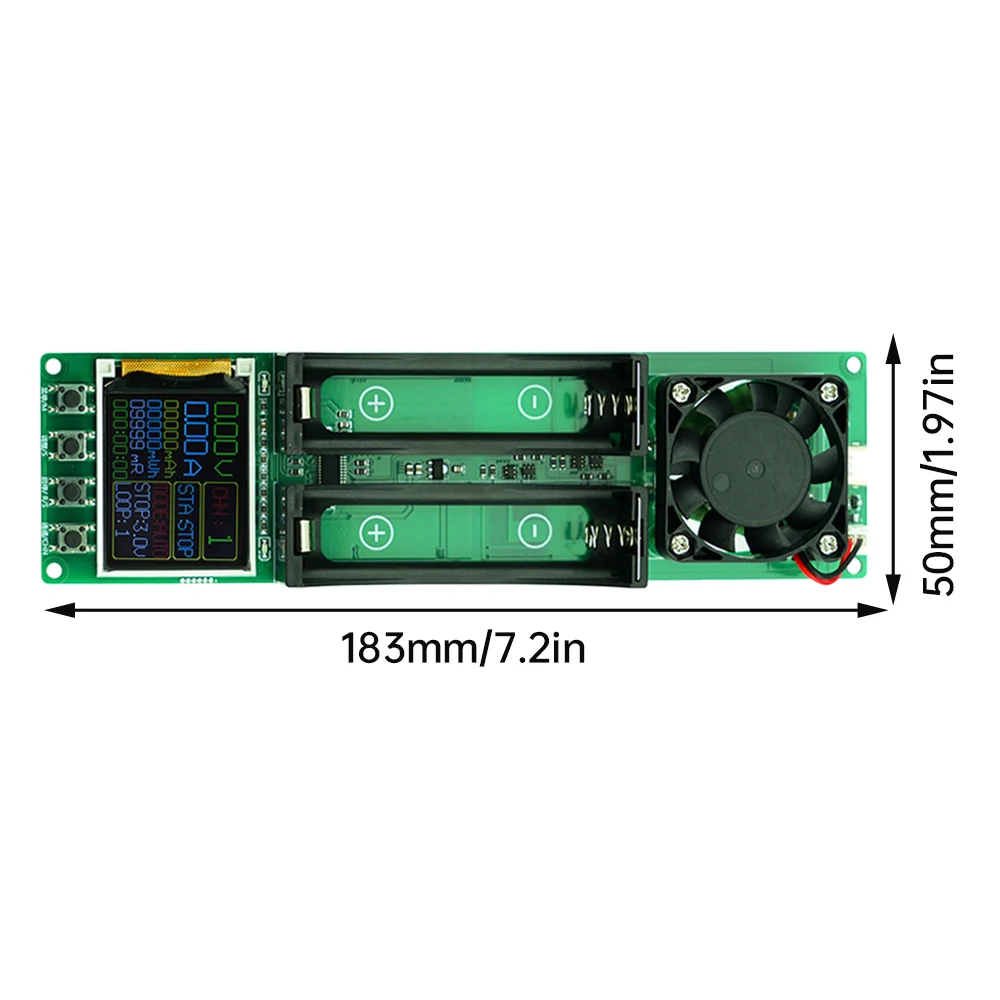

Product size: 190×50×27mm

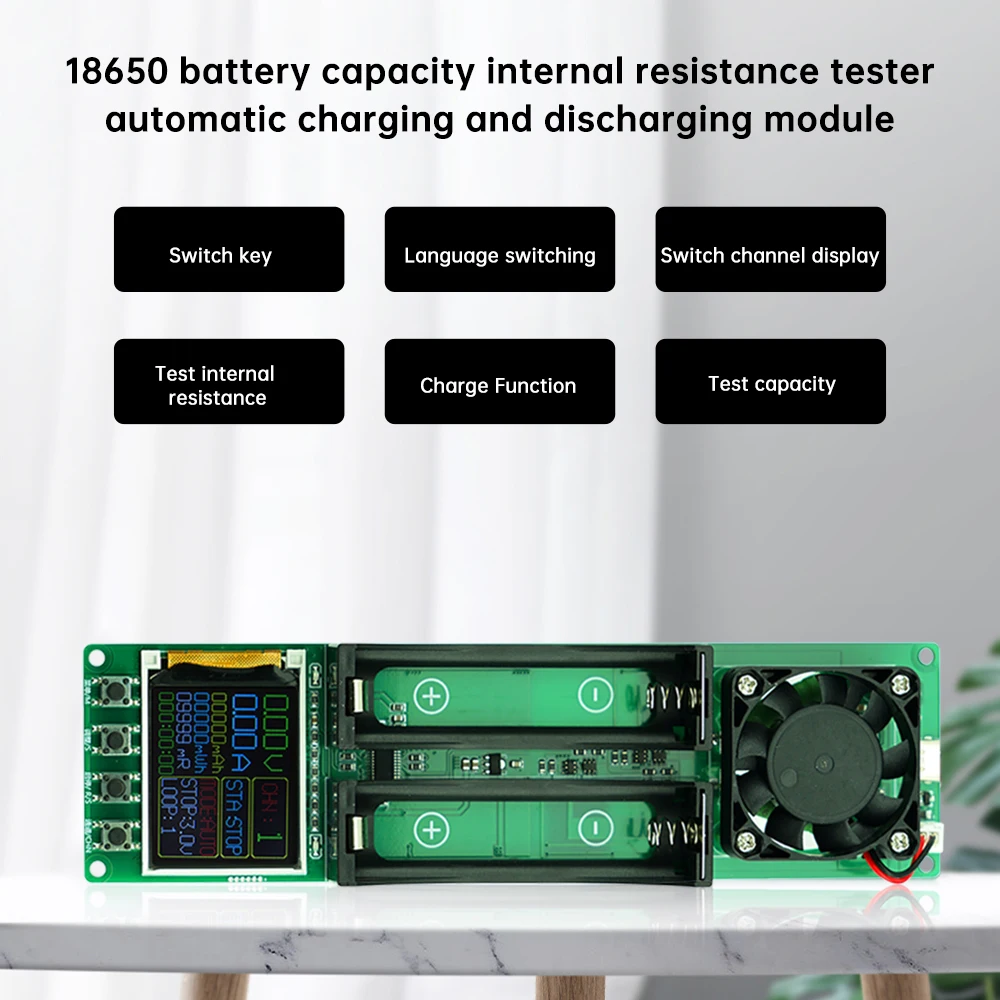

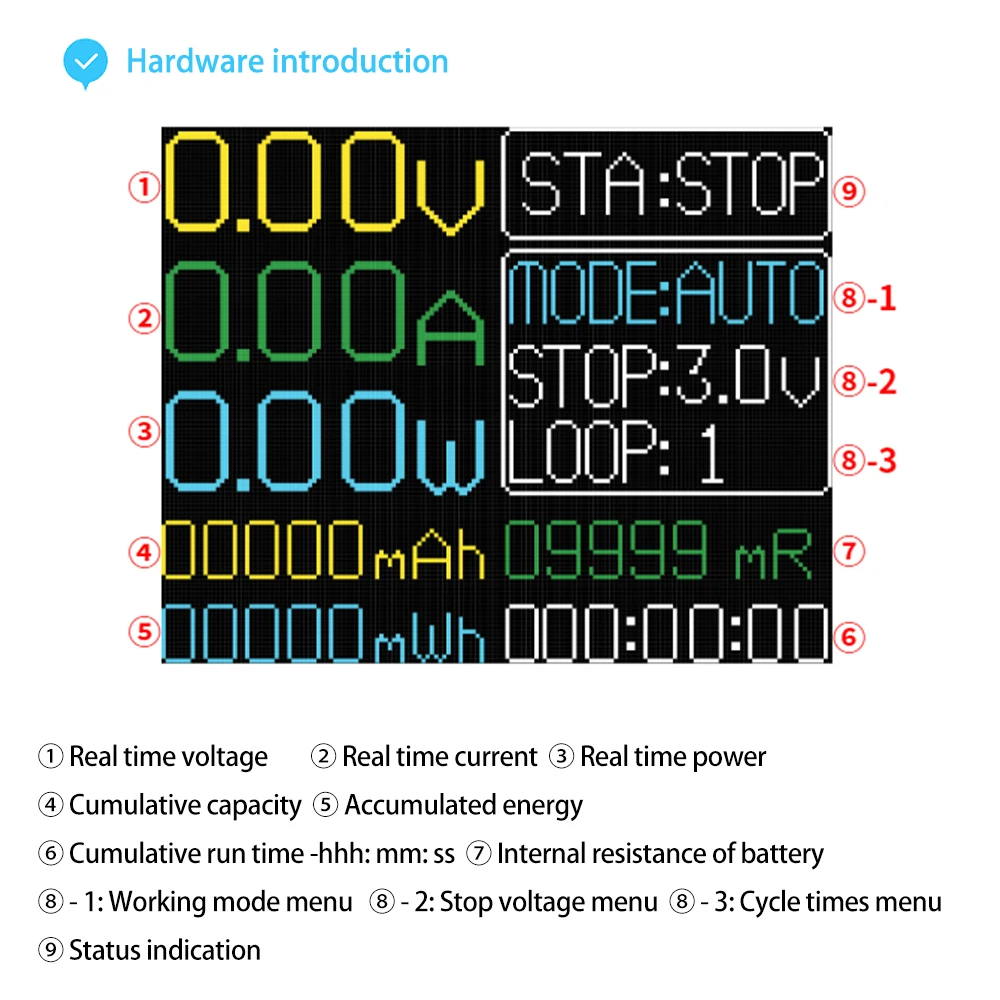

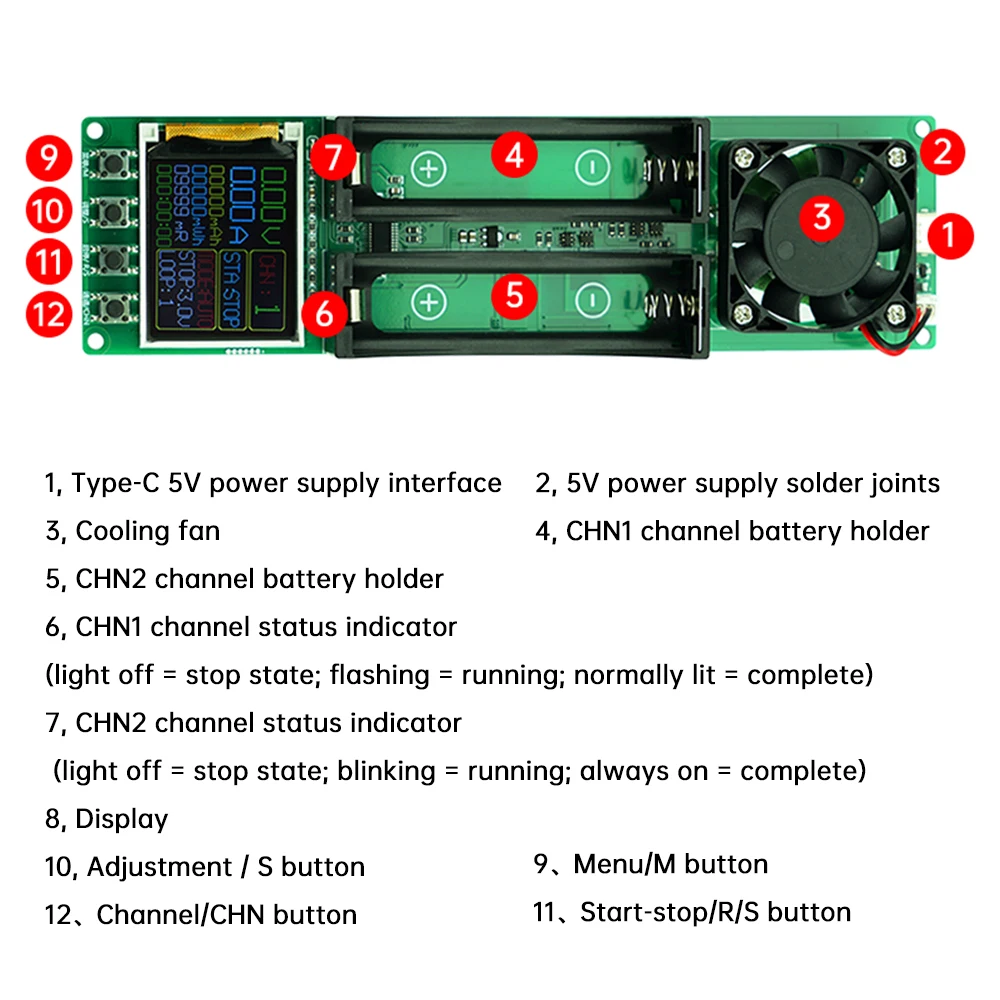

Instructions:
1. Product power on and off:
The product has no power button, it will automatically start when powered on and shut down when powered off

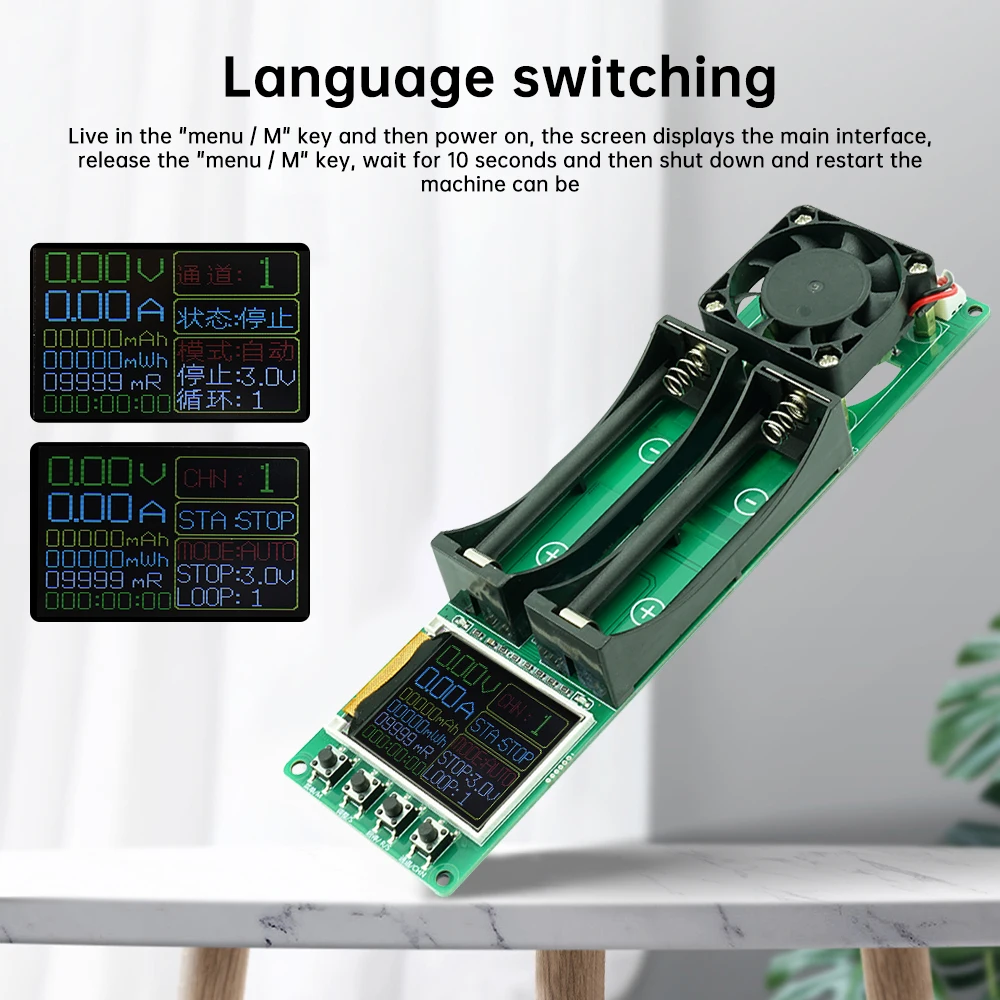

2. Language switching:
Press and hold the “Menu/M” key and then power on. After the screen displays the main interface, release the “Menu/M” key, wait for 10 seconds and then shut down and restart

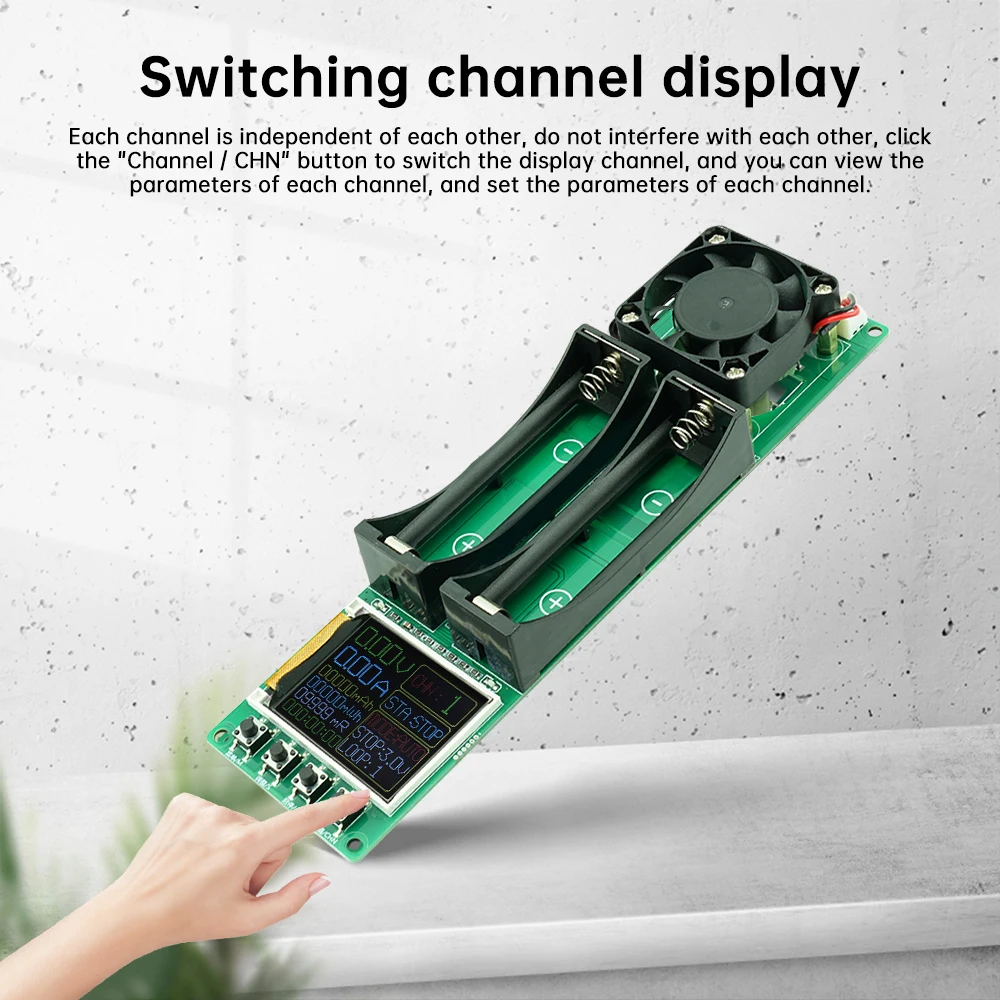

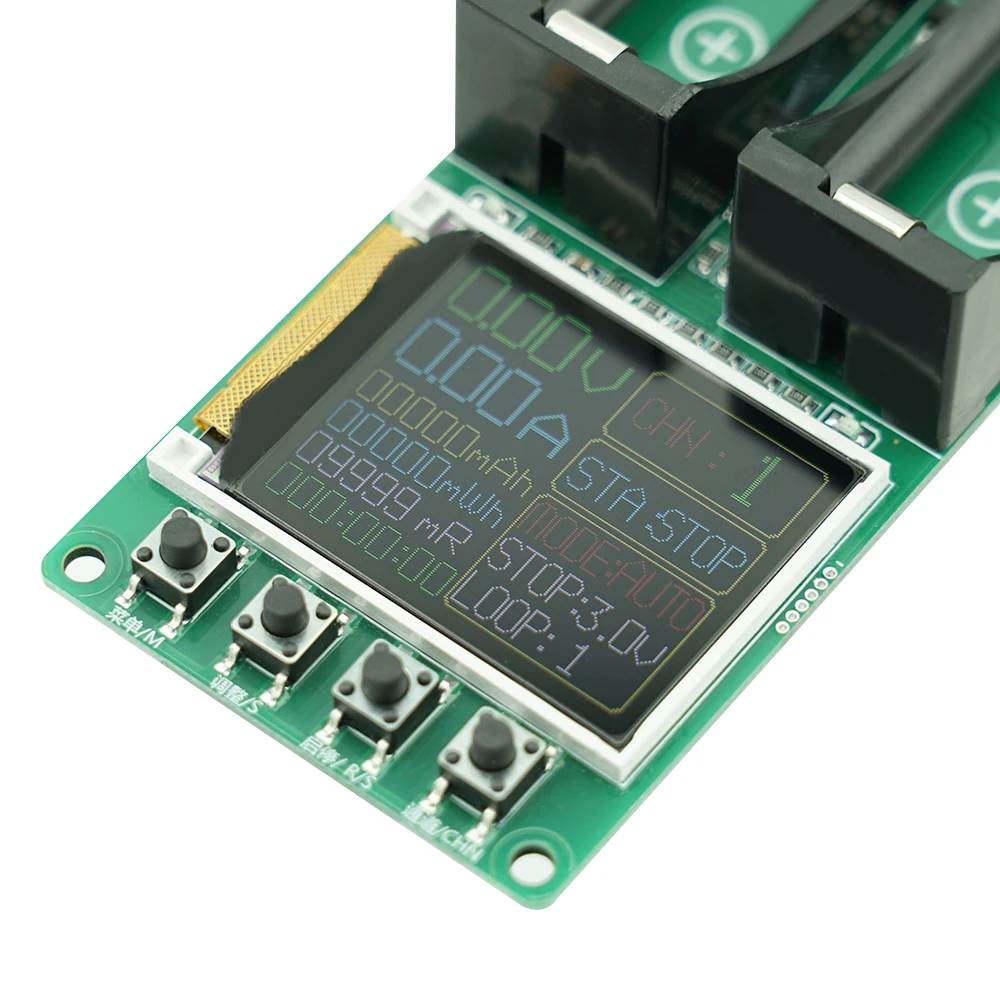

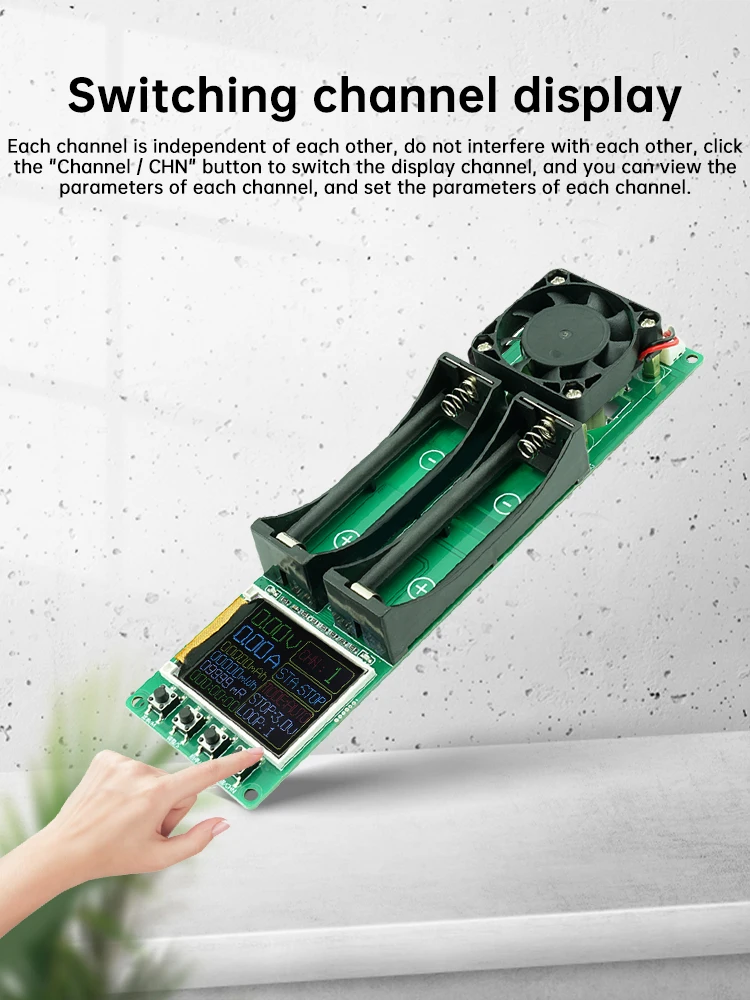

3. Switch channel display:
Each channel is independent of each other and does not interfere with each other. Click the “Channel/CHN” button to switch the display channel, and you can view and set the parameters of each channel

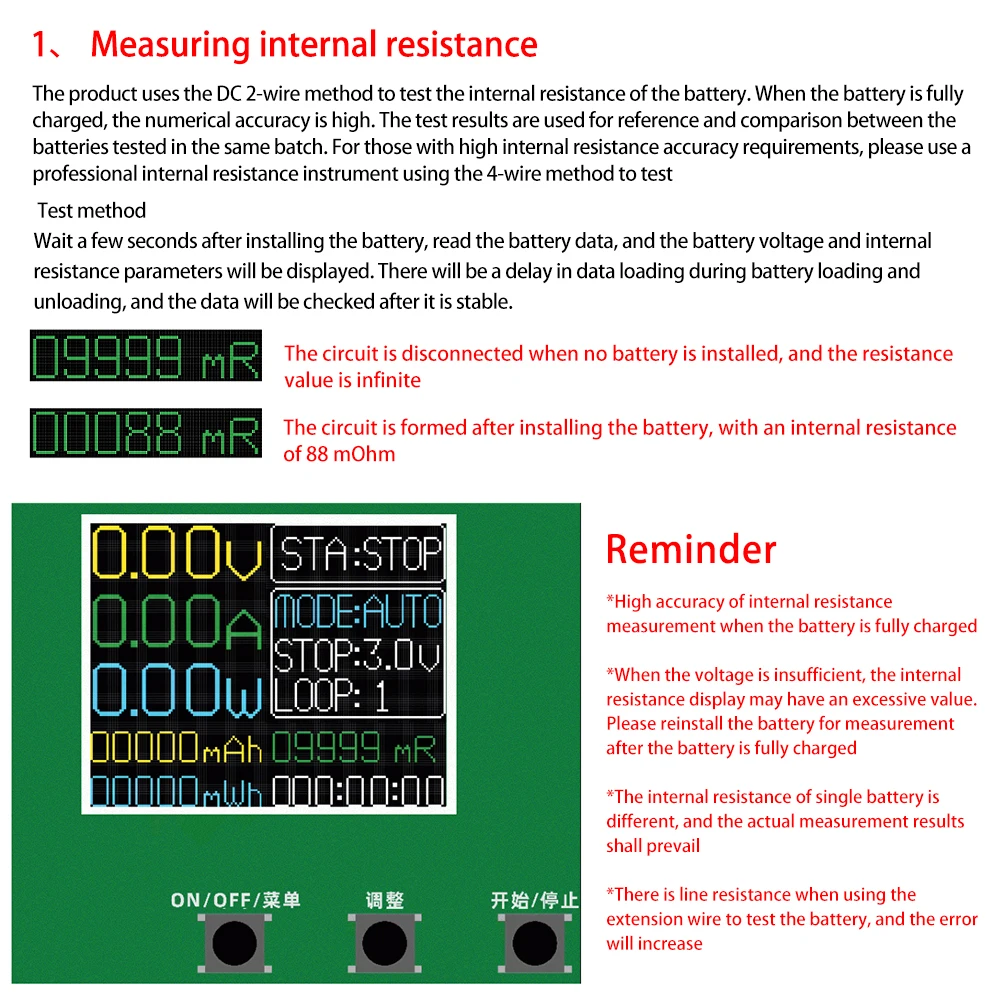

4. Test internal resistance:

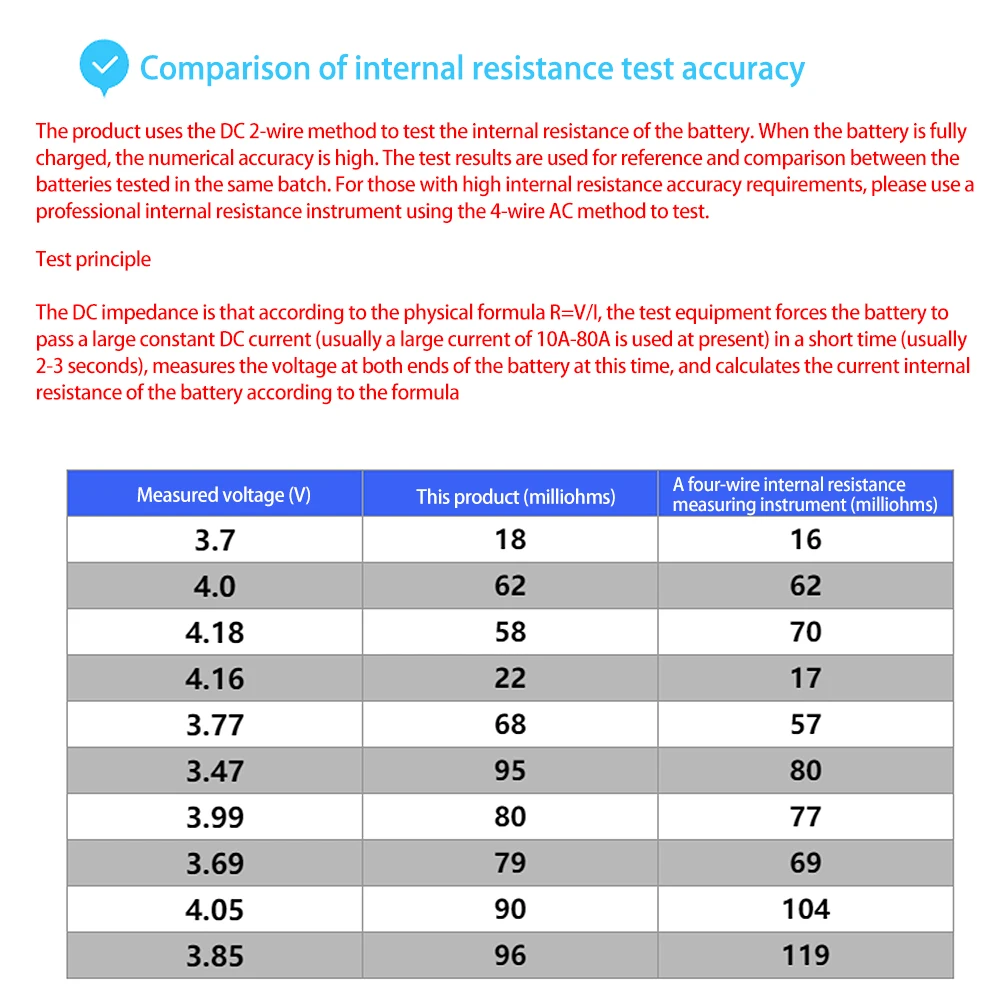

Install the battery, power on, wait for 10 seconds, and display the battery voltage and internal resistance test results. This product uses the DC two-wire method to test the internal Resistance, due to the limitations of the test principle, the battery may not be recognized and the internal resistance always displays 9999.
When the battery is not installed, the test circuit is open, which is equivalent to infinite resistance, and the internal resistance displays 9999 milliohms.

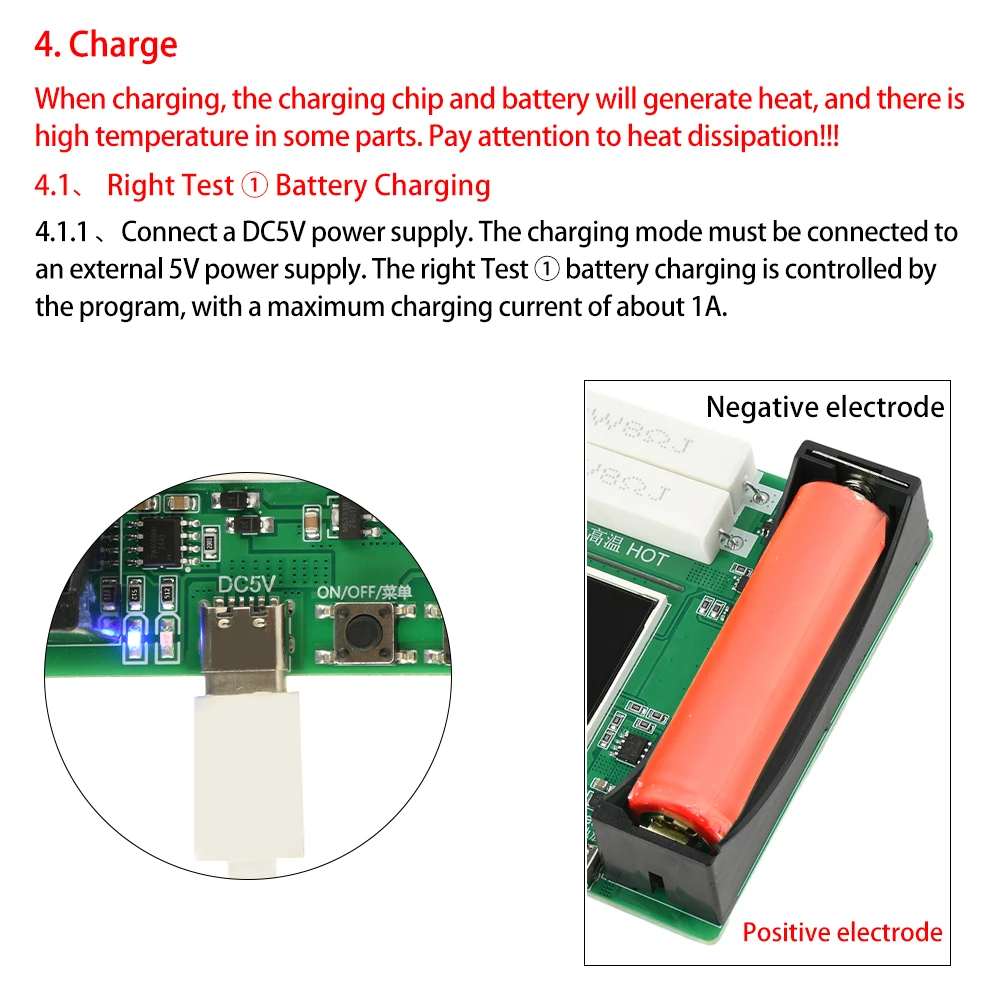

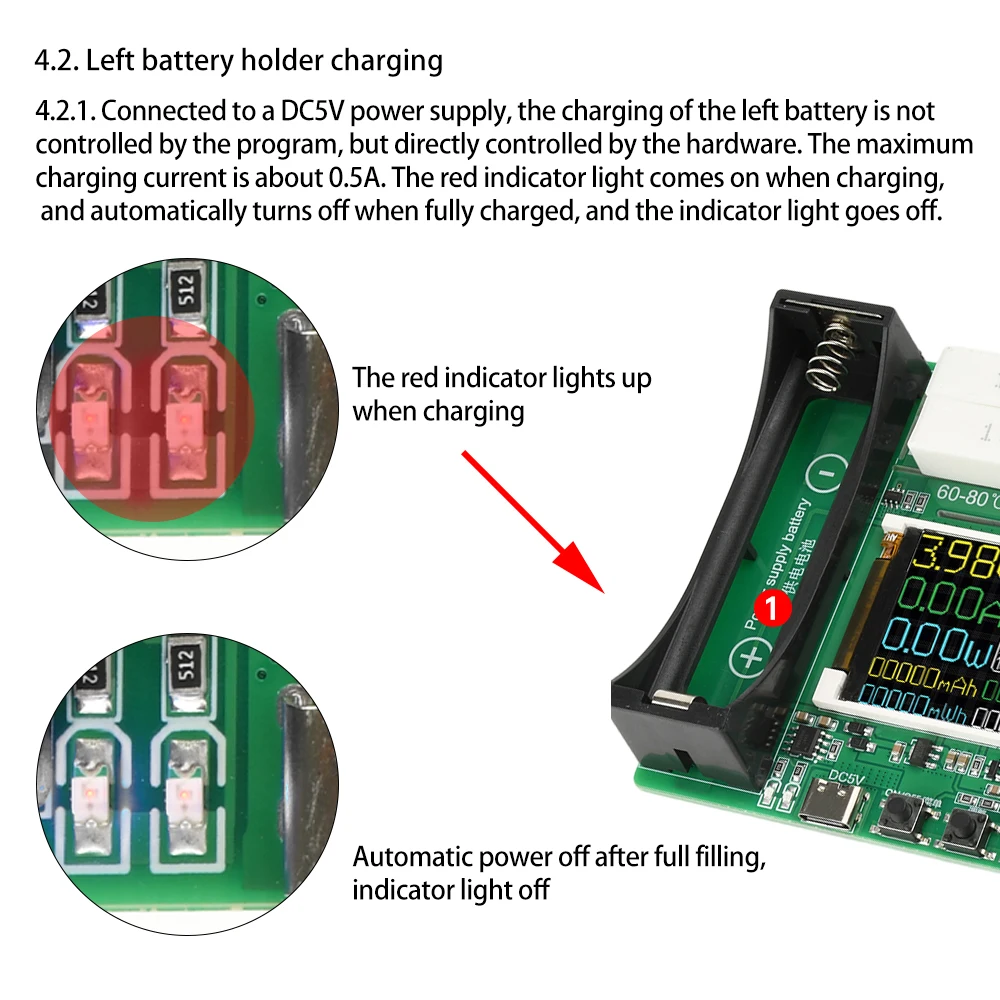

5. Charging function (not suitable for charging lithium iron phosphate batteries):
Install the battery in the battery holder, adjust the mode to “Charge” mode, click “Start/Stop/R/S” to run the program; after charging is completed, the status indication is completed; the charging process records capacity, energy, and charging time. The charging measurement capacity is for reference only. Please refer to the discharge capacity.

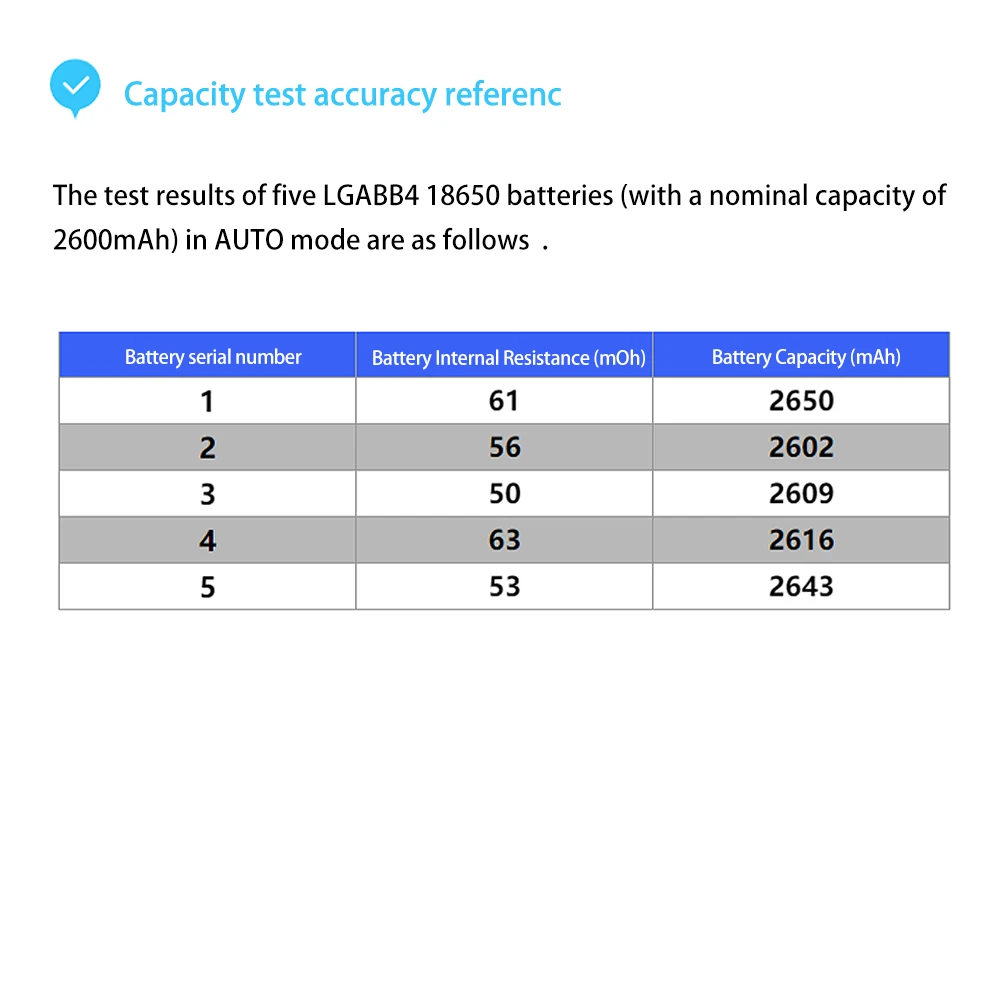

6. Test capacity:

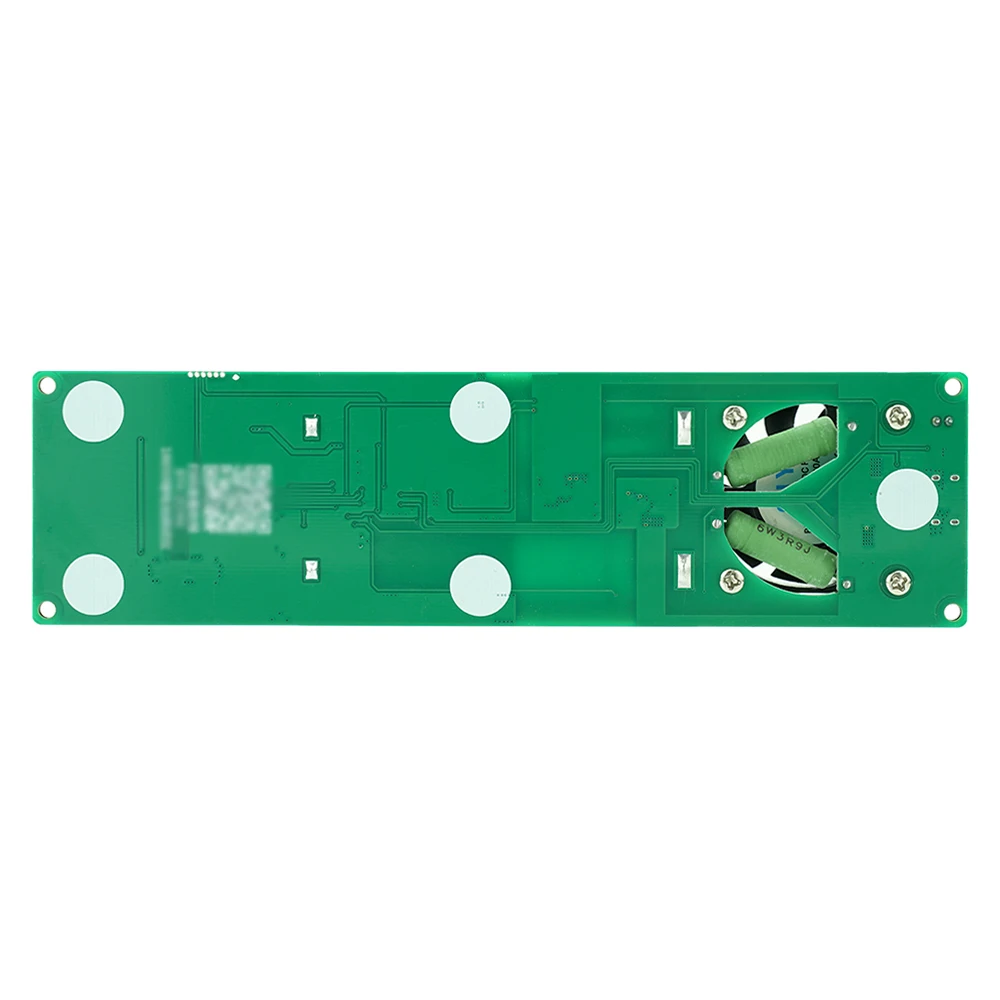

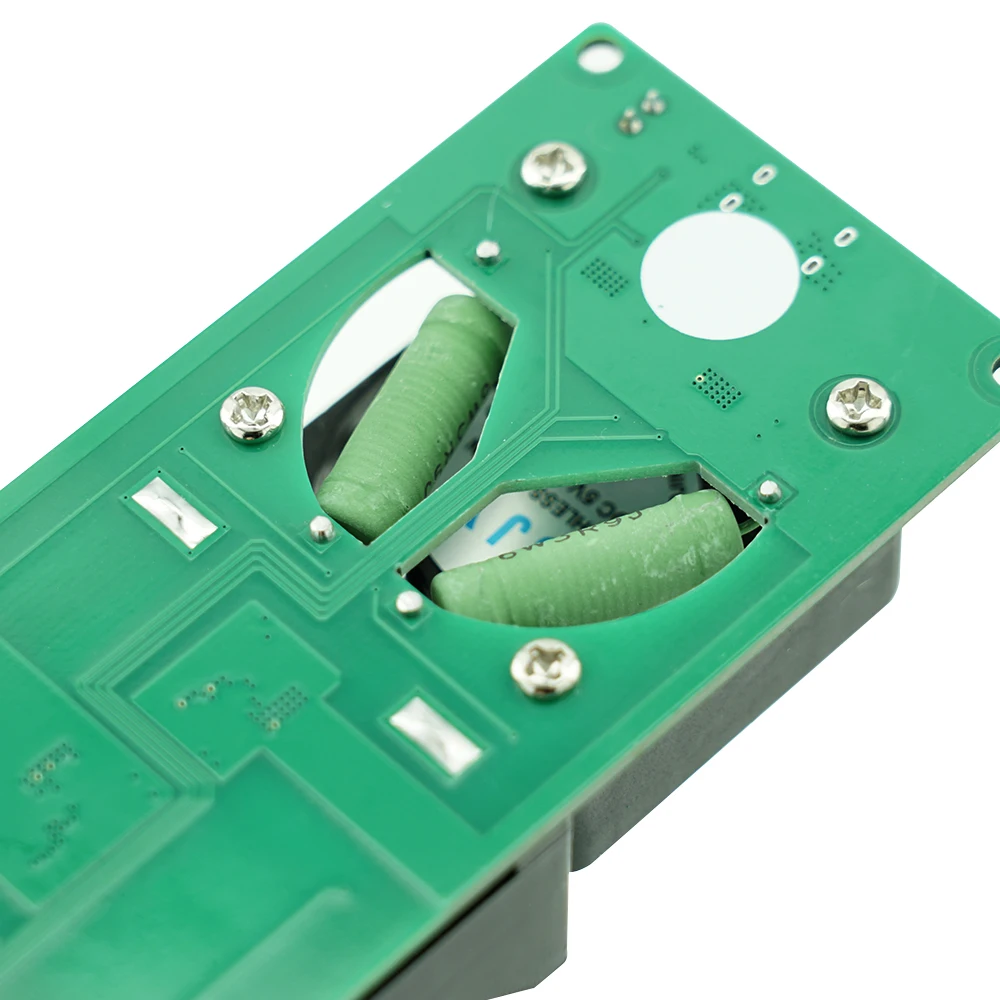

The capacity test requires discharge and waiting time. The capacity test is performed through resistor discharge. The resistor generates high temperature during discharge. Do not touch it directly with your hands to avoid burns. The capacity test result is only the capacity measured from the start of battery discharge to the trigger stop during the test phase
7. Battery capacity division and cycle:
Capacity division and cycle is a process of charging, discharging and recharging. The stop voltage cannot be lower than 2.8V during use, otherwise it cannot be charged and the program cannot run normally
8. Data reset:
Shut down, switch mode, capacity, energy, time data automatically reset
Package list:
18650 battery capacity internal resistance tester X1
