2.66 inch High-Res 4-Color E-Ink Industrial-Grade E-Paper Module 360×184 SPI Ultra-Thin Low Power 12s Refresh

Name: 2.66 inch High-Res 4-Color E-Ink Industrial-Grade E-Paper Module 360x184 SPI Ultra-Thin Low Power 12s Refresh
SKU: 1005009549160716
Availability: InStock

Price range: $10.90 through $23.90

Size

Clear

Add to compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

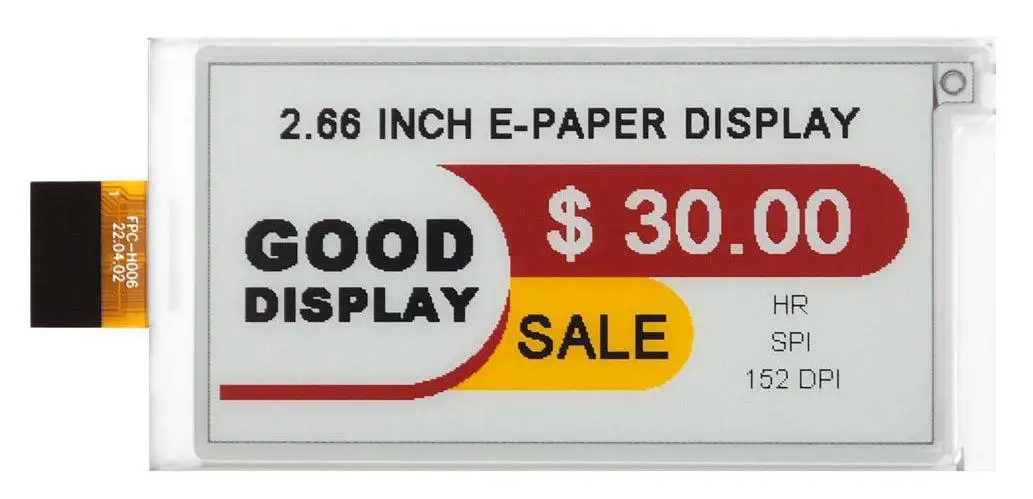

	2.66″ 4-Color E-Ink Display Transform smart labels, industrial HMIs, and portable IoT devices with ultra-low-power color. This 2.66″ E Ink module delivers 12s refresh speeds, 0.003mW sleep power, and crisp R/Y/B/W visuals at 152 DPI – all via SPI integration. Engineered for reliability where energy and readability matter most.

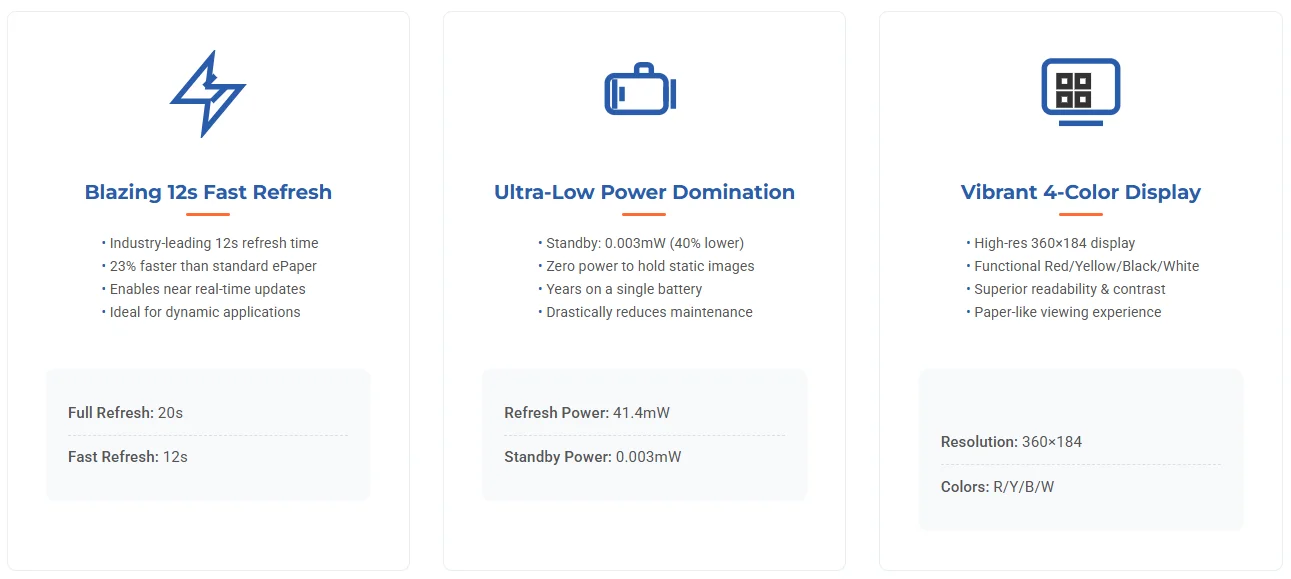

Core Advantages

Technical Details

Product Specifications

PART NUMBER	GDEM0266F52H
TYPE	Dot Matrix
SIZE	2.66 inch
IC	JD79667
RESOLUTION	360×184
PPI	152

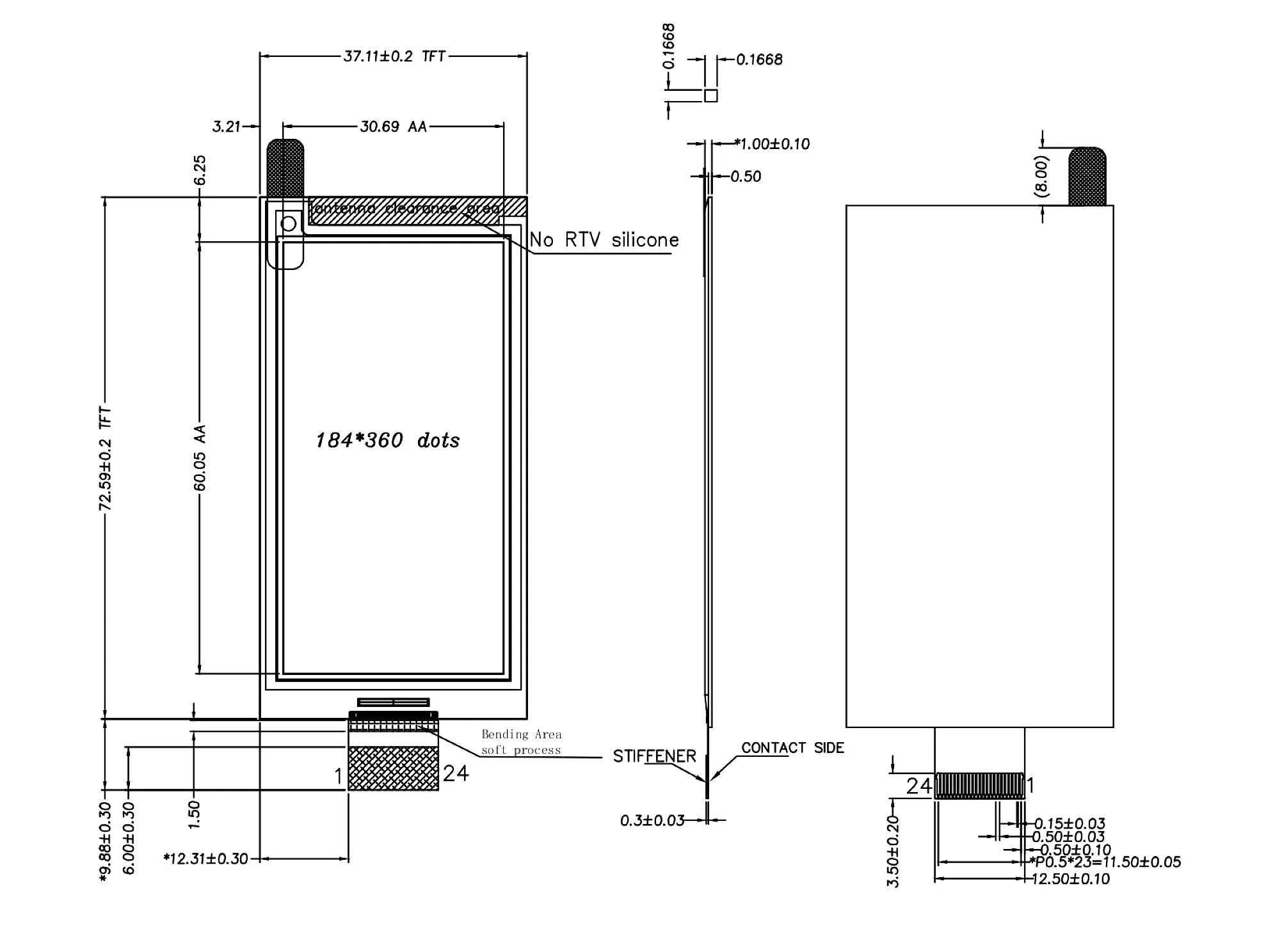

OUTLINE SIZE(mm)	72.59×37.11×1.0
ACTIVE SIZE(mm)	60.05×30.69
PIXEL PITCH(mm)	0.1668×0.1668
OPERATING TEMP	0℃~40℃
STORAGE TEMP	-25℃~70℃
CONNECTOR	24 Pin 0.5mm
COLOR	Black, White, Red, Yellow
INTERFACE	SPI
FULL REFRESH(s)	20
FAST REFRESH(s)	12
POWER CONSUMPTION OF THE REFRESH(mW)	18.48
STANDBY POWER CONSUMPTION (mW)	0.003
