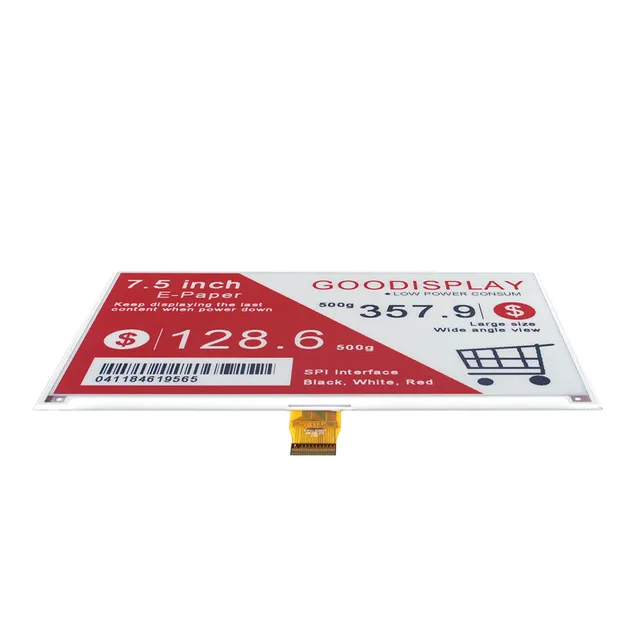

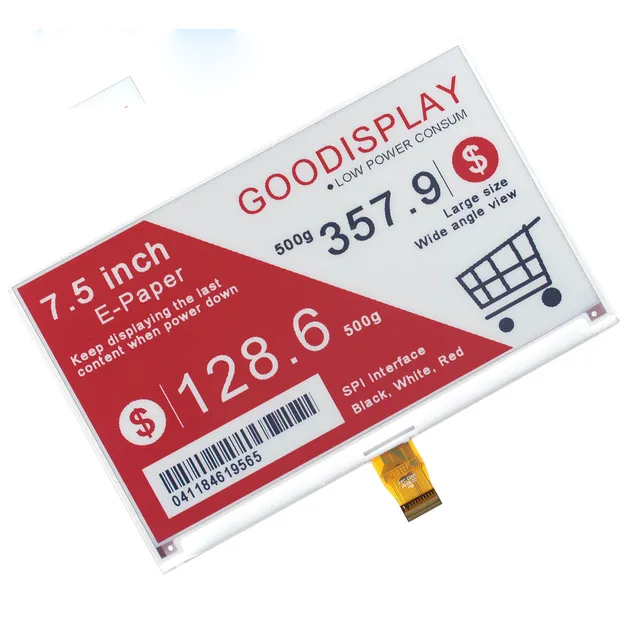

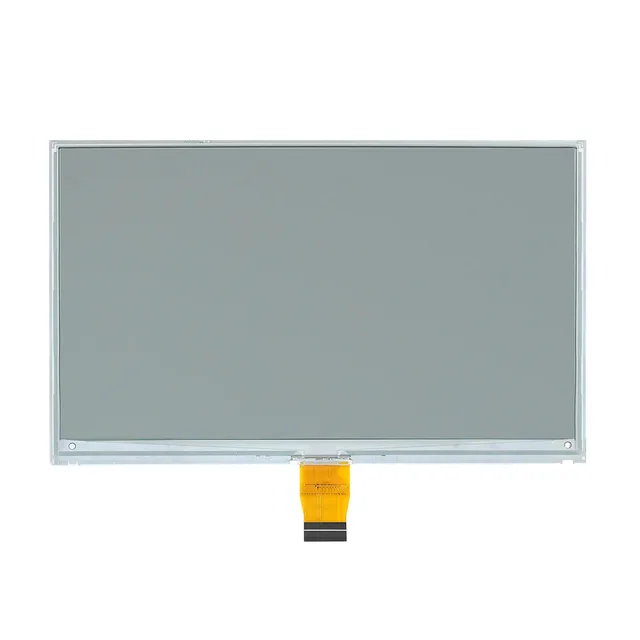

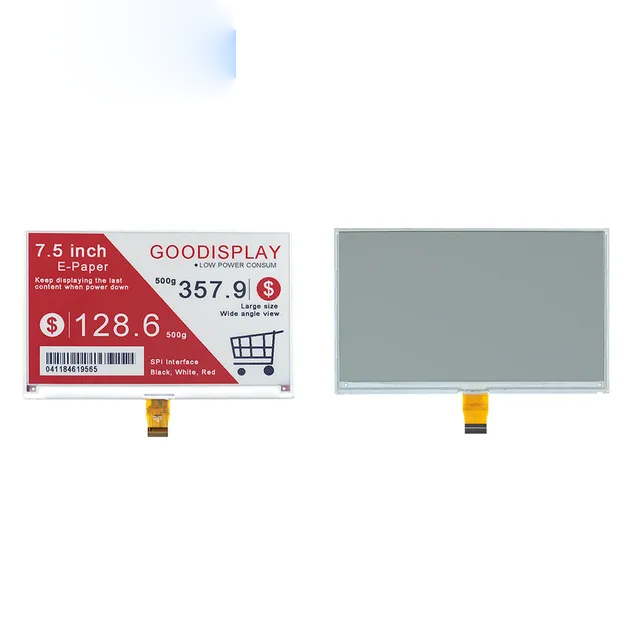

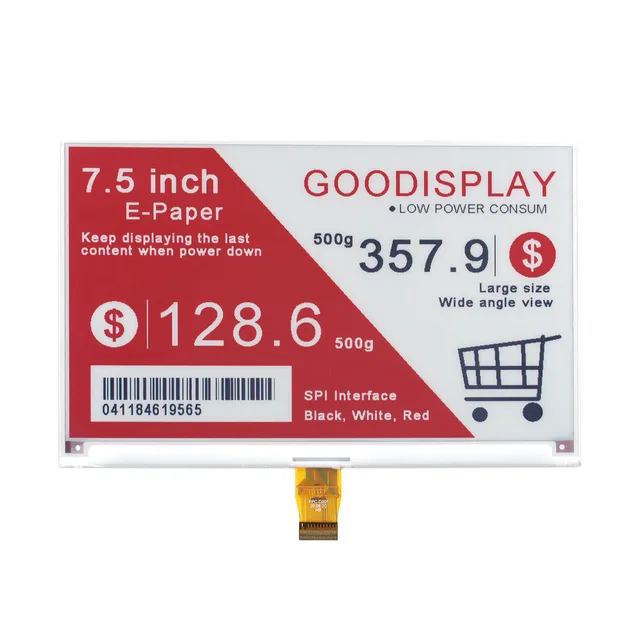

7.5 inch Red Electronic Paper Display |
||||
| This 7.5-inch color e-paper display is like a patient artist, elegantly depicting masterpieces with black, white, and red hues. Remarkably, it requires no power to preserve its creations, allowing them to be displayed indefinitely. Whether used as a digital price tag for smart retail or a minimalist electronic bulletin board, this screen’s low-power characteristics unlock endless possibilities. The best part? Even when the world falls silent, its vibrant images remain, as if softly saying, “I’ll always be here, waiting for you to return. |
Special Features |
||
| ● 800×480 High-Definition Resolution: Unveil the mysteries behind crystal-clear imagery ! Every pixel shines brilliantly, ensuring a viewing experience beyond compare! ● Lightning-Fast Partial Refresh: Experience speed like never before! Updates in just 1.3s, keeping you in sync with the latest information at all times, without missing a beat! ● Long-Term Supply Guarantee: Uninterrupted stability that lasts a lifetime! Promises long-term availability, accompanying you every step of the way towards success, steadfast and reliable! ● Energy-Efficient and Eco-Friendly: Harness the power of green energy! Consumes zero energy when idle, showcasing your content while caring for the future of our planet! |
||
| Technical Details |
|
|
Product Specifications

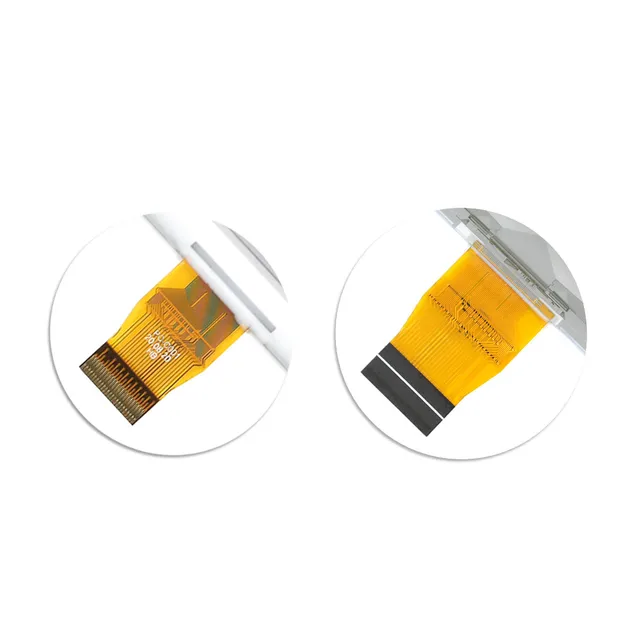

| PART NUMBER | GDEY075Z08 | CONNECTOR | 24 PIN 0.5mm |
| TYPE | Dot Matrix | COLOR | Black, White, Red |
| SIZE | 7.5 inch | INTERFACE | SPI |
| IC | UC8179 | MAX GRAYSCALE | 2 |
| RESOLUTION | 800×480 | FULL UPDATE TIME(s) | 18 |
| DPI | 124.39 | FAST REFRESH TIME(s) | 12 |

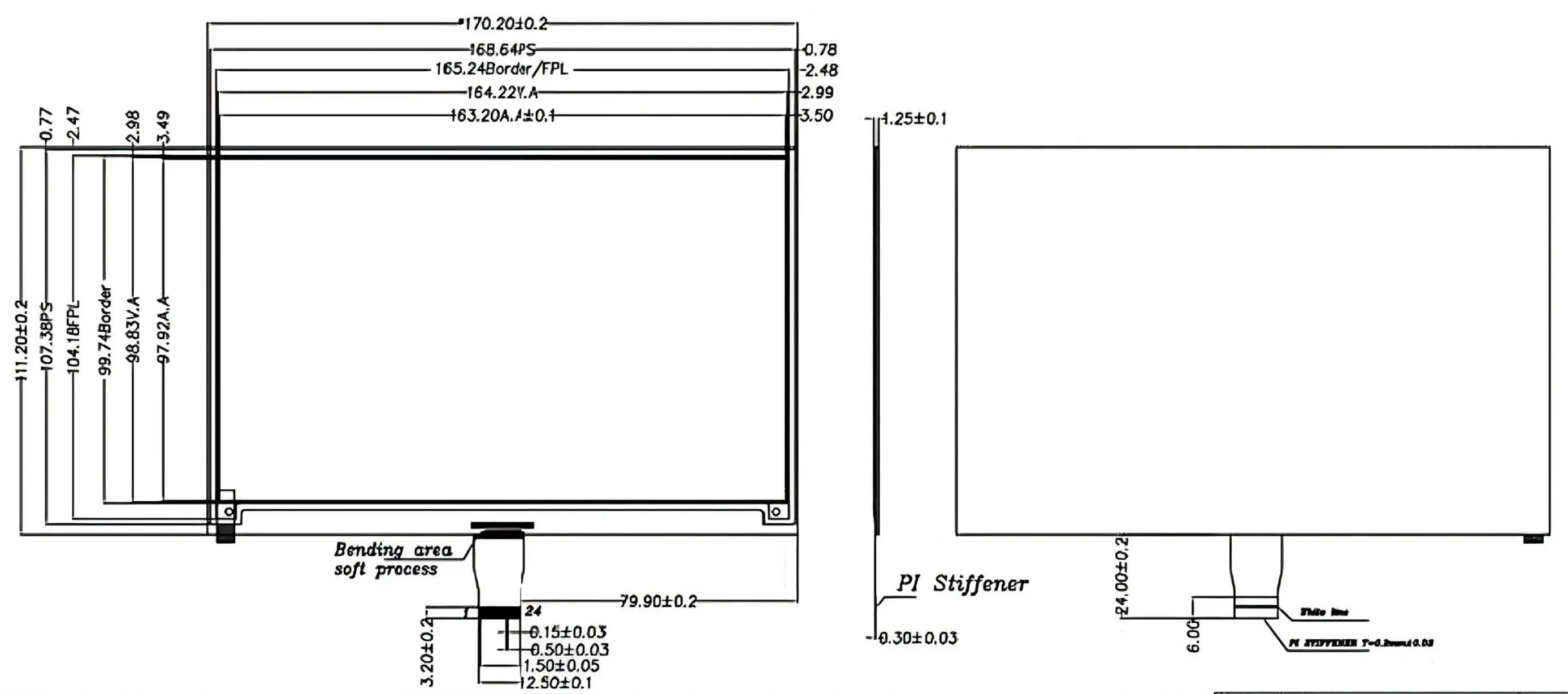

| OUTLINE SIZE(mm) | 170.2×111.2×1.25 | PARTIAL REFRESH TIME(s) | 1.5 |
| ACTIVE SIZE(mm) | 163.2×97.72 | FAST REFRESH TIME(s) | 33.3 |
| PIXEL PITCH(mm) | 0.204×0.204 | STANDBY POWER CONSUMPTION (mW) | 0.0165 |
| OPERATING TEMP. | 0℃~40℃ | STORAGE TEMP. | -25℃~70℃ |
Product Application |
|||
 |
 |
 |
 |

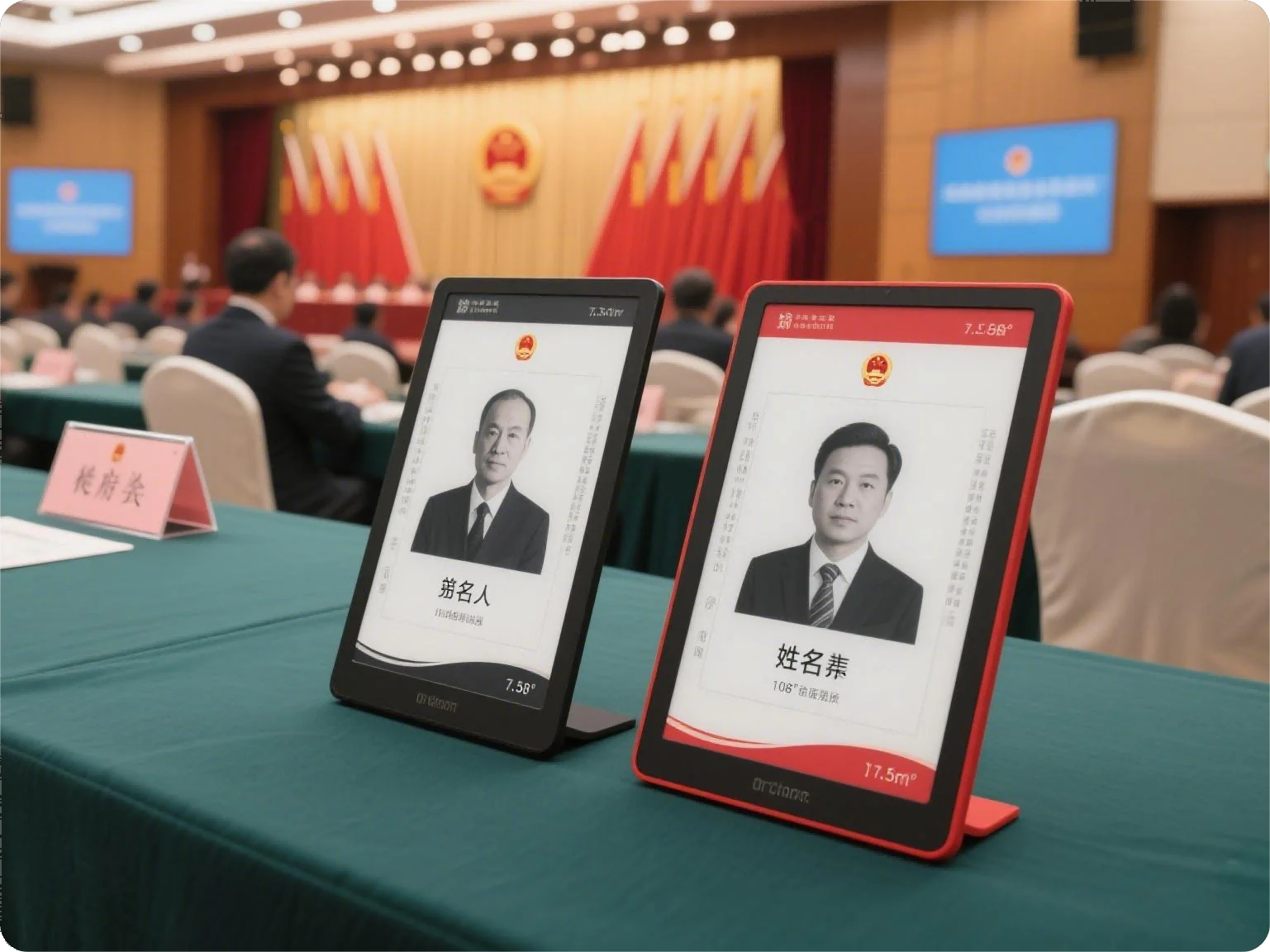

Electronic Table Name Plates |
Workstation Name Plates |
Teaching Display Boards |
Industrial Field |
