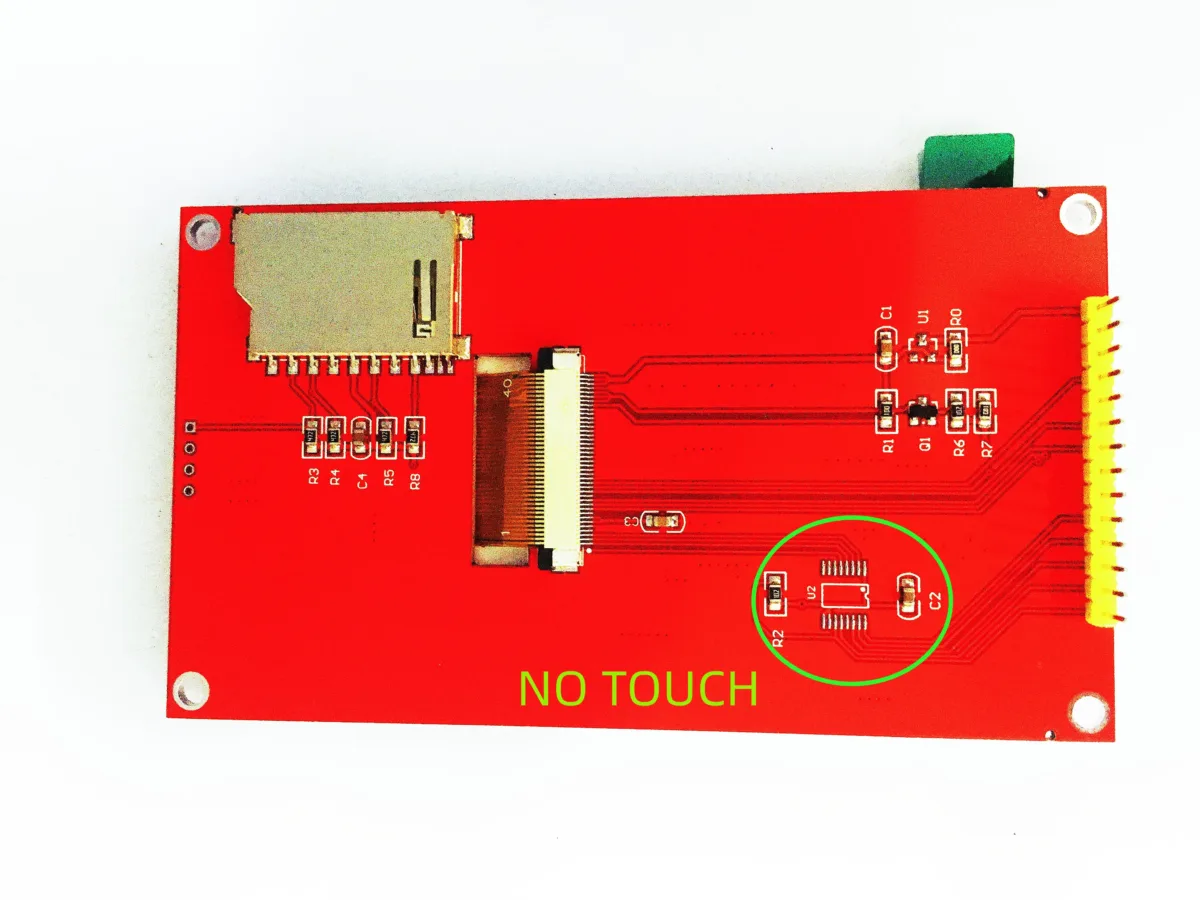

4.0-inch color screen, supporting 65K color display, displaying rich colors.
480X320 HD resolution, optional touch function
Using SPI serial bus, it only takes a few IO to light up the display.
Convenient expansion experiment with SD card slot
Provides a wealth of sample programs
Military-grade process standards, long-term stable work
Provide technical support for underlying drivers.
- Resolution:480*320
- Drive ic:ili9488
- Interface:mcu i8080 8bit/16bit,spi-3wire/4-wire
- Pin spacing:0.5mm
- Connect type:40 pin plug in /socket
- Voltage:3.3v
- Display mode:transmissive
- Display format:graphic 320rgb*480 dot-matrix
- Input data:3line-spi/line-spi/8bit/16bit interface
- Viewing direction:12 o’clock
- Drive:ili9488

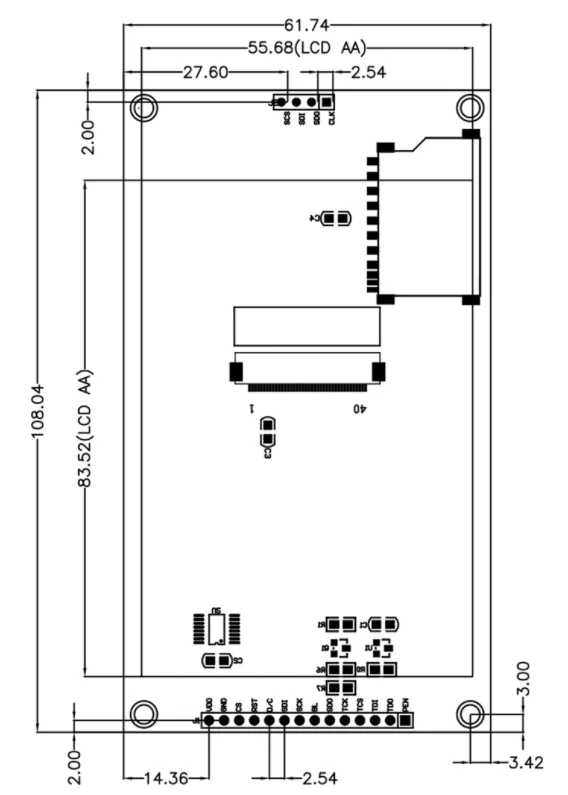

Interface definition:
Serial number label pin description
1VCC power input (3.3V~5V)
2GND power supply ground
3CSLCD film selection
4RESETLCD reset
5DCLCD bus command/data selection
6 SDI (MoSi) LCD SPI display bus data input
7SCKLCD SPI display bus clock signal
8LEDLCD backlight control (high level lighting)
9 SDO (MISO) LCD SPI display bus data input and output.
10 t _ clk SPI bus clock signal of touch panel
Chip selection of SPI bus for 11 t _ cs touch panel
12 t _ din touch panel SPI bus data input
13 t _ do touch panel SPI bus data output
14 t _ IRQ touch panel interrupts IRQ signal.
