- Type: High Voltage Power Module
- Key Word: 60KV Voltage Doubler Generator
- Dropship: Support
Feature

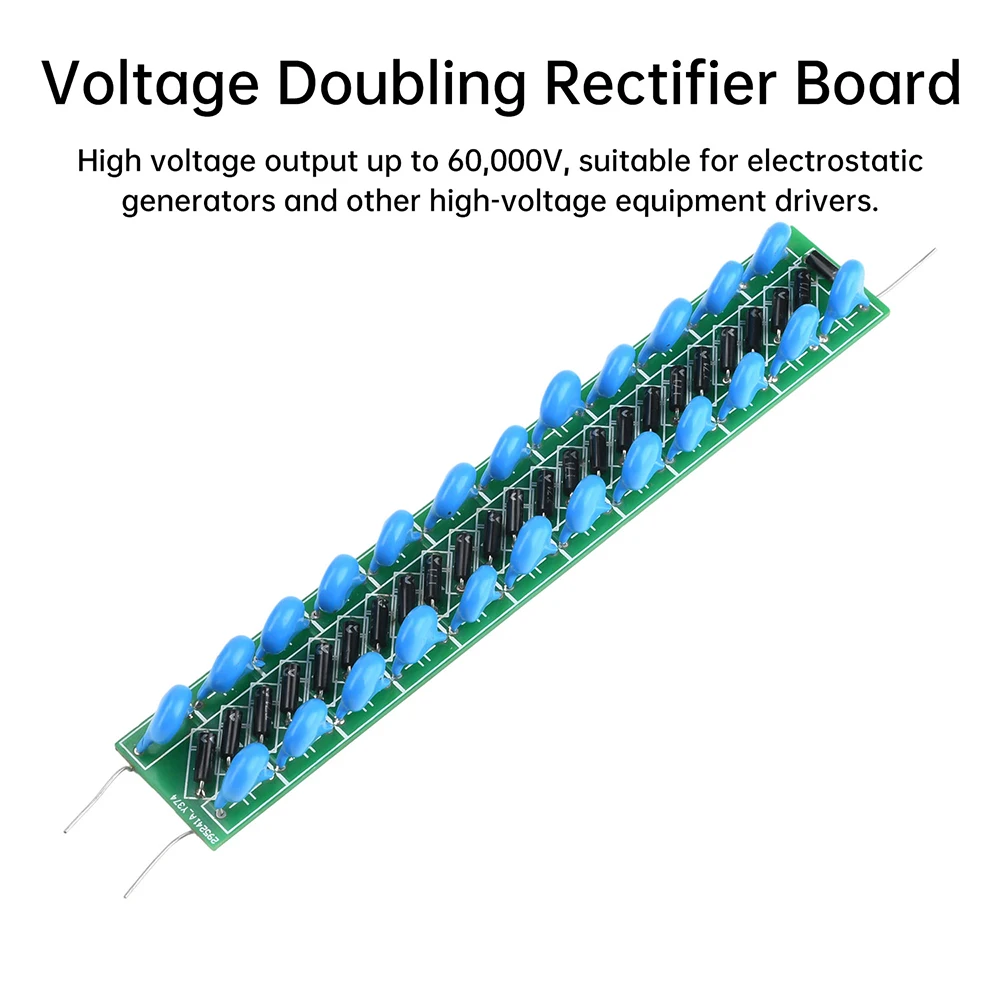

1. High voltage output reaches 60000V, suitable for driving various high voltage equipment such as electrostatic generators

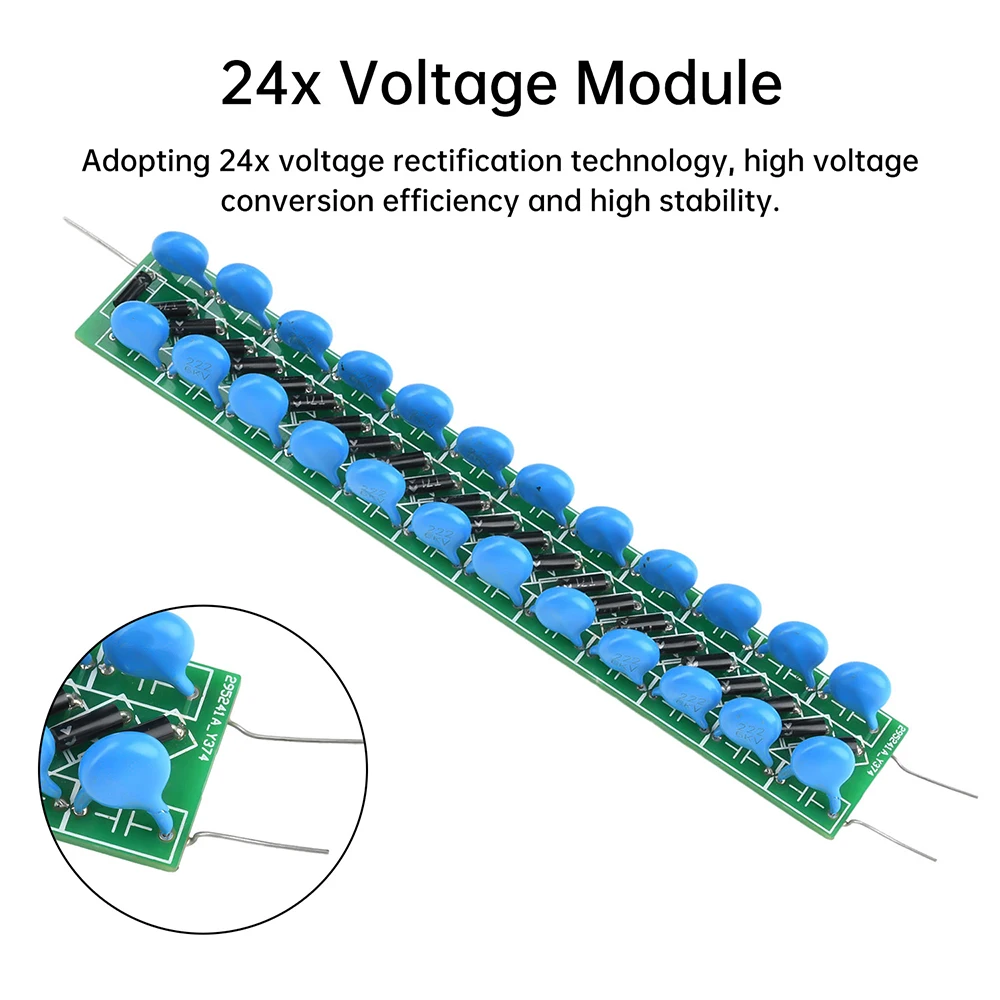

2. Adopting 24 times voltage rectification technology, the voltage conversion efficiency is high and the stability is strong
3. Compact structure, modular design, easy to integrate, install and maintain
4. Support multiple input voltage ranges, strong adaptability and wide application

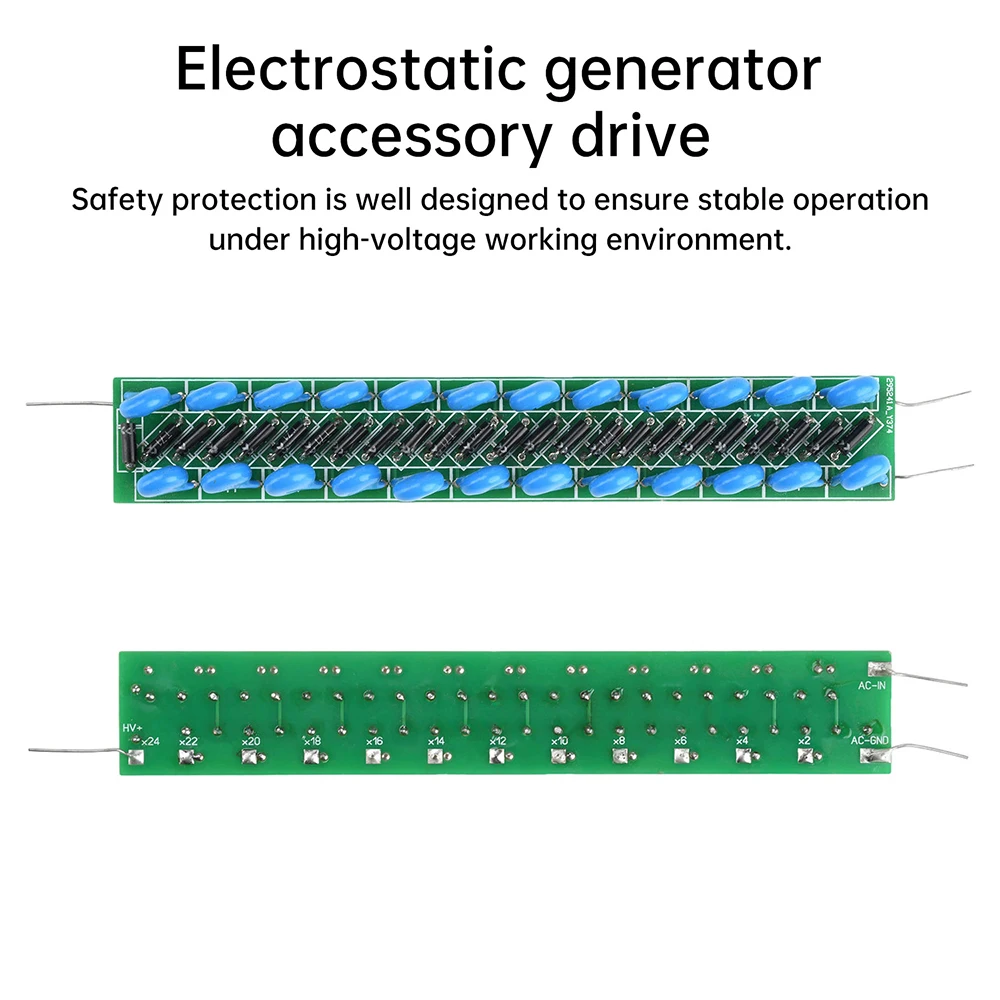

5. Perfect safety protection design to ensure stable operation under high voltage working environment

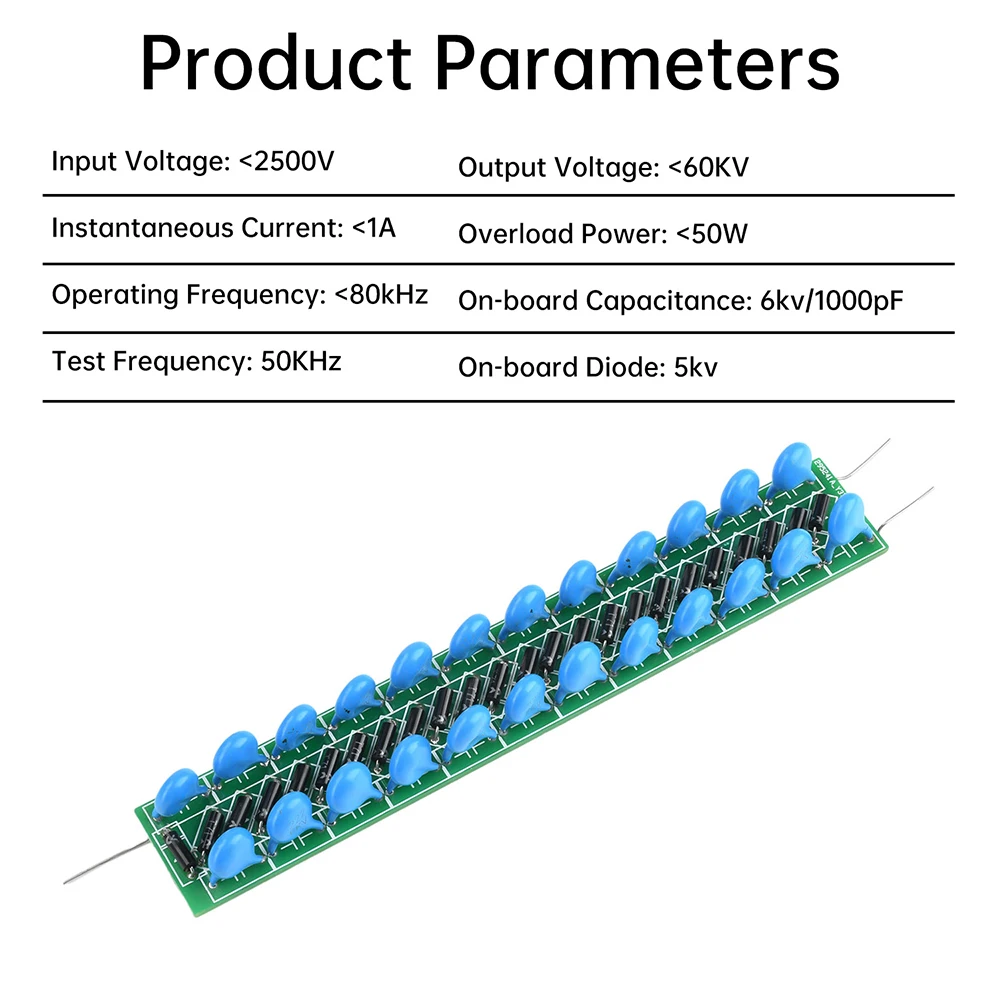

Product parameters:
Input voltage: <2500V
Instantaneous current: <1A
Operating frequency: <80kHz
Test frequency: 50KHz
Output voltage: <60KV
Overload power: <50W
Onboard capacitor: 6kv/1000pF
Onboard diode: 5kv
Warm reminder:

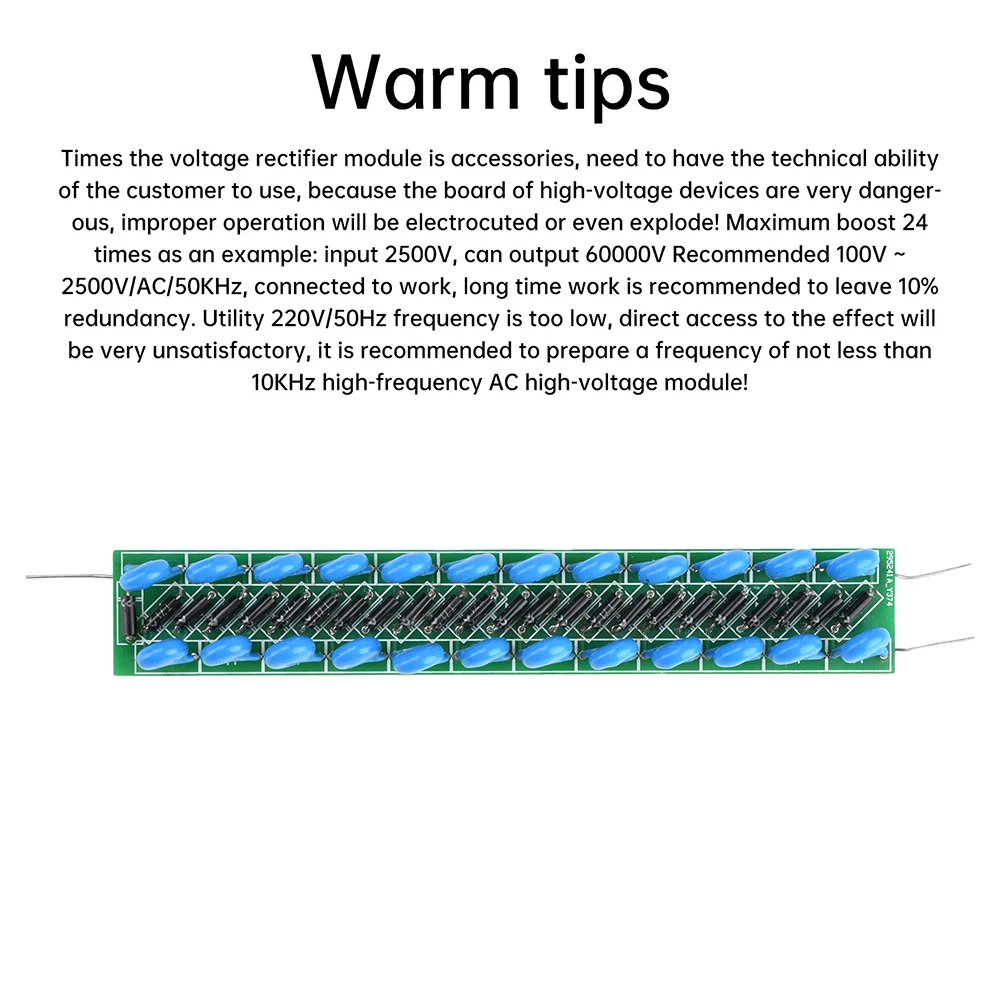

The voltage doubler rectifier module is an accessory and needs to be used by customers with technical capabilities, because the high voltage devices on the board are very dangerous, and improper operation will cause electric shock or even explosion!
The maximum voltage boost is 24 times. For example, if the input is 2500V, the output can be 60000V.
It is recommended to use 100V~2500V/AC/50KHz. It can work after connecting. It is recommended to leave 10% redundancy for long-term work. The frequency of the mains 220V/50Hz is too low. The effect of direct connection will be very unsatisfactory. It is recommended to prepare a high-frequency AC high-voltage module with a frequency not less than 10KHz.
Package list
Voltage doubler module*1
