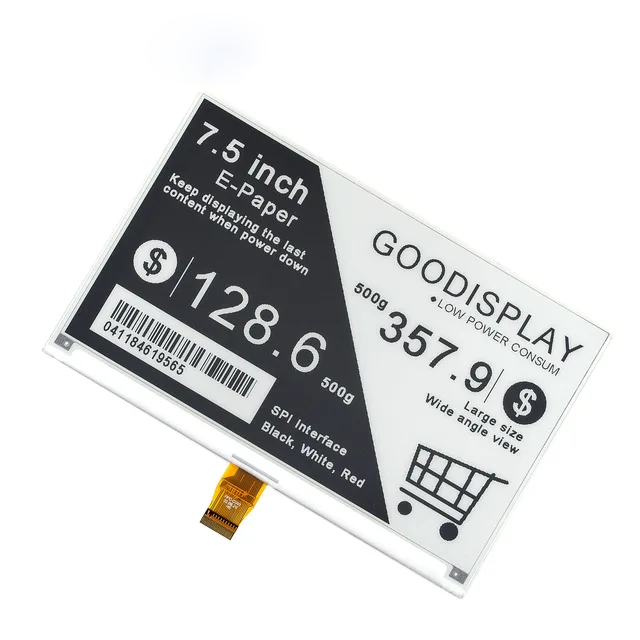

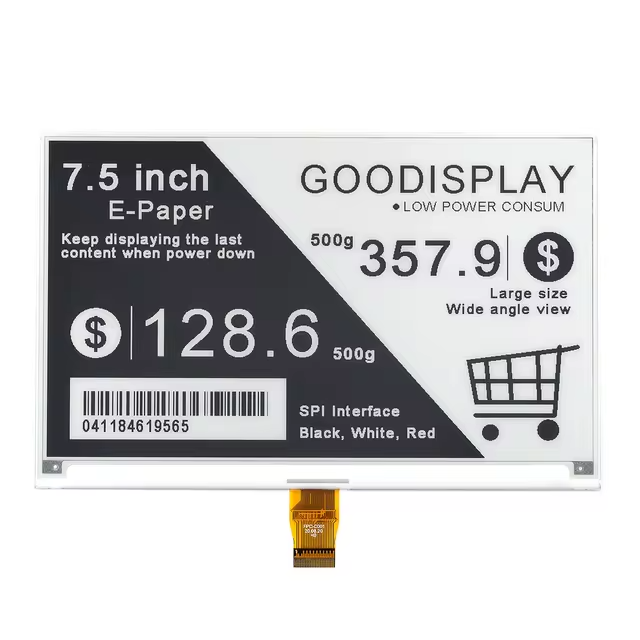

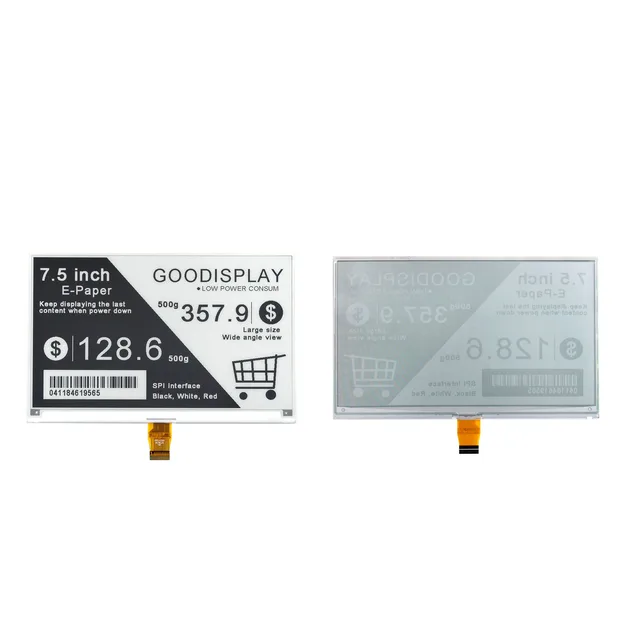

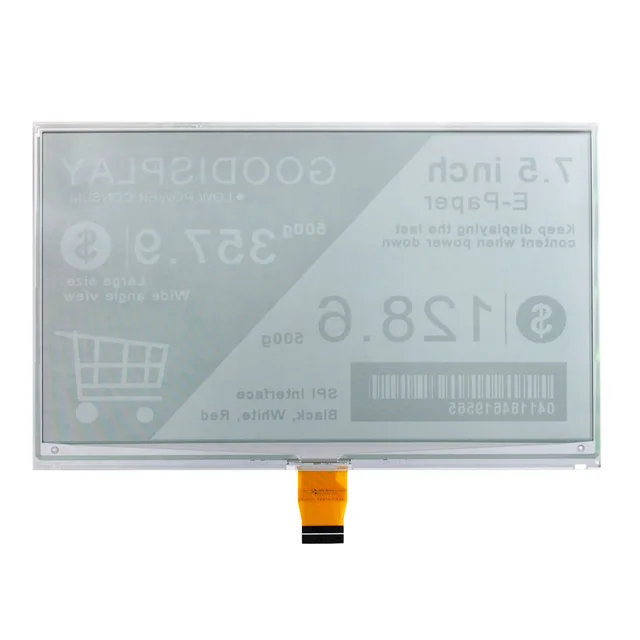

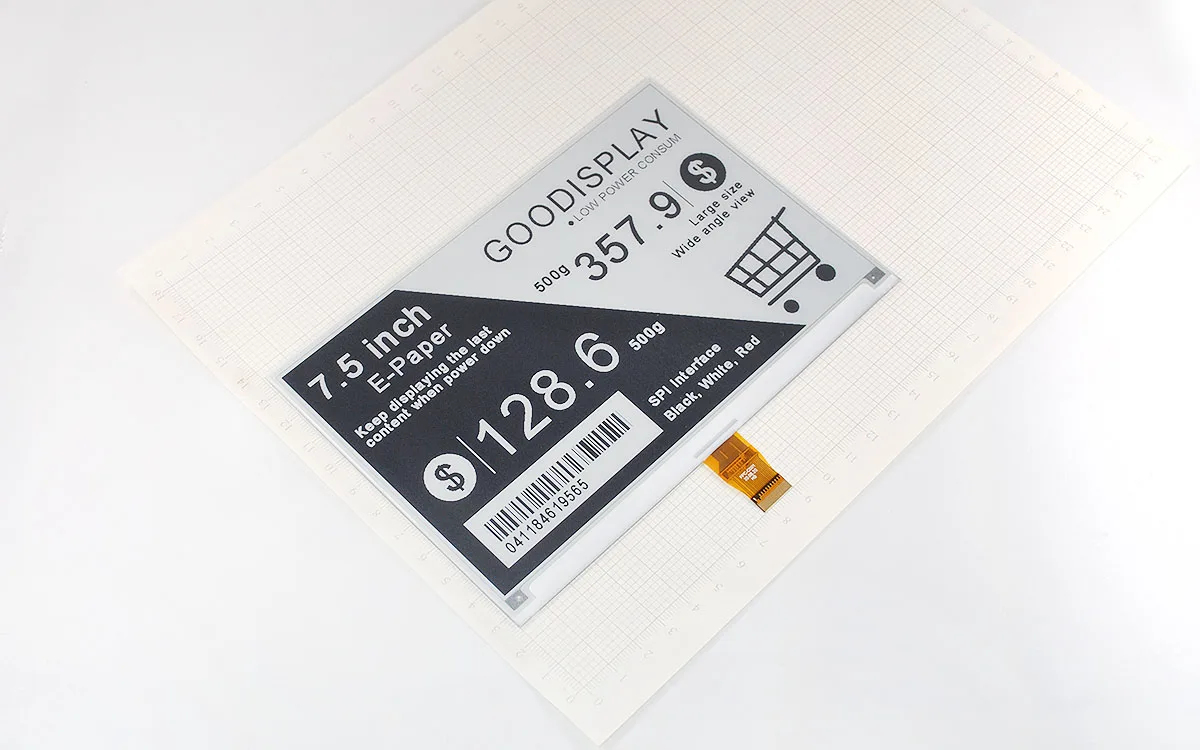

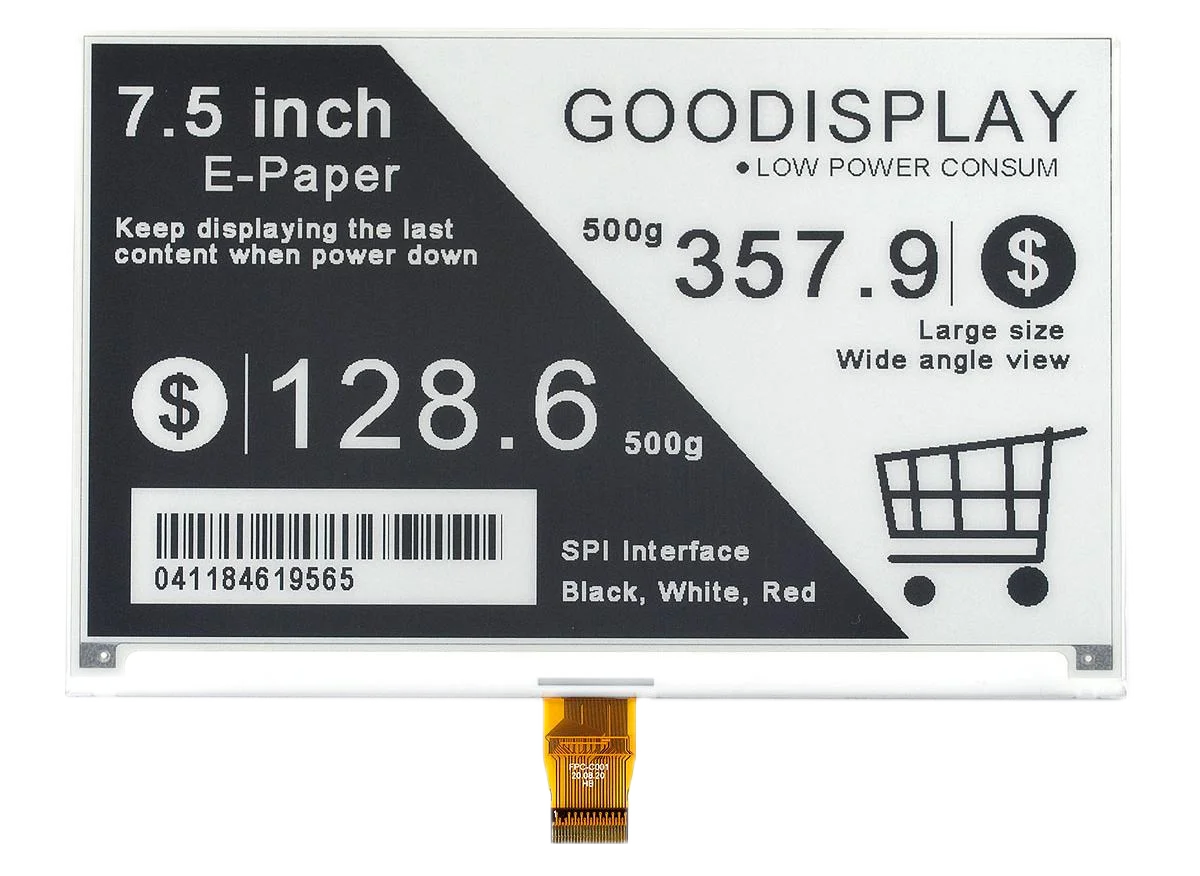

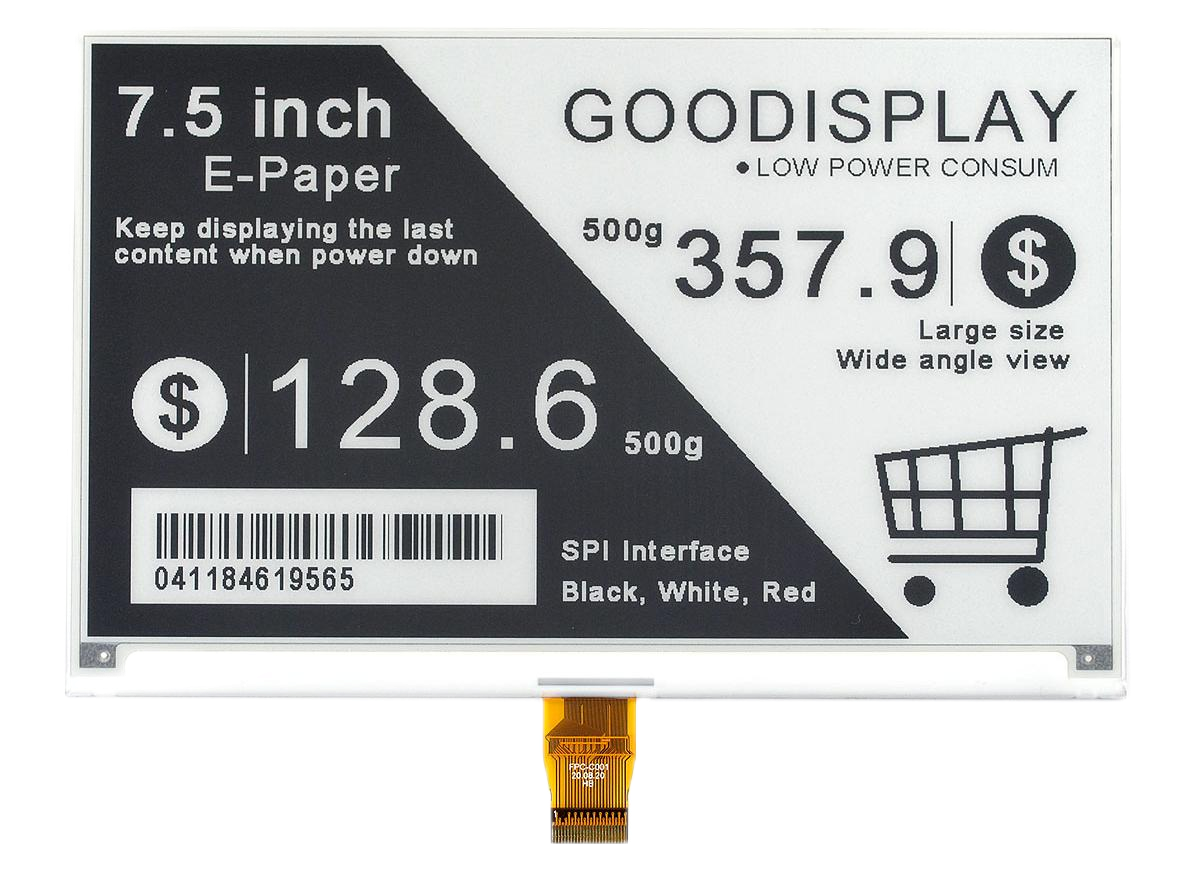

7.5 inch E-Paper Screen Module 4-Grayscale 800×480 E-Ink Display HAT 1.5s Fast Refresh SPI Interface

Name: 7.5 inch E-Paper Screen Module 4-Grayscale 800x480 E-Ink Display HAT 1.5s Fast Refresh SPI Interface
SKU: 1005002870223620
Availability: InStock

Price range: $45.90 through $66.80

Size

Clear

Add to compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

7.5″ E Ink Display

With an 800×480 resolution, wide 170° viewing angle, and bistable technology, it retains content without power—ideal for smart homes, digital price tags, and industrial instruments. Eye-friendly with no blue light, it offers versatile refresh modes and customization options to suit any low-power application.
Need customization? Add a touch screen, protective enclosure, or stylish cover plate to make it uniquely yours.

Key Features

Versatile Refresh Modes, Quick Response

Versatile Refresh Modes, Quick Response: Full refresh 3s, and fast refresh 1.5s to meet various application needs.

Ultra-Low Power, Persistent Display

Minimal energy consumption with content that remains visible even when powered off.

Eye-Friendly & Anti-Glare

Zero blue light, radiation-free for extended comfortable use. Hard-coated anti-glare surface ensures clear visibility in bright light.

Technical Details

Product Specifications

PART NUMBER	GDEY075T7
TYPE	Dot Matrix
SIZE	7.5 inch
IC	UC8179
RESOLUTION	800×480
PPI	124.39

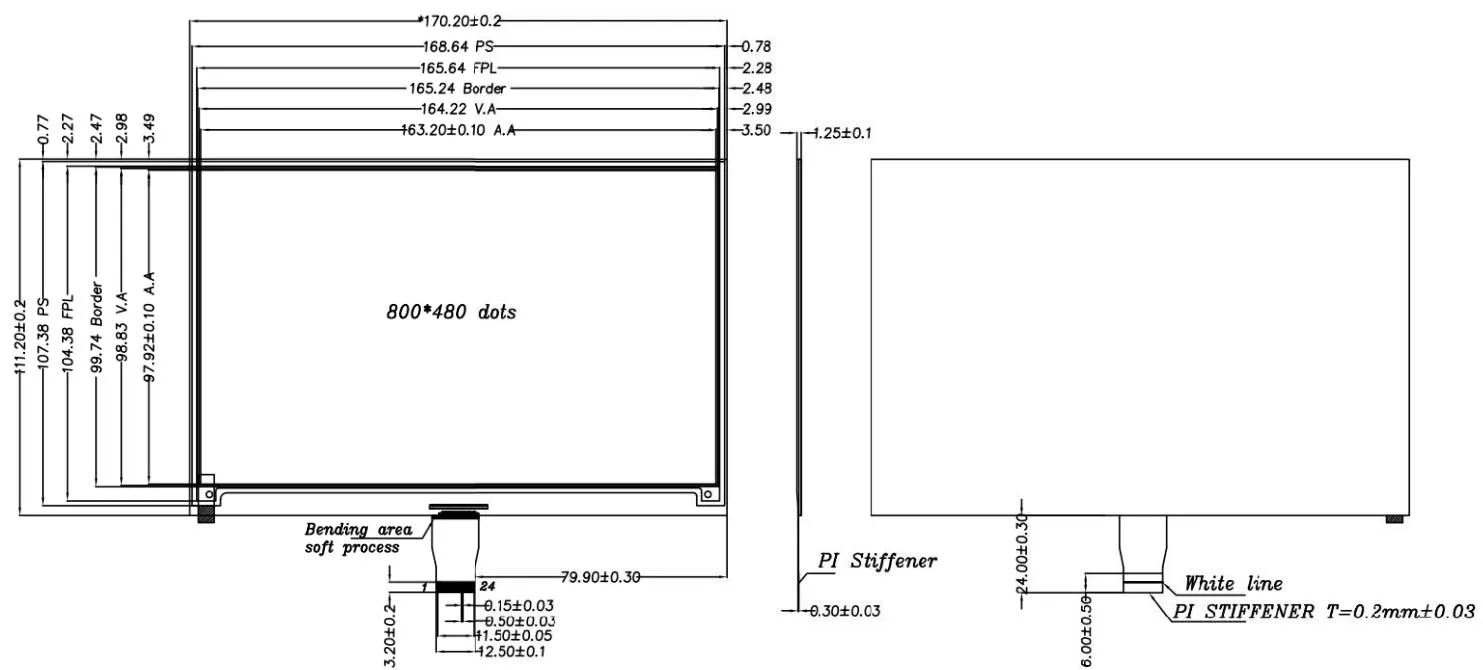

OUTLINE SIZE(mm)	170.2×111.2×1.25
ACTIVE SIZE(mm)	163.2×97.72
PIXEL PITCH(mm)	0.204×0.204
OPERATING TEMP.	0℃~50℃
STORAGE TEMP.	-25℃~70℃

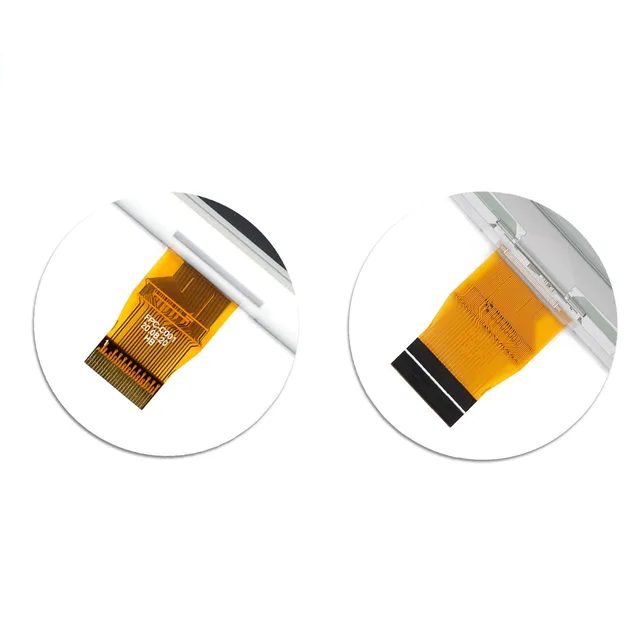

CONNECTOR	24 Pin FPC
INTERFACE	SPI
FULL REFRESH TIME(s)	3
FAST REFRESH(s)	1.5
POWER CONSUMPTION OF THE REFRESH(mW)	26.4
STANDBY POWER CONSUMPTION (mW)	0.0165

Typical Applications

Electronic Price Tags	Electronic Whiteboards and Interactive Learning	Warehousing and Logistics Sorting Labels	Health Monitoring Auxiliary Screen
