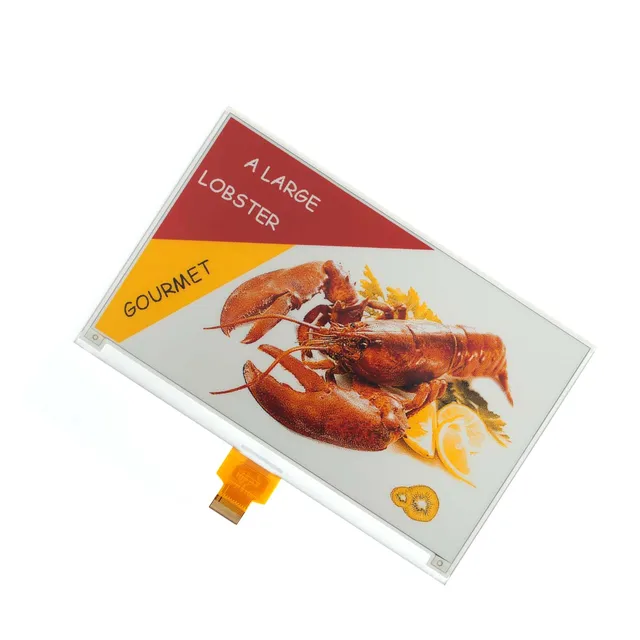

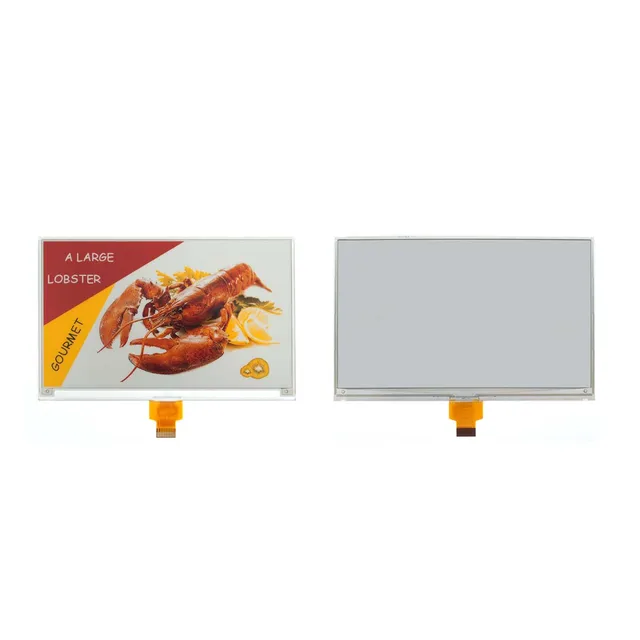

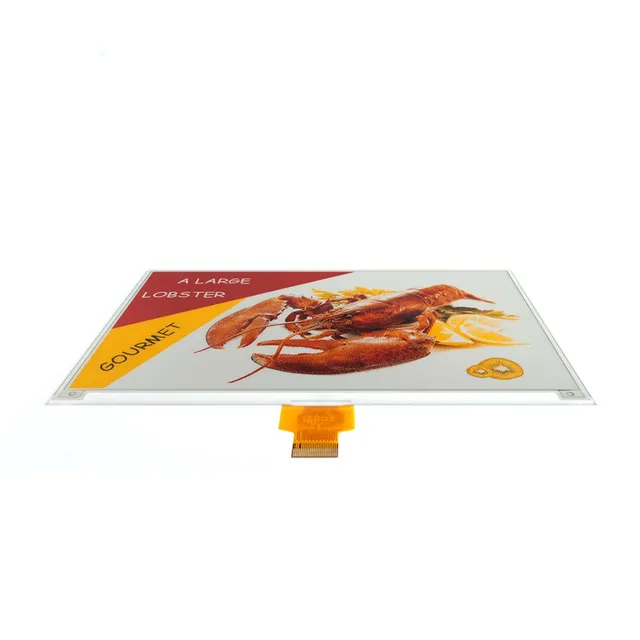

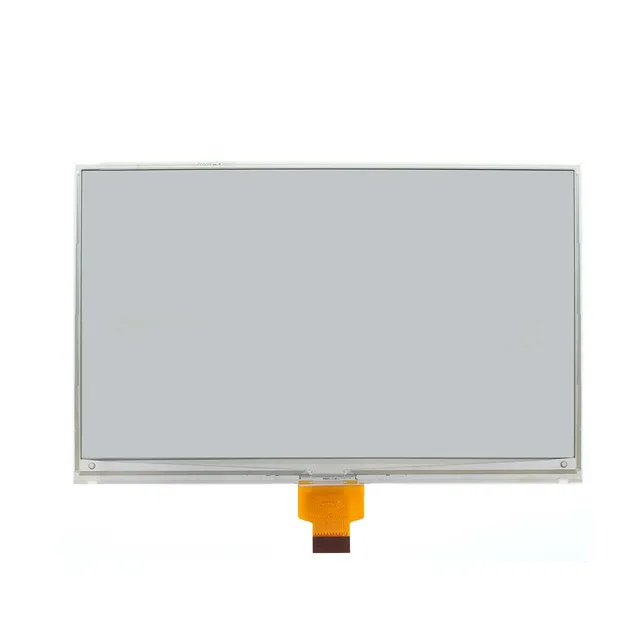

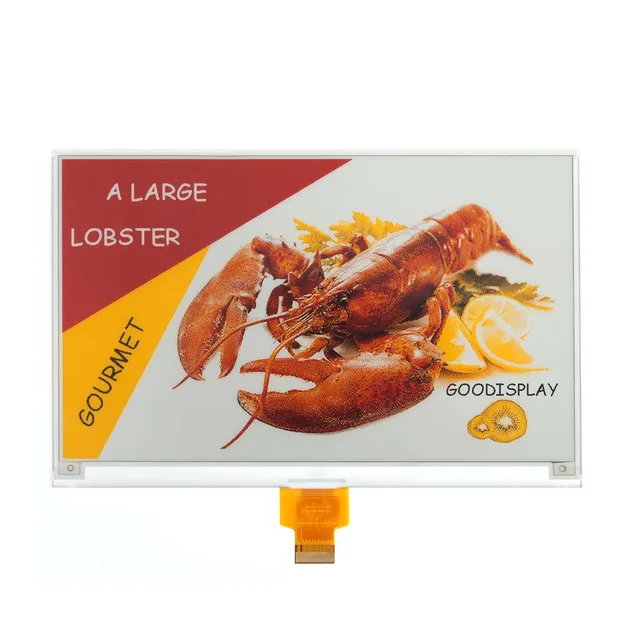

7.5 Inch Four-Color E-Paper Display Module Customized E-Ink SPI Screen 800×480 with Black White Yellow & Red

Price range: $45.90 through $68.90

Guaranteed Safe Checkout

Features & Compatibility

7.5-inch Four-color E Ink Display (SPI Interface) 800×480 Resolution

This 7.5-inch four-color E Ink display is not just a screen—it’s a fascinating fusion of vision and technology. With a high resolution of 800×480 and support for black, white, red, and yellow, it brings your content to life with vibrant clarity. Whether for reading, presentations, or creative design, it delivers a unique visual experience like no other.

Special Features

   ● Four-Color Magic: Black, white, red, and yellow combine to break the monotony of traditional E Ink displays, making your content more expressive.
● Zero Power Consumption: It only uses power when refreshing, consuming zero energy during static display—truly the pinnacle of energy efficiency.
● Eye Protection: No blue light, no radiation, making it perfect for long reading sessions or extended work hours.
● Anti-Glare Toughness: Hard-coated surface ensures excellent anti-glare performance, offering clear visibility even under bright light.
● Power-Off Memory: Bistable display technology retains content even after power loss, so your information stays intact.

Technical Details

Product Specifications

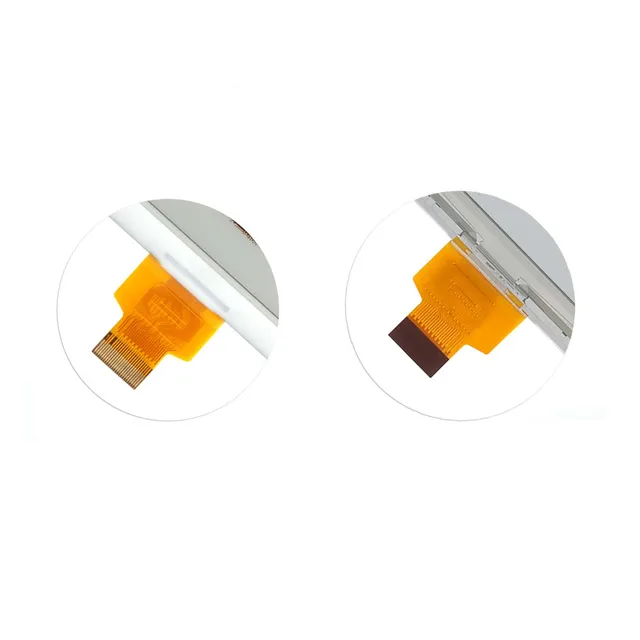

PART NUMBER GDEM075F52 CONNECTOR 24 PIN
SIZE 7.5 inch COLOR Black, White, Red, Yellow
TYPE Dot Matrix MAX GRAYSCALE 2
IC JD79665AA FULL REFRESH TIME(s) 22
PPI 124.39 FAST REFRESH TIME(s) 12
RESOLUTION 800×480 POWER CONSUMPTION OF THE REFRESH(mW) 75
OUTLINE SIZE(mm) 170.2×111.2×1.20 STANDBY POWER CONSUMPTION (mW) 0.003
ACTIVE SIZE(mm) 163.2×97.92 OPERATING TEMP. 0℃~40℃
PIXEL PITCH(mm) 0.204×0.204 STORAGE TEMP. -25℃~70℃
INTERFACE SPI

Product Application

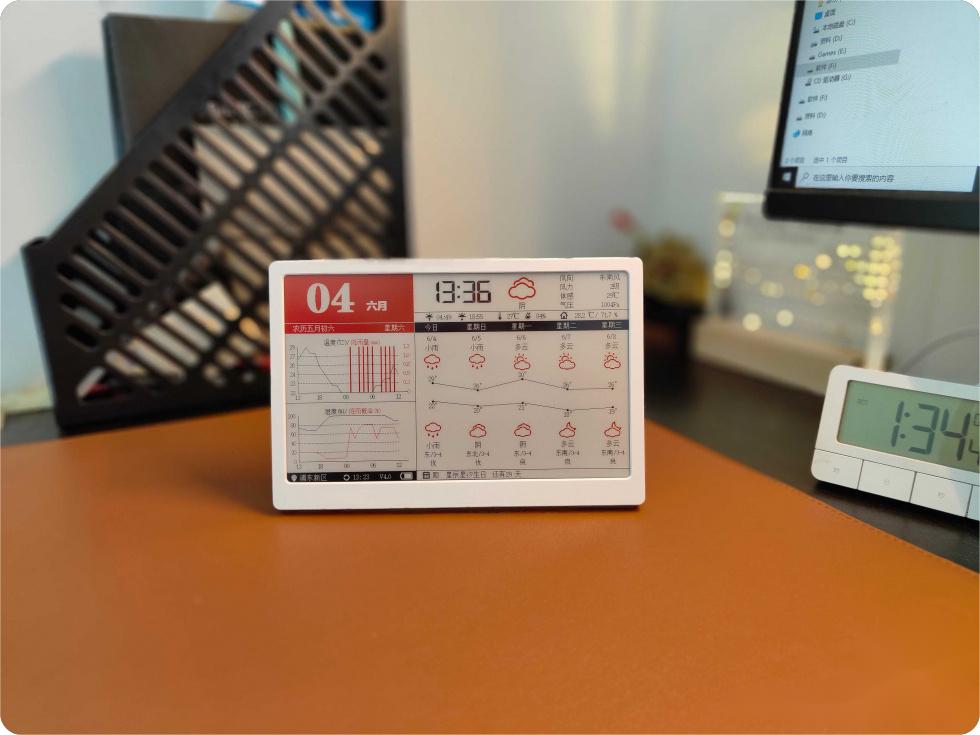

Smart home applications

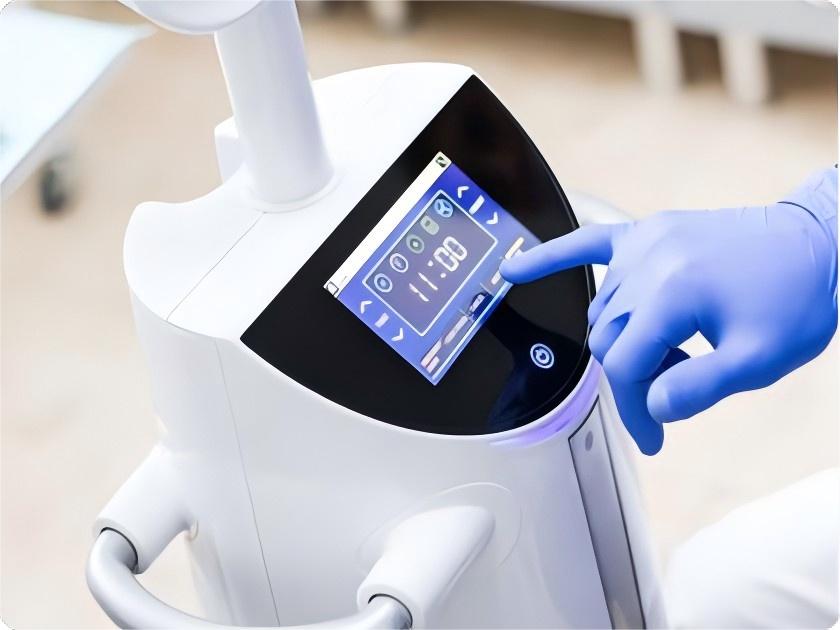

Medical Equipment

Industrial instruments

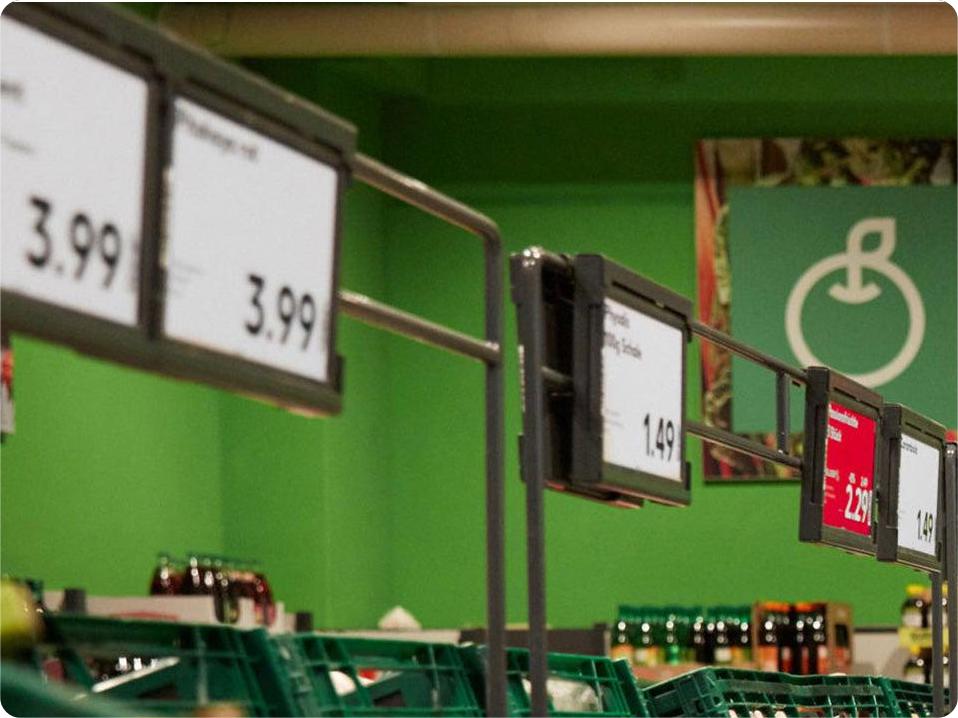

Shelf signs
