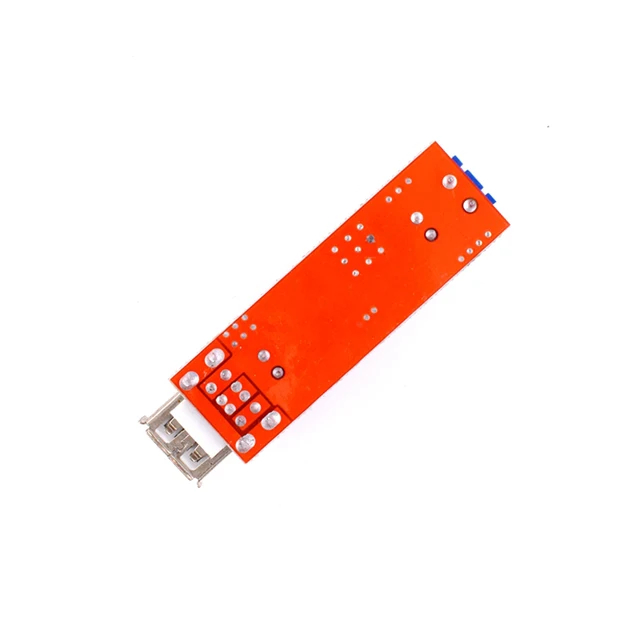

This product is a power module that can convert the power supply into a USB interface for output, which can be understood as a high-frequency buck switching regulator. The onboard chip is equipped with an integrated low internal resistance high-voltage power MOSFET, with a conversion efficiency of up to 92%. It can provide a peak output current of 3A, control fast loop response, and is easy to compensate. There are two USB ports for output, which can simultaneously power two peripherals within the performance range of the module.
Product characteristics
Input: DC 6V-40V
Output: DC 5V/3A（MAX）
Efficiency: 92% (MAX)
Switching frequency: 150KHZ
Working temperature:- 40℃-+85℃
Load capacity: Maximum output 3A
Scope of application: USB 5V powered devices such as power banks, mobile phones, tablets, etc
