ESP32-S3 Pico Development Board ESP32-S3R2 dual-core 2.4GHz WiFi BTLE5 CH343/CH334 chip Internet of Things 2MB PSRAM 16MB Flash

   Overview

• The ESP32-S3-Pico is a low-cost, high-performance microcontroller development board with a compact size and rich peripheral interfaces.

• Adopts ESP32-S3R2 as the main chip, which is an MCU chip with integrated 2.4 GHz Wi-Fi and Bluetooth 5 (LE).

• The interface chips are CH343 and CH334, so you can experience the fun of USB and UART development with a single USB-C port, and no more trouble switching interfaces.

• The DC-DC chip adopts MP28164, a high-efficiency buck-boost chip, which adopts PWM fixed-frequency current control mode to optimize circuit stability and response speed.

• You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.

   Features

• Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz

• Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB Flash memory

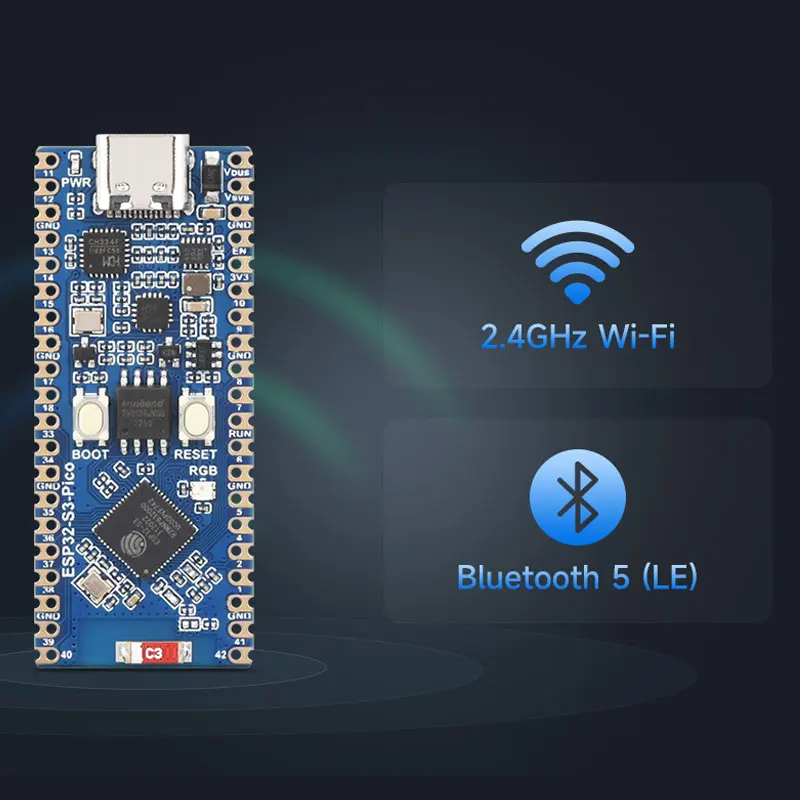

• Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.

• Type-C connector, easier to use

• Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface

• Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A

• 27 × multi-function GPIO pins

• Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-bit ~ 16-bit camera interface), LCD interfaces (8-bit ~ 16-bit parallel RGB, I8080, MOTO6800), etc. to achieve various functions flexibly

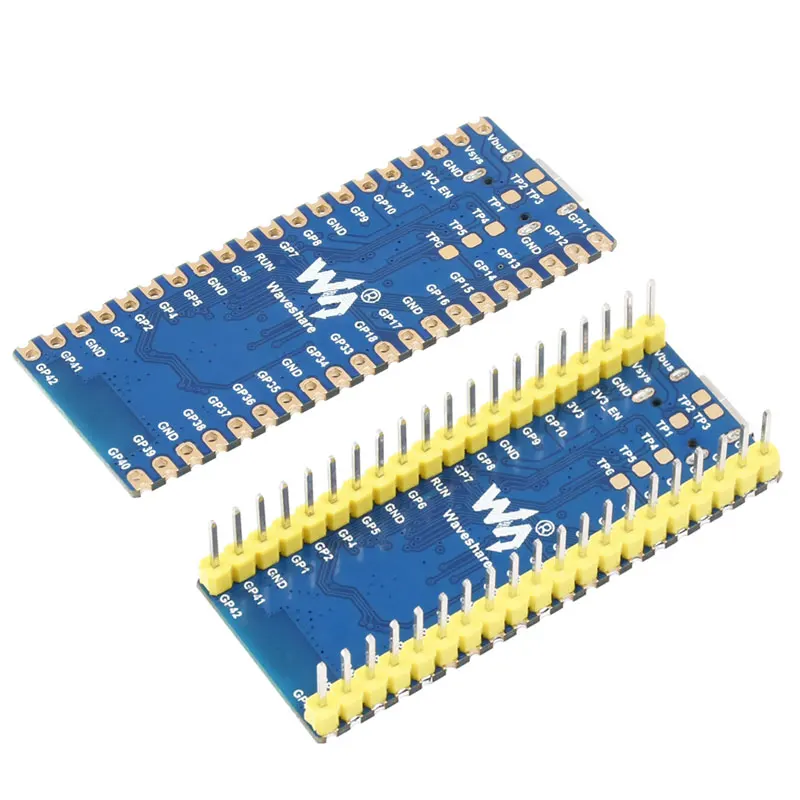

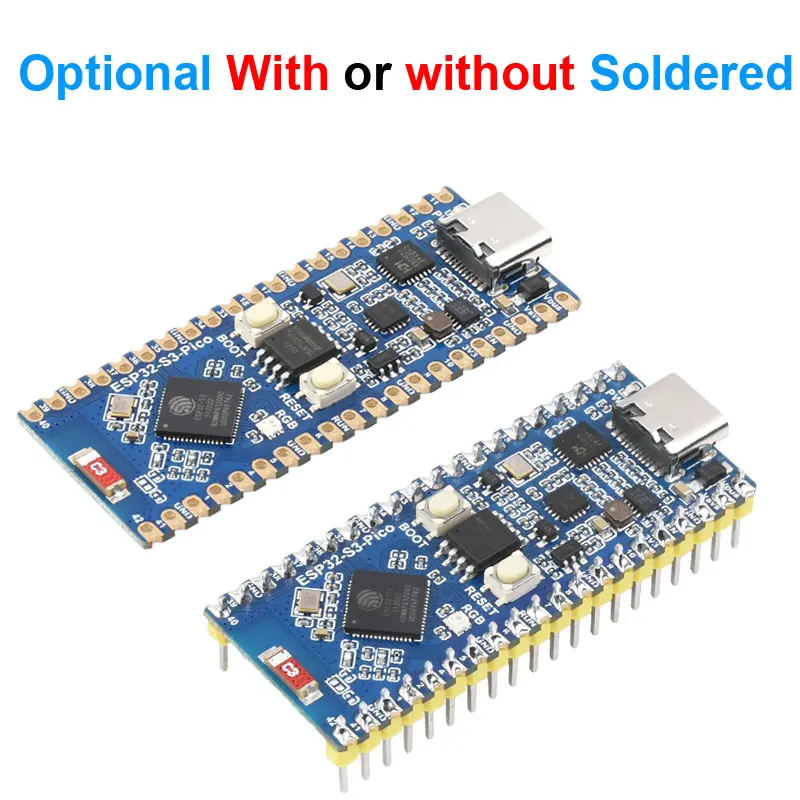

• Castellated module allows soldering directly to carrier boards

• Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

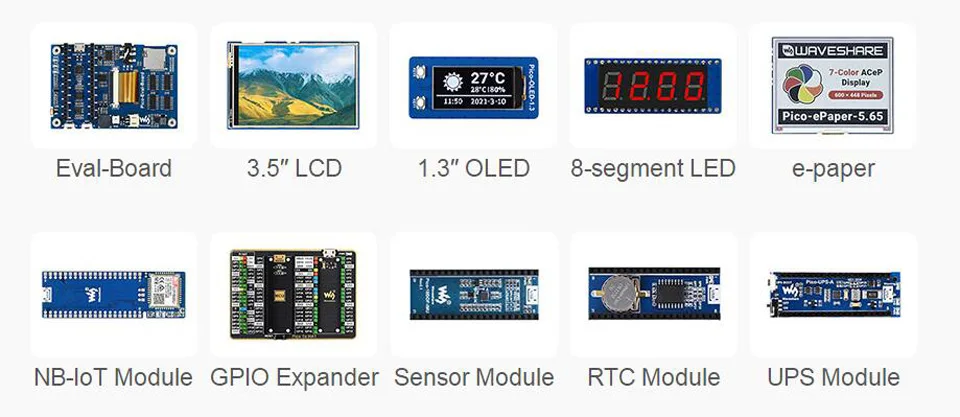

• Supports Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz

Powerful AI Computing Capability & Reliable Security Features

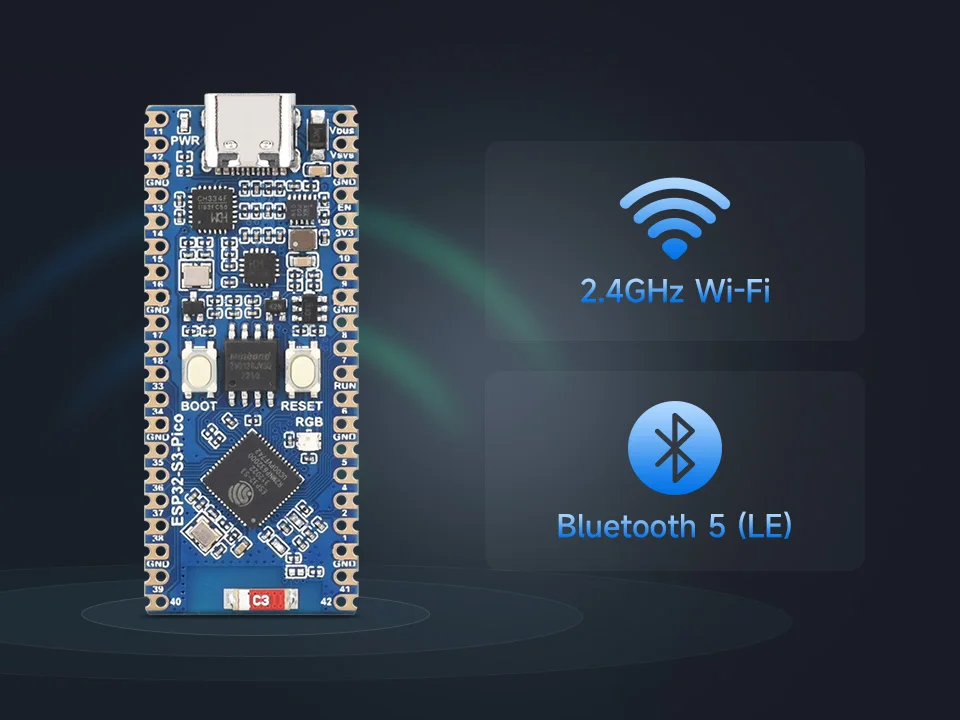

ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support

Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

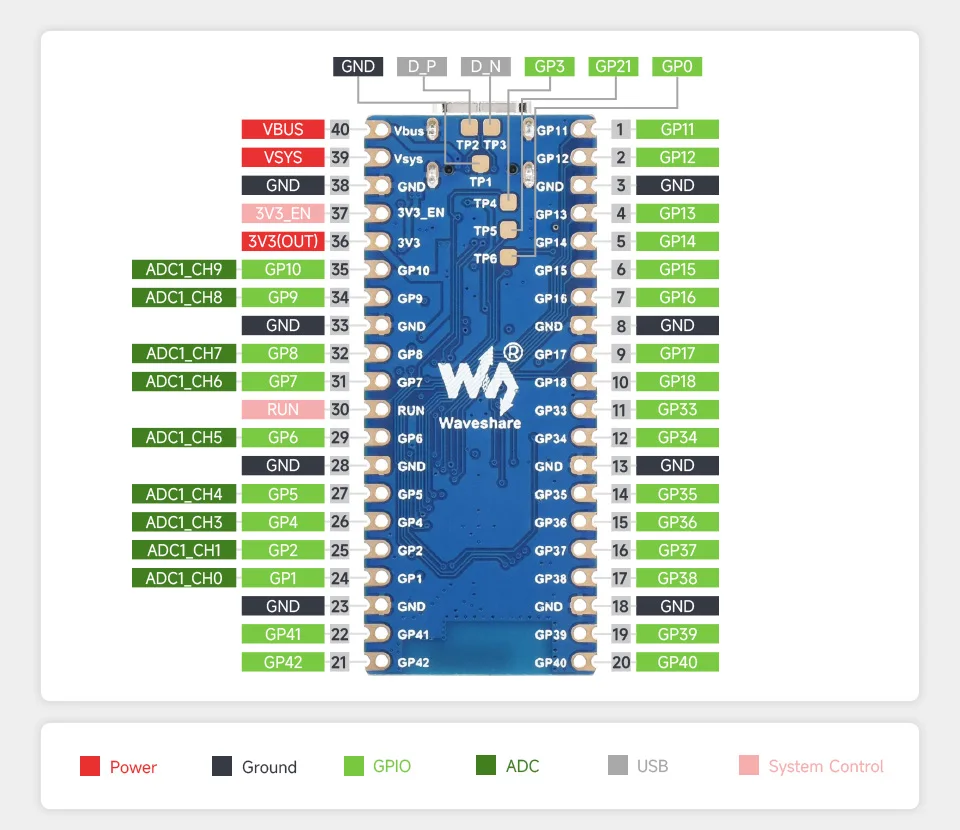

Configurable Pin Function, Allows Flexible Development And Integration

Note: SPI, I2C, UART and other interfaces can be mapped to most GPIOs through the GPIO Matrix and IO MUX, see the ESP32-S3 datasheet for details.
