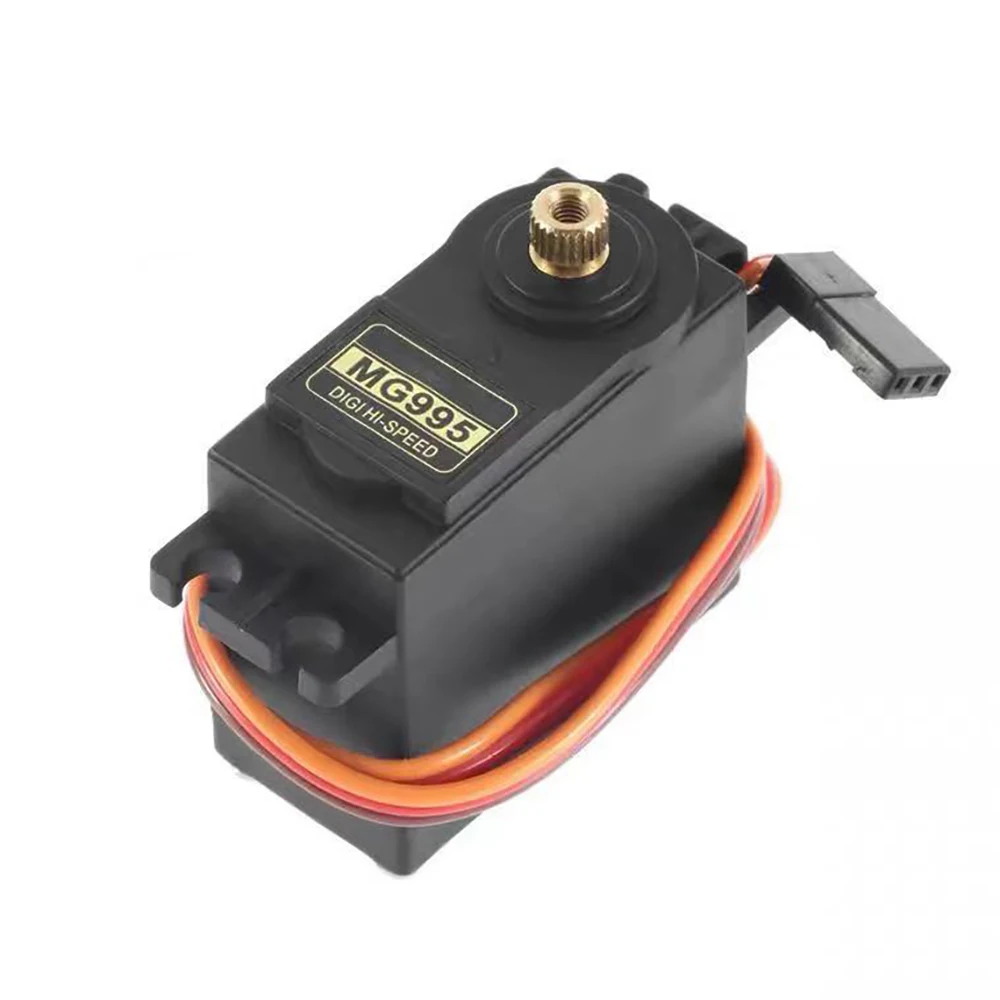

MG995 Servo:
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc…
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length 300mm
Specification:
Operating Speed : 0.17sec / 60 degrees (4.8V no load)
Operating Speed : 0.13sec / 60 degrees (6.0V no load)
Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
Operation Voltage : 4.8 – 7.2Volts
Gear Type: Semi Metal Gears
Rotation angle: 180 degrees / 360 degrees

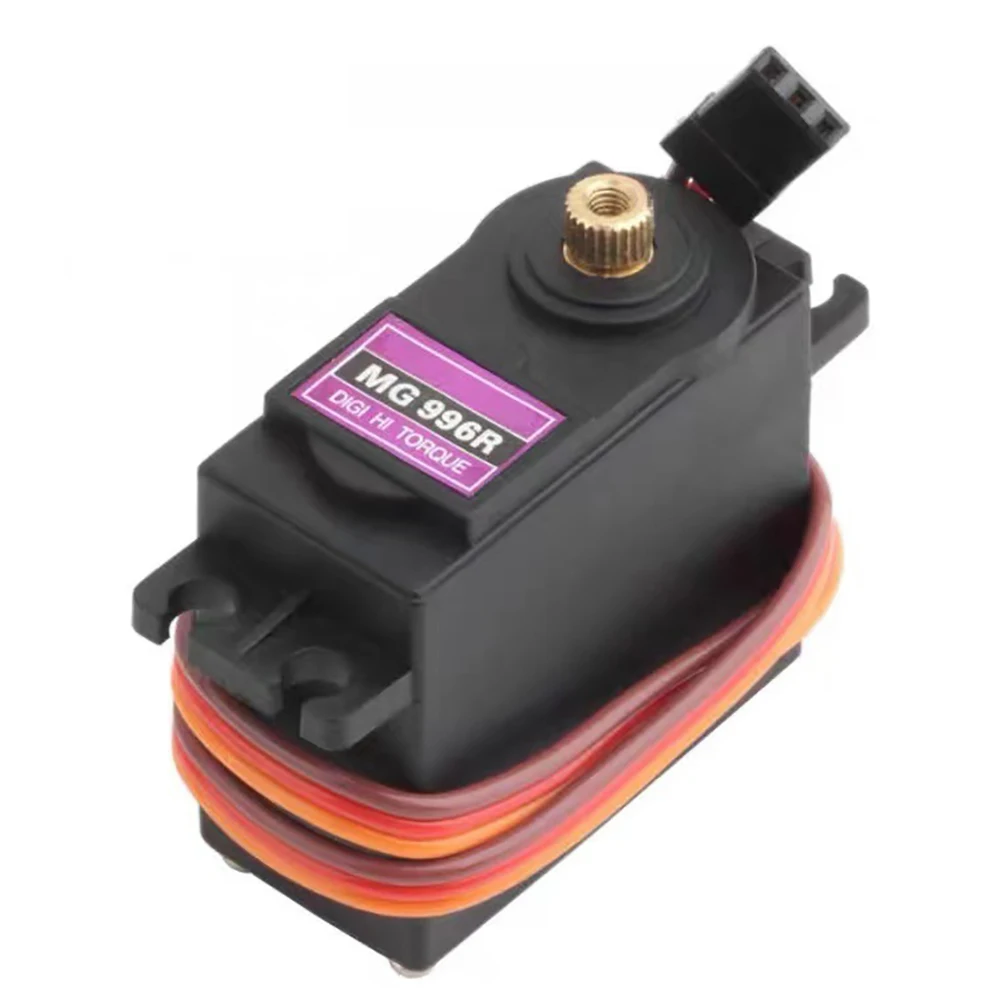

MG996R Servo:
Features:
Gear Type: Semi Metal Gears
Stall torque:12kg/cm(6V)
Power Supply: Through External Adapter
Operation Voltage : 4.8 – 7.2 V
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc…
Stable and Shock Proof. – Metal Gear – Double Ball Bearing – Connector Wire
Length 300mm
Great for truck, Boat, Racing Car, Helicopter and Airplane
Rotation angle: 180 degrees / 360 degrees
The control of the steering gear generally requires a time base pulse of about 20ms. The high-level part of the pulse is generally the angle control pulse part in the range of 0.5ms-2.5ms, with a total interval of 2ms. Taking the 180 degree angle servo as an example, the corresponding control relationship is as follows:
0.5ms————–0 degrees;
1.0ms————45 degrees;
1.5ms————90 degrees;
2.0ms———–135 degrees;
2.5ms———–180 degrees;
Package Contents:

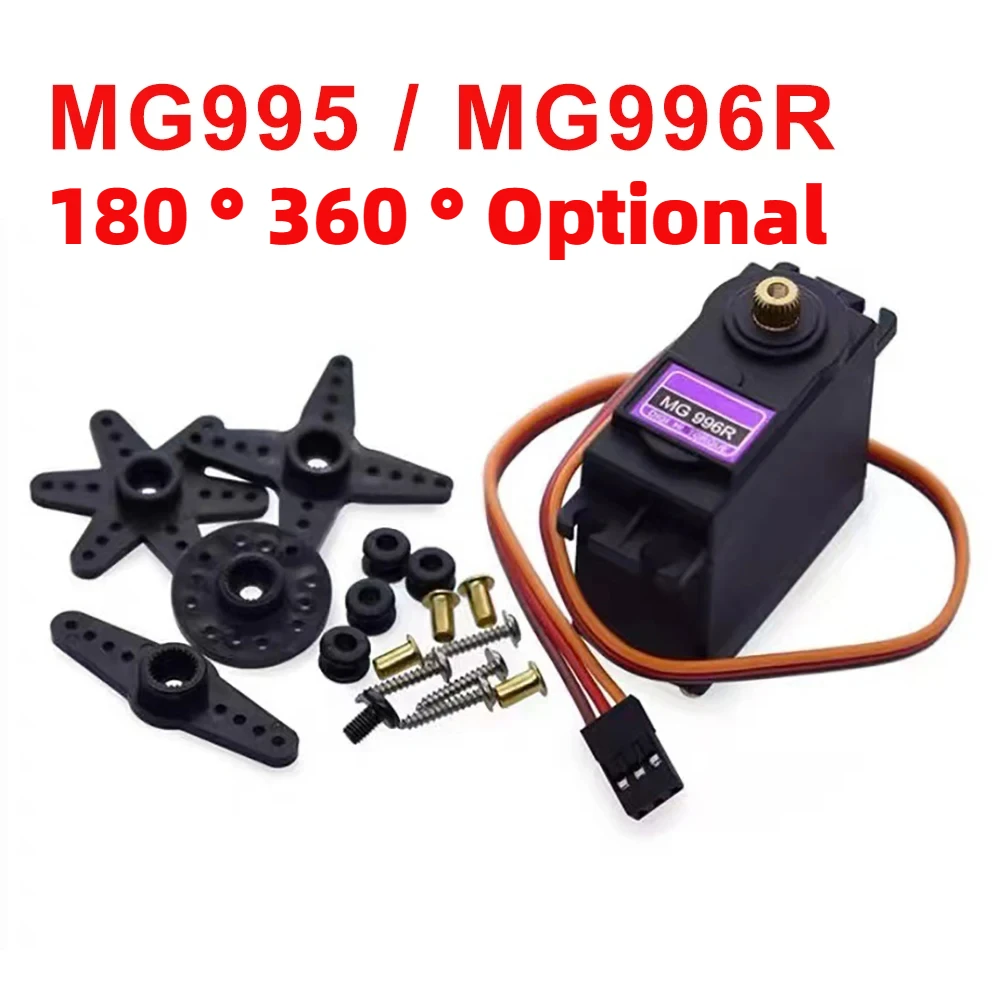

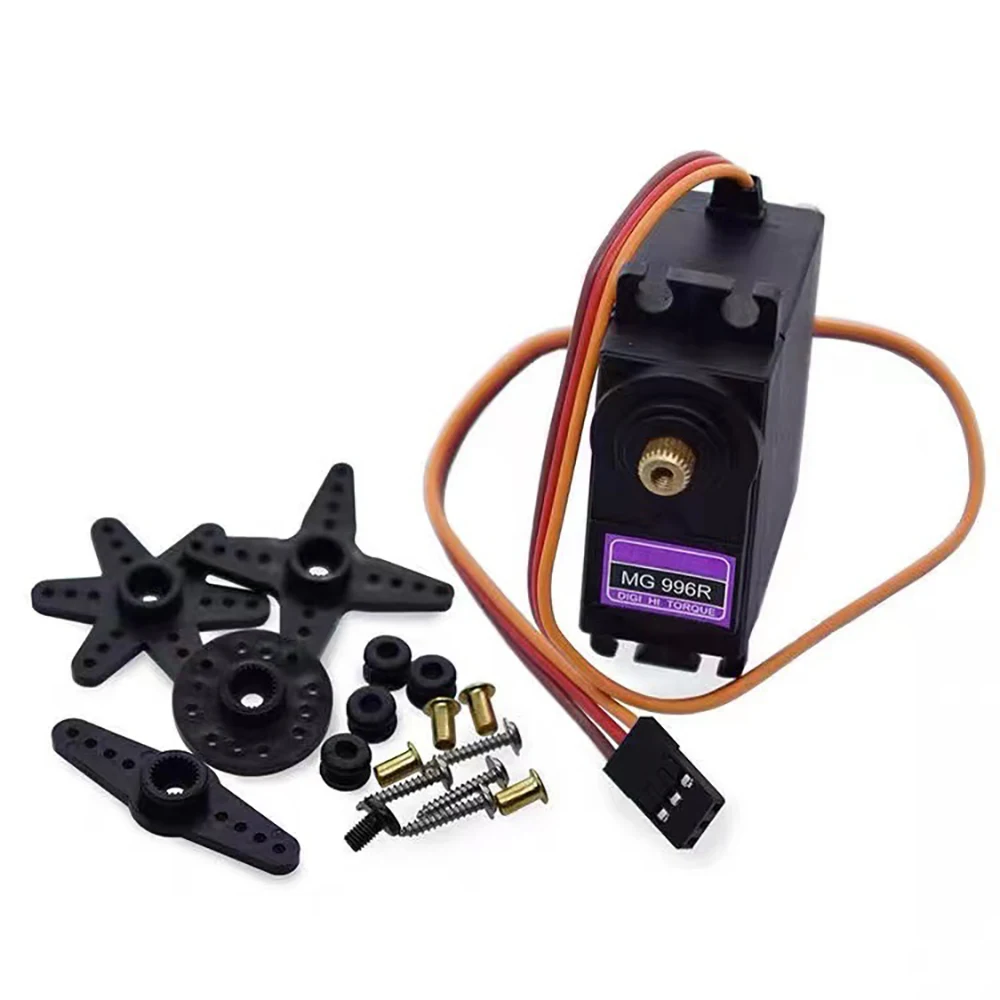

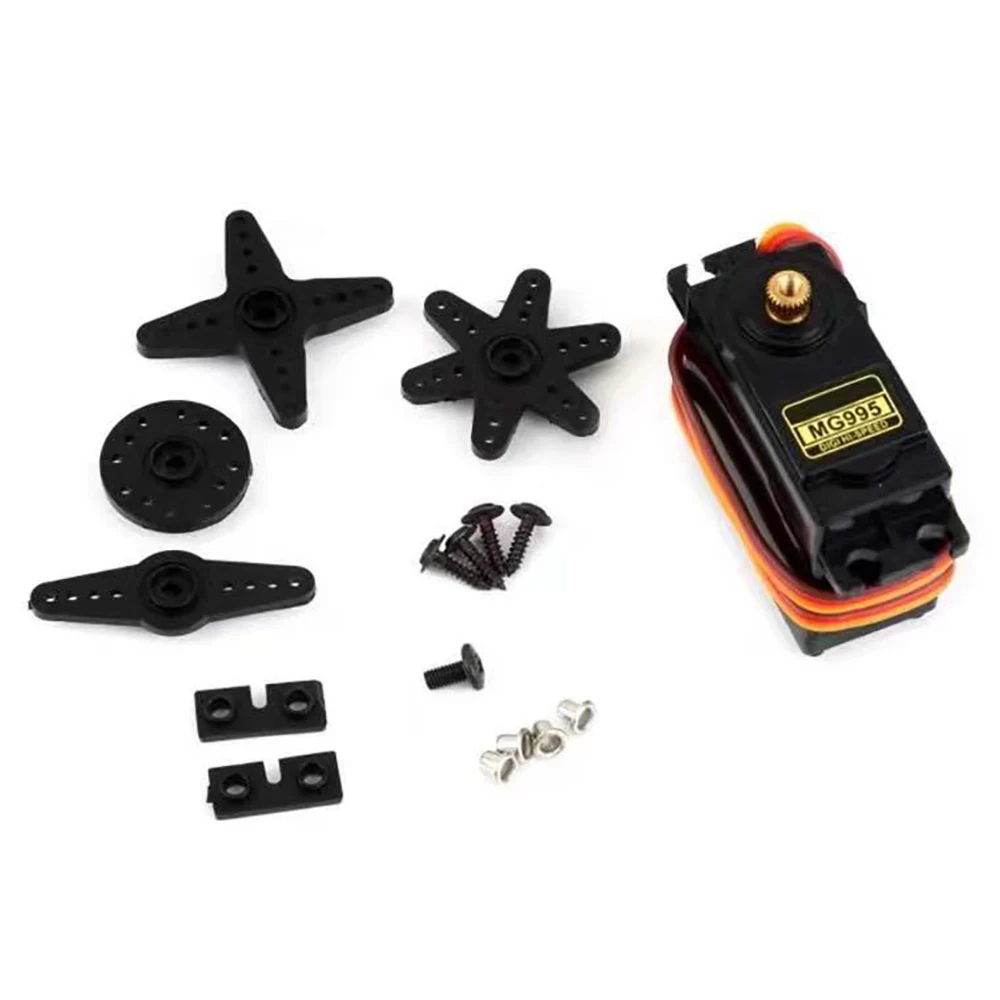

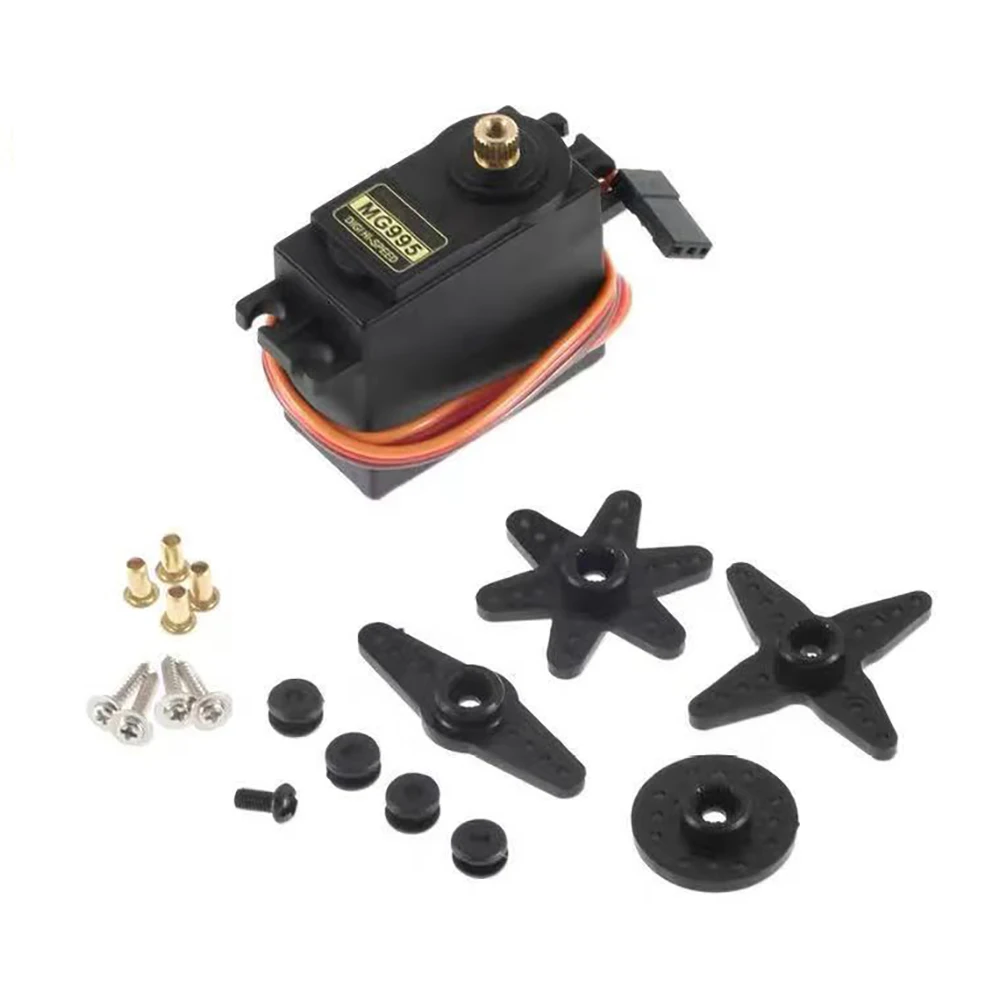

1 x MG995 / MG996R Metal Gear RC Servo (Send it as your choice)
Note: About 360-degree servo, it is continuous rotation. Aactually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction.
There is no 0-360 degree angle control function.
