Introduction
MTF-01 optical flow ranging integrated module can be seamlessly compatible with mainstream open source flight control

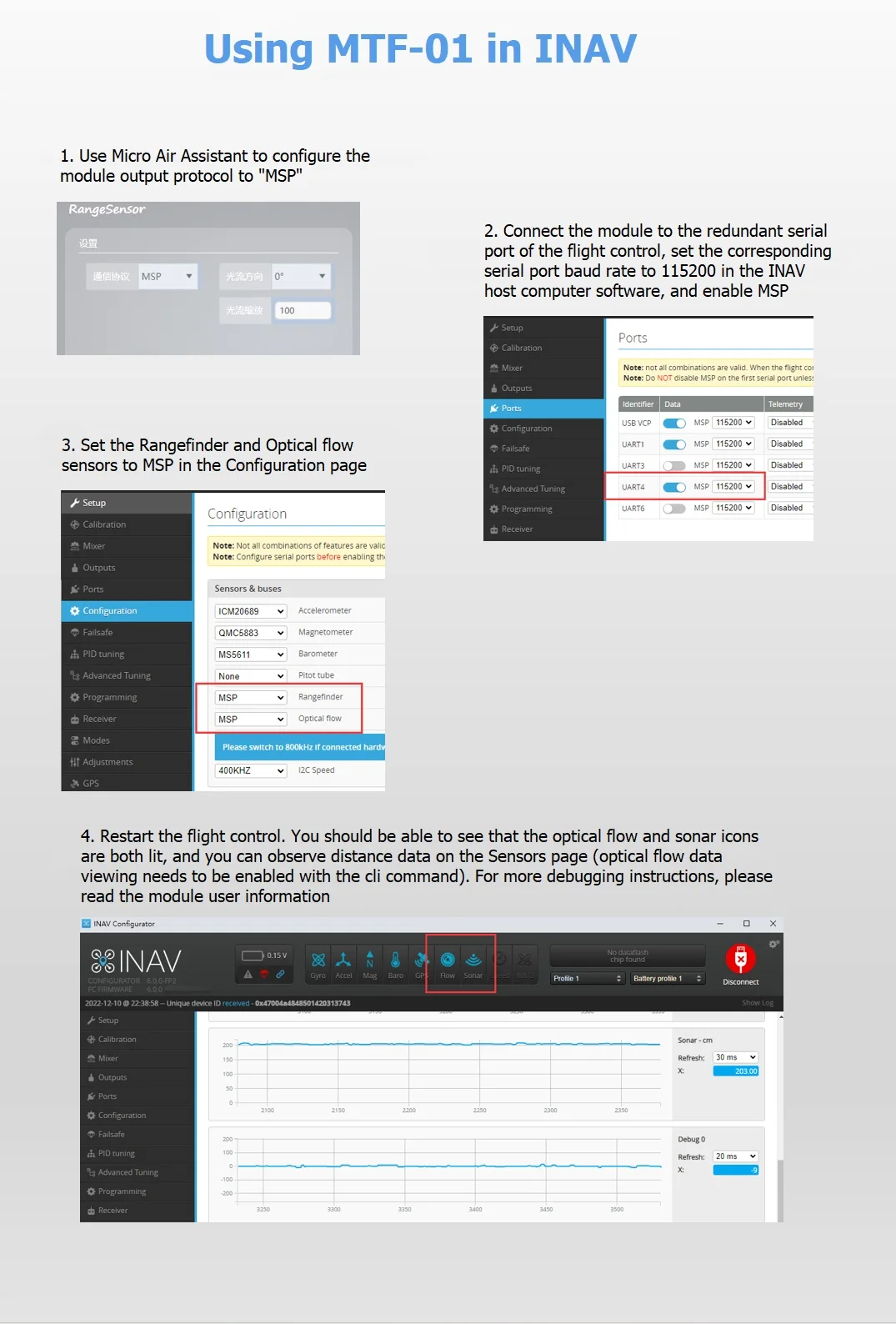

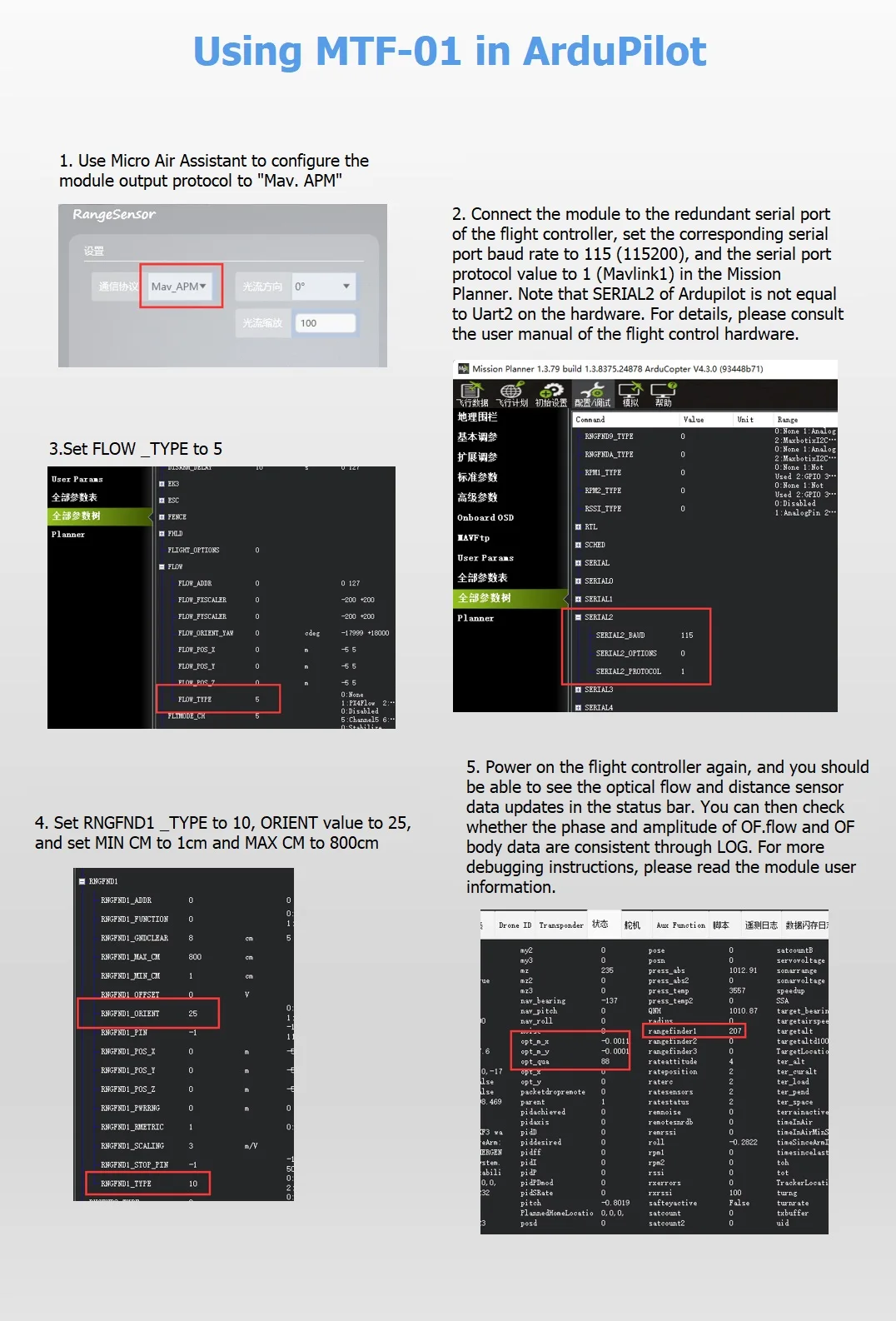

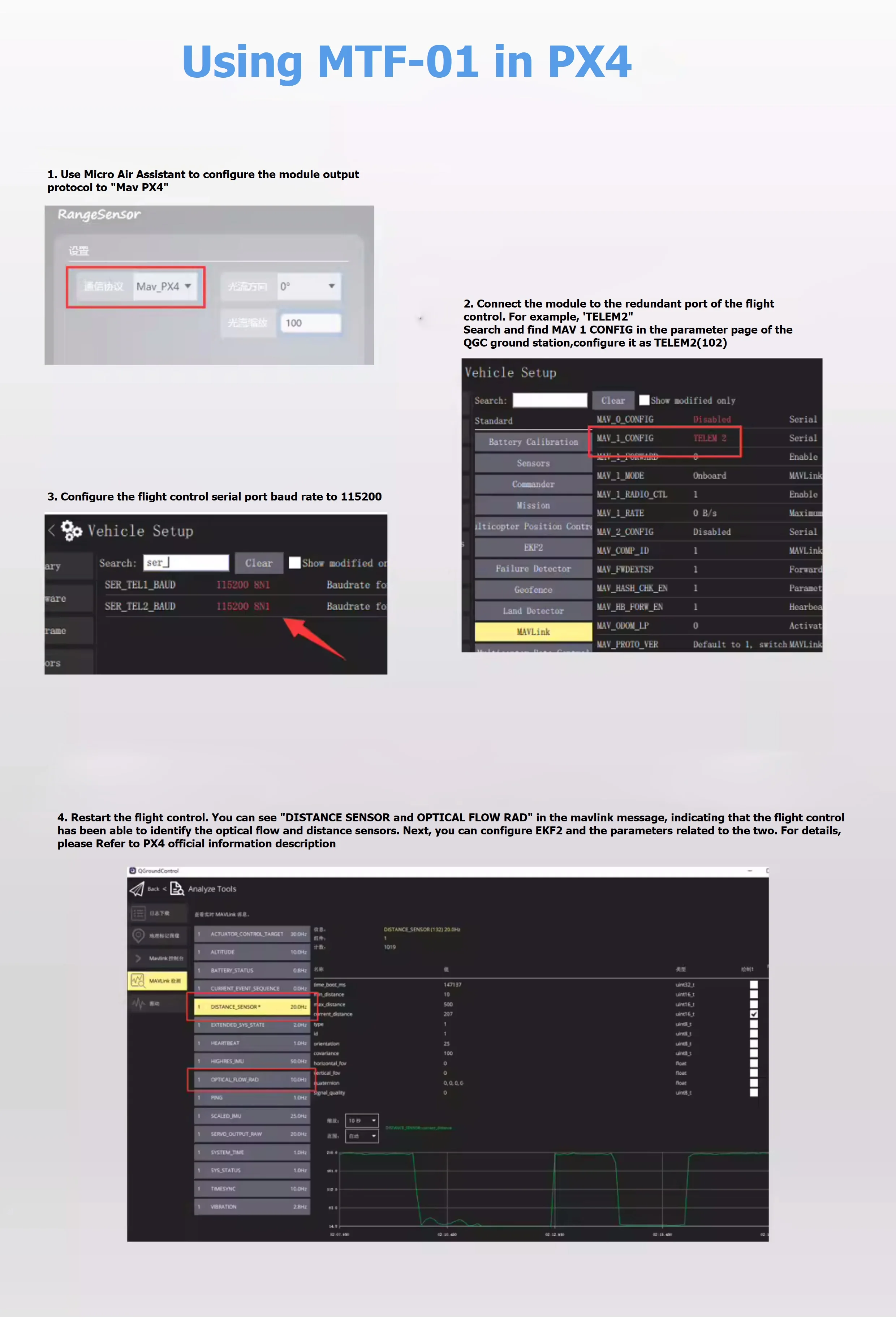

Simply configure flight control parameters to enable optical flow fixed point and laser height determination

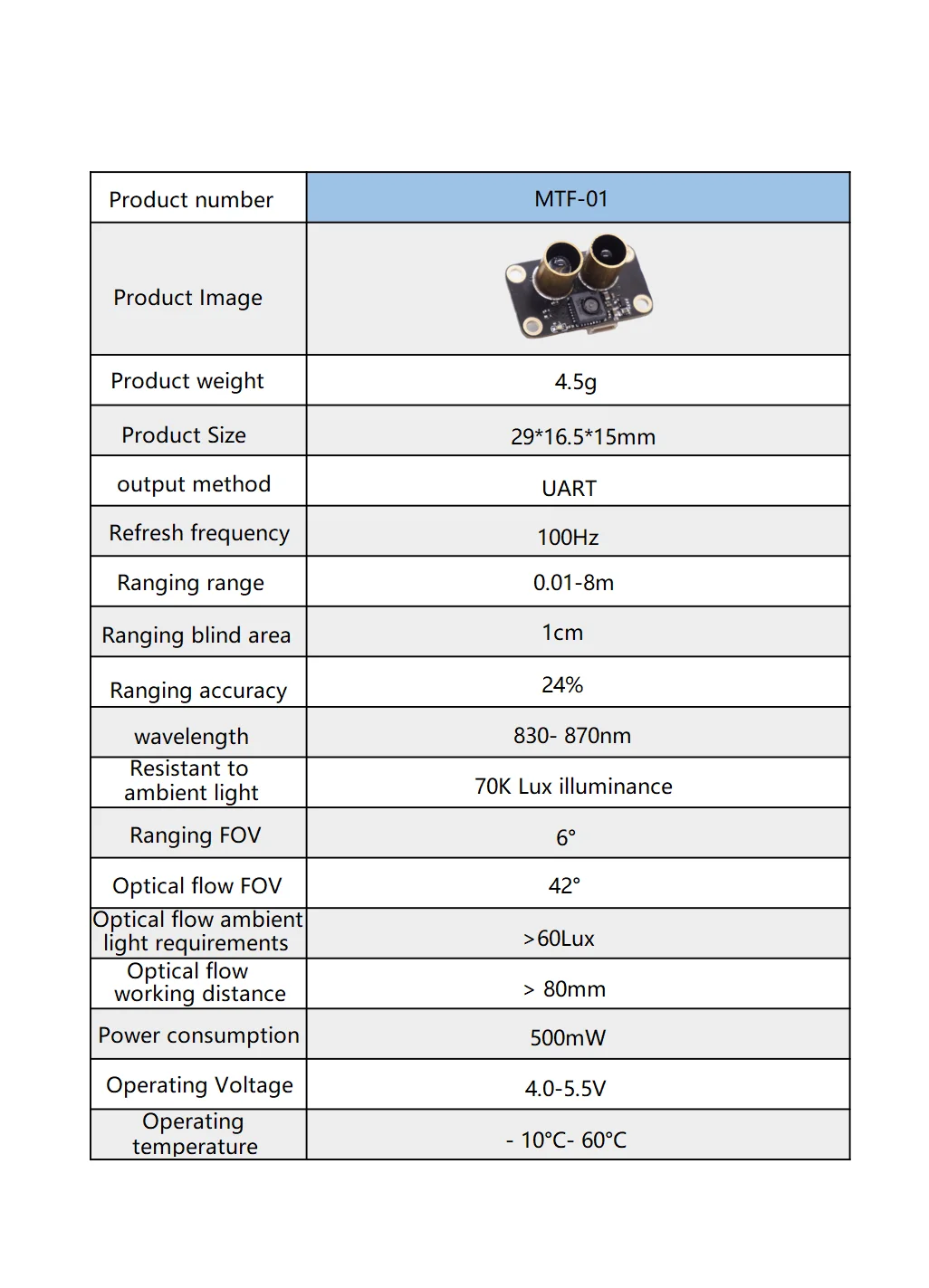

Specification
- Product weight: 4.5g

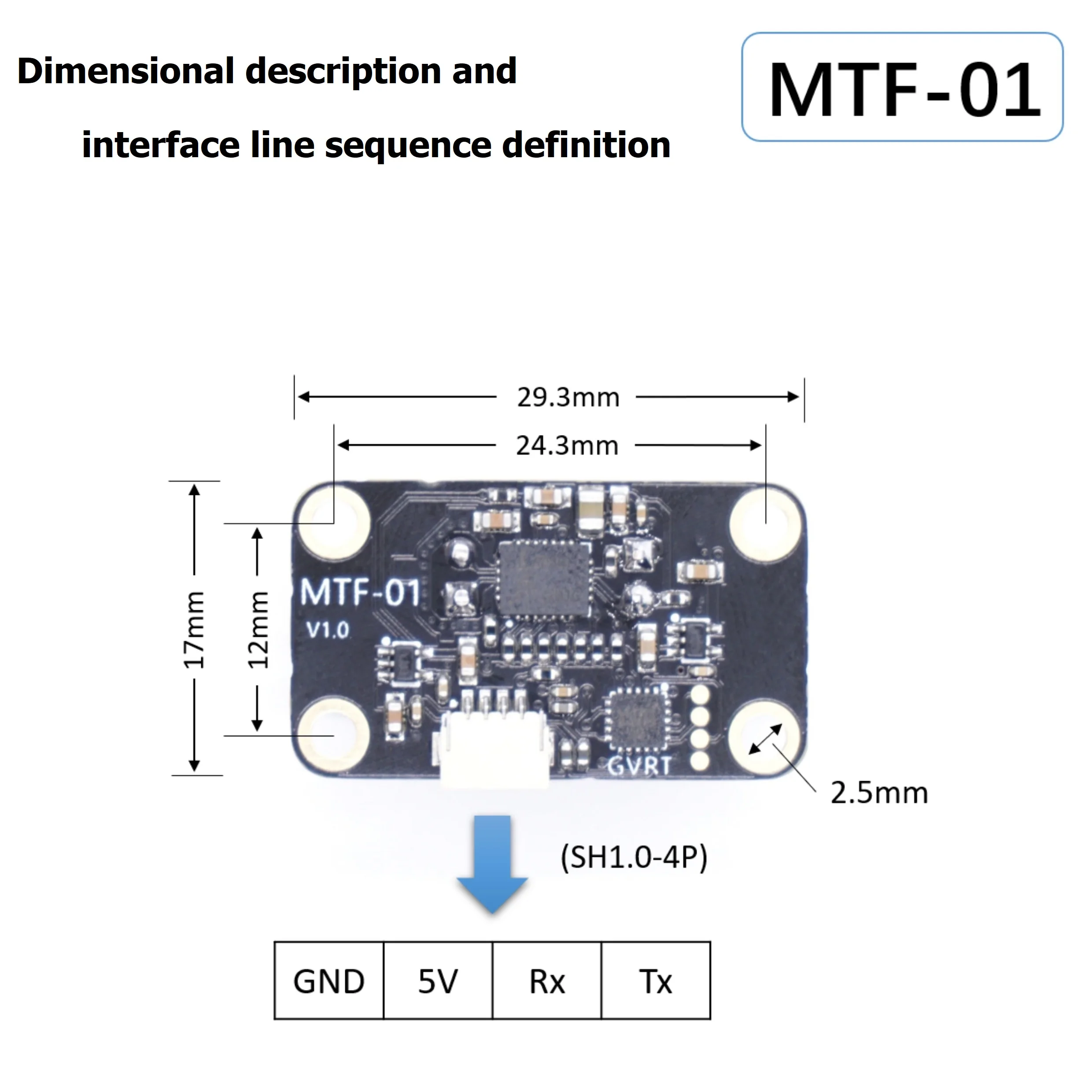

- Product size: 29 * 16.5 * 15mm
- Output mode: UART
- Refresh frequency: 100Hz
- Range: 0.01-8m
- Distance blind area: 1cm
- Range accuracy: 2%
- Wavelength: 830-870nm
- Resistance to ambient light: 70K Lux illumination
- Distance FOV: 6 °
- Optical flow FOV: 42 °
- Ambient light demand of optical flow:>60Lux
- Optical flow working distance:>80mm
- Power consumption: 500mW
- Operating voltage: 4.0- 5.5V
- Operating temperature: – 10 ° C-60 ° C

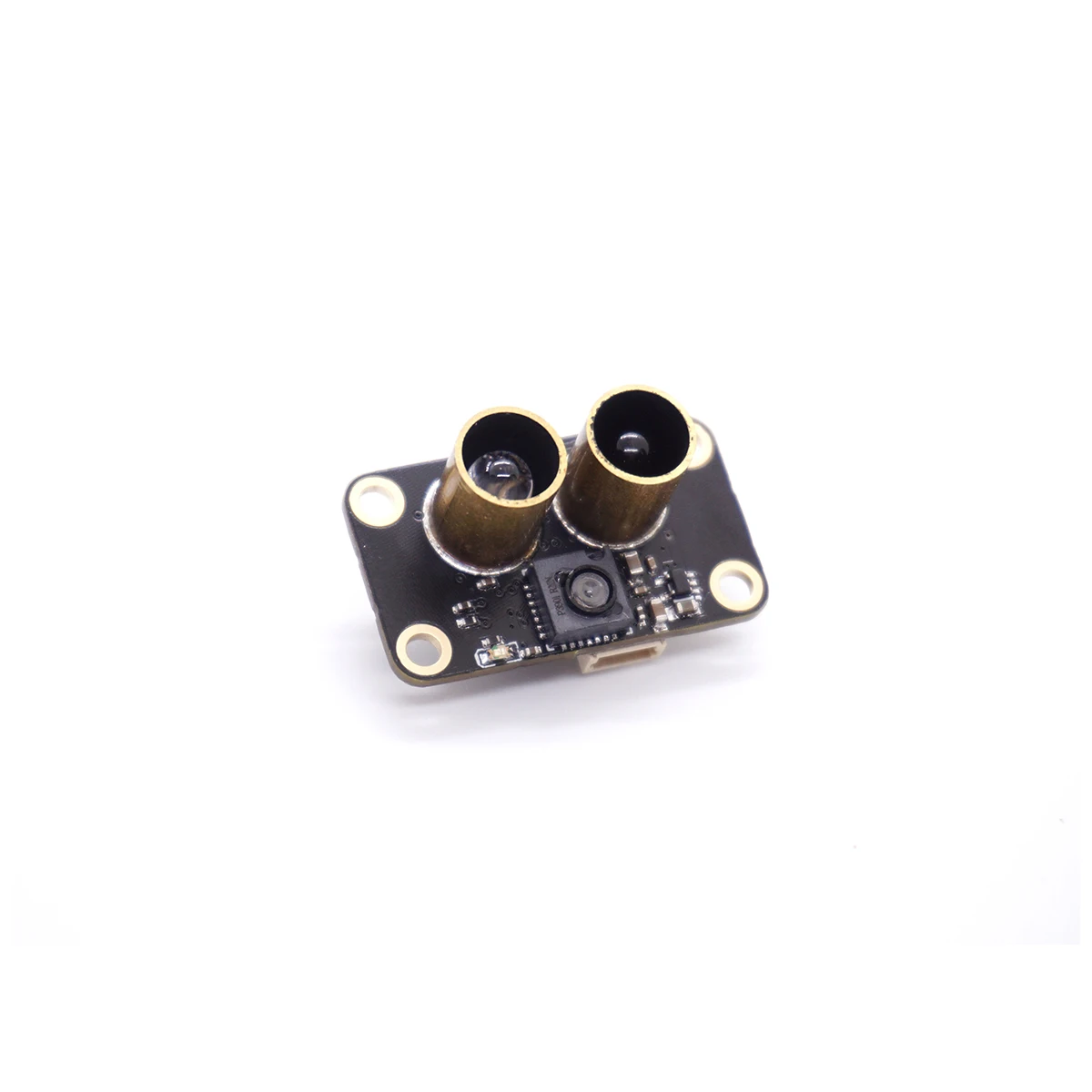

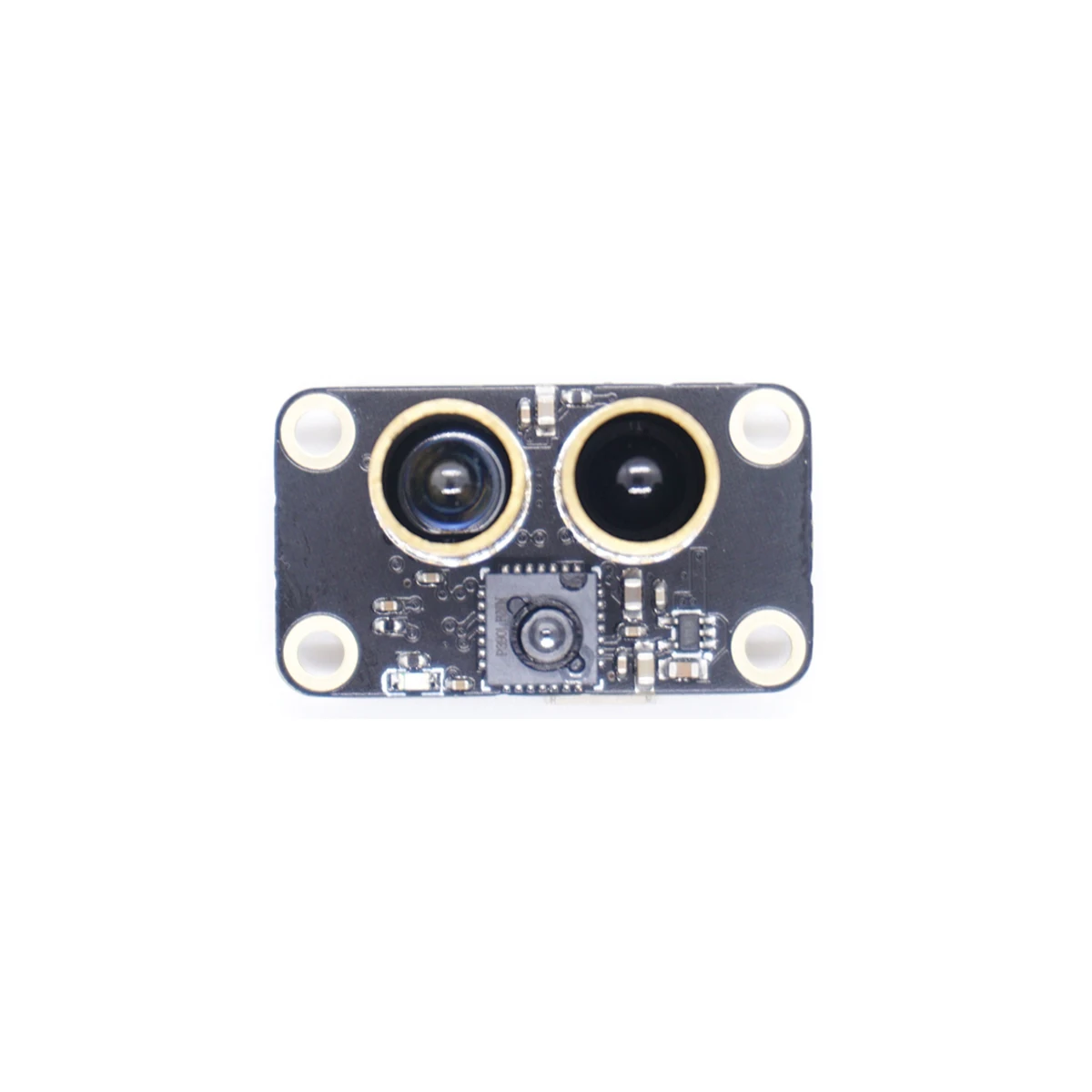

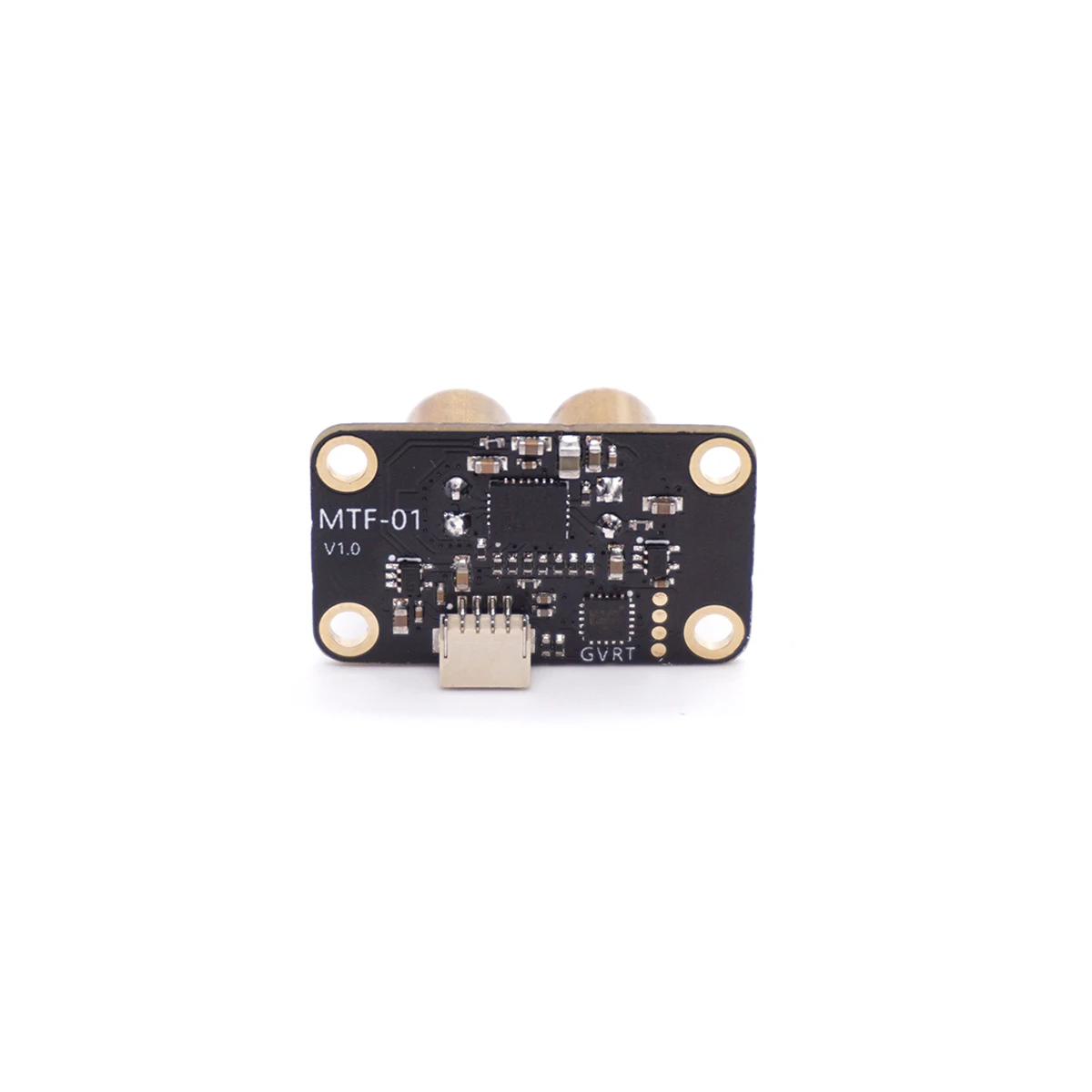

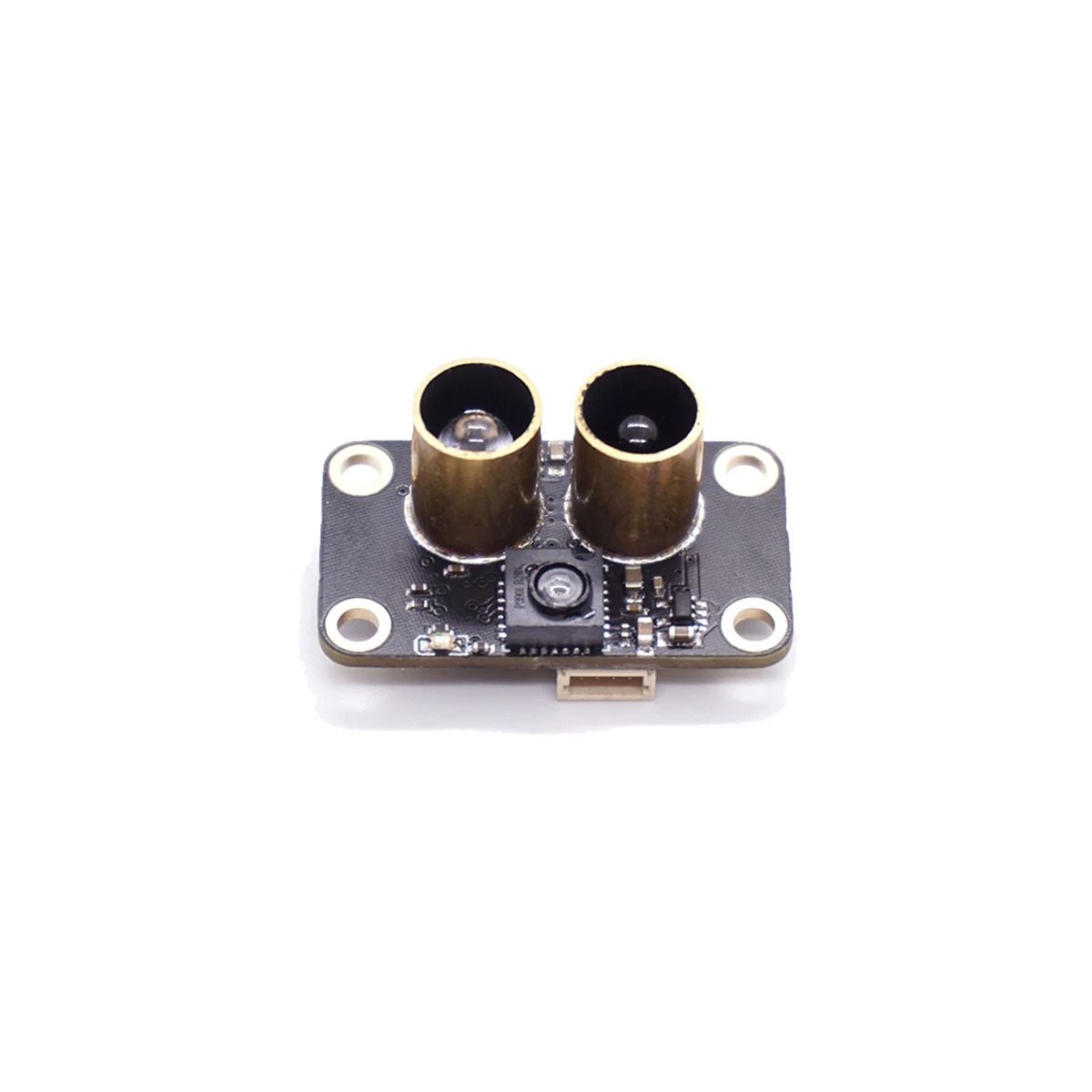

Product Image
Shipping List
- MTF-01 borad*1
