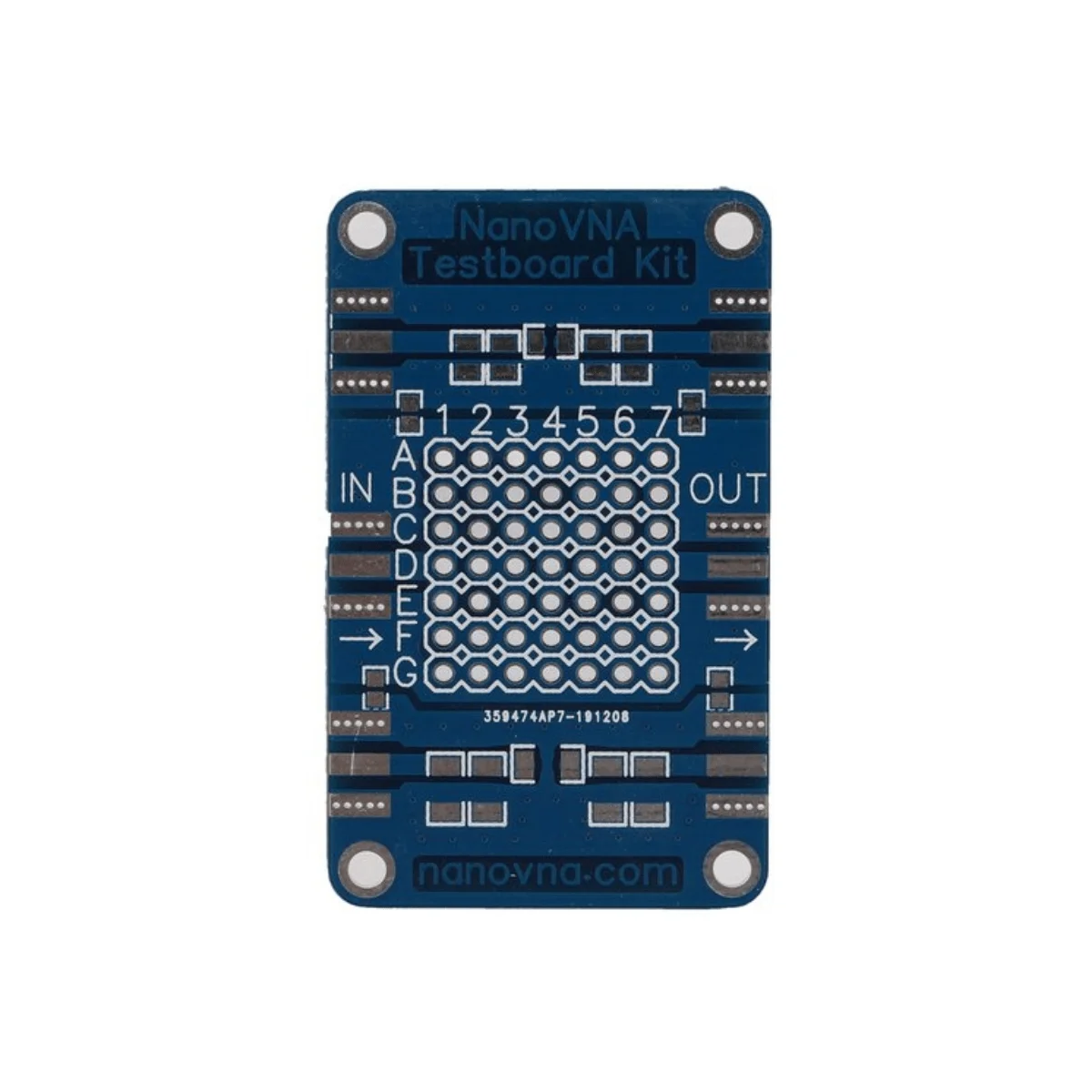

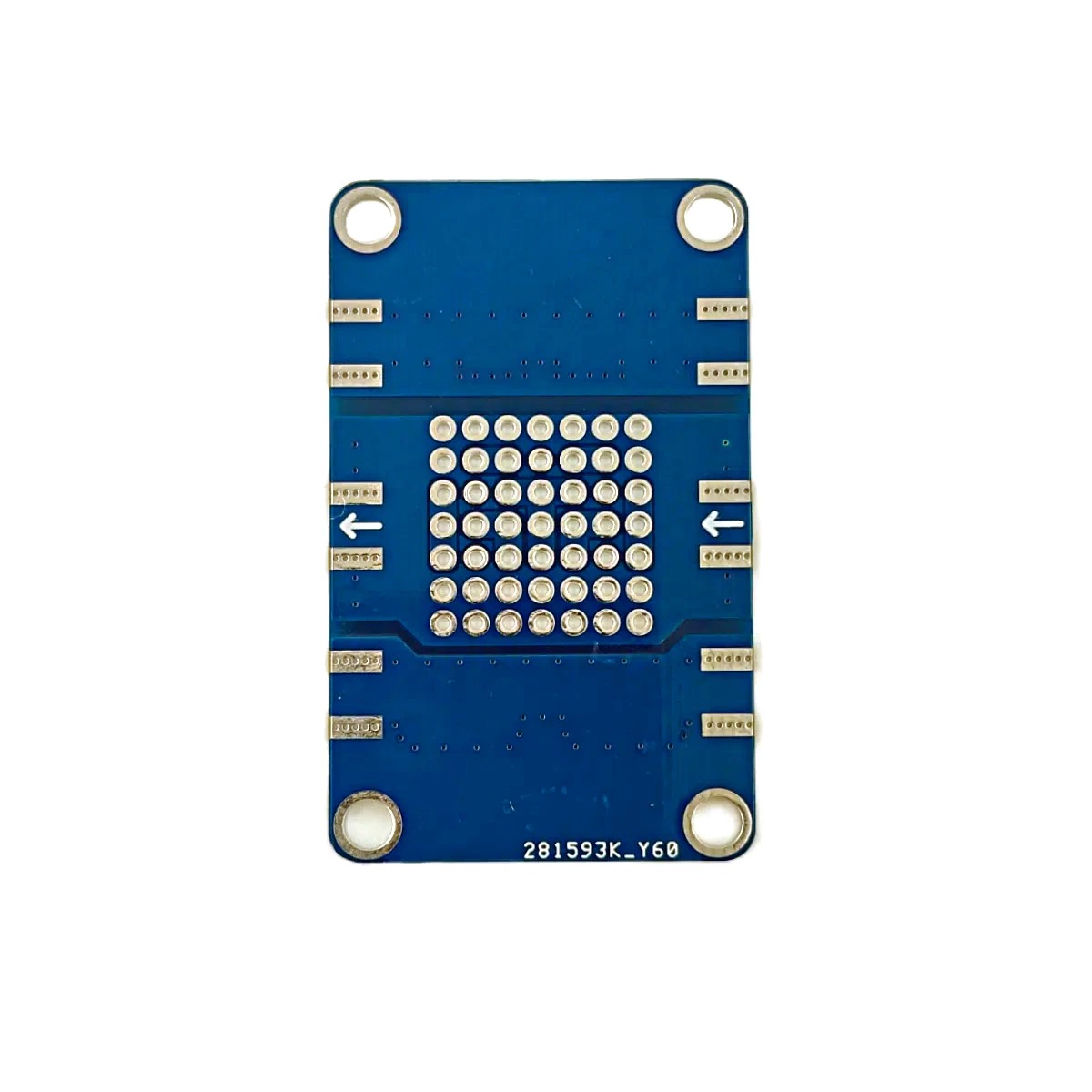

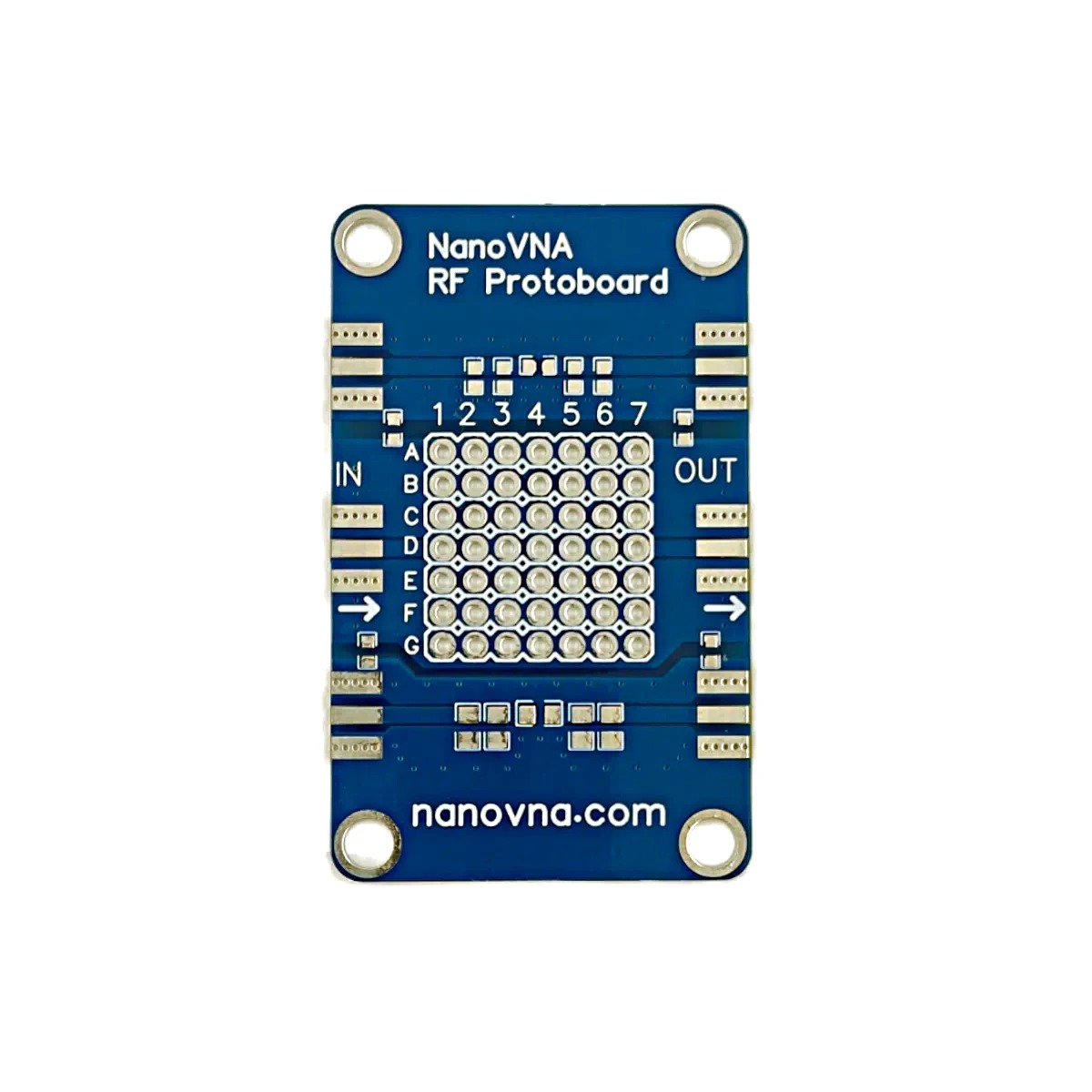

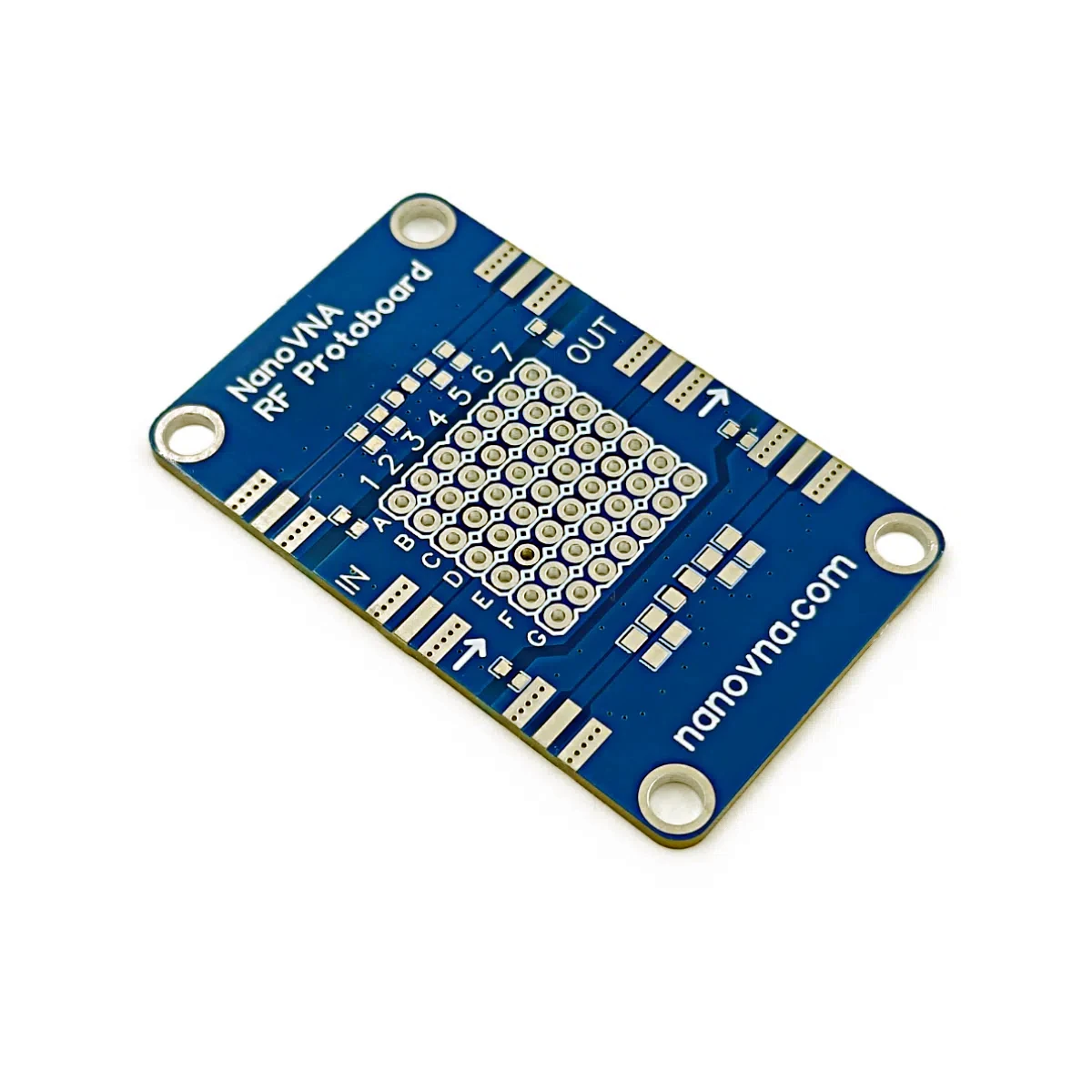

NanoVNA Professional High Accuracy VNWA Testboard Kit VNA Vector Network Analysis Test Demo Board

Features:

Made of fine quality material, has a long service life. Stable performance, high accuracy, high sensitivity. This test board kit is used for NanoVNA or other vector network analyzer user-friendly measurement DIP and SMT devices. This test board contains a DIP test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added.

Specifications:

Material: PCB Color: blue Package size: 100 * 100 * 20mm / 3.9 * 3.9 * 0.8in Package weight: 26.5g / 0.9ounce

Note:

1. The SMT circuit cannot fully consider various test conditions. Some parts of the test may need to be cut over. Please ensure that you have enough hands-on ability.
2. The circuit board is not soldered before delivery, please bring your own welding tools, please build a test circuit according to your test needs.

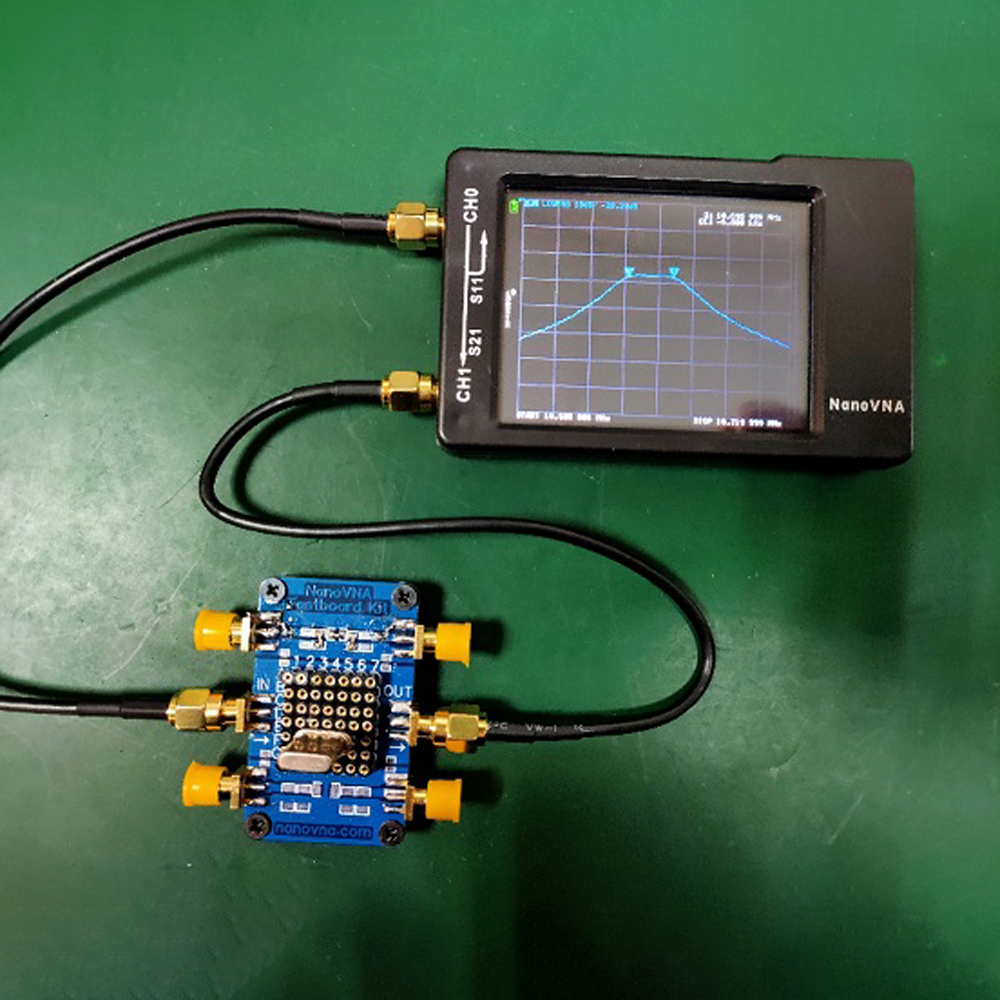

Test effect

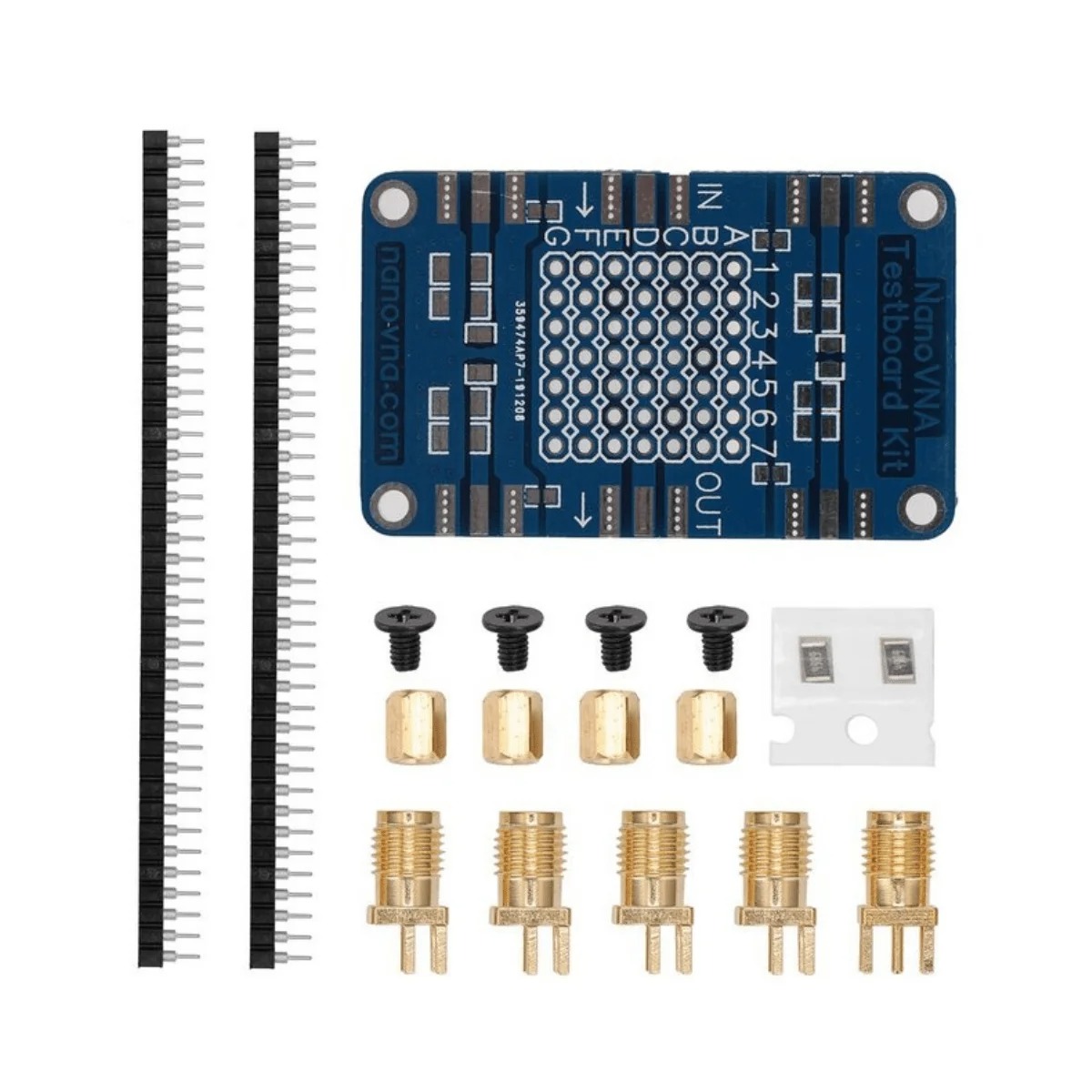

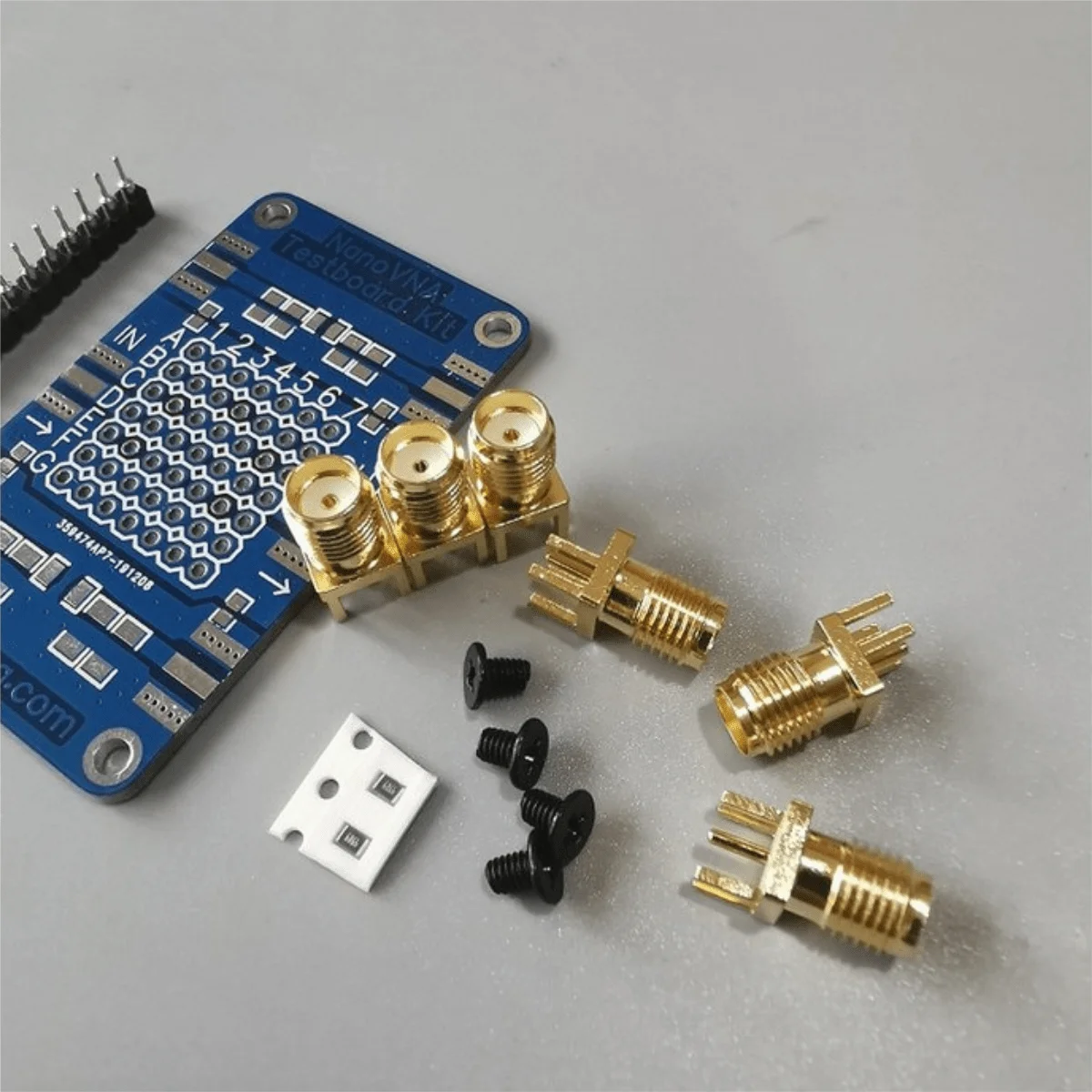

Packing List:

1 * Testboard Main Board

6 * SMA Female Head

4 * 6mm Copper Stud

4 * M2.5 Screw

2 * 40pin Round Row Seat

2 * 0805 49R9 Calibration Resistance
