- High-concerned chemical: None
- Size: 160v 170v 200v
- Type: Nixie Tube Power Module
- Model Number: Nixie Tube HV Power Supply
- DIY Supplies: Electrical
- Brand Name: DYKBmetered
- Output Voltage: 120-300V Voltage Adjustment
- Style: DC-DC 3.3-20V to 120-300V Boost Converter
- Nixie Tube Power Module: Nixie Tube HV Power Supply
- Nixie Tube High Voltage Power Supply: 120-300V Voltage Adjustment
Nixie Tube Power Module | DC-DC 3.3-20V to 120-300V Boost Converter
Ultra-Compact Design: 20×17mm | Precision Voltage Adjustment
⚡ Key Specifications
|
Parameter |
Specification |
| Input Voltage | 3.3V – 20V DC |
| Output Voltage | 120V – 300V DC (Adjustable) |
| Max Output Current | 15mA (no heatsink @12V input) |
| No-load Current | 1mA (@12V input) |
| Efficiency | ≈80% |
| Control Signal | EN Pin (Low = shutdown) |
🎛️ Operational Features
-
Single-Turn Potentiometer
Smooth output voltage adjustment (120-300V range) -
Enable Control
Pull EN pin to GND for instant shutdown -
Anti-Interference Design
Stable output for sensitive nixie tubes
📐 Physical Details
-

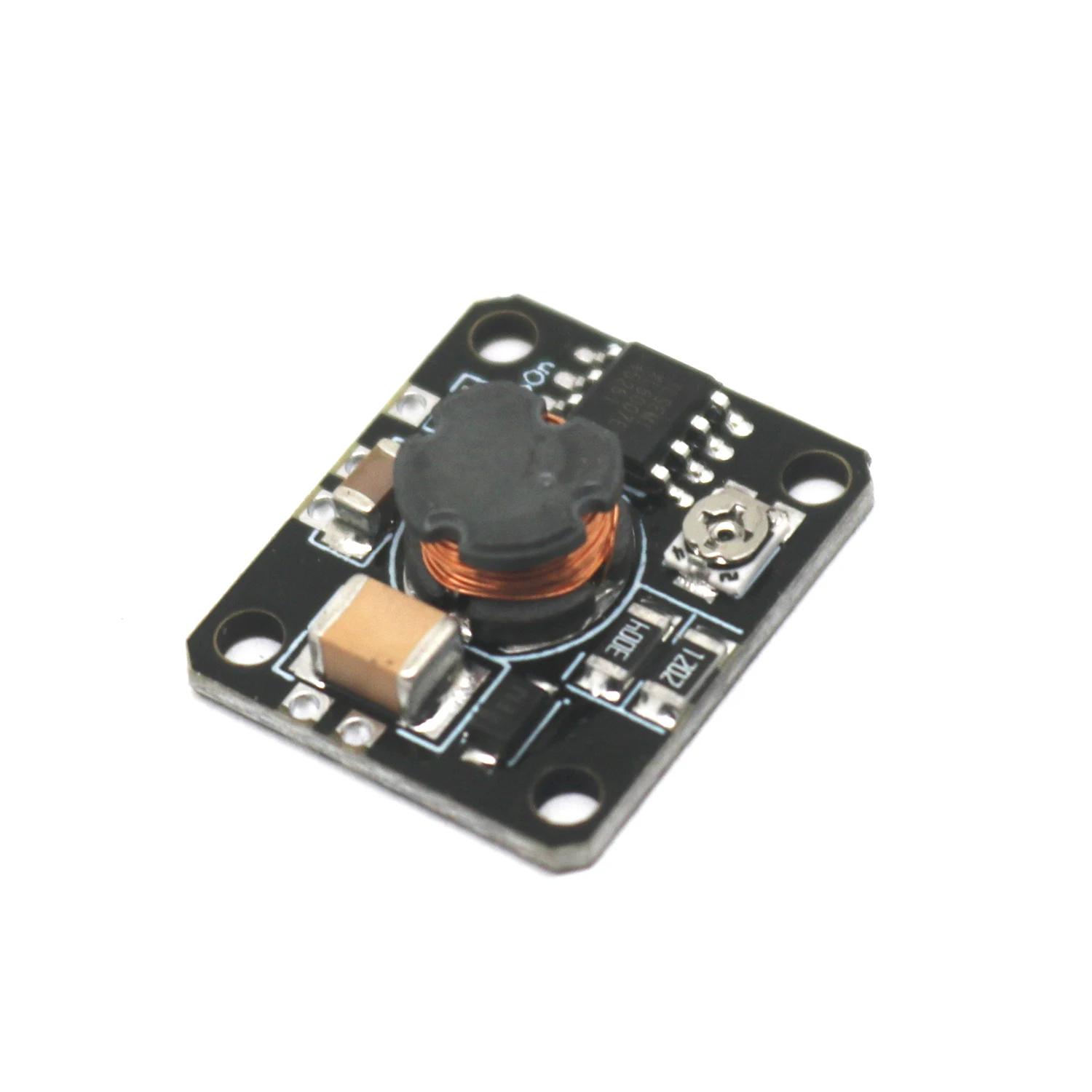

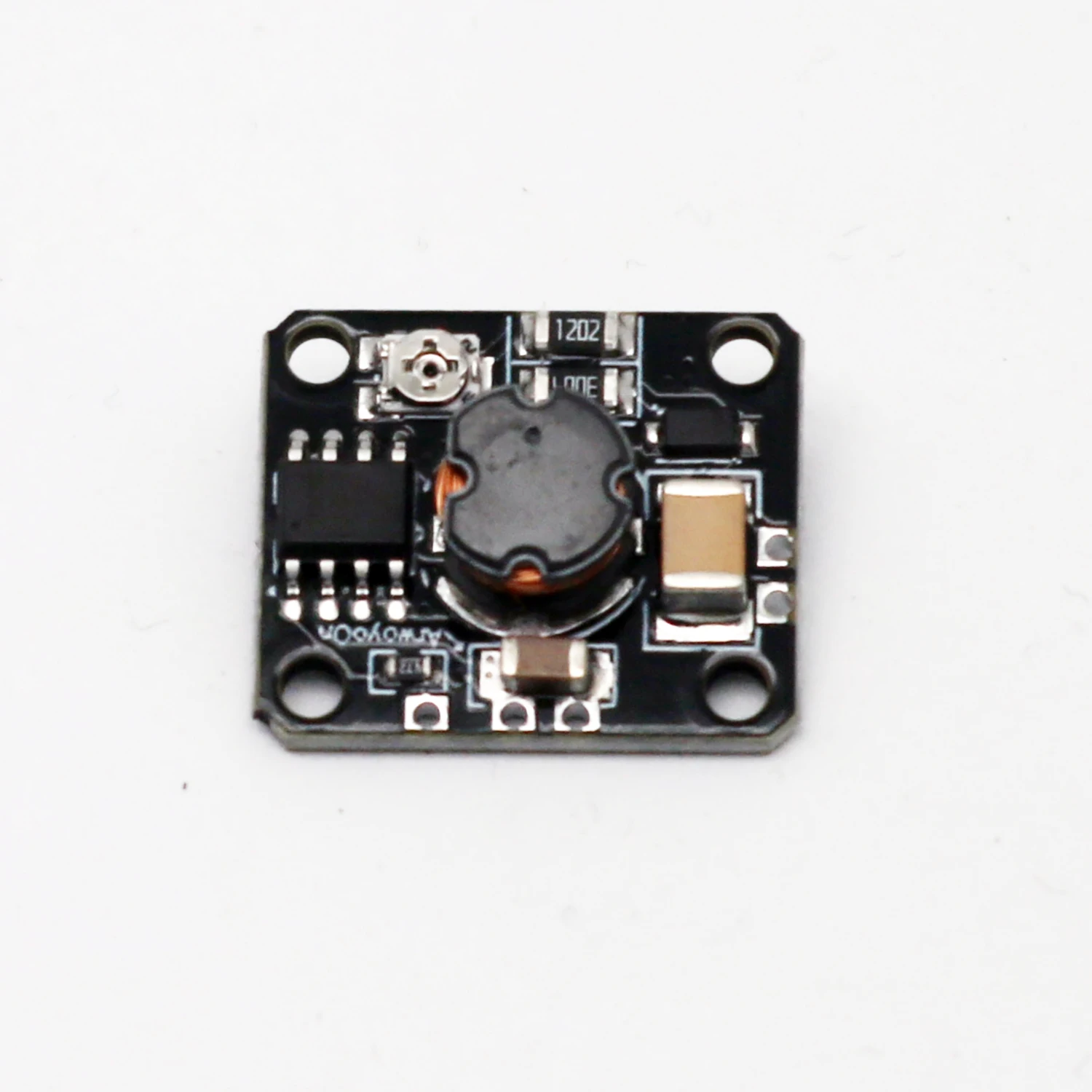

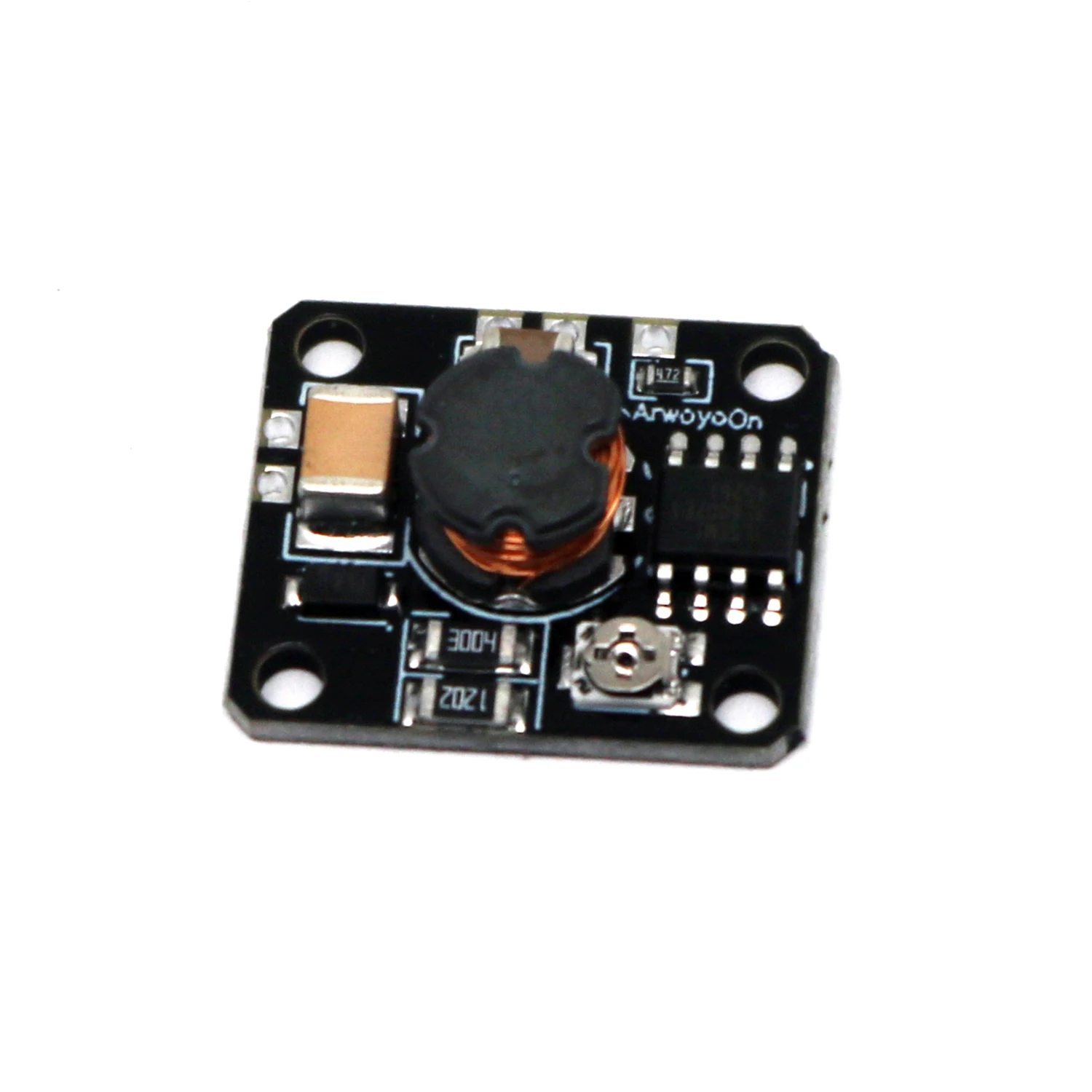

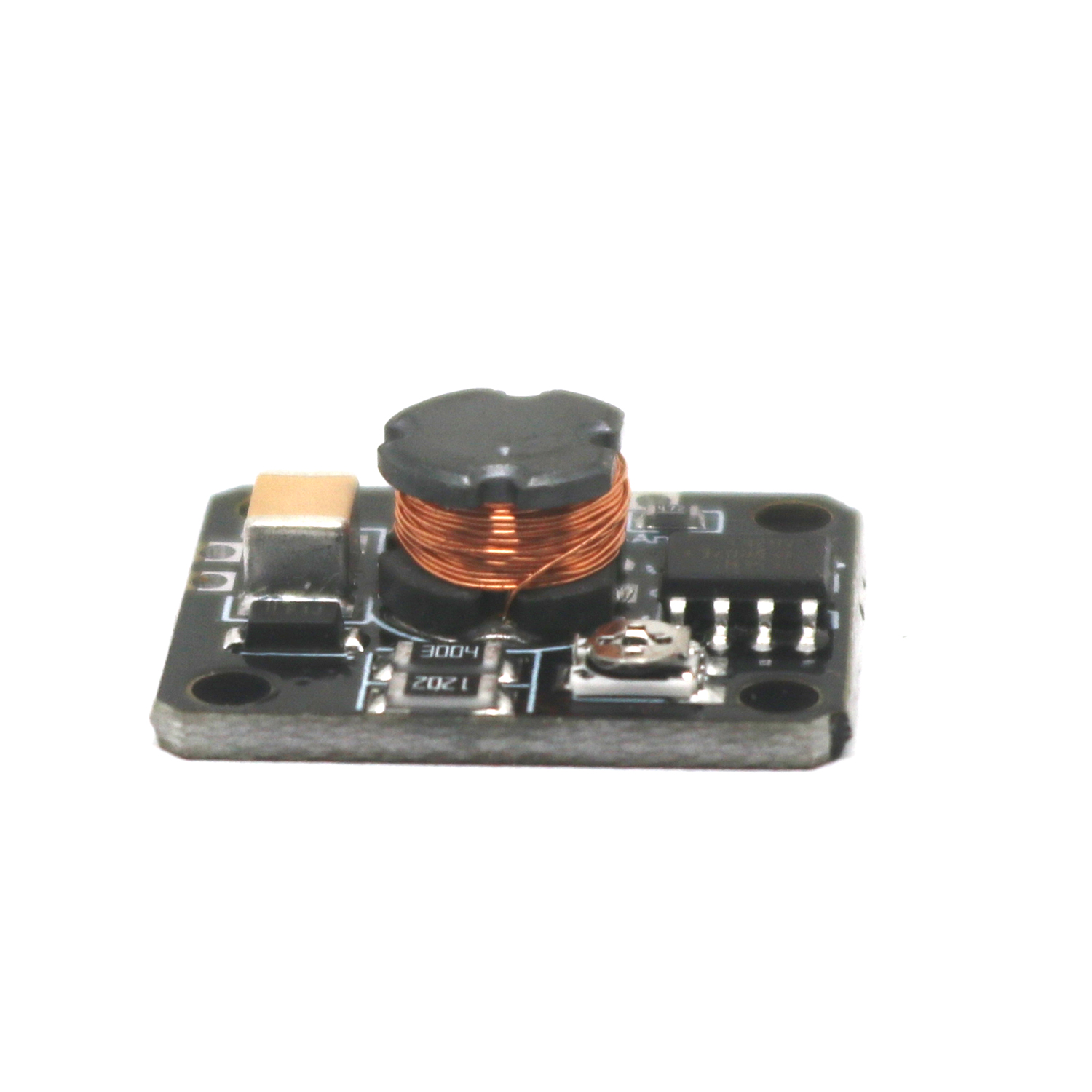

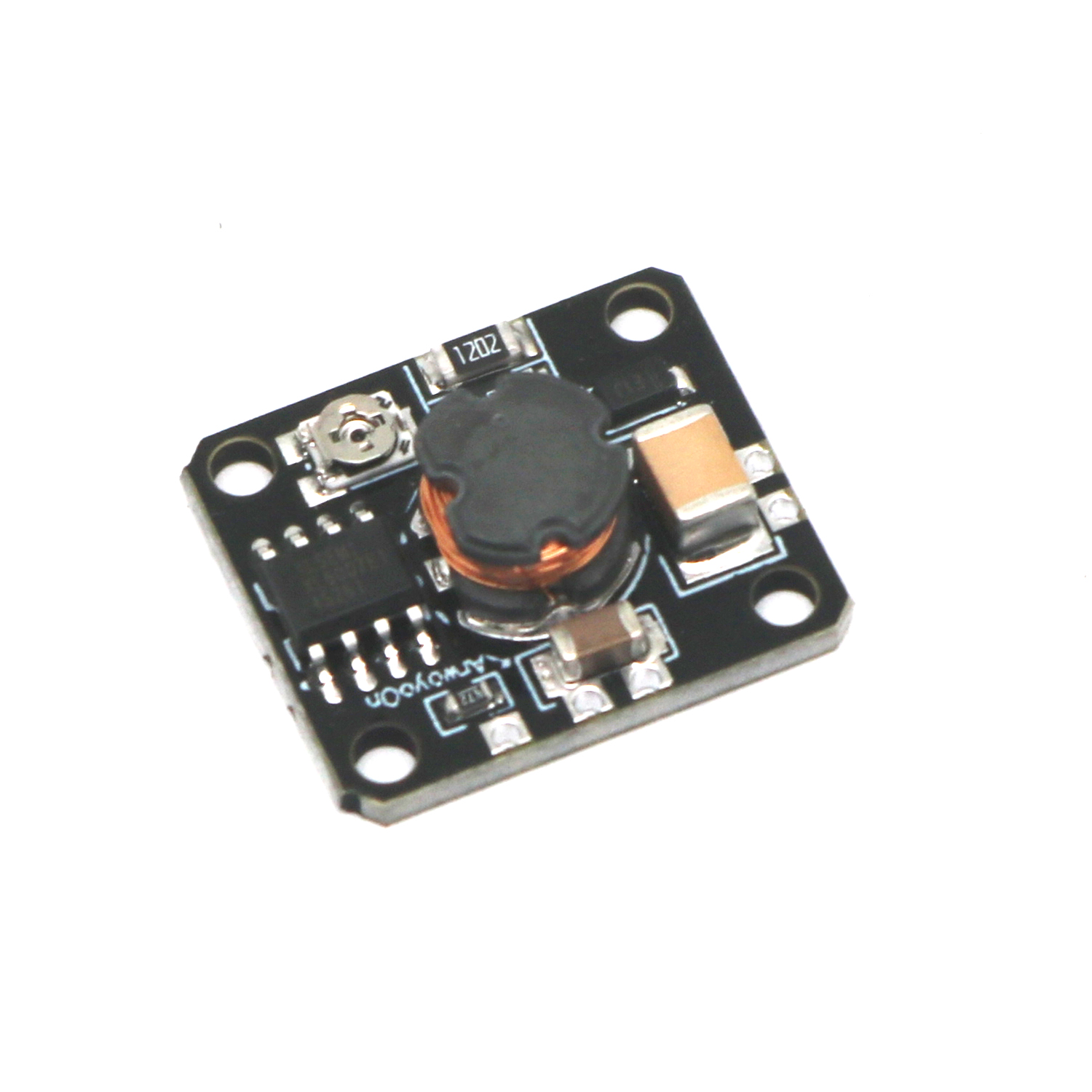

Dimensions: 20mm × 17mm (0.8″ × 0.7″)
-
Mounting: 4x corner through-holes
-
Weight: 3.2g
⚠️ Critical Usage Notes
-
Thermal Warning
“Continuous output >10mA requires heatsinking”
-
High-Voltage Danger
*”300V output LETHAL – Professional handling only”*
-
Load Compatibility
*”Designed for nixie tubes (IN-14/IN-16 etc.) – Not for power supplies!”*
🔌 Connection Guide

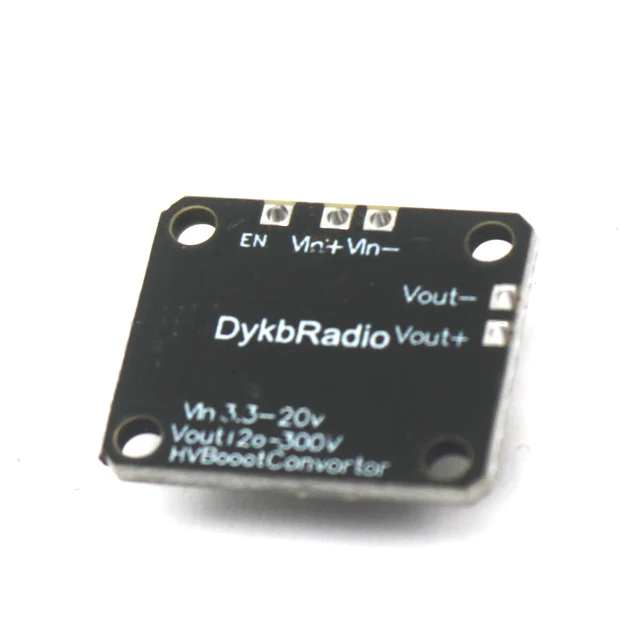

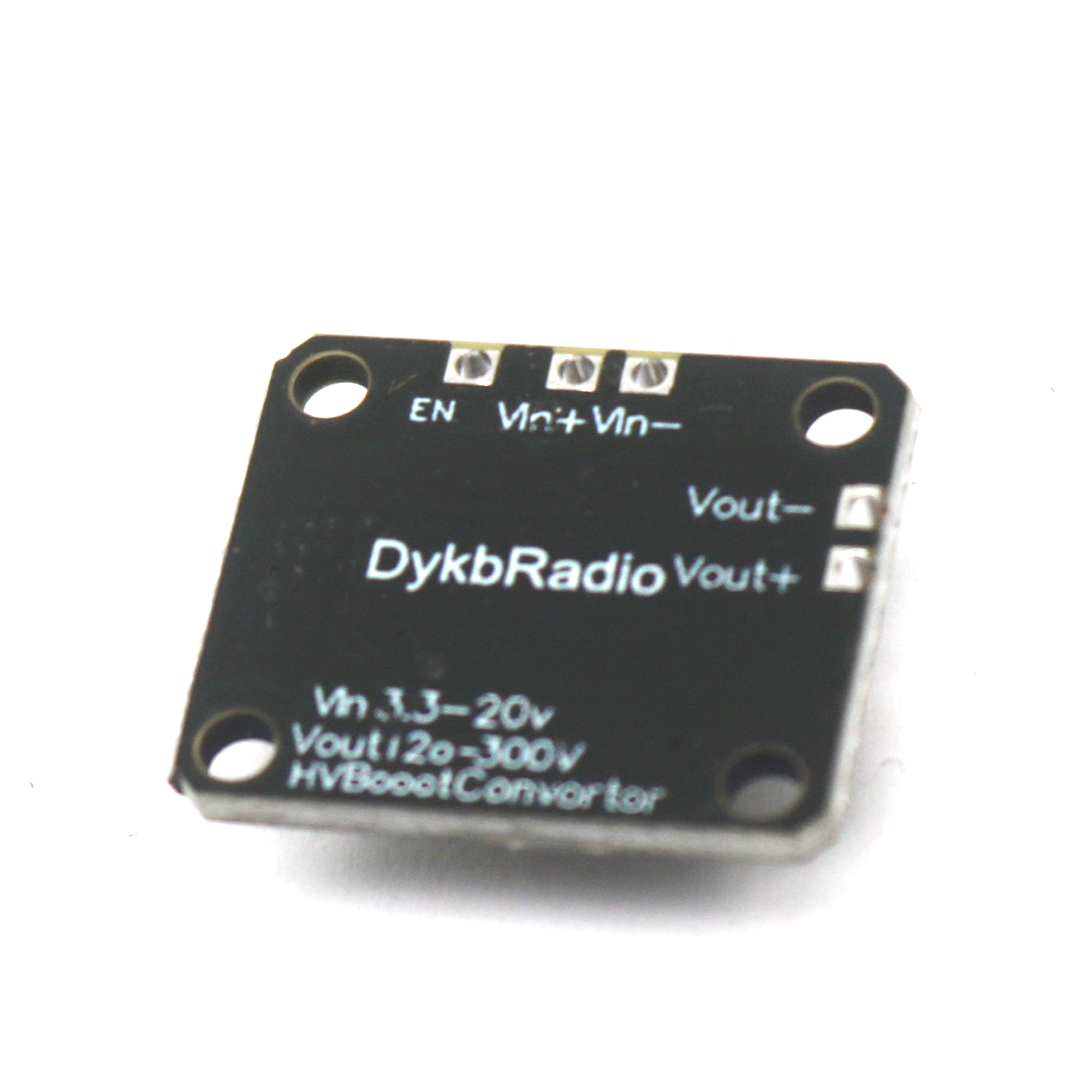

| Pin | Function | Connection |
| IN+ | DC Input Positive | 3.3-20V source |
| IN- | DC Input Ground | Power supply GND |
| EN | Enable Control | Pull to GND to disable |
| OUT | High-Voltage Output | Nixie tube anode |
