Product selling points:
1. Using high quality materials, quality is guaranteed
2. DC sampling, more stable voltage
3. Remote control shutdown, full-featured
4. Four-wire connection, simple and convenient maintenance
5. Wide range of applications
Parameters:
5V-24V can be adjusted

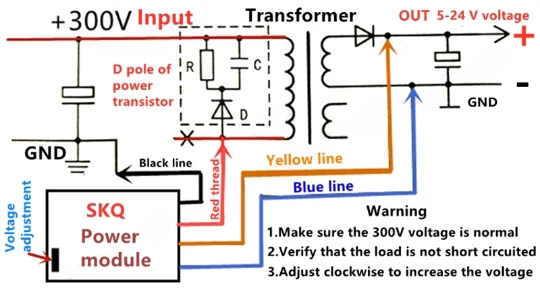

1, the red line connects to the D pole of the original switching tube, (300V through the other end of the transformer).
2、Black line connects to the negative pole of 300V filter capacitor (hot ground).
3, yellow line to the output of the main power supply 5-24V filter capacitor positive.
4、Blue line connects to the negative pole of the output filter capacitor (cold ground).
5, white line spare line, need remote shutdown control, connect this line to the optocoupler, 4 pins can be (high level power on).
Package list:
Switching power supply module* 1
】
