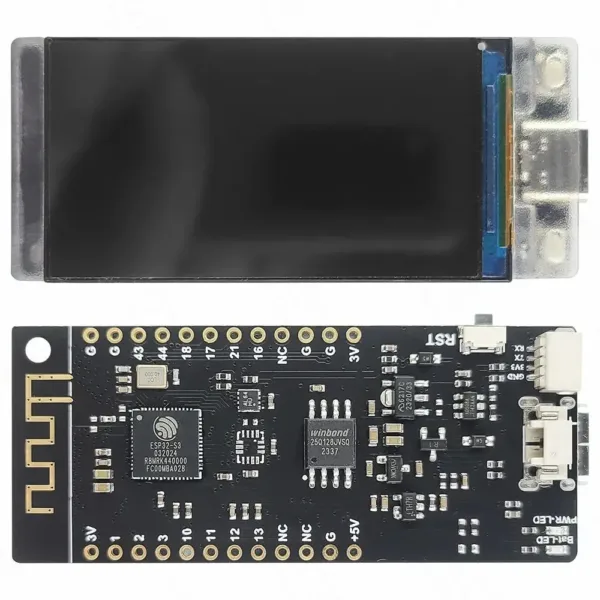

ESP32 S3 Development Board with 1.91 inch IPS LCD Display ESP32-S3 Wifi Module Learning Program MCU Type-C 170*320 Battery Port
ESP32 S3 Development Board with 1.91 inch IPS LCD Display ESP32-S3 Wifi Module Learning Program MCU Type-C 170*320 Battery Port $20.10
Click to enlarge

Waveshare ESP32-S3 1.47inch LCD Touch Screen IPS 1.47 inch Display Development Board 172×320 SD AXS5106L JD9853

Price range: $14.90 through $15.90

Add to compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

  • Battery Included: No

  • High-concerned chemical: None

  • Compatible With: ESP32-S3

  • Accessory Type: LCD Screen

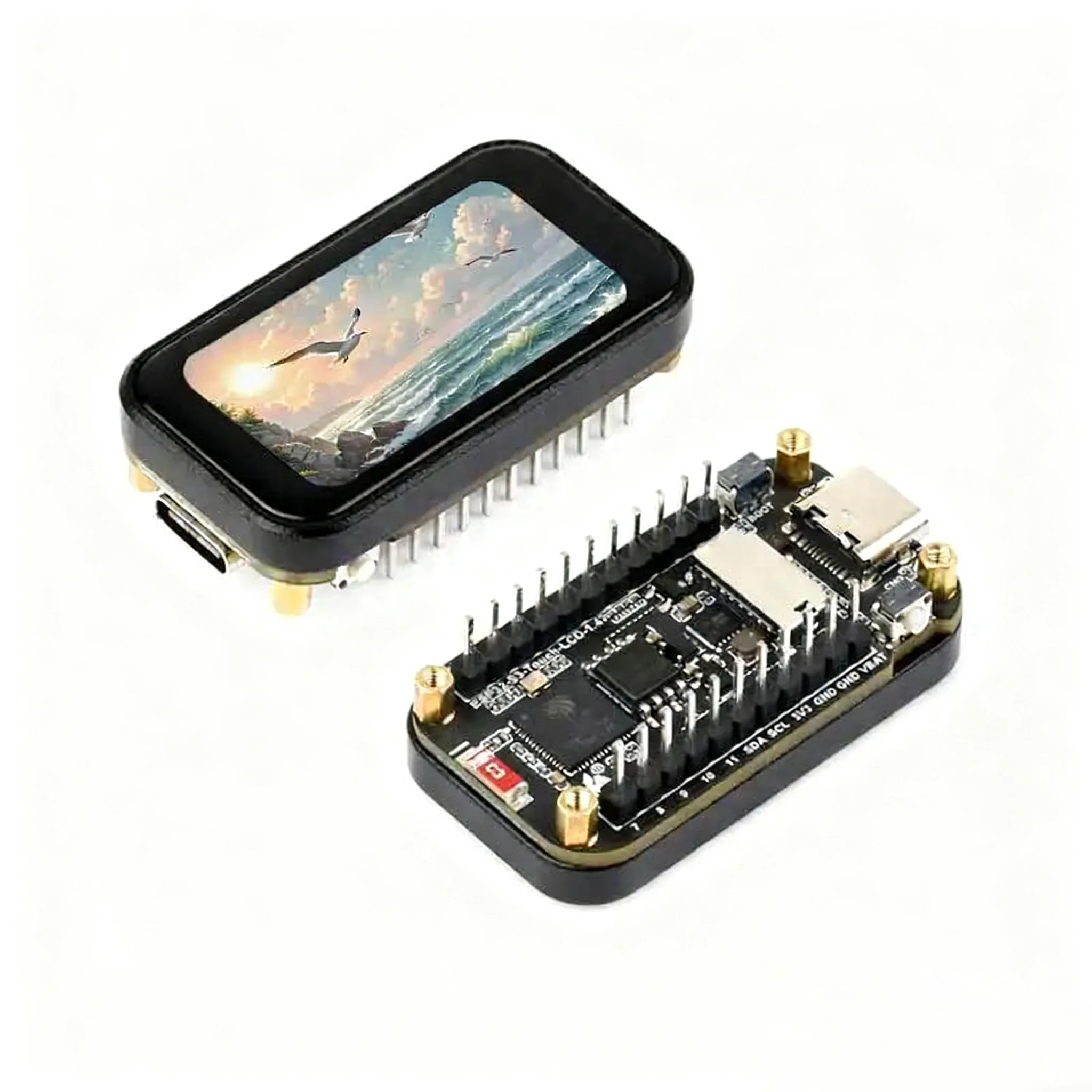

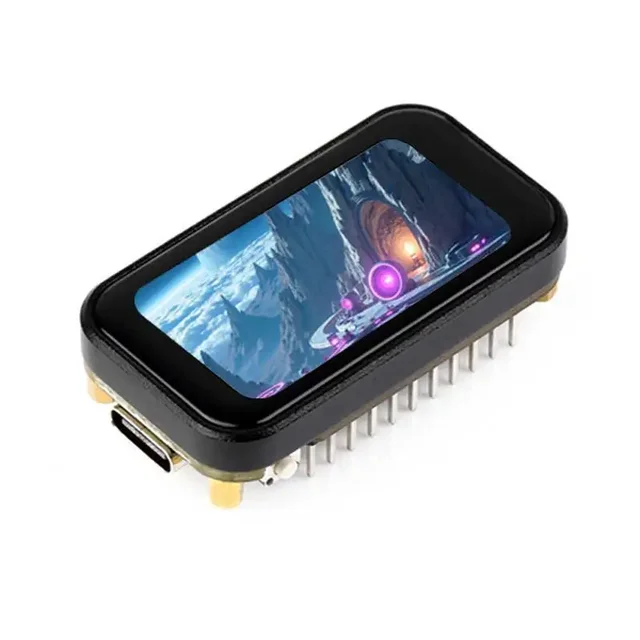

ESP32-S3-Touch-LCD-1.47

Onboard 1.47inch IPS touch display, can smoothly run GUI programs such as LVGL

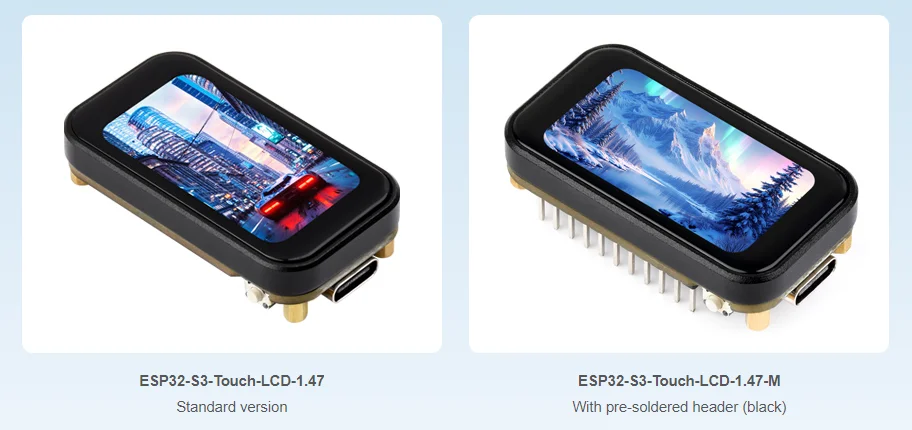

Version Options
Features

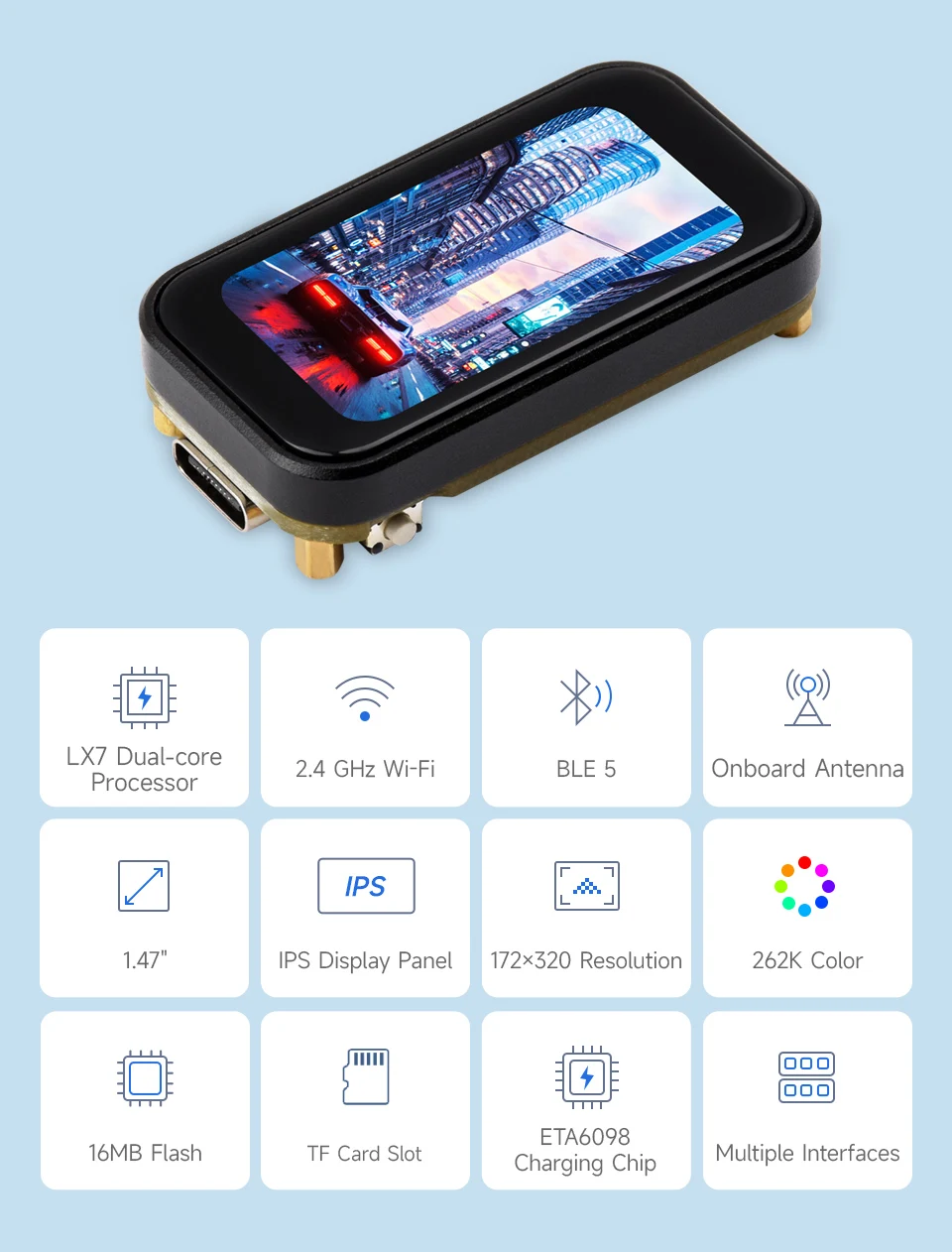

ESP32-S3-Touch-LCD-1.47 uses ESP32-S3R8 chip with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL.

  • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
  • Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color
  • Adapting multiple IO interfaces, integrates full-speed USB port
  • Onboard TF card slot for external TF card storage of pictures or files
  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

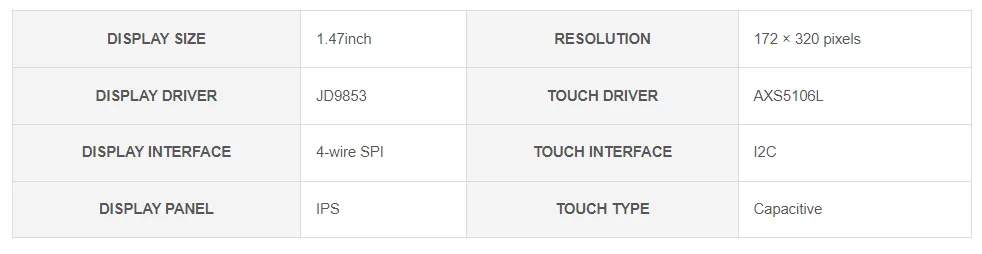

LCD Specifications

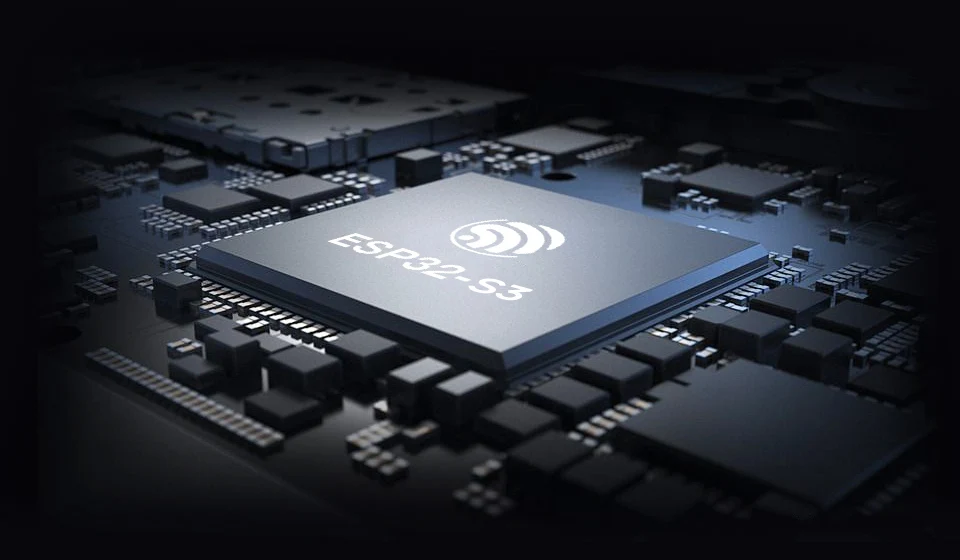

ESP32-S3 Suitable For AIoT Applications

Powered By A High-Performance 32-Bit LX7 Dual-Core Processor, The Main Frequency Is Up To 240 MHz, Powerful AI Computing Capability & Reliable Security Features

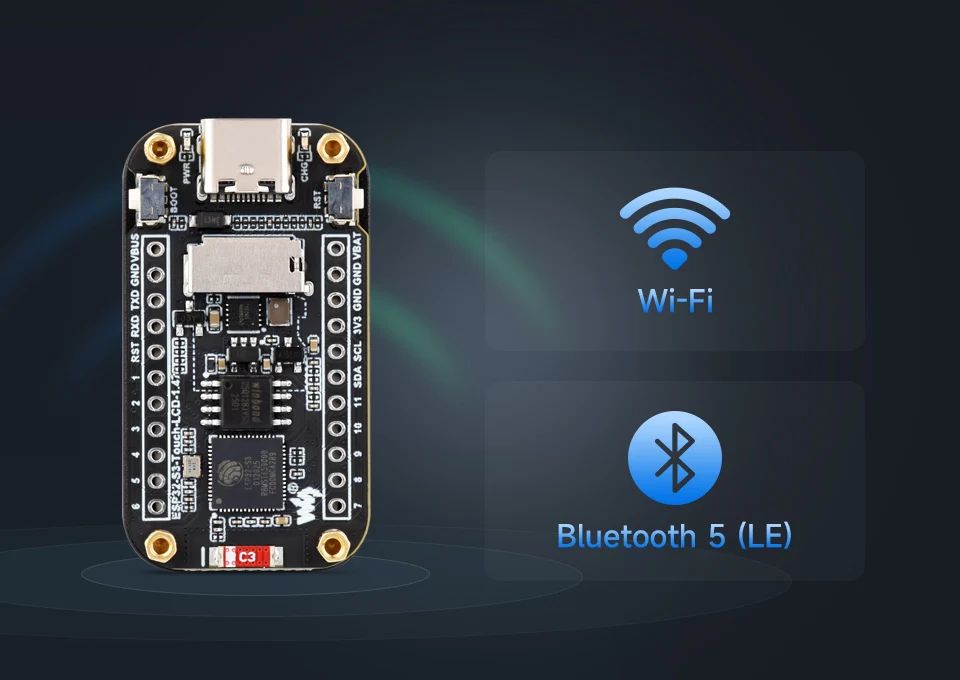

Wi-Fi And BLE 5 Support

ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Application Scenarios



Pin Definition

Supports The Expansion Of Multiple Peripherals Via GPIO Header

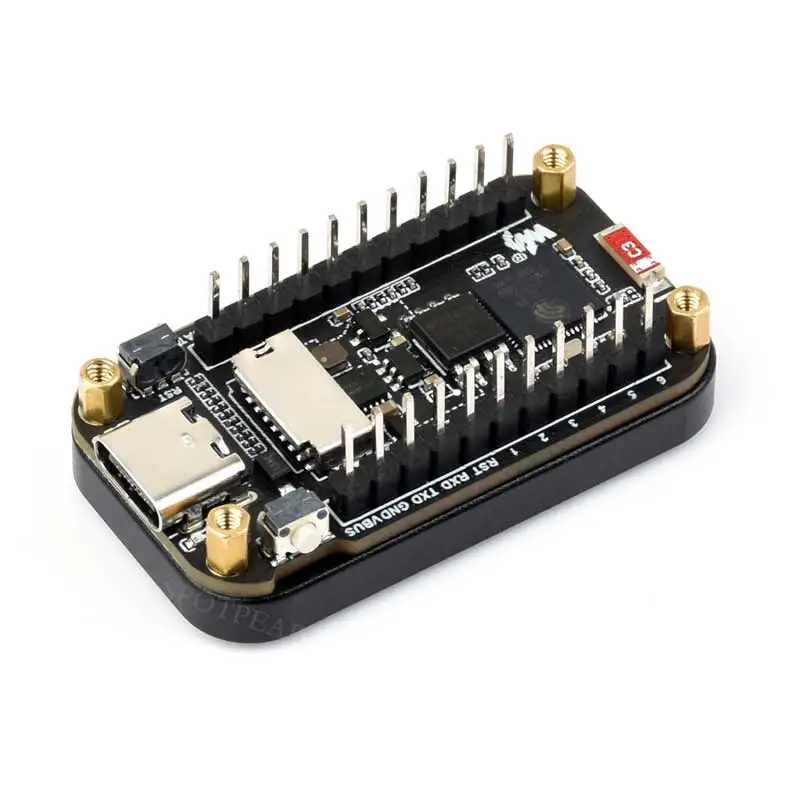

What’s On Board



Outline Dimensions

Package Contains



ESP32-S3-Touch-LCD-1.47 x1



ESP32-S3-Touch-LCD-1.47-M x1

SHOW MORE

Additional information

Weight N/A
