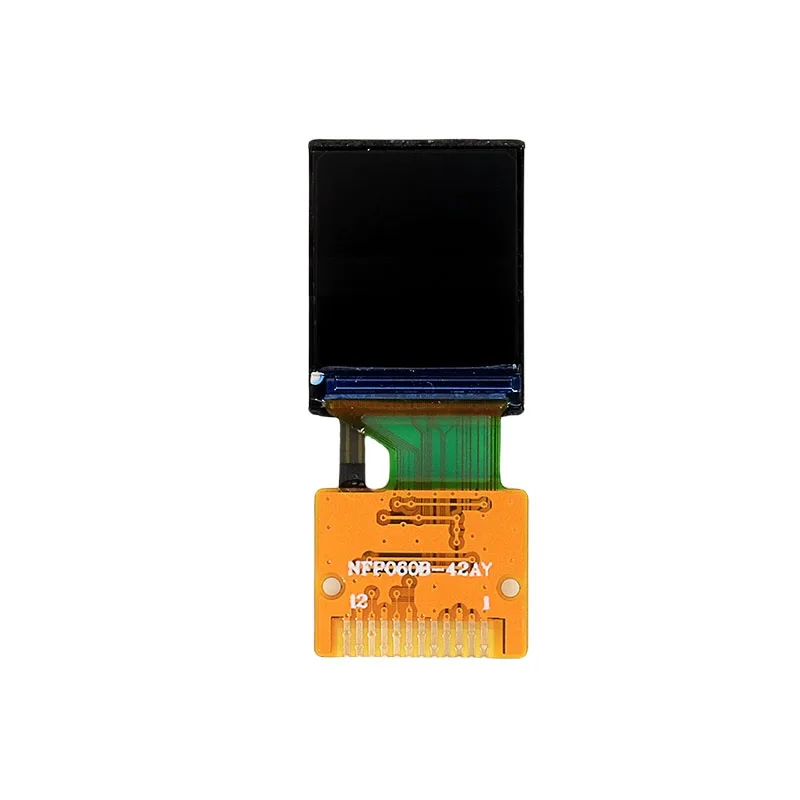

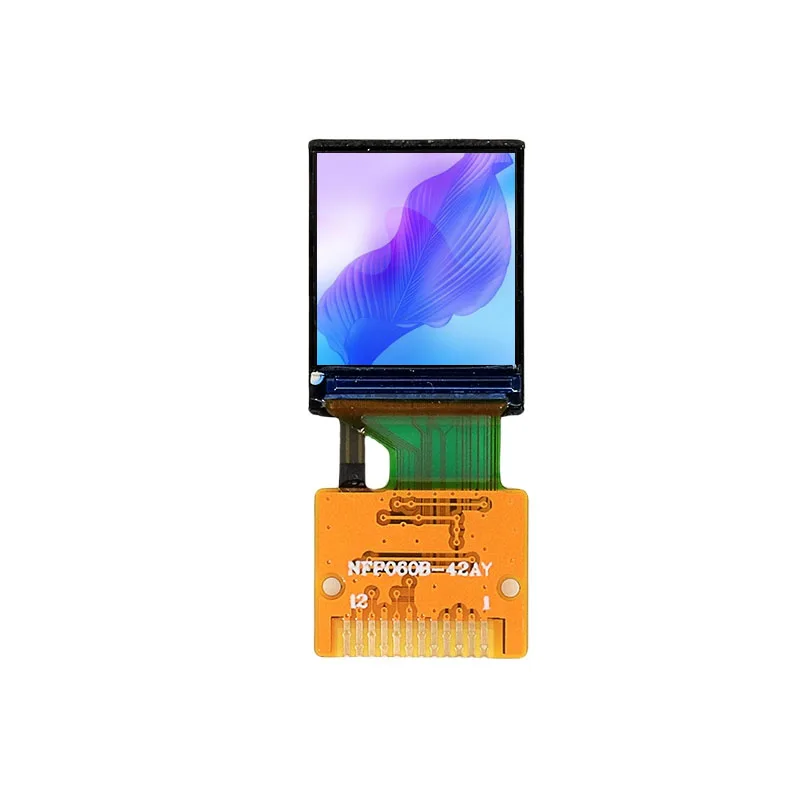

0.6″ Inch Small Size IPS TFT Color Screen 128×150 SPI Interface with ST7735P3 Full View Display Module 12P Pins

$3.20

In stock

Add to compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Features:

  • 0.6-inch IPS TFT with All-View (Wide-Angle) Visibility

  • Resolution: 128 × RGB × 150

  • ST7735P3 Drive IC with 4-Line SPI Interface

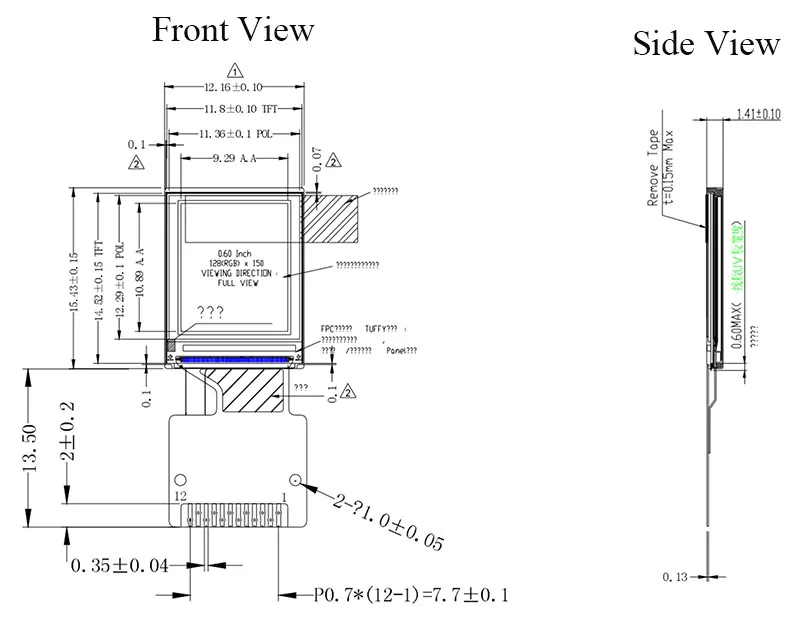

  • Compact Module Size: 12.16 mm × 15.43 mm × 1.41 mm

  • High Luminance: 350 cd/m² (Typ.)

  • Operating Temperature: -20 ℃ to +70 ℃

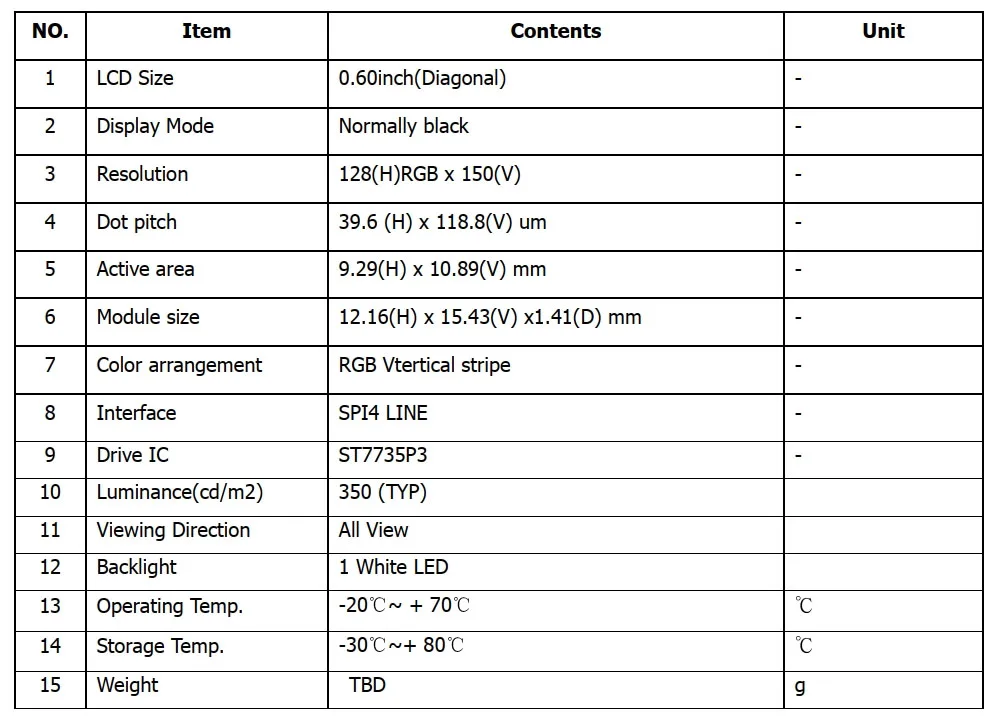

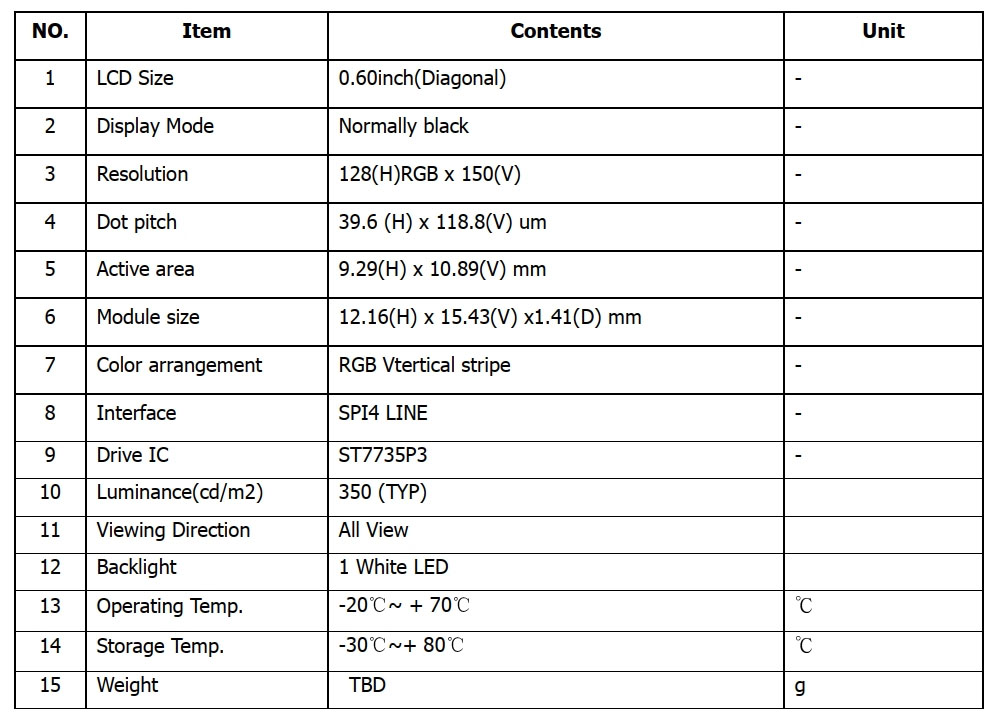

Specifications:

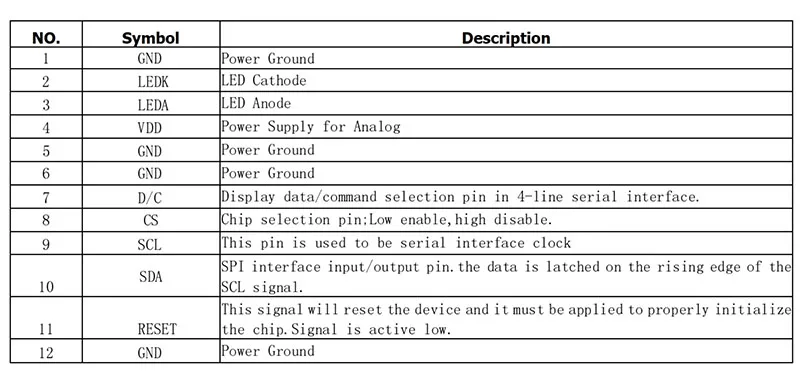

Pin definition

Schematic Showcase

SHOW MORE

Additional information

Weight 150 g
