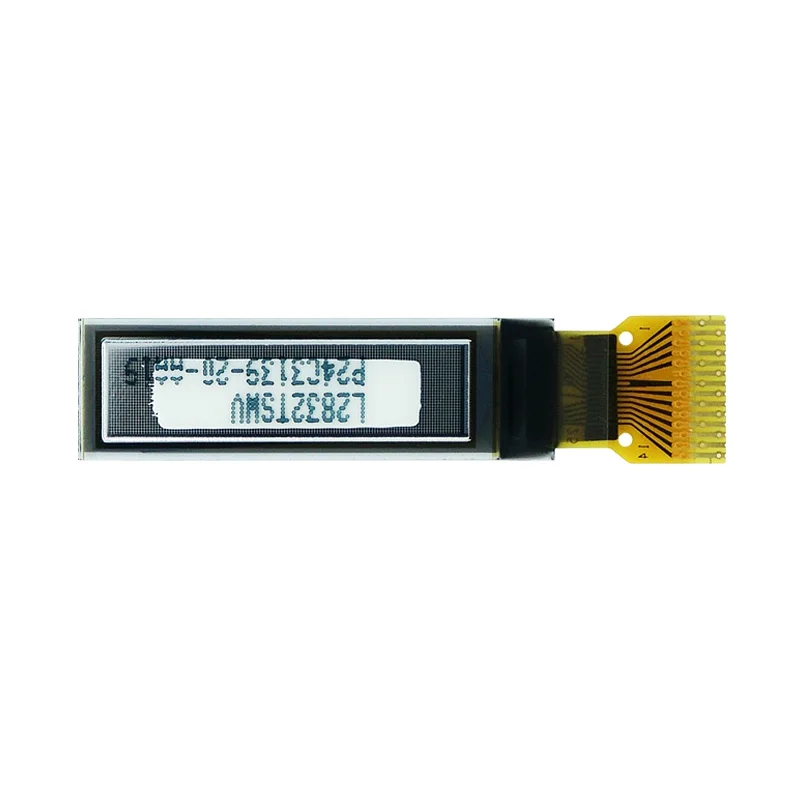

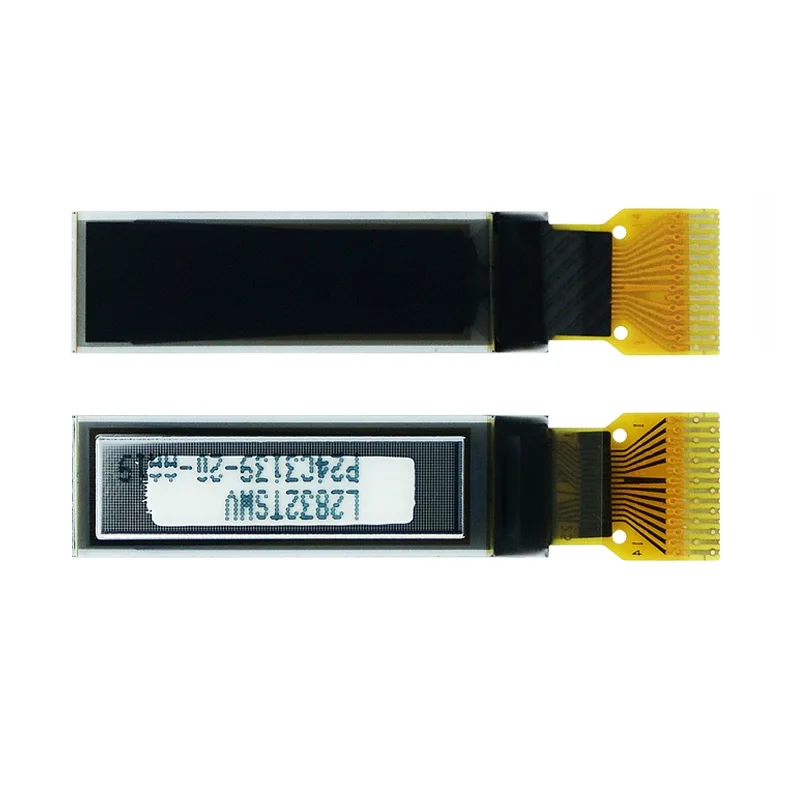

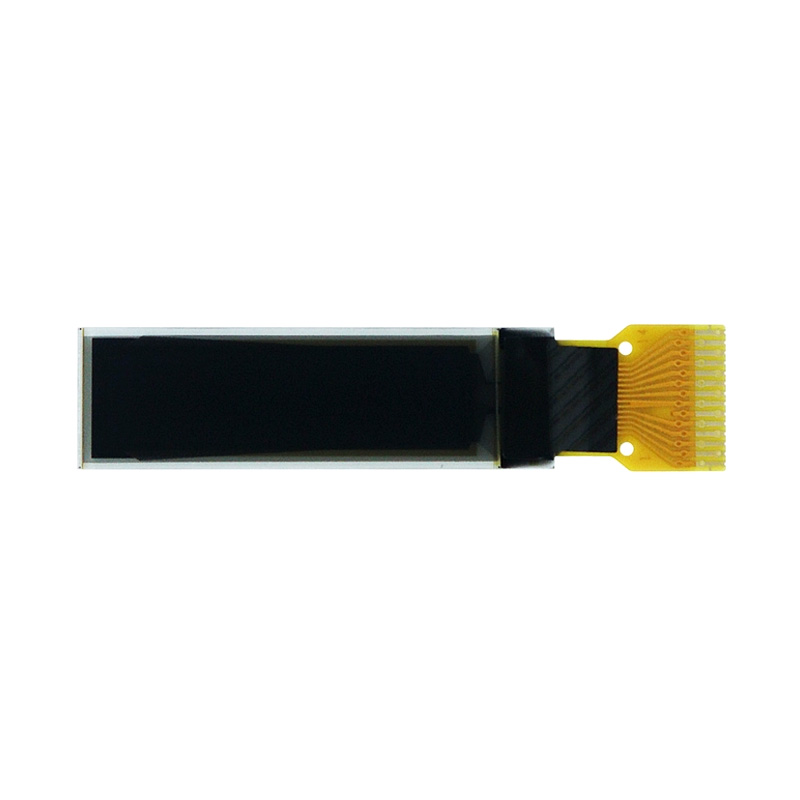

0.87 Inch OLED Display Module, 128×32 Resolution, SSD1316 Driver, I2C Interface, Monochrome, Bare Panel Small Display LCD Module

$4.50

In stock

Add to compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Specifications:

  • Display Size: 0.87 Inch

  • Display Type: OLED (Monochrome White)

  • Resolution: 128 x 32 Pixels

  • Driver IC: SSD1316

  • Interface: I²C (I2C)

  • Connection: 14-Pin Solder Pads

  • Supply Voltage: 2.8V ~ 3.3V

  • Operating Temperature: -20°C ~ +70°C

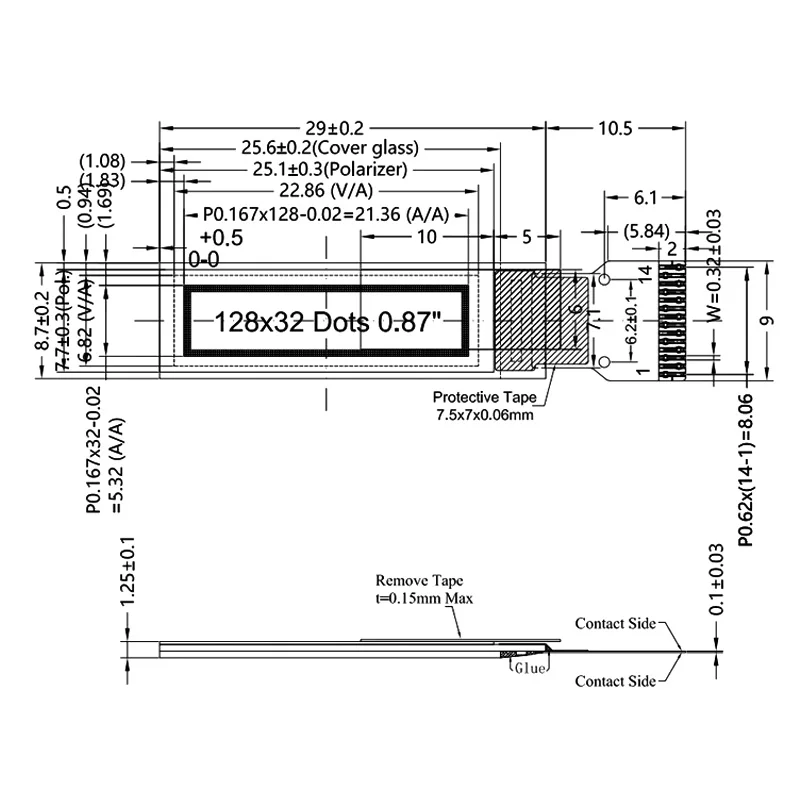

  • Module Dimensions: ~ 30.0 x 15.0 x ~2.0 mm

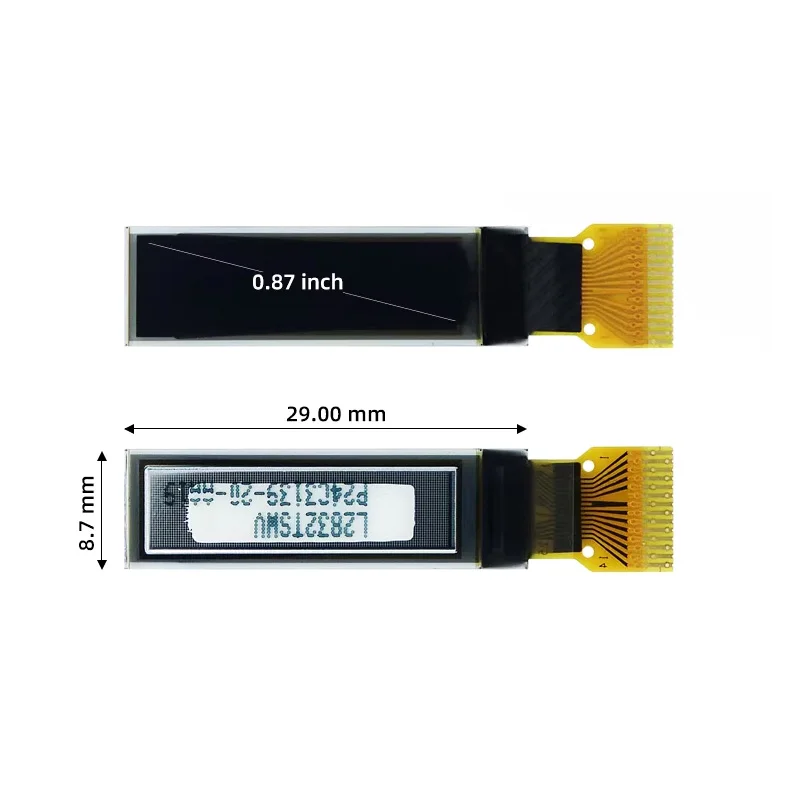

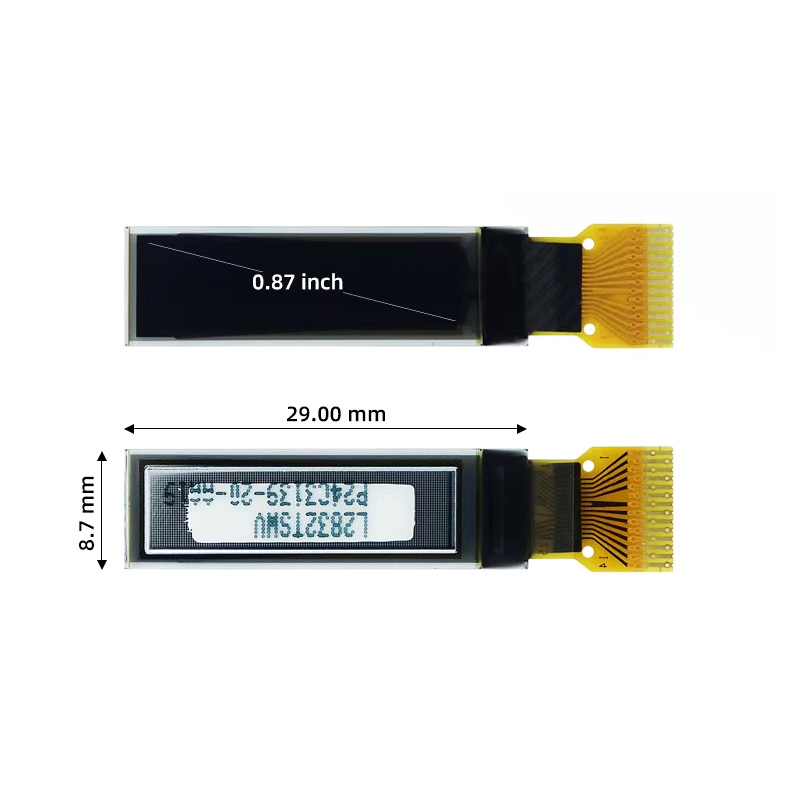

  • Screen (Panel) Dimensions: 29.0 x 8.7 x 1.25 mm

  • Active Area Dimensions: 21.36 x 5.32 mm

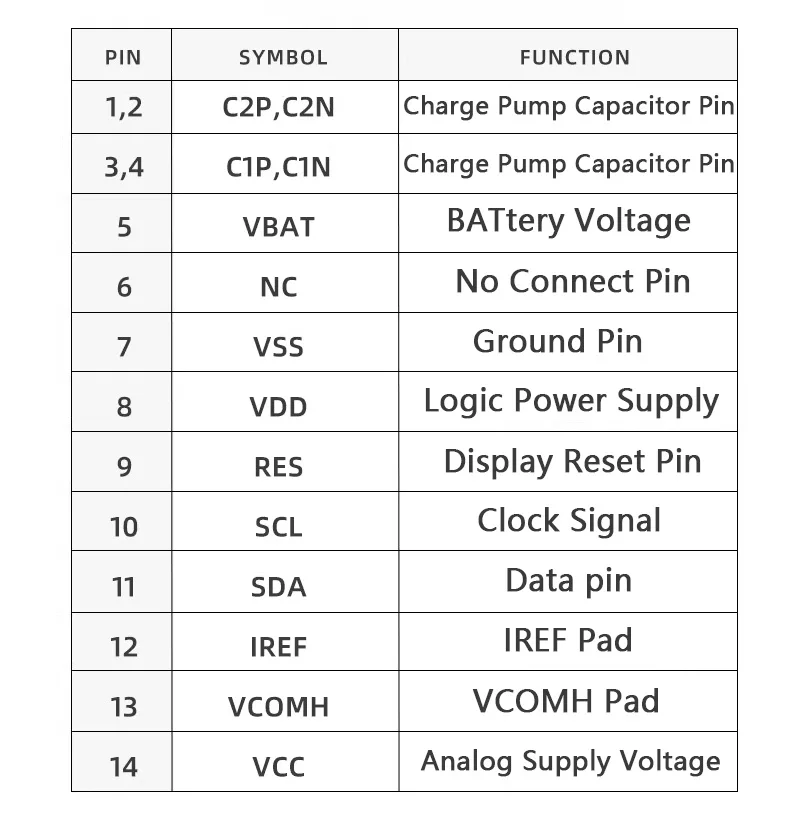

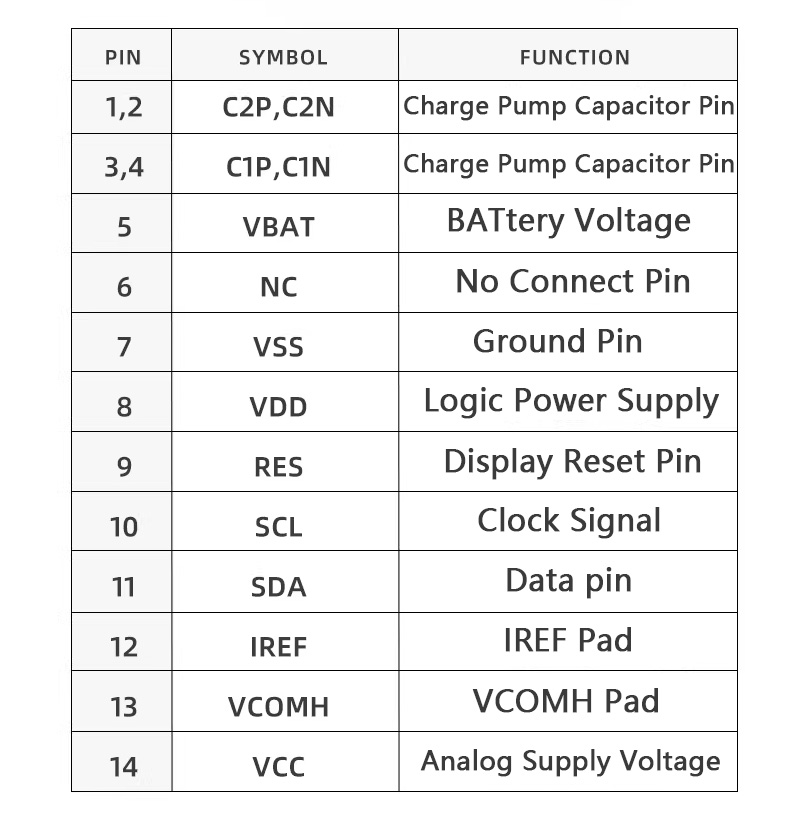

Pin definition

Schematic Showcase

SHOW MORE

Additional information

Weight 180 g
