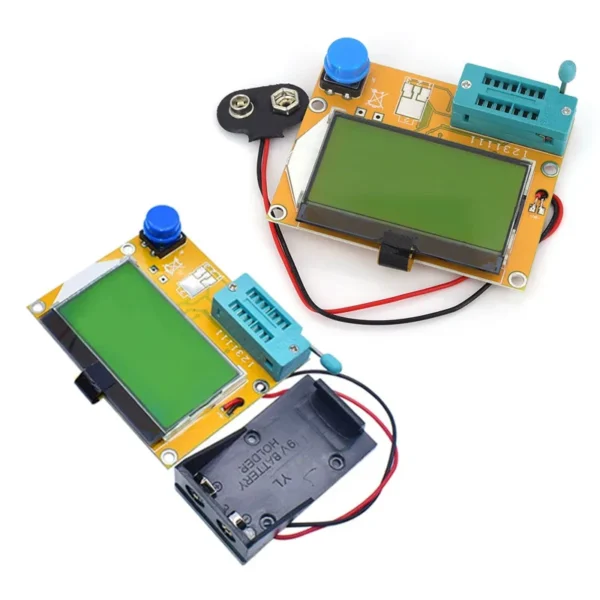

LCR-T4 T3 ESR Meter Transistor Tester Diode Triode Capacitance SCR Inductance MOS PNP NPN
LCR-T4 T3 ESR Meter Transistor Tester Diode Triode Capacitance SCR Inductance MOS PNP NPN Price range: $1.90 through $8.90
Back to products
Transparent Acrylic Shell for LCD1602 LCD Screen with Screw/Nut LCD1602 Shell Case Holder (no with 1602 LCD)
Transparent Acrylic Shell for LCD1602 LCD Screen with Screw/Nut LCD1602 Shell Case Holder (no with 1602 LCD) $1.90
Click to enlarge

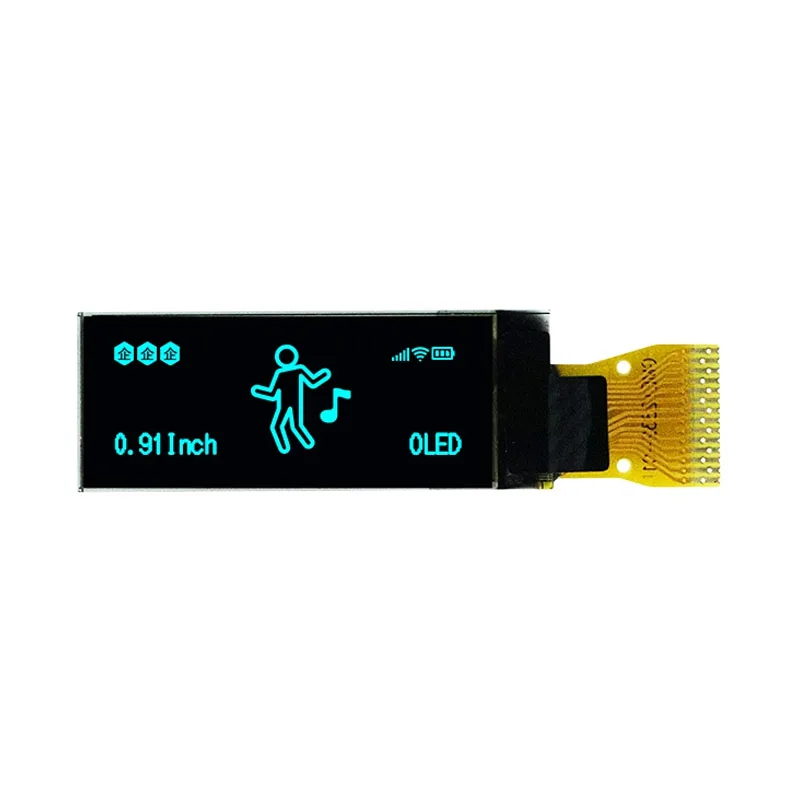

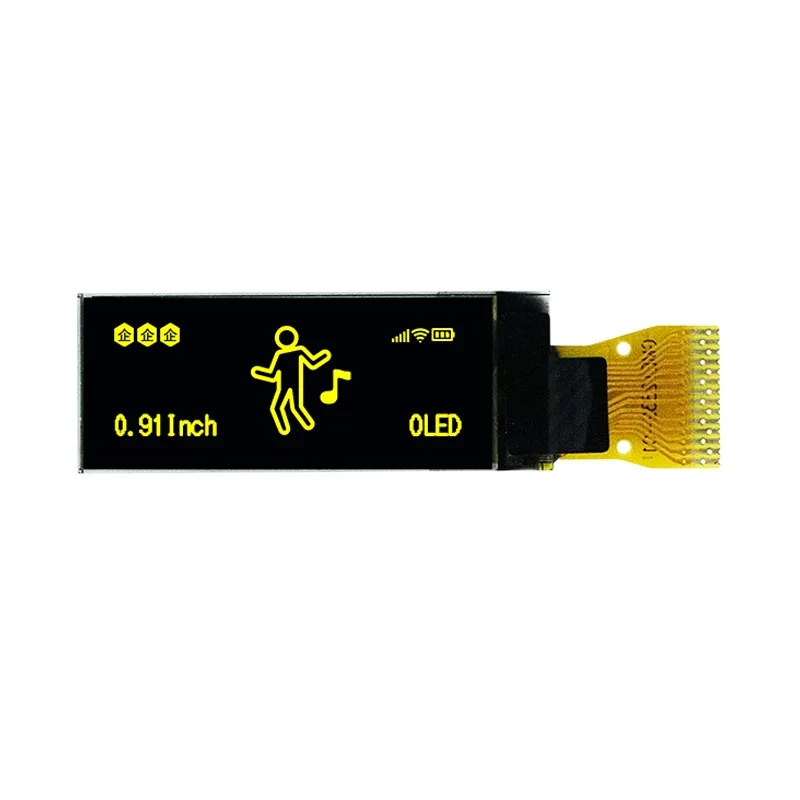

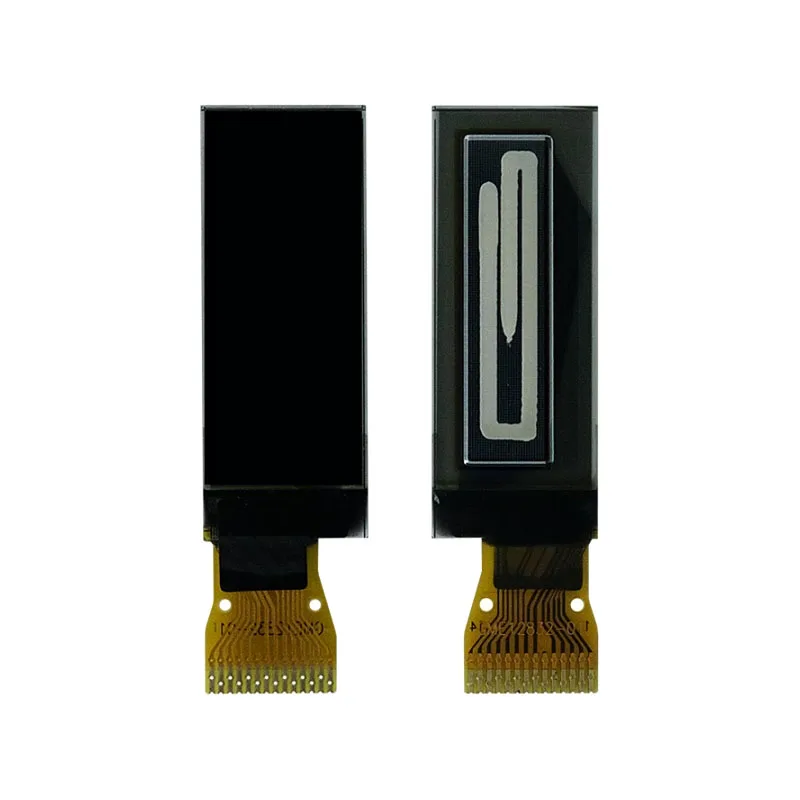

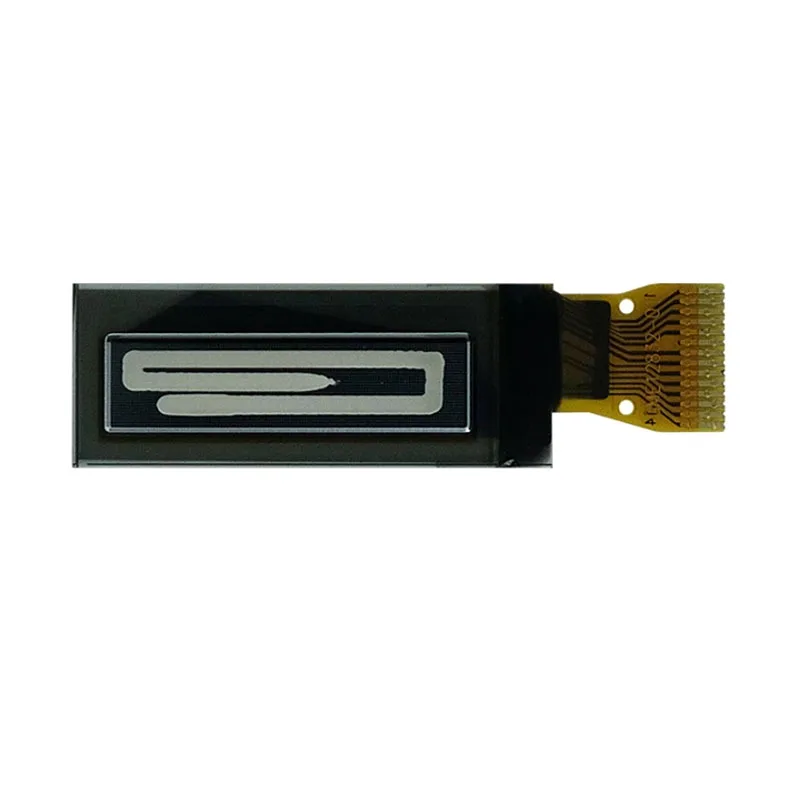

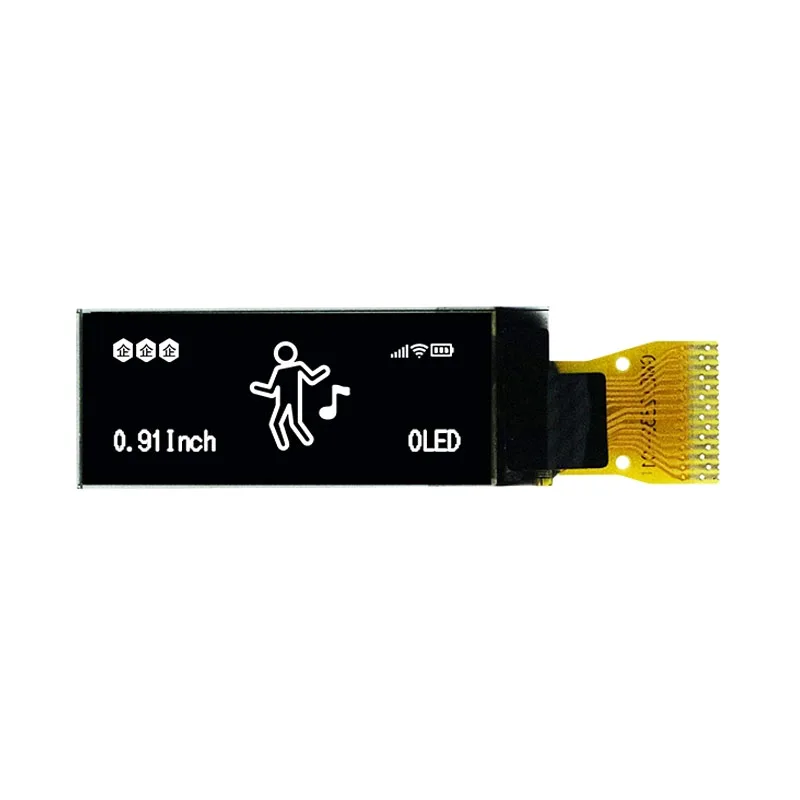

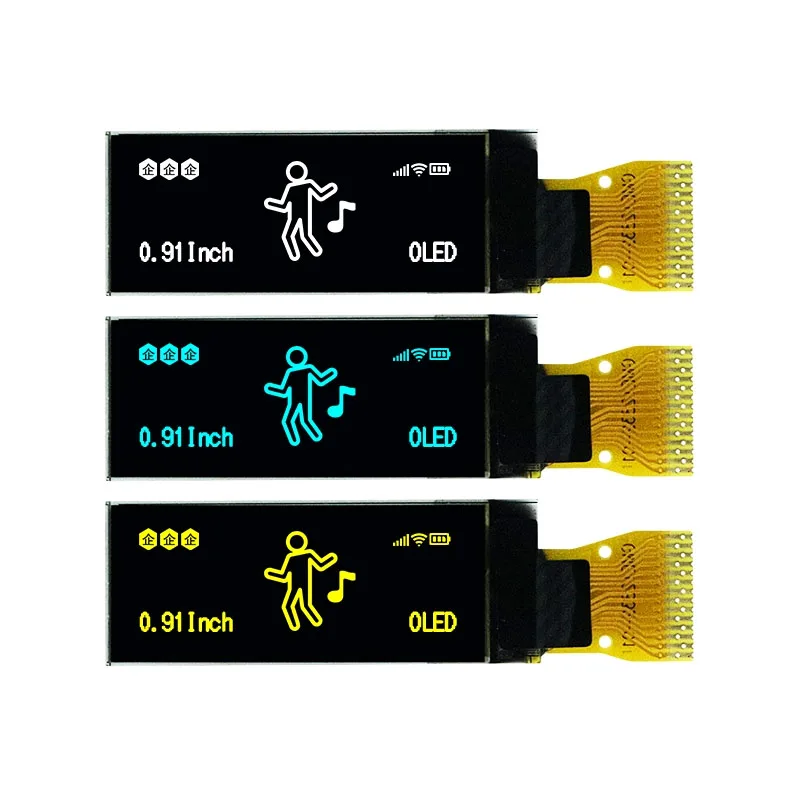

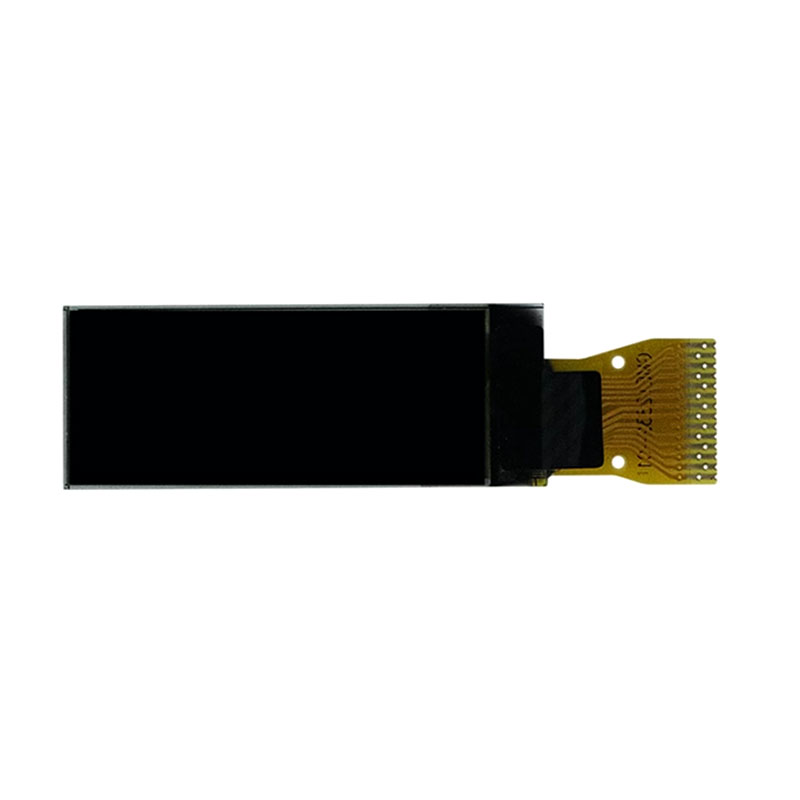

0.91-inch OLED Display Module – SSD1306 Driver, 128×32 Resolution, Monochrome (White/Blue/Yellow), I2C Interface, Bare Panel

$2.60

Add to compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Specifications

  • Size: 0.91 inches

  • Display Color: Monochrome (White/Blue/Yellow)

  • Resolution: 128 × 32 pixels

  • Power Supply: 2.8V ~ 3.3V DC

  • Operating Temperature: -20°C ~ +70°C

  • Connection Method: 14-pin solder pads

  • Driver IC: SSD1306

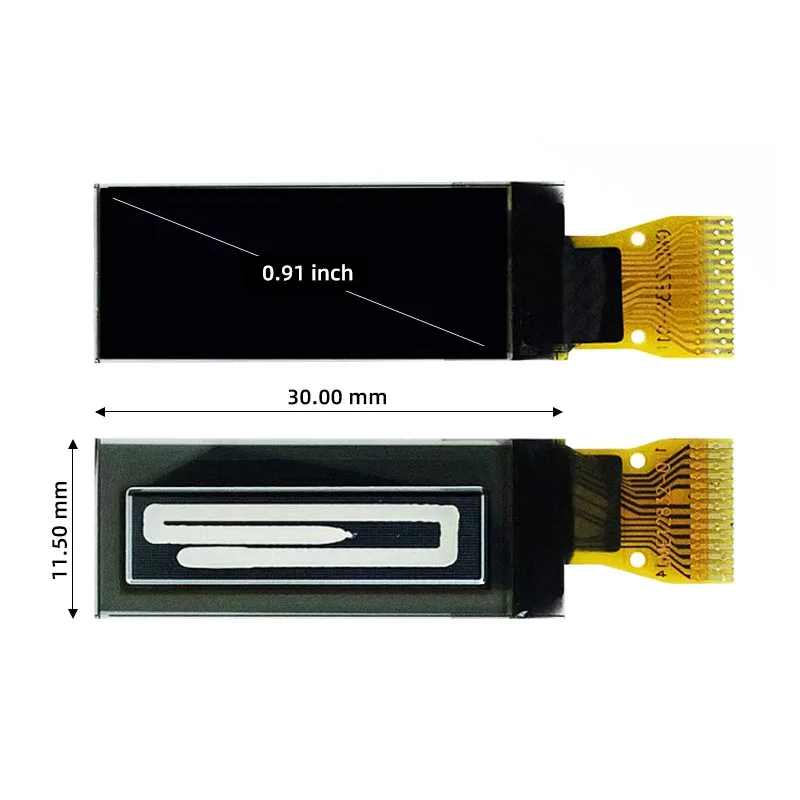

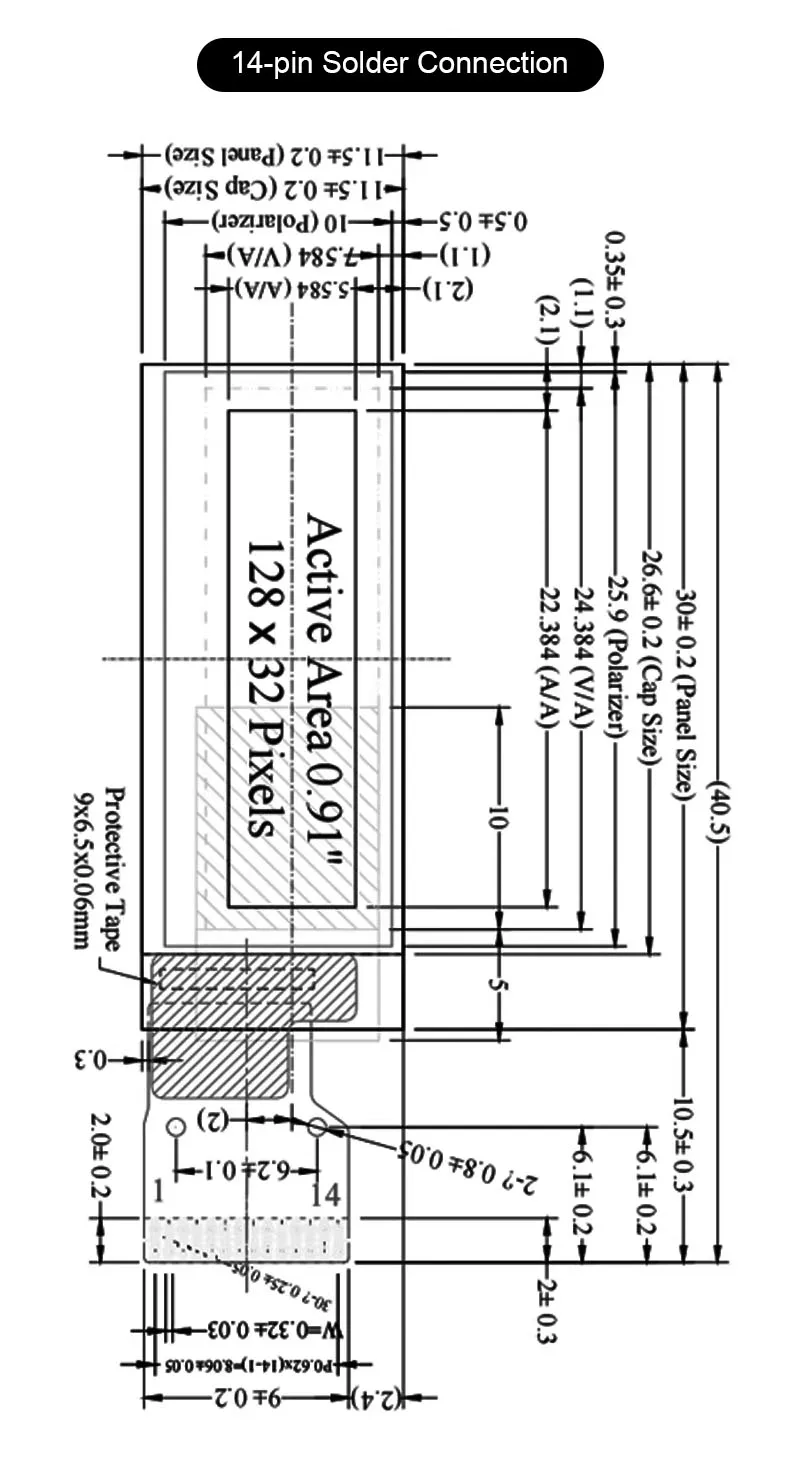

  • Module Dimensions (mm): 30.0 (W) × 11.5 (H) × 1.2 (D)

  • Active Area (mm): 22.384 × 5.584 (visible display region)

  • Interface Type: I²C

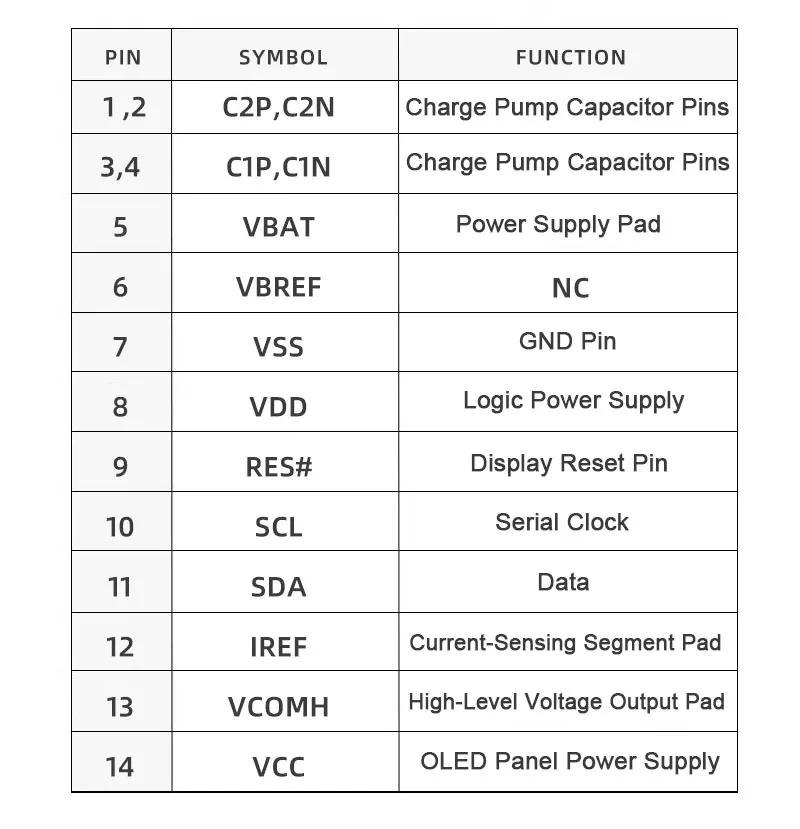

Pin definition

Schematic Showcase

SHOW MORE

Additional information

Weight N/A
