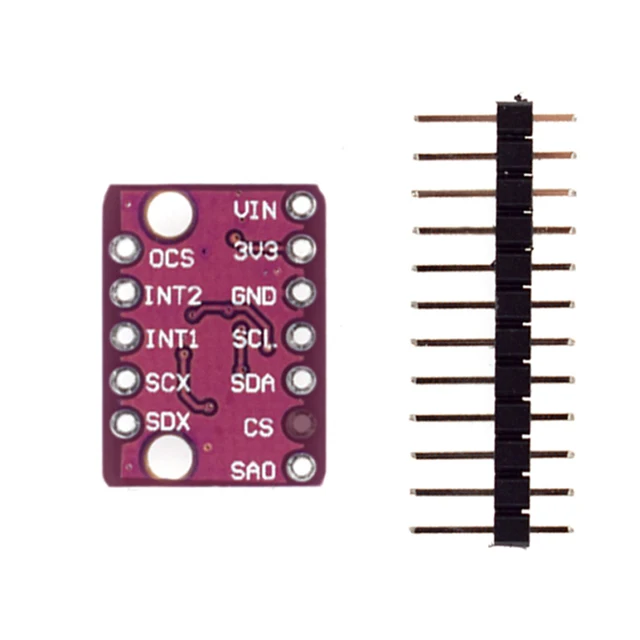

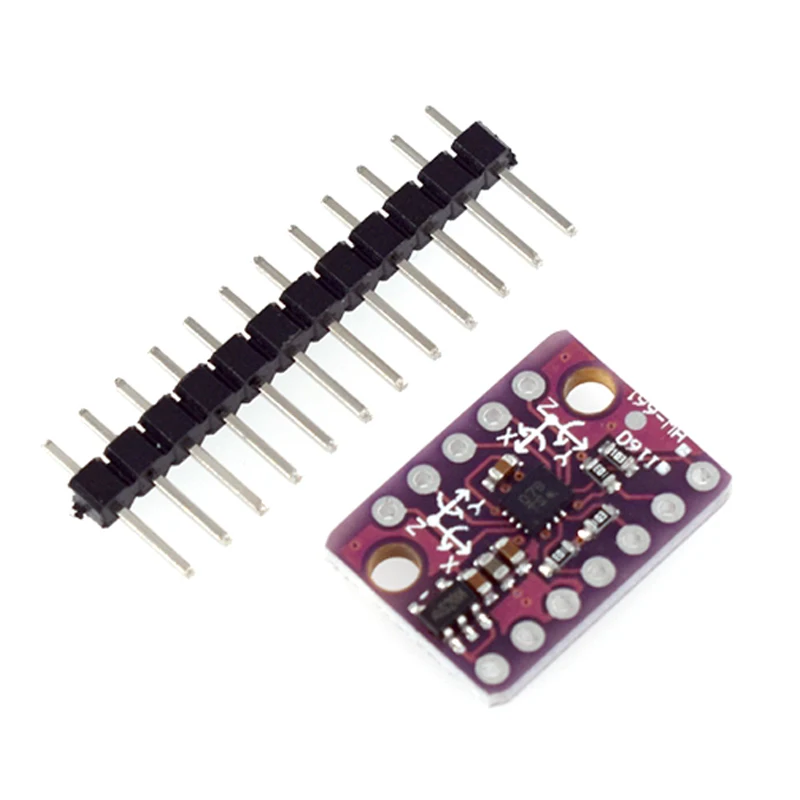

GY-BMI160 module (three-axis gyroscope + three-axis acceleration)
Chip used: BMI160
Power supply: 3-5v (internal low pressure difference voltage regulator)
Communication mode: Standard IIC/SPI communication protocol
Chip built-in 16bit AD converter,16 bit data output
Gyro range: ±125 ±250 ±500 ±1000 ±2000 °/s
Acceleration range: ±2±4±8±16g
Metal-sunk PCB, machine welding process to ensure quality
Pin spacing 2.54mm

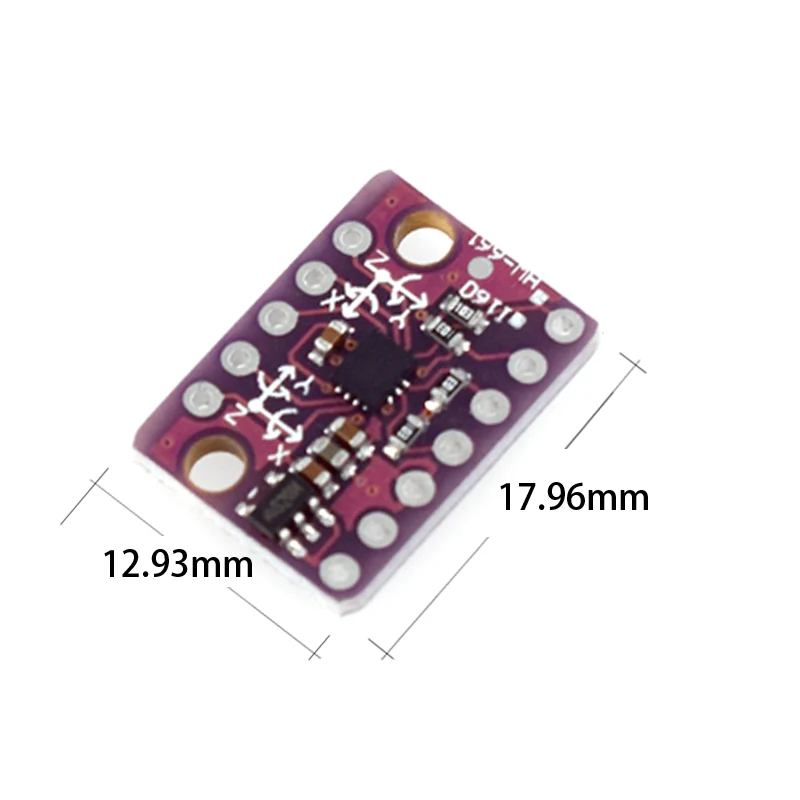

Module size 13mm*18mm
The BMI160 is a small, low power, low noise 16-bit inertial measurement unit designed for use in mobile applications like augmented reality or indoor navigation which require highly accurate, real-time sensor data.
In full operation mode, with both the accelerometer and gyroscope enabled, the current consumption is typically 950 μA, enabling always-on applications in battery driven devices. It is available in a compact 14-pin 2.5 x 3.0 x 0.8 mm3 LGA package.”
Applications
– Augmented reality and immersive gaming
– 3D-scanning and indoor mapping
– Indoor navigation, pedestrian dead-reckoning, step-counting
– 6- and 9-axis sensor fusion, air mouse applications
